The essential articles of furniture in a modern composing room may be classified broadly, omitting obvious details for the present, under the following heads:

1. Cases for type for general composition; for borders, type ornaments, accented letters, fractions, extra sorts, etc., and for engraved plates, and electrotypes; for spaces and quads, brass rules, leads, slugs, metal furniture and large spacing material, and for wood type. Also cases in special cabinets for printed specimens, paper samples, etc.

2. Work Stands and Cabinets—Open wooden frames with or without racks, to hold cases on top; made single or double; with working top. Cabinets, with working top, holding cases, enclosed on sides and back; made single, double, or triple size. Cabinets are made of pressed steel as well as of hard wood.

3. Cabinets and Storage Racks for Cases—In addition to the racks in working stands and cabinets, there are standing racks, cabinets (flat top for holding miscellaneous articles or material, and galley top for temporary storage of live or dead matter), etc.

4. Galley Cabinets and Racks—These are to hold galley matter waiting return of proofs, or for pages made up and waiting to be locked up for electro foundry or for the pressroom. They may be placed in any convenient place, or are sometimes in movable form to be taken from composing or correcting stands to the make-up stand or imposing table.

5. Furniture Racks and Cabinets—For labor-saving fonts of reglet, wood furniture, soft metal or steel furniture, etc.

6. Standing Galleys—These are stands with inclined tops divided sometimes horizontally and sometimes perpendicularly into narrow columns, for holding live or dead standing matter—usually the latter awaiting distribution. The lower part of the frame is usually provided with racks for cases, letter-boards, galleys, or other storage facilities.

7. Imposing Tables—Large flat surfaces upon which pages and forms are imposed and locked up for electrotype molding or prepared for the press. These consist of polished marble slabs on strong frames or tables, with drawer for quoins, etc., and also furnished below with galley racks, receptacles for wood or metal furniture, letter-boards, chase racks, etc. The more common modern imposing tables are made of steel, on iron frames, with the lower parts fitted for the storage of material used in locking up forms.

8. Proofing Apparatus—Proof planer and mallet, galley press, hand press, modern curved-surface machines, automatic proofing machines, self-feeding and self-inking. These also include proof rollers, ink tables, shelves for proof paper, and receptacles for benzine or other type-washing liquids.

In addition to the foregoing brief summary there are numerous other items of composing-room equipment, large and small, provided for the particular needs of the work carried on in the place. Many of these items, however, are not in extensive use, as in many places the needs they would serve might not warrant the expense of their installation. The specialties of the printing industry nowadays affect the composing-room as well as the other departments.

A particular article which is useful and profitable in one place may be quite superfluous and an unnecessary expense in another. The kind and quantity of the work done in any workroom usually governs the kind and the extent of the equipment provided—making allowance always for the customary variation in individual judgment and the proprietor's ability to purchase.

There is a wide range of choice from a plain wooden double stand with two pairs of cases, at which two persons may work, costing six to ten dollars, to a latest pattern steel working cabinet, also providing for only two workers, costing one hundred dollars, or even more.

There are, however, certain articles and facilities fundamentally necessary to carry on the work of a composing room. The particular form of these—whether simple and inexpensive or elaborate and costly—is a question for the proprietor or manager to consider.

The articles of furniture classified under items 1, 2, 3, 4, 5 and 6, in the foregoing list, are those treated in this book; those referred to in item 7, Imposing Tables and Lock-Up Appliances, being considered in a separate volume (No. 4). Proof Presses, item 8, are also treated in a separate book (No. 5).

---

Fig. 1. Early Type Case. Probably the first article which Gutenberg and his co-workers provided, after their types were cast, was a tray with small compartments for holding the various letters of the font, so that each letter, as it was required for composing, could be readily selected. There may not have been a composing stick used at first, it is reasonable to suppose, as it was quite feasible for the types to be assembled in lines directly into the frames in which they were held during the printing. A case in which to hold the type, however, was a first and obvious necessity.

The early type cases are shown in pictures of the time as made of a single tray containing all the characters of the font and resting in a slanting position on a rude frame or “horse,” at which the compositor is usually seated. All the boxes of the case are represented as of the same size, which probably was not the fact even in early practice any more than it is today. Early designers and artists no doubt overlooked or ignored what they considered an unimportant detail, just as today they often persist in misrepresenting the true outline of the printer's lower-case. One does not need to take much thought or to have much experience to understand that in all printed languages some characters are used more than others and therefore more types of these letters and larger boxes to hold them should be provided.

For a long time the large single case with boxes for the entire list of characters was used, and these are still common in many European composing rooms. In English and American workshops, however, the pair of cases, one above the other, for many years has been the rule for large fonts in book and news work. These cases, being smaller and holding but a part of the font, are more convenient for storing and for moving from place to place about the room as they are needed for use.

The cases described by Moxon in 1683 are in pairs, and the arrangement of the letters in the lower case, as shown in his illustrations, bear a close similarity to the plan of English cases of today.

Early American cases came from England and naturally they conformed to the customs of the time and place of origin. Probably in no other important particular has the tendency of printers to hold to past methods been more strongly emphasized than in their refusal to adopt any important change in the style of the most used type cases and the arrangement of the types in the boxes. Force of habit and dislike for innovation have kept practically unchanged for two and a half centuries the relative positions of the chief characters in the case. At the same time there has been universal acknowledgment that the adoption of some of the suggested improvements would add greatly to convenience and economy; and further, that many of these improvements could be adopted with an effort and expense so small as to be out of all proportion to the advantages obtained.

Fig. 2-a. Upper Case.[A] Fig. 2-b. Lower Case. The standard type case of today is 32¼ inches wide, as it lies on the work-stand, and 16⅝ inches—or slightly more than one half of the width—from the front to the back or upper edge. The usual depth of the outside frame is 1⅜ inches, the minor inside partitions being slightly lower than the outside frame and middle crossbar, thus making the normal depth of the boxes approximately 1 inch. These dimensions vary only by fractions of an inch from those given by Moxon, and they seem to have been quite uniformly adhered to as an acceptable size for printers' cases.

Other sizes of cases, however, have been made and quite commonly used during the last half century. Those now listed in the dealers' catalogs are known as three-quarter size (26½ inches wide by 16⅝ inches front to back) and two-third size (21¾ by 16⅝ inches). There is also another size known as the Rooker case, used to some extent in newspaper composing rooms, the dimensions being 28½ x 14 inches, which is about one-fifth smaller than the standard case. It holds nearly the same quantity of the smaller sizes of type and has the advantage of occupying less room.

When printing offices employed but few workmen and there was small equipment, the need for economizing space did not seem a pressing one. Large cases with small fonts, and open-frame working stands with few or no racks or shelves for storage of extra material, were not considered extravagant so long as the original cost was small. The employment of larger numbers of workmen, however, and the consequent additional equipment of cases, with racks, cabinets, imposing tables, and other facilities concentrated in city buildings where the cost of rent, light, heat, etc., is high and constantly increasing, have made the utilization of waste space a matter of urgent necessity. The three-quarter, two-third cases, and even smaller sizes, which can be kept in smaller racks and cabinets, have therefore been found convenient in many places, but these must be provided with suitable racks or cabinets of the proper size. The smaller cases are sufficient to hold many of the usual small fonts, as well as the ordinary auxiliary material, like type borders, ornaments, small electros, etc. Small cases, with their lesser weight of contents in type metal, often give distinct advantage in the ease with which they may be handled.

Type cases are made of wood thoroughly seasoned to prevent as much as possible any shrinking after they are finished and have remained for some time in the usually dry air of a composing room. It is not so common a custom now, as it was formerly, to sponge type on the galley before distributing and to allow the surplus water to flow into the case, thus subjecting parts of the case to excessive dampness. The old type cases, under such careless usage, were quickly warped and cracked. The splitting of the bottom and the separation of the partitions allowed small types to drop out and to shift under the partitions. These defects were partially overcome by papering the bottoms of the boxes, the proper accomplishment of which was at one time considered a part of the compositor's duty.

Fig. 3. Section Showing Triple-Veneer Bottom of Case. The modern American type case is better made than its predecessors, being so far superior in several essential particulars as to be a distinct achievement in factory woodwork. A type case, with 49 to 100 or more small boxes, is not a simple thing to make by hand labor. While the making of the outside frame and the bottom involve no special difficulties, the box partitions and their proper fastening to each other and to the bottom of the case require patience and skill. Only a highly developed system of specialization could provide the cases of today at the prevailing cost.

Fig. 4. Detail of Type Case, showing at A how bottom is fitted to side frame. Fig. 5. Clasp and Pin Fastening at corners of boxes in modern type case. The bottom of the old-time case warped and split easily because it was made of a single thin board. The modern case has a bottom made of three-ply wood, the middle layer having the grain across that of the other two. (Fig. 3.) These three layers are thoroughly glued together and the upper side is smoothly covered with a strong paper before the partitions are fastened to the bottom. The common styles of case have a strong bar of the same thickness as the outside frame across the middle. In several styles there are two or even more crossbars. These crossbars serve not only to divide the main sections of boxes, but they also act as strong braces to which the bottoms are fastened, giving greater rigidity to the entire case.

The bottom of the case is fitted into a groove made in the outside frame, so that it cannot be easily separated. This groove being slightly higher than the lower face of the side frame, upon which the case slides back and forth in the rack, keeps the bottom up far enough to allow it to pass clear of the runs, or of any case or shelf below. The partitions are made by strips across the full width of each section of the case from outer frame to outer frame or to crossbar. The strips are crossed at the corners of the boxes by mortising each piece one half of its depth at the proper place—one from above and the other from below—and dovetailing the cross pieces together. (Fig. 4.) The corners of the boxes are then re-enforced by brass clasps made to fit over the top of the partitions and held by a long pin driven down through the dovetailed partitions and clinched at the bottom of the case. (See Fig. 5.).

While wooden cases are used by printers chiefly for holding type fonts, they are now also used for a large variety of auxiliary material which it is necessary to keep more or less carefully classified in convenient containers. The increasing quantities and varieties of this material now needed in an average composing-room make convenient receptacles and orderly, systematic arrangement a necessity if the work is to be carried on without excessive waste. In no other trade is there a greater multiplicity of details to be considered in order to obtain a finished product, and a thoughtless, unnecessary waste of time, effort, or material in attending to these details adds enormously to the expense of the product. And so it is becoming the practice of good managers to use cases more abundantly than formerly and to store them in convenient racks and cabinets, so that this large mass of material may be kept classified and may be obtained quickly when needed.

Besides the ordinary pair of upper case and lower case, many styles of single cases are made to hold a complete font of capitals, lower case, figures, points, etc., and others are planned to hold small capitals in addition. Some are made for fonts of capitals, figures, and points only; some for figures only (especially for time-tables and tabular work), for fractions, accented letters, special characters and sorts, for leaders, type borders and ornaments, etc. A large variety of cases are planned for labor-saving fonts of brass rule. Others are made especially for spaces and quads, for leads and slugs, and for metal furniture. These are made in many sizes, from the small space-and-rule case, 5 inches by 6¼ inches, which can be placed beside the compositor's galley, up to the mammoth metal furniture case, 18 inches by 72 inches, covering a space equal to the top of a double stand. Dealers' catalogs now show from seventy-five to a hundred or more different kinds of cases for printers' use.

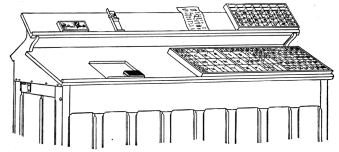

Fig. 16. Compositor's Work Stand—Front Side. Primarily a working case-stand for a compositor serves two purposes. It should hold the cases in a position where he can work with reasonable comfort, and it should be fitted to contain the necessary material for his immediate use. For the first purpose the height of the case, working top, or shelf, should conform approximately to a level that will be comfortable for the individual workman. A tall man may work easily at a case which would be too high for the comfort of an apprentice, and a case at the right elevation for one below the average height would cause a habit of tiresome, if not unhealthful, stooping in a tall person. It often happens in some places that such conditions may not be adjusted without some bother, and an uncomfortable temporary position may not be a serious matter for very brief periods. The tendency in well-managed workrooms, however, is to remedy such improper situations and not to permit workmen to work habitually under conditions which may be easily improved. “The height of a compositor and his frame,” said an early authority among printers, “should be so adjusted that his right elbow may just clear the front of the lower case by the a box, without the smallest elevation of the shoulder”; and this seems a wise general rule to observe.

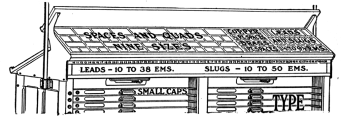

Fig. 17. Compositor's Work Stand—Rear View. When the type case is placed at a height at which the compositor may stand erect before it, the boxes are more readily reached by the hand if the back of the case is at a slight elevation. A case lying perfectly flat must be somewhat lower, in relation to the compositor's arms, than when it is resting at an inclination, in order to take types from it with the same facility. Consequently the custom is to place working cases and working tops or shelves at an inclination upward from the front to the back.

This inclination serves also as the most convenient kind of a rest for galleys upon which loose lines of composed matter are handled. Lines of small type will not stand upright without support of some kind, even on a perfectly level, smooth, rigid surface. The universal custom, therefore, is to place galleys of type matter in a slanting position, so that the ends of the lines will be higher and all the matter will rest firmly against the lower rim of the galley. A galley in this slanting position, with the first letter in the line resting against the lower rim and the words reading upward, is the safest and most practicable manner in which to make corrections, lift out or insert whole lines singly or in groups, or to handle types generally in certain difficult composition, making-up pages, etc. After the pages are tied up or surrounded by side supports in some manner they may be conveniently handled on a level surface. Ordinary linotyped matter, which consists of a single piece for each line of words, and consequently is not liable to pi, may be, and usually is, handled throughout on level tables; but types are easily and safely handled only when they may be placed against the lower rim of an inclined galley.

A simple and inexpensive working stand to hold type cases for composing is that shown in Fig. 18. This is made of wood and has a rack in the lower part for holding extra cases. It will be noticed that because the rack is wide enough to take the full-size case, the top of the stand is several inches wider than the case, and the side frames are therefore too far apart to support the ends of the case. To enable the cases to be held safely, an extra arm is placed inside near the side frame to hold one end of the case. The surplus space beside the working cases is usually furnished with a sloping shelf or narrow galley rest convenient for holding a galley, leads, or other articles, thus allowing the case to be kept clear for composing. (See Fig. 19.)

Fig. 22. Case Rack Fig. 23. Double Stand with working cases held on iron brackets. A rack used to hold cases that are not often used is shown in Fig. 22. Racks of this kind are made in different sizes to hold ten to thirty cases, and in double tiers to hold forty to sixty cases.

Tall racks which hold cases too high to be reached comfortably by a person standing on the floor are not to be commended. While they may occupy less floor space and because of this seem to be an advantage where there are a great many cases that are seldom used, this advantage is usually more than offset by their disadvantages. The upper cases are difficult to handle and are liable to be pied. If the tall racks are near a window they obstruct the light.

A double stand of similar character to Fig. 18 is shown in Fig. 21, in which the space below is fully utilized for two racks, one for full-size cases and the other for two-third cases.

Many foremen do not approve the small size cases for type in common use, preferring to have all the cases of a standard size, so that they may fit the regular racks and stands and be interchangeable throughout the department. To provide for this, double stands are made which have a double tier of racks for full size cases, as shown in Fig. 20. This double stand has the extra space on the top utilized by a narrow galley shelf in the middle between the inclined case supports.

Another class of wooden case-stands is made with the frame having a flat top or table upon which is fastened a set of iron brackets to hold the working cases in an inclined position. These styles are illustrated in Fig. 23.

Fig. 24. “Adman” Cabinet has equipment for two compositors, supply of leads and slugs and assortment of materials such as brass and copper thin spaces and quads. Fig. 25. Double “City” Stand with working cases and case racks. Note that the lower case may be pushed up when necessary to allow access to galley underneath. The closed-in cabinet is the modern plan for a compositor's working stand and for holding cases of type in common use. This is a frame or stand enclosed at the sides and back to exclude dust and debris from the cases. The case runs are thin (often of steel) and close together and the fronts of the cases are made with extra high rims, so that when all are pushed into place they present a closed front also.

The printer's cabinet is now made in a multiplicity of styles and in several sizes. The frames are usually of hard wood, but during the past few years they have been made of pressed steel. Usually they provide for one or more tiers of standard wooden cases for type, etc. Some of the latest patterns combine in one structure racks for type cases and facilities for holding assortments of the various kinds of material which a compositor ordinarily uses, with provision for some special material, as well as ample working space for galleys, etc. They are planned to concentrate the frequently used material near to the compositor's hands, to enable him to save the time occupied in going from place to place about the room.

Fig. 26. Polhemus Cabinet, case rack and galley top. Fig. 27. Polhemus Cabinet, working side, lower case on tilting brackets. The old-style working stand or cabinet as illustrated in Figs. 20, 21, usually made it necessary for a workman to stand directly in front of a number of cases which he rarely used but which might be frequently used by other compositors. In small workshops this arrangement offers no inconvenience and there need be little loss of time or patience among courteous fellow workmen. In large departments, however, especially where floor space is pretty fully occupied and the working spaces are narrow, a permanent workstand directly over a group of cases that are frequently used by several persons has been found to be an annoying and time-wasting arrangement.

About thirty years ago a radical change of this practice was proposed, and is now being gradually adopted for modern equipments. This plan places the working stand on one side of the cabinet and the case rack on the other side, so that there is freer access to cases by all workmen. The original styles of these stands and cabinets were called “Polhemus,” after a New York printer, John Polhemus, who arranged his composing-room in this manner.

The case-front side of the cabinet is provided with a galley top for holding standing matter, etc., while the opposite side (the closed-in back of the case rack) is surmounted with brackets for type cases, galley shelf, etc., and is used as the working stand.

Polhemus cabinets (Figs. 26 and 27) and others embodying this plan have been made in a variety of sizes—single, double, and triple cabinets, the larger sizes providing for galley racks and sorts drawers, as well as the three tiers of type cases.

Fig. 28. “Window” Cabinet, for two compositors. Fig. 29. Case Cabinet with iron brackets for working cases on top. Fig. 30. Quadruple Stand. The cast-iron case brackets used on flat-top wooden cabinets and case racks are made in a variety of styles. They have advantages over the case supports formed by the top of side frames of the old style wooden stands shown in Fig. 21, in that they allow use of the space below the cases, and provide a more convenient placing of the upper case. The style of bracket shown on the stands illustrated in Figs. 23 and 30 allows the upper case to be brought nearer to the front, making it easier to reach all the boxes and yet leave ample room to get at the upper boxes of the lower case. The stand or cabinet may be placed close against a wall or other frame, as the upper case does not overhang at the back. The position of the inclined working cases on top may be fixed at any desired place on the top of the cabinet by changing the position of the brackets. One style of bracket (Fig. 29) is made to fasten to the extreme fore edge of the shelf, this bringing the front of the lower case out beyond the front line of the cabinet.

Fig. 31. Galley Brackets forming a rack fastened to wall. A number of years ago a tilting bracket (shown in Figs. 27 and 28) for the lower case was introduced and this has been used to some extent. The ostensible advantage of this is to allow the lower case to be tilted up from the front so that easier access is given to a galley shelf or other space under the case. This is a convenience in some instances, but the unstable nature of the case support is liable to be a disadvantage; a full case suddenly tilted is likely to cause types to be thrown into adjoining boxes; or a galley, leads, or other material on top of the case may slide down back when the case is tipped forward. A style of bracket which has proved serviceable is that shown on the case stand in Fig. 30.

Fig. 32. Galley Cabinet. Brackets for holding galleys are furnished in several varieties, one of which is illustrated in Fig. 31, etc. These are temporary rests for galleys, while the matter on them is waiting for return of proofs, for making up, etc. They are fastened to a wall or strong frame in some out-of-the-way place, or they may be fitted on special standards near the type cases or the make-up table. The galley cabinet, similar to that illustrated in Fig. 32, is a more expensive article of furniture for this purpose, but it is usually more satisfactory.

Early wooden case racks were fitted with strips of thin wood upon which the cases were moved in and out. These slender strips were not always of perfect grain and were difficult to attach firmly to the side frame. They warped and split easily, and the nails and screws with which they were fastened would work loose. In order to have them strong they had to be thick, and this thickness gave a wide space between the cases so that fewer cases could be kept in a given space.

To avoid these disadvantages case runs are now made of flat strips of steel fastened to the side frames of the rack or cabinet. In some cabinets they are fitted between side slats of wood, and a couple of perpendicular iron rods are run through holes in the slats and the steel strips from top to bottom of the rack, binding the pieces together and to the side frame, making a particularly substantial rack. Another style of steel run is made of a wider strip of iron bent the entire length into a right-angle shape. Screw holes on one side of this angle strip enable it to be fastened to the side frame, the other angle of the strip being used to support the case.

Fig. 33. Double Case Stand, showing the cases in rack pushed back from front, to permit exposure of all boxes when a case is pulled forward for setting type. In all composing-rooms there are many cases at which it is necessary to work for only a few moments at a time, to set a single line, or to make a correction, etc. In order that cases kept in racks or cabinets may be used quickly it is necessary that each one may be pulled out clear of the case above, so that all the boxes at the rear are accessible. In the old-style racks this was attained by having the runs several inches longer than the width of the case, and placing an upright strip or stop at the rear to allow the cases to be pushed back far enough to leave three or more inches of the run exposed in front. This front space is sufficient to support the case temporarily while it is pulled out from those above in full view. (Fig. 33.)

Fig. 34. Extension Front Case Rack. In many type cabinets, however, the practice is to keep the front of all cases flush with the front of the cabinet frame. This allows no front support for a case that is pulled out far enough to expose all the boxes, and so the side frames or rims of the cases are extended three or four inches back beyond the case itself. These extensions serve as stout arms at the rear of the case to hold it in the front of the rack when the case is pulled forward. When the case is carefully handled this plan serves the purpose if the extensions themselves are not drawn entirely clear of the case above. Its security depends somewhat upon the style of the runs and how carefully the cases fit their places. A disadvantage of this plan is that the cases having these long rear extensions are awkward to place when they are taken from their racks to be used on top of ordinary working stands.

The later method of providing for this is to place the cases further back in the rack, as in the old-style stand, and have the runs on the cabinet extended entirely to the front. This is the extension front, and in modern cabinets the rims are of thin steel, as already described. (Fig. 34.) With this arrangement the cases have no protruding arms and can be conveniently placed anywhere; standard cabinet cases can be placed on working stands or temporarily in any convenient case rack.

Fig. 35. Furniture Cabinet for labor-saving fonts of wood or metal furniture. Fig. 36. Imposing Stone Frame with labor-saving furniture in side. Fig. 37. Standing Galley, or Bank, with letter boards, galley racks, and galley top. In the composing-room of a generation ago—and unfortunately in some unprogressive places today—the strips of blank material known as reglet and wood furniture were usually kept in disorderly manner in a large box or drawer under or near the imposing stone. The material was usually obtained in lengths of one yard and a small hand-saw was at hand to cut any lengths required. In time there was an accumulation of all sorts jumbled together in the drawer in a manner to make it difficult to find needed pieces without loss of time. Often the quickest way to obtain the right piece was to cut off a longer one.

This wasteful method was the universal custom before the era of the labor-saving assortment stored in orderly fashion in a cabinet and placed within instant reach of the workman. The common-sense modern method is the well-stocked rack or cabinet with a compartment for each size of the series, with the compartments numbered and the larger pieces of the material numbered to correspond. An arrangement like this invites an orderly habit in persons who would otherwise be careless.

The usual style of furniture rack is shown in Fig. 35. This is made in several sizes to hold quantities large or small according to the requirements of the room. The position of a rack like this should be near the stone at a level near the height of the working surface.

Another style of furniture and reglet rack is that fitted into the frame of the imposing table or into an adjoining stand or cabinet. This is illustrated in Fig. 36. It will be noticed that all the different lengths present a surface flush with the outside of the frame. This is because the depth of the compartments is varied to accommodate the several lengths of furniture at the back, instead of at the front as shown in Fig. 35.

Fig. 38. Work Bench and Auxiliary Cabinet. Fig. 39. Cabinet for Script Type, Borders, or other small characters which can be kept standing face up. Among the new articles supplied for the compositor's use are cabinets for holding assortments of metal furniture, brass rules, leads, slugs, and small cases or drawers for special material. The tops of some of these cabinets hold the lead and rule cutter and the rule-mitering machine, with a small inclined shelf above, as shown in Fig. 38. These cabinets will hold a large amount of material in small space. When conveniently situated and properly supplied with material they save time and effort on the part of the compositor.

Another cabinet that is useful is the script type cabinet. This holds the cases inclined upward from the left. The compartments are narrow, running horizontally with the front. In these the types are held face up, so that they may not be injured by rattling about when the case is moved back and forth. The cases may be used for borders, special characters, or any small items which it is desired to keep standing face upward. The compartments of the cases may be made wide or narrow to accommodate the size of the types they are to hold.

The apprentice who wants to learn about the latest and best feature of composing room equipment should make a special point to examine the catalogues of manufacturers and dealers in printers' supplies. These catalogues continually show new and improved articles that are finely illustrated and specifically described as to their particular advantages.

---

The following questions, based on the contents of this pamphlet, are intended to serve (1) as a guide to the study of the text, (2) as an aid to the student in putting the information contained into definite statements without actually memorizing the text, (3) as a means of securing from the student a reproduction of the information in his own words.

A careful following of the questions by the reader will insure full acquaintance with every part of the text, avoiding the accidental omission of what might be of value. These primers are so condensed that nothing should be omitted.

In teaching from these books it is very important that these questions and such others as may occur to the teacher, should be made the basis of frequent written work, and of final examinations.

The importance of written work cannot be overstated. It not only assures knowledge of material but the power to express that knowledge correctly and in good form.

If this written work can be submitted to the teacher in printed form it will be doubly useful.

1. What classes of furniture are essential in modern composing-rooms? 2. Give a general statement of articles in each class. 3. What determines the selection of furniture for any given office? 4. What was the first thing needed in a composing-room after the type had been cast? 5. How was it made originally? 6. How is it now made? 7. What are the dimensions of the standard type case of the present time? 8. What other sizes are sometimes used? 9. What effect has the need of economy of space had upon the use of type cases? 10. What are type cases made of? 11. What difficulties were experienced? 12. How were they avoided? 13. Describe the construction of a modern type case. 14. Give some of the uses for which special cases are provided. 15. What are the two purposes of a working stand? 16. What is the proper height for a stand? 17. Should the case lie flat when in use, and why? 18. How are galleys placed for holding type, and why? 19. Describe a simple working stand. 20. How are infrequently used cases stored? 21. What should be avoided in this method of storage? 22. Describe a modern type cabinet. 23. What difficulty arose in working at the earlier forms of cabinet, and how was it avoided? 24. Describe a Polhemus cabinet. 25. What is the advantage of iron case brackets? 26. What are the advantages and disadvantages of tilting case brackets? 27. What are galley brackets? 28. What is a better article for the same purpose? 29. Compare wooden and steel case runs. 30. How are steel case runs constructed? 31. Describe and compare several methods of constructing case racks so that the case may be used without removing it from the rack. 32. What was the old method of keeping reglets and wood furniture, and what was its disadvantage? 33. Describe some modern methods of keeping this material.

---

Alley—The floor space between two stands or cabinets.

Annex Box—A small wood or metal cup or box attached to the type case for holding special characters.

Bank—A high table with the top inclined upon which composed type is placed temporarily. See Dump.

Blank Case—A wooden tray without partitions, or with one partition only.

Box—A subdivision of a type case, in which a quantity of one particular character is kept.

Bracket—An arm or support, usually of metal, to hold cases on top of a stand, to hold galleys, etc.

Cabinet—An enclosure for cases, shelves, or boxes, closed up on the sides and back. See stand.

California Job Case—An extensively used type case arranged with boxes to hold capitals, small letters, figures, points, and the usual characters of a job font, complete in a single tray.

Cap Case—The top case of a standard pair of book or news cases. The capital case, or upper case.

Case—The printer's name for the shallow wooden tray with small compartments for holding types and other materials.

Case Cleaner—A frame like that of a type case with a wire bottom, used to assist in cleaning out type cases that have become foul with dust, grit, or similar dirt. The case cleaner is placed on top of the type case, fitting snugly over each box, and the whole turned up-side-down to transfer the type into the wire bottom. A gentle shaking then sifts out the dirt. When the case is turned back again the types go back into their original boxes. A vacuum cleaner, a small bellows, or an air pump are sometimes used for cleaning type cases.

Coffin—The box-like frame surrounding an imposing stone on its stand.

Dump—The place in a composing room where dead matter is kept until it is distributed; sometimes said of a standing galley where compositors place their composed lines to be assembled for proofing, etc. See Bank.

Empty Case—A case without the letters or types needed to compose lines. The case may have other letters, but some boxes are empty.

Form Rack—For holding printing forms that are locked in chases, before or after printing. It usually holds them in a perpendicular position.

Foul Case, or Dirty Case—One in which the type or other material is badly mixed or which has material that does not properly belong there, as in hasty distribution or because of carelessness.

Frame—Another name for the compositor's work stand or case rack.

Furniture—In printing-office speech this term is used to mean small pieces of wood or metal designed to fill the blank spaces larger than leads, slugs, spaces, and quads. Furniture is placed between pages and around forms locked in chases.

Galley—A shallow tray used by compositors to hold type after the lines have been set and transferred from the composing stick.

Galley Rack—A place for holding a number of galleys in order.

Harris Rule Case—A quarter-size case for holding assortments of brass rules. Four of these trays may be kept in a regular full size blank case, similar to Wisconsin quarter cases. See size of cases.

Hell-box—The receptacle for old, broken, or discarded types.

Italic Case—A style of case to hold a complete font of capitals, small letters, points, figures, etc. Similar to the California job case, but with more boxes on the capital letter side. See page 15.

Job Case—A general term meaning a type case which holds a complete font of type; in distinction from a case which holds only part of a font, like the ordinary news or book case.

Job Galley—A short galley to place on the work stand for making up pages, small forms, etc.

Labor-saving—Said of assortments of leads, rules, furniture, etc., provided in assorted sizes. The sizes are commonly multiples of 6-point or 12-point, and several small pieces may be combined to fill a large space, thus saving the labor necessary to cut each piece to fit its place.

Laying Type—Placing a new assortment of type in its case.

Lay of the Case—The particular plan or arrangement of the types in the various boxes of a case.

Leader Case—A small case or series of boxes for holding brass or cast-type leaders.

Letter Boards—Movable shelves in racks, under imposing tables, and elsewhere, to hold standing type matter, etc.

Low Case—A case with a small portion of the font in it. See Empty Case.

Lower Case—The bottom case of a pair of book or news cases, which rests nearest the compositor. See page 12.

New York Job Case—A case for holding a font of small capitals in addition to the capitals, small letters, figures, etc., of the usual fonts. See page 15.

Reglet—Thin strips of wood, similar to thick leads; used for making up large pages and filling in forms.

Sizes of Cases—There are a number of standard sizes of cases for printers' purposes, allowing a considerable range in adapting these important articles for particular uses. The common sizes are as follows:

Regular full-size case	32¼ × 16¾ in.
Three-quarter size	26¼ × 16¾ in.
Two-third case	22¾ × 16¾ in.
Rooker Case (formerly popular in newspaper composing rooms)	28½ × 14 in.
Wood type case	32¼ × 23 in.
Mammoth wood-type case	44 × 23 in.
Bettis case, for leads, rules, etc	72 × 18 in.
Bettis case, for leads, rules, border, etc	72 in. × 7 in.
Harris case, for rules, border, etc	in. × 7 in.
Wisconsin quarter case	in. × 7 in.
“Sanspareil” half-size case	15¼ × 14¾ in.

Sort Case—For holding extra or special types, etc., with open sides and back.

Stand—The working frame at which a compositor sets type; in distinction from a cabinet, which has closed sides and no back.

Triple Case—A case divided into three principal sections, each section having forty-nine boxes, like one-half of the common capital case.

Unit Type Cabinet—A container for type cases similar to a sectional book case. The parts are built in sections about 12½ inches high, holding eight or ten cases. There is a base piece upon which the cabinet rests, and a top piece. Any number of the sections may be put together to provide room for additional cases as needed. These cabinets have cases of different depths to provide for fonts of different sizes; shallow cases for job fonts of small types, and other cases of varying depths to give room for larger fonts.

---
