The Principles of Chemistry, Vol. II

[1] For instance the analogy of the sulphates of K, Rb, and Cs (Chapter XIII., Note 1).

[1 bis] The crystalline forms of aragonite, strontianite, and witherite belong to the rhombic system; the angle of the prism of CaCO₃ is 116° 10′, of SrCO₃ 117° 19′, and of BaCO₃ 118° 30′. On the other hand the crystalline forms of calc spar, magnesite, and calamine, which resemble each other quite as closely, belong to the rhombohedral system, with the angle of the rhombohedra for CaCO₃ 105° 8′, MgCO₃ 107° 10′, and ZnCO₃ 107° 40′. From this comparison it is at once evident that zinc is more closely allied to magnesium than magnesium to calcium.

[2] Solutions furnish the commonest examples of indefinite chemical compounds. But the isomorphous mixtures which are so common among the crystalline compounds of silica forming the crust of the earth, as well as alloys, which are so important in the application of metals to the arts, are also instances of indefinite compounds. And if in Chapter I., and in many other portions of this work, it has been necessary to admit the presence of definite compounds (in a state of dissociation) in solutions, the same applies with even greater force to isomorphous mixtures and alloys. For this reason in many places in this work I refer to facts which compel us to recognise the existence of definite chemical compounds in all isomorphous mixtures and alloys. This view of mine (which dates from the sixties) upon isomorphous mixtures finds a particularly clear confirmation in B. Roozeboom's researches (1892) upon the solubility and crystallising capacity of mixtures of the chlorates of potassium and thallium, KClO₃ and TlClO₃. He showed that when a solution contains different amounts of these salts, it deposits crystals containing either an excess of the first salt, from 98 p.c. to 100 p.c., or an excess of the second salt, from 63·7 to 100 p.c.; that is, in the crystalline form, either the first salt saturates the second or the second the first, just as in the solution of ether in water (Chapter I.); moreover, the solubility of the mixtures containing 36·3 and 98 p.c. KClO₃ is similar, just as the vapour tension of a saturated solution of water in ether is equal to that of a saturated solution of ether in water (Chapter I., Note 47). But just as there are solutions miscible in all proportions, so also certain isomorphous bodies can be present in crystals in all possible proportions of their component parts. Van 't Hoff calls such systems ‘solid solutions.’ These views were subsequently elaborated by Nernst (1892), and Witt (1891) applied them in explaining the phenomena observed in the coloration of tissues.

[3] The cause of the difference which is observed in different compounds of the same type, with respect to their property of forming isomorphous mixtures, must not be looked for in the difference of their volumetric composition, as many investigators, including Kopp, affirm. The molecular volumes (found by dividing the molecular weight by the density) of those isomorphous substances which do give intermixtures are not nearer to each other than the volumes of those which do not give mixtures; for example, for magnesium carbonate the combining weight is 84, density 3·06, and volume therefore 27; for calcium carbonate in the form of calc spar the volume is 37, and in the form of aragonite 33; for strontium carbonate 41, for barium carbonate 46; that is, the volume of these closely allied isomorphous substances increases with the combining weight. The same is observed if we compare sodium chloride (molecular volume = 27) with potassium chloride (volume = 37), or sodium sulphate (volume = 55) with potassium sulphate (volume = 66), or sodium nitrate 39 with potassium nitrate 48, although the latter are less capable of giving isomorphous mixtures than the former. It is evident that the cause of isomorphism cannot be explained by an approximation in molecular volumes. It is more likely that, given a similarity in form and composition, the faculty to give isomorphous mixtures is connected with the laws and degree of solubility.

[4] A phenomenon of a similar kind is shown for magnesium sulphate in Note 27 of the last chapter. In the same example we see what a complication the phenomena of dimorphism may introduce when the forms of analogous compounds are compared.

[5] The property of solids of occurring in regular crystalline forms—the occurrence of many substances in the earth's crust in these forms—and those geometrical and simple laws which govern the formation of crystals long ago attracted the attention of the naturalist to crystals. The crystalline form is, without doubt, the expression of the relation in which the atoms occur in the molecules, and in which the molecules occur in the mass, of a substance. Crystallisation is determined by the distribution of the molecules along the direction of greatest cohesion, and therefore those forces must take part in the crystalline distribution of matter which act between the molecules; and, as they depend on the forces binding the atoms together in the molecules, a very close connection must exist between the atomic composition and the distribution of the atoms in the molecule on the one hand, and the crystalline form of a substance on the other hand; and hence an insight into the composition may be arrived at from the crystalline form. Such is the elementary and a priori idea which lies at the base of all researches into the connection between composition and crystalline form. Haüy in 1811 established the following fundamental law, which has been worked out by later investigators: That the fundamental crystalline form for a given chemical compound is constant (only the combinations vary), and that with a change of composition the crystalline form also changes, naturally with the exception of such limiting forms as the cube, regular octahedron, &c., which may belong to various substances of the regular system. The fundamental form is determined by the angles of certain fundamental geometric forms (prisms, pyramids, rhombohedra), or the ratio of the crystalline axes, and is connected with the optical and many other properties of crystals. Since the establishment of this law the description of definite compounds in a solid state is accompanied by a description (measurement) of its crystals, which forms an invariable, definite, and measurable character. The most important epochs in the further history of this question were made by the following discoveries:—Klaproth, Vauquelin, and others showed that aragonite has the same composition as calc spar, whilst the former belongs to the rhombic and the latter to the hexagonal system. Haüy at first considered that the composition, and after that the arrangement, of the atoms in the molecules was different. This is dimorphism (see Chapter XIV., Note 46). Beudant, Frankenheim, Laurent, and others found that the forms of the two nitres, KNO₃ and NaNO₃, exactly correspond with the forms of aragonite and calc spar; that they are able, moreover, to pass from one form into another; and that the difference of the forms is accompanied by a small alteration of the angles, for the angle of the prisms of potassium nitrate and aragonite is 119°, and of sodium nitrate and calc spar, 120°; and therefore dimorphism, or the crystallisation of one substance in different forms, does not necessarily imply a great difference in the distribution of the molecules, although some difference clearly exists. The researches of Mitscherlich (1822) on the dimorphism of sulphur confirmed this conclusion, although it cannot yet be affirmed that in dimorphism the arrangement of the atoms remains unaltered, and that only the molecules are distributed differently. Leblanc, Berthier, Wollaston, and others already knew that many substances of different composition appear in the same forms, and crystallise together in one crystal. Gay-Lussac (1816) showed that crystals of potash alum continue to grow in a solution of ammonia alum. Beudant (1817) explained this phenomenon as the assimilation of a foreign substance by a substance having a great force of crystallisation, which he illustrated by many natural and artificial examples. But Mitscherlich, and afterwards Berzelius and Henry Rose and others, showed that such an assimilation only exists with a similarity or approximate similarity of the forms of the individual substances and with a certain degree of chemical analogy. Thus was established the idea of isomorphism as an analogy of forms by reason of a resemblance of atomic composition, and by it was explained the variability of the composition of a number of minerals as isomorphous mixtures. Thus all the garnets are expressed by the general formula: (RO)₃M₂O₃(SiO₂)₃, where R = Ca, Mg, Fe, Mn, and M = Fe, Al, and where we may have either R and M separately, or their equivalent compounds, or their mixtures in all possible proportions.

But other facts, which render the correlation of form and composition still more complex, have accumulated side by side with a mass of data which may be accounted for by admitting the conceptions of isomorphism and dimorphism. Foremost among the former stand the phenomena of homeomorphism—that is, a nearness of forms with a difference of composition—and then the cases of polymorphism and hemimorphism—that is, a nearness of the fundamental forms or only of certain angles for substances which are near or analogous in their composition. Instances of homeomorphism are very numerous. Many of these, however, may be reduced to a resemblance of atomic composition, although they do not correspond to an isomorphism of the component elements; for example, CdS (greenockite) and AgI, CaCO₃ (aragonite) and KNO₃, CaCO₃ (calc spar) and NaNO₃, BaSO₄ (heavy spar), KMnO₄ (potassium permanganate), and KClO₄ (potassium perchlorate), Al₂O₃ (corundum) and FeTiO₃ (titanic iron ore), FeS₂ (marcasite, rhombic system) and FeSAs (arsenical pyrites), NiS and NiAs, &c. But besides these instances there are homeomorphous substances with an absolute dissimilarity of composition. Many such instances were pointed out by Dana. Cinnabar, HgS, and susannite, PbSO₄3PbCO₃ appear in very analogous crystalline forms; the acid potassium sulphate crystallises in the monoclinic system in crystals analogous to felspar, KAlSi₃O₈; glauberite, Na₂Ca(SO₄)₂, augite, RSiO₃ (R = Ca, Mg), sodium carbonate, Na₂CO₃,10H₂O, Glauber's salt, Na₂SO₄,10H₂O, and borax, Na₂BrO₇,10H₂O, not only belong to the same system (monoclinic), but exhibit an analogy of combinations and a nearness of corresponding angles. These and many other similar cases might appear to be perfectly arbitrary (especially as a nearness of angles and fundamental forms is a relative idea) were there not other cases where a resemblance of properties and a distinct relation in the variation of composition is connected with a resemblance of form. Thus, for example, alumina, Al₂O₃, and water, H₂O, are frequently found in many pyroxenes and amphiboles which only contain silica and magnesia (MgO, CaO, FeO, MnO). Scheerer and Hermann, and many others, endeavoured to explain such instances by polymetric isomorphism, stating that MgO may be replaced by 3H₂O (for example, olivine and serpentine), SiO₂ by Al₂O₃ (in the amphiboles, talcs), and so on. A certain number of the instances of this order are subject to doubt, because many of the natural minerals which served as the basis for the establishment of polymeric isomorphism in all probability no longer present their original composition, but one which has been altered under the influence of solutions which have come into contact with them; they therefore belong to the class of pseudomorphs, or false crystals. There is, however, no doubt of the existence of a whole series of natural and artificial homeomorphs, which differ from each other by atomic amounts of water, silica, and some other component parts. Thus, Thomsen (1874) showed a very striking instance. The metallic chlorides, RCl₂, often crystallise with water, and they do not then contain less than one molecule of water per atom of chlorine. The most familiar representative of the order RCl₂,2H₂O is BaCl₂,2H₂O, which crystallises in the rhombic system. Barium bromide, BaBr₂,2H₂O, and copper chloride, CuCl₂,2H₂O, have nearly the same forms: potassium iodate, KIO₄; potassium chlorate, KClO₄; potassium permanganate, KMnO₄; barium sulphate, BaSO₄; calcium sulphate, CaSO₄; sodium sulphate, Na₂SO₄; barium formate, BaC₂H₂O₄, and others have almost the same crystalline form (of the rhombic system). Parallel with this series is that of the metallic chlorides containing RCl₂,4H₂O, of the sulphates of the composition RSO₄,2H₂O, and the formates RC₂H₂O₄,2H₂O. These compounds belong to the monoclinic system, have a close resemblance of form, and differ from the first series by containing two more molecules of water. The addition of two more molecules of water in all the above series also gives forms of the monoclinic system closely resembling each other; for example, NiCl₂,6H₂O and MnSO₄,4H₂O. Hence we see that not only is RCl₂,2H₂O analogous in form to RSO₄ and RC₂H₂O₄, but that their compounds with 2H₂O and with 4H₂O also exhibit closely analogous forms. From these examples it is evident that the conditions which determine a given form may be repeated not only in the presence of an isomorphous exchange—that is, with an equal number of atoms in the molecule—but also in the presence of an unequal number when there are peculiar and as yet ungeneralised relations in composition. Thus ZnO and Al₂O₃ exhibit a close analogy of form. Both oxides belong to the rhombohedral system, and the angle between the pyramid and the terminal plane of the first is 118° 7′, and of the second 118° 49′. Alumina, Al₂O₃, is also analogous in form to SiO₂, and we shall see that these analogies of form are conjoined with a certain analogy in properties. It is not surprising, therefore, that in the complex molecule of a siliceous compound it is sometimes possible to replace SiO₂ by means of Al₂O₃, as Scheerer admits. The oxides Cu₂O, MgO, NiO, Fe₃O₄, CeO₂, crystallise in the regular system, although they are of very different atomic structure. Marignac demonstrated the perfect analogy of the forms of K₂ZrF₆ and CaCO₃, and the former is even dimorphous, like the calcium carbonate. The same salt is isomorphous with R₂NbOF₅ and R₂WO₂F₄, where R is an alkali metal. There is an equivalency between CaCO₃ and K₂ZrF₆, because K₂ is equivalent to Ca, C to Zr, and F₆ to O₃, and with the isomorphism of the other two salts we find besides an equal contents of the alkali metal—an equal number of atoms on the one hand and an analogy to the properties of K₂ZrF₆ on the other. The long-known isomorphism of the corresponding compounds of potassium and ammonium, KX and NH₄X, may be taken as the simplest example of the fact that an analogy of form shows itself with an analogy of chemical reaction even without an equality in atomic composition. Therefore the ultimate progress of the entire doctrine of the correlation of composition and crystalline forms will only be arrived at with the accumulation of a sufficient number of facts collected on a plan corresponding with the problems which here present themselves. The first steps have already been made. The researches of the Geneva savant, Marignac, on the crystalline form and composition of many of the double fluorides, and the work of Wyruboff on the ferricyanides and other compounds, are particularly important in this respect. It is already evident that, with a definite change of composition, certain angles remain constant, notwithstanding that others are subject to alteration. Such an instance of the relation of forms was observed by Laurent, and named by him hemimorphism (an anomalous term) when the analogy is limited to certain angles, and paramorphism when the forms in general approach each other, but belong to different systems. So, for example, the angle of the planes of a rhombohedron may be greater or less than 90°, and therefore such acute and obtuse rhombohedra may closely approximate to the cube. Hausmannite, Mn₃O₄, belongs to the tetragonal system, and the planes of its pyramid are inclined at an angle of about 118°, whilst magnetic iron ore, Fe₃O₄, which resembles hausmannite in many respects, appears in regular octahedra—that is, the pyramidal planes are inclined at an angle of 109° 28′. This is an example of paramorphism; the systems are different, the compositions are analogous, and there is a certain resemblance in form. Hemimorphism has been found in many instances of saline and other substitutions. Thus, Laurent demonstrated, and Hintze confirmed (1873), that naphthalene derivatives of analogous composition are hemimorphous. Nicklès (1849) showed that in ethylene sulphate the angle of the prism is 125° 26′, and in the nitrate of the same radicle 126° 95′. The angle of the prism of methylamine oxalate is 131° 20′, and of fluoride, which is very different in composition from the former, the angle is 132°. Groth (1870) endeavoured to indicate in general what kinds of change of form proceed with the substitution of hydrogen by various other elements and groups, and he observed a regularity which he termed morphotropy. The following examples show that morphotropy recalls the hemimorphism of Laurent. Benzene, C₆H₆, rhombic system, ratio of the axes 0·891 : 1 : 0·799. Phenol, C₆H₅(OH), and resorcinol, C₆H₄(OH)₂, also rhombic system, but the ratio of one axis is changed—thus, in resorcinol, 0·910 : 1 : 0·540; that is, a portion of the crystalline structure in one direction is the same, but in the other direction it is changed, whilst in the rhombic system dinitrophenol, C₆H₃(NO₂)₂(OH) = O·833 : 1 : 0·753; trinitrophenol (picric acid), C₆H₂(NO)₃(OH) = 0·937 : 1 : 0·974; and the potassium salt = 0·942 : 1 : 1·354. Here the ratio of the first axis is preserved—that is, certain angles remain constant, and the chemical proximity of the composition of these bodies is undoubted. Laurent compares hemimorphism with architectural style. Thus, Gothic cathedrals differ in many respects, but there is an analogy expressed both in the sum total of their common relations and in certain details—for example, in the windows. It is evident that we may expect many fruitful results for molecular mechanics (which forms a problem common to many provinces of natural science) from the further elaboration of the data concerning those variations which take place in crystalline form when the composition of a substance is subjected to a known change, and therefore I consider it useful to point out to the student of science seeking for matter for independent scientific research this vast field for work which is presented by the correlation of form and composition. The geometrical regularity and varied beauty of crystalline forms offer no small attraction to research of this kind.

[6] The still more complex combinations—which are so clearly expressed in the crystallo-hydrates, double salts, and similar compounds—although they may be regarded as independent, are, however, most easily understood with our present knowledge as aggregations of whole molecules to which there are no corresponding double compounds, containing one atom of an element R and many atoms of other elements RX_n. The above types embrace all cases of direct combinations of atoms, and the formula MgSO₄,7H₂O cannot, without violating known facts, be directly deduced from the types MgX_n or SX_n, whilst the formula MgSO₄ corresponds both with the type of the magnesium compounds MgX₂ and with the type of the sulphur compounds SO₂X₂, or in general SX₆, where X₂ is replaced by (OH)₂, with the substitution in this case of H₂ by the atom Mg, which always replaces H₂. However, it must be remarked that the sodium crystallo-hydrates often contain 10H₂O, the magnesium crystallo-hydrates 6 and 7H₂O, and that the type PtM₂X₆ is proper to the double salts of platinum, &c. With the further development of our knowledge concerning crystallo-hydrates, double salts, alloys, solutions, &c., in the chemical sense of feeble compounds (that is, such as are easily destroyed by feeble chemical influences) it will probably be possible to arrive at a perfect generalisation for them. For a long time these subjects were only studied by the way or by chance; our knowledge of them is accidental and destitute of system, and therefore it is impossible to expect as yet any generalisation as to their nature. The days of Gerhardt are not long past when only three types were recognised: RX, RX₂, and RX₃; the type RX₄ was afterwards added (by Cooper, Kekulé, Butleroff, and others), mainly for the purpose of generalising the data respecting the carbon compounds. And indeed many are still satisfied with these types, and derive the higher types from them; for instance, RX₅ from RX₃—as, for example, POCl₃ from PCl₃, considering the oxygen to be bound both to the chlorine (as in HClO) and to the phosphorus. But the time has now arrived when it is clearly seen that the forms RX, RX₂, RX₃, and RX₄ do not exhaust the whole variety of phenomena. The revolution became evident when Würtz showed that PCl₅ is not a compound of PCl₃ + Cl₂ (although it may decompose into them), but a whole molecule capable of passing into vapour, PCl₅ like PF₅ and SiF₄. The time for the recognition of types even higher than RX₈ is in my opinion in the future; that it will come, we can already see in the fact that oxalic acid, C₂H₂O₄, gives a crystallo-hydrate with 2H₂O; but it may be referred to the type CH₄, or rather to the type of ethane, C₂H₆, in which all the atoms of hydrogen are replaced by hydroxyl, C₂H₂O₄2H₂O = C₂(OH)₆ (see Chapter XXII., Note 35).

[7] The hydrogen compounds, R₂H, in equivalency correspond with the type of the suboxides, R₄O. Palladium, sodium, and potassium give such hydrogen compounds, and it is worthy of remark that according to the periodic system these elements stand near to each other, and that in those groups where the hydrogen compounds R₂H appear, the quaternary oxides R₄O are also present.

Not wishing to complicate the explanation, I here only touch on the general features of the relation between the hydrates and oxides and of the oxides among themselves. Thus, for instance, the conception of the ortho-acids and of the normal acids will be considered in speaking of phosphoric and phosphorous acids.

As in the further explanation of the periodic law only those oxides which give salts will be considered, I think it will not be superfluous to mention here the following facts relative to the peroxides. Of the peroxides corresponding with hydrogen peroxide, the following are at present known: H₂O₂, Na₂O₂, S₂O₇ (as HSO₄?), K₂O₄, K₂O₂, CaO₂, TiO₃, Cr₂O₇, CuO₂(?), ZnO₂, Rb₂O₂, SrO₂, Ag₂O₂, CdO₂, CsO₂, Cs₂O₂, BaO₂, Mo₂O₇, SnO₃, W₂O₇, UO₄. It is probable that the number of peroxides will increase with further investigation. A periodicity is seen in those now known, for the elements (excepting Li) of the first group, which give R₂O, form peroxides, and then the elements of the sixth group seem also to be particularly inclined to form peroxides, R₂O₇; but at present it is too early, in my opinion, to enter upon a generalisation of this subject, not only because it is a new and but little studied matter (not investigated for all the elements), but also, and more especially, because in many instances only the hydrates are known—for instance, Mo₂H₂O₈—and they perhaps are only compounds of peroxide of hydrogen—for example, Mo₂H₂O₈ = 2MoO₃ + H₂O₂—since Prof. Schöne has shown that H₂O₂ and BaO₂ possess the property of combining together and with other oxides. Nevertheless, I have, in the general table expressing the periodic properties of the elements, endeavoured to sum up the data respecting all the known peroxide compounds whose characteristic property is seen in their capability to form peroxide of hydrogen under many circumstances.

[8] The periodic law and the periodic system of the elements appeared in the same form as here given in the first edition of this work, begun in 1868 and finished in 1871. In laying out the accumulated information respecting the elements, I had occasion to reflect on their mutual relations. At the beginning of 1869 I distributed among many chemists a pamphlet entitled ‘An Attempted System of the Elements, based on their Atomic Weights and Chemical Analogies,’ and at the March meeting of the Russian Chemical Society, 1869, I communicated a paper ‘On the Correlation of the Properties and Atomic Weights of the Elements.’ The substance of this paper is embraced in the following conclusions: (1) The elements, if arranged according to their atomic weights, exhibit an evident periodicity of properties. (2) Elements which are similar as regards their chemical properties have atomic weights which are either of nearly the same value (platinum, iridium, osmium) or which increase regularly (e.g. potassium, rubidium, cæsium). (3) The arrangement of the elements or of groups of elements in the order of their atomic weights corresponds with their so-called valencies. (4) The elements, which are the most widely distributed in nature, have small atomic weights, and all the elements of small atomic weight are characterised by sharply defined properties. They are therefore typical elements. (5) The magnitude of the atomic weight determines the character of an element. (6) The discovery of many yet unknown elements may be expected. For instance, elements analogous to aluminium and silicon, whose atomic weights would be between 65 and 75. (7) The atomic weight of an element may sometimes be corrected by aid of a knowledge of those of the adjacent elements. Thus the combining weight of tellurium must lie between 123 and 126, and cannot be 128. (8) Certain characteristic properties of the elements can be foretold from their atomic weights.

The entire periodic law is included in these lines. In the series of subsequent papers (1870–72, for example, in the Transactions of the Russian Chemical Society, of the Moscow Meeting of Naturalists, of the St. Petersburg Academy, and Liebig's Annalen) on the same subject we only find applications of the same principles, which were afterwards confirmed by the labours of Roscoe, Carnelley, Thorpe, and others in England; of Rammelsberg (cerium and uranium), L. Meyer (the specific volumes of the elements), Zimmermann (uranium), and more especially of C. Winkler (who discovered germanium, and showed its identity with ekasilicon), and others in Germany; of Lecoq de Boisbaudran in France (the discoverer of gallium = ekaaluminium); of Clève (the atomic weights of the cerium metals), Nilson (discoverer of scandium = ekaboron), and Nilson and Pettersson (determination of the vapour density of beryllium chloride) in Sweden; and of Brauner (who investigated cerium, and determined the combining weight of tellurium = 125) in Austria, and Piccini in Italy.

I consider it necessary to state that, in arranging the periodic system of the elements, I made use of the previous researches of Dumas, Gladstone, Pettenkofer, Kremers, and Lenssen on the atomic weights of related elements, but I was not acquainted with the works preceding mine of De Chancourtois (vis tellurique, or the spiral of the elements according to their properties and equivalents) in France, and of J. Newlands (Law of Octaves—for instance, H, F, Cl, Co, Br, Pd, I, Pt form the first octave, and O, S, Fe, Se, Rh, Te, Au, Th the last) in England, although certain germs of the periodic law are to be seen in these works. With regard to the work of Prof. Lothar Meyer respecting the periodic law (Notes 12 and 13), it is evident, judging from the method of investigation, and from his statement (Liebig's Annalen, Supt. Band 7, 1870, 354), at the very commencement of which he cites my paper of 1869 above mentioned, that he accepted the periodic law in the form which I proposed.

In concluding this historical statement I consider it well to observe that no law of nature, however general, has been established all at once; its recognition is always preceded by many hints; the establishment of a law, however, does not take place when its significance is recognised, but only when it has been confirmed by experiment, which the man of science must consider as the only proof of the correctness of his conjectures and opinions. I therefore, for my part, look upon Roscoe, De Boisbaudran, Nilson, Winkler, Brauner, Carnelley, Thorpe, and others who verified the adaptability of the periodic law to chemical facts, as the true founders of the periodic law, the further development of which still awaits fresh workers.

[9] This resembles the fact, well known to those having an acquaintance with organic chemistry, that in a series of homologues (Chapter VIII.) the first members, in which there is the least carbon, although showing the general properties of the homologous series, still present certain distinct peculiarities.

[10] Besides arranging the elements (a) in a successive order according to their atomic weights, with indication of their analogies by showing some of the properties—for instance, their power of giving one or another form of combination—both of the elements and of their compounds (as is done in Table III. and in the table on p. 36), (b) according to periods (as in Table I. at the commencement of volume I. after the preface), and (c) according to groups and series or small periods (as in the same tables), I am acquainted with the following methods of expressing the periodic relations of the elements: (1) By a curve drawn through points obtained in the following manner: The elements are arranged along the horizontal axis as abscissæ at distances from zero proportional to their atomic weights, whilst the values for all the elements of some property—for example, the specific volumes or the melting points, are expressed by the ordinates. This method, although graphic, has the theoretical disadvantage that it does not in any way indicate the existence of a limited and definite number of elements in each period. There is nothing, for instance, in this method of expressing the law of periodicity to show that between magnesium and aluminium there can be no other element with an atomic weight of, say, 25, atomic volume 13, and in general having properties intermediate between those of these two elements. The actual periodic law does not correspond with a continuous change of properties, with a continuous variation of atomic weight—in a word, it does not express an uninterrupted function—and as the law is purely chemical, starting from the conception of atoms and molecules which combine in multiple proportions, with intervals (not continuously), it above all depends on there being but few types of compounds, which are arithmetically simple, repeat themselves, and offer no uninterrupted transitions, so that each period can only contain a definite number of members. For this reason there can be no other elements between magnesium, which gives the chloride MgCl₂, and aluminium, which forms AlX₃; there is a break in the continuity, according to the law of multiple proportions. The periodic law ought not, therefore, to be expressed by geometrical figures in which continuity is always understood. Owing to these considerations I never have and never will express the periodic relations of the elements by any geometrical figures. (2) By a plane spiral. Radii are traced from a centre, proportional to the atomic weights; analogous elements lie along one radius, and the points of intersection are arranged in a spiral. This method, adopted by De Chancourtois, Baumgauer, E. Huth, and others, has many of the imperfections of the preceding, although it removes the indefiniteness as to the number of elements in a period. It is merely an attempt to reduce the complex relations to a simple graphic representation, since the equation to the spiral and the number of radii are not dependent upon anything. (3) By the lines of atomicity, either parallel, as in Reynolds's and the Rev. S. Haughton's method, or as in Crookes's method, arranged to the right and left of an axis, along which the magnitudes of the atomic weights are counted, and the position of the elements marked off, on the one side the members of the even series (paramagnetic, like oxygen, potassium, iron), and on the other side the members of the uneven series (diamagnetic, like sulphur, chlorine, zinc, and mercury). On joining up these points a periodic curve is obtained, compared by Crookes to the oscillations of a pendulum, and, according to Haughton, representing a cubical curve. This method would be very graphic did it not require, for instance, that sulphur should be considered as bivalent and manganese as univalent, although neither of these elements gives stable derivatives of these natures, and although the one is taken on the basis of the lowest possible compound SX₂, and the other of the highest, because manganese can be referred to the univalent elements only by the analogy of KMnO₄ to KClO₄. Furthermore, Reynolds and Crookes place hydrogen, iron, nickel, cobalt, and others outside the axis of atomicity, and consider uranium as bivalent without the least foundation. (4) Rantsheff endeavoured to classify the elements in their periodic relations by a system dependent on solid geometry. He communicated this mode of expression to the Russian Chemical Society, but his communication, which is apparently not void of interest, has not yet appeared in print. (5) By algebraic formulæ: for example, E. J. Mills (1886) endeavours to express all the atomic weights by the logarithmic function A = 15(n - 0·9375t), in which the variables n and t are whole numbers. For instance, for oxygen n=2, t=1; hence A = 15·94; for antimony n=9, t=0; whence A=120, and so on. n varies from 1 to 16 and t from 0 to 59. The analogues are hardly distinguishable by this method: thus for chlorine the magnitudes of n and t are 3 and 7; for bromine 6 and 6; for iodine 9 and 9; for potassium 3 and 14; for rubidium 6 and 18; for cæsium 9 and 20; but a certain regularity seems to be shown. (6) A more natural method of expressing the dependence of the properties of elements on their atomic weights is obtained by trigonometrical functions, because this dependence is periodic like the functions of trigonometrical lines, and therefore Ridberg in Sweden (Lund, 1885) and F. Flavitzky in Russia (Kazan, 1887) have adopted a similar method of expression, which must be considered as worthy of being worked out, although it does not express the absence of intermediate elements—for instance, between magnesium and aluminium, which is essentially the most important part of the matter. (7) The investigations of B. N. Tchitchérin (1888, Journal of the Russian Physical and Chemical Society) form the first effort in the latter direction. He carefully studied the alkali metals, and discovered the following simple relation between their atomic volumes: they can all be expressed by A(2 - 0·0428An), where A is the atomic weight and n = 1 for lithium and sodium, ⁴⁄₈ for potassium, ⅜ for rubidium, and ²⁄₈ for cæsium. If n always = 1, then the volume of the atom would become zero at A = 46⅔, and would reach its maximum when A = 23⅓, and the density increases with the growth of A. In order to explain the variation of n, and the relation of the atomic weights of the alkali metals to those of the other elements, as also the atomicity itself, Tchitchérin supposes all atoms to be built up of a primary matter; he considers the relation of the central to the peripheric mass, and, guided by mechanical principles, deduces many of the properties of the atoms from the reaction of the internal and peripheric parts of each atom. This endeavour offers many interesting points, but it admits the hypothesis of the building up of all the elements from one primary matter, and at the present time such an hypothesis has not the least support either in theory or in fact. Besides which the starting-point of the theory is the specific gravity of the metals at a definite temperature (it is not known how the above relation would appear at other temperatures), and the specific gravity varies even under mechanical influences. L. Hugo (1884) endeavoured to represent the atomic weights of Li, Na, K, Rb, and Cs by geometrical figures—for instance, Li = 7 represents a central atom = 1 and six atoms on the six terminals of an octahedron; Na, is obtained by applying two such atoms on each edge of an octahedron, and so on. It is evident that such methods can add nothing new to our data respecting the atomic weights of analogous elements.

[11] Many natural phenomena exhibit a dependence of a periodic character. Thus the phenomena of day and night and of the seasons of the year, and vibrations of all kinds, exhibit variations of a periodic character in dependence on time and space. But in ordinary periodic functions one variable varies continuously, whilst the other increases to a limit, then a period of decrease begins, and having in turn reached its limit a period of increase again begins. It is otherwise in the periodic function of the elements. Here the mass of the elements does not increase continuously, but abruptly, by steps, as from magnesium to aluminium. So also the valency or atomicity leaps directly from 1 to 2 to 3, &c., without intermediate quantities, and in my opinion it is these properties which are the most important, and it is their periodicity which forms the substance of the periodic law. It expresses the properties of the real elements, and not of what may be termed their manifestations visually known to us. The external properties of elements and compounds are in periodic dependence on the atomic weight of the elements only because these external properties are themselves the result of the properties of the real elements which unite to form the ‘free’ elements and the compounds. To explain and express the periodic law is to explain and express the cause of the law of multiple proportions, of the difference of the elements, and the variation of their atomicity, and at the same time to understand what mass and gravitation are. In my opinion this is still premature. But just as without knowing the cause of gravitation it is possible to make use of the law of gravity, so for the aims of chemistry it is possible to take advantage of the laws discovered by chemistry without being able to explain their causes. The above-mentioned peculiarity of the laws of chemistry respecting definite compounds and the atomic weights leads one to think that the time has not yet come for their full explanation, and I do not think that it will come before the explanation of such a primary law of nature as the law of gravity.

It will not be out of place here to turn our attention to the many-sided correlation existing between the undecomposable elements and the compound carbon radicles, which has long been remarked (Pettenkofer, Dumas, and others), and reconsidered in recent times by Carnelley (1886), and most originally in Pelopidas's work (1883) on the principles of the periodic system. Pelopidas compares the series containing eight hydrocarbon radicles, C_nH_2n+1, C_nH_2n &c., for instance, C₆H₁₃, C₆H₁₂, C₆H₁₁, C₆H₁₀, C₆H₉, C₆H₈, C₆H₇, and C₆H₆—with the series of the elements arranged in eight groups. The analogy is particularly clear owing to the property of C_nH_2n+1 to combine with X, thus reaching saturation, and of the following members with X₂, X₃ … X₈, and especially because these are followed by an aromatic radicle—for example, C₆H₅—in which, as is well known, many of the properties of the saturated radicle C₆H₁₃ are repeated, and in particular the power of forming a univalent radicle again appears. Pelopidas shows a confirmation of the parallel in the property of the above radicles of giving oxygen compounds corresponding with the groups in the periodic system. Thus the hydrocarbon radicles of the first group—for instance, C₆H₁₃ or C₆H₅—give oxides of the form R₂O and hydroxides RHO, like the metals of the alkalis; and in the third group they form oxides R₂O₃ and hydrates RO₂H. For example, in the series CH₃ the corresponding compounds of the third group will be the oxide (CH)₂O₃ or C₂H₂O₃—that is, formic anhydride and hydrate, CHO₂H, or formic acid. In the sixth group, with a composition of C₂, the oxide RO₃ will be C₂O₃, and hydrate C₂H₂O₄—that is, also a bibasic acid (oxalic) resembling sulphuric, among the inorganic acids. After applying his views to a number of organic compounds, Pelopidas dwells more particularly on the radicles corresponding with ammonium.

With respect to this remarkable parallelism, it must above all be observed that in the elements the atomic weight increases in passing to contiguous members of a higher valency, whilst here it decreases, which should indicate that the periodic variability of elements and compounds is subject to some higher law whose nature, and still more whose cause, cannot at present be determined. It is probably based on the fundamental principles of the internal mechanics of the atoms and molecules, and as the periodic law has only been generally recognised for a few years it is not surprising that any further progress towards its explanation can only be looked for in the development of facts touching on this subject.

[11 bis] True peroxides (see Note 7), like H₂O₂, BaO₂, S₂O₇ (Chapter XX.), must not be confused with true saline oxides even if the latter contain much oxygen (for instance, N₂O₅, CrO₃, &c.) although one and the other easily oxidise. The difference between them is seen in their fundamental properties: the saline oxides correspond to water, while the peroxides correspond in their reactions and origin to peroxide of hydrogen. This is clearly seen in the difference between Na₂O and Na₂O₂ (Chapter XII.). Therefore the peroxides should also have their periodicity. An element R, giving a highest degree of oxidation, R₂O_n, may give both a lower degree of oxidation, R₂O_n-m (where m is evidently less than n), and peroxides, R₂O_n+1, R₂O_n+2, or even more oxygen. This class of oxides, to which attention has only recently been turned (Berthelot, Piccini, &c.), may perhaps on further study give the possibility of generalising the capability of the elements to give unstable complex higher forms of combination, such as double salts, and in my opinion should in the near future be the field of new and important discoveries. And in contemporary chemistry, salts, saline oxides, hydrogen compounds, and other combinations of the elements corresponding to them constitute an important and very complex problem for generalisation, which is satisfied by the periodic law in its present form, to which it has risen from its first state, in which it gave the means of foreseeing (see later on) the existence of unknown elements (Ga, Sc, and Ge), their properties, and many details respecting their compounds. Until those improvements in the periodic system which have been proposed by Prof. Flavitzky (of Kazan) and Prof. Harperath (of Cordoba, in the Argentine Republic), Ugo Alvisi (Italy), and others give similar practical results, I think it unnecessary to discuss them further.

[12] The hydrides generalised by the periodic law are those to which metallo-organic compounds correspond, and they are themselves either volatile or gaseous. The hydrogen compounds like Na₂H, BaH, &c. are distinguished by other signs. They resemble alloys. They show (see end of last chapter) a systematic harmony, but they evidently should not be confused with true hydrides, any more than peroxides with saline oxides. Moreover, such hydrides have, like the peroxides, only recently been subjected to research, and have been but little studied. The best known of these compounds are given in the 16th column of Table III., and it will be seen that they already exhibit a periodicity of properties and composition.

[12 bis] The relation between the atomic weights, and especially the difference = 16, was observed in the sixth and seventh decades of this century by Dumas, Pettenkofer, L. Meyer, and others. Thus Lothar Meyer in 1864, following Dumas and others, grouped together the tetravalent elements carbon and silicon; the trivalent elements nitrogen, phosphorus, arsenic, antimony, and bismuth; the bivalent oxygen, sulphur, selenium, and tellurium; the univalent fluorine, chlorine, bromine, and iodine; the univalent metals lithium, sodium, potassium, rubidium, cæsium, and thallium, and the bivalent metals beryllium, magnesium, strontium and barium—observing that in the first the difference is, in general = 16, in the second about = 46, and the last about = 87–90. The first germs of the periodic law are visible in such observations as these. Since its establishment this subject has been most fully worked out by Ridberg (Note 10), who observed a periodicity in the variation of the differences between the atomic weights of two contiguous elements, and its relation to their atomicity. A. Bazaroff (1887) investigated the same subject, taking, not the arithmetical differences of contiguous and analogous elements, but the ratio of their atomic weights; and he also observed that this ratio alternately rises and falls with the rise of the atomic weights. I will here remark that the relation of the eighth group to the others will be considered at the end of this work in Chapter XXII.

[13] The laws of nature admit of no exceptions, and in this they clearly differ from such rules and maxims as are found in grammar, and other inventions, methods, and relations of man's creation. The confirmation of a law is only possible by deducing consequences from it, such as could not possibly be foreseen without it, and by verifying those consequences by experiment and further proofs. Therefore, when I conceived the periodic law, I (1869–1871, Note 9) deduced such logical consequences from it as could serve to show whether it were true or not. Among them was the prediction of the properties of undiscovered elements and the correction of the atomic weights of many, and at that time little known, elements. Thus uranium was considered as trivalent, U = 120; but as such it did not correspond with the periodic law. I therefore proposed to double its atomic weight—U = 240, and the researches of Roscoe, Zimmermann, and others justified this alteration (Chapter XXI.). It was the same with cerium (Chapter XVIII.) whose atomic weight it was necessary to change according to the periodic law. I therefore determined its specific heat, and the result I obtained was verified by the new determinations of Hillebrand. I then corrected certain formulæ of the cerium compounds, and the researches of Rammelsberg, Brauner, Clève, and others verified the proposed alteration. It was necessary to do one or the other—either to consider the periodic law as completely true, and as forming a new instrument in chemical research, or to refute it. Acknowledging the method of experiment to be the only true one, I myself verified what I could, and gave every one the possibility of proving or confirming the law, and did not think, like L. Meyer (Liebig's Annalen, Supt. Band 7, 1870, 364), when writing about the periodic law that ‘it would be rash to change the accepted atomic weights on the basis of so uncertain a starting-point.’ (‘Es würde voreilig sein, auf so unsichere Anhaltspunkte hin eine Aenderung der bisher angenommenen Atomgewichte vorzunehmen.’) In my opinion, the basis offered by the periodic law had to be verified or refuted, and experiment in every case verified it. The starting-point then became general. No law of nature can be established without such a method of testing it. Neither De Chancourtois, to whom the French ascribe the discovery of the periodic law, nor Newlands, who is put forward by the English, nor L. Meyer, who is now cited by many as its founder, ventured to foretell the properties of undiscovered elements, or to alter the ‘accepted atomic weights,’ or, in general, to regard the periodic law as a new, strictly established law of nature, as I did from the very beginning (1869).

[14] When in 1871 I wrote a paper on the application of the periodic law to the determination of the properties of hitherto undiscovered elements, I did not think I should live to see the verification of this consequence of the law, but such was to be the case. Three elements were described—ekaboron, ekaaluminium, and ekasilicon—and now, after the lapse of twenty years, I have had the great pleasure of seeing them discovered and named Gallium, Scandium, and Germanium, after those three countries where the rare minerals containing them are found, and where they were discovered. For my part I regard L. de Boisbaudran, Nilson, and Winkler, who discovered these elements, as the true corroborators of the periodic law. Without them it would not have been accepted to the extent it now is.

[15] Taking indium, which occurs together with zinc, as our example, we will show the principle of the method employed. The equivalent of indium to hydrogen in its oxide is 37·7—that is, if we suppose its composition to be like that of water; then In = 37·7, and the oxide of indium is In₂O. The atomic weight of indium was taken as double the equivalent—that is, indium was considered to be a bivalent element—and In = 2 × 37·7 = 75·4. If indium only formed an oxide, RO, it should be placed in group II. But in this case it appears that there would be no place for indium in the system of the elements, because the positions II., 5 = Zn = 65 and II., 6 = Sr = 87 were already occupied by known elements, and according to the periodic law an element with an atomic weight 75 could not be bivalent. As neither the vapour density nor the specific heat, nor even the isomorphism (the salts of indium crystallise with great difficulty) of the compounds of indium were known, there was no reason for considering it to be a bivalent metal, and therefore it might be regarded as trivalent, quadrivalent, &c. If it be trivalent, then In = 3 × 37·7 = 113, and the composition of the oxide is In₂O₃, and of its salts InX₃. In this case it at once falls into its place in the system, namely, in group III. and 7th series, between Cd = 112 and Sn = 118, as an analogue of aluminium or dvialuminium (dvi = 2 in Sanskrit). All the properties observed in indium correspond with this position; for example, the density, cadmium = 8·6, indium = 7·4, tin = 7·2; the basic properties of the oxides CdO, In₂O₃, SnO₂, successively vary, so that the properties of In₂O₃ are intermediate between those of CdO and SnO₂ or Cd₂O₂ and Sn₂O₄. That indium belongs to group III. has been confirmed by the determination of its specific heat, (0·057 according to Bunsen, and 0·055 according to me) and also by the fact that indium forms alums like aluminium, and therefore belongs to the same group.

The same kind of considerations necessitated taking the atomic weight of titanium as nearly 48, and not as 52, the figure derived from many analyses. And both these corrections, made on the basis of the law, have now been confirmed, for Thorpe found, by a series of careful experiments, the atomic weight of titanium to be that foreseen by the periodic law. Notwithstanding that previous analyses gave Os = 199·7, Ir = 198, and Pt = 187, the periodic law shows, as I remarked in 1871, that the atomic weights should rise from osmium to platinum and gold, and not fall. Many recent researches, and especially those of Seubert, have fully verified this statement, based on the law. Thus a true law of nature anticipates facts, foretells magnitudes, gives a hold on nature, and leads to improvements in the methods of research, &c.

[16] Meyer, Willgerodt, and others, guided by the fact that Gustavson and Friedel had remarked that metalepsis rapidly proceeds in the presence of aluminium, investigated the action of nearly all the elements in this respect. For example, they took benzene, added the metals to be experimented on to it, and passed chlorine through the liquid in diffused light. When, for instance, sodium, potassium, barium, &c. are taken, there is no action on the benzene; that is, hydrochloric acid is not disengaged; but if aluminium, gold, or, in general, any metal having this power of aiding chlorination (Halogen-überträger) is employed, then the action is clearly seen from the volumes of hydrochloric acid evolved (especially if the metallic chloride formed is soluble in benzene). Thus, in group I., and in general among the even and light elements, there are none capable of serving as agents of metalepsis; but aluminium, gallium, indium, antimony, tellurium, and iodine, which are contiguous members in the periodic system, are excellent transmitters (carriers) of the halogens.

[17] The periodic relations enumerated above appertain to the real elements, and not to the elements in the free state as we know them; and it is very important to note this, because the periodic law refers to the real elements, inasmuch as the atomic weight is proper to the real element, and not to the ‘free’ element, to which, as to a compound, a molecular weight is proper. Physical properties are chiefly determined by the properties of molecules, and only indirectly depend on the properties of the atoms forming the molecules. For this reason the periods, which are clearly and quite distinctly expressed—for instance, in the forms of combination—become to some extent involved (complicated) in the physical properties of their members. Thus, for instance, besides the maxima and minima corresponding with the periods and groups, new molecules appear; thus, as regards the melting-point of germanium, a local maximum appears, which was, however, foreseen by the periodic law when the properties of germanium (ekasilicon) were forecast.

[17 bis] The relation of certain elements (for instance, the analogues of Pt) among diamagnetic and paramagnetic bodies is sometimes doubtful (probably partly owing to the imperfect purity of the reagents under investigation). This subject has been studied in some detail by Bachmetieff in 1889.

[18] It is evident that many of the figures, especially those exceeding 1000°, have been determined with but little exactitude, and some, placed in Table III. with the sign (?), I have only given on the basis of rough and comparative determinations, calculated from the melting-points of silver and platinum, now established by many observers. In Table III., besides the large periods whose maxima correspond with carbon, silicon, titanium, ruthenium (?), and osmium (?), there are also small periods in the melting-points, and their maxima correspond with sulphur, arsenic, antimony. The minima correspond with the halogens and metals of the alkalis. A distinct periodicity is also seen in taking the coefficients of linear expansion (chiefly according to Fizeau); for instance, in the vertical series (according to the magnitude of the atomic weight), Fe, Co, Ni, Cu, the linear expansion in millionths of an inch = 12, 13, 17, and 29; for Rh, Pd, Ag, Cd, In, Sn, and Sb the coefficients are 8, 12, 19, 31, 46, 26, and 12, so that a maximum is reached at In. In the series Ir (7), Pt (5), Au (14), Hg (60), Tl (31), Pb (29), and Bi (14), the maximum is at Hg and the minimum at Pt. Raoul Pictet expressed this connection by the fact that he found the product α(t + 273)∛(A/d) to be nearly constant for all elements in the free state, and nearly equal to 0·045, and being the coefficient of linear expansion, t + 273, the melting-point calculated from the absolute zero (-273°), and ∛(A/d), the mean distance between the atoms, if A is the atomic weight and d the sp. gr. of an element. Although the above product is not strictly constant, nevertheless Pictet's rule gives an idea of the bond between magnitudes which ought to have a certain connection with each other. De Heen, Nadeschdin, and others also studied this dependence, but their deductions do not give a general and exact law.

[19] Carnelley found a similar dependence in comparing the melting-points of the metallic chlorides, many of which he re-determined for this purpose. The melting-points (and boiling-points, in brackets) of the following chlorides are known, and a certain regularity is seen to exist in them, although the number (and degree of accuracy) of the data is insufficient for a generalisation:—

We will also enumerate the following data given by Carnelley, which are interesting for comparison: HCl -112° (-102°); RbCl 710°, SrCl₂ 825°, CsCl 631°, BaCl₂ 860°, SbCl₃ 73° (223°), TeCl₂ 209° (327°), ICl 27°, HgCl₂ 276° (303°), FeCl₃ 306°, NbCl₅ 194° (240°), TaCl₃ 211° (242°), WCl₆ 190°. The melting-points of the bromides and iodides are higher or lower than those of the corresponding chlorides, according to the atomic weight of the element and number of atoms of the halogen, as is seen from the following examples:—1. KCl 734°, KBr 699°, KI 634°; 2. AgCl 454°, AgBr 427° AgI 527°; 3. PbCl₂ 498° (900°), PbBr₂ 499° (861°), PbI₂ 383° (906°); 4. SnCl₄ below -20° (114°), SnBr₂ 30° (201°), SnI₄ 146° (295°) (see Chapter II. Note 27, and Chapter XI. Note 47^bis, &c.)

Laurie (1882) also observed a periodicity in the quantity of heat developed in the formation of the chlorides, bromides, and iodides (fig. 79), as is seen from the following figures, where the heat developed is expressed in thousands of calories, and referred to a molecule of chlorine, Cl₂, so that the heat of formation of KCl is doubled, and that of SnCl₄ halved, &c.: Na 195 (Ag 59, Au 12), Mg 151 (Zn 97, Cd 93, Hg 63), Al 117, Si 79 (Sn 64), K 211 (Li 187), Ca 170 (Sr 185, Ba 194), whence it is seen that the greatest amount of heat is evolved by the metals of the alkalis, and that in each period it falls from them to the halogens, which evolve very little heat in combining together. Richardson, by comparing the heats of formation of the fluorides also came to the conclusion that they are in periodic dependence upon the atomic weights of the combined elements.

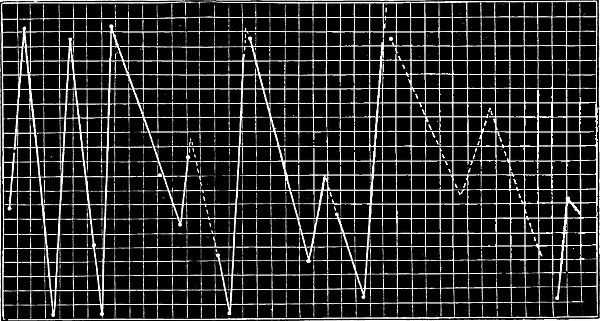

Fig. 79.—Laurie's diagram for expressing the periodic variation of the heat of formation of the chlorides. The abscissæ give the atomic weights from 0 to 210, and the ordinates the amounts of heat from 0 to 220 thousand calories evolved in the combination with Cl₂, (i.e. with 71 parts of chlorine). The apices of the curve correspond to Li, Na, K, Rb, Cs, and the lower extremities to F, Cl, Br, and I.

In this respect it may not be superfluous to remark (1) that Thomsen, whose results I have employed above, observed a correlation in the calorific equivalents of analogous elements, although he did not remark their periodic variation; (2) that the uniformity of many thermochemical deductions must gain considerably by the application of the periodic law, which evidently repeats itself in calorimetric data; and if these data frequently lead to true forecasts, this is due to the periodicity of the thermal as well as of many other properties, as Laurie remarked; and (3) that the heat of formation of the oxides is also subject to a periodic dependence which differs from that of the heat of formation of the chlorides, in that the greatest quantity corresponds with the bivalent metals of the alkaline earths (magnesium, calcium, strontium, barium), and not with the univalent metals of the alkalis, as is the case with chlorine, bromine, and iodine. This circumstance is probably connected with the fact that chlorine, bromine, and iodine are univalent elements, and oxygen bivalent (compare, for instance, Chapter XI., Note 13, Chapter XXII., Note 40, Chapter XXIV., Note 28^bis, &c.)

Keyser (1892), in investigating the spectra of the alkali metals and metals of the alkaline earths, came to the conclusion that in this respect also there is a regularity of a periodic character in dependence upon the atomic weights. Probably a closer and systematic study of many of the properties of the elements and of complex and simple bodies formed by them will more and more frequently lead to similar conclusions, and to extending the range of application of the periodic law.

[19 bis] Probably, besides thermo-chemical data (Note 19), the refractive index, cohesion, ductility, and similar properties of corresponding compounds or of the elements themselves will be found to exhibit a dependence of the magnitude of the atomic weight upon the periodic law.

[20] Having occupied myself since the fifties (my dissertation for the degree of M.A. concerned the specific volumes, and is printed in part in the Russian Mining Journal for 1856) with the problems concerning the relations between the specific gravities and volumes, and the chemical compositions of substances, I am inclined to think that the direct investigation of specific gravities gives essentially the same results as the investigation of specific volumes, only that the latter are more graphic. Table III. of the periodic properties of the elements clearly illustrates this. Thus, for those members whose volume is the greatest among the contiguous elements, the specific gravity is least—that is, the periodic variation of both properties is equally evident. In passing, for instance, from silver to iodine we have a successive decrease of specific gravity and successive increase of specific volume. The periodic alternation of the rise and fall of the specific gravity and specific volume of the free elements was communicated by me in August 1869 to the Moscow Meeting of Russian Naturalists. In the following year (1870) L. Meyer's paper appeared, which also dealt with the specific volume of the elements.

[21] In my opinion the mean volume of the atoms of compounds deserves more attention than has yet been paid to it. I may point out, for instance, that for feebly energetic oxides the mean volume of the atom is generally nearly 7; for example, the oxides SiO₂, Sc₂O₃, TiO₂, V₂O₅, as well as ZnO, Ga₂O₃, GeO₂, ZrO₂, In₂O₃, SnO₂, Sb₂O₅, &c., whilst the mean volume of the atom of the alkali and acid oxides is greater than 7. Thus we find in the magnitudes of the mean volumes of the atom in oxides and salts both a periodic variation and a connection with their energy of essentially the same character as occurs in the case of the free elements.

[22] The volume of oxygen (judging by the table on p. 36) is evidently a variable quantity, forming a distinctly periodic function of the atomic weight and type of the oxide, and therefore the efforts which were formerly made to find the volume of the atom of oxygen in the volumes of its compounds may be considered to be futile. But since a distinct contraction takes place in the formation of oxides, and the volume of an oxide is frequently less than the volume in the free state of the element contained in it, it might be surmised that the volume of oxygen in a free state is about 15, and therefore the specific gravity of solid oxygen in a free state would be about O·9.

[23] As an example we will take indium oxide, In₂O₃. Its sp. gr. and sp. vol. should be the mean of those of cadmium oxide, Cd₂O₂, and stannic oxide, Sn₂O₄, as indium stands between cadmium and tin. Thus in the seventies it was already evident that the volume of indium oxide should be about 38, and its sp. gr. about 7·2, which was confirmed by the determinations of Nilson and Pettersson (7·179) made in 1880.

[24] As the distance between, and the volumes of, the molecules and atoms of solids and liquids certainly enter into the data for the solution of the problems of molecular mechanics, which as yet have only been worked out to any extent for the gaseous state, the study of the specific gravity of solids, and especially of liquids, has long had an extensive literature. With respect to solids, however, a great difficulty is met with, owing to the specific gravity varying not only with a change of isomeric state (for example, for silica in the form of quartz = 2·65, and in tridymite = 2·2) but also directly under mechanical pressure (for example, in a crystalline, cast, and forged metal), and even with the extent to which they are powdered, &c., which influences are imperceptible in liquids. Compare Chapter XIV., Note 55^bis.

Without going into further details, we may add to what has been said above that the conception of specific volumes and atomic distances has formed the subject of a large number of researches, but as yet it is only possible to lay down a few generalisations given by Dumas, Kopp, and others, which are mentioned and amplified by me in my work cited in Note 20, and in my memoirs on this subject.

1. Analogous compounds and their isomorphs have frequently approximately the same molecular volumes.

2. Other compounds, analogous in their properties, exhibit molecular volumes which increase with the molecular weight.

3. When a contraction takes place in combination in a gaseous state, then contraction is in the majority of instances also to be observed in the solid or liquid state—that is, the sum of the volumes of the reacting substances is greater than the volume of the resultant substance or substances.

4. In decomposition the reverse takes place to that which occurs in combination.

5. In substitution (when the volumes in a state of vapour do not vary) a very small change of volume generally takes place—that is, the sum of the volumes of the reacting substances is almost equal to the sum of the resultant substances.

6. Hence it is impossible to judge the volume of the component substances from the volume of a compound, although it is possible to do so from the product of substitution.

7. The replacement of H₂ by sodium, Na₂, and by barium, Ba, as well as the replacement of SO₄ by Cl₂, scarcely changes the volume, but the volume increases with the replacement of Na by K, and decreases with the replacement of H₂, by Li₂ Cu, and Mg.

8. There is no need for comparing volumes in a solid and liquid state at the so-called corresponding temperatures—that is at temperatures at which vapour tension is equal in each case. The comparison of volumes at the ordinary temperature is sufficient for finding a regularity in the relations of volumes (this deduction was developed with particular detail by me in 1856).

9. Many investigators (Perseau, Schröder, Löwig, Playfair and Joule, Baudrimont, Einhardt) have sought in vain for a multiple proportion in the specific volumes of solids and liquids.

10. The truth of the above is seen very clearly in comparing the volumes of polymeric substances. The volumes of their molecules are equal in a state of vapour, but are very different in a solid and liquid state, as is seen from the close resemblance of the specific gravities of polymeric substances. But as a rule the more complex polymerides are denser than the simpler.

11. We know that the hydroxides of light metals have generally a smaller volume than the metals, whilst that of magnesium hydroxide is considerably greater, which is explained by the stability of the former and instability of the latter. In proof of this we may cite, besides the volumes of the true alkali metals, the volume of barium (36) which is greater than that of its stable hydroxide (sp. gr. 4·5, sp. vol. 30). The volumes of the salts of magnesium and calcium are greater than the volume of the metal, with the single exception of the fluoride of calcium. With the heavy metals the volume of the compound is always greater than the volume of the metal, and, moreover, for such compounds as silver iodide, AgI (d = 5·7), and mercuric iodide, HgI₂ (d = 6·2, and the volumes of the compounds 41 and 73), the volume of the compound is greater than the sum of the volumes of the component elements. Thus the sum of the volumes Ag + I = 36, and the volume of AgI = 41. This stands out with particular clearness on comparing the volumes K + I = 71 with the volume of KI, which is equal to 54, because its density = 3·06.

12. In such combinations, between solids and liquids, as solutions, alloys, isomorphous mixtures, and similar feeble chemical compounds, the sum of the reacting substances is always very nearly that of the resulting substance, but here the volume is either slightly larger or smaller than the original; speaking generally, the amount of contraction depends on the force of affinity acting between the combining substances. I may here observe that the present data respecting the specific volumes of solid and liquid bodies deserve a fresh and full elaboration to explain many contradictory statements which have accumulated on this subject.

[1] Zinc sulphate is often obtained as a by-product—for instance, in the action of galvanic batteries containing zinc and sulphuric acid. When the anhydrous salt is heated it forms zinc oxide, sulphurous anhydride, and oxygen. The solubility in 100 parts of water at O° = 43, 20° = 53, 40° = 63½, 60° = 74, 80° = 84½, 100° = 95 parts of anhydrous zinc sulphate—that is to say, it is closely expressed by the formula 43 + 0·52t.

An admixture of iron is often found in ordinary sulphate of zinc in the form of ferrous sulphate, FeSO₄, isomorphous with the zinc sulphate. In order to separate it, chlorine is passed through the solution of the impure salt (when the ferrous salt is converted into ferric), the solution is then boiled, and zinc oxide is afterwards added, which, after some time has elapsed, precipitates all the ferric oxide. Ferric oxide of the form R₂O₃ is displaced by zinc oxide of the form RO.

[2] Zinc oxide is obtained both by the combustion and oxidation of zinc, and by the ignition of some of its salts—for instance, those of carbonic and nitric acids; it is likewise precipitated by alkalis from a solution of ZnX₂ in the form of a gelatinous hydroxide. The oxide produced by roasting zinc blende (by burning in the air, when the sulphur is converted into sulphurous anhydride) contains various impurities. For purification, the oxide is mixed with water, and the sulphurous anhydride formed by roasting the blende is passed through it. Zinc bisulphite, ZnSO₃,H₂SO₃, then passes into solution. If a solution of this salt be evaporated, and the residue ignited, zinc oxide, free from many of its impurities, will remain. Zinc oxide is a light white powder, used as a paint instead of white lead; the basic salt, corresponding with magnesia alba, is used for the same purpose. V. Kouriloff (1890) by boiling the hydrate of the oxide with a 3 p.c. solution of peroxide of hydrogen obtained Zn₂H₂O₄ or the hydrate of the peroxide (= ZnO₂ZnH₂O₂ or a compound of 2ZnO with H₂O₂), which did not part with its oxygen at 100°, but only above 120°. Cadmium gives a similar compound of a yellow colour. Magnesium, although it does form such a compound, does so with great difficulty.

[3] For the solution of one part of the oxide 55,400 parts of water are required. Nevertheless, even in such a weak solution, zinc oxide (hydroxide, ZnH₂O₂) changes the colour of red litmus paper. Zinc oxide is obtained in the wet way by adding an alkali hydroxide to a solution of a zinc salt—for instance: ZnSO₄ + 2HKO = K₂SO₄ + ZnH₂O₂. The gelatinous precipitate of zinc hydroxide is soluble in an excess of alkali, which clearly distinguishes it from magnesia. This solubility of zinc hydroxide in alkalis is due to the power of zinc oxide to form a compound, although an unstable one, with alkalis—that is to say, points to the fact that zinc oxide already partly belongs to the intermediate oxides. The oxides of the metals above mentioned (except BeO) do not show this property. The property which metallic zinc itself has of dissolving in caustic alkali with the disengagement of hydrogen (the solution is facilitated by contact with platinum or iron) depends on the formation of such a compound of the oxides of zinc and the alkali metals. The solution of zinc hydroxide, ZnH₂O₂, in potash (in a strong solution), proceeds when these hydrates are taken in proportion to ZnH₂O₂ + KHO. If such a solution be evaporated to dryness, water extracts only caustic potash from the fused residue. When a solution of zinc hydroxide in strong alkali is mixed with a large mass of water, nearly all the oxide of zinc is precipitated; and, therefore, in weak solutions, a large quantity of the alkali is required to effect solution, which points to the decomposition of the zinc-alkali compounds by water. If strong alcohol be added to a solution of zinc oxide in sodium hydroxide, the crystallo-hydrate, 2Zn(OH)(ONa),7H₂O, separates.

[4] Zinc chloride, ZnCl₂, is generally employed in the arts in the form of a solution obtained by dissolving zinc in hydrochloric acid. This solution is used for soldering metals, impregnating wood, &c. The reason why it is thus employed may be understood from its properties. When evaporated it first parts with its water of crystallisation; on being further heated, however, it loses all traces of water, and forms an oily mass of anhydrous salt which solidifies on cooling. This substance melts at 250°, commences to volatilise at about 400°, and boils at 730°. The soldering of metals—that is, the introduction of an easily fusible metal between two contiguous metallic objects—is hindered by any film of oxide upon them; and, as heated metals easily oxidise, they are naturally difficult to solder. Zinc chloride is used to prevent the oxidation. It fuses on being heated, and, covering the metal with an oily coating, prevents contact with the air; but even if any oxide has formed, the free hydrochloric acid generally existing in the zinc chloride solution dissolves it, and in this way the metallic surface of the metals to be soldered is preserved fit for the adhesion of the liquid solder, which, on cooling, binds the objects together. Much zinc chloride is used also for steeping wood (telegraph-posts and railway-sleepers) in order to preserve it from decaying quickly; this preservative action is in all probability mainly due to the poisonous character of zinc salts (corrosive sublimate is still more poisonous, and a still better agent to preserve wood from decay), since decay is due to the action of lower organisms.

The specific gravity of solutions containing p per cent. of zinc chloride, ZnCl₂, is as follows:

The last line shows the change of specific gravity for 1° in ten-thousandth parts for temperatures near 15°. More accurate determinations of Cheltzoff, personally communicated by him, led him to conclude that solutions of zinc chloride follow the same laws as the solutions of sulphuric acid, which will be considered in Chapter XX.: (1) from H₂O to ZnCl₂,120H₂O s = S₀ + 92·85p + 0·1748p²; (2) from thence to ZnCl₂,40H₂O s = S₀ + 93·96p - 0·0126p²; (3) thence to ZnCl₂,25H₂O s = 11481·5 + 96·45(p - 15·89) + 0·4567(p - 15·89)²; (4) thence to ZnCl₂,10H₂O s = 12212·1 + 104·82(p - 23·21) + 0·7992(p - 23·21)²; (5) thence to p = 65 p.c. s = 14606·3 + 140·96(p - 43·05) + 1·4905(p - 43·05)², where s is the specific gravity of the solution at 15°, containing p p.c. of ZnCl₂ by weight, taking water at 4° = 10000, and where S₀ = 9991·6 (specific gravity of water at 15°). The compound of zinc chloride with hydrochloric acid has been mentioned in Vol. I. Chapter X.

Zinc chloride has a great affinity for water; it is not only soluble in it, but in alcohol, and on being dissolved in water becomes considerably heated, like magnesium and calcium chlorides. Zinc chloride is capable of taking up water, not only in a free state, but also in chemical combination with many substances. Thus, for instance, it is used in organic researches for removing the elements of water from many of the organic compounds.

[4 bis] When mixed with zinc oxide it forms, with remarkable ease, a very hard mass of zinc oxychloride, which is applied in the arts; for instance, in painting, to resist the action of water, or for cementing such objects as are destined to remain in water. Zinc oxychloride, ZnCl₂,3ZnO,2H₂O (= Zn₂OCl₂,2ZnH₂O₂), is also formed from a solution of zinc chloride by the action of a small quantity of ammonia on it after heating the precipitate obtained with the liquid for a considerable time; the admixture of ammonium salts with a mixture of a strong solution of zinc chloride with its oxide makes a similar mass, which does not solidify so rapidly, and is therefore more useful for some purposes. Moisture and cold do not change the hardened mass of oxychloride, and it also resists the action of many acids, and a temperature of 300°, which makes it a useful cement for many purposes. A solution of magnesium chloride with magnesium oxide forms a similar oxychloride. The mass solidifies best when there are equal quantities by weight of zinc in the chloride and oxide, and therefore when it has the composition Zn₂OCl₂ In preparing such a cement, naturally zinc oxide alone may be taken, and the requisite quantity of hydrochloric acid added to it. The capacity of ZnCl₂ to combine with water, ZnO, and HCl (and also with other metallic chlorides) indicates its property to combine with molecules of other substances, and therefore its compounds with NH₃, and especially a compound, ZnCl₂2NH₃, similar to sal-ammoniac, might be expected (i.e. 2NH₄Cl, in which H₂ is replaced by Zn). And indeed it has long been known that ZnCl₂ absorbs ammonia and gives solid substances capable of dissociating with the disengagement of NH₃. Among these compounds Isambert and V. Kouriloff (1894) obtained ZnCl₂6NH₃, ZnCl₂4NH₃, ZnCl₂2NH₃, and ZnCl₂NH₃. The dissociation tension of the two last-mentioned compounds at 218° is equal to 43·6 mm. and 6·7 mm. CdCl₂ also forms similar compounds with NH₃ (Kouriloff, 1894).

[5] This mineral has been given the name of ‘mock-ore,’ on account of its having the appearance (considerable density, 4·06, &c.) of ordinary metallic ores; it deceived the first miners, because it did not, like other ores, give metal when simply roasted in air and fused with charcoal. The white zinc oxide, formed by burning the vapours of zinc, was also called ’nihil album,’ or ‘white nothing,’ on account of its lightness.

[6] It may be here mentioned that by the word ore is meant a hard, heavy substance dug out of the earth, which is used in metallurgical works for obtaining the usual heavy metals long known and used. The natural compounds of sodium, or magnesium, are not called ores, because magnesium and sodium have not been long obtainable in quantity. The heavy metals, those which are easily reduced and do not easily oxidise, are exclusively those which are directly applied in manufactures. Ores either contain the metals themselves (for instance, ores of silver or bismuth), and the metals are then said to be in a native state, or else their sulphur compounds (blende, mock-ore, pyrites—as, for example, galena, PbS; zinc blende, ZnS; copper pyrites, CuFeS) or oxides (as the ores of iron), or salts (calamine, for instance). Zinc is incomparably rarer than magnesium, and is only well known because it is transformed from its ores into a metal which finds direct use in many branches of industry.

[7] Ores, when extracted from the earth by the miners, are often enriched by sorting, washing, and other mechanical operations. The sulphurous ores (and likewise others) are then generally roasted. Roasting an ore means heating it to redness in air. The sulphur then burns, and passes off in the form of sulphurous anhydride, SO₂, and the metal oxidises. The roasting is carried on in order to obtain an oxide instead of a sulphur compound, the oxide being reducible by charcoal. These methods, introduced ages ago, are met with in nearly all metallurgical works for practically all ores. For this reason the preparatory treatment of zinc blende furnishes zinc oxide: this is already contained in calamine.

[7 bis] with very impure ores, especially such as contain lead (PbS often accompanies zinc), the vapour of the reduced zinc is allowed to pass directly into the air. It burns and gives ZnO, which is used as a pigment.

[8] This zinc, although homogeneous, still contains certain impurities, to remove which it is necessary to prepare some salt of zinc in a pure state and transform it into carbonate, which latter is then distilled with charcoal; and, as thin sheets of zinc can only be obtained from very pure metal, they are frequently made use of in cases where pure zinc is required. In order to remove the arsenic from zinc, it was proposed to melt it and mix it with anhydrous magnesium chloride, by which means vapours of zinc chloride and arsenic chloride are formed. Perfectly pure zinc is made (V. Meyer and others) by decomposing, by means of the galvanic current, a solution of zinc sulphate to which an excess of ammonia has been added. The zinc used for Marsh's arsenic test (Chapter XIX.) is purified from As by fusing it with KNO₃ and then with ZnCl₂.

[9] Cornices and other architectural ornaments, remarkable for their lightness and beauty, are stamped out of sheet zinc. Zinc-roofing does not require painting, but it melts during a conflagration, and even burns at a strong heat. Many iron vessels, &c., are covered with zinc (‘galvanised’) in order to prevent them from rusting.

[10] Veeren (1891) proved this by simple experiments, finding that in vacuo the solution proceeds far more rapidly for both pure and commercial zinc, and still more rapidly in the presence of oxidising agents (which absorb the hydrogen) like CrO₃ and H₂O₂.

[10 bis] The addition of cupric sulphate, or, better still, a few drops of platinic chloride (the metals become reduced), to the sulphuric acid greatly accelerates the evolution of the hydrogen, because in this case, as with commercial zinc, galvanic couples are formed locally by the copper or platinum and the zinc, under the influence of which the zinc rapidly dissolves. The action of acids on metallic zinc of various degrees of purity has been the subject of many investigations, particularly important with reference to the application of zinc in galvanic batteries, whilst some investigations have direct significance for chemical mechanics, although from many points of view the matter is not clear. I consider it useful to mention certain of these investigations.

Calvert and Johnson made the following series of observations on the action of sulphuric acid of various degrees of concentration on 2 grams of pure zinc during two hours. In the cold the concentrated acid, H₂SO₄, does not act, H₂SO₄,2H₂O dissolves about 0·002 gram, but principally forms hydrogen sulphide, which is obtained also when the dilution reaches H₂SO₄,7H₂O, when 0·035 gram of zinc is dissolved. When largely diluted with water, pure hydrogen begins to be disengaged. H₂SO₄,2H₂O at 130° gives a mixture of hydrogen sulphide and sulphurous anhydride dissolving 0·156 gram of zinc.

Bouchardat showed that if in a vessel made of glass or sulphur dilute sulphuric acid acting on a piece of zinc liberates one part of hydrogen, then the same acid with the same piece of zinc in the same time will liberate 4 parts of hydrogen if the vessel be made of tin—that is, zinc forms a galvanic couple with tin; in a leaden vessel 9 parts of hydrogen are set free, with a vessel of antimony or bismuth 13 parts, silver or platinum 38 parts, copper 50 parts, iron 43 parts. If a salt of platinum be added to the dilute sulphuric acid (1 part of acid and 12 parts of water), Millon determined that the rapidity of the action on the zinc is increased 149 times, and by the addition of copper sulphate is rendered 45 times greater than the action of pure sulphuric acid. The salts which are added are reduced to metals by the zinc, their contact serving to promote the reaction because they form local galvanic currents.

According to the observations of Cailletet, if, at the ordinary pressure, sulphuric acid with zinc liberates 100 parts of hydrogen, then with a pressure of 60 atmospheres 47 parts will be liberated and 1 part at a pressure of 120 atmospheres. With a reduced pressure under the receiver of an air-pump 168 parts are liberated. Helmholtz showed that a reduced pressure also exercises its influence on galvanic elements.

Debray, Löwel, and others showed that zinc liberates hydrogen and forms basic salts and zinc oxide with solutions of many salts—for instance, MCl_n, aluminium sulphate, and alum, Sodium and potassium carbonates scarcely act, because they form carbonates. The salts of ammonia act more strongly than the salts of potassium and sodium; the zinc remains bright. It is evident that this action is founded on the formation of double salts and basic salts.

The variation with concentration in the rate of the action of sulphuric acid on zinc (containing impurities) under otherwise uniform conditions is in evident connection with the electrical conductivity of the solution and its viscosity, although, when largely diluted, the action is almost proportional to the amount of acid in a known volume of the solution. Forging, casting the molten metal, and similar mechanical influences change the density and hardness of zinc, and also strongly influence its power of liberating hydrogen from acids. Kayander showed (1881) that when magnesium is submitted to the action of acids: (a) the action depends, not on the nature of the acid, but on its basicity; (b) the increase of the action is more rapid than the growth of the concentration; and (c) there is a decrease of action with the increase of the coefficient of internal friction and electrical conductivity.

Spring and Aubel (1887) measured the volume of hydrogen disengaged by an alloy of zinc and a small quantity of lead (0·6 p.c.), because the action of acids is then uniform. In order to deal with a known surface, spheres were taken (9·5 millimetres diameter) and cylinders (17 mm. dia.), the sides of which were covered with wax in order to limit the action to the end surfaces. During the commencement of the action of a definite quantity of acid the rapidity increases, attains a maximum, and then declines as the acid becomes exhausted. The results for 5, 10, and 15 per cent. of hydrochloric acid are given below. H denotes the number of cubic centimetres of hydrogen, D the time in seconds elapsing after the zinc spheres have been plunged into the acid. At 15° were obtained:

In consequence of the complex character of the phenomenon, the authors themselves do not consider their determinations as being conclusive, and only give them a relative significance; and in this connection it is remarkable that hydrobromic acid under similar conditions (with an equivalent strength) gives a greater (from 2 to 5 times) rapidity of action than hydrochloric acid, but sulphuric acid a far smaller velocity (nearly 25 times smaller). It is also remarkable that during the reaction the metal becomes much more heated than the acid.

It may be mentioned that zinc dust and zinc itself, when heated with hydrated lime and similar hydrates, disengages hydrogen: this method has even been proposed for obtaining hydrogen for filling war balloons.

[11] It may be here remarked that sulphate of zinc (especially in the presence of mineral acids) does not give a precipitate of sulphide of zinc, or is only slightly precipitated by sulphuretted hydrogen.

[11 bis] Sulphide of cadmium appears in two varieties of a similar chemical but different physical character: one is of a lemon colour, and the other bright red. Kloboukoff (1890) studied the physical properties of these varieties more closely. The sp. gr. of the former is 3·906, and of the latter 4·513. They belong to different crystallographic systems. The first variety may be converted into the second by friction or pressure, but the second cannot be converted into the first variety by these means.

[12] Amongst the compounds of cadmium very closely allied to the compounds of zinc, we must mention cadmium iodide, CdI₂, which is used in medicine and photography. This salt crystallises very well: it is prepared by the direct action of iodine, mixed with water, on metallic cadmium. One part of cadmium iodide at 20° requires for its solution 1·08 part of water. It may be remarked that cadmium chloride at the same temperature requires 0·71 part of water to dissolve it, so that the iodine compound of this metal is less soluble than the chloride, whilst the reverse relation holds in the case of the corresponding compounds of the alkali or alkaline earthy metals. Cadmium sulphate crystallises well, and has the composition 3CdSO₄,8H₂O, thus differing from zinc sulphate.

Cadmium oxide is soluble, although sparingly, in alkalis, but in the presence of tartaric and certain other acids the alkaline solution of cadmium oxide does not change when boiled, whilst a diluted solution in that case deposits cadmium oxide: this may also serve for separating zinc compounds from those of cadmium. Cadmium is precipitated from its salts by zinc, which fact may also be taken advantage of for separating cadmium; for this reason, in an alloy of zinc and cadmium, acids first of all extract the zinc. Cadmium is in all respects less energetic than zinc. Thus, for instance, it decomposes water with difficulty, and this only when strongly heated. It even acts but slowly on acids, but then displaces hydrogen from them. It is necessary here to call attention to the fact that for alkali and alkaline earthy metals (of the even series) the highest atomic weight determines the greatest energy; but cadmium (of the uneven series), whilst having a larger atomic weight than zinc, is less energetic. The salts of cadmium are colourless, like those of zinc. De Schulten obtained a crystalline oxychloride, Cd(OH)Cl by heating marble with a solution of cadmium chloride in a sealed tube at 200°.

[12 bis] According to its atomic weight, mercury follows gold in the periodic system, just as cadmium follows silver and zinc follows copper:—

Eventually we shall see the near relation of platinum, palladium, and nickel, and also of gold, silver, and copper, but we will now point out the parallelism between these three groups. The relation between the physical and also chemical properties is here strikingly similar. Nickel, palladium, and platinum are very difficult to fuse (far more so than iron, ruthenium, and osmium, which stand before them). Copper, silver, and gold melt far more easily in a strong heat than the three preceding metals, and zinc, cadmium, and mercury melt still more easily. Nickel, palladium, and platinum are very slightly volatile; copper, silver, and gold are more volatile; and zinc, cadmium, and mercury are among the most volatile metals. Zinc oxidises more easily than copper, and is reduced with more difficulty, and the same is true for mercury as compared with gold. These properties for cadmium and silver are intermediate in the respective groups. Relations of this kind clearly show the nature of the periodic law.

[13] Thus thallium, lead, and bismuth, following mercury according to their atomic weights, form, besides compounds of the highest types, TlX₃, PbX₄, and BiX₅, also the lower ones TlX, PbX₂, and BiX₃.

[14] During the condensation of the vapours of mercury in works, a part forms a black mass of finely-divided particles, which gives metallic mercury when worked up in centrifugal machines, or on pressure, or on re-distillation. In mercury we observe a tendency to easily split up into the finest drops, which are difficult to unite into a dense mass. It is sufficient to shake up mercury with nitric and sulphuric acids in order to produce such a mercury powder. The mercury separated (for instance, reduced by substances like sulphurous anhydride) from solutions, forms such a powder. According to the experiments of Nernst, this disintegrated mercury when entering into reactions develops more heat than the dense liquid metal—that is to say, the work of disintegration reappears in the form of heat. This example is instructive in considering thermochemical deductions.

[15] Mercury may sometimes be obtained in a perfectly pure state from works (in iron bottles holding about 35 kilos), but after being used in laboratories (for baths, calibration, &c.) it contains impurities. It may be purified mechanically in the following way: a paper filter with a fine hole (pricked with a needle) is placed in a glass funnel and mercury is poured into it, which slowly trickles through the hole, leaving the impurities upon the filter. Sometimes it is squeezed through chamois leather or through a block of wood (as in the well-known experiment with the air-pump). It may be purified from many metals by contact with dilute nitric acid, if small drops of mercury are allowed to pass through a long column of it (from the fine end of a funnel); or by shaking it up with sulphuric acid in air. Mercury may be purified by the action of an electric current, if it be covered with a solution of HgNO₃. But the complete purification of mercury for barometers and thermometers can only be attained by distillation, best in a vacuum (the vapour-tension of mercury is given in Chapter II., Note 27). For this purpose Weinhold's apparatus is most often used. The principle of this apparatus is very ingenious, the distillation being effected in a Torricellian vacuum continuously supplied with fresh mercury, whilst the condensed mercury is continuously removed. This process of distillation requires very little attention, and gives about one kilo of pure mercury per hour.

[16] If the volume of liquid mercury at 0° be taken as 1000000, then, according to the determinations of Regnault (recalculated by me in 1875), at t it will be 1000000 + 180·1t + 0·02t².

[17] All salts of mercury, when mixed with sodium carbonate and heated, give mercurous or mercuric carbonates; these decompose on being heated, forming carbonic anhydride, oxygen, and vapours of mercury.

[18] Spring (1888) showed that, solid dry HgCl is gradually decomposed in contact with metallic copper. According to the determinations of Thomsen, the formation of a gram of mercurial compounds from their elements develops the following amounts of heat (in thousands of units): Hg₂ + O, 42; Hg + O, 31; Hg + S, 17; Hg + Cl, 41; Hg + Br, 34; Hg + I, 24; Hg + Cl₂, 63; Hg + Br₂, 51; Hg + I₂, 34; Hg + C₂N₂, 19. These numbers are less than the corresponding ones for potassium, sodium, calcium, barium, and for zinc and cadmium—for instance, Zn + O, 85; Zn + Cl₂, 97; Zn + Br₂, 76; Zn + I₂, 49; Cd + Cl₂, 93; Cd + Br₂, 75; Cd + I₂, 49.

[19] This salt easily forms the crystallo-hydrate HgNO₃,H₂O, corresponding with ortho-nitric acid, H₃NO₄ (the terms ortho-, pyro-, and meta-acids are explained in the chapter on Phosphorus), with the substitution of Hg for H. In an aqueous solution this salt can only be preserved in the presence of free mercury, otherwise it forms basic salts, which will be mentioned hereafter (Chapter VI., Note 59).

[20] Mercuric nitrate, Hg(NO₃)₂,8H₂O, crystallises from a concentrated solution of mercury in an excess of boiling nitric acid. Water decomposes this salt; at the ordinary temperature crystals of a basic salt of the composition Hg(NO₃)₂,HgO,2H₂O are formed, and with an excess of water the insoluble yellow basic salt Hg(NO₃)₂,H₂O,2HgO. These three salts correspond with the type of ortho-nitric acid, (H₃NO₄)₂, in which mercury is substituted for 1, 2 and 3 times H₂. As all these salts still contain water, it is possible that they correspond with the tetrahydrate = N₂O₅ + 4H₂O = N₂O(OH)₈ if ortho-nitric acid = N₂O₅ + 3H₂O = 2NO(OH)₃.

[21] To obtain the mercuric salt a large excess of strong sulphuric acid must be taken and strongly heated. With a small quantity of water colourless crystals of HgSO₄,H₂O may be obtained. An excess of water, especially when heated, forms the basic salt (as in Note 20), HgSO₄,2HgO, which corresponds with trihydrated sulphuric acid, SO₃ + 3H₂O = S(OH)₆, with the substitution of H₆ by 3Hg, which in mercuric salts is equivalent to H₆. Le Chatelier (1888) gives the following ratio between the amounts of equivalents per litre:

—that is, the relative amount of free acid decreases as the strength of the solution increases.

[22] The question of the molecular weight of calomel—that is, whether the mercury in the salts of the suboxide is monatomic or diatomic—long occupied the minds of chemists, although it is not of very great importance. It is only recently (1894) that this question can be considered as answered, thanks to the researches of V. Meyer and Harris, in favour of diatomicity—that is, that calomel is analogous to peroxide of hydrogen and contains Hg₂Cl₂ (like O₂H₂) in its molecule if corrosive sublimate contains HgCl₂ (like water OH₂). As a matter of fact, direct experiment gives the vapour density of calomel as about 118—that is, indicates that its molecule contains HgCl, whilst the molecule of the sublimate, judging also by the vapour density (nearly 136), contains HgCl₂; it might therefore be concluded that the mercury in the suboxide is not only monovalent (corresponding to H) but also monatomic, whilst in the oxide it is divalent and diatomic. Instances of a variable atomicity, as shown by the vapour density, are known in N₂O, NO, and NH₃, CO and CO₂, PCl₃ and PCl₅, and it might therefore be supposed that the present was a similar instance. But there are also instances of a variable equivalency which do not correspond to a variation of atomicity—for example, OH₂ (water) and OH (peroxide of hydrogen), CH₄ (methane), C₂H₅ (ethyl), and CH₂ (ethylene), &c. Here, according to the law of substitution, the residues of OH₂ and CH₄ combine together and give molecules; OHOH = O₂H₂ (peroxide of hydrogen) and CH₃CH₃ = C₂H₆ (ethane), &c. The same may be assumed also to be the relation of calomel to sublimate; the residue HgCl, which is combined with Cl in sublimate, corresponds to HgCl₂, and in calomel it may be supposed that this residue is combined with itself, forming the molecule Hg₂Cl₂. On this view of the composition of the molecule of calomel it would follow that in the state of vapour it breaks up into two molecules, HgCl₂ and Hg, when the vapour density would be about 118 (because that of sublimate is about 136 and that of mercury about 100), and that in cooling this mixture (like a mixture of HCl and NH₃) again gives Hg₂Cl₂. It was therefore necessary to prove that calomel is decomposed in the state of vapour. This was not effected for a long time, although Odling, as far back as the thirties, showed that gold becomes amalgamated (i.e. absorbs metallic mercury) in the vapour of calomel, but not in the vapour of sublimate. Recently, however, V. Meyer and Harris (1894) have shown that a greater amount of the vapour of mercury than of calomel passes (at about 465°) through a porous clay cell, containing calomel. This proves that the vapour of calomel contains a mixture of the vapours of Hg and HgCl₂, as would follow from the second hypothesis. Moreover, on introducing a heated piece of KHO into the vapour of calomel, Meyer observed the formation, not of suboxide (black), but of oxide of mercury (yellow). Therefore the molecular formula of calomel must be taken as Hg₂Cl₂ (and not HgCl).

[22 bis] Calomel (in Japanese ‘Keyfun’) has been prepared in Japan (and China) for many centuries, by heating mercury in clay crucibles with sea salt, which contains MgCl₂ and gives HCl. The vapour of the mercury reacts with this HCl and the oxygen of the air and forms calomel: 2Hg + 2HCl + O = Hg₂Cl₂ + H₂O. The calomel collects on the lid of the crucible in the form of a sublimate (Divers, 1894).

[23] HgCl₂ is partially converted into calomel even in the act of dissolving in ordinary water, especially under the action of light.

[23 bis] As feebly energetic bases (for instance, the oxides MgO, ZnO, PbO, CuO, Al₂O₃, Bi₂O₃, &c.), mercuric oxide (see Notes 20, 21) and mercurous oxide easily give basic salts, which are usually directly formed by the action of water on the normal salt, according to the general equation (for mercuric compounds, RX₂):

or else are produced directly from the normal salt and the oxide or its hydroxide. Thus mercurous nitrate, when treated with water, forms basic salts of the composition 6(HgNO₃),Hg₂O,H₂O, 2(HgNO₃),Hg₂O,H₂O, and 3(HgNO₃),Hg₂O,H₂O, the first two of which crystallise well. Naturally it is possible either to refer similar salts to the type of hydrates—for instance, the second salt to the hydrate N₂O₅,4H₂O—or to view it as a compound, HgNO₃,HgHO, but our present knowledge of basic salts is not sufficiently complete to admit of generalisations. However, it is already possible to view the subject in the following aspects: (1) basic salts are principally formed from feeble bases; (2) certain metals (mentioned above) form them with particular ease, so that one of the causes of the formation of many basic salts must depend on the property of the metal itself; (3) those bases which readily form basic salts as a rule also readily form double salts; (4) in the formation of basic salts, as also everywhere in chemistry, where sufficient facts have accumulated, we clearly see the conditions of equally balanced heterogeneous systems, such as we saw, for instance, in the formation of double salts, crystallo-hydrates, &c.

The mercuric salts often form double salts (confirming the third thesis), and mercuric chloride easily combines with ammonia, forming Hg(NH₄)₂Cl₄, or in general HgCl₂nMCl. If a mixture of mercurous and potassium sulphates be dissolved in dilute sulphuric acid, the solution easily yields large colourless crystals of a double salt of the composition K₂SO₄,3HgSO₄,2H₂O. Boullay obtained crystalline compounds of mercuric chloride with hydrochloric acid, and mercuric iodide with hydriodic acid; and Thomsen describes the compound HgBr₂,HBr,4H₂O as a well-crystallised salt, melting at 13°, and having, in a molten state, a specific gravity 3·17 and a high index of refraction. Moreover, the capacity of salts for forming basic compounds has been considerably cleared up since the investigation (by Würtz, Lorenz, and others) of glycol, C₂H₄(OH)₂ (and of polyatomic alcohols resembling it), because the ethers C₂H₄X₂, corresponding with it, are capable of forming compounds containing C₂H₄X₂nC₂H₄O.

On the other hand, there is reason to think that the property of forming basic salts is connected with the polymerisation of bases, especially colloidal ones (see the chapter on Silica, Lead Salts, and Tungstic Acid).

[24] Mercuric iodide, HgI₂, is obtained first as a yellow, and then as a red, precipitate on mixing solutions of mercuric salts and potassium iodide, and is soluble in an excess of the latter (in consequence of the formation of the double salt, HgKI₃); of ammonium chloride (for a similar reason), &c. It crystallises at the ordinary temperature in square prisms of a red colour. On being heated, these change into yellow rhombic crystals, isomorphous with mercuric chloride. This yellow form of mercuric iodide is very unstable, and when cooled and triturated easily again assumes the more stable red form. When fused, a yellow liquid is obtained. Mercuric cyanide, Hg(CN)₂, forms one of the most stable metallic cyanides. It is obtained by dissolving mercuric oxide in prussic acid, and by boiling Prussian blue with water and mercuric oxide, ferric oxide being then obtained in the precipitate. Mercuric cyanide is a colourless crystalline substance, soluble in water, and distinguished by its great stability; sulphuric acid does not liberate prussic acid from it, and even caustic potash does not remove the cyanogen (a complex salt is probably produced), but the halogen acids disengage HCN. Like the chloride, it combines with mercuric oxide, forming the oxycyanide, Hg₂O(CN)₂, and it shows a very marked tendency to form double compounds—for example, K₂Hg(CN)₄. The alkali chlorides and iodides form similar compounds—for instance, the salt HgKI(CN)₂ crystallises very well, and is produced by directly mixing solutions of potassium iodide and mercuric cyanide.

Wells (1889) and Vare obtained and investigated many such double salts, and showed the possibility of the formation, not only of HgCl₂MCl and HgCl₂2MCl where M is a metal of the alkalis—for example, Cs—but also of HgCl₂3MCl,2(HgCl₂)MCl, and in general nHgX₂mMX, where X stands for various haloids.

[24 bis] See Chapter XIX., Note 6 bis: Hg₃P₂. In studying the metallic nitrides it is necessary to keep the corresponding phosphides in mind.

[25] Hg₃N₂ is similar in composition to Mg₃N₂, &c. (Chapter XIV.) The readiness with which mercuric nitride explodes shows that the connection between the nitrogen and the mercury is very unstable, and explains the circumstance that the so-called mercury fulminate, or fulminating mercury, is an exceedingly explosive substance. This substance is prepared in large quantities for explosive mixtures; it enters into the composition of percussion caps, which explode when struck, and ignite gunpowder. Mercury fulminate was discovered by Howard, and from that time has been prepared in the following way: one part of mercury is dissolved in twelve parts of nitric acid, of sp. gr. 1·36, and when the whole of the mercury is dissolved, 5·5 parts of 90 p.c. alcohol are added, and the mass is shaken. A reaction then commences, accompanied by a rise in temperature due to the oxidation of the alcohol. As a matter of fact, many oxidation products are produced during the action of the nitric acid on the alcohol (glycolic acid, ethers, &c.) When the reaction becomes tolerably vigorous, the same quantity of alcohol is added as at the commencement, when a grey precipitate of the fulminate separates. This salt has the composition C₂Hg(NO₂)N. It explodes when struck or heated. The mercury in it may be replaced by other metals—for instance, copper or zinc, and also silver. The silver salt, C₂Ag₂(NO₂)N, is obtained in a precisely analogous manner, and is even more explosive. Under the action of alkali chlorides, only half the silver is replaced by the alkali metal, but if the whole of the silver be replaced by an alkali metal, then the salt decomposes. This is evidently because combinations of this kind proceed in virtue of the formation of substances in which mercury, and metals akin to it, are connected in an unstable way with nitrogen. Potassium and other light metals are incapable of entering into such connection and therefore, the substitution of potassium for mercury entails the splitting-up of the combination. Investigations of the fulminates were carried on by Gay-Lussac and Liebig, but only the investigations of L. N. Shishkoff fully cleared up the composition and relation of these substances to the other carbon compounds. Shishkoff showed that fulminates correspond with the nitro-acid, C₂H₂(NO₂)N. The explosiveness of the group depends partly on its containing at the same time NO₂ and carbon; we already know that all such nitrogen compounds are explosive. If we imagine that the NO₂ is replaced by hydrogen, we shall have a substance of the composition C₂H₃N. This is acetonitrile—that is, acetic acid + NH₃ - 2H₂O, or ethenyl nitrile, as shown in Chapter VI. The formation of an acetic compound by the action of nitric acid on alcohol is easily understood, because acetic acid is produced by the oxidation of alcohol, and the production of the elements of ammonia, indispensable for the formation of a nitrile, is accounted for by the fact that nitric acid under the action of reducing substances in many cases forms ammonia. Moreover a certain analogy has been found between fulminating acid and hydroxylamine, but details upon this subject must be looked for in works on organic chemistry. The explosiveness of fulminating mercury, the rapidity of its decomposition (gunpowder, and even guncotton, burn more slowly and explode less violently), and the force of its explosion, are such that a small quantity (loosely covered) will shatter massive objects.

The investigations of Abel on the communication of explosion from one substance to another are remarkable. If guncotton be ignited in an open space, it burns quietly; but if fulminating mercury be exploded by the side of it, the decomposition of the guncotton is effected instantaneously, and it then shatters the objects upon which it lies, so rapid is the decomposition. Abel explains this by supposing that the explosion of the fulminating salt brings the molecules of guncotton into a uniform or as it were harmonious state of vibration, which causes the rapid decomposition of the whole mass. This rapid decomposition of explosive substances defines the distinction between explosion and combustion. Besides this, Berthelot showed that from that form of powerful molecular concussion which takes place during the explosion of fulminating mercury, the state of strain and stability of equilibrium of substances which are endothermal, or capable of decomposing with the disengagement of heat—for instance, cyanogen, nitro compounds, nitrous oxide, &c.—is generally destroyed. Thorpe showed that carbon bisulphide, CS₂, also an endothermal substance, decomposes into sulphur and charcoal, when fulminating mercury is exploded in contact with it.

[25 bis] The capacity for replacing hydrogen in chloride of ammonium by metals also belongs to Zn and Cd. Kvasnik (1892), by the action of ammonia upon alcoholic solutions of CdCl₂ and ZnCl₂, obtained substances of the general formula M(NH₃Cl)₂, formed as it were from two molecules of sal-ammoniac by the substitution of two atoms of hydrogen by a diatomic metal. These substances appear as white, finely crystalline powders. Under the action of heat half the ammonia passes off, and a compound of the composition MClNH₃Cl is formed. The compounds of cadmium and zinc are distinguished from each other by the former being more volatile than the latter.

We may further remark that in the series Mg, Zn, Cd, and Hg the capacity to form double salts of diverse composition increases with the atomic weight. Thus, according to Wells and Walden's observations (1893), the ratio n : m for the type nMClmRCl₂ (M = K, Li, Na … R = Mg, Zn …) is for Mg 1 : 1, for Zn 3 : 1, 2 : 1, and 1 : 1; for Cd, besides this, salts are known with the ratio 4 : 1, and for Hg 3 : 1, 2 : 1, 1 : 1, 2 : 3, 1 : 2, and 1 : 5.

[26] I consider it appropriate here to call attention to the want of an element (ekacadmium) between cadmium and mercury in the periodic system (Chapter XV.) But as in the ninth series there is not a single known element, it may be that this series is entirely composed of elements incapable of existing under present conditions. However, until this is proved in one way or another, it may be concluded that the properties of ekacadmium will be between those of cadmium and mercury. It ought to have an atomic weight of about 155, to form an oxide EcO, a slightly stable oxide Ec₂O. Both ought to be feeble bases, easily forming double and basic salts. The volume of the oxide will be nearly 17·5, because the volume of cadmium oxide is about 16, and that of mercuric oxide 19. Therefore the density of the oxide will approach 171 ÷ 17·5 = 9·7. The metal ought to be easily fusible, oxidising when heated, of a grey colour, with a specific volume, about 14 (cadmium = 13, mercury = 15), and, therefore, its specific gravity (155 ÷ 14) will nearly = 11. Such a metal is unknown. But in 1879 Dahl, in Norway, discovered in the island of Oterö, not far from Kragerö, in a vein of Iceland spar in a nickel mine, traces of a new metal which he called norwegium, and which presented a certain resemblance to ekacadmium. Perfect purity of the metal was not attained, and therefore the properties ascribed to norwegium must be regarded as approximate, and likely to undergo considerable alteration on further study. A solution of the roasted mineral in acid was twice precipitated by sulphuretted hydrogen, and again ignited; the oxide obtained was easily reduced. When the metal was dissolved in hydrochloric acid largely diluted with water, and the solution boiled, the basic salt was precipitated, and thus freed from the copper which remained in the solution. The reduced metal had a density 9·44, and easily oxidised. If the composition NgO be assigned to the oxide, then Ng = 145·9. It fused at 254°; the hydroxide was soluble in alkalis and potassium carbonate. In any case, if norwegium is not a mixture of other metals, it belongs to the uneven series, because the heavy metals of the even series are not easily reducible. Brauner thinks that norwegium oxide is Ng₂O₃, the atom Ng = 219, and places it in Group VI., series 11, but then the feebly acid higher oxide, NgO₃, ought to be formed.

Amongst the metals accompanying zinc which have been named, but not authentically separated, must be included the actinium of Phipson (1881). He remarked that certain sorts of zinc give a white precipitate of zinc sulphide which blackens on exposure to light and then becomes white in the dark again. Its oxide, closely resembling in many ways cadmium oxide, is insoluble in alkalis, and it forms a white metallic sulphide, blackening on exposure to light. As no further mention has been made of it since 1882, its existence must be regarded as doubtful.

[1] Borax is either directly obtained from lakes (the American lakes give about 2,000 tons and the lakes of Thibet about 1,000 tons per annum), or by heating native calcium borate (see Note 2) with sodium carbonate (about 4,000 tons per annum), or it is obtained (up to 2,000 tons) from the Tuscan impure boric acid and sodium carbonate (carbonic anhydride is evolved). Borax gives supersaturated solutions with comparative ease (Gernez), from which it crystallises, both at the ordinary and higher temperatures, in octahedra, containing Na₂B₄O₇,5H₂O. Its sp. gr. is 1·81. But if the crystallisation proceeds in open vessels, then at temperatures below 56°, the ordinary prismatic crystallo-hydrate B₄Na₂O₇,10H₂O is obtained. Its sp. gr. is 1·71, it effloresces in dry air at the ordinary temperature, and at 0° 100 parts of water dissolve about 8 parts of this crystallo-hydrate, at 50° 27 parts, and at 100° 201 parts. Borax fuses when heated, loses its water and gives an anhydrous salt which at a red heat fuses into a mobile liquid and solidifies into a transparent amorphous glass (sp. gr. 2·37), which before hardening acquires the pasty condition peculiar to common molten glass. Molten borax dissolves many oxides and on solidifying acquires characteristic tints with the different oxides; thus oxide of cobalt gives a dark blue glass, nickel a yellow, chromium a green, manganese an amethyst, uranium a bright yellow, &c. Owing to its fusibility and property of dissolving oxides, borax is employed in soldering and brazing metals. Borax frequently enters into the composition of strass and fusible glasses.

[2] We may mention the following among the minerals which contain boron: calcium borate, (CaO)₃(B₂O₃)(H₂O)₆, found and extracted in Asia Minor, near Brusa; boracite (stassfurtite), (MgO)₆(B₂O₃)₈,MgCl₂, at Stassfurt, in the regular system, large crystals and amorphous masses (specific gravity 2·95), used in the arts; ereméeffite (Damour), AlBO₃ or Al₂O₃B₂O₃, found in the Adulchalonsk mountains in colourless, transparent prisms (specific gravity 3·28) resembling apatite; datholite, (CaO)₂(SiO₂)₂B₂O₃,H₂O; and ulksite, or the boron-sodium carbonate from which a large quantity of borax is now extracted in America (Note 1). As much as 10 p.c. of boric anhydride sometimes enters into the composition of tourmalin and axinite.

[3] This green coloration is best seen by taking an alcoholic solution of volatile ethyl borate, which is easily obtained by the action of boron chloride on alcohol.

[3 bis] P. Chigeffsky showed in 1884 (at Geneva) that in the evaporation of saline solutions many salts are carried off by the vapour—for instance, if a solution of potash containing about 17–20 grams of K₂CO₃ per litre be boiled, about 5 milligrams of salt are carried off for every litre of water evaporated. With Li₂CO₃ the amount of salt carried over is infinitesimal, and with Na₂CO₃ it is half that given by K₂CO₃. The volatilisation of B₂O₃ under these circumstances is incomparably greater—for instance, when a solution containing 14 grams of B₂O₃ per litre is boiled, every litre of water evaporated carries over about 350 milligrams of B₂O₃. When Chigeffsky passed steam through a tube containing B₂O₃ at 400°, it carried over so much of this substance that the flame of a Bunsen's burner into which the steam was led gave a distinct green coloration; but when, instead of steam, air was passed through the tube there was no coloration whatever. By placing a tube with a cold surface in steam containing B₂O₃, Chigeffsky obtained a crystalline deposit of the hydrate B(OH)₃ on the surface of the tube. Besides this, he found that the amount of B₂O₃ carried over by steam increases with the temperature, and that crystals of B(OH)₃ placed in an atmosphere of steam (although perfectly still) volatilise, which shows that this is not a matter of mechanical transfer, but is based on the capacity of B₂O₃ and B(OH)₃ to pass into a state of vapour in an atmosphere of steam.

[4] How it is that these vapours containing boric acid are formed in the interior of the earth is at present unknown. Dumas supposes that it depends on the presence of boron sulphide, B₂S₃ (others think boron nitride), at a certain depth in the earth. This substance may be artificially prepared by heating a mixture of boric acid and charcoal in a stream of carbon bisulphide vapour, and by the direct combination of boron and the vapour of sulphur at a white heat. The almost non-crystalline compound B₂S₃, sp. gr. 1·55, thus obtained is somewhat volatile, has an unpleasant smell, and is very easily decomposed by water, forming boric acid and hydrogen sulphide, B₂S₃ + 3H₂O = B₂O₃ + 3H₂S. It is supposed that a bed of boron sulphide lying at a certain depth below the surface of the earth comes into contact with sea water which has percolated through the upper strata, becomes very hot, and gives steam, hydrogen sulphide, and boric acid. This also explains the presence of ammonia in the vapours, because the sea water certainly passes through crevices containing a certain amount of animal matter, which is decomposed by the action of heat and evolves ammonia. There are several other hypotheses for explaining the presence of the vapours of boric acid, but owing to the want of other known localities the comparison of these hypotheses is at present hardly possible. The amount of boric anhydride in the vapours which escape from the Tuscan fumerolles and suffioni is very inconsiderable, less than one-tenth per cent., and therefore the direct extraction of the acid would be very uneconomical, hence the heat contained in the discharged vapours is made use of for evaporating the water. This is done in the following manner. Reservoirs are constructed over the crevices evolving the vapours, and the water of some neighbouring spring is passed into them. The vapours are caused to pass through these reservoirs, and in so doing they give up all their boric acid to the water and heat it, so that after about twenty-four hours it even boils; still this water only forms a very weak solution of boric acid. This solution is then passed into lower basins and again saturated by the vapours discharged from the earth, by which means a certain amount of the water is evaporated and a fresh quantity of boric acid absorbed; the same process is repeated in another reservoir, and so on until the water has collected a somewhat considerable amount of boric acid. The solution is drawn from the last reservoir A into settling vessels B D, and then into a series of vessels a, b, c. In these vessels, which are made of lead, the solution is also evaporated by the vapours escaping from the earth, and attains a density of 10° to 11° Baumé. It is allowed to settle in the vessel C, in which it cools and crystallises, yielding (not quite pure) crystalline boric acid. At temperatures above 100°, for instance, with superheated steam, boric acid volatilises with steam very easily.

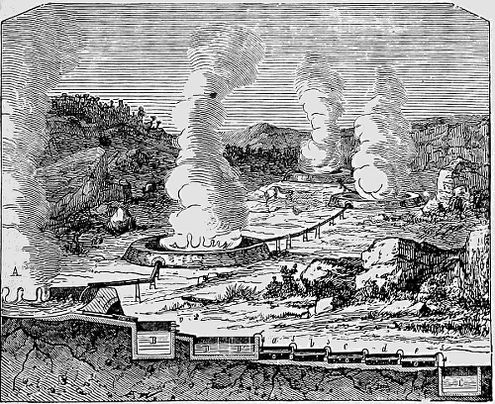

Fig. 81.—Extraction of boric acid in Tuscany.

[5] Metals, like Na, K, Li, give salts of the type of borax, MBO₂ or MH₂BO₃. A solution of borax, Na₂B₄O₇, has an alkaline reaction, decomposes ammonia salts with the liberation of ammonia (Bolley), absorbs carbonic anhydride like an alkali, dissolves iodine like an alkali (Georgiewics), and seems to be decomposed by water. Thus Rose showed that strong solutions of borax give a precipitate of silver borate with silver nitrate, whilst dilute solutions precipitate silver oxide, like an alkali. Georgiewics even supposes (1888) boric anhydride to be entirely void of acid properties; for all acids, on acting on a mixture of solutions of potassium iodide and iodate, evolve iodine, but boric acid does not do this. With dilute solutions of sodium hydroxide Berthelot obtained a development of heat equal to 11½ thousand calories per equivalent of alkali (40 grams sodium hydroxide) when the ratio Na₂O : 2B₂O₃ (as in borax) was taken, and only 4 thousand calories when the ratio was Na₂O : B₂O₃, whence he concludes that water powerfully decomposes those sodium borates in which there is more alkali than in borax. Laurent (1849) obtained a sodium compound, Na₂O,4B₂O₃,10H₂O, containing twice as much boric anhydride as borax, by boiling a mixture of borax with an equivalent quantity of sal-ammoniac until the evolution of ammonia entirely ceased.

Hence it is evident that feeble acids are as prone to, and as easily, form acid salts (that is, salts containing much acid oxide) as feeble bases are to give basic salts. These relations become still clearer on an acquaintance with such feeble acids as silicic, molybdic, &c. This variety of the proportions in which bases are able to form salts recalls exactly the variety of the proportions in which water combines with crystallo-hydrates. But the want of sufficient data in the study of these relations does not yet permit of their being generalised under any common laws.

With respect to the feeble acid energy of boric anhydride I think it useful to add the following remarks. Carbonic anhydride is absorbed by a solution of borax, and displaces boric anhydride; but it is also displaced by it, not only on fusion, but also on solution, as the preparation of borax itself shows. Sulphuric anhydride is absorbed by boric acid, forming a compound B(HSO₄)₃, where HSO₄ is the radicle of sulphuric acid (D'Ally). With phosphoric acid, boric acid forms a stable compound, BPO₄, or B₂O₃P₂O₅, undecomposable by water, as Gustavson and others have shown. With respect to tartaric acid, boric anhydride is able to play the same part as antimonious oxide. Mannitol, glycerol, and similar polyhydric alcohols also seem able to form particularly characteristic compounds with boric anhydride. All these aspects of the subject require still further explanation by a method of fresh and detailed research.

[6] Ditte determined the sp. gr.:—

The last line gives the solubility, in grams, of boric acid, B(OH)₃, per 100 c.c. of water, also according to the determinations of Ditte.

[7] It is evident that, in the presence of basic oxides, water competes with them, which fact in all probability determines both the amount of water in the salts of boric acid as well as their decomposition by an excess of water. In confirmation of the above-mentioned competing action between water and bases, I think it useful to point out that the crystallo-hydrate of borax containing 5H₂O may be represented as B(HO)₃, or rather as B₂(OH)₆, with the substitution of one atom of hydrogen by sodium, since Na₂B₄O₇,5H₂O = 2B₂(OH)₅(ONa). The composition of the acid boric salts is very varied, as is seen from the fact that Reychler (1893) obtained (Cs₂O)3B₂O₃, (Rb₂O)2B₂O₃ (corresponding to borax) and (Li₂O)B₂O₃, and that Le Chatelier and Ditte obtained, for CaO, MgO, &c., (RO)B₂O₃, (RO)₂3B₂O₃, (RO)2B₂O₃, (RO)₂B₂O₃, and even (RO)₃B₂O₃.

[8] A glass can only be formed by those slightly volatile oxides which correspond with feeble acids, like silica, phosphoric and boric anhydrides, &c., which themselves give glassy masses, like quartz, glacial phosphoric acid, and boric anhydride. They are able, like aqueous solutions and like metallic alloys, to solidify either in an amorphous form or to yield (or even be wholly converted into) definite crystalline compounds. This view illustrates the position of solutions amongst the other chemical compounds, and allows all alloys to be regarded from the aspect of the common laws of chemical reactions. I have therefore frequently recurred to it in this work, and have since the year 1850 introduced it into various provinces of chemistry.

[9] If boric acid in its aqueous solutions proves to be exceedingly feeble, unenergetic, and easily displaced from its salts by other acids, yet in an anhydrous state, as anhydride, it exhibits the properties of an energetic acid oxide, and it displaces the anhydrides of other acids. This of course does not mean that the acid then acquires new chemical properties, but only depends on the fact that the anhydrides of the majority of acids are much more volatile than boric anhydride, and therefore the salts of many acids—even of sulphuric acid—are decomposed when fused with boric anhydride.

By itself boric acid is used in the arts in small quantity, chiefly for the preservation of meat and fish (which must be afterwards well washed in water) and of milk, and for soaking the wicks of stearin candles; the latter application is based on the fact that the wicks, which are made of cotton twist, contain an ash which is infusible by itself but which fuses when mixed with boric acid.

[10] Amorphous boron is prepared by mixing 100 parts of powdered boric anhydride with 50 parts of sodium in small lumps; this mixture is thrown into a powerfully heated cast-iron crucible, covered with a layer of ignited salt, and the crucible covered. Reaction proceeds rapidly; the mass is stirred with an iron rod, and poured directly into water containing hydrochloric acid. The action is naturally accompanied by the formation of sodium borate, which is dissolved, together with the salt, by the water, whilst the boron settles at the bottom of the vessel as an insoluble powder. It is washed in water, and dried at the ordinary temperature. Magnesium, and even charcoal and phosphorus, are also able to reduce boron from its oxide. Boron, in the form of an amorphous powder, very easily passes through filter-paper, remains suspended in water, and colours it brown, so that it appears to be soluble in water. Sulphur precipitated from solutions shows the same (colloidal) property. When borax is fused with magnesium powder, it gives a brown powder of a compound of boron and magnesium, Mg₂B (Winkler, 1890), but when a mixture of 1 part of magnesium and 3 parts of B₂O₃ is heated to redness (Moissan, 1892), it forms amorphous boron in the form of a chestnut-coloured powder, which, after being washed with water, hydrochloric and hydrofluoric acids, is fused again with B₂O₃ in an atmosphere of hydrogen in order to prevent the access of the nitrogen of the air, which is easily absorbed by incandescent amorphous boron.

Sabatier (1891) considers that a certain amount of gaseous hydride of boron is evolved in the action of hydrochloric acid upon the alloys of magnesium and boron, because the gas disengaged burns with a green flame. Still, the existence of hydride of boron cannot be regarded as certain.

Under the action of the heat of the electric furnace boron forms with carbon a carbide, BC, as Mühlhäuser and Moissan showed in 1893.

[11] At first boron nitride was obtained by heating boric acid with potassium cyanide or other cyanogen compounds. It may be more simply prepared by heating anhydrous borax with potassium ferrocyanide, or by heating borax with ammonium chloride. For this purpose one part of borax is intimately mixed with two parts of dry ammonium chloride, and the mixture heated in a platinum crucible. A porous mass is formed, which after crushing and treating with water and hydrochloric acid, leaves boron nitride. Boron fluoride, BF, is known, corresponding to BN; this body was obtained by Besson and Moissan (1891). The action of phosphorus upon iodide of boron, BI₃, forms PBI₂, and when heated to 500° in hydrogen it forms BP, which gives PH₃ with fused KHO.

[12] When fused with potassium carbonate it forms potassium cyanate, BN + K₂CO₃ = KBO₂ + KCNO. All this shows that boron nitride is a nitrile of boric acid, BO(OH) + NH₃ - 2H₂O = BN. The same is expressed by saying that boron nitride is a compound of the type of the boron compounds BX₃, with the substitution of X₃ by nitrogen, as the trivalent radicle of ammonia, NH₃.

[13] Boron fluoride is frequently evolved on heating certain compounds occurring in nature containing both boron and fluorine. If calcium fluoride is heated with boric anhydride, calcium borate and boron fluoride are formed, and the latter, as a gas, is volatilised: 2B₂O₃ + 3CaF₂ = 2BF₃ + Ca₃B₂O₆. The calcium borate, however, retains a certain amount of calcium fluoride.

[14] In order to avoid the formation of silicon fluoride the decomposition should not be carried on in glass vessels, which contain silica, but in lead or platinum vessels. Boron fluoride by itself does not corrode glass, but the hydrofluoric acid liberated in the reaction may bring a part of the silica into reaction. Boron fluoride should be collected over mercury, as water acts on it, as we shall see afterwards.

[14 bis] It appears to me that from this point of view it is possible to understand the apparently contradictory results of different investigators, especially those of Gay-Lussac (and Thénard), Davy, Berzelius, and Bazaroff. In the form in which the reaction of BF₃ on water is given here, it is evident that the act of solution in water is accompanied by complex but direct chemical transformations, and I think that this example should prove the justness of those observations upon the nature of solutions which are given in Chapter I.

[15] They are called fluoborates. They may be prepared directly from fluorides and borates. Such compounds of halogens with oxygen salts are known in nature (for instance, apatite and boracite), and may be artificially prepared. The composition of the fluoborates—for example, K₄BF₃O₂—may be expressed as that of a double salt, BO(OK),3KF. If an excess of water decomposes them (Bazaroff), this does not prove that they do not exist as such, for many double salts are decomposed by water.

[16] Fluoboric acid contains boron fluoride and water, hydrofluoboric acid, boron fluoride, and hydrofluoric acid. It is evident that on the one side the competition between water and hydrofluoric acid, and, on the other hand, their power to combine, are among the forces which act here. From the fact that hydroborofluoric acid, HBF₄, can only exist in an aqueous solution, it must be assumed that it forms a somewhat stable system only in the presence of 3H₂O.

[16 bis] Iodide of boron, BI₃, was obtained by Moissan (1891), by heating a mixture of the vapours of HI and BCl₃ in a tube, or by the action of iodine vapour (at 750°) or HI upon amorphous boron. BI₃ is a solid substance which dissolves in benzol and CS₂, reacts with water, melts at 43°, boils at 210°, has a density 3·3 at 50°, and partially decomposes in the light. Besson (1891) obtained BIBr₂ (boiling at 125°), and BI₂Br (boiling at 180°) by heating (300–400°) a mixture of the vapours of HI and BBr₃, and showed that NH₃ combines with BBr₃ and BI₃ in various proportions.

[17] The process of levigation is based on the difference in the diameters of the particles of clay and sand. In density these particles differ but little from each other, and therefore a stream of water of a certain velocity can only carry away the particles of a certain diameter, whilst the particles of a larger diameter cannot be borne away by it. This is due to the resistance to falling offered by the water. This resistance to substances moving in it increases with the velocity, and therefore a substance falling into water will only move with an increasing velocity until its weight equals the resistance offered by the water, and then the velocity will be uniform. And as the weight of the minute particles of clay is small, the maximum velocity attained by them in falling is also small. A detailed account of the theory of falling bodies in liquid, and of the experiments bearing on this subject, may be found in my work, Concerning the Resistance of Liquids and Aeronautics, 1880. The minute particles of clay remain suspended longer in water, and take longer to fall to the bottom. Heavy particles, although of small dimensions, fall more quickly, and are borne away by water with greater difficulty than the lighter. In this way gold and other heavy ores are washed free from sand and clay, and the coarser portions and heavier particles are left behind. A current of water of a certain velocity cannot carry away with it particles of more than a definite diameter and density, but by increasing the velocity of the current a point may be arrived at when it will bear away larger particles. A description of apparatus for the observation of phenomena of this kind is given by Schöne in his memoir in the Transactions of the Moscow Society of Natural Sciences for 1867. In order to be able accurately to vary the velocity of the current of water, a cylinder is employed in which the earth to be experimented on is placed, and water is introduced through the conical bottom of the cylinder. The rate at which the water rises in the cylinder will vary according to the quantity of water flowing per unit of time into the vessel, and consequently particles of various sizes will be carried away by the water flowing over the upper edges of the vessel. Schöne showed by direct experiment that a current of water having a velocity of 0·1 mm. per second will carry away particles having a diameter of not more than 0·0075 mm., that is, only the most minute; with a velocity v = 0·2 mm. per second, particles having a diameter d = 0·011 mm. are carried away; with v = 0·3 mm., d = 0·0146 mm.; with v = 0·4 mm., d = 0·017 mm.; with v = 0·5 mm., d = 0·02 mm.; with v = 1 mm., d = 0·03 mm.; with v = 4 mm., d = 0·07 mm.; with v = 10 mm., d = 0·137 mm.; with v = 12 mm., d = 0·15 mm.; and therefore if the current does not exceed one of these velocities, it will only carry away or wash away particles having a diameter less than that indicated. The sand and other particles mixed with the clay will then remain in the vessel. The very minute particles obtained after levigation are all considered as clay, although not only clay but other rock residue may also exist in it as very fine particles. However, this is very seldom the case, and the fine mud separated from all clays has practically the same composition as the purest kinds of kaolin.

The relation between the amounts of clay and sand in soils used for the cultivation of plants is very important, because a soil rich in clay is denser, heavier, shrinks up under the action of heat, and does not readily yield to the plough in dry or wet weather, whilst a soil rich in sand is friable, crumbling, easily parts with its moisture and dries rapidly, but is comparatively easily worked. Neither crumbling sand nor pure clay can be regarded as a good cultivating soil. The difference in the amounts of clay and sand in a soil has also a purely chemical signification. Sand is easily permeated by the air, because its particles are not closely packed together. Hence the chemical change of manures proceeds very easily in sandy soils. But on the other hand such soils do not retain the nutritious principles contained in the manure, nor the water necessary for the nourishment of plants by means of their roots. Solutions of nutritious substances, containing salts of potassium, phosphoric acid, &c., when passed through sand only leave a portion moistening the surface of its particles. The sand has only to be washed with pure water and all the adhering films of solution are washed away. It is not so with clay. If the above solutions be passed through a layer of clay the retention of the nutritive substances of these solutions will be very marked; this is partly because of the very large surface which the minute particles of clay expose. The nutritive elements dissolved in water are retained by the particles of clay in a peculiar manner—that is, the absorptive power of clay is very great compared to that of sand—and this has a great significance in the economy of nature (Chapter XIII., p. 547). It is evident that for cultivation the most convenient soils in every respect will be those containing a definite mixture of clay and sand, and indeed the most fertile soils have this composition. The study of fertile soils, which is so important for a knowledge of the natural conditions for the application of fertilisers, belongs, strictly speaking, to the province of agriculture. In Russia the first foundation of a scientific fertilisation has been laid by Dokuchaeff. As an example only, we will give the composition of four soils; (1) The black earth of the Simbirsk Government; (2) a clay soil from the Smolensk Government; (3) a more sandy soil from the Moscow Government; and (4) a peaty soil from near St. Petersburg. These analyses were made in the laboratory of the St. Petersburg University about 1860, in connection with experiments on fertilisation (conducted by me) by the Imperial Free Economical Society. 10,000 grams of air-dried soil contain the following quantities (in grams) of substances capable of dissolving in acids, and of serving for the nourishment of plants.

By chemical and mechanical analysis, the chief component parts per 100 parts of air-dried soil are

The black earth excels the other soils in many respects, but naturally its stores are also exhausted by cultivation if nothing be returned to it in the form of fertilisers; and the improvement of a soil (for instance, by the addition of marl or peat, and by drainage and watering), and its fertilisation, if carried on in conformity with its composition and with the properties of the plants to be cultivated, are capable of rendering not only every soil fit for cultivation, but also of improving its value, so that in the course of time whole countries (like Holland) may clearly improve their agricultural position, whilst under the ordinary régime of continued exhaustion of the soil, entire regions (as, for instance, many parts of Central Asia) may be rendered unfit for any agriculture.

[18] Everyone knows that a mixture of clay and water is endowed with the property of taking a given form when subjected to a moderate pressure. This plasticity of clay renders it an invaluable material for practical purposes. From clay are moulded and manufactured a variety of objects, beginning with the common brick and ending with the most delicate china works of art. This plasticity of clay increases with its purity. When articles made of clay are dried, the well-known hard mass is obtained; but water washes it away, and furthermore, the cohesion of its particles is not sufficiently great for it to resist the impression of blows, shocks, &c. If such an article be subjected to the action of heat, its volume first decreases, then it begins to lose water, and it shrinks still further (in the case of a compact mass approximately by ⅕ of its linear measurement). On the other hand, a great coherence of particles is obtained, and thus burnt clay has the hardness of stone. Pure clay, however, shrinks so considerably when burnt that the form given to it is destroyed and cracks easily form; such vessels are also porous, so that they will not hold water. The addition of sand—that is, silica in fine particles—or of chamotte—that is, already burnt and crushed clay—renders the mass much more dense and incapable of cracking in the furnace. Nevertheless, such clay articles (bricks, earthenware vessels, &c.) are still porous to liquids after being burnt, because the clay in the furnace is only baked and does not fuse. In order to obtain articles impervious to water the clay must either be mixed with substances which form a glassy mass in the furnace, permeating the clay and filling up its pores, or else only the surface of the article is covered with such a glassy fusible substance. In the first case the purest kinds of clay give what is known as china, in the second case porcelain or ‘faïence.’ So, for instance, by covering the surface of clay articles with a layer of the oxides of lead and tin, the well-known white glaze is obtained, because the oxides of these metals give a white gloss when fused with silica and clay. In the preparation of china, fluor spar and finely ground silica is mixed up into the clay; these ingredients give a mass which is infusible but softens in the furnace, so that all the particles of the clay cohere in this softened mass, which hardens on cooling. A glaze composed of glassy substances, which only fuse at a high temperature, is also applied to the surface of china articles.

[18 bis] Frémy (1890) obtained transparent rubies, which crystallised in rhombohedra, and resembled natural rubies in their hardness, colour, size, and other properties. He heated together a mixture of anhydrous alumina containing more or less caustic potash, with barium fluoride and bichromate of potassium. The latter is added to give the ruby its colour, and is taken in small quantity (not more than 4 parts by weight to 100 parts of alumina). The mixture is put into a clay crucible, and heated (for from 100 hours to 8 days) in a reverberatory furnace at a temperature approaching 1,500°. At the end of the experiment the crucible was found to contain a crystalline mass, and the walls were covered with crystals of the ruby of a beautiful rose colour. It was found that the access of moist air was indispensable for the reaction. According to Frémy, the formation of the ruby may be here explained by the formation of fluoride of aluminium which under the action of the moist air at the high temperature of the furnace gives the ruby and hydrofluoric acid gas.

[19] The effects of purely mechanical subdivision on the solubility of alumina are evident from the fact that native anhydrous alumina, when converted into an exceedingly fine powder by means of levigation, dissolves in a mixture of strong sulphuric acid and a small quantity of water, especially when heated in a closed tube at 200°, or when fused with acid sulphate of potassium (see Chapter XIII., Note 9).

[20] The preparation of crystallised alumina is given on p. 65, and in Note 18 bis. When alumina, moistened with a solution of cobalt salt, is ignited, it forms a blue mass called Thénard's salt. This coloration is taken advantage of not only in the arts, but also for distinguishing alumina from other earthy substances resembling it.

[21] The treatment of bauxite is carried on on a large scale, chiefly in order to obtain alumina from alkaline solutions, free from ferric oxide, because in dyeing it is necessary to have salts of aluminium which do not contain iron. But this end, it would seem, may also be obtained by igniting alumina containing ferric oxide in a stream of chlorine mixed with hydrocarbon vapours, as ferric chloride then volatilises. K. Bayer observed that in the treatment of bauxite with soda, about 4 molecules of sodium hydroxide pass into solution to 1 molecule of alumina, and that on agitating this solution (especially in the presence of some already precipitated aluminium hydroxide), about two-thirds of the alumina is precipitated, so that only 1 molecule of alumina to 12 molecules of sodium hydroxide remains in solution. This solution is evaporated directly, and used again. He therefore treats bauxite directly with a solution of NaHO at 170° in a closed boiler, and on cooling adds hydrated alumina to the resultant solution. The greater part of the dissolved alumina then precipitates on this hydrated alumina, and the solution is used over again. The hydroxide which separates from the alkaline solution contains Al(OH)₃. All these properties bear a great resemblance to those of boric acid. It may be taken for granted that the relation between sodium hydroxide and alumina in solution varies with the mass of water.

If lime be added to a solution of alumina in alkali (sodium aluminate) calcium aluminate is precipitated, from which acids first extract the lime, leaving aluminium hydroxide, which is easily soluble in acids (Loewig). When sodium aluminate is mixed with a solution of sodium bicarbonate, a double carbonate of the alkali and aluminium is precipitated, which is easily soluble in acids.

[22] These coloured precipitates of alumina are termed lakes, and are employed in dyeing tissues and in the formation of various pigments—such as pastels, oil colours, &c. Thus, if organic colouring matters, such as logwood, madder, &c., are added to a solution of any aluminium salt, and then an alkali is added, so that alumina may be precipitated, these pigments, which are by themselves soluble in water, will come down with the precipitate. This shows that alumina is able to combine with the colouring matter, and that this compound is not decomposed by water. The dyes then become insoluble in water. If a dye be mixed with starch paste and aluminium acetate, and then, by means of engraved blocks having a design in relief, we transfer this mixture to a fabric which is then heated, the aluminium acetate will leave the hydrogel of alumina which binds the colouring matter, and water will no longer be able to wash the pigment from the material—that is, a so-called ‘fixed’ dye is obtained. In the case of dyeing a fabric a uniform tint, it is first soaked in a solution of aluminium acetate and then dried, by which means the acetic acid is driven off, while the hydrogel of alumina adheres to the fibres of the material. If the latter be then passed through a solution of a dye in water, the former will be attracted to the portions covered with alumina, and closely adhere to them. If certain parts of the material be protected by the application of an acid, such as tartaric, C₄H₆O₆, oxalic, citric, &c. (these acids being non-volatile), the alumina will be dissolved in those parts, and the pigment will not adhere, so that after washing, a white design will be obtained on those parts which have been so protected.

In dye-works the aluminium acetate is generally obtained in solution by taking a solution of alum, and mixing it with a solution of lead acetate. In this case lead sulphate is precipitated and aluminium acetate remains in solution, together with either acetate or sulphate of potassium, according to the amount of acetate of lead first taken. The complete decomposition will be as follows: KAl(SO₄)₂ + 2Pb(C₂H₃O₂)₂ = KC₂H₃O₂ + Al(C₂H₃O₂)₃ + 2PbSO₄, or the less complete decomposition, 2KAl(SO₄)₂ + 3Pb(C₂H₃O₂)₂ = 2Al(C₂H₃O₂)₃ + K₂SO₄ + 3PbSO₄. If the resultant solution of aluminium acetate be evaporated or further boiled, the acetic acid passes off and the hydrogel of alumina remains.

As the salt of potassium obtained in the solution passes away with the water used for washing, and the salt of lead precipitated has no practical use, this method for the preparation of aluminium acetate cannot be considered economical; it is retained in the process of dyeing mainly because both the salts employed, alum and sugar of lead, easily crystallise, and it is easy to judge of their degree of purity in this form. Indeed, it is very important to employ pure reagents in dyeing, because if impurity is present—such as a small quantity of an iron compound—the tint of the dye changes; thus madders give a red colour with alumina, but if oxide of iron be present the red changes into a violet tint. The aluminium hydroxide is soluble in alkalis, whilst ferric oxide is not. Therefore sodium aluminate—that is, the dissolved compound of alumina and caustic soda—obtained, as already described, from bauxite, is sometimes employed in dyeing. Every aluminium salt gives a solution containing sodium aluminate free from iron, when it is mixed with excess of caustic soda. This solution, when mixed with a solution of ammonium chloride, gives a precipitate of the hydrogel of alumina: Al(OH)₃ + 3NaHO + 3NH₄Cl = Al(OH)₃ + 3NaCl + 3NH₄OH. There was originally free soda, and on the addition of sal-ammoniac there is free ammonia, and this does not dissolve alumina, therefore the hydrogel of the latter is precipitated.

[23] Another direct method for the preparation of pure aluminium compounds consists in the treatment of cryolite containing aluminium fluoride together with sodium fluoride, AlNa₃F₆. This mineral is exported from Greenland, and is also found in the Urals. It is crushed and heated in reverberatory furnaces with lime, and the resultant mass is treated with water; sodium aluminate is then obtained in solution, and calcium fluoride in the precipitate AlNa₃F₆ + 3CaO = 3CaF₂ + AlNa₃O₃.

[24] Crum first prepared a solution of basic acetate of alumina—that is, a salt containing as large as possible an excess of aluminium hydroxide with as small as possible a quantity of acetic acid. The solution must be dilute—that is, not contain more than one part of alumina per 200 of water—and if this solution be heated in a closed vessel (so that the acetic acid cannot evaporate) to the boiling point of water, for one and a half to two days, then the solution, which apparently remains unaltered, loses its original astringent taste, proper to solutions of all the salts of alumina, and has instead the purely acid taste of vinegar. The solution then no longer contains the salt, but acetic acid and the hydrosol of alumina in an uncombined state; they may be isolated from each other by evaporating the acetic acid in shallow vessels at the ordinary temperature, and with a thin layer of liquid the alumina does not separate as a precipitate. When the acid vapours cease to come off there remains a solution of the hydrosol of alumina, which is tasteless and has no action on litmus paper. When concentrated, this solution acquires a more and more gluey consistency, and when completely evaporated over a water-bath it leaves a non-crystalline glue-like hydrate, whose composition is Al₂H₄O₅ = Al₂O₃,2H₂O. The smallest quantity of alkalis, and of many acids and salts, will convert the hydrosol into the hydrogel of alumina—that is, convert the aluminium hydroxide from a soluble into an insoluble form, or, as it is said, cause the hydrate to coagulate or gelatinise. The smallest amount of sulphuric acid and its salts will cause the alumina to gelatinise—that is, cause the hydrogel to separate. Many such colloidal solutions are known (Vol. I. p. 98, Note 57).

[25] In a dialyser, Vol. I. p. 63, Note 18.

[25 bis] The different states in which the hydrates of alumina occur and are prepared resemble similar varieties of the hydrates of the oxides of iron and chromium, of molybdic and tungstic acids, as well as of phosphoric and silicic acids, of many sulphides, proteid substances, &c. We shall therefore have occasion to recur to this subject in the further course of this work.

The most remarkable peculiarity of Graham's solution is that it solidifies on litmus paper, and leaves a blue ring on it, which shows the alkaline—that is, basic—character of the alumina in such a solution. If in the dialysis the basic hydrochloric acid salt be replaced by a similar acetic acid salt, a hydrosol of alumina is obtained which does not act upon litmus.

[26] Compounds of alumina with bases (aluminates, see Note 21) are sometimes met with in nature. Such are spinel (see p. 65), MgO,Al₂O₃ = MgAl₂O₄, chrysoberyl, BeAl₂O₄, and others. Magnetic oxide of iron, FeO,Fe₂O₃ = Fe₃O₄, and compounds like it, belong to the same class. Here we evidently have a case of combination ‘by analogy,’ as in solutions and alloys, accompanied by the formation of strictly definite saline compounds, and such instances form a clear transition from so-called solutions and certain mixtures to the type of true salts.

[27] Not only aluminium acetate (Note 24), but also every other aluminium salt with a volatile acid, parts with its acid on heating an aqueous solution—that is, is decomposed by water, and forms either basic salts or a hydrate of alumina. By dissolving aluminium hydroxide in nitric acid we may easily obtain a well-crystallising aluminium nitrate, Al(NO₃)₃,9H₂O, which fuses at 73° without decomposing (Ordway), gives a basic salt, 2Al₂O₃,6HNO₃, at 100°, and at 140° leaves the aluminium hydroxide perfectly free from the elements of nitric acid. But the solutions of this salt, like those of the acetate, are also able to yield aluminium hydroxide. From all this it is evident that we must suppose that the solutions of this and similar salts contain an equilibrated dissociated system, containing the salt, the acid, and the base, and their compounds with water, as well as partly the molecules of water itself. Such examples much more clearly confirm those conceptions of solutions which are given in the first chapter than a general preliminary acquaintance with the subject can do.

[28] As an example of native basic salts we may cite alunite, or alum-stone (sp. gr. 2·6), which sometimes occurs in crystals, but more frequently in fibrous masses. It has been found in masses in the Caucasus (at Zaglik, forty versts distance from Elizabetpol), and at Tolfa, near Rome. Its composition is K₂O,3Al₂O₃,4SO₃,6H₂O (alunite contains 9H₂O). It is soluble in water but not decomposed by it, but after being slightly ignited it gives up alum to it. It may be artificially prepared by heating a mixture of alum with aluminium sulphate in a closed tube at 230°.

[29] As the colloidal properties are particularly sharply developed in those oxides (Al₂O₃, SiO₂, MoO₃, SnO₂, &c.) which show (like water also) the properties of feeble bases and feeble acids, there is probably some causal reason for this coincidence, all the more so since among organic substances—gelatins, albumins, &c.—the representatives of the colloids also have the property of feebly combining with bases and acids.

[30] Since Deville's experiments the question of the density of aluminium chloride has been frequently re-investigated. The subject has more especially occupied the attention of Nilson, Pettersson, Friedel and Crafts, and V. Meyer and his collaborators. In general, it has been found that at low temperatures (up to 440°) the density is constant, and indicates a molecule Al₂Cl₆; whilst depolymerisation probably (although it is not yet certain) takes place at higher temperatures, and the molecule AlCl₃ is obtained. Along with this there has been, and still is, a difference of opinion as to the vapour density of aluminium ethyl and methyl—whether for instance, Al(CH₃)₃ or Al₂(CH₃)₆ expresses the molecule of the latter. The interest of these researches is intimately connected with the question of the valency of aluminium, if we hold to the opinion that elements in their various compounds have a constant and strictly definite valency. In this case the formula AlCl₃ or Al(CH₃)₃ would show that Al is trivalent, and that consequently the compounds of aluminium are Al(OH)₃, AlO₃Al, and, in general, AlX₃. But if the molecule be Al₂Cl₆, it is—for the followers of the doctrine of the invariable valency of the elements—incompatible with the idea of the trivalency of aluminium, and they assume it to be quadrivalent like carbon, likening Al₂Cl₆ to ethane C₂H₆ = CH₃CH₃, although this does not explain why Al does not form AlCl₄, or, in general, AlX₄. In this work another supposition is introduced; according to this, although aluminium, as an element of group III., gives compounds of the type AlX₅, this does not exclude the possibility of these molecules combining with others, and consequently with each other—that is, forming Al₂X₆; just as the molecules of univalent elements exist either as H₂, Cl₂, &c., or as Na, and the molecules of bivalent elements either as Zn, or as S₂, or even S₆. In the first place it must be recognised that the limiting form does not exhaust all power of combination, it only exhausts the capacity of the element for combining with X's, but the saturated substance may afterwards combine with whole molecules, which fact is best proved by the capacity of substances to form crystalline compounds with water, ammonia, &c. But in some substances this faculty for further combinations is less developed (for instance, in carbon tetrachloride, CCl₄), whilst in others it is more so. AlX₃ combines with many other molecules. Now if a limiting form, which does not combine with new X's, nevertheless combines with other whole molecules, it will naturally in some instances combine with itself, will polymerise. In this manner the mind clearly grasps the idea that the same forces which cause S₂ to unite itself to Cl₂, or C₂H₄ to Cl₂, &c., also unite molecules of a similar kind together; thus polymerisation ceases to be an isolated fragmentary phenomenon, and chemical combinations ‘by analogy’ acquire a particular and important interest. In conformity with these views the following proposition may be made concerning the compounds of aluminium. They are of the type AlX₃ in the limit, like BX₃, but those limiting forms are still able to combine to form AlX₃,RZ, and the aluminium chloride is a compound of this kind—i.e. (AlX₃)₂. In boron, for example, in BCl₃, this tendency to form further compounds is less developed. Hence boron chloride appears as BCl₃, and not (BCl₃)₂. Polymerisation is not only possible when a substance has not attained the limit (although it is more probable then), but also when the limiting form has been reached, if only the latter has the faculty of combining with other whole molecules. We may therefore conclude that aluminium, like boron, is trivalent in the same sense that lithium and sodium are univalent, magnesium bivalent, and carbon tetravalent. In a word, there is no reason to consider that aluminium is capable of forming compounds AlX₄, and in that way to explain the existence of the molecule Al₂Cl₆. Furthermore, there are many reasons for thinking that AlF₃, Al₂O₃, and other empirical formulæ do not express the molecular weights of these compounds, but that they are much higher: Al_nF_3n, Al_2nO_3n. In recent years convincing proofs of the truth of the above statements have been obtained, and of the independent existence of AlX₃ in a state of vapour; for Comb has determined the vapour density of the volatile acetyl of aluminium acetate Al(C₃H₇O₂)₃ (which melts at 193°, boils at 315°, and distils without a trace of decomposition), and has found that it exactly corresponds to the above molecular composition. On the other hand, Louise and Roux (1889) by employing the method of ‘freezing point depression’ of solutions (Chapter I., Note 49) found that the molecules Al₂(C₂H₅)₆ and Al₂(C₅H₁₁)₆, &c., correspond to the type Al₂X₆. Thus it may now be accepted that the molecular composition of the compounds of aluminium in their simplest form is AlX₃, but that they may polymerise and give Al₂X₆ or, in general, Al₂X_3n.

[31] In the case of gallium, as a close analogue of aluminium, Lecoq de Boisbaudran (1880) showed that probably the molecule gallium chloride contains Ga₂Cl₆ at low temperatures and high pressures, and that it dissociates into GaCl₃ at high temperatures and low pressures. The molecule of indium chloride seems to exist only in the simplest form, InCl₃.

[32] The pure salt (16H₂O) is not hygroscopic. In the presence of impurities the amount of water increases to 18H₂O, and the salt becomes hygroscopic.

[33] The common form of crystals of alums is octahedral, but if this solution contains a certain small excess of alumina above the ratio 2Al(OH)₃ to K₂SO₄, and not more sulphuric acid than 3H₂SO₄ to 2Al(OH)₃, then it easily forms combinations of the cube and octahedron, and these alums are called ‘cubic’ alums. They are valued by the dyer because they can contain no iron in solution, for oxide of iron is precipitated before alumina, and if the latter be in excess there can be no oxide of iron present. These alums were long exported from Italy, where they were prepared from alunite (Note 28).

[33 bis] It is also formed by the action of hydrochloric acid upon metallic aluminium (Nilson and Pettersson), by heating alumina in a mixture of the vapours of naphthaline and HCl (Faure, 1889), and by the action of dry HCl upon an alloy of 14 p.c., or more of Al and copper (Mobery).

[34] Aluminium chloride fuses at 178°, boils at 183° (pressure 755 mm., at 168° under a pressure of 250 mm., and at 213° under 2,278 mm.), according to Friedel and Crafts, so that it boils immediately after fusion. According to Seubert and Pallard (1892), Al₂Cl₆ fuses at 193°. Aluminium bromide fuses at about 92°, and the iodide at 185° according to Weber, at 125° according to Deville and Troost.

All these halogen compounds of aluminium are soluble in water. Aluminium fluoride, AlF₃ (Al_nF_3n), is insoluble in water. It is obtained by dissolving alumina in hydrofluoric acid; a solution is then formed, but it contains an excess of hydrofluoric acid. When this solution is evaporated, crystals containing Al₂F₆,HF,H₂O are obtained. They are also insoluble in water. By saturating the above solution with a large quantity of alumina, and then evaporating, we obtain crystals having the composition Al₂F₆,7H₂O. All these compounds, when ignited, leave insoluble anhydrous aluminium fluoride. It forms colourless rhombohedra, which are non-volatile, of sp. gr. 3·1, and are decomposed by steam into alumina and hydrofluoric acid. The acid solution apparently contains a compound which has its corresponding salts; by the addition of a solution of potassium fluoride, a gelatinous precipitate of AlK₃F₆ is obtained. A similar compound occurs in nature—namely, AlNa₃F₆, or cryolite, sp. gr. 3·0.

[34 bis] In this respect aluminium chloride resembles the chloranhydrides of the acids, and probably in the aqueous solution the elements of the hydrochloric acid are already separated, at least partially, from the aluminium hydroxide. The solution may also be obtained by the action of aluminium hydroxide on hydrochloric acid.

[35] Here we see an instance in confirmation of what has been said in Note 30—i.e. the action of the molecule AlCl₃. We will cite still another instance confirming the power of alumina to enter into complex combinations. Alumina, moistened with a solution of calcium chloride, gives, when ignited, an anhydrous crystalline substance (tetrahedral), which is soluble in acids, and contains (Al₂O₃)₆(CaO)₁₀CaCl₂. Even clay forms a similar stony substance, which might be of practical use.

Among the most complex compounds of aluminium, ultramarine, or lapis lazuli, must be mentioned. It occurs in nature near Lake Baikal, in crystals, some colourless and others of various tints—green, blue, and violet. When heated it becomes dull and acquires a very brilliant blue colour. In this form it is used for ornaments (like malachite), and as a brilliant blue pigment. At the present time ultramarine is prepared artificially in large quantities, and this process is one of the most important conquests of science; for the blue tint of ultramarine has been the object of many scientific researches, which have culminated in the manufacture of this native substance. The most characteristic property of ultramarine is that when placed in sulphuric acid it evolves hydrogen sulphide and becomes colourless. This shows that the blue colour of ultramarine is due to the presence of sulphides. If clay be heated in a furnace with sodium sulphate and charcoal (forming sodium sulphide) without access of air, a white mass is obtained, which becomes green when heated in the air, and when treated with water leaves a colourless substance known as ‘white ultramarine.’ When ignited in the air it absorbs oxygen and turns blue. The coloration is ascribed to the presence of metallic sulphides or polysulphides, but it is most probable that silicon sulphide, or its oxysulphide, SiOS, is present. At all events the sulphides play an important part, but the problem is not yet quite settled. The formula Na₈Al₆Si₆O₂₄S is ascribed to white ultramarine. The green probably contains more sulphur, and the blue a still larger quantity. The last is supposed to contain Na₈Al₆Si₆O₂₄S₃. It is more probable (according to Guckelberger, 1882) that the composition of the blue varies between Si₁₈Al₁₈Na₂₀S₆O₇₁ and Si₁₈Al₁₂Na₂₀S₆O₆₉. The latter may be expressed as (Al₂O₃)₆(SiO₂)₁₈(Na₂O)₁₀S₆O₅, which would indicate the presence of insufficiently-oxidised sulphur in ultramarine.

[36] At the ordinary temperature aluminium does not decompose water, but if a small quantity of iodine, or of hydriodic acid and iodine, or of aluminium iodide and iodine, is added to the water, then hydrogen is abundantly evolved. It is evident that here the reaction proceeds at the expense of the formation of Al₂I₆, and that this substance, with water, gives aluminium hydroxide and hydriodic acid, which, with aluminium, evolves hydrogen. Aluminium probably belongs to those metals having a greater affinity for oxygen than for the halogens (Note 36 tri).

[36 bis] As an example we may mention that if mercury comes in contact with metallic aluminium and especially if it be rubbed upon the surface of aluminium moistened with a dilute acid, the Al becomes rapidly oxidised (Al₂O₃ being formed). The oxidation is accompanied by a very curious appearance, as it were of wool (or fur) formed by threads of oxide of aluminium growing upon the metal. This was first pointed out by Cass in 1870, and subsequently by A. Sokoleff in 1892. This interesting and curious phenomenon has not to my knowledge been further studied.

I think it necessary, however, to add that according to Lubbert and Rascher's researches (1891), wine, coffee, milk, oil, urine, earth, &c., have no more action upon aluminium vessels than upon copper, tin, and other similar articles. In the course of four months ordinary vinegar dissolved 0·35 grm. of Al per sq. centimetre, whilst a 5 per cent. solution of common salt dissolved about 0·05 grm. of aluminium. Ditte (1890) showed that Al is acted upon by nitric and sulphuric acids, although only slowly (owing to the formation of a layer of gas, as in Chapter XVI., Note 10) and that the reaction proceeds much more rapidly in vacuo or in the presence of oxidising agents. Al is even oxidised by water on the surface, but the thin coating of alumina formed prevents further action. In the course of twelve hours nitric acid sp. gr. 1·383 dissolved at 17° about 20 grms. of aluminium (containing only a small amount of Si, 1¼ p.c.) from a sq. metre of surface (Le Rouart, 1891).

[36 tri] In addition to the data given in Chapters XI., XIII., and in Chapter XV., Note 19, the following are the amounts of heat in thousands of units, evolved in the formation of the oxides and chlorides from the metals taken in gram-atomic quantities:

The asterisks following the oxides of Mg, Al and Fe call attention to the fact that the existing data refer to the formation of the hydrates of these metals, from which the heat of formation of the anhydrous oxides may easily be assumed, because the heat of hydration (for example, MgO + H₂O) has not yet been determined.

[37] Cryolite under the action of the current at about 1,000° gives off the vapour of Na which reduces the Al, but it recombines with the liberated fluorine and again passes into the fused mass. It is important to obtain aluminium at as low a temperature as possible, but the action proceeds far more easily with the solution (alloy) of oxide of aluminium in cryolite.

[37 bis] The cost of working this process can be brought as low as 20 cents per lb. or about 2½ fcs. per kilo. In England, Castner, prior to the introduction of the electric method, obtained Al by taking a mixture of 1,200 parts of the double salt NaAlCl₄, 600 parts of cryolite, and 350 parts of Na, and obtained about 120 parts of Al, so that the cost of this process is about 1½ time that of the electric method.

Buchner found that sulphide of aluminium, Al₂S₃, is more suitable for the preparation of Al by the electrolytic method than Al₂O₃, but since the formation of Al₂S₃ by heating a mixture of Al₂O₃, and charcoal in sulphur vapour proceeds with difficulty, Gray (1894) proposed to prepare Al₂S₃ by heating a mixture of charcoal, sulphate of aluminium, and sodium fluoride. The resultant molten mixture of NaF and Al₂S₃ gives aluminium directly under the action of an electric current.

[38] Aluminium, when heated to the high temperature of the electric furnace, dissolves carbon and forms an alloy which, according to Moissan, when rapidly treated with cold hydrochloric acid leaves a compound C₃Al₄ in the form of a yellow crystalline transparent powder, sp. gr. 2·36 (see Chapter VIII. Note 12 bis). This carbide of aluminium C₃Al₄ corresponds to methane CH₄, for Al replaces H₃ and carbon O₂ or H₄, that is, it is equal to three molecules of CH₄ with the substitution of twelve atoms of H in it by four of Al, or, what is the same thing, it is the duplicated molecule of Al₂O₃ with the substitution of O₆ by C₃. And indeed C₃Al₄ under the action of water forms marsh gas and hydrate of alumina: C₃Al₄ + 12H₂O = 3CH₄ + 4Al(OH)₃. This decomposition gives a new aspect of the synthesis of hydrocarbons, and quite agrees with what should follow from the action of water upon the metallic carbides as applied by me for explaining the origin of naphtha (Chapter VIII., Notes 57, 58, and 59). Frank (1894) by heating Al with carbon obtained a similar although not quite pure compound, which (like CaC₂) evolves acetylene with hydrochloric acid i.e. probably has the composition AlC₃.

[38 bis] The same is the case in group IV. of the uneven series, where tin is the most fusible. Thus the temperature of fusion rises on both sides of tin (silicon is very infusible; germanium, 900°; tin, 230°; lead, 326°); as it also does in group III., starting from gallium, for indium fuses at 176°, less easily than gallium but more easily than thallium (294°). Aluminium also fuses with greater difficulty than gallium.

[39] The spectrum of gallium is characterised by a brilliant violet line of wave-length = 417 millionths of a millimetre. The metal can be separated from the solution, containing a mixture of the many metals occurring in the zinc blende, by making use of the following reactions: it is precipitated by sodium carbonate in the first portions; it gives a sulphate which, on boiling, easily decomposes into a basic salt, very slightly soluble in water; and it is deposited in a metallic state from its solutions by the action of a galvanic current. It fuses at +30°, and, when once fused, remains liquid for some time. It oxidises with difficulty, evolves hydrogen from hydrochloric acid and from potassium hydroxide, and, like all feeble bases (for instance, alumina and indium oxide), it easily forms basic salts. The hydroxide is soluble in a solution of caustic potash, and slightly so in caustic ammonia. Gallium forms volatile GaCl₃ and GaCl₂ (Nilson and Pettersson).

[40] The vapour density of indium chloride, InCl₃ (Note 31), determined by Nilson and Pettersson, confirms this atomic weight. Indium is separated from zinc and cadmium, with which it occurs, by taking advantage of the fact that its hydroxide is insoluble in ammonia, that the solutions of its salts give indium when treated with zinc (hence indium is dissolved after zinc by acids) and that they give a precipitate with hydrogen sulphide even in acid solutions. Metallic indium is grey, has a sp. gr. of 7·42, fuses at 176°, and does not oxidise in the air; when ignited, it first gives a black suboxide, In₄O₃, then volatilises and gives a brown oxide, In₂O₃, whose salts, InX₃, are also formed by the direct action of acids on the metal, hydrogen being evolved. Caustic alkalis do not act on indium, from which it is evident that it is less capable of forming alkaline compounds than aluminium is; however, with potassium and sodium hydroxides, solutions of indium salts give a colourless precipitate of the hydroxide, which is soluble in an excess of the alkali, like the hydroxides of aluminium and zinc. Its salts do not crystallise. Nilson and Pettersson (1889), by the action of HCl upon In, obtained volatile crystalline, InCl₂, and by treating this compound with In, InCl also.

[41] Thallium was afterwards found in certain micas and in the rare mineral crookesite, containing lead, silver, thallium, and selenium. Its isolation depends on the fact that in the presence of acids thallium forms thallous compounds, TlX. Among these compounds the chloride and sulphate are only slightly soluble, and give with hydrogen sulphide a black precipitate of the sulphide Tl₂S, which is soluble in an excess of acid, but insoluble in ammonium sulphide.

[41 bis] The best method of preparing thallous hydroxide, TlOH, is by the decomposition of the requisite quantity of baryta by thallous sulphate, which is slightly soluble in water; barium sulphate is then obtained in the precipitate and thallous hydroxide in solution. This solubility of the hydroxide is exceedingly characteristic, and forms one of the most important properties of thallium. These lower (thallous) compounds are of the type TlX, and recall the salts of the alkalis. The salts TlX are colourless, do not give a precipitate with the alkalis or ammonia, but are precipitated by ammonium carbonate, because thallous carbonate, Tl₂CO₃, is sparingly soluble in water. Platinic chloride gives the same kind of precipitate as it does with the salts of potassium—that is, thallous platinochloride, PtTl₂Cl₆. All these facts, together with the isomorphism of the salts TlX with those of potassium, again point out what an important significance the types of compounds have in the determination of the character of a given series of substances. Although thallium has a greater atomic weight and greater density than potassium, and although it has a less atomic volume, nevertheless thallous oxide is analogous to potassium oxide in many respects, for they both give compounds of the same type, RX. We may further remark that thallous fluoride, TlF, is easily soluble in water as well as thallous silicofluoride, SiTl₂F₆, but that thallous cyanide, TlCN, is sparingly soluble in water. This, together with the slight solubility of thallous chloride, TlCl, and sulphate, Tl₂SO₄, indicates an analogy between TlX and the salts of silver, AgX.

As regards the higher oxide or the thallic oxide, Tl₂O₃, the thallium is trivalent in it—that is, it forms compounds of the type TlX₃. The hydroxide, TlO(OH), is formed by the action of hydrogen peroxide on thallous oxide, or by the action of ammonia on a solution of thallic chloride, TlCl₃. It is obtained as a brown precipitate, insoluble in water but easily soluble in acids, with which it gives thallic salts, TlX₃. Thallic chloride, which is obtained by cautiously heating the metal in a stream of chlorine, forms an easily fusible white mass, which is soluble in water and able to part with two-thirds of its chlorine when heated. An aqueous solution of this salt yields colourless crystals containing one equivalent of water. It is evident from the above that all the thallic salts can easily be reduced to thallous salts by reducing agents such as sulphurous anhydride, zinc, &c. Besides these salts, thallic sulphate, Tl₂(SO₄)₃,7H₂O, thallic nitrate Tl(NO₃)₃,4H₂O, &c., are known. These salts are decomposed by water, like the salts of many feeble basic metals—for example, aluminium.

[42] The specific heat of cerium determined (1870) by me, and afterwards confirmed by Hillebrand, corresponds with that atomic weight of cerium according to which the composition of two oxides should be Ce₂O₃ and CeO₂. Hillebrand also obtained metallic lanthanum and didymium by decomposing their salts by a galvanic current, and he found their specific heats to be near that of cerium and about 0·04, and it is therefore justifiable to give them an atomic weight near that of cerium, as was done on the basis of the periodic law. Up to 1870 yttrium oxide was also given the formula RO. Having re-determined the equivalent of yttrium oxide (with respect to water), and found it to be 74·6, I considered it necessary to also ascribe to it the composition Y₂O₃, because then it falls into its proper place in the periodic system. If the equivalent of the oxide to water be 74·6, it contains 58·6 of metal per 16 of oxygen, and consequently one part by weight of hydrogen replaces 29·3 of yttrium, and if it be regarded as bivalent (oxide RO), it would not, by its atomic weight 58·6, find a place in the second group. But if it be taken as trivalent—that is, if the formula of its oxide be R₂O₃ and salts RX₃—then Y = 88, and a position is open for it in the third group in the sixth series after rubidium and strontium. These alterations in the atomic weights of the cerite and gadolinite metals were afterwards accepted by Clève and other investigators, who now ascribe a formula R₂O₃ to all the newly discovered oxides of these metals. But still the position in the periodic system of certain elements—for example of holmium, thulium, samarium, and others—has not yet been determined for want of a sufficient knowledge of their properties in a state of purity.

[43] So, for example, in 1871, in the Journal of the Russian Physico-Chemical Society (p. 45) and in Liebig's Annalen, Supt. Band viii. 198, I deduced, on the basis of the periodic law, an atomic weight 44 for ekaboron, and Nilson in 1888 found that of scandium, which is ekaboron, to be Sc = 44·03, The periodic law showed that the specific gravity of the ekaboron oxide would be about 8·5, that it would have decided but feeble basic properties and that it would give colourless salts. And this proved to be the case with scandium oxide. In describing scandium, Clève and Nilson acknowledge that the particular interest attached to this element is due to its complete identity with the expected element ekaboron. And this accurate foretelling of properties could only be arrived at by admitting that alteration of the atomic weights of the cerite and gadolinite metals which was one of the first results of the application of the periodic system of the elements to the interpretation of chemical facts. In my first memoirs, namely, in the Bulletin of the St. Petersburg Academy of Sciences, vol. viii. (1870), and in Liebig's Annalen (l. c. p. 168) and others, I particularly insisted on the necessity of altering the then accepted atomic weights of cerium, lanthanum, and didymium. Clève, Höglund, Hillebrand and Norton, and more especially Brauner, and others accepted the proposed alteration, and gave fresh proofs in favour of the proposed alterations of these atomic weights. The study of the fluorides was particularly important. Placing cerium in the fourth group, the composition of its highest oxide would then be CeO₂, and its compounds CeX₄ and the lower oxide, Ce₂O₃ or CeX₃. Brauner obtained the fluoride CeF₄,H₂O corresponding with the first, and a double crystalline salt, 3KF,2CeF₄,2H₂O, without any admixture of compound of the lower grade CeX₃, which generally occur together with the majority of salts corresponding with CeX₄. It will be seen from these formulæ and from the tables of the elements, that cerium and didymium do not belong to the third group, which is now being described, but we mention them here for convenience, as all the cerite and gadolinite metals have much in common. These metals, which are rare in nature, resemble each other in many respects, always accompany each other, are with difficulty isolated from each other, and stand together in the periodic system of the elements; they have acquired a peculiar interest owing to their having been in 1870 the objects of the study of Marignac, Delafontaine, Soret, Lecoq de Boisbaudran, Brauner, Clève, Nilson, the professors of Upsala, and others.

The cerite and gadolinite metals occur in rare siliceous minerals from Sweden, America, the Urals, and Baikal, such as cerite (in Sweden), gadolinite, and orthite; and in still rarer minerals formed by titanic, niobic, and tantalic acids, such as euxenite in Norway and America, and samarskite in Norway, the Urals and America, and in a few rare fluorides and phosphates. Among the latter, monazite is found in somewhat considerable quantities in Brazil and North Carolina; this contains the phosphate of cerium, CePO₄ (= Ce₂O₃P₂O₃), together with didymium, thorium and lanthanum (according to W. Edron and Shapleigh's analyses), and is now used for preparing that mixture of the oxides of the rare metals (especially ThO₂, Ce₂O₃, La₂O₃, &c.), which is employed for incandescent burners (Auer von Welsbach), as it has been found by experiment that these oxides when raised to incandescence in a non-luminous gas flame, give a far more brilliant flame with a smaller consumption of gas, besides being suitable for such non-luminous gases as water gas. The insufficiency of material to work upon, and the difficulty of separating the oxides from each other, are the chief reasons why the composition of the compounds of these rare metals is so imperfectly known. Cerite is the most accessible of these minerals. Besides silica it contains more than 50 p.c. of the oxides of cerium, lanthanum (from 4 p.c.), and didymium. The decomposition of its powder by sulphuric acid gives sulphates, all of which are soluble in water. The other minerals mentioned above are also decomposed in the same manner. The solution of sulphates is precipitated with free oxalic acid, which forms salts insoluble in water and dilute acids with all the cerite and gadolinite oxides. The oxides themselves are obtained by igniting the oxalates. When ignited in the air the cerium passes from its ordinary oxide Ce₂O₃ into the higher oxide CeO₂, which is so feeble a base that its salts are decomposed by water, and it is insoluble in dilute nitric acid. Therefore it is always possible to remove all the cerium oxide by repeated ignitions and solutions in sulphuric acid. The further separation of the metals is mainly based on four methods employed by many investigators.

(a) A solution of the mixed salts is treated with an excess of solid potassium sulphate. Double salts, such as Ce₂(SO₄)₃,3K₂SO₄, are thus formed. The gadolinite metals, namely yttrium, ytterbium, and erbium, then remain in solution—that is, their double salts are soluble in a solution of potassium sulphate, whilst the cerite metals—namely, cerium, lanthanum, and didymium—are precipitated, that is, their double salts are insoluble in a saturated solution of potassium sulphate. This ordinary method of separation, however, appears from the researches of Marignac to be so untrustworthy that a considerable amount of didymium and the other metals remain in the soluble portion, owing to the fact that, although individually insoluble, they are dissolved when mixed together. Thus erbium and terbium occur both in the solution and precipitate. Nevertheless, beryllium, yttrium, erbium, and ytterbium belong to the soluble, and scandium, cerium, lanthanum, didymium, and thorium to the insoluble portion. The insoluble salt of scandium, for example (i.e. insoluble in a solution of potassium sulphate), has a composition Sc₂(SO₄)₃,3K₂SO₄.

(b) The oxides obtained by the ignition of the oxalates are dissolved in nitric acid (the nitrates of the cerite metals easily form double salts with those of the alkali metals, and as some—for example, the ammonio-lanthanum salt—crystallise very well, they should be studied and applied to the analytical separation of these metals), the solution is then evaporated to dryness, and the residue fused. All nitrates are destroyed by heat; those of aluminium and iron, &c., very easily, those of the cerite and gadolinite metals also easily (although not so easily as the above) but in different degrees and sequence; so that by carrying on the decomposition carefully from the beginning it is possible to destroy the nitrate of only one metal without touching the others, or leaving them as insoluble basic salts. This method, like the preceding and the two following, must be repeated as many as seventy times to attain a really constant product of fixed properties, that is, one in which the decomposed and undecomposed portions contain one and the same oxide. This method, due to Berlin and worked out by Bunsen, has given in the hands of Marignac and Nilson the best results, especially for the separation of the gadolinite metals, ytterbium and scandium.

(c) A solution of the salts is partially precipitated by ammonia; that is, the solution is mixed with a small quantity of ammonia insufficient for the precipitation of the entire quantity of the bases (fractional precipitation). Thus, the didymium hydroxide is first precipitated from a mixture of the salts of didymium and lanthanum. A partial separation may be effected by repeating the solution of the precipitate and fractional precipitation, but a perfectly pure product is scarcely attainable.

(d) The formates having different degrees of solubility (lanthanum formate 420 parts of water per one of salt, didymium formate 221, cerium formate 360, yttrium and erbium formates easily soluble) give a possible means of separating certain of the gadolinite metals from each other by a method of fractional solution and precipitation, as Bunsen, Bahr, Clève, and others have pointed out.

(e) Crookes (1893) took advantage of the fractional precipitation of alcoholic solutions of the chlorides by amylene, and by this means separated, for example, erbium, terbium, and others.

(f) Lastly, oxide of thorium ThO₂ (Chapter VIII., Note 59) is separated by means of its solubility in a solution of sodium carbonate.

A good method of separating these metals is not known, for they are so like each other. There are also only a few methods of distinguishing them from each other, and we can only add the following four to the above.

^a The faculty of oxidising into a higher oxide. This is very characteristic for cerium, which gives the oxides Ce₂O₃ and CeO₂ or Ce₂O₄. Didymium also gives one colourless oxide, Di₂O₃, which is capable of forming salts (of a lilac colour), and another, according to Brauner, Di₂O₅ which is dark brown and does not form salts, so far as is known, and (like ceric oxide) acts as an oxidising agent, like the higher oxides of tellurium, manganese, lead, and others. Lanthanum, yttrium, and many others are not capable of such oxidation. The presence of the higher oxides may be recognised by ignition in a stream of hydrogen, by which means the higher oxides are reduced to the lower, which then remain unaltered.

^b The majority of the salts of the gadolinite and cerite metals are colourless, but those of didymium and erbium are rose-coloured, the salts of the higher oxide of cerium, CeX₄, yellow, of the higher oxide of terbium, yellow, &c. Thus, the first metals obtained from gadolinite were yttrium, giving colourless, and erbium, giving rose-coloured, salts. Afterwards it was found that the salts of erbium of former investigators contained numerous colourless salts of scandium, ytterbium, &c., so that a coloration sometimes indicates the presence of a small impurity, as was long known to be the case in minerals, and therefore this point of distinction cannot be considered trustworthy.

^c In a solid state and in solutions, the salts of didymium, samarium, holmium, &c., give characteristic absorption spectra, as we pointed out in Chapter XIII., and this naturally is connected with the colour of these salts. The most important point is, that those metals which do not give an absorption spectrum—for example, lanthanum, yttrium, scandium, and ytterbium—may be obtained free from didymium, samarium, and the other metals giving absorption spectra, because the presence of the latter may be easily recognised by means of the spectroscope, whilst the presence of the former in the latter cannot be distinguished, and therefore the purification of the former can be carried further than that of the latter. We may further remark that the sensitiveness of the spectrum reaction for didymium is so great that it is possible with a layer of solution half a metre thick to recognise the presence of 1 part of didymium oxide (as salt) in 40,000 parts of water. Cossa determined the presence of didymium (together with cerium and lanthanum) in apatites, limestones, bones, and the ashes of plants by this method. The main group of dark lines of didymium correspond with wave-lengths of from 580 to 570 millionths mm.; and the secondary to about 520, 730, 480, &c. The chief absorption bands of samarium are 472–486, 417, 500, and 559. Besides which, Crookes applied the investigation of the spectra of the phosphorescent light which is emitted by certain earths in an almost perfect vacuum, when an electric discharge is passed through it, to the discovery and characterisation of these rare metals. But it would seem that the smallest admixture of other oxides (for example, bismuth, uranium) so powerfully influences these spectra that the fundamental distinctions of the oxides cannot be determined by this method. Besides which, the spectra obtained by the passage of sparks through solutions or powders of the salts are determined and applied to distinguishing the elements, but as spectra vary with the temperature and elasticity (concentration) this method cannot be considered as trustworthy.

^d The most important point of distinction of individual metallic oxides is given by the direct determination of their equivalent with respect to water—that is, the amount of the oxide by weight which combines (like water) with 80 parts by weight of sulphuric anhydride, SO₃, for the formation of a normal salt. For this purpose the oxide is weighed and dissolved in nitric acid, sulphuric acid is then added, and the whole is evaporated to dryness over a water-bath and then heated over a naked flame sufficiently strongly to drive off the excess of sulphuric acid, but so as not to decompose the salt (the product would in that case not be perfectly soluble in water); then, knowing the weight of the oxide and of the anhydrous sulphate, we can find the equivalent of the oxide. The following are the most trustworthy figures in this connection: scandium oxide 45·35 (Nilson), yttrium oxide 75·7 (Clève; according to my determination, 1871—74·6), cerous oxide—that is, the lower form of oxidation of cerium, according to various investigators (Bunsen, Brauner, and others) from 108 to 111, the higher oxide of cerium from 85 to 87, lanthanum oxide, according to Brauner, 108, didymium oxide (in salts of the ordinary lower form of oxidation) about 112 (Marignac, Brauner, Clève), samarium oxide about 116 (Clève), ytterbium oxide 131·3 (Nilson). It may not be superfluous here to draw attention to the fact that the equivalent of the oxides of all the gadolinite and cerite metals for water distribute themselves into four groups with a somewhat constant difference of nearly 30. In the first group is scandium oxide with equivalent 45, in the second, yttrium oxide 76, in the third, lanthanum, cerium, didymium, and samarium oxides with equivalent about 110, and, in the fourth, erbium, ytterbium, and thorium oxides with equivalent about 131. The common difference of period is nearly 45. And if we ascribe the type R₂O₃ to all the oxides—that is, if we triple the weight of the equivalent of the oxide—we shall obtain a difference of the groups nearly equal to 90, which, for two atoms of the metal, forms the ordinary periodic difference of 45. If one and the same type of oxide R₂O₃ be ascribed to all these elements (as now generally accepted, in many cases there being insufficiently trustworthy data), then the atomic weights should be Sc = 44, Y = 89, La = 138, Ce = 140, Di = 144, (neodymium 140, praseodymium 144), Sm = 150, Yb = 173, also terbium 147, holmium 162, alphayttrium 157, erbium 166, thulium 170, decipium 171. It should be observed that there may be instances of basic salts. If, for example, an element with an atomic weight 90 gave an oxide RO₂, but salts ROX₂, then by counting its oxide as R₂O₃ its atomic weight would be 159.

All the points distinguishing many gadolinite and cerite elements have not been sufficiently well established in certain cases (for example, with decipium, thulium, holmium, and others). At present the most certain are yttrium, scandium, cerium, and lanthanum. In the case of didymium, for example, there is still much that is doubtful. Didymium, discovered in 1842 by Mosander after lanthanum, differs from the latter in its absorption spectrum and the lilac-rose colour of its salts. Delafontaine (1878) separated samarium from it. Welsbach showed that it contains two particular elements, neodymium (salts bluish-red) and praseodymium (salts apple-green), and Becquerel (1887) by investigating the spectra of crystals, recognised the presence of six individual elements. Probably, therefore, many of the now recognised elements contain a mixture of various others, and as yet there is not enough confirmation of their individuality. As regards yttrium, scandium, cerium, and lanthanum, which have been established without doubt, I think that, owing to their great rarity in nature and chemical art, it would be superfluous to describe them further in so elementary a work as the present. We may add that Winkler (1891) obtained a hydrogen compound of lanthanum, whose composition (according to Brauner) is La₂H₃, as would be expected from the composition of Na₂H, Mg₂H₂, &c. C. Winkler (1891), on reducing CeO₂ with magnesium, also remarked a rapid absorption of hydrogen, and showed that a hydride of cerium, CeH₂, corresponding to CaH, and the other similar hydrides of metals of the alkaline earths, is formed (Chapter XIV., Note 63).

[1] Chloroform, CHCl₃, boils at 60°, and silicon chloroform, SiHCl₃, at 34°; silicon ethyl, Si(C₂H₅)₄, boils at about 150°, and its corresponding carbon compound, C(C₂H₅)₄, at about 120°; ethyl orthosilicate, Si(OC₂H₅)₄, boils at 160°, and ethyl orthocarbonate, C(OC₂H₅)₄, at 158°. The specific volumes in a liquid state—that is, those of the silicon compounds—generally are slightly greater than those of the carbon compounds; for example, the volumes of CCl₄ = 94, SiCl₄ = 112, CHCl₃ = 81, SiHCl₃ = 82, of C(OC₂H₅)₄ = 186, and Si(OC₂H₅)₄ = 201. The corresponding salts have also nearly equal specific volumes; for example, CaCO₃ = 37, CaSiO₃ = 41. It is impossible to compare SiO₂ and CO₂, because their physical states are so widely different.

[1 bis] But silica fuses and volatilises (Moissan) in the heat of the electric furnace, about 3000°, SiO₂ is also partially volatile at the temperature attained in the flame of detonating gas (Cremer, 1892).

[2] A property of intercombination is observable in the atoms of carbon, and a faculty for intercombination, or polymerisation, is also seen in the unsaturated hydrocarbons and carbon compounds in general. In silicon a property of the same nature is found to be particularly developed in silica, SiO₂, which is not the case with carbonic anhydride. The faculty of the molecules of silica for combining both with other molecules and among themselves is exhibited in the formation of most varied compounds with bases, in the formation of hydrates with a gradually decreasing proportion of water down to anhydrous silica, in the colloid nature of the hydrate (the molecules of colloids are always complex), in the formation of polymeric ethereal salts, and in many other properties which will be considered in the sequel. Having come to this conclusion as to the polymeric state of silica since the years 1850–1860, I have found it to be confirmed by all subsequent researches on the compounds of silica, and, if I mistake not, this view has now been very generally accepted.

[3] It was only after Gerhardt, and in general subsequently to the establishment of the true atomic weights of the elements (Chapter VII.), that a true idea of the atomic weight of silicon and of the composition of silica was arrived at from the fact that the molecules of SiCl₄, SiF₄, Si(OC₂H₅)₄, &c., never contain less than 28 parts of silicon.

The question of the composition of silica was long the subject of the most contradictory statements in the history of science. In the last century Pott, Bergmann, and Scheele distinguished silica from alumina and lime. In the beginning of the present century Smithson for the first time expressed the opinion that silica was an acid, and the minerals of rocks salts of this acid. Berzelius determined the presence of oxygen in silica—namely, that 8 parts of oxygen were united with 7 of silicon. The composition of silica was first expressed as SiO (and for the sake of shortness S only was sometimes written instead). An investigation in the amount of silica present in crystalline minerals showed that the amount of oxygen in the bases bears a very varied proportion to the amount of oxygen in the silica, and that this ratio varies from 2 : 1 to 1 : 3. The ratio 1 : 1 is also met with, but the majority of these minerals are rare. Other more common minerals contain a larger proportion of silica, the ratio between the oxygen of the bases and the oxygen of the silica being equal to 1 : 2, or thereabouts; such are the augites, labradorites, oligoclase, talc, &c. The higher ratio 1 : 3 is known for a widely distributed series of natural silicates—for example, the felspars. Those silicates in which the amount of oxygen in the bases is equal to that in the silica are termed monosilicates; their general formula will be (RO)₂SiO₂ or (R₂O₃)₂(SiO₂)₃. Those in which the ratio of the oxygen is equal to 1 : 2 are termed bisilicates, and their general formula will be ROSiO₂ or R₂O₃(SiO₂)₃. Those in which the ratio is 1 : 3 will be trisilicates, and their general formula (RO)₂(SiO₂)₃ or (R₂O₃)₂(SiO₂)₉.

In these formulæ the now established composition of SiO₂—that is, that in which the atom of Si = 28—is employed. Berzelius, who made an accurate analysis of the composition of felspar, and recognised it as a trisilicate formed by the union of potassium oxide and alumina with silica, in just the same manner as the alums are formed by sulphuric acid, gave silica the same formula as sulphuric anhydride—that is, SiO₃. In this case the formula of felspar would be exactly similar to that of the alums—that is, KAl(SiO₄)₂, like the alums, KAl(SO₄)₂. If the composition of silica be represented as SiO₃, the atom of silicon must be recognised as equal to 42 (if O = 16; or if O = 8, as it was before taken to be, Si = 21).

The former formulæ of silica, SiO (Si = 14) and SiO₃ (Si = 42), were first changed into the present one, SiO₂ (Si = 28), on the basis of the following arguments:—An excess of silica occurs in nature, and in siliceous rocks free silica is generally found side by side with the silicates, and one is therefore led to the conclusion that it has formed acid salts. It would therefore be incorrect to consider the trisilicates as normal salts of silica, for they contain the largest proportion of silica; it is much better to admit another formula with a smaller proportion of oxygen for silica, and it then appears that the majority of minerals are normal or slightly basic salts, whilst some of the minerals predominating in nature contain an excess of silica—that is, belong to the order of acid salts.

At the present time, when there is a general method (Chapter VII.) for the determination of atomic weights, the volumes of the volatile compounds of silica show that its atomic weight Si = 28, and therefore silica is SiO₂. Thus, for example, the vapour density of silicon chloride with respect to air is, as Dumas showed (1862), 5·94, and hence with respect to hydrogen it is 85·5, and consequently its molecular weight will be 171 (instead of 170 as indicated by theory). This weight contains 28 parts of silicon and 142 parts of chlorine, and as an atom of the latter is equal to 35·5, the molecule of silicon chloride contains SiCl₄. As two atoms of chlorine are equivalent to one of oxygen, the composition of silica will be SiO₂—that is, the same as stannic oxide, SnO₂, or titanic oxide, TiO₂, and the like, and also as carbonic and sulphurous anhydrides, CO₂ and SO₂. But silica bears but little physical resemblance to the latter compounds, whilst stannic and titanic oxides resemble silica both physically and chemically. They are non-volatile, crystalline insoluble, are colloids, also form feeble acids like silica, &c., and they might therefore be expected to form analogous compounds, and be isomorphous with silica, as Marignac (1859) found actually to be the case. He obtained stannofluorides, for example an easily soluble strontium salt, SrSnF₆,2H₂O, corresponding with the already long known silicofluorides, such as SrSiF₆,2H₂O. These two salts are almost identical in crystalline form (monoclinic; angle of the prism, 83° for the former and 84° for the latter; inclination of the axes, 103° 46′ for the latter and 103° 30′ for the former), that is, they are isomorphous. We may here add that the specific volume of silica in a solid form is 22·6, and of stannic oxide 21·5.

[4] A similar form of silicon is obtained by fusing SiO₂ with magnesium, when an alloy of Si and Mg is also formed (Gattermann). Warren (1888) by heating magnesium in a stream of SiF₄ obtained silicon and its alloy with magnesium. Winkler (1890) found that Mg₅Si₃ and Mg₂Si are formed when SiO₂ and Mg are heated together at lower temperatures, whilst at a high temperature Si only is formed.

[4 bis] It is very remarkable that silicon decomposes carbonic anhydride at a white heat, forming a white mass which, after being treated with potassium hydroxide and hydrofluoric acid, leaves a very stable yellow substance of the formula SiCO, which is formed according to the equation, 3Si + 2CO₂ = SiO₂ + 2SiCO. It is also slowly formed when silicon is heated with carbonic oxide. It is not oxidised when heated in oxygen. A mixture of silicon and carbon when heated in nitrogen gives the compound Si₂C₂N, which is also very stable. On this basis Schützenberger recognises a group, C₂Si₂, as capable of combining with O₂ and N, like C.

We may add that Troost and Hautefeuille, by heating amorphous silicon in the vapour of SiCl₄, obtained crystalline silicon, and probably at the same time lower compounds of Si and Cl were temporarily formed. In the vapour of TiCl₄ under the same conditions crystalline titanium is formed (Levy, 1892).

[5] This alloy, as Beketoff and Cherikoff showed, is easily obtained by directly heating finely divided silica (the experiment may be conducted in a test tube) with magnesium powder (Chapter XIV., Notes 17, 18). The substance formed, when thrown into a solution of hydrochloric acid, evolves spontaneously inflammable and impure silicon hydride, so that the self-inflammability of the gas is easily demonstrated by this means.

In 1850–60 Wöhler and Buff obtained an alloy of silicon and magnesium by the action of sodium on a molten mixture of magnesium chloride, sodium silicofluoride, and sodium chloride. The sodium then simultaneously reduces the silicon and magnesium.

Friedel and Ladenburg subsequently prepared silicon hydride in a pure state, and showed that it is not spontaneously inflammable in air, at the ordinary pressure, but that, like PH₃, and like the mixture prepared by the above methods, it easily takes fire in air under a lower pressure or when mixed with hydrogen. They prepared the pure compound in the following manner: Wöhler showed that when dry hydrochloric acid gas is passed through a slightly heated tube containing silicon it forms a very volatile colourless liquid, which fumes strongly in air; this is a mixture of silicon chloride, SiCl₄, and silicon chloroform, SiHCl₃, which corresponds with ordinary chloroform, CHCl₃. This mixture is easily separated by distillation, because silicon chloride boils at 57°, and silicon chloroform at 36°. The formation of the latter will be understood from the equation Si + 3HCl = H₂ + SiHCl₃. It is an anhydrous inflammable liquid of specific gravity 1·6. It forms a transition product between SiH₄ and SiCl₄, and may be obtained from silicon hydride by the action of chlorine and SbCl₅, and is itself also transformed into silicon chloride by the action of chlorine. Gattermann obtained SiHCl₃ by heating the mass obtained after the action (Note 4) of Mg upon SiO₂, in a stream of chlorine (with HCl) at about 470°. Friedel and Ladenburg, by acting on anhydrous alcohol with silicon chloroform, obtained an ethereal compound having the composition SiH(OC₂H₅)₃. This ether boils at 136°, and when acted on by sodium disengages silicon hydride, and is converted into ethyl orthosilicate, Si(OC₂H₅)₄, according to the equation 4SiH(OC₂H₅)₃ = SiH₄ + 3Si(OC₂H₅)₄ (the sodium seems to be unchanged), which is exactly similar to the decomposition of the lower oxides of phosphorus, with the evolution of phosphuretted hydrogen. If we designate the group C₂H₅, contained in the silicon ethers by Et, the parallel is found to be exact:

4PHO(OH)₂ = PH₃ + 3PO(OH)₃; 4SiH(OEt)₃ = SiH₄ + 3Si(OEt)₄.

[6] The amorphous silica is mixed with starch, dried, and then charred by heating the mixture in a closed crucible. A very intimate mixture of silica and charcoal is thus formed. In Chapter XI., Note 13, we saw that elements like silicon disengage more heat with oxygen than with chlorine, and therefore their oxygen compounds cannot be directly decomposed by chlorine, but that this can be effected when the affinity of carbon for oxygen is utilised to aid the action. When the mass obtained by the action of Mg upon SiO₂ is heated to 300° in a current of chlorine, it easily forms SiCl₄ (Gattermann): besides which two other compounds, corresponding to SiCl₄, are formed, namely: Si₂Cl₆, which boils at 145° and solidifies at -1°, and Si₃Cl₈, which boils at about 212°. These substances, which answer to corresponding carbon compounds (C₂H₆ and C₃H₈), act upon water and form corresponding oxygen compounds; for instance, Si₂Cl₆ + 4H₂O = (SiO₂H)₂ + 6HCl gives the analogue of oxalic acid (CO₂H)₂. This substance is insoluble in water, decomposes under the action of friction and heat with an explosion, and should be called silico-oxalic acid, Si₂H₂O₄ (see later, Note 11^bis).

[7] Silicon chloride shows a similar behaviour with alcohol. This is accompanied by a very characteristic phenomenon; on pouring silicon chloride into anhydrous alcohol a momentary evolution of heat is observed, owing to a reaction of double decomposition, but this is immediately followed by a powerful cooling effect, due to the disengagement of a large amount of hydrochloric acid—that is, there is an absorption of heat from the formation of gaseous hydrochloric acid. This is a very instructive example in this respect; here two processes occurring simultaneously—one chemical and the other physical—are divided from each other by time, the latter process showing itself by a distinct fall in temperature. In the majority of cases the two processes proceed simultaneously, and we only observe the difference between the heat developed and absorbed. In acting on alcohol, silicon chloride forms ethyl orthosilicate, SiCl₄ + 4HOC₂H₅ = 4HCl + Si(OC₂H₅)₄. This substance boils at 160°, and has a specific gravity 0·94. Another salt, ethyl metasilicate, SiO(OC₂H₅)₂, is also formed by the action of silicon chloride on anhydrous alcohol; it volatilises above 300°, having a sp. gr. 1·08. It is exceedingly interesting that these two ethereal salts are both volatile, and both correspond with silica, SiO₂: the first ether corresponds to the hydrate Si(OH)₄, orthosilic acid, and the second to the hydrate SiO(OH)₂, metasilicic acid. As the nature of hydrates may be judged from the composition of salts, so also, with equal right, can ethereal salts serve the same purpose. The composition of an ethereal salt corresponds with that of an acid in which the hydrogen is replaced by a hydrocarbon radicle—for instance, by C₂H₅. And, therefore, it may be truly said that there exist at least the two silicic acids above mentioned. We shall afterwards see that there are really several such hydrates; that these ethereal salts actually correspond with hydrates of silica is clearly shown from the fact that they are decomposed by water, and that in moist air they give alcohol and the corresponding hydrate, although the hydrate which is obtained in the residue always corresponds with the second ethereal salt only—that is, it has the composition SiO(OH)₂; this form corresponds also to carbonic acid in its ordinary salts. This hydrate is formed as a vitreous mass when the ethyl silicates are exposed to air, owing to the action of the atmospheric moisture on them. Its specific gravity is 1·77.

Silicon bromide, SiBr₄, as well as silicon bromoform, SiHBr₃, are substances closely resembling the chlorine compounds in their reactions, and they are obtained in the same manner. Silicon iodoform, SiHI₃, boils at about 220°, has a specific gravity of 3·4, reacts in the same manner as silicon chloroform, and is formed, together with silicon iodide, SiI₄, by the action of a mixture of hydrogen and hydriodic acid on heated silicon. Silicon iodide is a solid at the ordinary temperature, fusing at about 120°; it may be distilled in a stream of carbonic anhydride, but easily takes fire in air, and behaves with water and other reagents just like silicon chloride. It may be obtained by the direct action of the vapour of iodine on heated silicon. Besson (1891) also obtained SiCl₃I (boils at 113°), SiCl₂I₂ (172°), and SiClI₃ (220°), and the corresponding bromine compounds. All the halogen compounds of Si are capable of absorbing 6NH₃ and more. Besides which Besson obtained SiSCl₂ by heating Si in the vapour of chloride of sulphur; this compound melts at 74°, boils at 185°, and gives with water the hydrate of SiO₂, HCl, and H₂S.

[8] This property of calcium fluoride of converting silica into a gas and a vitreous fusible slag of calcium silicate is frequently taken advantage of in the laboratory and in practice in order to remove silica. The same reaction is employed for preparing silicon fluoride on a large scale in the manufacture of hydrofluosilicic acid (see sequel).

[9] The amount of heat developed by the solution of silicic acid, SiO₂nH₂O, in aqueous hydrofluoric acid, xHFnH₂O, increases with the magnitude of x and normally equals x5,600 heat units, where x varies between 1 and 8. However, when x = 10 the maximum amount of heat is developed (= 49,500 units), and beyond that the amount decreases (Thomsen).

[10] In reality, however, it would seem that the reaction is still more complex, because the aqueous solution of silicon fluoride does not yield a hydrate of silica, but a fluo-hydrate (Schiff), Si₂O₃(OH)F, corresponding to the (pyro) hydrate Si₂O₃(OH)₂, equal to SiO(OH)₂SiO₂, so that the reaction of silicon fluoride on water is expressed by the equation: 5SiF₄ + 4H₂O = 3SiH₂F₆ + Si₂O₃(OH)F + HF. However, Berzelius states that the hydrate, when well washed with water, contains no fluorine, which is probably due to the fact that an excess of water decomposes Si₂O₃(OH)F, forming hydrofluoric acid and the compound Si₂O₃(OH)₂. Water saturated with silicon fluoride disengages silicon fluoride and hydrofluoric acid when treated with hydrochloric acid, the gelatinous precipitate being simultaneously dissolved. It may be further remarked that hydrofluosilicic acid has been frequently regarded as SiO₂,6HF, because it is formed by the solution of silica in hydrofluoric acid, but only two of these six hydrogens are replaced by metals. On concentration, solutions of the acid begin to decompose when they reach a strength of 6H₂O per H₂SiF₆, and therefore the acid may be regarded as Si(OH)₄,2H₂O,6HF, but the corresponding salts contain less water, and there are even anhydrous salts, R₂SiF₆, so that the acid itself is most simply represented as H₂SiF₆.

If gaseous silicon fluoride be passed directly into water, the gas-conducting tube becomes clogged with the precipitated silicic acid. This is best prevented by immersing the end of the tube under mercury, and then pouring water over the mercury; the silicon fluoride then passes through the mercury, and only comes into contact with the water at its surface, and consequently the gas-conducting tube remains unobstructed. The silicic acid thus obtained soon settles, and a colourless solution with a pleasant but distinctly acid taste is procured.

Mackintosh, by taking 9 p.c. of hydrofluoric acid, observed that in the course of an hour its action on opal attained 77 p.c. of the possible, and did not exceed 1½ p.c. of its possible action on quartz during the same time. This shows the difference of the structure of these two modifications of silica, which will be more fully described in the sequel.

[10 bis] The sodium salt is far more soluble in water, and crystallises in the hexagonal system. The magnesium salt, MgSiF₆, and calcium salt are soluble in water. The salts of hydrofluosilicic acid may be obtained not only by the action of the acid on bases or by double decompositions, but also by the action of hydrofluoric acid on metallic silicates. Sulphuric acid decomposes them, with evolution of hydrofluoric acid and silicon fluoride, and the salts when heated evolve silicon fluoride, leaving a residue of metallic fluoride, R₂F₂.

[11] See Note 4 bis. Probably Schützenberger had already obtained CSi in his researches together with other silicon compounds. An amorphous, less hard compound of the same alloy is also obtained together with the hard crystalline CSi.

[11 bis] The following consideration is very important in explaining the nature of the lower hydrates which are known for silicon. If we suppose water to be taken up from the first hydrates (just as formic acid is CH(OH)₃, minus water), we shall obtain the various lower hydrates corresponding with silicon hydride. When ignited they should, like phosphorous and hypophosphorous acids, disengage silicon hydride, and leave a residue of silica behind—i.e. of the oxide corresponding to the highest hydrate—just as organic hydrates (for example, formic acid with an alkali) form carbonic anhydride as the highest oxygen compound. Such imperfect hydrates of silicon, or, more correctly speaking, of silicon hydride, were first obtained by Wöhler (1863) and studied by Geuther (1865), and were named after their characteristic colours. (See Note 66).

Leucone is a white hydrate of the composition SiH(OH)₃. It is obtained by slowly passing the vapour of silicon chloroform into cold water: SiHCl₃ + 3H₂O = SiH(OH)₃ + 3HCl. But this hydrate, like the corresponding hydrate of phosphorus or carbon, does not remain in this state of hydration, but loses a portion of its water. The carbon hydrate of this nature, CH(OH)₃, loses water and forms formic acid, CHO(OH); but the silicon hydrate loses a still greater proportion of water, 2SiH(OH)₃, parting with 3H₂O, and consequently leaving Si₂H₂O₃. This substance must be an anhydride; all the hydrogen previously in the form of hydroxyl has been disengaged, two remaining hydrogens being left from SiH₄. The other similar hydrate is also white, and has the composition Si₃H₂O (nearly). It may be regarded as the above white hydrate + SiO₂. A yellow hydrate, known as chryseone (silicone), is obtained by the action of hydrochloric acid on an alloy of silicon and calcium; its composition is about Si₆H₄O₃. Most probably, however, chryseone has a more complex composition, and stands in the same relation to the hydrate SiH₂(OH)₃ as leucone does to the hydrate SiH(OH)₃, because this very simply expresses the transition of the first compound into the second with the loss of water, SiH₂(OH)₃ - H₂ + H₂O = SiH(OH)₃. When these lower hydrates are ignited without access of air, they are decomposed into hydrogen, silicon, and silica—that is, it may be supposed that they form silicon hydride (which decomposes into silicon and hydrogen) and silica (just as phosphorous and hypophosphorous acids give phosphoric acid and phosphuretted hydrogen). When ignited in air, they burn, forming silica. They are none of them acted on by acids, but when treated with alkalis they evolve hydrogen and give silicates; for example, leucone: SiH₂O₃ + 4KHO = 2SiK₂O₃ + H₂O + 2H₂. They have no acid properties.

[12] Two modifications of rock crystal are known. They are very easily distinguished from each other by their relation to polarised light; one rotates the plane of polarisation to the right and the other to the left—in the one the hemihedral faces are right and in the other they are left; this opposite rotatory power is taken advantage of in the construction of polarisers. But, with this physical difference—which is naturally dependent on a certain difference in the distribution of the molecules—there is not only no observable difference in the chemical properties, but not even in the density of the mass. Perfectly pure rock crystal is a substance which is most invariable with respect to its specific gravity. The numerous and accurate determinations made by Steinheil on the specific gravity of rock crystal show that (if the crystal be free from flaws) it is very constant and is equal to 2·66.

[12 bis] Several other modifications are known as minute crystals. For example, there is a particular mineral first found in Styria and known as tridymite. Its specific gravity 2·3 and form of crystals clearly distinguish it from rock crystal; its hardness is the same as that of quartz—that is, slightly below that of the ruby and diamond.

[13] There is a distinct rise of temperature (about 4°) when amorphous silica is moistened with water. Benzene and amyl alcohol also give an observable rise of temperature. Charcoal and sand give the same result, although to a less extent.

[13 bis] Silica also occurs in nature in two modifications. The opal and tripoli (infusorial earth) have a specific gravity of about 2·2, and are comparatively easily soluble in alkalis and hydrofluoric acid. Chalcedony and flint (tinted quartzose concretions of aqueous origin), agate and similar forms of silica of undoubted aqueous origin, although still containing a certain amount of water, have a specific gravity of 2·6, and correspond with quartz in the difficulty with which they dissolve. This form of silica sometimes permeates the cellulose of wood, forming one of the ordinary kinds of petrified wood. The silica may be extracted from it by the action of hydrofluoric acid, and the cellulose remains behind, which clearly shows that silica in a soluble form (see sequel) has permeated into the cells, where it has deposited the hydrate, which has lost water, and given a silica of sp. gr. 2·6. The quartzose stalactites found in certain caves are also evidently of a similar aqueous origin; their sp. gr. is also 2·6. As crystals of amethyst are frequently found among chalcedonies, and as Friedau and Sarrau (1879) obtained crystals of rock crystal by heating soluble glass with an excess of hydrate of silica in a closed vessel, there is no doubt but that rock crystal itself is formed in the wet way from the gelatinous hydrate. Chroustchoff obtained it directly from soluble silica. Thus this hydrate is able to form not only the variety having the specific gravity 2·2 but also the more stable variety of sp. gr. 2·6; and both exist with a small proportion of water and in a perfectly anhydrous state in an amorphous and crystalline form. All these facts are expressed by recognising silica as dimorphous, and their cause must be looked for in a difference in the degree of polymerisation.

[14] Deposits of perfectly white tripoli have been discovered near Batoum, and might prove of some commercial importance.

[14 bis] Alkaline solutions, saturated with silica and known as soluble glass, are prepared on a large scale for technical purposes by the action of potassium (or sodium) hydroxide in a steam boiler on tripoli or infusorial earth, which contains a large proportion of amorphous silica. All solutions of the alkaline silicates have an alkaline reaction, and are even decomposed by carbonic acid. They are chiefly used by the dyer, for the same purposes as sodium aluminate, and also for giving a hardness and polish to stucco and other cements, and in general to substances which contain lime. A lump of chalk when immersed in soluble glass, or better still when moistened with a solution and afterwards washed in water (or better in hydrofluosilicic acid, in order to bind together the free alkali and make it insoluble), becomes exceedingly hard, loses its friability, is rendered cohesive, and cannot be levigated in water. This transformation is due to the fact that the hydrate of silica present in the solution acts upon the lime, forming a stony mass of calcium silicate, whilst the carbonic acid previously in combination with the lime enters into combination with the alkali and is washed away by the water.

[15] The equation given above does not express the actual reaction, for in the first place silica has the faculty of forming compounds with bases, and therefore the formula SiNa₄O₄ is not rightly deduced, if one may so express oneself. And, in the second place, silica gives several hydrates. In consequence of this, the hydrate precipitated does not actually contain so high a proportion of water as Si(OH)₄, but always less. The insoluble gelatinous hydrate which separates out is able (before, but not after, having been dried) to dissolve in a solution of sodium carbonate. When dried in air its composition corresponds with the ordinary salts of carbonic acid—that is, SiH₂O₃, or SiO(OH)₂. If gradually heated it loses water by degrees, and, in so doing, gives various degrees of combination with it. The existence of these degrees of hydration, having the composition SiH₂O₃nSiO₂, or, in general, nSiO₂mH₂O, where m < n, must be recognised, because most varied degrees of combination of silica with bases are known. The hydrate of silica, when not dried above 30°, has a composition of nearly H₄Si₃O₈ = (H₂SiO₃)₂SiO₂, but at 60° contains a greater proportion of silica—that is, it loses still more water; and at 100° a hydrate of the composition SiH₂O₃2SiO₂, and at 250° a hydrate having approximately a composition SiH₂O₃7SiO₂ is obtained.

These data show the complexity of the molecules of anhydrous silica. The hydrates of silica easily lose water and give the hydrates (SiO₂)_n(H₂O)_m, where m becomes smaller and smaller than n. In the natural hydrates, this decrement of water proceeds quite consecutively, and, so to say, imperceptibly, until n becomes incomparably greater than m, and when the ratio becomes very large, anhydrous silica of the two modifications 2·6 and 2·2 is obtained. The composition (SiO₂)₁₀,H₂O still corresponds with 2·9 p.c. of water, and natural hydrates often contain still less water than this. Thus some opals are known which contain only 1 p.c. of water, whilst others contain 7 and even 10 p.c. As the artificially prepared gelatinous hydrate of silica when dried has many of the properties of native opals, and as this hydrate always loses water easily and continually, there can be no doubt that the transition of (SiO₂)_n(H₂O)_m into anhydrous silica, both amorphous and crystalline (in nature, chalcedony), is accomplished gradually. This can only be the case if the magnitude of n be considerable, and therefore the molecule of silica in the hydrate is undoubtedly complex, and hence the anhydrous silica of sp. gr. 2·2 and 2·6 does not contain SiO₂, but a complex molecule, Si_nO_2n—that is, the structure of silica is polymeric and complex, and not simple as represented above by the formula SiO₂.

[16] The presence of an excess of acid aids the retention of the silica in the solution, because the gelatinous silica obtained in the above manner, but not heated to 60°—that is, containing more water than the hydrate H₂SiO₃—is more soluble in water containing acid than in pure water. This would seem to indicate a feeble tendency of silica to combine with acids, and it might even have been imagined that in such a solution the hydrate of silica is held in combination by an excess of acid, had Graham not obtained soluble silica perfectly free from acid, and if there were not solutions of silica free from any acid in nature. At all events a tolerably strong solution of free silica or silicic acid may be obtained from soluble glass diluted with water. The solution, besides silica, will contain sodium chloride and an excess of the acid taken. If this solution remains for some time exposed to the air, or in a closed vessel, and under various other conditions, it is found that, after a time, insoluble gelatinous silica separates out—that is, the soluble form of silica is unstable, like the soluble form of alumina. The analogous forms of molybdic or tungstic acids may be heated, evaporated, and kept for a long period of time without the soluble form being converted into the insoluble.

[17] See Chapter I., Note 18. A solution of water-glass mixed with an excess of hydrochloric acid is poured into the dialyser, and the outer vessel is filled with water, which is continually renewed. The water carries off the sodium chloride and hydrochloric acid, and the hydrosol remains in the dialyser.

[18] A similar process occurs in plants—for example, when they secrete a store of material for the following year in their bulbs, roots, &c. (for instance, the potato in its tubers), the solutions from the leaves and stems penetrate into the roots and other parts in the form of hydrosols, where they are converted into hydrogels—that is, into an insoluble form, which is acted on with difficulty and is easily kept unaltered until the period of growth—for example, until the following spring—when they are reconverted into hydrosols, and the insoluble substance re-enters into the sap, and serves as a source of the hydrogels in the leaves and other portions of plants.

[19] As regards their chemical composition the colloids are very complex—that is, they have a high molecular weight and a large molecular volume—in consequence of which they do not penetrate through membranes, and are easily subject to variation in their physical and chemical properties (owing to their complex structure and polymerism?) They have but little chemical energy, and are generally feeble acids, if belonging to the order of oxides or hydrates, such as the hydrates of molybdic and tungstic acids (Chapter XXI.). But now the number of substances capable, like colloids, of passing into aqueous solutions and of easily separating out from them, as well as of appearing in an insoluble form, must be supplemented by various other substances, among which soluble gold and silver (Chapter XXIV.) are of particular interest. So that now it may be said that the capacity of forming colloid solutions is not limited to a definite class of compounds, but is, if not a general, at all events, an exceedingly widely distributed phenomenon.

[20] This is in accordance with the generally-accepted representation of the relations between salts and the hydrates of acids, but it is of little help in the study of siliceous compounds. Generally speaking, it becomes necessary to explain the property of (SiO₂)_n to combine with (RO)_m, where n may be greater than m, and where R may be H₂, Ca, &c. Here we are aided by those facts which have been attained by the investigation of carbon compounds, especially with respect to glycol. Glycol is a compound having the composition C₂H₆O₂, only differing from alcohol, C₂H₆O, by an extra atom of oxygen. This hydrate contains two hydroxyl groups, which may be successively replaced by chlorine, &c. Hence the composition of glycol should be represented as C₂H₄(OH)₂. It has been found that glycol forms so-called polyglycols. Their origin will be understood from the fact that glycol as a hydrate has a corresponding anhydride of the composition C₂H₄O, known as ethylene oxide. This substance is ethane, C₂H₆, in which two hydrogens are replaced by one atom of oxygen. Ethylene oxide is not the only anhydride of glycol, although it is the simplest one, because C₂H₄O = C₂H₄(OH)₂ - H₂O. Various other anhydrides of glycol are possible, and have actually been obtained, of the composition nC₂H₄(OH)₂ - (n - 1)H₂O = (C₂H₄)_nO_n-1(OH)₂. These imperfect anhydrides of glycol, or polyglycols, still contain hydroxyls like glycol itself, and therefore are of an alcoholic character in the same sense as glycol itself. They are obtained by various methods, and, amongst others, by the direct combination of ethylene oxide with glycol, because C₂H₄(OH)₂ + (n - 1)C₂H₄O = (C₂H₄)_nO_n-1(OH)₂. The most important circumstance, from a theoretical point of view, is that these polyglycols may be distilled without undergoing decomposition, and that the general formula given above expresses their actual molecular composition. Hence we have here a direct combination of the anhydride with the hydrate, and, moreover, a repeated one. The formula A_nH₂O may be used to express the composition of glycol and polyglycols with respect to ethylene oxide in the most simple manner, if A stand for ethylene oxide. When n = 1 we have glycol, when n is greater than 1 a polyglycol. Such also is the relationship of the salts of hydrate of silica, if A stand for silica, and if we imagine that H₂O may also be taken m times. Such a representation of the polysilicic acids corresponds with the representation of the polymerism of silica. Laurent supposed the existence of several polymeric forms, Si₂O₄, Si₃O₆, &c., besides silica, SiO₂.

[21] For us the latter have not a saline character, only because they are not regarded from this point of view, but an alloy of sodium and zinc is, in a broad sense, a salt in many of its reactions, for it is subject to the same double decompositions as sodium phosphide or sulphide, which clearly have saline properties. The latter (sodium phosphide), when heated with ethyl iodide, forms ethyl phosphide, and the former—i.e. the alloy of zinc and sodium—gives zinc ethyl; that is, the element (P, S, Zn) which was united with the sodium passes into combination with the ethyl: RNa + EtI = REt + NaI. By combining sodium successively with chlorine, sulphur, phosphorus, arsenic, antimony, tin, and zinc, we obtain substances having less and less the ordinary appearance of salts, but if the alloy of sodium and zinc cannot be termed a salt, then perhaps this name cannot be given to sodium sulphide, and the compounds of sodium with phosphorus. The following circumstance may also be observed: with chlorine, sodium gives only one compound (with oxygen, at the most three), with sulphur five, with phosphorus probably still more, with antimony naturally still more, and the more analogous an element is to sodium, the more varied are the proportions in which it is able to combine with it, the less are the alterations in the properties which take place by this combination, and the nearer does the compound formed approach to the class of compounds known as indefinite chemical compounds. In this sense a siliceous alloy, containing silica and other acids, is a salt. The oxide to a certain extent plays the same part as the sodium, whilst the silica plays the part of the acid element which was taken up successively by zinc, phosphorus, sulphur, &c., in the above examples. Such a comparison of the silica compounds with alloys presents the great advantage of including under one category the definite and indefinite silica compounds which are so analogous in composition—that is, brings under one head such crystalline substances as certain minerals, and such amorphous substances as are frequently met with in nature, and are artificially prepared, as glass, slags, enamels, &c.

If the compounds of silica are substances like the metallic alloys, then (1) the chemical union between the oxides of which they are composed must be a feeble one, as it is in all compounds formed between analogous substances. In reality such feeble agencies as water and carbonic acid are able, although slowly, to act on and destroy the majority of the complex silica compounds in rocks, as we saw in the preceding chapter; (2) their formation, like that of alloys, should not be accompanied by a considerable alteration of volume; and this is actually the case. For example, felspar has a specific gravity of about 2·6, and therefore, taking its composition to be K₂O,Al₂O₃,6SiO₂, we find its volume, corresponding with this formula, to be 556·8. 2·6 = 214, the volume of K₂O = 35, of Al₂O₃ = 26, and of SiO₂ = 22·6. Hence the sum of the volumes of the component oxides, 35 + 26 + 6 × 22·6 = 196, which is very nearly equal to that of the felspar; that is, its formation is attended by a slight expansion, and not by contraction, as is the case in the majority of other cases when combinations determined by strong affinities are accomplished. In the case in question the same phenomenon is observed as in solutions and alloys—that is, as in cases of feeble affinities. So also the specific gravity of glass is directly dependent on the amount of those oxides which enter into its composition. If in the preceding example we take the sp. gr. of silica to be, not 2·65, but 2·2, its volume = 27·3, and the sum of the volumes will be = 224—that is, greater than that of orthoclase.

[22] It is, however, easy to imagine, and experience confirms the supposition, that in a complex siliceous compound containing for instance sodium and calcium, the whole of the sodium may be replaced by potassium, and at the same time the whole of the calcium by magnesium, because then the substitution of potassium for the sodium will produce a change in the nature of the substance contrary to that which will occur from the calcium being replaced by magnesium. That increase in weight, decrease in density, increase of chemical energy, which accompanies the exchange of sodium for potassium will, so to speak, be compensated by the exchange of calcium for magnesium, because both in weight and in properties the sum of Na + Ca is very near to the sum of K + Mg. Pyroxene or augite can be taken as an example; its composition may be expressed by the formula CaMgSi₂O₆; that is, it corresponds with the acid H₂SiO₃; it is a bisilicate. In many respects it closely resembles another mineral called ‘spodumene’ (they are both monoclinic). This latter has the composition Li₆Al₈Si₁₅O₄₅. On reducing both formulæ to an equal contents of silica the following distinction will be observed between them: spodumene (Li₂O)₆(Al₂O₃)₈30SiO₂; augite (CaO)₁₅(MgO)₁₅30SiO₂. That is, the difference between them consists in the sum of the magnesia and lime (MgO)₁₅ + (CaO)₁₅ replacing the sum of the lithium oxide and alumina (Li₂O)₆ + (Al₂O₃)₈; and in the chemical relation these sums are near to one another, because magnesium and calcium, both in forms of oxidation and in energy (as bases), in all respects occupy a position intermediate between lithium and aluminium, and therefore the sum of the first may be replaced by the sum of the second.

If we take the composition of spodumene, as it is often represented to be, Li₂O,Al₂O₃,4SiO₂, the corresponding formula of augite will be (CaO)₂,(MgO)₂,4SiO₂, and also the amount of oxygen in the sum of Li₂OAl₂O₃ will be the same as in (CaO)₂(MgO)₂. I may remark, for the sake of clearness, that lithium belongs to the first, aluminium to the third group, and calcium and magnesium to the intermediate second group; lithium, like calcium, belongs to the even series, and magnesium and aluminium to the uneven.

The representation of the substitutions of analogous compounds here introduced was first deduced by me in 1856. It finds much confirmation in facts which have been subsequently discovered—for example, with respect to tourmalin. Wülfing (1888), on the basis of a number of analyses (especially of those by Röggs), states that all varieties contain an isomorphous mixture of alkali and magnesia tourmalin; into the composition of the former there enters 12SiO₂,3B₂O₃,8Al₂O₃,2Na₂O,4H₂O, and of the latter 12SiO₂,3B₂O₃,5Al₂O₃,12MgO,3H₂O. Hence it is seen that the former contains in addition the sum of 3Al₂O₃,2Na₂O,H₂O, whilst in the latter this sum of oxides is replaced by 12MgO, in which there is as much oxygen as in the sum of the more clearly-defined base 2Na₂O and less basic 3Al₂O₃H₂O—that is, the relation is just the same here as between augite and spodumene.

[23] With respect to the silica compounds of the various oxides, it must be observed that only the alkali salts are known in a soluble form; all the others only exist in an insoluble form, so that a solution of the alkali compounds of silica, or soluble glass, gives a precipitate with a solution of the salts of the majority of other metals, and this precipitate will contain the silica compounds of the other bases. The maximum amount of the gelatinous hydrate of silica, which dissolves in caustic potash, corresponds with the formation of a compound, 2K₂O,9SiO₂. But this compound is partially decomposed, with the precipitation of hydrate of silica, on cooling the solution. Solutions containing a smaller amount of silica may be kept for an indefinite time without decomposing, and silica does not separate out from the solution; but such compounds crystallise from the solutions with difficulty. However, a crystalline bisilicate (with water) has been obtained for sodium having the composition Na₂O,SiO₂—i.e. corresponding to sodium carbonate. The whole of the carbonic acid is evolved, and a similar soluble sodium metasilicate is obtained on fusing 3·5 parts of sodium carbonate with 2 parts of silica. If less silica be taken a portion of the sodium carbonate remains undecomposed; however, a substance may then be obtained of the composition Si(ONa)₄, corresponding with orthosilicic acid. It contains the maximum amount of sodium oxide capable of combining with silica under fusion. It is a sodium orthosilicate, (Na₂O)₂,SiO₂.

Calcium carbonate, and the carbonates of the alkaline earths in general, also evolve all their carbonic acid when heated with silica, and in some instances even form somewhat fusible compounds. Lime forms a fusible slag of calcium silicate, of the composition CaO,SiO₂ and 2CaO,3SiO₂. With a larger proportion of silica the slags are infusible in a furnace. The magnesium slags are less fusible than those with lime, and are often formed in smelting metals. Many compounds of the metals of the alkaline earths with silica are also met with in nature. For instance, among the magnesium compounds there is olivine, (MgO)₂,SiO₂, sp. gr. 3·4, which occurs in meteorites, and sometimes forms a precious stone (peridote), and occurs in slags and basalts. It is decomposed by acids, is infusible before the blow-pipe, and crystallises in the rhombic system. Serpentine has the composition 3MgO,2SiO₂,2H₂O; it sometimes forms whole mountains, and is distinguished for its great cohesiveness, and is therefore used in the arts. It is generally tinted green; its specific gravity is 2·5; it is exceedingly infusible, even before the blowpipe. It is acted on by acids. Among the magnesium compounds of silica, talc is very widely used. It is frequently met with in rocks which are widely distributed in nature, and sometimes in compact masses; it can be used for writing like a slate pencil or chalk, and being greasy to the touch, is also known as steatite. It crystallises in the rhombic system, and resembles mica in many respects; like it, it is divisible into laminæ, greasy to the touch, and having a sp. gr. 2·7. These laminæ are very soft, lustrous, and transparent, and are infusible and insoluble in acids. The composition of talc approaches nearly to 6MgO,5SiO₂,2H₂O.

Among the crystalline silicates the following minerals are known:—Wollastonite (tabular-spar), crystallises in the monoclinic system; sp. gr. 2·8; it is semi-transparent, difficultly fusible, decomposed by acids, and has the composition of a metasilicate, CaOSiO₂. But isomorphous mixtures of calcium and magnesium silicates occur with particular frequency in nature. The augites (sp. gr. 3·3), diallages, hypersthenes, hornblendes (sp. gr. 3·1), amphiboles, common asbestos, and many similar minerals, sometimes forming the essential parts of entire rock formations, contain various relative proportions of the bisilicates of calcium and magnesium partially mixed with other metallic silicates, and generally anhydrous, or only containing a small amount of water. In the pyroxenes, as a rule, lime predominates, and in the amphiboles (also of the monoclinic system) magnesia predominates. Details upon this subject must be looked for in works upon mineralogy.

[24] The majority of the siliceous minerals have now been obtained artificially under various conditions. Thus N. N. Sokoloff showed that slags very frequently contain peridote. Hautefeuille, Chroustchoff, Friedel, and Sarasin obtained felspar identical in all respects with the natural minerals. The details of the methods here employed must be looked for in special works on mineralogy; but, as an example, we will describe the method of the preparation of felspar employed by Friedel and Sarasin (1881). From the fact that felspar gives up potassium silicate to water even at the ordinary temperature (Debray's experiments), they concluded that the felspar in granites had an aqueous origin (and this may be supposed to be the case from geological data); then, in the first place, its formation could not be accomplished unless in the presence of an excess of a solution of potassium silicate. In order to render this argument clear I may mention, as an example, that carnallite is decomposed by water into easily soluble magnesium chloride and potassium chloride, and therefore if it is of aqueous origin it could not be formed otherwise than from a solution containing an excess of magnesium chloride, and, in the second place, from a strongly-heated solution; again, felspar itself and its fellow-components in granites are anhydrous. On these facts were based experiments of heating hydrates of silica with alumina and a solution of potassium silicate in a closed vessel. The mixture was placed in a sealed platinum tube, which was enclosed in a steel tube and heated to dull redness. When the mixture contained an excess of silica the residue contained many crystals of rock crystal and tridymite, together with a powder of felspar, which formed the main product of the reaction when the proportion of hydrate of silica was decreased, and a mixture of a solution of potassium silicate with alumina precipitated together with the silica by mixing soluble glass with aluminium chloride was employed. The composition, properties, and forms of the resultant felspar proved it to be identical with that found in nature. The experiments approach very nearly to the natural conditions, all the more as felspar and quartz are obtained together in one mixture, as they so often occur in nature.

[25] The application of cements is based on this principle; they are those sorts of ‘hydraulic’ lime which generally form a stony mass, which hardens even under water, when mixed with sand and water.

The hydraulic properties of cements are due to their containing calcareous and silico-aluminous compounds which are able to combine with water and form hydrates, which are then unacted on by water. This is best proved, in the first place, by the fact that certain slags containing lime and silica, and obtained by fusion (for example, in blast-furnaces), solidify like cements when finely ground and mixed with water; and, in the second place, by the method now employed for the manufacture of artificial cements (formerly only peculiar and comparatively rare natural products were used). For this purpose a mixture of lime and clay is taken, containing about 25 p.c. of the latter; this mixture is then heated, not to fusion, but until both the carbonic anhydride and water contained in the clay are expelled. This mass when finely ground forms Portland cement, which hardens under water. The process of hardening is based on the formation of chemical compounds between the lime, silica, alumina, and water. These substances are also found combined together in various natural minerals—for example, in the zeolites, as we saw above. In all cases cement which has set contains a considerable amount of water, and its hardening is naturally due to hydration—that is, to the formation of compounds with water. Well-prepared and very finely-ground cement hardens comparatively quickly (in several days, especially after being rammed down), with 3 parts (and even more) of coarse sand and with water, into a stony mass which is as hard and durable as many stones, and more so than bricks and limestone. Hence not only all maritime constructions (docks, ports, bridges, &c.), but also ordinary buildings, are made of Portland cement, and are distinguished for their great durability. A combination of ironwork (ties, girders) and cement is particularly suitable for the construction of aqueducts, arches, reservoirs, &c. Arches and walls made of such cements may be much less thick than those built up of ordinary stone. Hence the production and use of cement rapidly increases from year to year. The origin of accurate data respecting cements is chiefly due to Vicat. In Russia Professor Schuliachenko has greatly aided the extension of accurate data concerning Portland cement. Many works for the manufacture of cement have already been established in various parts of Russia, and this industry promises a great future in the arts of construction.

[26] Glass presents a similar complex composition, like that of many minerals. The ordinary sorts of white glass contain about 75 p.c. of silica, 13 p.c. of sodium oxide, and 12 p.c of lime; but the inferior sorts of glass sometimes contain up to 10 p.c. of alumina. The mixtures which are used for the manufacture of glass are also most varied. For example, about 300 parts of pure sand, about 100 parts of sodium carbonate, and 50 of limestone are taken, and sometimes double the proportion of the latter. Ordinary soda-glass contains sodium oxide, lime, and silica as the chief component parts. It is generally prepared from sodium sulphate mixed with charcoal, silica, and lime (Chapter XII.), in which case the following reaction takes place at a high temperature: Na₂SO₄ + C + SiO₂ = Na₂SiO₃ + SO₂ + CO. Sometimes potassium carbonate is taken for the preparation of the better qualities of glass. In this case a glass, potash-glass, is obtained containing potassium oxide instead of sodium oxide. The best-known of these glasses is the so-called Bohemian glass or crystal, which is prepared by the fusion of 50 parts of potassium carbonate, 15 parts of lime, and 100 parts of quartz. The preceding kinds of glass contain lime, whilst crystal glass contains lead oxide instead. Flint glass—that is, the lead glass used for optical instruments—is prepared in this manner, naturally from the purest possible materials. Crystal-glass—i.e. glass containing lead oxide—is softer than ordinary glass, more fusible and has a higher index of refraction. However, although the materials for the preparation of glass be most carefully sorted, a certain amount of iron oxides falls into the glass and renders it greenish. This coloration may be destroyed by adding a number of substances to the vitreous mass, which are able to convert the ferrous oxide into ferric oxide; for example, manganese peroxide (because the peroxide is deoxidised to manganous oxide, which only gives a pale violet tint to the glass) and arsenious anhydride, which is deoxidised to arsenic, and this is volatilised. The manufacture of glass is carried on in furnaces giving a very high temperature (often in regenerative furnaces, Chapter IX.). Large clay crucibles are placed in these furnaces, and the mixture destined for the preparation of the glass, having been first roasted, is charged into the crucibles. The temperature of the furnace is then gradually raised. The process takes place in three separate stages. At first the mass intermixes and begins to react; then it fuses, evolves carbonic acid gas, and forms a molten mass; and, lastly, at the highest temperature, it becomes homogeneous and quite liquid, which is necessary for the ultimate elimination of the carbonic anhydride and solid impurities, which latter collect at the bottom of the crucible. The temperature is then somewhat lowered, and the glass is taken out on tubes and blown into objects of various shapes. In the manufacture of window-glass it is blown into large cylinders, which are then cut at the ends and across, and afterwards bent back in a furnace into the ordinary sheets. After being worked up, all glass objects have to be subjected to a slow cooling (annealing) in special furnaces, otherwise they are very brittle, as is seen in the so-called ‘Rupert's drops,’ formed by dropping molten glass into water; although these drops preserve their form, they are so brittle that they break up into a fine powder if a small piece be knocked off them. Glass objects have frequently to be polished and chased. In the manufacture of mirrors and many massive objects the glass is cast and then ground and polished. Coloured glasses are either made by directly introducing into the glass itself various oxides, which give their characteristic tints, or else a thin layer of a coloured glass is laid on the surface of ordinary glass. Green glasses are formed by the oxides of chromium and copper, blue by cobalt oxide, violet by manganese oxide, and red glass by cuprous oxide and by the so-called purple of Cassius—i.e. a compound of gold and tin—which will be described later. A yellow coloration is obtained by means of the oxides of iron, silver, or antimony, and also by means of carbon, especially for the brown tints for certain kinds of bottle-glass.

From what has been said about glass it will be understood that it is impossible to give a definite formula for it, because it is a non-crystalline or amorphous alloy of silicates; but such an alloy can only be formed within certain limits in the proportions between the component oxides. With a large proportion of silica the glass very easily becomes clouded when heated; with a considerable proportion of alkalis it is easily acted on by moisture, and becomes cloudy in time on exposure to the air; with a large proportion of lime it becomes infusible and opaque, owing to the formation of crystalline compounds in it; in a word, a certain proportion is practically attained among the component oxides in order that the glass formed may have suitable properties. Nevertheless, it may be well to remark that the composition of common glass approaches to the formula Na₂O,CaO,4SiO₂.

The coefficient of cubical expansion of glass is nearly equal to that of platinum and iron, being approximately 0·000027. The specific heat of glass is nearly 0·18, and the specific gravity of common soda glass is nearly 2·5, of Bohemian glass 2·4, and of bottle glass 2·7. Flint glass is much heavier than common glass, because it contains the heavier oxide of lead, its specific gravity being 2·9 to 3·2.

[27] It must be recollected that although acids seem to act only feebly on the majority of silicates, nevertheless a finely-levigated powder of siliceous compounds is acted on by strong acids, especially with the aid of heat, the basic oxides being taken up and gelatinous silica left behind. In this respect sulphuric acid heated to 200° with finely-divided siliceous compounds in a closed tube acts very energetically.

[28] Such elements as silicon, tin, and lead were only brought together under one common group by means of the periodic law, although the quadrivalency of tin and lead was known much earlier. Generally silicon was placed among the non-metals, and tin and lead among the metals.

[29] At first (February 1886) the want of material to work on, the absence of a spectrum in the Bunsen's flame, and the solubility of many of the compounds of germanium, presented difficulties in the researches of Professor Winkler, who, on analysing argyrodite by the usual method, obtained a constant loss of 7 p.c., and was thus led to search for a new element. The presence of arsenic and antimony in the accompanying minerals also impeded the separation of the new metal. After fusion with sulphur and sodium carbonate, argyrodite gives a solution of a sulphide which is precipitated by an excess of hydrochloric acid; germanium sulphide is soluble in ammonia and then precipitated by hydrochloric acid, as a white precipitate, which is dissolved (or decomposed) by water. After being oxidised by nitric acid, dried and ignited germanium sulphide leaves the oxide GeO₂, which is reduced to the metal when ignited in a stream of hydrogen.

[30] G. Kobb determined the spectrum of germanium, when the metal was taken as one of the electrodes of a powerful Ruhmkorff's coil. The wave-lengths of the most distinct lines are 602, 583, 518, 513, 481, 474, millionths of a millimetre.

[31] If germanium or germanium sulphide be heated in a stream of hydrochloric acid, it forms a volatile liquid, boiling at 72°, which Winkler regarded as germanium chloride, GeCl₂, or germanium chloroform, GeHCl₃. It is decomposed by water, forming a white substance, which may perhaps be the hydrate of germanious oxide, GeO, and acts as a powerfully reducing agent in a hydrochloric acid solution.

[32] Under certain circumstances germanium gives a blue coloration like that of ultramarine, as Winkler showed, which might have been expected from the analogy of germanium with silicon.

[33] Winkler expressed this in the following words (Jour. f. pract. Chemie, 1886 [2], 34, 182–183): ‘… es kann keinem Zweifel mehr unterliegen, dass das neue Element nichts Anderes, als das vor fünfzehn Jahren von Mendeléeff prognosticirte Ekasilicium ist.’

‘Denn einen schlagenderen Beweis für die Richtigkeit der Lehre von der Periodicität der Elemente, als den, welchen die Verkörperung des bisher hypothetischen “Ekasilicium” in sich schliesst, kann es kaum geben, und er bildet in Wahrheit mehr, als die blosse Bestätigung einer kühn aufgestellten Theorie, er bedeutet eine eminente Erweiterung des chemischen Gesichtfeldes, einen mächtigen Schritt in's Reich der Erkenntniss.’

[33 bis] Emilianoff (1890) states that in the cold of the Russian winter 30 out of 200 tin moulds for candles were spoilt through becoming quite brittle.

[34] The tin deposited by an electric current from a neutral solution of SnCl₂ easily oxidises and becomes coated with SnO (Vignon, 1889).

[34 bis] If after this the coating of tin be rapidly cooled—for instance, by dashing water over it—it crystallises into diverse star-shaped figures, which become visible when the sheets are first immersed in dilute aqua regia and then in a solution of caustic soda.

The coating of iron by tin, guards it against the direct access of air, but it only preserves the iron from oxidation so long as it forms a perfectly continuous coating. If the iron is left bare in certain places, it will be powerfully oxidised at these spots, because the tin is electro-negative with respect to the iron, and thus the oxidation is confined entirely to the iron in the presence of tin. Hence a coating of tin over iron objects only partially preserves them from rusting. In this respect a coating of zinc is more effectual. However, a dense and invariable alloy is formed over the surface of contact of the iron and tin, which binds the coating of tin to the remaining mass of the iron. Tin may be fused with cast iron, and gives a greyish-white alloy, which is very easily cast, and is used for casting many objects for which iron by itself would be unsuitable owing to its ready oxidisability and porosity. The coating of copper objects by tin is generally done to preserve the copper from the action of acid liquids, which would attack the copper in the presence of air and convert it into soluble salts. Tin is not acted on in this manner, and therefore copper vessels for the preparation of food should be tinned.

[35] The ancient Chinese alloys, containing about 20 p.c. of tin (specific gravity of alloys about 8·9), which have been rapidly cooled, are distinguished for their resonance and elasticity. These alloys were formerly manufactured in large quantities in China for the musical instruments known as tom-toms. Owing to their hardness, alloys of this nature are also employed for casting guns, bearings, &c., and an alloy containing about 11 p.c. of tin (corresponding with the ratio Cu₁₅Sn) is known as gun-metal. The addition of a small quantity of phosphorus, up to 2 p.c., renders bronze still harder and more elastic, and the alloy so formed is now used under the name of phosphor-bronze.

The alloy SnCu₃ is brittle, of a bluish colour, and has nothing in common with either copper or tin in its appearance or properties. It remains perfectly homogeneous on cooling, and acquires a crystalline structure (Riche). All these signs clearly indicate that the alloy SnCu₃ is a product of chemical combination, which is also seen to be the case from its density, 8·91. Had there been no contraction, the density of the alloy would be 8·21. It is the heaviest of all the alloys of tin and copper, because the density of tin is 7·29 and of copper 8·8. The alloy SnCu₄, specific gravity 8·77, has similar properties. All the alloys except SnCu₃ and SnCu₄ split up on cooling; a portion richer in copper solidifies first (this phenomenon is termed the liquation of an alloy), but the above two alloys do not split up on cooling. In these and many similar facts we can clearly distinguish a chemical union between the metals forming an alloy. The alloys of tin and copper were known in very remote ages, before iron was used. The alloys of zinc and tin are less used, but alloys composed of zinc, tin, and copper frequently replace the more costly bronze. Concerning the alloys of lead see Note 46.

[36] An excellent proof of the fact that alloys and solutions are subject to law is given, amongst others, by the application of Raoult's method (Chapter I., Note 49) to solutions of different metals in tin. Thus Heycock and Neville (1889) showed that the temperature of solidification of molten tin (226°·4) is lowered by the presence of a small quantity of other metals in proportion to the concentration of the solution. The following were the reductions of the temperature of solidification of tin obtained by dissolving in it atomic proportions of different metals (for example, 65 parts of zinc in 11,800 parts of tin); Zn 2°·53, Cu 2°·47, Ag 2°·67, Cd 2°·16, Pb 2°·22, Hg 2°·3, Sb 2° [rise], Al 1°·34. As Raoult's method (Chapter VII.) enables the molecular weight to be determined, the almost perfect identity of the resultant figures (except for aluminium) shows that the molecules of copper, silver, lead, and antimony contain one atom in the molecule, like zinc, mercury, and cadmium. They obtained the same result (1890) for Mg, Na, Ni, Au, Pd, Bi and In. It should here be mentioned that Ramsay (1889) for the same purpose (the determination of the molecular weight of metals on the basis of their mutual solution) took advantage of the variation of the vapour tension of mercury (see Vol. I., p. 134), containing various metals in solution, and he also found that the above-mentioned metals contain but one atom in the molecule.

[36 bis] The action of a mixture of hydrochloric acid and tin forms an excellent means of reducing, wherein both the hydrogen liberated by the mixture (at the moment of separation) and the stannous chloride act as powerful reducing and deoxidising agents. Thus, for instance, by this mixture nitro-compounds are transformed into amido-compounds—that is, the elements of the group NO₂ are reduced to NH₂.

[37] Many volatile compounds of tin are known, whose molecular weights can therefore be established from their vapour densities. Among these may be mentioned stannic chloride, SnCl₄, and stannic ethide, Sn(C₂H₅)₄ (the latter boils at about 150°). But V. Meyer found the vapour density of stannous chloride, SnCl₂, to be variable between its boiling point (606°) and 1100°, owing, it would seem, to the fact that the molecule then varies from Sn₂Cl₄ to SnCl₂, but the vapour density proved to be less than that indicated by the first and greater than that shown by the second formula, although it approaches to the latter as the temperature rises—that is, it presents a similar phenomenon to that observed in the passage of N₂O₄ into NO₂.

[38] When rapidly boiled, an alkaline solution of stannous oxide deposits tin and forms stannic oxide, 2SnO = Sn + SnO₄, which remains in the alkaline solution.

[39] Weber (1882) by precipitating a solution of stannous chloride with sodium sulphite (this salt as a reducing agent prevents the oxidation of the stannous compound) and dissolving the washed precipitate in nitric acid, obtained crystals of stannous nitrate, Sn(NO₃)₂,20H₂O, on refrigerating the solution. This crystallo-hydrate easily melts, and is deliquescent. Besides this, a more stable anhydrous basic salt, Sn(NO₃)₂,SnO, is easily formed. In general, stannous oxide as a feeble base easily forms basic salts, just as cupric and lead oxides do. For the same reason SnX₂ easily forms double salts. Thus a potassium salt, SnK₂Cl₄,H₂O, and especially an ammonium salt, Sn(NH₄)₂Cl₄,H₂O, called pink salt, are known. Some of these salts are used in the arts, owing to their being more stable than tin salts alone. Stannous bromide and iodide, SnBr₂ and SnI₂, resemble the chloride in many respects.

Among other stannous salts a sulphate, SnSO₄, is known. It is formed as a crystalline powder when a solution of stannous oxide in sulphuric acid is evaporated under the receiver of an air-pump. The feeble basic character of the stannous oxide is clearly seen in this salt. It decomposes with extreme facility, when heated, into stannic oxide and sulphurous anhydride, but it easily forms double salts with the salts of the alkali metals.

In gaseous hydrochloric acid, stannous chloride, SnCl₂,2H₂O, forms a liquid having the composition SnCl₂,HCl,3H₂O (sp gr. 2·2, freezes at -27°), and a solid salt, SnCl₂,H₂O (Engel).

[40] Frémy supposes the cause of the difference to consist in a difference of polymerisation, and considers that the ordinary acid corresponds with the oxide SnO₂, and the meta-acid with the oxide Sn₅O₁₀, but it is more probable that both are polymeric but in a different degree. Stannic acid with sodium carbonate gives a salt of the composition Na₂SnO₃. The same salt is also obtained by fusing metastannic acid with sodium hydroxide, whilst metastannic acid gives a salt, Na₂SnO₃,4SnO₂ (Frémy), when treated with a dilute solution of alkali; moreover, stannic acid is also soluble in the ordinary stannate, Na₂SnO₃ (Weber), so that both stannic acids (like both forms of silica) are capable of polymerisation, and probably only differ in its degree. In general, there is here a great resemblance to silica, and Graham obtained a solution of stannic acid by the direct dialysis of its alkaline solution. The main difference between these acids is that the meta-acid is soluble in hydrochloric acid, and gives a precipitate with sulphuric acid and stannous chloride, which do not precipitate the ordinary acid. Vignon (1889) found that more heat is evolved in dissolving stannic acid in KHO than metastannic.

[41] The formation of the compound SnCl₄,3H₂O is accompanied by so great a contraction that these crystals, although they contain water, are heavier than the anhydrous chloride SnCl₄. The penta-hydrated crystallo-hydrate absorbs dry hydrochloric acid, and gives a liquid of specific gravity 1·971, which at 0° yields crystals of the compound SnCl₄,2HCl,6H₂O (it corresponds with the similar platinum compound), which melt at 20° into a liquid of specific gravity 1·925 (Engel).

Stannic chloride combines with ammonia (SnCl₄,4NH₃), hydrocyanic acid, phosphoretted hydrogen, phosphorus pentachloride (SnCl₄,PCl₅), nitrous anhydride and its chloranhydride (SnCl₄,N₂O₃ and SnCl₄,2NOCl), and with metallic chlorides (for example, K₂SnCl₆, (NH₄)₂SnCl₆, &c.) In general, a highly-developed faculty for combination is observed in it.

Tin does not combine directly with iodine, but if its filings be heated in a closed tube with a solution of iodine in carbon bisulphide, it forms stannic iodide, SnI₄, in the form of red octahedra which fuse at 142° and volatilise at 295°. The fluorine compounds of tin have a special interest in the history of chemistry, because they give a series of double salts which are isomorphous with the salts of hydrofluosilicic acid, SiR₂F₆, and this fact served to confirm the formula SiO₂ for silica, as the formula SnO₂ was indubitable. Although stannic fluoride, SnF₄, is almost unknown in the free state, its corresponding double salts are very easily formed by the action of hydrofluoric acid on alkaline solutions of stannic oxide; thus, for example, a crystalline salt of the composition SnK₂F₆,H₂O is obtained by dissolving stannic oxide in potassium hydroxide and then adding hydrofluoric acid to the solution. The barium salt, SnBaF₆,3H₂O, is sparingly soluble like its corresponding silicofluoride. The more soluble salt of strontium, SnSrF₆,2H₂O, crystallises very well, and is therefore more important for the purposes of research; it is isomorphous with the corresponding salt of silicon (and titanium); the magnesium salt contains 6H₂O.
