the Kansas University Science Bulletin, Vol XI, No. 2

In Gryllus assimilis, with Special Reference to the Nebenkern.

(Thesis for the degree of Master of Arts.)

BY W. J. BAUMGARTNER.

With Plates II and III.

I.	—Methods.
II.	—Material.
III.	—Observations.
	(a) Nucleus.
	(b) Cytoplasmic Structures.
	1. Nebenkern.
	2. Acrosome.
	3. Axial Filament.
	4. Centrosome.
	5. Cell Body.
	(c) The Spermatozoon.
IV.	—Comparison of Results.
V.	—Summary.

It is the object of these studies to follow carefully the spermatid transformations, and, if possible, to get a complete series of changes occurring therein. I do not pretend that I have as yet found all the stages, but in the present paper will publish observations made on Gryllus assimilis pertaining chiefly to the nebenkern, of which I have found some stages not previously described, as far as I know. I shall first describe my own findings, and then compare them with the results of others.

While other fixing agents were used, Flemming’s chromo-acetic-osmic mixture (strong) proved the best. Its fixation was satisfactory in all but a few stages, where the chemical changes going on in the cell are such that it seems difficult, probably impossible, to secure good, clear results; at least, neither Gilson’s nor Zenker’s mixture did any better on cells in these stages.

Heidenhain’s iron-hæmatoxylin stain gave the best results, although Flemming’s three-color method was very satisfactory.

Most of the observations are made from sectioned material, but smear preparations were used for advanced spermatozoa.

The first observations were made in January of the present year on some material prepared by Professor McClung, to whom I wish here to make most grateful acknowledgment for proposing the line of investigation, and for many helpful suggestions during the progress of the same. The testes were those of adult insects, and showed mostly only mature or almost mature spermatozoa. Enough spermatids were seen to indicate that their transformation into spermatozoa was somewhat peculiar.

The material for the drawings was taken from specimens collected under stones and boards on and near the University campus, at Lawrence, Kan. Young nymphs of Gryllus were caught as early as March 1, but the cells of the testes were all in the spermatogonia and spermatocyte stages. During the early part of May, after the nymphs had passed their third molt, crickets were secured whose testes showed all stages of development and transformation.

Gryllus assimilis, the common black field cricket, has paired testes lying in the anterior dorsal part of the abdomen. These have a whitish transparent appearance, which becomes duller in the adult, showing sometimes a slight yellowish tinge. The shape of each is that of a somewhat conically rounded body, not unlike a flattened strawberry. Each testis consists of a central rachis about 3 mm. long, from which extend a large number of curved follicles varying in length from 1 to 3 mm.

The follicles are larger toward the blind end and taper toward the rachis. Each follicle is divided into cysts, but more often transversely than longitudinally, for frequently one cyst occupies the whole follicle in cross-section. The cysts toward the rachis end of the follicle are much longer and narrower than those of the blind end. The cells are not very large and contain twenty-four chromosomes in the spermatogonial generations; eleven and twelve were most frequently found after the reduction.

The follicles of the cricket testis show the different cell generations and the same relative arrangement of them as McClung (’00) found in Hippiscus, and Sutton (’00) in Brachystola. The spermatogonia are nearest the blind end of the follicles, spermatocytes next, and the spermatids following the latter. The cells of a cyst are not, as in Anasa (Paulmier, ’99), “in the same stage of development,” but only approximately so, for some cysts show cells in the metaphase, while others have reached the telophase. Successive cysts, as in Brachystola, do not show successive stages; for, frequently, growing spermatocytes and late spermatids, or even young spermatozoa, were observed side by side. The individual cells in division pass through prophases, metaphases, anaphases, and telophases—these terms being used according to their usually accepted meanings. (See McClung, ’00.) In this paper I shall begin with the cell when it has reached the telophase of the second spermatocyte division; that is, just after the chromosomes have reached the poles of the spindle.

The chromatin in Gryllus behaves very much as Henking (’91) has described for Pyrrhocoris, and Paulmier (’99) for Anasa. At the end of the anaphase the chromosomes are crowded together at the poles of the spindle. (Fig. 1.) A clear space begins to be formed around them, especially on the equatorial side. (Fig. 2.) They then separate and are scattered somewhat evenly over the nuclear membrane when it is formed, as seen in figs. 4, 5, and 6. Soon protuberances appear on the surface of the individual chromosomes, making their outlines irregular. At about this time they begin to show a granular structure. The chromosomes break up more and more, and soon the chromatin appears in irregularly arranged patches or blotches of granules of various sizes. (Fig. 8.)

Meanwhile the nucleus has slowly increased in size. It reaches its maximum, which is probably about treble its original diameter, before the cell begins to elongate. The granules have been breaking up into finer and finer pieces, until, a little after the cell has reached its maximum, the chromatin has largely disappeared, or, to be more exact, has lost its affinity for stains. (Fig. 16.) As the cell begins to elongate, the nucleus goes to one end, namely, that toward the periphery of the cyst. (Figs. 14 and 15.) The chromatin again frequently appears in patches as the cell decreases in size. (Figs. 33 and 36.) In many cells the patches never disappear. When it has diminished to less than half its maximum diameter, the nucleus begins to elongate, becoming elliptical, and finally forms the long, tube-like head of the spermatozoon. (Figs. 43 and 45.)

I found here that the nucleus was hollow, or, better, that it showed a clear space within. For a long time it contains the many chromatin granules, as seen in figs. 39, 40, and 41; but at last the walls seem to attract all these granular masses, and the center is entirely clear, as in fig. 45. In fig. 44 are shown cross-sections of spermatozoa heads, of the stage of fig. 43. In fig. 45 we have a mature spermatozoon head.

The accessory chromosome in Gryllus lags behind during the spermatogonial divisions, just as in Xiphidium (McClung, ’99), and retains its identity all through the growth period, in many cases becoming quite large. At first it cannot be distinguished in the spermatid, but soon its stronger stain and exemption from disintegration make it apparent. (Fig. 4.) It is flattened against the nuclear wall and, unlike Paulmier’s “small chromosome,” it does not break up but remains intact, as Henking and McClung have described. (Figs. 14, 18, 32, 37, and others.) It gets larger and then smaller, and is finally lost in the rest of the chromatin, as the latter condenses to form the spermatozoon head. I was not able to see that it occupied one side of the elongating head, as McClung describes it in Xiphidium. The darker stain and regular contour, and sometimes its greater size, made it in most stages quite evident.

It is in the cytoplasmic structures that Gryllus shows some things that have not been described, so far as I know; yet I almost hesitate to enter the discussion concerning the nebenkern, the mitosome, the idiozome, the archoplasm, the attraction sphere, the acrosome, the “mitochondrion körper” and other bodies which have been described in the extra-nuclear parts of the germ-cell. But because I have been unable to find in any of the papers a description of a structure like the one in Gryllus, I shall proceed to describe the nebenkern as I find it. I shall interpret the appearances as far as possible, leaving to others, or to later efforts, the complete harmonizing of this element with the structures of other species.

Before I proceed, I would add my protest against the name “nebenkern,” as voiced by Calkins (’95), Erlanger (’96), Meves (’00), and others. It is inapt and not at all descriptive or distinctive. But since we have the word, and investigators will use it to mean something, I think it would be best to restrict the word, as Calkins and Erlanger suggest, to the remaining spindle fibers and connective fibers which go to each spermatid and which have an important part in forming the tail membrane. I shall retain the name for a further reason, which St. George (’97) gives for first using it, “weil sie die Frage nach der Herkunft dieses Gebildes offen lässt.” A comparison of the literature will convince any one that the origin of this element is still a much-disputed question.

1.—Nebenkern.

There are, in Gryllus spermatids, two quite permanent and prominent extra-nuclear bodies. The larger of these I shall call nebenkern, because I believe it originates from the spindle remains, and goes to form the tail covering. Its behavior is as follows: At the beginning of the telophase the fibers which had connected the centrosomes with the chromosomes bulge out like barrel staves, as Henking (’91) has described. These break loose from the chromosomes and centrosomes as the clear space begins to form around the chromatin mass (fig. 2); but they are not separated into two rings, as in Anasa and Pyrrhocoris. As the dividing cell membrane is formed, the middle portions of the fibers are drawn together and the so-called “mid-body” is formed. Some of the fibers unite, producing thicker ones, as seen in figs. 1, 2, and 3. In the last-named figure some of the central fibers seem to be still united with those of the companion spermatids.

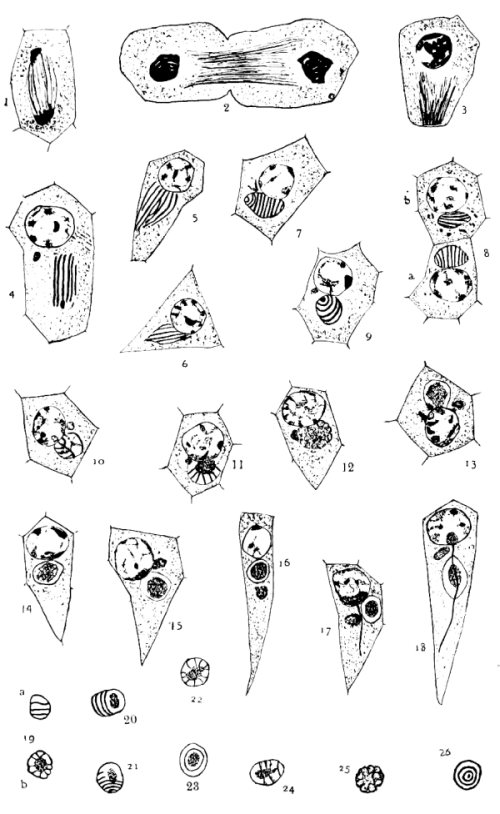

As the daughter-cell shortens and the nucleus takes a more central position these fibers unite still more, shorten, bend together (figs. 4, 5, and 6), and finally assume the shape shown in fig. 7. I shall call it for the present the “striated condition,” or simply “striated nebenkern.” The shape resembles that of an egg with rather sharply drawn-out ends. The surface is occupied at intervals with deeply staining lines which look much like hoops. In most cases the long axis of the nebenkern is at right angles to the axis of the spindle from which it was formed, while the striæ, or dark lines, are in planes parallel to it, as is seen in figs. 7 and 8a. In a few cases the lines are parallel to the long axis of the nebenkern, as shown in fig. 8b. Fig. 9 exhibits a partial end view of the nebenkern, while fig. 26 represents a polar view in all planes.

The fibers in figs. 4 and 5 are not all in the same plane, giving frequently, with changing focus, the impression that the lines are the edges of plates. Even in figs. 7 and 8, the appearances shown made me hesitate for some time before I dared say that the lines represent striæ on the surface and not plates extending through the body. But the end views (figs. 9 and 26) and the two drawings in fig. 19 show clearly that we are dealing with encircling hoops and not dividing plates. Just how or why the fibers bend and assume the shape of figs. 7 and 8 I am not able to say, but I am sure it is not an artefact, as might be supposed, because I have found them occupying whole cysts of several testes, and nearly all of them were as regular and definite as fig. 7.[A]

I have found the nebenkern in its perfect condition (fig. 7) only in material fixed in Flemming; although Zenker’s fixation showed some of the breaking-up stages. This may be due partly to poorer fixation in other mixtures and partly to chance, as not so many testes fixed in other agents were examined, and the appearance evidently represents a very brief stage. These fibers now begin to break up, and we get figures that remind one of Meves’s “mitochondrion körper”; that is, a darker staining center and radiating lines to the outer ring. (Fig.11.) Sometimes stages a little later recall Paulmier’s “blackberry stage.” (Figs. 12 and 25.) Fig. 19a is a surface view and fig. 19b an optical section of a nebenkern that is in the process of breaking up. Figs. 20 and 21 have a part of one end cut off, while fig. 23 is a polar view. Fig. 22 is probably a forming blackberry stage.

All the above are brief stages, and we soon get the appearance of figs. 13-16. Here we have the darkly staining central ball surrounded by a clear space, enclosed by a ring, as Meves (’00) found it in Pygæra. The central ball sometimes shows vacuoles (fig. 16), but most frequently stains as one mass. In some cysts with cells resembling fig. 16, it is difficult to distinguish between nucleus and nebenkern, yet the latter’s stain is never as intense as that of chromatin. The stages shown in figs. 13 and 14 persist for a long time, and it is probable that this is the end of the telophase and the beginning of the spermatid transformations. I have treated the above more in detail and shown more drawings than its importance may deserve, but it is in these stages that Gryllus seems to differ from other species, and I have tried to describe and illustrate the appearances and changes fully.

As the cell elongates, the axial filament grows out, the nebenkern approaches it, and a junction is effected in such a way that the axial filament runs over the surface of the nebenkern. (Figs. 18, 27, 28, and 30.) At first the nebenkern is still almost round, but it begins to elongate and the dark inner ball sends out a protrusion to the nucleus, and sometimes back to the point of separation between the external envelope and the axial filament. The outside ring disappears and the dark mass moves down the axial filament. (Fig. 31.) In many cases it breaks up into several small drops, which appear at intervals on the axial filaments. (Figs. 34 and 36.) In fig. 38 is seen such a hanging drop. In this way the nebenkern material is distributed over the axial filament and forms a sheath around it.

2.—The Acrosome.

The second extra-nuclear body I shall call the acrosome, as it forms the point of the spermatozoon head. I could not trace its origin, because the fixation was not definite in some of the early stages. Fig. 4 shows a small, darkly staining body, which may be a centrosome, but more likely is the beginning of the acrosome, of which figs. 7, 9 and 10 show developing stages, and figs. 11, 13 and 15 more advanced ones. Sometimes the central portion stains darkest (figs. 11, 32, and 36), but more frequently there is a small clearer space in the center surrounded by a ring or band of darker material. (Figs. 10, 13, 27, and 30.) This ring usually stains darker on one side, very often on the side toward the nucleus.

The position, which is, with few exceptions, in the angle between the nucleus and the nebenkern, induces me to consider the differently staining bodies as the same organ of the cell. For some time after the nebenkern has disappeared the acrosome keeps its position; then it approaches the nuclear wall, flattens against it, and later wanders to the apical end, where it forms the tip of the spermatozoon. (See figs. 32-36 and 39-42.) Fig. 16 shows the acrosome back of the nebenkern. It is not an isolated example, still, I think, it is an abnormality. Fig. 37 shows an apparent division of the acrosome. I did not see enough instances to consider it a regular occurrence.

3.—The Axial Filament.

As the cell is elongating, the axial filament is seen apparently growing out of the nucleus. I do not mean to say that it grows out of the nuclear substance, but in almost every cell observed, where the axial filament was incomplete, there was rather a large mass of chromatin gathered at the place where the axial filament was attached to the nucleus. It may be that the smaller one of the extra-nuclear bodies in figs. 4, 7 and 9 is a centrosome which is passing to the equatorial region of the nucleus, where it later develops the axial filament. As already noted, the axial filament does not pass through the nebenkern, but only over its surface. Fig. 29, a, b, and c, shows different cross-sections through the elongating cell. In b the axial filament was cut at an angle.

4.—The Centrosome.

I have not followed the centrosome through its migrations. In fig. 2 one of the two bodies is the centrosome, but I did not trace its changes farther.

5.—Cell Body.

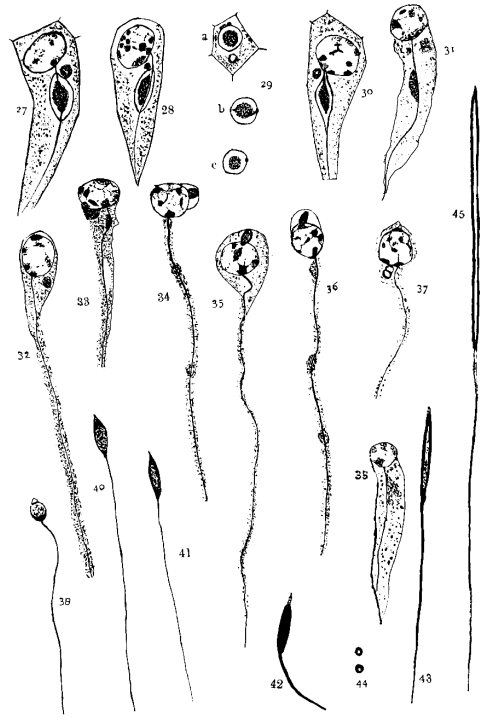

The cells, up to the stage of figs. 13 or 14, have been scattered promiscuously through the cyst; but as the cell begins to elongate, the one end becomes the anterior-nuclear end, and it shifts to the periphery of the cyst. The central part of the cyst now shows the so-called central lumen. As the lengthening goes on the heads of the forming spermatozoa are all turned toward the distal end of the cyst. The cyst becomes very narrow and long, apparently preparing to contain the long, slender spermatozoa. Near the rachis the spermatozoa seem much twisted, and I surmise that they turn so as to have the head foremost when set free into the vas deferens. Fig. 42 may indicate some such behavior.

The mature spermatozoon consists: (1) of a sharp, spear-like point; (2) a tube-like head about .02 mm. long, composed of a densely staining outer wall and a clearer central cavity; and (3) a filamentous tail about .5 mm. long. The point comes from the acrosome, the head from the nucleus, and the tail from the axial filament and nebenkern. While I do not deny the presence of a middle piece, my observations do not warrant me in describing one, although fig. 40 would suggest it.

---

Dr. R. von Erlanger (’97, 1, and ’97, 2) and Dr. F. Meves (’00) have given excellent discussions of the literature on the nebenkern. I cannot do better than direct the attention of other investigators to them. Hence, I shall discuss only such authors and such points as have special bearing on my own results. The spermatid changes in the Gryllidæ have been studied, so far as I know, only by St. George (’67) and by vom Rath (’92).

St. George, in his early paper, described the transformation process in the “Hausgrille” along with other insects. He found the “Nebenkörper,” and saw that it took a part in forming the envelope of the axial filament, a small particle remaining near the nucleus and other drops of it appearing at intervals on the tail. In his paper on Blatta (’86, 1) he accepted Bütchli’s name, “nebenkern,” and traced its origin to the spindle remains. In his paper on Phratora (’86, 2) he takes up the description of the nebenkern in the spermatocytes and spermatogonia. In the spermatid, he describes the blackberry stage in these words: “Während das andere (not nucleus) Körperchen weniger lebhaft gefärbt als ein kleiner Fadenknäuel mit unregelmässigem Contour erscheint.”

There can be no true nebenkern in the spermatogonia and spermatocytes, as St. George first used the word, and as I have limited its application. But St. George found the object, traced its origin and fate, and described several of the stages as they appear in Gryllus.

Vom Rath (’92) found Gryllotalpa very poor material for following the spermatid changes. However, he described an oval body which he found varied in appearance, depending on the method of fixation. He calls it the “nebenkern” and thinks it goes to help form the tail.

The description is too incomplete for comparison. Judging from Gryllus, I question its being very poor material.

Bütschli (’71) studied the spermatid transformations in Acrididæ and Locustidæ along with that of other animals. He saw the object formerly described by St. George and named it “nebenkern.” He saw it divide into halves, elongate, and form the spermatozoon tail.

The dividing of the nebenkern into halves seems to be an appearance quite common in insect spermatogenesis. I have myself seen it in several genera of Acrididæ—Hippiscus, Arphia, Melanoplus, and Brachystola; besides Bütschli, St. George, Henneguy, Platner, Paulmier and others have described it.

Platner (’85) saw a true nebenkern. I have already criticized the use of the word “nebenkern,” as the name for the spindle remains in the spermatocytes. Platner himself later denied the nuclear origin of the nebenkern. His results (’86, 2) agree with mine concerning the uniting, converging, staining and bending of the spindle-fiber remains and their passing to the tail. Again, Platner (’89, 1) probably followed the centrosome and attraction sphere, as well as the nebenkern, in the second part of the paper on Helix and Paludina. In the pancreas the body is a result of secretion, and is not a nebenkern. In Pygæra Platner’s large mitosome is the real nebenkern, as shown by its fibrous structure, its surrounding clear space and destiny. His small mitosome is what I have described as the acrosome, and he is mistaken as to its final use. The body he called centrosome in the nucleus is the persisting accessory chromosome. Such would be my interpretation of his figures.

Henking (’91) has followed the spermatid changes in Pyrrhocoris quite carefully. He finds that the fibers between the chromatin masses are separated into peripheral fibers and central spindle fibers. The first, a part of the second and the yolk mass, forms the nebenkern, which passes down over the axial filament. The rest of the central fibers form the mitosome. This takes its position at the angle between the nebenkern and the nucleus. On the surface of the nucleus it passes to the anterior end, then back to its original position. A piece now is constricted off and disappears, while the rest, increasing its affinity for stains, again wanders to the anterior pole of the nucleus, and becomes the acrosome.

The large amount of yolk substance is a disturbing element in Pyrrhocoris, but the nebenkern agrees with that of Gryllus in having the same origin and destiny, as does also the acrosome in fate and position. Besides, there is much similarity in the stages, as seen by comparing Henking’s fig. 63 with my fig. 25, and his fig. 85 with my fig. 32.

Wilcox (’95 and ’96) described the spermatid metamorphosis in Caloptenus. The interzonal fibers, a long, striated body composed very plainly of distinct fibers, contracts longitudinally, and the corners round themselves off, and this forms the nebenkern. It loses its fibrous structure, comes close to the nucleus, and then grows out into the axial filament. The centrosome moves half way around the nucleus and lies between the latter and the nebenkern. Later the centrosome becomes the middle piece.

This description does not give much detail nor do the drawings show the stages clearly. As far as given, the formation of the nebenkern is the same as in Gryllus; but in Gryllus the axial filament is not formed from the nebenkern, as can be plainly seen from fig. 17.

I would strongly commend his excellent discussion of literature and his careful comparison of the results of investigators. He has shown clearly that the nebenkern comes from the spindle remains.

Calkins (’96) finds that the nebenkern comes from the spindle fibers and is useless in the cell. But Lumbricus is peculiar in having the nebenkern simply disintegrate, for, in many cases, he admits that the nebenkern has an important function. I do not have access to Henneguy’s or Bolles-Lee’s or Toyama’s works, yet I should judge from Erlanger’s and Meves’s criticism that all of these have the nebenkern originate from the spindle remains, and Henneguy describes it as having a “fibrillar appearance,” and Bolles-Lee as “fibrillar structure.” Accordingly, I think that each of these has discovered the correct origin of the structure, and I do not doubt that there is, at least in the first two, a more or less direct change from the spindle remains to the nebenkern.

Paulmier (’99) finds that in Anasa the nebenkern comes from the yolk mass and remains of the spindle fibers. A part of this mass separates off, while the whole is still in a confused condition, and forms the acrosome. The nebenkern forms the tail sheath, while the acrosome forms the point to the head.

A comparison of Paulmier’s fig. 42 with my fig. 4 suggests the thought that they are the same stage, and his fibers are remains of the spindle. His fig. 43, of course, agrees with my fig. 25; and fig. 43 may correspond to figs. 26 or 14, only that his stain is weaker.

Meves’s investigations are the most extensive of the recent ones on the nebenkern. He has used Paludina and Pygæra as his objects. The consideration of the mitochondrion in the spermatocytes I shall pass over, as it is not within the bounds of this paper; yet I hope to study the earlier generations of my material, and shall then compare the results. In Meves’s description of Paludina, I find but one point in which it agrees with Gryllus. The head of the young spermatozoon in Paludina has a clear space in the center filled with nuclear fluid, which remains till the head begins to stretch. In Gryllus it is hollow until maturity.

In Paludina the nebenkern in one kind of spermatids is formed from threads made up of mitochondria—small, round bodies identical with St. George’s cytomicrosomes and Erlanger’s centrodeutoplasm. These threads change to vesicles, which, reduced to four, closely surround the centrosome as it lengthens into the middle piece. At first they form a four-cleft cylinder, but finally a single sheath. An idiozome and spindle remains are seen in the spermatid. They persist for awhile, and the former changes into the acrosome. In Pygæra Meves finds two kinds of spermatids, distinguished by a small difference in size. The larger forms the typical spermatozoon. The spindle remains form a “Spindelrest körper,” which is soon lost. The ends of the mitochondrion chains form a ring of dark mass surrounding a clear space. The ring is broken by radiating clear spaces. These spaces collect and unite into larger vacuoles, which surround the darker center. Finally there is only a dark ball with a surrounding clear space shut in by a ring. The centrosome with attached axial filament fastens itself to the nucleus; then both begin to grow longer. The axial filament passes over the surface of the ring surrounding the ball—the “mitochondrion körper” or nebenkern. This body elongates a great deal then the darker mass puts forth numerous threads which surround the axial filament.

As to Pygæra, the peculiarity is the complete agreement of his “mitochondrion körper” and my nebenkern in appearance and behavior for a part of the transformation and their complete disagreement in the other part. The question with me is, “Do the two bodies whose final stages are so similar originate so differently, or has one of us mistaken the origin of the body?”

Since reading Meves’s paper I have carefully reexamined my material, and I am positive that I am right as to the origin of the nebenkern; but, on the other hand, I would not say that Meves is wrong in his observations, as in doing so I should fall into the same error which I think Meves himself has made. In his discussion of the literature he has forced every description to agree with his ideas, or has declared that the author has described some extra-nuclear organ as a nebenkern which is not a nebenkern. Thus by implication, if not by direct statement, he says that a nebenkern never comes from the spindle remains. With due respect to his ability and long experience as an investigator, I must say that Meves is mistaken in this. St. George himself traced the cytomicrosomes back to the spindle remains. Besides, the many investigators whom I have cited above cannot be mistaken as to the origin of the nebenkern. In my own material I am positive that there is a direct passing of the interzonal fibers over into the earlier stages of the nebenkern.

That the body which forms the tail covering does not come from the spindle remains in all cases, I am willing to admit. Meves has cited many investigators, especially on vertebrates, whose results favor such an opinion. The spindle remains do not change into a nebenkern even in all Arthropods, as Blackman (’01) finds no nebenkern, nor anything in anywise resembling it, in Scolopendra.

From my study of the results of other investigators, it is evident to me that there are at least two general methods for the formation of the covering for the spermatozoon tail. One of these plans will harmonize Meves’s mitochondrion körper, Erlanger’s centrodeutoplasm, Heidenhain’s pseudo-chromosomes, and other similar structures. The other will show that Platner’s large mitosome, Paulmier’s blackberry stage and my striated nebenkern are only different stages of the spindle remains changing into the tail covering.

---

1. The chromosomes of the second spermatocytes break up and the chromatin becomes diffused all through the nucleus. Later the chromatin collects in granules again and finally forms the walls of the tube-like spermatozoon head.

2. The spindle fibers break loose as the clear space is formed around the chromatin mass. They unite and contract, becoming fewer, thicker, and shorter. These bend and form the “striated nebenkern.” The fibers break up and sometimes show a blackberry appearance. Soon there is a collection of darker material at the center, surrounded by a clear space, which is shut off from the cytoplasm by a darkly staining membrane which in sections appears as a ring. This stage persists for some time; then the nebenkern moves against the axial filament, elongates, loses the ring, and the dark mass passes down along the axial filament. Often it appears in several small drops.

3. The axial filament does not come from the nebenkern nor from the acrosome. It comes apparently from the nucleus; probably from the centrosome closely attached to the nucleus. It never passes through the nebenkern—only over its surface.

4. The acrosome occupies a position in the angle between the nebenkern and the nucleus. It shows a central clear space surrounded by a darker mass which stains more intensely on one side. Later it passes to the front of the nucleus and forms the point of the spermatozoon head.

5. The mature spermatozoon consists of a sharp point, a slender, tube-like head filled with a clear fluid, and a long, thread-like tail.

Laboratory of Zoology and Histology,
University of Kansas.
September 27, 1901.

---

All drawings were made by the author with the aid of a camera lucida. All figures except 2, 3, 4 and 45 were made with a B. & L. ¹⁄₁₆ objective and one inch eye-piece, producing a magnification of 1340 diameters. Figs. 2, 3, 4 and 45 were drawn with a Leitz ¹⁄₁₆ objective and a Zeiss compensating ocular No. 12, giving a magnification of 2325 diameters. The drawings were not reduced in the photo-mechanical reproduction.

---
