THE ARCHITECTURE OF THE COURTHOUSE AND ITS RELATED BUILDINGS
Among the courthouses built in England's North American colonies,
those of Virginia developed characteristics which expressed peculiarly
well the prevailing patterns of landholding and manner of conducting
local government. Unlike New England, where each small community had
its frame meeting house, containing within its walls "all the ideals,
political, moral, intellectual and religious of the people who
attended,"[125] the seats of county government in colonial Virginia
were centrally located in rural settings. A few county courthouses
grew into regional centers of commerce, industry and finance; but most
remained independent and apart from any surrounding community, and
some may still be seen today standing "as solitary sentinels, symbolic
of government."[126]
It was also characteristic of Virginia that these courthouses were not
single buildings, but were complexes of several structures. The
typical courthouse compound was enclosed by a brick wall, inside which
were a courthouse, a jail, a clerk's office, and, sometimes, a row or
cluster of offices for lawyers. Invariably, also, an inn or ordinary
occupied a site within the compound or immediately adjacent to it.
This style of courthouse may be found through Virginia, dating from
earliest colonial times; and, although many fine courthouses are found
in the early architecture of Delaware, Maryland, Pennsylvania and
North Carolina, none of these areas developed the design concept of a
courthouse compound.
This design concept was used in the courthouses of Fairfax County at
Springfield (1742–1752) and Alexandria (1752–1800); and it was
followed in the county's third courthouse which was completed in 1800.
The courthouse tract was situated near the geographical center of the
County, at the intersection of the Little River Turnpike and the old
Colchester Road. The tract consisted of four acres, acquired by a deed
from Richard Ratcliffe and his wife Serian. Specified in the deed were
structures including a courthouse, clerk's office and gaol, "... and
every other building and Machine necessary ..."—the latter presumably
referring to gallows, pillory, stocks, and the like. The May 1798
Fairfax County Court Order Book did specify that the courthouse should
be forty-by-thirty feet with a twelve-foot portico, the gaol
forty-by-twenty, the clerk's office twenty-by-eighteen and covered
with slate or tile, a gaoler's house twenty-four-by-eighteen feet, and
that stocks, pillory and whipping post also be provided by letting the
entire "... building of the same to the lowest bidder."[127]
In accordance with statutory requirements, space was delineated for
the prison bounds. This was done in March 1800, and the area was
described in a survey and report of the commissioners, as
follows:[128]
In obedience to the order of the worshipful Court of this County,
hereunto annexed, we the subscribers in company with Col. William
Payne, the Surveyor of this County, proceeded this thirteenth day
of March Eighteen Hundred, to lay off ten acres of ground for the
prison rules of this County, and have ascertained and bounded the
same by the following meets and boundaries, ... including the said
four acres, the Court house, Gaol, Clerk's office, the brick
Tavern, Kitchen, Stables and store house, and beg leave to report
the same with the plat thereof hereunto also annexed.—Given unto
our hands and seals:
Thomas Gunnell (Seal)
N. Fitzhugh (Seal)
T. Ellzey (Seal)
Whether all of the buildings mentioned in this report actually existed
at that time may be questioned, since the survey plat shows only the
courthouse, clerk's office and jail. As to these three, the plat
showed the courthouse situated as at present, with the clerk's office
almost directly south a distance of about 300 feet, and the jail about
the same distance south, but in back and west of the clerk's office.
The plat does not show roads or other features of the platted parcel,
but the known position of the courthouse in relation to the turnpike
supports the suggestion that the brick tavern referred to was located
on the north side of the turnpike, the building later known variously
as the Willcoxen Tavern, the Union Tavern and the Fairfax Tavern. The
other buildings referred to in the report apparently left no traces,
for except through an occasional glimpse of them in old photographs of
the courthouse, they are not noted in the records of the court.
These buildings formed a cluster which, if it was not all neatly
enclosed within the courthouse fence, at least was immediately
adjacent to and integrated with the activities centered in the court.
In the first three decades of the nineteenth century, the town of
Providence grew up around the courthouse, and by 1835 some 50
dwellings and 200 residents were listed.[129] But the town never
eclipsed the courthouse; and, from its commanding position on the
gentle hill at the crossroads, the courthouse itself continues to
serve as a focal point and symbol of government.
The Clerk's Office. An office for the Clerk of the County Court was
mentioned in the survey of the courthouse lot made in March 1800, and
was shown on a location south of the courthouse about 200 feet and
east of the jail about sixty feet. According to the survey the office
was a relatively small building, one or one-and-one-half stories high,
with a chimney at the south end and a door opening on the east side.
This office was the depository of all important public records in the
county, and therefore was a focal point for much of the activity that
occurred at the courthouse throughout the year. A news report in the
Alexandria Daily Advertiser of February 10, 1806 called for bids for
an addition to the clerk's office and repairs on the "public
building," all of which should be in accordance with a plan lodged
with Col. James Wren, and constructed of brick "covered with
slate."[130]
During the next forty years, the functions of the clerk grew in both
size and importance as he was called upon to serve both the County
court and the circuit court. The need for repairs combined with the
need for more space required increasing attention to the old building,
until, in 1853, it was determined that a new office building for the
clerk must be built. Newman Burke, George W. Hunter, Jr. and Alfred
Moss were appointed commissioners to oversee the demolition of the old
office building and the construction of a new one.
Fortunately, the commissioners' notice to builders, inviting bids on
these jobs, was published in the Alexandria Gazette and Virginia
Advertiser of July 15, 1853, and provides a detailed description of
the materials and construction to be used. It included the instruction
that such of the old materials as could be used in the rebuilding
should be so used.

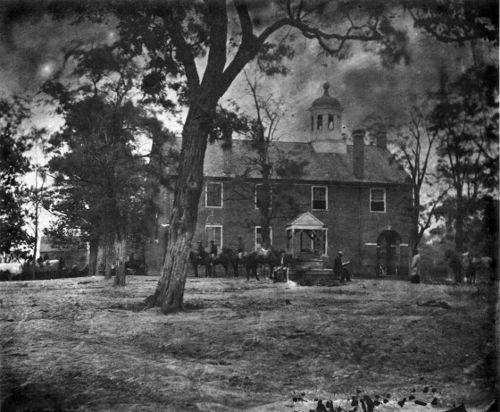

Like the courthouse building, the clerk's office suffered damage and
deterioration during the war years of 1861–65. When the courthouse
compound became a headquarters for Union army patrols, and civilian
government either ceased or moved to a temporary seat elsewhere, care
and custody of the clerk's office could not be guaranteed. Many of
the record books and files were taken to places of safekeeping in
private homes. However, many could not be moved in time to prevent
them from being scattered, taken, lost or destroyed as soldiers
occupied the office building. When the war ended, the task of
re-equipping the office and restoring it to usefulness was a major
one.
The clerk's office about 1907.
In 1875, the clerk's office burned and subsequently, a new office
building was added to the courthouse complex. It was a two-story brick
building, larger than the old clerk's office and located beyond it to
the south of the courthouse. It was probably completed by 1881, at
which time the board of supervisors was appropriating funds for new
furnishings. The architecture of this newest office presented a
mixture of three styles. In overall appearance, its square shape,
hipped roof and functional design were reminiscent of the eighteenth
century buildings of James Wren. The late nineteenth century's
preference for exterior decoration was illustrated by a dentiled
cornice, a belt of corbelling three courses wide in the brickwork
below the cornice, and brick pilasters on each side of the main
doorway, topped by scrolls and brackets supporting the pediment. In
the center of the building on the second floor, a Palladian-style
window was installed, providing a contrast to the design of the other
windows. Two courses of corbelling also appeared on the two chimneys
located at the back and in the center section of the building.
Notwithstanding these exterior decorations, the general design of the
office represented a recognition of the needs of office workers and
the response of late nineteenth century architects to provide light,
air, and functional efficiency in the arrangement of space for
offices. Telephone service and electric lights were installed in the
clerk's office in 1902.[131]
After 1932, the old clerk's office was demolished. A new office
building was erected south of the courthouse in 1934, with labor and
materials provided by Federal and Virginia relief funds. This building
was demolished when the extensive addition was made to the courthouse,
1951–1954. A new wing was put on the back of the courthouse in 1956 to
accommodate the rapidly increasing quantities of archives generated by
the business of courts and the clerk's office in a county whose
population was growing at an unprecedented rate.[132]
The Jail. As shown in the survey of the courthouse tract, made in
March 1800 by the County Surveyor, William Payne, the jail was located
on the southwestern corner of the original four-acre tract. No
contemporary descriptions or records of the jail have survived, but
the survey sketch shows a two-story building with chimneys at each
end. Presumably the construction material for the jail was brick,
since the other principal buildings in the Fairfax courthouse compound
were made of this material.
With regard to the interior arrangement and description of major
features, conjecture is also necessary. But, again presumptions may be
made that its facilities were the same as others of the time—for
example, that the bars used on doors and windows were the flat type
(rather than round or other shapes), which were laid across each other
to form a lattice and riveted together where they overlapped. Also, in
accordance with contemporary custom, it may be presumed that the
jailor and his family made their home in the same building with the
prisoners, and so attended to their meals and other needs.
Exactly when and how the first jail was constructed at the courthouse
site is not entirely clear. Payne's survey in 1800 showed a jail
building on the site. Yet only nine years later the Alexandria Daily
Advertiser, April 8, 1809, carried an invitation for bids to build a
jail at Fairfax Court House. Moreover, although the records of the
county court for the next fifty years contain references to repairs
and construction work for the jail, they customarily fail to include
descriptions of work to be done. Accordingly, little can be gleaned
from these sources to aid the architectural history of the courthouse
complex.
The jail, built about 1886. Photo taken in 1972.
Police Department, about 1947. Photo courtesy the
Fairfax County Historical Society.
Along with the other public buildings at the courthouse compound, the
jail suffered during the years of war from 1861 to 1865. When civil
government ceased to function at the courthouse, competing groups that
claimed civil authority in Fairfax County used jail facilities in
neighboring Alexandria and Leesburg when the need arose. During the
latter years of the war, when Union troops occupied the courthouse,
the jail offered its facilities as a storehouse as well as a place of
detention for military prisoners. But the Army of the Potomac had
little time or incentive to keep the jail in good repair, and so, like
the courthouse, it suffered extensively from the war.
During the 1870's, repairs and construction of additions to the
original building restored the jail to service. The 1879 G. M. Hopkins
Atlas showing the courthouse complex depicts the jail as being
larger than the courthouse in size. In 1884, fire destroyed this
building, and arrangements had to be made to use the Alexandria city
jail until a proper new jail could be constructed for the county.[133]
The new jail was located directly behind (west of) the courthouse,
facing onto the Little River Turnpike. Its materials and construction
indicate that the original portion was added to on two later
occasions. When finally completed, the jail was a two-story T-shaped
brick building, with a one-story wooden porch across the full length
of the front. In the original section (facing onto the turnpike) the
windows have plain wooden pediments. The cornice and chimney tops are
corbelled, and there are iron cresting and finials on the ridge of the
hipped roof. In the second section, which forms part of the stem of
the "T," there are segmental arches over the windows and an ornamental
cornice consisting of a course of bricks laid vertically. In the third
section, which completes the stem of the "T," the brickwork is laid in
Flemish bond (matching the courthouse brickwork in contrast to the
common bond of the rest of the jail), and the windows are topped with
flat arches. The second and third parts of the building are covered
with a gable roof.[134]
In this new jail building, the jailor had living quarters in the front
portion, and until 1948 these were used as his residence. The building
itself ceased to be used for detention of prisoners shortly after that
time, for when the addition to the courthouse was completed in 1956,
jail facilities were incorporated into this addition. Since 1956, the
old jail building has been used for offices of various county
agencies, including the juvenile court and probation office, civil
defense office, fire board, police dispatcher, and recreation
department.[135]
Associated Buildings and Structures. Certain structures were
associated with the courthouse because they were required by statute,
and others had their origin in custom and convenience. In 1792, when
the legislature of the new state government revised the law relating
to organization of the local courts, it reenacted most of the features
of the system which had been followed in colonial times. By law all
counties had to build and maintain a courthouse, jail, pillory,
whipping post, and stocks. This law also required that there be two
acres of land around the buildings of the courthouse, and that prison
bounds of ten acres should be provided for the "health and exercise of
prisoners."[136] A report of a survey of the courthouse tract in March
1800 shows metes and bounds for a four-acre tract within a larger
ten-acre area, and states that this land was for the purpose of
erecting a courthouse, jail, clerk's office, kitchen, stable, and
storehouse plus providing an area to serve as the prison bounds.
Additionally, a well was dug a short distance south of the courthouse.
Altogether, these comprised the complex of structures associated with
the court in the first half of the nineteenth century.
The Tavern. The brick tavern was a substantial building, built on
the north side of the Little River Turnpike directly across from the
courthouse complex. No detailed description of this building as it
appeared in 1800 has been found. It was, at least in later years, a
multi-story building which rivalled the courthouse in size, and
expanded as the patronage of the circuit-riding judges and their
entourages of attorneys and others combined with the regular passage
of travellers on the Little River Turnpike to create a prosperous
business climate.
After the Civil War, the brick tavern was purchased by Col. H. B.
Taylor, who operated it during the 1870's and 1880's. Because of its
favorable location near the courthouse, the tavern continued to be
frequented by those who had business with the court, and lawyers
maintained their offices there. An advertisement in the Fairfax
Herald of April 8, 1887 refers to the building as the Union Hotel,
and describes it as a three-story brick building with annex,
containing about twenty-five rooms, with stable and outbuildings, a
two-acre garden and a fine well—"a desirable residence for summer
boarders." Later in 1887 the name was changed from Union Hotel to
Fairfax Hotel and its management was taken over by James W.
Burke.[137]
The hotel continued to be operated until 1932 when it was demolished
to clear the site for subsequent construction of a building for the
National Bank of Fairfax. The bricks, mantels and doors from the hotel
were re-used in construction of the home of Helen Hill and Francis
Pickens Miller, called "Pickens Hill." It is located on Chain Bridge
Road north of Fairfax, and in recent years has become a major building
of the Flint Hill private school complex.
The Well. At the time of construction of the courthouse, a well was
dug on the south side of the building. Over the years, pictures show a
variety of overhead coverings to shelter the well and its users. The
well was a large one, appearing to be four or five feet in diameter at
the top, and was surrounded by a raised platform. Standing on this
platform, one drew water from the well by a windlass operated by a
hand-crank. Later the box on which the windlass was mounted was fitted
with a hand pump, and a trough for filling buckets or other containers
was placed at the side of the well. This well served the courthouse
into the twentieth century, but was closed and capped when the town of
Fairfax installed underground water mains. The gazebo-like well
structure was moved to Sully.
"Public Comfort Station." Many references to the early privies in
use on the courthouse grounds appear in both the court order books and
the board of supervisors minute books. As recently as 1931, outside
toilets were still in use. In October of that year, "the County
Engineer was instructed to make necessary repairs to the public
comfort station on the Court House lawn."[138]
Memorials of the Wars. On the lawn in front of the old courthouse
stand two monuments to the honored dead of four wars. The John Quincy
Marr monument was erected on June 1, 1904, by the Marr Camp,
Confederate Veterans, commemorating the first Confederate officer
killed in the Civil War. The second monument was erected under the
auspices of the Fairfax County Chapter of the Daughters of the
American Revolution. On a bronze plaque on one side are listed those
Fairfax Countians who gave their lives in World War I and on the
other, a plaque listing those who gave their lives in World War II and
the Korean conflict.
Naval cannon in front of the courthouse.
The Marr Monument commemorating the first Confederate
officer killed in the Civil War, June 1861. Photo from the National
Archives.
VIEW LARGER IMAGE
Two naval cannons stand on either side of the Marr monument, pointed
toward the National Bank of Fairfax, formerly the site of the brick
tavern. Facing the bank, the cannon on the left is inscribed with an
anchor and the following lettering: 12 PDR Boat Howitzer 1856 J.A.D.
U.S.N.Y. Washington 757 LBS. 58 PRE No. 45. The cannon on the right
has inscriptions which are very worn and indistinct. There is an
engraved anchor, but except for a letter here-and-there, the
inscription is unreadable.
Plaques and Portraits. Mounted in the inside north entrance hall
beside the oldest portion of the courthouse are three plaques. One is
a tablet with 160 names of Civil War veterans of Marr Camp,
Confederate States of America. The second is a memorial to George Auld
(1832–1919), born in Scotland, who "was for many years Chairman of the
Board of Supervisors of Fairfax County, Virginia...." The third is a
plaque commemorating the building of the first addition to the
courthouse, A.D. 1929, W. I. Deming, Architect, and C. H. Brooks,
Builder. In the central entrance hall, there is a bronze plaque
commemorating the large addition to the courthouse completed in 1954,
Robert A. Willgoos and Dwight G. Chase, Architects, and Eugene Simpson
and Bro., Contractor. A large mural, painted by Esther L. Stewart in
1954, is hung above the landing of the grand central staircase. It
depicts Fairfax County scenes, buildings, and portraits of Lord
Fairfax, George Washington, and George Mason.
Mural at the Central Staircase, Fairfax County
Courthouse. Painted in 1954 by Esther L. Stewart.
VIEW LARGER IMAGE
On the brick floor of the arcaded porch of the first (1800) section of
the courthouse, is a National Register plaque (1974 listing) placed by
the Fairfax County History Commission in 1976. In the hall inside
hangs a plaque from the Virginia Historic Landmarks Commission
commemorating the building's placement on the State Register in 1973.
Hanging on the walls of this oldest court chamber are oil portraits of
county notables. (See Appendix for biographical listing.)
On the courthouse lawn, a dogwood tree was planted in 1954 dedicated
to the firemen of Fairfax County. A small bronze plaque with a poem
and the dedication was set in a cement post under the tree, by the
Firemen's Auxiliary.
In the wake of its many unresolved historical mysteries, the restored
courthouse remains a functional courtroom, as required by the terms
authorizing the work. Yet it cannot claim to represent any particular
period of Fairfax County's history with full historical or
architectural integrity. As now redesigned and rebuilt, the courthouse
presents an outward appearance presumably similar to its original
form. The interior achieves the pleasant appearance and atmosphere of
a working courtroom of the past.
The Courthouse Plan and Its Architect. The design of the Fairfax
County Courthouse followed the Virginia tradition that the seats of
civil government should be designed with dignity as well as adequacy
for their function.[139] Consequently, the courthouse building, which
in other respects was a plain rectangular two-story brick structure,
departed from strict utilitarian design with its open arcade on the
ground floor front, and its cupola in the center of the roof, serving
as a base for the flag pole and housing the bell which was used to
announce the convening of court.
The advantages of the two-story building for innovations in design and
decoration were even more evident with respect to the interior.
Entered through the front door which opened into the arcade, the
courtroom gave the same impression of vaulted space that is associated
with the nave of a church.[140] The space over the arcade on the
second floor was enclosed, and presumably used as the jury room. This
room was entered from a balcony located across the front of the
building (the back of the court chamber) and along each side of the
building. At the front of the chamber (as it appeared in the late
nineteenth century) was a raised bench, and directly to the left of
the judge's seat was a doorway leading into a pair of rooms used by
the Court.
No descriptions of the interior of the courtroom as it appeared in the
early part of the nineteenth century have been found; but it is
probably that the business of the court was transacted, as it had been
since early colonial times, at a large table, centered in the main
chamber of the courthouse and spacious enough to seat the justices of
the County Court and the sheriff, if the business of the day concerned
him. One or more separate tables customarily were provided for the
clerk of the court and those of his staff who attended the court
session. It was also customary to separate the portion of the
courtroom occupied by the Court from that occupied by the public, and
this was accomplished by installation of a wooden railing or
partition. Fireplaces heated the courtroom chamber and a second-floor
fireplace heated the jury room above the open arcade. Details of the
plastering and woodwork, the lighting fixtures and other hardware are
not known, yet it seems certain they must have been of good taste and
design, for their selection was in accordance with a plan prepared by
James Wren, the designer of The Falls Church, Christ Church in
Alexandria, and probably Pohick Church.
Although James Wren's name appears frequently in the public records of
Fairfax County during the eighteenth century, his principal legacy was
the architecture he designed and helped to build. In the 1760's
references to him are found throughout the Vestry Books of Truro
Parish and Fairfax Parish.[141] In 1763 he prepared the plans for
construction of The Falls Church, which formed the nucleus of the
village which grew up around it. In 1767 he designed the plans for
Christ Church in Alexandria. Wren and William Weit were each paid
forty shillings in 1769 for plans furnished to the vestry, for Pohick
Church.[142] He had, through design of these and other structures,
earned a reputation as the foremost builder and designer of buildings
in his locality[143]—a reputation attested to by numerous contracts,
recorded in the Fairfax County Court Order Books, under which young
men were apprenticed to him to learn the "trade sciences or occupation
of a Carpenter and Joiner."
According to Melvin Lee Steadman's genealogy of the Wren family,[144]
James Wren was born in King George County about 1728, the son of John
Wren and Ann Turner Wren. He learned his trade of carpentry and
joining there, and about 1755 he moved to Truro Parish, Fairfax
County. The first reference to James Wren in the land records of
Fairfax County is found in a deed dated June 15, 1756 in which one
James Scott conveyed to Wren a tract of 200 acres on which Wren was
then living. Ultimately, Wren built a home, now called "Long View,"
adjacent to the present city of Falls Church, and assembled a
substantial plantation, known as "Winter Hill," now within Falls
Church City. He also operated, at Winter Hill, "Colo. Wren's Tavern."
James Wren served as a justice of the County Court. He was a trustee
of the Town of Turberville which in 1798 was laid off on land near the
Little Falls of the Potomac but never fulfilled the hopes of its
promoters. Following his military service in the Revolutionary War he
held various offices in the County government, including that of
sheriff and commissioner of the tax. He acquired extensive
landholdings in Fairfax and Loudoun Counties. James Wren was married
three times; first, in 1753, to Catherine Brent of Overwharton Parish
(Aquia Church); next, about 1771–74 to Valinda Wade, and last, to
Sarah Jones of Alexandria in 1804. He died in 1815 and was buried at
Long View.[145]
The architecture which James Wren created for the courthouse—as well
as his churches and the numerous private buildings he designed and
built under contract or for his friends—reflect the general level to
which that art had advanced in colonial Virginia. The styles were
adapted from prototypes in England.[146] Innovations which were made
in adapting these styles to American use were, in most instances,
attributable to the differences in building materials and the types of
skilled labor which were available to the American builder.
The Origin of the Courthouse Design. The architectural design which
James Wren selected for the Fairfax County Courthouse utilized several
features which already were familiar hallmarks of public buildings in
colonial Virginia, and in particular the colonial capitol at
Williamsburg—probably the most impressive public building in Virginia
at that time. The use of brick as building material, the use of two
stories, topped by a cupola, and, most strikingly, the use of arches,
all combined to suggest the influence of this capitol building on the
courthouse design.[147] The courthouse was far from being a copy of
the capitol and Wren added to these familiar features several new ones
that made the courthouse an architectural innovation in its own right.
When it was completed in 1800, the Fairfax County Courthouse was the
first example of a new design which architectural historians have
called "the town hall style,"[148] and have traced to English town
halls of the late seventeenth and eighteenth centuries. Like the
Fairfax County Courthouse, these town halls were two-story brick or
stone buildings which presented to their front a gable-end,
ground-floor arcade (or piazza) covering the main opening onto the
street, an entrance set into the end wall, and, frequently, a cupola.
The town halls of Blandford in Dorset (1734), and Amersham in
Buckinghamshire (1682) illustrate these features with variations of
details.
No documentary evidence has been found to show how James Wren evolved
his design for the Fairfax County Courthouse; but it seems probable
that he knew of this style that was enjoying current popularity in
England, and that John Bogue, the "undertaker" who built the
courthouse, was familiar with the methods of constructing such
buildings, for Bogue had just come to America from England in 1795.
While the similarity of geometric and structural exterior design
strongly suggests that the Fairfax County Courthouse had its
architectural ancestry in the English town halls of that period, the
analogy is weaker when functions are compared. The courthouse for
Fairfax County was designed and used entirely as the seat of local
government. The commercial activity that was attracted to the
courthouse site on "court days" enjoyed no special privileges or
facilities in the building. In contrast, town halls in eighteenth
century England often served the dual purpose of providing a
facility for transaction of public business and carrying on the
commerce of the community. The style of the English town halls
provided space in the open arcade of the ground floor to house a
farmers' and tradesmen's market, and space in the second floor chamber
for the town council to meet and do its work.[149]
The origin of this type of building is not entirely clear. It is
difficult to imagine it growing naturally in the political and social
climate of the villages which grew up clustered around England's
medieval castles and monasteries. At the time when town-and-market
halls were common in the central squares of free towns in Italy,
Germany and the Low Countries, they were absent in England. Their
appearance in England dates from the seventeenth century when town
government developed its own identity, and when British political and
cultural alliances with the Dutch were established.[150]
Imported to Virginia as a form of courthouse building, this town hall
style became a popular prototype for buildings erected in several
counties during the first three decades of the nineteenth century.
After being introduced in Fairfax County in 1800, this style appears
in the Nelson County Courthouse built in 1807, the Caroline County
Courthouse built in 1808, the Sussex County Courthouse built 1825–28,
and the Madison County Courthouse built 1829–30. Variations in the
layout of the interior appeared in the use of the space over the
arcade; sometimes it was used for the jury room, and at other times it
was used to accommodate a balcony for spectators.[151] After 1824,
however, a new style of courthouse building may be seen in the public
buildings of Virginia counties. Based on the neo-classical lines of
the State Capitol, designed by Thomas Jefferson, there came into being
a series of courthouses which were suggestive, if not actual,
representations of the seat of state government.[152]

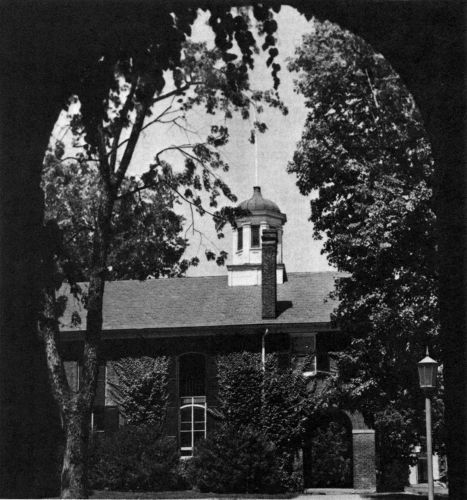

The Courthouse. In its exterior appearance the Fairfax County
Courthouse underwent little change during the first century of its
service. Indeed, looking at the courthouse square in 1900, it might
have seemed that the courthouse was the only building that had not
been rebuilt, relocated or significantly expanded. The effects of
passing time were more evident in the evolution of the layout and
furnishings of the court.
Throughout the first half of the nineteenth century the interior of
the courthouse probably remained similar to the layout described in
colonial times. Generally the focal point of the court chamber was a
long table at which the County Court was seated, flanked by smaller
tables where the court's clerks did their work. Customarily, also, a
railing across the room separated this space from visitors whose
business or curiosity led them to crowd in upon the court and its
staff. As long as the gentlemen justices of the court were in reality,
as well as name, the governing authority of the County, this
arrangement of the courthouse chamber was the most sensible that could
be suggested.
As the purely judicial duties were isolated and assigned to the
professional judges of the District Court it became customary to
renovate the court rooms to install the features which have become
associated with litigation—the raised bench of the judge, the jury
box, the witness stand, and counsels' tables.
These changing ideas of what a court chamber should look like became
established during the first half of the nineteenth century, and were
reflected in the courthouses built in Virginia during that period.
Therefore, when the Fairfax County Courthouse was restored to service
after the Civil War, its interior design resembled that which was
customary for judicial chambers.[153]
That the task of renovation and restoration was extensive is indicated
by a report in the Alexandria Gazette of October 17, 1862 stating
that "The interior of the courthouse of Fairfax County has been
entirely destroyed. Nothing remains of the building but the walls and
the roof." Moreover, the work of renovation had to be carried out
under the double difficulty of shortages of funds and labor that was
skilled in cabinetmaking and metalworking. In the end, the restoration
of the courthouse was a gradual process in which first one and then
another improvement was added. No grand design seems to have been
followed or a complete record of accomplishments maintained. Hence,
evidence of the courthouse furnishings is seen in such separate
notations in the Court Minute Books as follow:
October Court, 1866.
Ordered that the Com. of Public Buildings be instructed to
purchase enough green-baise to cover the table in the bar And have
it covered before the Circuit Court commenses.[154]
December 11, 1876.
Ordered that the Com'r of Public Buildings have the sawdust
removed from the floor of the Courtroom, and have said floor
covered with a substantial cocoa matting at the expense of the
Court.[155]
December Court, 1882.
... Some person or persons have entered the Court House Building
in the night, without authority and have damaged Said building and
have greatly annoyed the citizens living nearby by violently
ringing the bell. It is therefore ordered by the Court, that such
trespass ... will be punished to the full extent of the law.[156]
The bell referred to by the Court was a standard feature of many
Virginia courthouses, and was rung to announce the convening of court
sessions. In the Fairfax County Courthouse, the bell was hung in a
cupola on the roof, and rung with a bell-pull passing through the
building's attic to the balcony level of the courtroom.[157]
A major change in the appearance of the courtroom occurred with the
installation of wooden benches in the public section of the chamber.
Tradition holds that the benches had been pews at one time in
Jerusalem Baptist Church located on the Ox Road between Fairfax and
Fairfax Station. This church had been built on the site of the old
colonial "Payne's Church."
Illustrating the period when gaslights replaced candles, an elaborate
brass chandelier fitted for gas illumination has been found in the
courthouse attic. It is possibly the fixture which the sheriff was
directed at the February 1890 court to purchase, for a price not to
exceed $25.00. In about 1902, electric lights were installed.[158]
During the restoration of the courthouse following the Civil War one
major alteration of the exterior appearance of the courthouse occurred
when the brickwork between the windows on the first and second floors
was removed to change the windows into single two-story-long vertical
openings. The courthouse windows remained this way until 1968 when
renovation of the original section of the courthouse was carried out,
and double rows were reestablished as they appeared in photographs
taken during the Civil War.
The old courthouse, 1800, prior to restoration in
1967.
The old courthouse after restoration in 1967.
Reportedly, another major refurbishment of the courtroom occurred
about 1920. In keeping with the style of that time, the emphasis was
on panelling with dark, polished woods, and moderately ornamental
carving which achieved an appearance of massiveness and dignity. The
judge's bench was located at the west end of the courtroom on a raised
platform and behind a heavy wooden balustrade. Against the west wall
of the room and behind the judge's bench, wooden panelling covered the
space from the southwest corner of the room to a doorway beside the
bench which led into smaller chambers in the rear. This panelling was
topped with a swan's neck pediment behind the judge's chair. At floor
level, beside the judge's bench and behind the balustrade, were the
witness stand and clerk's desk.
The jury box was located along the south wall of the room and faced an
enclosure where tables for counsel and reporters were placed. These,
in turn, were separated from the public seats by a carved wooden
balustrade. Seating for the public on the ground floor was provided in
two sections of wooden benches—the former church pews referred to
earlier—separated by a center aisle. At the rear of this section was
another balustrade setting it apart from the open space inside the
door to the entrance arcade. The two fireplaces in the corners of the
east end of the room were bricked-in and covered with plaster.
On the south wall, a stairway provided access to the balcony over the
open portion of the room adjacent to the outer entrance. From the rear
of the balcony were doorways into a jury room and small office which
occupied the second-floor space over the entrance arcade. Three rows
of benches, each raised one step above the one in front, provided
additional seating space for visitors in the balcony. The ceiling of
the courtroom was sheet metal (tin) with a pattern of ridges arranged
in rectangular shapes. Central heating was provided by hot water
radiators.
In 1929, an addition was constructed on the south side at the rear of
the original courthouse, making an L-shaped building. In this process
the clerk's office which was built in 1876 was torn down. Harmony of
scale, materials and style were maintained between the old and new
sections.[159]
The old court room prior to restoration. Photo by Lee
Hubbard, 1966.
Twenty years later, in 1951–56, the courthouse again was expanded by
addition of a center block, and another wing identical with the
original and first addition segments. At the rear (west side) of these
new portions, two wings were added to house, respectively, the records
of the clerk's office and a new, larger jail. With the completion of
this construction, the old courtroom in the original wing of the
building ceased to be used regularly for judicial business. Two large
courtrooms and several smaller chambers in the center block of the
building provided facilities for hearing cases. The new and larger
building also provided space for the offices of the County's elected
officials and most of the major boards, commissions and administrative
departments which comprised the county's government in the
1950's.[160]
In both exterior and interior appearance, the courthouse additions of
1931 and 1954 were designed to harmonize with the original style James
Wren established in 1800. The use of brick, gable-end roof lines,
proportioning of the scale of various segments of the building,
compatible fenestration and colonial period styles in hardware and
painting all contributed to this result. Most influential of all in
maintaining this architectural integrity, perhaps, was the use of
archways and open arcades at the entrances to the center block and two
wings. These open arcades, with their simple, undecorated keystone
arches are the distinguishing features of the Fairfax County
Courthouse in the 1970's as they were in 1800.
The central entrance to the 1954 addition to the
courthouse.
Origin of the Restoration Project. After the second addition to the
courthouse was completed in 1954, the old courtroom in the original
wing of the building ceased to be the focal point of the court's
activity. Similarly, it ceased to receive the attention needed to deal
with the natural deterioration produced by use and the passage of
time. By the early 1960's these effects were evidenced by leaking
roofs, unreliable plumbing in the heating system, cracked and
crumbling plaster, loosened floors and hardware, and the like. In
order to retain its usefulness, the original wing of the courthouse
needed substantial renovation.
At this time, an interest in the old courtroom was expressed by the
Fairfax County Bar Association and the county's newly formed
Historical Landmarks Preservation Commission which together proposed
that the work of renovation be done in such a way as to restore the
original appearance of the courtroom. The Bar Association formed a
Special Committee for Restoration of the Old Court Room under the
chairmanship of C. Douglas Adams, Jr., and the assistance of the Board
of Supervisors was sought.[161]
In December 1964, the Board appropriated funds for developing a
restoration plan. Walter Macomber, a local restoration architect who
had done similar work on a number of early Virginia landmarks, was
retained to prepare the necessary plans. In March 1966, the Bar
Association's Committee reported the completion of this preliminary
work to the Board, and successfully secured the latter's approval
together with an appropriation of $90,000 for actual construction
work. This work was commenced without further delay and was completed
in the spring of 1967.[162]
Problems of the Restoration. While the work undertaken in 1965 and
1966 was at the time referred to as a restoration, it was in fact
impossible under the circumstances to reproduce with complete accuracy
the appearance of the courthouse in 1800. No descriptions of the
courtroom or other records of building specifications had been found;
nor was any special research in eighteenth century sources undertaken
for this purpose. As a result, the work produced a courtroom with
idealized colonial-period interior design and furnishings in a
building shell with reconstructed floor plan and structural design of
the early Federal-period (during which it had initially been built).
Numerous difficult problems were faced in this reconstruction, and,
for the most part, they were resolved in ways that served primarily to
create a room with the atmosphere of Virginia's colonial period, and
secondarily to build an authentic replica of the Fairfax courthouse as
of any particular historical date.
An initial problem connected with the exterior alterations was that of
securing bricks and mortar to match those of the original courthouse.
Bricks secured from a manufacturer of specialty bricks turned out to
be a close match for the originals which were thought to have been
fired from clay dug in Fairfax County.[164] Specially mixed mortar
made from sand, lime and white cement also closely simulated the color
and texture of the older mortar. Bricks were laid in Flemish bond
which matched the courthouse and part of the old jail building.
Using these new materials, broken and crumbling bricks were replaced
throughout the building, and the three long windows on both the north
and south sides of the courthouse were altered to form two rows of
smaller windows, with the space between the first and second-floor
rows filled with new brickwork. This change in the fenestration
restored the building to its appearance as shown in Civil War
photographs of the courthouse. Shutters similar to those shown in the
same pictures were added to the windows on both floors.
On the roof, some repairs were needed to restore the slate shingles.
In the cupola, wooden louvres were repaired, the cupola was painted,
and a weathervane restored to the top. An existing galvanized sheet
metal roof was allowed to remain unchanged.
For the inside of the building there were no photographs or drawings
of the earlier periods, and reconstruction was influenced largely by
physical evidence disclosed as the interior was systematically
dismantled down to the building's outer shell. When woodwork,
hardware, plaster and flooring were removed, it was found that much of
the framing timber was infested by termites, and had to be replaced.
In this process numerous signs of earlier workmanship were revealed.
Beneath the existing tin-plate ceiling was a plastered ceiling and
remnants of a painted frieze of red, yellow, blue and green. Behind
this ceiling were laths laid over hand-hewn oak rafters. A few of the
original hand-split laths and hand-made nails remained in this
ceiling. In its reconstruction, the ceiling was furred and replastered
without any decoration. No lathwork was found on the side walls, and
in the reconstruction fresh plaster was applied directly to the
bricks.[165]
The flooring which was removed from the central section of the
courtroom sloped from the back (east end) of the room toward the
judge's bench (at the west end). Beneath this floor was an older floor
of brick. It was not determined whether this brick work had been the
original floor of the courtroom or whether another wooden floor had
overlaid it prior to the one just removed. In its reconstruction,
however, the architect specified that a flat floor of polished pine
should be laid over the bricks.[166]
In one part of the main floor the older brick work was allowed to
remain exposed. This was in the vicinity of the fireplaces in the two
corners of the open area at the rear (east end) of the courtroom.
These two fireplaces were reopened and restored and their brickwork
was extended to form spacious hearthstones.
The corner fireplaces showed signs of a three-stage evolution. They
were originally used as open fireplaces. Holes in the brickwork above
them suggested, however, that at some later time the open fireplaces
were replaced by wood-burning or coal-burning stoves standing on the
brick hearths with their stovepipes fitted into the chimneys. Finally,
when the stoves were replaced by central heating and hot water
radiators, the entire fireplace wall was sealed with brick and
plastered over. In their restoration the corner fireplaces were
reopened and refurbished as they were thought to have appeared in
their original condition.
As the side walls were cleared of plaster, they showed signs of
staircases from the ground level to the balcony along the north as
well as the south side of the courtroom. Thus when the stairs along
the south wall were replaced, a similar set of stairs was built and
installed on the north side of the courtroom. No dates for the
original installation or removal of these staircases were determined,
and it was presumed that the dual staircases were part of the original
design of the courthouse.
A more difficult puzzle was presented by a series of holes in the
outer wall aligned at the level of the balcony and about the size used
for beams. Speculation by the architect suggested that these holes
might have been intended for use in extending the balcony along three
sides of the courtroom instead of merely along the back end, or in
covering the entire room and creating a full second story for the
courthouse. No determination of their use was made, and they were
disregarded in the reconstruction of the courtroom.
Interior of restored courtroom facing the judges'
bench. Photo by Charles Baptie, 1971.
Interior of restored courtroom facing balcony. Photo by
Lee Hubbard, 1969.
Still another mystery which was not solved in the restoration
concerned the two chimneys located in the corners at the west end of
the old courtroom. No fireplaces or hearthstones were found in the
courtroom floor, and when the interior was dismantled it was
discovered that the chimneys rested on beams above the courtroom
ceiling. These chimneys were not utilized in reconstructing the
courtroom, and the only suggestion offered was that they probably had
been connected by long pipes to stoves in the room below.[167]
Two doors in the west wall of the courtroom on either side of the
judge's bench presented a further problem since they were not part of
the original 1800 building, but had been part of the addition built in
1929. One of these doors led into a set of judge's chambers and the
other (in one corner) opened into a corridor leading to the main
portion of the addition running south from the old courthouse. In the
restoration these doors were retained, but fitted inconspicuously into
the panelling behind the judge's bench. Above the doors, the architect
restored two windows which he felt had been part of the original
building.[168]
Restoration of the judge's bench brought still more difficulties to
maintaining the original design of the courtroom. As plaster was
removed from the wall behind the judge's bench, the bricks showed
marks of an arch. The judge's bench which ultimately was constructed
and installed at the west end of the courtroom was, like the other
woodwork, created by the architect "according to patterns used in
colonial times."[169]
Other details of the interior were handled the same way. Hardware used
by the architect was all new, but used old designs. Since the original
colors used in the interior were not determined, the architect used
white and gray shades of paint similar to those in colonial buildings.
From the ceiling in the center of the courtroom were hung chandeliers
found in the courthouse attic. While not of "colonial" design, they
were used because they were considered appropriate due to former
association with the courthouse. And, as noted earlier, the pews
which possibly had been obtained from the Jerusalem Baptist Church
were retained in the restored courtroom.[170]
General Setting and Building Site. The original Fairfax County
courthouse today comprises the north end section of the courthouse
building. Together with its immediately adjacent grounds, the present
courthouse complex occupies almost the entire four-acre tract which
was the original site. This tract still forms a square near the center
of the City of Fairfax, at the intersections of two main roads, Routes
236 (Little River Turnpike) and 123 (Chain Bridge Road). The general
setting is gently rolling terrain, and the courthouse site is on a
slightly higher elevation than the surrounding area, with stone
retaining walls on the two sides facing the turnpike and road. On the
west side of the courthouse building is a parking lot occupying
approximately two acres. The twelve-story county office building
(Massey Building) completed in 1969 is located approximately 200 yards
south and west of the courthouse.
Overall Dimensions. The restored, original courthouse building is a
plain rectangle, 61 feet long by 32 feet wide. It is oriented with the
long sides facing north and south, with the main entrance at the east
end of the building. A portico extends across the entire east end of
the building, covering an area 12 by 32 feet. The height of the
building at the gable ends is 32 feet; and the height of the eaves
from the ground is 21 feet.
Foundations. As originally built, the courthouse rested on brick
foundation walls, anchored at the corners in brick piers, with a crawl
space of approximately 11/2 to 2 feet in height beneath all but the
front (east) quarter of the floor space. Additional brick bases,
approximately 18 inches square and resting on the ground, were located
in the crawl space beneath the two columns supporting the courthouse
balcony. In the late nineteenth century, a partial basement was dug
beneath the central section of the courtroom.[171]
As reconstructed, the exterior foundation walls were pointed up and
repaired, and were strengthened by the addition of several new
footings. Across the back (west end) of the building, the crawl space
was deepened to a uniform 3 feet, and four 12 × 12 inch brick piers
were placed on concrete footings. In the center section of the
courthouse, the basement walls were extended 1 foot to carry the
joists of the new floor, the outside entrance was closed up, and a new
staircase for the interior entrance was built at the south end of the
basement. Next to the basement toward the front (east end) of the
building, another crawl space (measuring 81/2 × 251/2 feet) was
deepened to a uniform 3 feet, and a new wall was built on the east
side, extending the full width of the building. This new wall was 8
inches thick, and constructed of cinder block and brick, anchored with
16 × 16 × 12 inch concrete footings. Beneath both crawl spaces and the
basement a 3-inch thick concrete slab was laid. The crawl space did
not extend to the front exterior wall of the building. A space of 13 ×
30 feet across the front of the building, consisting of the area
beneath the open entrance foyer of the courtroom, originally had been
covered only by a layer of bricks resting on the bare ground. As
reconstructed, this brick was taken up and re-laid on a 4-inch thick
slab of concrete which had been poured on a base of 4 inches of
crushed stone covered by polyethylene film.
Walls. The exterior walls of the courthouse are constructed of red
brick, with new bricks specially selected during the 1967 restoration
to match the remaining original materials, and laid in Flemish bond,
11/2 feet thick. Across the front of the building, the portico is
entered through a series of arches supporting the second-floor front
section of the building. The three arches across the front of the
building are 7 feet wide and 11 feet high at the center of the arch.
The arches at the north and south ends of the portico are 61/2 feet
wide by 11 feet high. The brick columns supporting the arches are
11/2 feet square. The arches and columns are plain except for white
marble keystones and white marble slabs, 6 inches thick, placed at the
foot of each arch and serving as bases for the columns.
Chimneys. All five of the chimneys which the courthouse had in the
early nineteenth century were retained in the reconstruction. The two
chimneys on each of the north and south sides stand at points which
correspond to the four corners of the courtroom, and rise 111/2 feet
above the roofline at the eaves. In the center of the table end at the
front of the building, the fifth chimney stands, extending 5 feet
above the ridge of the roof. All five chimneys are corbelled with two
courses of brick at the top, and with a single course of brick 11/2
feet below the chimney top. All of the chimneys measure 2 feet by 1
foot 9 inches.
Doors and Windows. In the 1967 reconstruction of the courthouse, the
fenestration was changed to resemble the appearance of the building in
about 1861. Accordingly the three tall (141/2 foot) existing windows
on the north and south sides of the building were converted into two
sets of smaller windows, one above the other, and regularly spaced
along the sides of the courtroom. In the upper row, a fourth window
was located over the arch in the portico, and serves the rooms in the
second-floor chamber at the front of the building. The chamber also
has two windows on the front of the building.
The upper row windows are of a double-hung sash design, with 12 over 8
panes (9 inches × 103/4 inches) set in wooden frames and sills.
Overall dimensions of these windows are 4 × 51/2 feet. The three
windows on the lower level are slightly larger—4 feet × 6 feet 9
inches, and have 12 over 12 panes. Both rows of windows are shuttered;
those of the upper row are louvred, and those in the lower row have
solid panels.[172]
On the ground level at the front of the building, the main doorway of
the courthouse is located in the center of the wall, and flanked by
one window on each side. The door is panelled, and 81/2 × 41/2 feet
in size.
In the reconstruction, new window sashes and a new door were
installed, but the existing jambs were used wherever possible. All
shutters, glazing materials and hardware used in the reconstruction
were new.
Roof. The original roof of the courthouse was covered with slate
shingles, and the reconstruction of the building merely applied
repairs to these shingles as needed. Little of the slate which
remained in 1967 was thought to have dated from the original
construction, however, because of the extensive repairs and
renovations carried out after the Civil War.
Cupola. The cupola, located at the ridge of the roof, 91/2 feet
from the gable end at the front, was part of the original design of
the courthouse and houses a bell once used to announce the convening
of the court sessions. The cupola was constructed of white pine, and
consists of a square box in which is mounted an octagonal compartment
with louvred sides. Topping the panelled portion of the cupola is an
onion-shaped dome, culminating in a ball which, according to
photographs over the years, served as a base for a weathervane or
flagpole. In reconstruction, a weathervane found in the courthouse
attic was installed on the cupola's top. The roofing of the cupola
dome is sheet metal.
Ornamentation. The overall appearance of the courthouse is plain,
and, with the possible exception of the cupola, there is only one
feature which shows the intention to combine ornamentation with
functionalism in the architectural design. This feature is a round
"fan window" framed by a circle of bricks in the center of the gable
end of the building's front wall. The lower half of this window
consists of four pie-shaped wooden panels. The upper half of the
window consists of louvres.
Foyer. The double doors in the center of the portico at the east end
of the courthouse open inward into a foyer at the rear of the
courtroom. This area is 29 feet long, the full width of the building.
The width of the area varies, however, because of the fireplaces
across each of the front corners and the curving rear edge of the
central (or spectator) portion of the courtroom. At its narrowest
point in front of the double doors the foyer is 10 feet 4 inches wide,
and at its widest points on either end of the room, it is 12 feet
wide. The foyer space is entirely open, with flooring composed of
bricks (8 × 31/2 inches) varying in color from deep red to charcoal
gray. These bricks are laid with three-quarter inch seams and white
mortar.
The fireplaces in the corners at each end of the foyer have square (2
foot-8 inch) openings, with brick lining and a 5 inch facing
surrounding the opening and painted flat black. The fireplaces are
entirely framed with plain architraves and friezes, and are topped
with simple mantels. Each fireplace measures 3 feet 11 inches wide by
4 feet 3 inches high.
Along the walls of the foyer, panelled wainscotting, painted white, is
installed. Because of the unevenness of the floor, the height of this
wainscotting varies from 4 feet 2 inches to 4 feet 3 inches. Its
panels are of varying width, from 3 to 6 inches, and are beaded. At
the base of the wainscotting is a 5-inch baseboard.
Above the wainscotting, the walls and ceiling are finished in plain
plaster with walls painted mauve and the ceiling white. Lighting
needs are minimal because of four outside windows located in the
foyer, and because of light received from the central section of the
courtroom. On each side of the double door and at each end of the
foyer lanterns are mounted on the wall. These fixtures are of the type
commonly used as carriage gate or guardhouse lanterns, and are 9 ×
61/2 × 5 inches, with glass panels on three sides set in dark metal
frames. The tops are of curved metal designed to shield the lanterns
from the wind. Inside the lanterns, light comes from a single
candle-shaped light bulb, set inside a small hurricane lamp chimney.
The hardware on the double door consists of a box lock with the brass
knob polished and the lock-box and keeper painted flat black. At the
top and bottom of the door black metal shot bolts of designs commonly
found in eighteenth century buildings are installed.
Central Section. Space for the seating of spectators is provided in
the central section of the courtroom. The floor level of this section
is raised 73/4 inches above the floor of the foyer, and free-standing
wainscotting of the same style and height as are around the foyer
walls separate the foyer from the central section. The floor of this
section is constructed of 51/4 inch dark-stained pine boards.
Entry into this section is along two aisles at the sides, running
between the spectator seats in the center of the room and the balcony
staircases set against the walls on the north and south sides of the
room. Spectator seating is provided in five rows of benches of pine,
with natural finish on the seats and back rests, white painted sides
and bases, and natural cherry moldings along the top of the back rests
and arms. Along the base at the front of each bench, is a 6 inch strip
painted black. The back of the back rest is painted white down to a
point 6 inches above the floor, where a foot rest of dark-stained pine
is installed, and below this the base is painted black.
The five rows of benches in the center section are curved, generally
following the arc of the edge of the raised flooring, and measure 17
feet 9 inches from end to end. Each bench seats about twelve people.
The walls of the center section are painted mauve, and the ceiling is
white. There are no lighting fixtures in this section of the
courtroom. At the rear of the central section, two lightly stained
solid oak pillars support the balcony.
Staircases. Staircases to the balcony are located along the north
and south walls of the central section. The initial plans for
reconstruction of the courtroom in 1967 called for only one staircase,
on the south wall. The decision to add a staircase on the north side
came during the reconstruction when evidence of an earlier staircase
on that side was revealed as the plaster was removed. From this it was
conjectured that the courthouse of the early nineteenth century had
had two staircases, but that one had been abandoned in reconstructing
the building after the Civil War.
The present stairways each have 18 steps with 8 inch risers and treads
2 feet 11 inches wide by 10 inches deep. They form a single flight,
open style stairs, with no brackets and plain balusters, 1 inch
square, painted white and supporting a cherry handrail. Newel posts at
the top and foot of the stairway have turned shafts with cube bases
and capitals. A flat sphere of solid wood tops the capital of the
newel post.
Beneath the staircase on the north side of the building is a closet,
and on the south side is a stairway leading into the basement. The
doors to this closet and stairway are made of vertical beaded boards
similar to the wainscotting, each equipped with two "H" hinges of
black metal having a pebble finish and black metal box locks with
small polished brass doorknobs.
Balcony. The courtroom balcony contains three rows of wooden benches
similar to those on the ground floor, except that they are straight
instead of curved. The rows are arranged so the two rear benches are
on daises raised 9 inches above the one in front. Solid-panelled
free-standing wainscotting is set along the back of the rearmost
bench. The first two rows of benches are 17 feet 73/4 inches long,
while the rear bench is 22 feet long, allowing space at each end for
the steps of the raised dais.
In front of these benches, across the full width of the balcony
between the two staircases, is a railing of plain white spokes
(matching the balusters of the staircase) and a plain cherry handrail
2 feet 11 inches in height.
The ceiling of the balcony is painted flat white and the walls are
mauve. White beaded board wainscotting standing 3 inches high is
around the sides and rear wall of the balcony similar to that on the
ground level. Three recessed lights provide light for the balcony.
Jury Room. At the rear of the balcony an aisle 3 feet wide runs the
full width of the building, allowing passage behind the rows of
balcony benches and access to the jury room through doors near each
end of the aisle. The jury room uses the space above the first-floor
portico, an area 12 × 19 feet. The doors to the room are 2 feet 10
inches by 6 feet 10 inches, with 4 panels. Doors and frames are
painted white, with brass doorknobs and modern locks set in the doors.
The wall between the jury room and balcony is a new stud partition
which is finished with white plaster, as is the ceiling. Lighting is
provided by 3 recessed lights set in the ceiling and equally spaced.
The walls of the room have a 3-inch baseboard, but no wainscotting.
Centered in the exterior (east) wall of the room is a fireplace,
reopened in the 1967 reconstruction. This fireplace measures 4 feet
61/2 inches by 4 feet 73/4 inches, and is framed with a plain white
architrave and mantel. A hearth of brick extends 18 inches out from
the fireplace. Opposite the fireplace is a 12 by 18 inch plastered
masonry pier extended up from the exterior wall at the rear of the
portico on the first floor below. In the ceiling next to the pier is
located a 30 by 36 inch opening into the attic, with a ladder built
into the partition wall immediately below.
Bench, Bar and Jury Box. Across the front of the courtroom is a
railing separating the judges bench, jury box, and space for counsel
tables from the central section of the courtroom. This railing,
similar to those of the staircases and balcony, stands 2 feet 81/2
inches high. Gates 3 feet wide and mounted on double spring hinges are
placed in the railing at the head of each side aisle in the central
section. Each gate has an S-curve wooden support built into it for
added support.
The enclosure formed by the railing or bar is raised 71/2 inches
above the floor level of the central section, and is floored with
yellow pine, tongue-and-groove, 3-inch wide flooring. In the center of
this enclosure, against the west wall of the courtroom is the judge's
bench, flanked on its right by the witness stand. The bench itself is
relatively small, measuring 6 feet 5 inches across and 4 feet 7 inches
from back to front. Three steps on each side permit access from both
directions, and have balustrades on the front side similar to the
railings and other balustrades in the courtroom.
On the wall behind the judge's bench, there are two, high 12-over-8
pane windows, backed by closed, full-louvred shutters. Behind the
shutters is the solid plaster wall of the present courthouse's main
corridor. Between and below these windows is a wooden raised-panel
screen serving as a back for the judge's bench. Two 6-panelled
sections at each end of this screen are flanked by fluted pilasters
with modified capitals supporting a plain entablature. Between these
sections are 3 panels, the two on either end being composed of 3 tiers
of panels edged with fluted pilasters. The center element of this
panel consists of two large raised rectangular panels topped by a
semi-circular louvred wooden fan design, then a round keystone arch,
the whole portion of the composition topped by a high monumental
pediment. At its center point, the height of this composition is 8
feet 6 inches.
This ornamental panelling also covers the space where doorways
previously had been cut for passage between the courtroom and other
portions of the courthouse as they were built from 1930 onward. Prior
to the 1967 reconstruction, a doorway in the west wall was located on
the judge's left side as he sat on the bench. As presently
reconstructed, this doorway has been closed and covered by panelling,
but a new door was cut through on the judge's right-hand side, and the
inside of the door is constructed and fitted so as to serve as the end
piece of the ornamental woodwork behind the judge's bench.
The jury box is in the southwest corner of the courtroom. Across the
front of the box is a panelled solid railing, standing 2 feet 8 inches
from the floor of the west end of the courtroom. The jury box contains
2 rows of benches, each raised an 8-inch step above the one in front.
The front row is 9 feet 3 inches long, with aisles 18 inches wide at
each end allowing passage from the second row to the front, and
openings in the railing. Not having this function of access, the back
row of the jury benches is 14 feet 1 inch in length. Benches in the
jury box are designed and constructed similar to those of the balcony.
The witness box is located between the judge's bench and the jury box.
This box is constructed of solid wooden screen, painted white and
topped with a cherry handrail. The screen forming the back of the box
is plain; the screen at the front is in the shape of half of an
octagon, and the face of each element contains a single recessed
panel similar to those on the front of the judge's bench. The side of
the witness box facing the jury is open to allow entry into the box,
and the side next to the judge's bench is formed by the side of that
fixture. The flooring of the box is made of 3-inch wide, yellow pine
boards, finished naturally, and the flooring is raised one step (71/2
inches) from the courtroom floor. The dimensions of the box are 2 feet
10 inches across and 3 feet 8 inches from back to front.
Illumination of the area of the bench and jury box is provided by a
variety of fixtures. On the wall at the rear of the jury box two
carriage gate or guardhouse lanterns are attached. Opposite these, on
the wall at the north side of the room, two other, similar lanterns
are located. In the ceiling above the area enclosed by the bar, 10
recessed lights are installed in two rows of 4 lights across the front
and rear sections, and a pair are located equidistant between these
rows. Hanging from the ceiling over the central area are chandeliers
which were found in the attic of the courthouse during the 1967
reconstruction, and refurbished and wired for electric lights. The
lighting fixtures consist of six 24-inch arms, made of hollow brass
tubing, extending out from a central hub. The hub, in the shape of a
cup and decorated with a series of radial ridges, is on the lower end
of a 38-inch hollow brass shaft, equipped at the top with a hook for
suspension from the ceiling. As installed in the courthouse, each
chandelier hangs from a fixture in the ceiling by a metal chain
approximately 5 feet long. At the end of each arm of the chandelier
are plain disc-shaped bases (3 inches in diameter) which holds one
candle-shaped electric socket and a glass hurricane lamp chimney.
Basement. A small basement measuring 11 feet in width lies across
the center section of the courthouse. An interior entrance to this
basement is provided by a staircase located at its south end. This
stairway, 3 feet 6 inches wide with 73/4 inch risers, has 10 steps,
and is not panelled or painted. At the present time, the basement is
used to house heating and air conditioning equipment.
Small windows are located at both the north and south ends of the
basement. Approximately square, these windows measure 2 feet 2 inches
by 2 feet 9 inches, with 3-over-2 panes (6 by 12 inches). Both have
sills composed of a single slab of stone 2 inches thick. Both also are
below ground level, and open into brick-lined spaces for light and air
dug out by the wall's foundations. The space for the window on the
north side of the building measures 4 feet 1 inch by 3 feet 3 inches.
On the south side of the building, however, the dug-out space measures
7 feet 8 inches by 2 feet 9 inches and suggests that this was, at an
earlier date, the point where an outside entrance to the basement was
located. This is corroborated by markings on the inside of the
basement wall which show that a doorway in the north end of the
basement has been bricked up, and also that a second window similar to
the existing one has been closed up with bricks, leaving the sill slab
in place. From the basement, galvanized steel ducts covered with
insulating material are run through the crawl spaces beneath the
courtroom floor to outlets and intakes for circulation of air. These
openings are located in the sills of the recessed windows of the
courtroom and in the bases of the benches for spectators and jurors,
and are covered with steel grilles painted to blend with the fixtures
in which they are set.
