Rational Horse-Shoeing

---

Since the publication of this little volume we have made changes in our horse shoe with a view to adapt it especially to Army use. Our design has been to make a shoe that any Army farrier can apply in a cold state without the use of any other tool than a knife to prepare the hoof, and a hammer to drive the nails. Our success in this attempt has been so complete that we are now using the pattern designed especially for Army use in all our contract work.

The shoe is rolled without a heel calk, so that the frog-pressure may be readily secured without heating and drawing the iron:—the nail holes are punched so that the nail furnished by us with the shoe may be driven, without the use of the pritchel to punch out the holes. The shoe, being made of the best quality of iron, may be bent cold to adapt it to the shape of the hoof.

Officers will at once see what a vast saving there is in the transportation of shoes—requiring no forge with its heavy outfit—and which are less than half the weight of the clumsy old patterns.

THE VILLAGE BLACKSMITH

---

In presenting the observations contained in the following pages, we are aware that we appeal to practical men who judge by results, and have but slight patience with mere theory. We wish, therefore, to state clearly at the outset, that the system of horse-shoeing herein advocated, and the shoe offered by us to accompany it and accomplish its purpose, are the result of years of patient study of nature, and actual experiment; and that although we have had to contend with ignorance and interest on the part of the farriers, and indifference and prejudice on the part of owners of horses, we have finally succeeded in interesting the most practical and capable men in America, England, and France in the matter; and, at the time of this publication, thousands of horses, engaged in the most arduous labors of equine life—upon railways, express wagons, transfer companies, and other similar difficult positions—are traveling upon our shoes, their labors lightened by its assistance, their feet preserved in a natural, healthy state, and their lives prolonged to the profit of their owners and the advancement of that cause—one of the evidences of the progress of our age in true enlightenment—which has for its beneficent object the prevention of cruelty to the dumb and helpless companions of our toil.

---

The first application of the Goodenough shoe is almost invariably to the feet of horses suffering from some one of the forms of foot disease, induced by the unnatural method of shoeing. Our system is intended for sound horses, to supply the necessary protection to the feet, and to keep them in a healthy condition. Our rules for shoeing, embodied in our circular of instructions, are applicable to sound horses, and disease must be provided for as exceptional.

Men are careless and, as a rule, unobservant; they go on in the old way until the horse flinches in action or stands "pointing" in dumb appeal to his owner, telling with mute but touching eloquence of his tight-ironed, feverish foot, the dead frog, and the insidious disease, soon to destroy the free action characteristic of health. It is when this evidence brings the truth home to him that the neglectful master, eager to relieve the animal, tries our system. To such masters we must say, do not expect that the imprudence and neglect of years can be remedied in an instant. The age of miracles long ago passed away. We do not propose to cure by formula, or bell and book. There is no "laying on of hands"—no magical touch of an enchanter's wand.

Remember always that pain is the warning cry of a faithful sentinel on the outpost, that disease is at hand. Disease is the punishment following a violation of the laws of nature, and can only be escaped by restoring natural conditions.

Remember also, that "Nature," so called by Hippocrates, the earliest systematic writer upon medicine, never slumbers nor fails in duty, but strives with unerring, active intelligence to prevent disease, or to cure it when it can not be prevented.

When the measures and processes of the physician are in harmony with the natural intention, disease may be cured; when they are adverse in application, the patient dies, or recovers in spite of art.

A great French philosopher powerfully remarked: "Nature fights with disease a battle to the death; a blind man armed with a club—that is, a physician—comes in to make peace between them. Failing in that, he lays about him with his club. If he happens to hit disease he kills disease; if he hits nature he kills nature."

We wish to be understood that in all things we would assist and facilitate the action of nature, under the artificial restraints of the horse. If we fail in this, or offer obstruction, our occupation is gone. The world has no time to listen to our theory, no use for our practice. And we hope that the thoughtful readers of these pages will see in our intention, an earnest, honest purpose and belief, and that, without affectation of science or pretense of superior knowledge, we base all our efforts upon nature and common sense.

In following our instructions and attempting to use our method, have patience, and note the result from day to day. The horse will quickly tell you. His action will expose quackery and unmask pretension. He will be no party to a fraud, no advocate of an advertisement.

A sound horse is, after man, the paragon of animals. "In form and moving how express and admirable!" His frame is perfect mechanism, instinct with glowing life, and guarded by the great conservative and healing powers of nature from disease and death. His vitality is surpassed by that of man, because man has the endowment of soul, and in his human breast hope springs eternal and imagination gives fresh powers of resistance. Like man, the horse conforms cheerfully to all climates and to all circumstances. He is equally at home—

"Whether where equinoctial fervors glow
Or winter wraps the polar world in snow."

Amid the sands of Arabia his thin hide and fine hair evidence his breeding; in the frozen north his shaggy covering defends him from the cold storms and searching winds. The disadvantages under which he will work are in no way so clearly illustrated as in his efficiency when exposed to the evils of shoeing. Placed upon heel-calks, to slip about and catch with wrenching force in the interstices of city pavements, or loaded with iron-clogs, to give him "knee-action" and to "untie his shoulders," he bravely faces his discomforts and does to the best of his ability his master's will.

How quickly his active system responds to intelligent care and shows its beneficial results! And when relieved from the abuses of ignorance, his recuperative powers re-establish the springing step of youth.

Every horseman finds his chief difficulty in the fact that he has to protect the natural foot from the wear incident to the artificial condition in which the horse is placed in his relation to man. In those important industries where great numbers of horses are used, and the profit of the business depends upon the efficiency of the animal, the question becomes a very serious one, and the life term of the horse, or the proportion of the number of animals that are kept from their tasks by inability, make the difference between profit and loss to the great transportation lines that facilitate the busy current of city life. But notwithstanding the importance of this subject, upon the score equally of economy and humanity, the world is, for the most part, just where it was a thousand years ago, possibly worse off, for the original purpose of shoeing was only to protect the foot from attrition or chipping, and but little iron was used, but, as the utility of the operation became apparent, the smith boldly took the responsibility of altering the form of the hoof to suit his own unreasoning views, cutting away, as superfluous, the sole and bars, paring the frog to a shapely smoothness, and then nailing on a broad, heavy piece of iron, covering not only the wall but a portion of the sole also, thus putting it out of the power of the horse to take a natural, elastic step.

In a short time the hoof, unbraced by the sole and bars, begins to contract, the action of the frog upon the ground, which in the natural foot is threefold—acting as a cushion to receive the force of the blow and thus relieve the nerves and joints of the leg from concussion, opening and expanding the hoof by its upward pressure, quickening the circulation and thereby stimulating the natural secretions,—this all important part of the organization, without which there is no foot and no horse, becomes hard, dry, and useless. Then follows the whole train of natural consequences. The delicate system of joints inclosed in the hoof feel the pressure of contraction, the knees bend forward in an attempt to relieve the contracted heel. In this action the use of the leg is partially lost. The horse endeavors to secure a new bearing, interferes in movement, or stands in uneasy torture.

Nature frequently seeks relief by bursting the dry and contracted shell, in what is known as quarter or toe crack, and the miserable victim becomes practically useless at an age when his powers should be in their prime.

Every horseman will acknowledge that his experience has a parallel in the picture here presented. Many men have at various times attempted reform, but the difficulty heretofore encountered has been that the mechanical application was in the hands, not of the owners and reasoners, but in those of a class of men who are, for the most part, ignorant, prejudiced, and, consequently, apt to oppose any innovation upon the old abuses in which they have had centuries of vested right; and it was not until the studies of Mr. R. A. Goodenough that there were brought to bear veterinary knowledge, mechanical skill, and inventive faculty, to overcome the stolidity and interest which have been the lions in the way of true reform.

That portion of the hoof called the "frog," performs the most important visible function in the economy of the movement of the horse. It is intensely vital and vigorous. The greater its exposure and the severer its exertion, the more strenuous is the action of nature to renew it. It is the spring at the immediate base of the leg, relieving the nervous system and joints from the shock of the concussion when the Race Horse thunders over the course, seeming in his powerful stride to shake the solid earth itself, and it gives the Trotter the elastic motion with which he sweeps over the ground noiseless upon its yielding spring, but, if shod with heavy iron, so that the frog does not reach the ground to perform its function, his hoofs beat the earth with a force like the hammers of the Cyclops.

With the facility to error characteristic of the unreasoning, it has been one of the opinions of grooms and farriers that this callous, india-rubber-like substance would wear away upon exposure to the action of the road or pavement, and it has been one of their cherished practices to set the horse up upon iron, so that he could by no possibility strike the frog upon the ground.

In addition to this violation of nature, they pare away the exfoliating growth of the organ, and trim it into the shape that suits their fancy.

Without action, muscular life is impossible, the portion of the body thus situated must die, paralyzed or withered. Motion, use, are the law of life, and the frog of the horse's hoof with a function as essential and well-defined as any portion of his body is subject to the general law. Without use it dries, hardens, and becomes a shelly excrescence upon a foot, benumbed by the percussion of heavy iron upon hard roads. This is a loss nature struggles in vain to repair, the horse begins to fail at once. The elastic step, which in a state of nature spurned the dull earth, becomes heavy and stiff, and the unhappy brute experiences the evils partially described in the previous chapter.

To restore the natural action of the foot by putting the bearing on the frog, is the chief object of the system we advocate, and the Goodenough shoe is designed especially to provide for that first and last necessity. If this is accomplished with a sound horse, he will avoid the thousand ills that arise from the usual method, and, so far as his feet are concerned, he will remain sound.

If the shoe is adopted as a cure for the unsoundness already manifested in animals that have been deprived of the proper use of their feet, it will cure them, not by any virtue in the iron itself, nor by any magic in its application, but simply by giving beneficent nature an opportunity to repair the ruin that the ignorance of man has wrought upon her perfect handiwork.

This part of our subject is so important that we shall return to it again in subsequent chapters, and enforce it at every point.

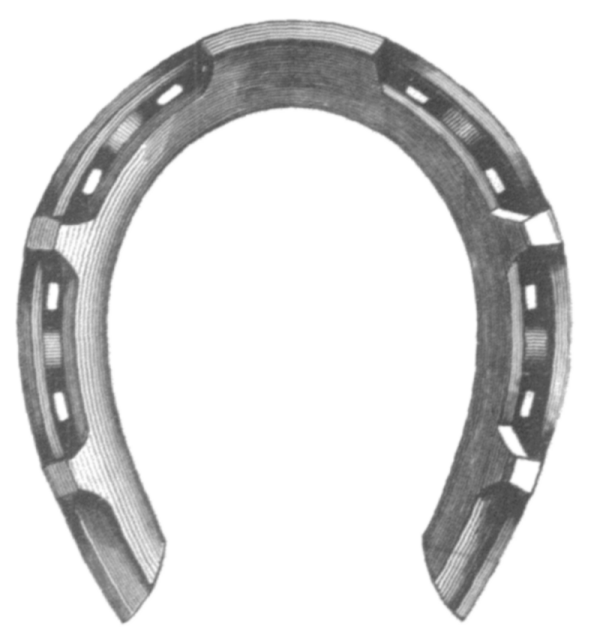

GOODENOUGH SHOE—FRONT.

From the representation of the shoe in the cut, its peculiar conformation will be observed, and the reason for these changes from the common form we shall endeavor to explain as clearly as possible. In the first place, it is very light, scarcely half the weight of the average old-fashioned shoe. The foot surface is rolled with a true bevel, making that portion of the web which receives the bearing of the hoof, the width of the thickness of the wall or crust. This prevents pressure upon the sole, and makes the shoe a continuation of the wall of the foot. The ground surface of the shoe has also a true bevel, following the natural slope of the sole, and bringing the inner part of the shoe to a thin edge. The outer portion is thus a thick ridge, dentated, or cut out into cogs or calks, allowing the nail-heads to be countersunk. This arrangement gives five calks—a wide toe-calk, the usual heel-calks, and two calks, one on each side, midway between the toe and heel—thus putting the bearing equally upon all the parts of the foot.

This calking has a double object. In the common system of shoeing, to avoid slipping in winter upon the ice, and in the cities upon the wet, slimy surface of pavement, or to assist draft, it is customary to weld a calk upon the toe of a shoe, and to turn up the heels to correspond. In this motion the horse is placed upon a tripod, his weight being entirely upon three points of his foot, and those not the parts intended to bear the shock of travel or to sustain his weight. The position of the frog is of course one of hopeless inaction, and the motion of the unsupported bones within the hoof produce inflammation at the points of extreme pressure, so that, in case of all old horses accustomed to go upon calks, there is ulceration of the heels, in the form of "corns," which the smith informs the owner is the effect of hard roads bruising the heel from the outside; he usually "cuts out the corn," and puts on more iron in the form of a "bar shoe." Or the same action which produces corns, acting upon the dead, dry, unsupported frog and sole, breaks the arch of the foot so that a "drop sole" is manifest, or "pumiced foot," for both of which a "bar shoe" is the unvarying, pernicious prescription. In the Goodenough shoe, the calks are supplied, and the weight so distributed that the objection to the old method does not exist.

This is a point to which we call attention as of great importance. In shoeing a horse for light or rapid work with a common flat shoe, seven or eight nail-heads protrude, and take the force of his blow on the ground. The foot has just been pared, and those nails, driven into the wall and pressing against the soft inside horn and sensitive laminæ, vibrate to the quick, and often cause the newly-shod horse to shrink, and show soreness in traveling for a day or two. No matter how skillfully shod, the horse will be all the better in escaping this unnecessary infliction.

Is to keep the shoe a continuation of the crust or wall of the hoof, and to avoid percussion upon the sole.

Is to follow the natural concavity of the foot and to give it the form which will have no suction on wet ground, will not pick up mud, or retain snow-balls.

Have a use fully explained.

When the shoe thus described is set so as to secure frog-pressure, as hereinafter directed, a horse may be shod without violation of nature's laws; foot disease, under fair conditions, will become almost impossible, and the useless refuse-stock, broken down by the old method, may be restored to usefulness.

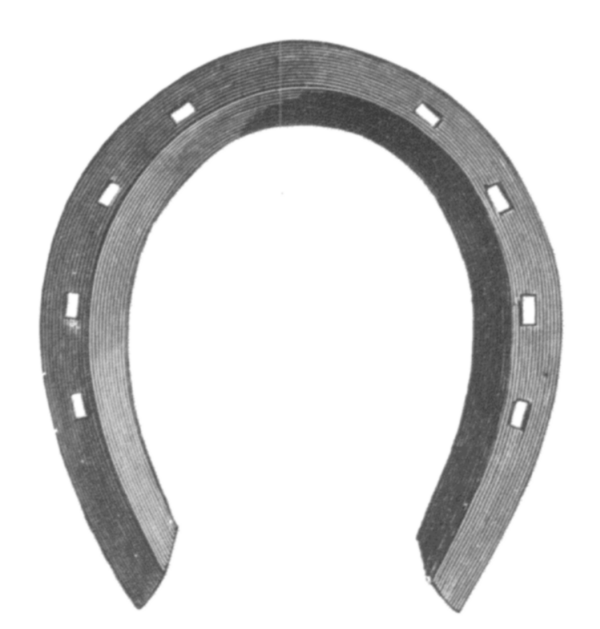

GOODENOUGH SHOE—BACK.

If a foot came to the farrier in a perfectly normal condition, never having been subjected to the destructive process of common shoeing, the directions for putting on the Goodenough shoe would be simply, to dress the foot by paring or rasping the wall until a shoe of proper size laid upon the prepared crust would give an even bearing with the frog all over the foot; then, as the calk wore away, the pressure would come more and more upon the frog and the foot would retain its natural state during the life-time of the horse.

A colt thus shod could not have a corn, for a corn is an ulcer caused by the wings of the coffin-bone pressing upon a hard, unelastic substance. When the horse raises his foot the coffin-bone is lifted upward by the action of the flexor tendon; when his foot touches the earth the weight of the animal is thrown upon the same bone, and, if unsupported by the natural cushion of the foot, the action of the bone pressing the sensitive sole upon iron causes the bruise which, for lack of another name, is called a corn. The horse thus shod would never have a quarter crack, for that is the immediate effect of contraction caused by the absence of the expanding action of the frog and the consequent dead condition of the hoof from want of circulation and proper secretions. The horse would be equally free from "drop" and "pumiced" sole, seedy toe, thrush, and kindred complaints.

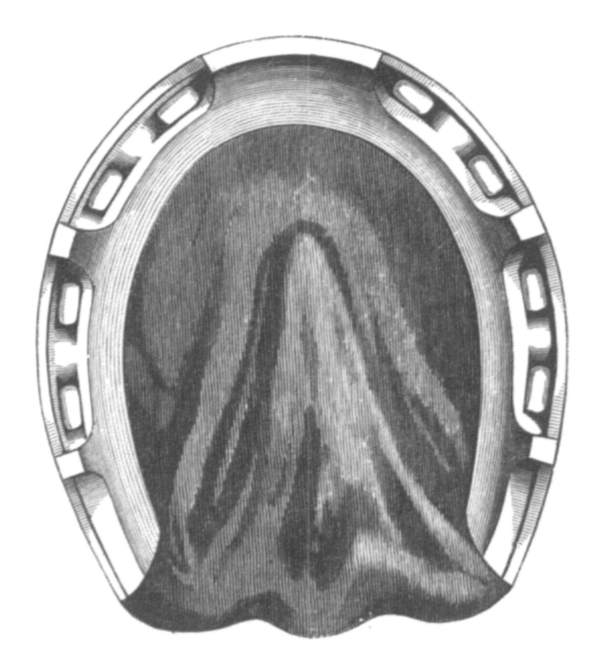

FOOT, SHOWING SHOE AND FROG.

It is almost impossible to find a horse perfectly sound in his feet, unless one looks (strange as it may seem) into the stables of the Third Avenue Railroad Company, or those of Adams' Express, or Dodd's Transfer Company, or into some of the other stables where our shoe and system are in faithful use; we will therefore call attention to such a case as will be generally presented at the forge: A good young horse, shod for several years upon the common plan, and in the early stages of contraction. We find he has on wide-web shoes, weighing about twenty ounces each; these may be smooth in front and calked behind; they bear upon the sole and heel. In place of a frog, we discover a point of hard, shrunken, cracked substance, neither frog nor sole. We cut the clenches and take off the relic of ignorance and barbarism, throwing it with hearty good-will into the only place fit to receive it—the pile of scrap-iron. We examine carefully to see that no stub of nail is left in. The heels will be found long and hard. Our object being frog-pressure, to get the vivifying action of this tactile organ upon the ground, we pare down the whole wall; we soon come to signs of a corn—perhaps a drop of blood starts; but as we do not intend to put the weight upon the heels, we are not alarmed. Having cut all we can from the heels and still finding that the frog, when the shoe is laid on, can not touch the ground, we knock down the last two calks and draw the heel of the shoe thin; this must give us a bearing upon the frog and the sound part of the foot. We use the lightest shoe, truly fitted with the rasp, not burned on. The horse should then be worked regularly, and he will experience at once the benefit of a return to "first principles" and natural action.

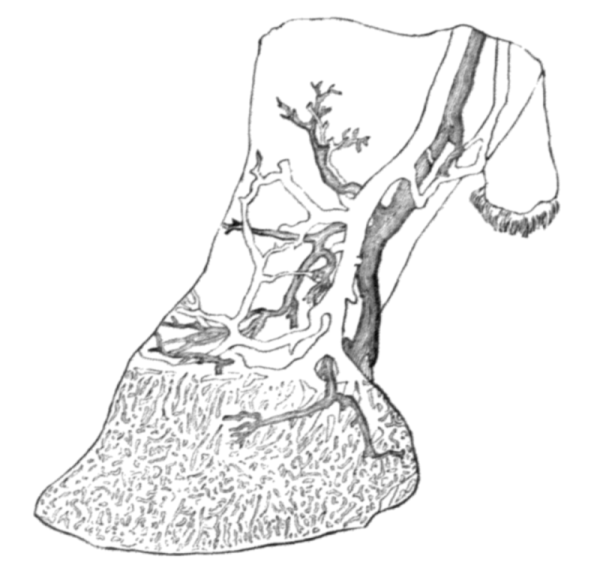

FOOT, WITH SHELL REMOVED.

Contraction, in a greater or less degree, is exhibited by all horses, of every grade, that have been shod in the common way, except in those more unfortunate cases that have resulted in a breaking of the arch of the foot, from lack of the natural frog support, when the phenomena of "dropped sole" are found, and the usual accompaniment of "pumiced feet."

It may seem superfluous to say that the power and action of the horse are greatly restricted by contraction.

The cartilaginous fibre that forms the bulk of the substance of the foot behind the great back sinew is squeezed into narrow space, the working of the joints compressed, and inflammation at the joints, or at the wings of the coffin-bone, is excited; in worse cases navicular disease is established, or, from inadequate circulation, thrush holds possession at the frog, or scratches torment the heels.

When simple contraction—shown in the narrow heel, dried and shrunken frog, and "pegging" motion of the horse—is the case, our design is at once to restore the natural action of the foot. This must be done by expansion, and that is to be had from frog-pressure, according to the directions in the preceding chapters. If navicular disease has commenced, and the animal is decidedly lame, we have a difficult case. The membrane of this important bone, in some cases of contraction, becomes ulcerated, and the bone itself may be decayed, or adhesion between the coffin-bone and the navicular and pastern may take place. Without expansion there is no possibility of relief; local bleeding, poulticing, and all the drastic drugs of the veterinary will be invoked in vain.

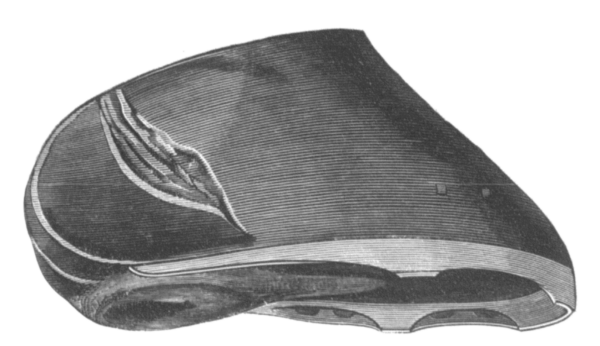

QUARTER CRACK—FULL SHOE.

This disease, usually attributed to "heat," "dry weather," "weak feet," etc., is one of the common symptoms of contraction, and can be entirely cured with the greatest ease; nor will it ever recur if the hoof is kept in proper condition.

If the case is recent, shoe as advised in our paragraph upon "Incipient Unsoundness," being sure to cut the heel well down, putting the bearing fully upon the frog and three-quarters of the foot. If the hoof is weak from long contraction and defective circulation, lower the heels and whole wall, until the frog comes well upon the ground, and shoe with a "slipper," or "tip," made by cutting off a light shoe just before the middle calk, drawing it down and lowering the toe-calk partially. This will seem dangerous to those who have not tried it, but it is not so. The horse may flinch a little at first, from his unaccustomed condition, and from the active life that will begin to stir in his dry, hard, and numb foot, but he will enjoy the change. The healing of the crack will be from the coronet down, and it is good practice to cut with a sharp knife just above the split, and to clean all dirt and dead substance out from the point where you cut, downwards. Soaking the feet in water will facilitate a cure by quickening the growth of the hoof; or, a stimulating liniment may be applied to the coronet, to excite more active growth. Bear in mind that expansion is not from the sole upwards, but from the coronet downwards.

The cause of this defect is the same as in quarter crack. It appears in both fore and hind feet. Clean the crack well, cutting with a sharp knife the dead horn from each side of it; shoe as advised for quarter crack, or for the purpose of getting expansion and natural action of the dead, shelly hoof. The dirt and sand may be kept out of the crack by filling it with balsam of fir, or pine pitch. Keep the horse at regular work.

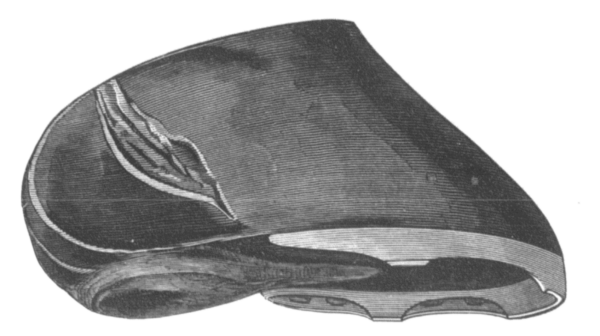

QUARTER CRACK—HALF SHOE.

This miserable condition of the abused animal is Nature's fiercest protest against the ignorance and carelessness of man. A horse set upon heavy shoes, and those armed with calks at toe and heel, such as are usually inflicted upon large draft-horses, has his whole weight placed upon the unsupported sole. The frog never comes in contact with the earth in any way, inflammation of the sensitive frog and sole takes place, and the arch of the sole bends down under the pressure until the ground surface of the hoof becomes flat or convex, bulging down even lower than the cruel iron that clamps its edge. This is the condition of a drop sole. This degenerate state of the foot has other complications. Active inflammation is often present and all the wretchedness of a pumiced foot—the despair of owner and veterinary—is experienced. The smith, whose clumsy contrivance has been the cause of all the woe, has abundant reasons to offer for the disease, and his unfailing resort of the "Bar Shoe." This atrocious fetter is supplemented with leather pads, sometimes daubed with tar, and the horse hobbles to his task. Not unfrequently the crust at the front of the hoof sinks in, adhering to the sole; circulation being cut off,

is then manifest.

The only possible relief from these complications is in natural action. Contraction is not present, but we want circulation, new growth and absorption; we obtain it by dressing the foot smoothly with the rasp and putting the bearing evenly upon the frog and a light shoe, which should be merely a continuation of the wall of the foot. Many very bad cases shod in this way have been relieved. No grease or tar should ever be used.

Shoe as previously directed, and rasp or cut the sole and wall at the toe into a slightly hollow shape, so that you could pass a knife-blade between the hoof and shoe. The object of this is to relieve the hoof from pressure at this point. In cases where the toe is thin and weak, or where there is inflammation extending to the point of the frog, remove as much of the sole pressing against the frog as seems feasible, and level the toe-calk, so that the horse will bear upon the frog and side-calks.

It is often well to free a shrunken frog from the binding growth of sole that has closed in upon it, and in cases of contraction, where this is done, a horse will recover the action of the frog with less difficulty than where that organ is sole-bound.

This is a filthy, fetid disease of the frog. By many veterinary writers it is attributed entirely to damp stables, general nasty condition of stall, yard, etc. Mayhew ingenuously remarks, in addition, that it is usually found in animals that "step short or go groggily," and that the hoof is "hot and hard." Youatt comes to the point at once in saying that it is the effect of contraction, and, when established, is also a cause of further contraction. It is manifest in a putrid discharge from the frog. The matter is secreted by the inner or sensible frog, excited to this morbid condition by pressure of contraction. Its cure is simple and easy if the cause is removed. A wash of brine, or chloride of zinc, three grains to the ounce of water, is generally used to correct the foulness.

The knee of a horse is a most complicated and beautiful mechanical arrangement, singularly exempt from strain or disease in any form. Bony enlargement, inflammation of the ligaments, do not attack it. The ravage of the shoeing-smith—the horse's direst enemy—seems to be exhausted upon the feet and the sympathetic pasterns; the concussion of iron and pavement, uncushioned by the frog, will destroy the lower system of joints before the knee can be shaken.

Notwithstanding this perfection and strength, many horses bend the knee, and stand, or travel with it bent, until the flexor muscles shrink from lack of use. This "over in the knees" condition is invariably caused by imperfect use of the feet. The effect of heel-calks and their accompaniment of corns, making a sore in each heel, is often indicated by the horse to his regardless owner by bending his knee. The owner asks the smith why he does it, and the smith, who never fails to give a reason, says he has always noticed that horse had "weak knees." We know of a shoer in Worcester County, Massachusetts, who has a wide local reputation for "doctoring" weak knees. He holds that the muscles of the leg in such cases are too short, and have to be lengthened with thick iron heels and calks. It is a favorite theory of this class of shoers that they are able to correct the errors of Providence in the horse's construction, and piece him out with heel-calks and bar-shoes!

If horses were not shod, they would not interfere; it therefore follows that shoeing is the cause of this defect. A contracted hoof, pain from corns, or any inflammation causes a horse to seek a new bearing. In doing this he strikes himself. Blacksmiths make "interfering shoes," welding side-pieces and superfluous calks upon their clumsy contrivances, and sometimes succeed in preventing the symptom, but they never remove the cause. Few horses with natural feet, good circulation, and shod with a light shoe, will ever interfere. In all such cases, take off the heavy shoe, cure the contraction, get an even bearing, and let nature have at least a momentary chance.

It is a common practice of large proprietors, engaged on railroad or city work, to buy up horses with unsound feet, unfitted for speed or gentle service, and use them up, as old clothes are put through a shoddy-mill for what wool there is left in them. This cruel policy, under an intelligent system of shoeing, would be impossible, because the vast aggregate of foot diseases would be so abated that horses, sound in general health but creeping upon disabled hoofs, could not be found in droves, as at present, and the speculator in equine misfortune would better serve his selfishness by buying young horses and keeping them sound by a natural system of shoeing.

This annoyance is frequently caused by undue use of the toe, when the heel is lame and sore from contraction and corns. When the horse has the frog well on the ground and uses his heel without shrinking he is not apt to stumble.

In dry weather, or when a horse with a hard, lifeless hoof is shod with the Goodenough shoe, and shrinks from the unaccustomed pressure of the frog on the ground, nothing is so grateful to his feet as cold water. The hose turned on them is a delicious bath; or if he can stand for an hour in a wet place, or in a running brook, he will get infinite comfort from it. We have sometimes rapidly assisted the cure of contraction, in the city, by manufacturing a country brook-bottom in this simple way: Put half a bushel of pebbles into a stout tub, with or without some sand, let them cover the bottom to the depth of two or three inches, pour on water and you have a good imitation of a mountain brook. Put the horse's forefeet into this, and let him bear his weight upon the frog. The first time he will grow uneasy after a few minutes, but when his frog becomes natural in its function he will be glad to stand there all day.

Do not carry this treatment to excess. Moderation is the most satisfactory course in all things. Abjure utterly all oils and greasy hoof dressings, they are pernicious recommendations of unreasoning grooms. They fill the pores of the wall, and injure in every way. Nature will find oil, if you will allow circulation and secretion, through the action of the frog.

"Stuffing the feet," is another wretched, groom's device. A horse has a dry, feverish hoof from contraction, so his hollow sole, denuded of its frog, is "stuffed" with heating oil-meal, or nasty droppings of cows. When this sort of thing is proposed, remember Punch's advice to those about to be married, "Don't do it."

A horse-shoe that the united voices or the shrewdest and ablest managers in the country commend—inasmuch as it enables cripples to work, frequently restores them, and maintains soundness where that quality exists—need not be recommended on the ground of economy. Such a horse-shoe could not be dear. But it takes all sorts of people to make a world, and the pressure to the square inch of mean men is not to be governed by safety-valves or regulated by gauges. There are too many men who will use the thing that costs the least outlay, even if it tortures or kills the horse. On the point of first cost we may say that if our shoe had no advantage over the hand-made shoe in preserving the natural action and growth of the foot, thereby retaining the powers of the animal in full vigor, it would still be cheaper than the common shoe. It is sold slightly higher than the clumsy pieces of bent iron called horse-shoes by mere courtesy, and its lightness gives one-third more shoes to the keg, while there is no expense of calking, which, in labor and material, is equal to three cents per pound. Upon the point of durability, it is well settled that the heavy shoe will not last so long as the light one with frog-pressure. A horse set upon heavy shoes grinds iron every time he moves. The least interposition of the frog will reduce the wear very materially, and if the frog is well on the ground, a horse will carry a shoe until he outgrows it.

A horse-railroad superintendent said to the writer, "We don't wear iron nowadays, we wear frog and cobble-stones; nature provides frog and Boston finds cobble-stones." When the Goodenough shoe is put for the first time upon a dry, half-dead foot, and the frog brought into lively action, growth is generally very rapid. We have often been compelled to reset the shoe, cutting down the wall, in ten days after shoeing. Many horses that have been used upon pavements and horse-railroads, have acquired a habit of slipping and sliding along, catching with heel-calks in the space between the stones; such horses do not at once relinquish the habit, and wear their first set of our shoes much more rapidly than the subsequent set, after they have assumed the natural action of their feet. But, economical as a light shoe that will long outlast a heavy one may be, the great saving is in the item of horse-flesh.

The value of the horses employed in the actual labor of the country reaches a startling sum total.

The vast importance of the horse in the movement of business, was never so fully understood and deeply felt as during the year past, when the epizoötic swept over the continent, paralyzing all movement and every form of human industry. Even the ships that whiten the seas would furl their sails and steamers quench their fires but for the labors of the horse. During the epidemic the canal-boats waited idly for their patient tow-horses and railroads carried little freight; the crops of the West lay in the farmers' granaries and the fabrics of the Eastern loom and varied products of mechanical industry crowded the warehouses; even the ragpicker in the streets suspended his humble occupation, for the merchant, unable to transport rags, refused to buy them of the gatherer. The investment of national wealth in horses being so enormous, any means that adds to the efficiency of the horse greatly enhances the general prosperity.

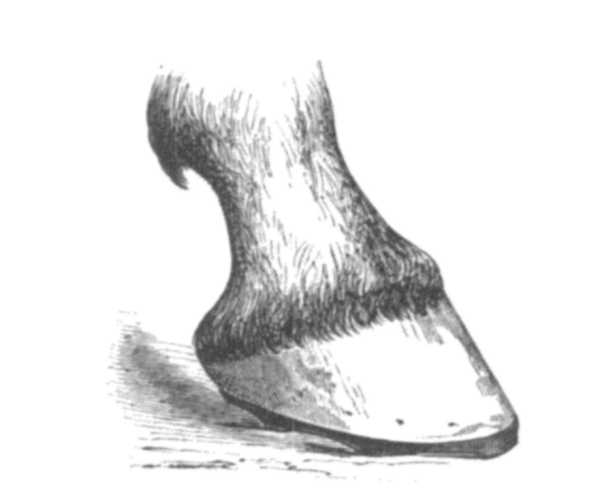

PERFECT SHOE AND HOOF.

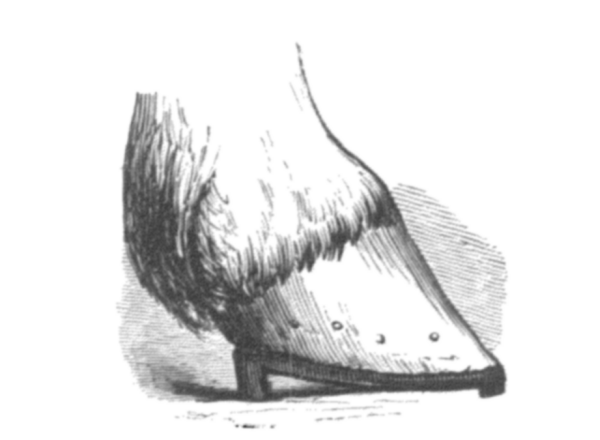

IMPERFECT SHOE AND HOOF.

It is an old English saying, that "a good horse will wear out two sets of feet." The meaning of this adage is obvious: a good horse's feet are useless at the time when his other powers are in the prime. Mr. Edward Cottam, of London, in his "Observations upon the Goodenough System," states that London omnibus-owners use up a young horse in four years; that is, a horse of seven years of age goes to the knackers at eleven, pabulum Acherontis; and the only noticeable cause of their failure is from diseases of the feet. A horse properly shod and cared for should endure five times as long. In this country horses fail in the feet, and are called old at an age when they should be in the fullest activity. This is a double loss, for every horseman of experience knows that if an old horse is sound and vigorous he has some great advantages over a young one. He is safer in every respect, "way-wise," seasoned, steady, and reliable. He and his owner are old friends and companions and can not part but with a pang of regret. A good horse, well cared for, should work cheerfully until he is thirty years of age; yet how few are able to perform genteel service after fifteen! It is a sad sight that of the high-mettled, noble animal, once the petted darling of wealth, caressed by ladies and children, and guarded so that even the winds of heaven might not visit him too roughly, fallen through the successive grades of equine degradation, until at last he hobbles before a clam-wagon or a swill-cart—a sorry relic of better days.

The question is so plain that we hesitate to argue with intelligent people to prove that, if the old system of shoeing destroys the value of a horse in middle life, half his money value is sacrificed to ignorance—a waste that might be saved were nature's laws regarded. That part of the argument which demands that the faithful, devoted servant merits humane treatment and the best intelligence of the master in securing his health and comfort can not be forgotten and need not be urged upon the attention of the true horseman.

To be rational in any course of action is, primarily, to follow the leading of reason, and by that guidance to arrive at correct conclusions.

It is the opposite to the method which is irrational—regardless of reason, and therefore leading to conclusions erroneous and absurd. Rationalism is opposed to ultraism, to vehement, officious and extreme measures—while it would seek more excellent ways, it holds fast to that which is good.

Rationalism in medicine is the method which recognises nature as the great agent in the cure of disease, and employs art as an auxiliary to be resorted to when useful or necessary, and avoided when prejudicial.

In our treatment of the hoof, we would seek to know the cause of the horse's troubles, firmly believing that he is endowed by nature with strength to perform the service man demands of him, and that he is not necessarily a helpless prey to torturing diseases of the minor organs; and, indeed, subject only to that final, unavoidable sentence, which in some form nature holds suspended over all animate existence.

Having by the aid of reason ascertained the cause of defects, we would assist nature to relieve them; we have therefore called this little hand-book of suggestions from our experience, Rational Horse-shoeing.

Having taken upon ourselves to reform evils, rooted deep in old customs, and to abolish abuses older than our civilization, we have to meet with discouragement and opposition in various forms.

Even the enlightened and well-intentioned hold back incredulous. This form of opposition finally examines, being led thereto from motives of economy and the promptings of humanity; it usually approves and assists, but is often carried back by indolence, when it discovers that it must join us in the loud battle we are forced to wage all along the line against fierce interests and bitter prejudices.

We attack with slender array, but unflinching purpose, the gloomy powers of ignorance that are allied to doubt and indifference. These contend under the prestige of a thousand years of possession.

Ignorance and Prejudice are twin giants that renew their life upon each other; they are as old as chaos, and are invulnerable to the weapons of ordinary warfare. Like the fallen angels, they are—

"Vital in every part,
And can but by annihilation die."

One of the Greek fables, typifying the struggle of man against circumstances, was a story of the battle between Hercules and Antæus, son of the Earth. The fight was long and doubtful, for whenever the mortal was felled to the ground by the power of the vigorous god, his force was renewed by contact with the breast of his mother Earth, and he sprang to his feet and recommenced the never-ending strife.

This contest between the god, and the mortal born of earth and sea, is the poetical type of the unceasing toil of man in the Valley of the Nile, against the sandy waves of the Lybian desert, always encroaching upon the cultivated soil, and demanding year by year new exertions to repress their advance.

So, in our attempt to establish a better system of utilizing the powers of the horse in the service of man, we have each day to meet the same enemy, renewed by contact with the sources that foster and reinforce ignorance. But as persistent labor conducted the beneficent waters of the Nile in irrigating channels through the arid plain of the desert, until upon the inhospitable edge gardens bloomed, fields of grain waved in the breeze, and the date-palm cast its grateful shade upon the husbandman—so we make healthful progress, and enjoy a widely increasing triple reward—first, in the thankful esteem of our fellow men; secondly, in the relief we afford to a noble animal; and last, in the substantial return which the highest authority has adjudged to honest labor.

We wish all readers of this book to understand that the directions herein given for shoeing apply to horses whose owners expect them to work regularly after shoeing—from the very hour in which the shoes are set.

We do not propose to "lay up" horses, or to put them to rest in "loose boxes," nor yet to "turn them out to grass." One of the chief difficulties we have had with wealthy owners has been from the tendency to keep the horse out of work when we have got him into a condition where we want exercise to stimulate the alterative process we propose.

A cure of any foot disease we have described, will be much more rapidly effected if the horse has his regular work upon the roads or pavements to which he is accustomed, no matter how hard they are.

We hope that it has also been noticed, that we do not propose to cure spavins, splints, navicular disease, or to restore the natural action of a horse where ossification of cartilage is well established.





---
