CHAPTER II. RIVER POLLUTION. — REDUCTION OF SEWAGE BY AERATION. — REDUCTION OF URINE BY AERATION — THAMES RIVER. — QUALITY OF POLLUTION. — CONTAMINATION OF WATER SUPPLY.

CHAPTER III. PURIFICATION OF WATERS. — FILTRATION — SUBSIDENCE — RESULTS OF SUBSIDENCE. — AERATION

The Rivers Pollution Commission of 1874, says, as regards filtration: “No process has yet been devised for cleaning surface water once contaminated with sewage, so as to make it fit for drinking.” Others say it is not safe to trust to dilution, storage, agitation, or filtration for periods of time, for the complete removal from water of disease-producing elements whatever they may be.

Dr. Frankland states:

The methods adopted for filtration of water are:

The infiltration system is resorted to where natural means for permeation are found; the galleries for intercepting the water being constructed in the sand or gravel banks or bed.

The clarification, however, is necessarily restricted, owing to the general high rate of filtration.

Lowell, Mass., has a gallery in the gravel banks of the Merrimack River, 1,300 feet in length, 8 feet by 8 feet, the bottom 8 feet below the river bed. The capacity is six million gallons, and rate of flow 150 gallons per square foot in twenty-four hours.

Lawrence, Mass., has a similar gallery.

Brookline’s (Mass.) gallery is 762 feet in length; 6 feet below the river bed. Rate of flow is 490 feet per square foot.

Newark, N. J., tried the experiment of driven wells. They drove sixty-three-inch tubes 28 feet apart, 40 feet deep, into the bank of the Passaic, three hundred feet from the shore line. The tubes were attached to three lines of suction pipes, and the latter united in one twenty-four-inch main for the supply of their five million pump. As their expectations as to the quality and quantity of water were not realized, a well was substituted.

Columbus, O., has a gallery under the Scioto River, 600 feet in length, with a capacity of eight millions daily.

Toronto, Canada, has a basin excavated in an island of Lake Huron, opposite the city, 13½ feet below low water, and 3,090 feet in length; the rate of flow is 52 imperial gallons per square foot for twenty-four hours.

Lyons, France, has two covered galleries along the banks of the Rhone; the area of bottoms 17,200 square feet; capacity six millions, and rate of flow at lowest stage 100 gallons per square foot.

Toulouse, France, has three covered galleries along the banks of the Garonne River. The last gallery constructed is 1,180 feet long; capacity, two and a half millions; rate of flow, 228 gallons per square foot of bottom area.

Perth, Scotland, has a gallery in an island of the River Tay, 300 feet long, 4 feet wide by 8 feet high, 2½ feet below the surface of the river; rate of flow, 182 gallons per square foot per diem.

Genoa, Italy, has a gallery in the valley of the northern slope of the Mantine Alps, 1,181 feet above the sea level. It is 1,780 feet long, 5 feet wide and 7 to 8 feet high, and extends, in part, beneath the bed of the river Scrivia, transversely from side to side, and in part along the bank. It has a delivery of 6,412 gallons for twenty-four hours per lineal foot.

The city of Glasgow made two failures in attempting to furnish a supply by this system. The first experiment was the construction of a reservoir on the northern bank of the Clyde, below the level of the river. Beneath the bottom of the reservoir was thirty-two-feet cylindrical tunnels made of wedged-shape bricks without mortar. The failure was due to the inability to keep the interstices free from the deposit of impurities. In the second plan, they excavated shallow wells, 10 feet in diameter, 6 feet deep, and 20 feet apart, in the stratum of sand adjacent to the river. The wells were connected by pipes. The scheme was a worse failure than the first one.

It often happens, as in the case of Waltham, Massachusetts, in locating these galleries, that spring water is intercepted in place of the desired water of the flowing stream. The difference in temperature and increased hardness of the spring water, determine the class of water.

is the artificial method of clarification by mechanical and chemical means. By the mechanical system heavier impurities are held in suspense by percolation of water through carefully prepared beds of sand, gravel, coke, shells, and like substances.

The total area of the London filter beds in 1874 was 68 acres, and rate of filtration per hour in inches and depth of water, or head on beds, were:

The efficiency of filtration is inversely to rate of flow. Humber says:

The maintenance of these beds enhance the cost of supplying water, because they must be cleansed frequently—in some cases once a week. The regulation and control of the water consumption is an important consideration, that the rate of increase will be proportioned to the growth of the city; and not, as in this country, an unaccountable rapid increase due to the profligate use of water that makes filtration impossible. Over eleven-twelfths of the water supplied to London is filtered with the following efficiency:

Dimensions of filter beds for given volumes (from Fanning):

Analysis of sand from filter beds (in 100,000 parts)

It can not be doubted that a small amount of organic matter undergoes oxidation and destruction during the passage of the water through the sand; but, independent of this, it appears, from the above analytical numbers, that one ton of dry sand, washed after previous use, is capable of removing from water and retaining 16.1 lbs. of peaty matter.

Chemical filtration may be arranged under the following heads:

Filtration through spongy iron (by Rivers Pollution Commission—Parts in 100,000 parts):

Filtration through animal charcoal:

is the most popular method of clarification of water by the deposition of heavy matter, accomplished in large storage reservoirs.

Fanning says:

London has 262 acres of subsiding reservoirs for removing the turbidity of the Thames and Lea Rivers, and used as storage at times of sudden freshets.

Mere exposure to the air, even if accompanied by violent agitation, is comparatively powerless for the removal of polluting organic matter from water. Although, however, the flow of a river has thus but little effect in purifying the water by the oxidation of the dissolved organic matters, it has a most material influence in the removal by subsidence of a large proportion of the suspended impurities both organic and mineral, especially if the flow be sluggish in places.

In passing through still pools, the turbid streams let fall its load of grosser mechanically suspended particles, and thus the water becomes clearer, although the dissolved impurity remains nearly as great as ever. It is, doubtless, this clarification by subsidence which has led to the very general but erroneous belief in the rapid self-purifying power of running water.

RESULTS OF SUBSIDENCE.

is the destruction of animate life by oxidation, and is best accomplished by placing weirs across streams, sheet flashing, or spreading of water in thin sheets, or by roughness of beds or banks of running waters. The benefits may be ascertained, chemically, by the presence of nitrates and nitrites. The Water Supply Commission of Engineers, for the investigation of the water system of Philadelphia, say:

The aeration adopted by Mr. Moore, Supt. of Cincinnati Water Works, at Eden reservoir, improved the purity of the water twenty per cent., as shown by the analysis of Prof. Stuntz, who recommends the adoption of the process on a larger scale.

Covered Reservoirs, although used by the ancients, are now being recommended as highly beneficial to the purity of the water, by depriving the organic germs of their propagation elements of light and heat of the sun, preventing freezing of water, and reducing evaporation to a minimum. Paris has two such structures. Chelsea (London) Water-Works has one of ten million capacity that cost $110,000.00.

The temporary hardness of water is produced by absorption of carbonates, and may be reduced to softness by:

Permanent hardness is produced by sulphates, chlorides and nitrates of lime, and magnesia, and can not be dissipated by boiling.

An imperial gallon of pure water can take up but about two grains of carbonate of lime, but the presence of carbonic acid in the water will enable the same 70,000 grains (an imperial gallon) to take up twelve, sixteen, twenty, or more grains of the carbonate, and for each grain so taken up is one degree of hardness by the Clarke scale.

The system patented by Dr. Clarke, of England, in 1856, is the most practical method for the precipitation of lime, effected by means of a dilution of water with slaked lime, in the proportion of one of lime-water to ten of hard water. The system is in use in several small places in England, notably Canterbury, where 100,000 gallons are reduced, daily, at a cost of twenty-seven shillings per million gallons, with the following results:

Plumstead water-works, previous to its purchase by the Kent Water Company, of London, reduced, daily, 1,000,000 gallons by the Clarke method. The new owners, however, abandoned it.

From the testimony of a number of reputable physicians, before the Rivers Pollution Commission, of 1874, hard water, to a limited extent, ten degrees, was not considered injurious, and, by some, absolutely beneficial to health, although soft water, for a general water supply, was preferable.

Mr. Homersham, C. E., the designer of several of these works, testified, before this commission, that it cost £1, 7s. for precipitating 1,000,000 gallons. To introduce this system into London, with a consumption of 100,000,000 daily, the cost, he says, would be $3,000,000 for plant, and requiring over thirty-three acres of ground for basins, etc.

The relative sanitary condition of cities, in the United Kingdom, using hard and soft water, is shown in the following table:

The celebrated engineer, Mr. Bateman, of England, estimates the saving to Glasgow, by soft water, at $180,000 per annum; and if London used the same character of water, the equivalent would be $2,000,000 annually.

The use of lime, by private consumers, is recommended by the trustees of the water department of Columbus, O. They say that one ounce of lime, when added to thirty-six gallons of water, make it superior, for washing purposes, to the rain-water usually obtained from the cistern.

CHAPTER IV. SYSTEM OF SUPPLY. — SPRINGS AND WELLS. — POLLUTION OF WELL WATER. — ARTESIAN WELLS. — TEMPERATURE OF WELLS. — EXAMPLES OF ARTESIAN WELLS. — WELL BORING. — PRACTICAL EXAMPLES OF WELLS AS SOURCES OF SUPPLY ONLY. — GRAVITATION — AQUEDUCTS. — DAMS. — PUMPING SYSTEM. — STAND PIPE. — HUSBAND’S PATENT BALANCE VALVE.

The systems of supply may be arranged under three general heads, viz:

We have, under this name, nature’s resources for supplying our wants, whose facilities for furnishing the requisite supply depend upon the local rain-fall, configuration of the land, and the nature, or geological formation, of surface and subsoils.

Land springs are fed by rain-water, gravitating through loose permeable soils. The waters are very readily affected by infiltration of surrounding soils, and their course so easily changed in any direction that the permanence of such a source can not be relied upon.

Deep springs are fed by the waters falling upon and soaking down to great depths, and find their way to the surface through some fault, upheaval or other great geological disturbance, or between some impermeable strata. The most copious springs are in the tertiary strata, and the law, as regards their abundance, is “the rarer the visible springs may be, the more copious they would be found.” The permanence of the springs can only be relied upon after careful gauging, extending over several years.

Wells may be separated under the following divisions:

Shallow, or dug wells.
Ordinary deep, or pump wells.
Artesian wells.

The above fact is illustrated, practically, in London, where the water line of the chalk formation has been permanently lowered to the extent of fifty or sixty feet below Trinity high-water mark; and it is even stated that the level of the water in the wells, near the summit of this formation, rises, on the Monday morning, in consequence of the cessation of pumping in London during the Sundays. The experience of Liverpool corroborates this fact: that the Windsor well, having a depth of 210 feet, affected the surrounding wells to a maximum distance of a mile and three quarters. The celebrated engineer and originator of the well system of Liverpool, Robert Stephenson, from long experience and careful observation, offered the following conclusions (from Hughes water-works):

Statistics of the flow of the Windsor well show that the yield, in 1843, was 1,152,000 gallons per day; in May, 1848, 807,061 gallons; in January, 1850, from 705,667 to 634,752 gallons. The observations of the Green Lane well, in the same city, give the decrease in flow, per annum, at 4.7 to 6 per cent.

A plan has been proposed, by Mr. Bailey Denton, that, in order to increase the water-bearing stratum under London, sufficiently for a water supply, and also secure the well-known benefits of the filtration powers of the chalk, to let the Thames water pass down to the chalk, through the London clay, by means of wells sunk or bored. The objections raised against this plan is the possibility of the wells becoming choked by accumulation of impurities.

Mr. J. T. Fanning in his valuable “Treatise on Water Supply Engineering,” says:

It is stated that about fifteen millions of the British population live in towns and urban districts. Even if we assume, which is not yet the case, that all these people are supplied by water-works, the remaining twelve millions of county population derive their water almost exclusively from shallow wells, and these are, so far as our experience extends, almost always horribly polluted by sewage and by animal matter of the most disgusting origin.

As the contents of the water-hole or well are pumped out, they are immediately replenished from the surrounding disgusting mixture, and it is not therefore very surprising to be assured that such wells do not become dry even in summer. Unfortunately, excrementitious liquids, especially after they have soaked through a few feet of porous soil, do not impair the palatability of water; and this polluted liquid is consumed from year to year without a suspicion of its character.

Our acquaintance with a very large portion of this class of potable waters, has been in consequence of the occurrence of severe outbreaks of typhoid fever amongst consumers of this character of water.

The following table shows the average analysis of ten worst examples of well water (parts in 100,000 parts):

Artesian is the name applied to water-springs rising above the surface of the ground by natural hydrostatic pressure, or boring a small hole down through a series of strata to a water-bearing bed inclosed between two layers. It was first practiced in 1100, in province of Artois, France, whence it derives its name.

The flowing water of the Kissingen spring, Bavaria, is produced by carbonic acid gas.

Invariably the temperature of water from great depths is higher than at the surface, this being due to some unknown source of heat in the interior of the globe.

In Scotland, the rate of increase of temperature, after permanent degree has been attained, is about one degree Fahrenheit for every forty-eight feet of descent.

At Grenelle, the temperature was found to be 1.8 degrees for every 106 feet of descent below the point of constant temperature.

The average rate of increase of temperature is one degree for a descent of from forty to fifty feet.

The temperature of the boring at Columbus increased, below the permanent line, one degree in every seventy-one feet.

The famous well at Grenelle, France, was commenced, by the government, in 1834, and after repeated failures and discouragements almost to abandonment, notwithstanding the urgent representations of the scientist Arago, that water would be found, the end was accomplished at the depth of 1,798 feet, in the year 1843. The diameter of the bore is 3½ inches; capacity, 600 gallons per minute; temperature of water, 82 degrees; height of flow, 128 feet. The expense attending this boring was 300,000 francs. The Passy well, near Paris, supplied from the same water-bearing stratum of the Grenelle, is 1,923 feet deep; 2′ 4″ inches bore at bottom; capacity, 5,582,000 gallons per day; height of flow, 54 feet. The La Chapelle well was started in 1866, with a gigantic bore of five feet seven inches, and by November, 1869, had reached a depth of 1,811 feet, the intention of the engineer being to extend it to a depth of 2,950 feet.

At the part of Paris named Butte-aux-Caelles, a well was started, in 1866, of six and a half feet diameter, to be carried down to a depth of 2,600 to 2,900 feet.

The Kent Water-Works, of London, is supplied by wells in the chalk formation, yielding 9,000,000 gallons daily. This great flow is due to what is known as a fault in the London basin strata.

St. Louis has a well 3,147 feet deep.

Louisville has a three-inch well, 2,086 feet deep, with a capacity same as the Grenelle well.

There have been nine artesian wells successfully bored in Cincinnati, a description of which will be found on page 107.

Charleston, South Carolina, has an artesian well 1,970 feet deep, from which pure soft water, of 90° temperature, flows ninety feet above the surface. It has five inch tubing on top and two and three-fourths inch diameter at bottom. The cost was $2,500.00, and the time required in sinking was a little more than a year. There is also an artesian well, in the same city, 1,250 feet deep, which discharges 25,000 gallons a day, of water, at a temperature of eighty-eight degrees, strongly impregnated with sodium and magnesium.

The desert of Sahara has a number of well borings, some yielding as high as 1,500,000 gallons daily. The depth varies from 130 to 400 feet, and temperature 70 to 77 degrees.

The Ohio State authorities undertook to supply the capital by an artesian well. After two failures, in attempting to tube out the quicksand, they succeeded (in November, 1857) in piercing through the rock, and at a depth of 149 feet a vein of water was struck that continued to wash away the borings for nearly 100 feet below. On the 1st of October, 1870, a depth of 2,775 feet was reached, but no flowing water obtained, when the undertaking was abandoned for want of an appropriation.

The record of the boring is tabulated as follows:

Temperature of well at bottom, 88 degrees, being uniform for 90 feet, at 53 degrees, will make an increase of one degree for every additional 71 feet. It was the opinion of Prof. Newberry, that, if water was successfully struck, it would be of a saline character.

Dubuque, Iowa, is supplied by a spring accidentally struck while tunneling in a neighboring drift.

At the upper basin of the Thames River there are seven springs, whose capacity is estimated at 32,000,000 gallons daily.

Liverpool, England, has four wells, with a combined capacity of 6,000,000 gallons daily.

Birmingham, England, has four wells, from which the water company derives 8,000,000 gallons daily.

Washington has over 400 wells, and Cincinnati about 300, nine of which are artesian, that were bored by private enterprise.

The deepest well in the world is near Berlin—4194 feet deep without piercing the salt formation.

The art of boring into the earth was practiced by the Chinese 2,000 years ago, the feature of their system being the percussive action of a tool suspended by a flexible rope.

The system now practiced in Great Britain, and on the Continent, is that in which the tools are attached to rods, consisting of a number of lengths, from ten to thirty feet long, joined by a separate collar, with a combined vertical and definite rotary motion, produced by a swivel joint in the upper length, or by suspending the rod to a “dog.” An ordinary well is first sunk to such a depth that the water below will rise, through the boring, into it. The object is to partly facilitate the object of boring, but chiefly to enable the pumps to be fixed without too great a length of suction. In deep wells, windlasses, driven by steam power, are used for operating the tool; the size of rod being, usually, 1¼ inch square; but for an eight foot boring, a 4½ inch square rod was used. To reduce the jarring and vibration, where borings are of considerable depth, the rods are hollow, in order to give same rigidity and resistance to torsion with less weight, and made buoyant, when working in water, by filling the rod with cork or light wood. A sliding joint, known as the “Oëuyenhausen joint,” is frequently used to bring the jarring only on that portion of the boring rod below. A shell pump is employed, in combination with the boring tool, for gathering the detritus, which obviates frequent raising of rod. Free-falling tools, guided by sliding joint, with catch or pall to raise same, are largely used. The weight of tool depends upon the depth and character of boring, that of the La Chapelle well being four tons.

In the oil-well boring of Pennsylvania, the rope (with about 50 feet of iron bar, sliding jaws, sinking bar, flat drill and sand pump attached) are exclusively preferred.

Where the surface soil and underlying drift possess sufficient porous qualities for absorption of a large portion of the rain-fall, together with the natural benefits of the impervious stratum beneath, having a proper axis of inclination favorable for conducting the infiltration of adjoining water-sheds, a large supply of water may be secured by the construction of dug wells for intercepting the subterraneous water.

Fanning has computed the following available quantities, under favorable circumstances, for percolation, from one square mile of porous gathering area (the mean annual rain being assumed at forty inches depth).

The city of Brooklyn gathers its supply by intercepting ponds. The source is the southern slope of Long Island, with a drainage area of 60.25 square miles. The plain is composed of fine sand, which is saturated with excellent water, the surface of which rises twelve feet per mile from the tide level at the shore, and which appears at the surface of the ground in springs and streams, where depressions occur in the ground level. The minimum observed flow occurred in 1880, and was equal to 9.4 inches on the water-shed. The available supply is, at times, quite small.

The city of Lynn uses a driven well partly, of which they say, in their annual report for 1880:

This method of securing water, however, is largely resorted to in the origin of water-works for small cities.

The Sanitary Engineer (Vol. v, No. 5) refers to a proposed well for Lincoln, Nebraska, a town of 15,000 inhabitants, that the contractor proposed to dig for the sum of $10,000. The estimated capacity will be ten million gallons a day, and the editor of the paper observes:

is that system of supply where the rain-water drainage of elevated water-sheds is gathered in natural or artificial storage basins, and conveyed through conduits by gravitation to the point of supply. The important points entering into the consideration of this method are:

The practical objections to the system are:

Surface waters from calcareous cultivated lands are polluted with but a moderate amount of organic matter; but, as some of this matter is almost always of animal origin, they are always undesirable, and may at any time become dangerous for domestic use.

If necessity compels their use, great care ought to be taken to secure their efficient filtration before they are delivered to consumers. This affords some, though by no means complete, protection from the propagation of zymotic disease through the agency of such waters.

They are generally very hard, and, unless artificially softened, occasion a great waste of soap when used for washing. Of all the waters of this description, those which flow from the surface, or from the drains of sewage farms, are generally most impure, because the time during which the foul sewage is exposed to the purifying action of plant and soil is reduced to a minimum.

Surface water from non-calcareous soil is generally soft but usually turbid and subject to animal contamination. Such water should always be carefully filtered.

ANALYSIS OF LAND DRAINAGE WATER FROM SEWAGE FARMS (PARTS BY WEIGHT OF 100,000 PARTS).

Much depends upon the knowledge of the climatic influences and rain-fall, extended, as it should be, through years of observation in determining the available quantity of water. Engineers, however, are liable to be too sanguine of the resources from water-sheds, by assuming, as a general rule, the average, rather than the minimum, rain-fall.

In 1868 nearly all the cities and towns of England, supplied by gravitation, suffered a water-famine, because of the overestimate of the available rain-fall, and in an insufficient provision of storage for an unusually long drought. Although the rain-fall for the year was above the average, yet it was unequally distributed.

The authorities of Manchester were obliged to publish official notices cautioning the inhabitants against waste, and, on the 3d of August, limited the supply to the city to twelve hours of the day, stopped the street watering, and diminished the trade supplies by one-half. In the middle of September the general supply of the town was further limited to eight hours per day. Many persons were prosecuted for waste or undue use of water.

Liverpool, Sheffield, Bristol, and several other large cities were obliged to resort to like severe methods enforced at Manchester. New York has been using every gallon that the aqueduct is capable of supplying; and, during the drought of last summer, when the head of water at Croton Lake was diminished, the capacity of the aqueduct was so reduced that the flow of water to the city was reduced, and a water-famine averted only by a Providential rain-fall.

The rule observed among engineers, in Great Britain, in determining the calculated rain-fall, is the deduction of one-sixth from the average rain-fall of twenty years for an average annual rain-fall of the three driest consecutive years in that period. But, as Mr. Homersham, C. E., observes, the axiom in mechanics, that the strength of a beam is the strength only of its weakest parts, applies also to gravitation water-works, their real strength or power of supply being only the minimum quantity they may be reduced to.

Allowance for absorption depends upon the geological formation and stratification, and for evaporation, upon local influences.

The following is taken from Hughes’ Water-Works:

In addition to the general configuration of the valleys, which ought to be deep and with precipitous sides, flanked by lofty hills, there are several other points which require attentive examination in projects for collecting water from drainage areas:

The geological structure is extremely important in estimating the capacity of a drainage area. It is not alone the rain which falls on the sloping surface of the hills, and finds its way by gravitation to the lower levels; but the effect of springs is also very great in augmenting the quantity of water. Many drainage areas are also valleys of elevation, in which the strata dip in opposite or anticlinal directions on opposite sides of the valley. In this case it is evident that much of the rain falling on a porous surface will insinuate itself between the partings of the strata, and flow off in a direction contrary to that of the surface drainage.

From Mr. Beardmore’s work we take the following, as the proportion or percentage of rain-fall which flows off the surface:

In England the allowance for absorption and evaporation ranges from nine to nineteen inches per annum. In this country it is from 75 to 100 per cent. greater.

We produce from “Fanning’s Water Supply” the following table of experiments on evaporation from surfaces of shallow tanks:

The following from the same author of the minimum flow of streams in cubic feet per second, per each square mile of water-shed:

From the different surfaces, its ratio of the annual rain, including floods and flow of springs, is approximately as follows:

MONTHLY EVAPORATION FROM RESERVOIR.

(From Fanning.)

AVERAGE AVAILABLE RAIN-FALL FOR STORAGE PURPOSES.

(From Fanning.)

SUMMARY OF FLOW OF RAIN-FALL IN CU. FT. PER MINUTE PER SQUARE MILE.—(From Fanning.)

The plan, as adopted by Mr. Hawskley at Liverpool, and Mr. Bateman at Glasgow, of subterranean pipes, is now universally followed by engineers. And there is no longer any excuse for incurring the outlay which must attend the erection of monumental structures, such as were necessary in the times of the ancient Romans.

The engineer of Marseilles Conduit adopted the “Pont du Gard” plan for conducting the waters of the Durance, in preference to iron pipes, and constructed the splendid folly, “as Humber terms it,” of the aqueduct “Roquefavour.” The dimensions are:

The cost was $750,000, while inverted syphon pipes could have been laid for one-third of this sum.

The aqueduct for Glasgow is thirteen miles in tunnels, 3¾ miles of iron-piping across valleys, and nine miles of opening cutting and bridges. There are eighty distinct tunnels, and twenty-five important iron and masonry aqueducts. On the line is the Drymen bridge on masonry piers, eighteen feet apart, with two pipes surrounded by wood lagging, a forty-eight-inch syphon at Aberfoyle Road, and a lofty bridge at Ballewan, seventy feet in height.

The Aberdeen water-works has a thirty-six-inch syphon, 1,200 feet in length, across Cullen Burn, supported by granite piers.

The Croton aqueduct is a masonry channel lined with brick. The bottom is an inverted arch with cord 6.75 feet, and versed sine 0.75 feet; side walls are 4 feet high, and battered so that at the top they are 7′ 4″ apart, and surmounted with a semi-circular arch. The interior is 8.64 feet high, and area 53.34 square feet.

The grade is 0.021 feet per 100 feet, total length 38 miles. It crosses the Manhattan Valley 2 miles in extent, with two 36-inch, one 48, and one 60-inch cast-iron pipes, and over the Harlem River by granite bridge, known as High bridge, 100 feet above high water, composed of seven 50-feet and eight 80-feet spans. The conduit over the bridge consists of two 36-inch cast-iron pipes, and a wrought pipe 7 feet 6½ inches in diameter, resting upon saddles, supported by cast-iron standards placed 12 feet apart between the 36-inch pipes.

The aqueduct over Cabin John Creek, of Washington, D. C., water supply, consists of a single arch of masonry 220 feet span, is the largest masonry arch in the world. The rise is 57 feet 7 inches, thickness of crown 4 feet 2 inches, and at spring 6 feet 2 inches. Water is conveyed in an iron pipe 9 feet in diameter, built in solid masonry.

The bridge over Georgetown Creek, on line of Washington Conduit, is 200 feet span with two cords of iron pipe 4 feet in diameter, 1½ inches thickness, used as water conductors. The pipes were first lined with staves of resinous pine 3 inches thick to prevent freezing, but have been taken out. No allowance is made for expansion or contraction. A similar plan is in use at Philadelphia, over the valley of Wissahikon, consisting of two 20 inch cast-iron flange pipes serving as top members of a series of inverted bow-string trusses. There are four spans, each 169 feet 9 inches. Center span 100 feet above ordinary level of the water.

The Boston aqueduct crosses the Charles River by syphon pipes—two, 30 inches, and the other 36 inches in diameter. Starting from a pipe chamber on the western side of the valley, the pipe descends 52.11 feet below the level of conduit, and rests on a masonry bridge of three arches.

One of the syphons for supplying Madrid, Spain, crosses a valley 4,560 feet in length, consisting of four lines of cast-iron pipes three feet in diameter.

Dublin is supplied through 30,336 yards of 33-inch and 8,272 yards of two lines of 27-inch cast-iron pipes—20,000 yards laid through private property. The average fall is 20 feet per mile. There are three relief-tanks on line of 33-inch pipe. The capacity of this pipe was calculated at sixteen millions per day, while the actual delivery exceeded twenty millions.

Toronto is supplied by a 4-foot wooden pipe, 7,000 feet in length, under pressure.

Manchester, N. H., has a wooden penstock, six feet in diameter, 600 feet in length, that conveys supply to water wheels, under a head of twelve feet at entrance and thirty-eight feet at outlet.

The new conduit for water supply of Baltimore is a continuous tunnel, seven miles long, running from the dam to the receiving reservoir—“Lake Montebello.” In its construction no open cuts were made; all work being done by drifting. Its depth below the surface of ground varies from 65 to 360 feet. The internal diameter is 12 feet; the fall is one foot per mile; capacity 170 millions daily. Fifteen shafts were sunk during the constructive work. Two miles of the tunnel were through material that required to be arched with brick; the remaining distance was through very hard rock that did not require arching. The cost of this structure was about two millions of dollars.

Chicago has two tunnels under Lake Michigan, parallel with each other, 46 feet apart, extending to a crib, located in the lake, two miles from the shore. The first one was started, in 1864, under adverse criticism, and successfully completed in 1867. The cost, with the crib, was $457,800. It is five feet horizontal diameter, and 5′ 2″ vertical diameter, and made of brick. The second one was built in 1872-’74; is five feet in diameter, lined with brick. It extends from the North Side Works, a further distance of 20,000 feet, under the city and Chicago River to West Side Works. The cost of this tunnel, under the river, was $414,000, and under the city $543,000. The nature of the excavation was generally through stiff blue clay with occasionally pockets of quicksand.

The Sudbury conduit, of Boston Water-Works, is sixteen miles long, with a grade of 1.056 feet per mile. The top is a semicircle of nine feet diameter, and the bottom is an arc of 13.22 feet radius, struck from a center 5.53 feet above the crown of the arch. The sectional area is 56.75 square feet. The foundation is of concrete; the side walls and spandrel backing of rubble stone masonry; the lining of brick, four inches thick, and the arch of brick, twelve inches thick. The Charles River is crossed by a granite bridge, 475 feet long and 75 feet high, with two segmental and five semicircle arches.

On the line of the Vanne conduit there is an aqueduct made entirely of “beton,” which spans the valleys and quicksands in the great forest of Fontainebleau, between La Vanne River and Paris.

CONDUIT DATA.—(From Fanning.)

The disastrous failures of earth dams has excited suspicion as to the stability of such structures; but when we consider the immensity of the dams in India, our concern should be only for the care and attention given to their construction. There the material used is well puddled; then a drove of cattle is turned loose on the fill, to stamp the earth thoroughly. This method is repeated in layers until the required height is reached. Often the Sepoys do the stamping.

The Veranun reservoir dam is twelve miles in length; and the amount of earth, of which it is composed, will encircle the globe with a belt six feet in thickness.

There is a dam on the island of Ceylon made of huge stone blocks strongly cemented together and covered over with turf, making a solid barrier of fifteen miles in length, one hundred feet wide at the base, sloping at top to forty feet, and extending across the lower end of a spacious valley.

DIMENSIONS OR RESERVOIR DAMS.—(From C. H. Beloe.)

One of the recent dams of the Croton supply, made of concrete, is thirty-one feet at the base, eight and one-half feet at top, six hundred and seventy feet long, and seventy-eight feet high. The main embankment, which forms Lough Vartry of the Dublin Water-Works, is sixty-six feet high at its deepest part, and the greatest depth of water, sixty feet. It is 1,640 feet long on the top, and twenty-eight feet wide, which forms a public road. The base, at the deepest part, is 380 feet wide; the inner slope being 3 to 1, and the outer slope 2½ to 1, and the total quantity of earthwork in it is 320,000 cubic yards. The puddle wall in the embankment is six feet wide at the top (one foot below the top bank), and eighteen feet wide at the level of the old river bed. It was carried, for its entire length, down into solid rock.

The dam of Bradlee basin, Boston, is 2,000 feet in length, twenty feet wide on top, one hundred and fifty feet at the base, and greatest height thirty-five feet. In the center of the bank is a puddle wall ten feet thick at the base, and four feet at the top, founded on the rock. The earth embankment was laid in layers, well watered and rolled.

COMPARISON OF LARGE GRAVITATION WORKS.

The dam for diverting the waters of Gunpowder Falls, for supply of Baltimore, is built of rubble and white marble upon solid rock. Thickness at base is sixty-two feet; depth of foundation below original surface is thirteen feet; width of the overflow is three hundred feet. The wings extend into the hill on each side two hundred and fifty-six feet. The height from the extreme foundation to the overflow is twenty-nine feet. The filling of the clay and earth on the inside is forty-five feet at the base.

Liverpool, Eng., designs constructing a masonry dam, at the source of the new supply in Wales, eighty-four feet in height.

The divisions of power are:

And the methods of supply by:

The value of a pumping system recommends itself on the point of economy in construction, for the outlay is in proportion to the existing necessities, which can be increased as the demands require. The original water consumers are not, therefore, taxed so heavily for future exigencies of gravity works. This idea can be better illustrated by the comparative cost of construction and maintenance of gravitation and pumping works:

The reservoir system is the most preferable of the three methods, when natural elevation can be secured, for the pumping service is distinct from the distribution; and, where reservoirs of large capacities are obtainable, a closer margin for reserve pumping power can be adopted, besides a storage reservoir provides for contingencies that may arise, and allow cessation of pumping during the turbidity of water source, caused by sudden freshets.

The stand-pipe is adopted where the elevated grounds are not sufficient for reservoir purposes, to give a desirable water pressure; or where reservoirs may not be desired, but to secure the head and provide for a constant and reliable action of the pump that is not obtained by a direct system.

The direct system, commonly called the Holly Plan, does away with reservoir and stand pipe, and delivers the water directly into the mains under a pressure usually fifty pounds per square inch for domestic use, which is increased to one hundred pounds when fires occur. In the Holly Plan, a reserve power is used for fire purposes, besides mechanical device for regulating and controlling the variable pressure.

In either the stand pipe or direct system, a reserve power should be provided equal to the largest daily consumption.

From a compilation of general information concerning water-works of the United States and Canada, published by the Holly Manufacturing Company in 1878, we arrange the following:

Of the above number of pumping works—

The expense of pumping water by steam and water-powers, also the practical yearly duties of various pumping engines, are given in the tables on pages 61 and 64, compiled from annual reports for 1880:

PRACTICAL DUTIES (WITHOUT DEDUCTIONS) OF PUMPING ENGINES (YEARLY AVERAGE).

(From Annual Reports of 1880.)

Remarks.—

The term, duty of a pumping engine, is a conventional one, used by engineers to measure the relative merits of performance, or effective work, expressed by the ratio of product in foot pounds of the weight water into the height it is lifted, to one hundred pounds of the coal consumed to lift the water. The following tables of expert trials are taken from “Manual for Engineers and Steam Users,” by John W. Hill, M. E. (1878), with a few additions:

PERFORMANCE OF PUMPING ENGINES.

PERFORMANCE OF PUMPING ENGINES.

(A. S. C. E. is the American Society of Civil Engineers.)

COST OF PUMPING ONE MILLION GALLONS OF WATER,

(From Annual Reports, 1880.)

New York has a stand-pipe, for high service use, 170 feet high.

Cleveland has a stand-pipe 148 feet high, 36 inches in diameter.

The stand-pipe at Louisville is 48 inches in diameter, 132 feet high, made of ¼ to ½-inch wrought-iron plates, the whole incased in wood.

The Mt. Auburn High Service at Cincinnati is supplied by two wrought-iron tanks (which answer the same purpose of stand pipes), each 60 feet in diameter and 38 feet high, and made of wrought-iron sheets 50″ by 140″, ¼″ to 7-16″ in thickness. The water surface is 483 feet above low water. The cost of each tank was $15,000.

The water-tower at Toledo consists of a wrought-iron stand pipe, around which is built a masonry structure of solid stonework 36 feet square, commencing 16 feet below the natural surface, with a vertical thickness, under base of stand-pipe, of 7 feet; thence, with octagonal opening around the pipe, to a point near 3 feet above the surface of the ground, at which point its inner diameter is 16 feet, and outer dimensions 30 feet square. From this point, to a further height of four feet, the wall is composed of ashlar-face and brick backing; thence to a point 70 feet above the foundation of solid brick-work with octagon interior and exterior squares, the corners terminating in buttress walls; the top to be octagonal battering to an external diameter at the top of 14 feet. The total height is 224 feet, and the cost about $25,000.

A steel plate stand-pipe designed by J. D. Cook, civil engineer for Springfield, Ohio, is in course of erection by the Stacey Manufacturing Company of Cincinnati, which will be 112 feet high, 30 feet in diameter, thickness of lower ring being 25-32″, and upper ring 3-16″. The estimated cost is $35,000.

The stand-pipe of Southwark and Vauxhall Water-Works, London, is 178 feet high, made of three columns of cast-iron pipe, the center one extending 50 feet higher than the other columns. The side pipes are 30 inch, and center 48 inch in diameter. The Grand Junction works, London, has a similar structure of two columns 153 feet high, incased in a brick structure.

The stand-pipe of East London Co. is 240 feet high and 3 feet in diameter.

This patent is designed to supersede the costly stand-pipe. Fixed vertically, as near to the engine as practicable, is a strong casting provided with two short-flanged branches, the lower one being connected with the discharge outlet from the pumps, and the upper one with the delivery main. Between these branches a gun-metal valve of the double-seat description is placed, and is connected to an additional water-tight hat working on the top of the valve-seating. The seating is firmly held down by bolts passing through it and fastened to the casing. A ram lined with gun-metal, and of the same diameter as the upper valve, is secured water-tight into it by a colter, and works vertically up and down, passing through a stuffing-box packed with cup leather, bolted to the upper portion of the casing. The head of the ram works in a cross-guide lashed with gun-metal, and supported by four strong vertical pillars. The ram is loaded with weights nearly equal to the minimum load of the engine; the lowest weight is provided with lugs working loosely over the vertical pillars, which are provided with adjusting nuts and leather washers, for the purpose of preventing the valve from falling heavily and injuring its seating. The action of the apparatus is as follows: The water, on entering the casing from the pumps, acts upon the under side of the upper valve. The area of the valve is the same as that of the ram, which, being loaded somewhat under the working load of the engine, is immediately lifted, raising the valve with it, and thus giving the water free access to the delivery main.

In the event of the main being fractured at any point beyond the valve, the pressure within the main is suddenly reduced on account of the great escape of water, and is, consequently, unable to support the loaded valve, which immediately closes; thus the working load of the engine is retained, and the possibility of accident by racing prevented.

FUEL EXPENSE FOR PUMPING COMPARED ON DUTY BASES.—(Fanning.)

DIMENSIONS AND COST OF CONSTRUCTING PUMPING ENGINES.

CHAPTER V. HISTORICAL AND STATISTICAL.

New York was supplied by dug wells until 1842, when the Croton water was brought, by gravitation, into the city, through a brick aqueduct, thirty-eight miles in length, crossing the Harlem River by “High Bridge.” The area of the water-shed of the Croton is 338.82 square miles. The storage capacity nine billion gallons. The capacity of the aqueduct is ninety-two millions of gallons per day.

There are three distributing reservoirs:

The population is 1,206,500; miles of water-pipe, 500—the largest being seventy-two inches in diameter; the average daily consumption of water ninety-five millions; number of taps, 77,000. All buildings are assessed by frontage-tax besides usual water rates. The meter rate is 7½ cents per thousand gallons.

The original cost of the gravitation works was about nine millions; present water-works valuation is thirty-two millions.

An additional supply from Bronx River is now in course of construction. The water will be conducted through an aqueduct, of forty-eight inch cast-iron pipe, twenty miles in length. During last summer a water-famine was prevented by a Providential rain-fall.

Philadelphia was supplied with water, systematically, in 1801; previously, wells were the only source.

The system of supply is pumping by steam and water-power, thirty-seven per cent. being done by the water-wheels in 1880.

The available capacity of water-wheels is 36,000,000 gallons daily. During summer there is a deficiency of power. Capacity of all the pumps 71.8 million gallons. There are 16 reservoirs, with a total capacity of 200 millions. The distribution of water is divided among the various works in relation to respective elevation. The population, in 1880, was 846,984. Miles of pipe, 746. Daily average consumption, in 1880, 57.7 millions. Largest daily consumption 80½ millions. Number of meters 30. Total receipts, in 1880, were nearly 1½ millions of dollars; and expenditures nearly $400,000. Laying of water-pipes assessed on abutting property. Total profits, since 1855, over twelve millions of dollars.

The pumping stations and performance for 1880 are:

Brooklyn.—Water-works introduced in 1859. The system is by pumping, with reservoir distribution. The source is the southern slope of Long Island Sound, ten to twenty-two miles from East River. The water is gathered from a drainage area of 60½ square miles by intercepting ponds, and conducted, through masonry conduit, to the pump well, seven miles from East River. The natural flow, from these ponds, into the conduit being insufficient during summer time, pumping engines were erected, 1874, at Watts’ and Smith’s ponds to meet the deficiency.

The storage reservoir, built in 1873-’76, has a water surface of 250 acres, and a capacity of one billion gallons. There are three low-pressure beam-engines, with a combined capacity of 44 millions daily. The distributing reservoir is 3,400 feet from pumping wells, at 163 feet elevation and with a capacity of 160 millions.

Population, in 1880, was 566,689. Miles of pipe, 351. Daily average consumption of water, in 1880, 30¾ millions. Largest daily consumption 48 millions; number of taps, 60,000; meters, 859; original cost of works, $5,200,000.

Chicago.—The first works were constructed by the Chicago City Hydraulic Company in 1840, Lake Michigan being the source. The superiority of this water, as compared with well water, so manifested itself during the cholera of 1849-’50 that the works became a public institution, under whose control they were enlarged, in 1854, after plans of Wm. J. McAlpine, C. E. The system is constant pumping through stand-pipe distribution, 120 feet above city datum. There are two pumping stations—North Side and West Side—the latter being the new works, erected in 1874. The source is Lake Michigan. Previous to 1867 the intakes were near the shore; and, in order to secure pure water, a brick tunnel, five feet wide by five feet two inches in depth, was built under the lake, a length of two miles, to a crib located in the lake. A second tunnel, 5 ft. in diameter, parallel to the first, and forty-six feet apart, was constructed to the North Side Works, thence continuing under the city, a distance of 20,000 feet, to the West Side Works. The North Side Works has four engines, with a combined capacity of 64 millions; and the West Side Works two engines, with a capacity of 46 millions.

In 1856 a twenty-four inch wrought main was laid in the Chicago River; but, before brought into use, was injured by pile-driving, and had to be relaid. In 1869 all the submerged mains were abandoned, because of frequent accidents, and brick tunnels, six feet in diameter, were built under the river. The statistics for 1880 were: Population, 503,304; miles of pipe, 450; daily average consumption, 57.4 million gallons; number of meters, 2,000. Cost of West Side Works, with new tunnel, $1,600,000. Total cost of works, $8,644,000.

Boston.—In 1835 there were 2,767 wells in use, thirty-three of which were artesian, besides a water-works under the control of “The Aqueduct Corporation.” Out of the whole number of wells only seven furnished water soft enough to use for washing. In 1840 there was great complaint of the deficiency of wells, and in one case it was stated that a well from which many drew their water, was kept locked except at certain hours. During this time there were 56 reservoirs, each holding 300 to 400 hogsheads. In 1848 water was first introduced from Lake Cochituate, through a brick conduit (except the cast-iron syphon over Charles River), oviform in shape, large end down, 6.33 feet high and 5 feet wide. Its length is 14.627 miles, with a total fall of 4.26 feet. It has a capacity of delivering 16 million gallons daily, with a velocity of one foot per second. The area of water surface, at full water, of Lake Cochituate is 800 acres; when drawn down 10 feet or level of the flow line of conduit, the area is 489 acres. Elevation is 134.36 feet, and bottom of conduit at dam 121 feet above tide level. There are two granite dams 500 feet apart. The first dam was built on quicksand, and after filling of the lake, springs boiled up and washed away the sand.

The new supply from Sudbury River was inaugurated in 1878. The drainage is 78.24 square miles. The conduit is 16 miles long, with a grade of 1.056 feet per mile. It is built of concrete and rubble masonry, lined with brick. It crosses the Charles River by granite bridge 475 feet long and 75 feet high. Its sectional area is 56.75 square feet, and capacity 70 millions daily.

There are two earth embankment reservoirs, one of 120 millions and the other of 550 millions capacity, besides four stone masonry structures of 22 millions capacity combined. One of the latter is used for high service, is 219 feet above tide, and has a capacity of 7 millions. The Roxbury High Service is supplied by two 20″ by 36″ pumps, through a stand-pipe 5 feet in diameter and 80 feet high. There is also a couple of temporary high service works. There are several cast-iron syphons of 20 and 24-inch pipes, with ball and socket points, submerged in the rivers. A crack in one of these 20-inch pipes was stopped by pine wedges, and then covered with an india-rubber band, secured by iron clamps. The work was done by a diver, and occupied three weeks. The Mystic Water-Works, of Charleston, became a part of the Boston Water System in 1873, by annexation.

The population is 412,000; miles of pipe, 500; daily average consumption, 36 millions; number of water takers is 68,334. There are 1,313 meters in use. The value of the works to December, 1880, was $18,354,716.17.

St. Louis.—The first water-works was built at foot of Bates Street in 1830, eight years after it became an incorporated city. The old works were entirely abandoned in 1872, when the new works, built after the design of Jas. P. Kirkwood, civil engineer, were put in operation. The new pumping stations is at Bissell’s Point at the northern city limit. The water is taken from Mississippi River, through a cast-iron tower (arranged to take water at any level) sunk in the river to the bed rock, and conducted by a 66-inch iron pipe to the first or low service pumps, which raises the water from 15 to 50 feet, according to the stage of the river, into settling basins (four in number, each 25 millions capacity); from thence it flows through a brick conduit 1,100 feet long, to the clear well of the high service or main works. The clear water is pumped through a stand pipe into a reservoir on Compton Hill, 870 feet by 540 feet, and 22 feet deep, and 176 feet above city directrix. The low service works has two Cornish bull and one rotative engine, and the main works has three combination beam engines with a combined capacity of 40 millions of gallons daily. The sediment in the water amounts, at times, to 1.8 per cent. of the total bulk. Nine hundred and forty-four parts in one thousand of the sediment is deposited within twenty-four hours in still water. One of the old reservoirs was abandoned entirely for twelve years, on account of the accumulation of deposit, being 30 feet in depth. It was cleaned by hydraulic mining, after a method designed by Henry Flad, civil engineer.

The population by last census is 350,522; miles of pipe, 200; daily consumption, 25 millions; number of taps, 20,000.

The cost of the new works was about five millions of dollars.

Baltimore.—In 1814 an association was formed for the purpose of introducing a copious supply of wholesome water into the city from Jones’ Falls. The works were purchased by the city in 1854 for $1,350,000, and enlarged in 1857-’62. The river water is diverted into Lake Roland, an artificial lake of 116 acres water surface. From this reservoir it is brought through an elliptical conduit, 3.62 miles, and discharged into Hampden Reservoir. This reservoir is semicircle in form, 1,000 feet diameter, with a water surface of 8 acres. It is 217 feet above tide. From this point the water flows through three lines of 30-inch cast-iron pipe, 7,100 feet in length, into Mt. Royal Reservoir, which is a circular structure 550 feet in diameter with a water surface of 5 acres, and 150 feet above tide. This reservoir supplies that portion of the city below 112 feet elevation. The Hampden Reservoir supplies the districts between 112 feet and 188 feet above tide, and the high service reservoir the district between 188 feet and 320 feet above tide. In 1867 the Druid Lake was constructed with a view of storing clear water, to be used when Lake Roland was muddy. It is made by building an earthen dam (across a natural valley in Druid Hill Park), 119 feet high in the middle with a puddled wall in the center 36 feet wide at the bottom. The greatest depth of water is 63 feet. Seven lines of cast-iron pipe were originally laid under the embankment, but broke within two years. Five lines of 30-inch pipe were then laid through a cut-in rock. Its capacity is 493,000,000 gallons, with water surface of 53 acres. The high service reservoir is circular, 500 feet diameter, 20 feet deep, and 350 feet above tide, and supplied by two Worthington pumps.

The new supply from Gunpowder River is brought through a 12-foot conduit 7 miles in length, having a capacity of 170 million gallons, to Montebello Reservoir, of 80 acres water surface, and 163 feet above tide. From here it is conveyed partly in tunnel and in open cut 5,391 feet to Lake Clifton, which has a water surface of 30¼ acres and elevation 163 feet above tide, and 31 feet deep. Provisions are made for six 40-inch mains; two now being used. The new system cost $4,704,260.83, and was formerly inaugurated in October, 1881. The statistics for 1880 are: population, 332,190; miles of pipe, 277; water takers, 49,000; meters, 524; outstanding bonds amounting to 9 million dollars.

Buffalo takes its supply from a pier in Niagara River, and is conducted through a tunnel 22½ feet below the river bottom. The system is pumping and reservoir distribution with Holly plan for fire purposes and supply of higher levels. At the pumping station there are two Worthingtons—one of 10 million and the other of 15 million capacity—and a condensing beam engine of 8 million capacity. A third Worthington is now in course of erection. There are three Holly pumps, one of 1½ millions; one of 2½ millions; and one of 6 millions capacity, which take their supply from the face main 20 feet below the reservoir, and pump directly into the mains. The statistics for 1880 are: population, 155,137; miles of pipe, 102; daily consumption, 16½ million gallons; water-takers, 9,099. The original cost of the works was $400,000. Present value 3 million dollars, outstanding bonds $2,950,000.

Washington is supplied from the Potomac River by diverting the waters at Great Falls 17 miles above the city, by a dam of cut masonry with rip-rap backing. Its top is 148 feet above tide level at Washington. The water is conducted through a brick aqueduct 9 feet in diameter, with a grade of 0.75 feet per mile. The reservoir at Powder Mill Branch (made by damming the stream), has a water surface of 50 acres, with a capacity of 176 million gallons. The expectation that the Potomac water, which is frequently very muddy, would have time to settle in this reservoir before being drawn from its outlet was not realized in consequence of the turbidity of drainage water collected by the reservoir itself; a connecting conduit was therefore built in 1864 to supply direct from Potomac River, during freshets, in Powder Mill Branch.

The high levels of Georgetown or those more than 90 feet above tide level, are supplied by pumping and reservoir distribution. The reservoir is a hemispherical brick structure, 120 feet in diameter, and 220 feet above tide.

The statistics for 1880 are: population, 147,307; miles of pipe, 175; daily consumption of water, 26 million gallons; number of taps, 17,000. Cost of aqueduct and its maintenance to June 30, 1880, was 3.8 million dollars, and for water mains, 1.7 millions.

Louisville.—The Louisville Water Company was chartered in 1854, and in 1856 the city subscribed to the capital stock to the amount of $550,000. The supply is taken from the Ohio River, 1½ miles above the city limits. The intake is 300 feet from shore, 50 feet in diameter, made of a crib of timber filled in with stone, the mouth of the inlet being 5 by 12 feet, and set 1 foot below lowest stage of water. By 1865 the inlet pipe was half full of silt; in order to clean it a well was sunk over the pipe, 105 feet from its end, the pipe cut, and then cleaned out. In 1877 the pipe was again cleansed. Anchor ice has given them much trouble. There are two Cornish beam engines which deliver the water through a wrought-iron stand pipe, 48 inches in diameter and 132 feet high, into a reservoir of earth embankments, 141 feet above low water, and 3,650 feet from the works. The water surface of this reservoir is 178 by 374 feet. The new reservoir on Crescent Hill is 175 feet above low water, and 2½ miles from stand-pipe. It has a capacity of 100 millions. Notwithstanding extraordinary care having been taken in the foundations of this reservoir, leaks and slips occurred soon after it was filled.

The statistics for 1880 are: Population, 123,645; miles of pipe, 110; daily consumption of water, 5½ million gallons; number of meters, 201; hydraulic elevators. 50; value of the works—construction, $800,000; enlargements, $2,400,000; total, 3.2 million dollars.

San Francisco is supplied by the Spring Valley Water Company from three sources. One from Lobos Creek, 4 miles from the city, where the water is gathered after slow percolation through sand, and conducted through 23,700 feet of wood and masonry aqueduct to the pumping-works (at zero datum of city level) at Point Black. These engines raise the water into two reservoirs on Russian Hill, respectively 396 feet and 139 feet above city datum. The ordinary yield of the source is 2¼ millions daily. Another source is from the mountains of San Mateo County, 15 miles from San Francisco, where a dam was built in 1864, 640 feet long, 26 feet wide on top, 95 feet high, with slopes 2¾ and 2½ to 1 foot. A puddle-trench is sunk 26 feet below the natural surface to the rock. After the reservoir was full, a leak appeared at one end of the dam caused by an unsound rock. While the reservoir was full a shaft was sunk 80 feet deep to the point, and the rock removed and replaced with puddle. This reservoir is 46 feet deep, and has a capacity of 1,083 million gallons, with a water surface of 692 feet above the sea. The water is conducted 13 miles, through a flume partly of 30-inch wrought-iron pipe, to Lagunda Honda Reservoir, 377 feet above the sea, with a capacity of 33 million gallons.

The third supply is brought from the water-shed of Lock’s Creek, 2.75 square miles in area, and 505 feet above tide. This water is conveyed 17.42 miles to St. Andres Reservoir through wrought-iron pipes and tunnels lined with solid masonry.

The St. Andres Reservoir has a capacity of 7,000 million gallons, and is formed by an earth dam 640 feet long, 25 feet wide on the top, and 93 feet high, with a puddle-trench 47 feet more to the rock. The cost of the works to 1875 was $8,746,928.12. Amount paid on dividends to stockholders $4,701,562.18.

The population in 1880 was 233,956, and daily consumption of water 17 millions.

Cleveland.—The water-works were constructed in 1853 after the plans of T. R. Scowden, civil engineer. The system is pumping through stand pipe with reservoir distribution. The source is Lake Erie, where the water is taken through a crib located in lake, 1¼ miles from shore, and conducted through tunnel under lake to the pump wells. The pumping stations contains two Cornish, a “Henderson” compound duplex, and a 10 million Worthington. The combined capacity is 28 million gallons. Another Worthington engine is being added to the service. The stand pipe is 148 feet high and 36 inches in diameter. The reservoir is made of earth embankments, 21 feet deep, with a capacity of 8 million gallons.

The population for 1880 was 160,142; miles of pipe, 125½; daily consumption of water, 10.18 million gallons.

Total cost of works to January 1, 1878, was $2,402,000. Bonded indebtedness, $1,725,000. Cost of original works, $523,000.

Portland, Maine, is supplied with water from Lake Sebago, which has storage capacity sufficient to supply the largest city of the world. The total area of water-shed is 520 square miles. The annual receipt of moisture, including rain and snow, is 51 billion cubic feet, while the discharge is 20½ billion cubic feet. The water is conveyed partly through a box conduit, 3′ 9″ by 3′ 6½″, an oval brick conduit 5,440 feet long, 2½′ by 3½′, to a gate-house, whence two wrought-iron mains, lined inside and covered outside with best quality Rosendale cement, each 16 miles long, distribute the water to the city. One of the mains is 20 inches in diameter for the whole length, the other 26 and 24 inches, and respectively 4 and 12 miles long. The water system is owned by the Portland Water Company.

Cincinnati.—The permanent system of water supply was commenced in 1817, when city council granted to the Cincinnati Manufacturing Company the privilege of supplying the city with water for ninety-nine years at an annual consideration of $100—the water to flow three feet above the first floor of James Ferguson’s kitchen, on west side of Vine, between Sixth and Seventh Streets, by 1820.

The first water was drawn from a wooden penstock at Sycamore Street and Lower Market, July, 1821, being raised by horse-power from Ohio River at the present site of pumping works, and forced into a wooden reservoir, and from thence delivered through wooden pipes to water consumers.

The Cincinnati Manufacturing Company transferred its privileges, in 1820, to Samuel W. Davis, and by him sold to Cincinnati Water Company in 1825. The entire works were purchased by the city in 1839, for the sum of $300,000, and consisted of 19 miles of wooden pipes, 3½ miles of iron pipe, reservoir in three compartments of 1,700,000 gallons capacity, two high pressure pumping engines with a capacity of 4,200,000 gallons per twenty-four hours.

The management of the water department was vested first with a board of directors composed of one councilman from each ward. In 1847 this power was given, by act of legislature, to a board of three trustees elected by the people, and in 1876 the Board of Public Works was established, which assumed entire control of all the public works, including the water-works.

The city is supplied by pumping and reservoir system, with a main and two auxiliary pumping works, and four distinct reservoir or distributing services.

The main work is located on the bank of the Ohio River, and takes its supply through two stone aqueducts, each 100 feet in length. The western one is extended 60 feet further into the channel of the river by two 40-inch wrought-iron pipes.

The pumping engines at these works are—three double and three single engines with a combined theoretical capacity of 49 millions, with present available capacity of 32 millions. The oldest reservoir, built in 1850-’53, is a stone structure, entirely above the surface ground, made in two divisions 23 feet in depth; the eastern part being 163 by 116 feet, and western 180 by 116 feet. Its capacity is 5½ million gallons. The cost was $50,000; its elevation, 176 feet above low-water mark in the Ohio River. The largest reservoir is built in a ravine, where a masonry structure was erected 1,251 feet long, 120 feet high, 48½ feet in width at the bottom, and 25 feet on top. There are two compartments formed by a masonry wall 307 feet in length, 30 feet at the base, 10 feet on top, and 67½ feet extreme height. The upper part contains 57 millions, and the lower 43 million gallons, at 30 feet depth. The elevation of flow line is 235 feet above low water in the Ohio River. The cost was $1,660,000. The high service No. 1 supplies nearly two millions daily to the hill-tops, pumping into two iron tanks, each 60 feet diameter by 38 feet high, 310 feet above the pumping station level, through 2,700 feet of 20-inch and 4,501 feet of 16-inch cast-iron pipe. The cost of this service to 1881, with forty miles of pipe, two pumping engines of six million capacity, tanks, etc., was nearly half a million dollars.

No. 2, high service, was started in June, 1881. About 15,000 gallons are pumped daily into an iron tank, thirty feet in diameter by sixteen feet high, temporarily erected on wooden supports sixteen feet high. The elevation of flow line of tank is 354 feet above the pump station.

The present value of works is $6,778,847.55, distributed as follows:

The amount of outstanding water-works bonds is $1,625,000.00.

The water-fund provides for the interest on the entire fund, and a sinking fund for $600,000 of bonded indebtedness. The department furnishes free water to the fire department and public buildings to the amount of $40,000 per annum.

Toledo established her water-works in 1873-’74, after plans of J. D. Cook, C. E. The water is taken from the Maumee River, through a hexagonal crib, made of two rows of piling, with the space filled with broken stone and coarse gravel, and conveyed, through wrought-iron pipe and five foot brick conduit five hundred feet long, to filter gallery of 19,000 square feet. The filtering material is 24 inches of broken stone, 6 inches of 2-inch gravel, 6 inches of 1-inch gravel, 6 inches of ½-inch gravel, 6 inches of ¼-inch gravel, and 24 inches of fine sand. Maximum depth of water is four feet. The filtered water is discharged into a clear-water reservoir by means of gathering drains and an effluent pipe, and thence to the pump well. There are two Worthington engines, each of five million capacity, pumping against a 260-foot lift, into a stand-pipe. The cost of the works to December 31, 1880, including interest, was $1,145,476.62; population, 50,143; miles of pipe, 46.87; meters, 40; taps, 1,616; daily consumption, 3,262,000 gallons.

London is supplied with water by the following companies:

The East London Company has its intakes further up the Thames than the other works, where pumping engines, of 750 horse-power, are capable of delivering ten million gallons daily, through a stand-pipe 240 feet high and three feet in diameter, into its subsiding reservoirs. It also takes its supply partly from the Lea River.

The West Middlesex Company is above Hampton, and two miles below the East London Company’s works. The water is drawn from the river every day, whatever its state may be; but, in times of exceptionally foul water, the intake is reduced as much as possible.

Close to the West Middlesex Company is the Grand Junction works. Near the latter are the works of the Southwark & Vauxhall Company. And at Thames Ditton, two miles further down, are the Lambeth and Chelsea works.

The Kent Water Company takes its supply, exclusively, from deep wells in the chalk. The New River Company takes its supply chiefly from the Lea River. It has supplied a large portion of London, for two hundred and seventy years, through a conduit originally forty miles in length, which has been shortened by various cuts.

The statistics, as per monthly report for July, 1875, were: Population, 3,713,108; miles of pipe, 3,074; daily average consumption from Thames, 64,791,000 gallons; daily average consumption from other sources, 57,528,000 gallons. Total daily average, 122,319,000 gallons.

The Capital invested in the supply of water by these eight companies represents a total sum of $51,900,000.

The largest pumping engines in use, in 1875, were:

An act of 1871 provides power to compel the companies to give constant supply when the public authorities may demand it.

By the act of 1872 a Government Inspector was appointed, who examines and reports monthly the condition of the works and the character of the water furnished.

As the London and Lea Rivers have been condemned by the Rivers Pollution Commission, as well as the shallow surface wells, of which they say, are not fit for human consumption, several schemes have been proposed for new or improved sources.

Mr. Bateman proposed to furnish a daily supply, equal to 220 million gallons, from the mountains of North Wales, where the annual rain-fall amounts from 70 to 150 inches. The cost was estimated at $51,000,000.

The plan proposed by Messrs. Hemans and Hassard is to gather the water from the mountains in Cumberland, where a supply equal to 250 million gallons daily can be secured for the sum of $61,000,000. The Rivers Pollution Commission were of the opinion, that an ample supply of wholesome water could be secured from the chalk wells and springs, within a radius not exceeding fifty miles of London.

Liverpool had in 1874, 493,405 inhabitants. It is supplied with water partly by gravitation and partly by pumping from deep wells in and near the city. The gravitation-works are situated on the slopes of Rivington Pike, a distance about 33 miles. One-third of the storage water is required for compensation purposes. The area of water-shed is 10,000 acres; that of the impounding reservoirs and filter-beds 549 acres, with a storage capacity of 3¼ billion gallons. The ordinary work of the six filter-beds is 14 million gallons daily.

The materials used for filtration are: 2½ feet sharp river sand, clean gravel of the following depths and sizes: 6 inches ⅛-inch diameter, 6 inches ¼-inch diameter, 6 inches ½-inch diameter, 6 inches 1-inch diameter, and 6 inches 2-inch diameter; 6 inches of broken stone 4-inch diameter, and 12 inches broken stone 6-inch diameter. The cost of filtration is $1.37 per million gallons. The water, after filtration, flows from the clear water tank through a main, 44 inches diameter and 18 miles in length, to the service reservoir at Prescott, 102 feet lower than the clear water tank; to break the pressure in this length there are two small reservoirs. From Prescott the line is continued by two pipes, one 44 inches and the other 36 inches in diameter, a distance of five miles to the service reservoirs, which are seven in number, with a water surface area of 37⅓ acres, and 114 million gallons capacity. They are partly above ground and covered. The quantity delivered through the conduit, is 10⅓ million gallons daily.

There are four pumping stations located at the respective wells, with five Cornish and five Bolton and Watts’ condensing engines. Four pumping stations have been abandoned on account of the pollution in well water. Part of the town is supplied directly from mains and partly from cisterns. It is now compulsory for all new property to be provided with cisterns, and that the overflow-pipe be carried outside the premises instead of being connected to soil-pipe or sewer. A special staff of men is employed to make house-to-house inspection of all water fittings and appliances. The cost of the water-works was about 10 million dollars, and is inadequate. They are now constructing an artificial lake, 1 mile wide by 5 miles long, for impounding the waters of the Vyrnwy River in North Wales, 780 feet above the sea level, and 67 miles distant from the city. The area of water-shed is 22,000 acres. The dam will be a masonry structure, 120 feet extreme depth, and 100 feet wide at base; storage capacity, 1,900 million gallons. The cost is estimated at $15,000,000, and daily capacity 52 million gallons.

Glasgow.—The present water system was commenced in 1856, and completed in 1859, after the designs of Mr. J. F. Bateman, civil engineer. The supply is taken from Loch Katrine, including Lochs Drunkie and Vennachar, with a drainage area of 47,800 acres, and a storage capacity of 1,455 million cubic feet. The total length of aqueduct is 25¾ miles, of which 13 are tunneled, 3¾ of iron pipe across valleys, and remaining 9 miles of open cuttings and bridges. There are 80 distinct tunnels. The capacity of aqueduct is 50 million gallons per twenty-four hours. The amount required for compensation purposes is fixed at 40½ million gallons daily, to be discharged into the River Teith. The cost of the works was 6 million dollars. The water is exceptionally soft, being less than one degree.

Manchester.—The new supply was commenced in 1848, designed by Mr. J. F. Bateman, civil engineer. The source is in the counties of Derby and Chester, 777 feet above city datum. There are thirteen storage and distributing reservoirs, with a water surface of 975½ acres, and capacity of 6,458 million gallons. The greatest depth of reservoirs is 84 feet. The conduit is 18 miles in length. The drainage area is 19,300 acres. Available daily supply is 33 million gallons, of which 13 millions are required for mill-owners. The average rain-fall is 50 inches, and mean available resource of 33 inches. The cost of the works was 4 million dollars. The population in 1874 was 750,000; daily average consumption 16 million gallons, and 550 miles of pipe.

Edinburgh derives its supply from springs and brooks flowing from the northern slope of the Pentland Mountains. The water is collected in storage reservoirs, with a capacity of 280 million cubic feet, three of which are compensating reservoirs for mill-owners. The conduit is 8 miles in length, and varies from 20 to 15 inches in diameter. The water is distributed directly into mains with an equalizing cistern on the Castle Hill, 225 feet below the source of supply, and 332 feet above tide. The capacity of pipe is 253 cubic feet per minute. There were three filter-beds (in 1868) a short distance below the reservoir embankment. The sand surface of each is 90 by 90 feet. The superficial area of the three filters, 24,300 square feet; maximum rate of filtration, 85½ U. S. gallons per square foot per diem. The spring water is not filtered. The additional works were completed in 1868, which increased the supply to 992 cubic feet per minute, or 10,685,770 U. S. gallons per day.

Dublin secures its water supply from the Vartry River, 24½ miles distant from city, and 692 feet above low water at Dublin. The area of water-shed is 14,084 acres; the storage capacity, 2,400 million gallons. The water is conveyed through a 33-inch cast-iron pipe (with an average fall of 20 feet to the mile) to the Stillogram distributing reservoir. There are three receiving tanks on the line, with self-acting valves to shut off the water in case of pipe bursting. The distributing reservoirs contain 86 million gallons—are 230 feet above the average head of the city, and 4½ miles distant. Two 27-inch pipes distribute the water to the city from this point. There were seven filter-beds in 1875, each 215 feet and 115 feet at the top and 187 feet by 89 feet at the bottom, and 10 feet deep. The filtering material is 6½ feet deep, composed of 2½ feet 4-inch stone, 2 feet gravel, and 2½ feet washed sand. The head on filter-bed was increased from 2 to 3 feet to secure larger supply. The total cost of this new supply was 3 million dollars. The water-rate taxation is 26½d. per pound. The population in 1875 was 330,000; daily average consumption, 14 million gallons. All plumber fittings must be inspected and stamped, for which a fee of two cents is charged. This consumption, by careful inspection, was reduced from 19 millions. The largest annual rain-fall from 1861 to 1874 was 69.34 inches; minimum, 40.08 inches. Fifteen inches is allowed for evaporation, leaving 25 inches for available supply for the dryest year during this period.

Berlin.—The water department is owned by an English company, called the Berlin Water Company, who have had the exclusive privilege of supplying filtered water as required by the contracts since 1856. After 1881 the Government has the option of taking stock, and should the dividends exceed 10 per cent., one-half of the surplus is to go to the sewerage fund for the proposed sewers.

The water is derived mainly from the River Spree, through a canal reaching to the middle of the river. The pumping station is one mile outside of the city, in which are located eight double pumping engines, each pair having two beams, two pumps, and one fly-wheel. The first four engines erected have pump-barrels of unequal diameter and stroke, being respectively, 38 and 21½ inches diameter and 32 and 36 inches stroke. The large barrel was originally used for the delivery of the river water to the filter-beds under a pressure not exceeding 20 feet; the small barrel delivered the filtered water into the city under a varying pressure of 90 to 120 feet. As now operated, the four oldest engines pump the river water into the settling or storage basin before filtration; while the other four deliver the filtered water directly into the city mains, but the pressure is regulated by a reservoir and stand-pipe along-side of it. The stand-pipe is double-legged, connected at four points, each connection having a valve, except the highest. The highest connection is 200 feet above the pump-house, the lowest about 115, with others intermediate. The water of the small reservoir, when full, stands at about 110 feet above the pump well. There were eleven filters in 1875, with an area of 400,000 square feet. During the summer only eight of the beds are used effectually. They are cleaned in winter every month, and every week in summer. One-half of the old sand is replaced each time of cleansing with new sand. The average rate of filtration is 90 gallons per square foot, and maximum rate 120 gallons per square foot per twenty-four hours.

The filtering materials consist of 24 inches sharp sand, 3 inches of coarse sand, three courses, each 6 inches in depth, of gravel, of the size of a pea, hazelnut, and walnut, and 9 inches of granite pieces. The head of water on filter is 39 inches.

Frequently the river water is pumped directly into the filter-beds without subsidence. The stream is very sluggish in its velocity, being held back by locks for the purpose of navigation, the water does not carry sufficient sediment to render subsidence a necessity. There are, besides, certain lakes not far above the works through which the river flows, that are effective settling basins. They, however, communicate to the water a dark vegetable tinge.

The statistics for 1875 were: Population, 969,000; daily average consumption, 12¼ million gallons; number of meters, 6,916. Water-rent receipts, for 1875, were $600,000 or 13½ cents per thousand gallons, and expenses were $376,000, or 8 cents per thousand gallons.

The water rents are assessed upon the valuation of the property, with extra rates for additional water privileges.

New works were erected in 1875-’77, with a daily maximum capacity of 12 million gallons. The source is the “Tegeler See.” The water is collected, by infiltration, in twenty-three cisterns, each having a separate connection to a suction-pipe, 36 inches diameter, 4,000 feet long, which leads to the pump wells, stationed midway on the suction line. The cisterns are circular in form, with two concentric walls, the first of stone, the second of brick, with an intervening space filled with gravel through which the water percolates. The interstices of the stone are small, to prevent the washing in of sand, in which the wells are made. The water is pumped, by six compound engines, into a reservoir of two compartments, whence it flows into a second pumping station at Charlottenburgh, where four compound engines raise the water a second time, with a lift of 125 feet, into two reservoirs of six million capacity. The water is then distributed into the city by two lines, one for the north side, the other for the south side of the city. The first pumping station is four miles from the second works, and the latter six miles from the city.

Vienna had a population, in 1875, of 1,007,365. Previous to the application of the new supply, in 1873, the city was supplied by ten thousand wells; ten gravitation works, for suburbs, public and private buildings, palaces, etc.; four pumping works—one for large abattoir, one for the parks, a special supply for the main street, called Ring Strasse, which cost $75,000, besides several small private works, and sixty-six public wells for street sprinkling, etc. The first pumping works was erected in 1843, by Emperor Ferdinand I., and given by him to the city. The total cost, to 1871, of this service, was nearly $1,200,000, consisting of three pumping engines, of Watts’ & Wolf’s designs, with a gross horse-power of 220; three reservoirs, and a suction and filter canal 27,000 feet long. The water is taken from a canal of the Danube, and raised forty-seven feet high. The daily delivery was 2,600,000 gallons. In 1864, fifteen projects for supplying the city with water were submitted, and the plan of securing the spring water from the foot of the Alps was adopted. Work was commenced in 1870, and completed in 1873. The cost was nearly $11,000,000. The mean quantity secured daily from the springs was originally 37 millions, the maximum 45 millions, and minimum 5½ millions. The water is collected in three reservoirs, located on mountain ridges, with a capacity of one million gallons. The conduit is fifty miles long, and has sixteen tunnels, 5.2 miles long, drifted through rock and cemented, and nine and one-half miles of masonry bridges. The water is delivered into a reservoir, arched and covered with ground; from this it is led into three other covered reservoirs, with a combined capacity of seven millions. The quantity realized from the springs was not as large as expected, and additional springs were added to the source at an expense of $250,000. It is now the intention to increase the main pumping works for manufacturing purposes, so as to reduce the supply of spring water for domestic use.

Hamburg had a population, in 1875, of 337,602. The water-works were erected in 1849. The water is taken from the River Elbe, through an arched canal, to four pump wells (for subsidence of the water) with a combined capacity of 53 million gallons. The water is slightly turbid, except in floods. The pumping station is two miles above the city, and contains four Cornwall and one Wolf engine, with a total horse-power of 850. The water is forced through a stand-pipe 240 feet high, under a variable pressure, according to the demand, into the pipes. There are three reservoirs for equalizing the pressure, also storage of water. Two of them are stone structures; the other is a covered iron tank on a stone foundation 39⅓ feet high. The maximum consumption was 19 millions daily; and daily average, for 1875, was 15¼ millions, or 45 gallons per inhabitant. The cost of pumping one million gallons is $20, or $8.33 for one million gallons raised 100 feet high.

Frankfort-on-the-Main was supplied by well water. In 1872, a supply was brought into the city from the Spessart Mountains, where the water from 139 springs were gathered together, and conveyed through an aqueduct 41 miles long, two miles of which is made of cement 9½ to 18 inches in diameter, 38½ miles of 14½-inch cast-iron pipe, and ½ mile of canal. The water flows through a syphon tower. There are two reservoirs—one of 3½ millions, and the other of .8 of a million capacity. The population, in 1875, was 103,136. Daily average consumption, 1¾ million gallons; miles of pipe, 64½.

Leipsic.—The water-works was built, by the city, in 1866, at a cost of $900,000. The water is taken from the Pleisse River, through an arched aqueduct, 656 feet long, to subsiding reservoirs or wells, two miles in diameter, and thirteen feet below the lowest stage in the river. The water is pumped into a reservoir, 140 feet lift, by two Wolf engines, with a power of 120 horse-power. The maximum daily consumption of water, in 1876, was 2.6 millions, and the minimum was 1.8 million gallons.

Stuttgart had a population, in 1875, of 107,575. It has two kinds of supply—one for drinking, that of spring water, and the other for manufacturing and general use. For the latter demands, the supply is taken partly from the Neckar River, and pumped through three artificial filter beds; and partly from lakes, whose water is conducted, through cast-iron pipes 15,000 feet in length, to five filter-beds, and thence into two reservoirs, 145 feet below the lake. The reservoir, for the filtered water from the river, is three miles from the pumping station, and 180 feet elevation. Seven million gallons are used daily.

The spring water is conducted through 23.6 miles of pipe, into a reservoir of 132,010 gallons capacity. The maximum daily consumption of spring water, in 1875, was 580,800 gallons, and minimum consumption 369,600 gallons.

Dresden.—The water-works were erected, in 1875, at a cost of $2,000,000. The available maximum delivery was 11.88 million gallons per day. The water is taken from the Elbe River, through two cast-iron pipes, 9.8 feet below low water, and conveyed to two wells, 23 feet in diameter, dug along-side of the river. The water is pumped, by six double engines, with 720 horse-power, through 3,608 feet of pipe, into a reservoir 197 feet above the pumping station. The maximum daily consumption of water, in 1875, was 3.7 million gallons, and minimum .7 of a million; population, 197,000. In 1876 there were 2,047 meters in use.

Marseilles obtains its water supply from the Durance River, at a point sixty-two miles from the city. The water is conveyed through an open canal (excepting the numerous tunnels) with a fall of six inches per mile. Thirty-four millions, of the 159¾ millions total daily ordinary flow of the canal, is considered sufficient for the city, the balance being available for irrigation and water-power, while the waste flows into the sea. About one-seventh of the water, as estimated, is lost by evaporation and filtration. There were five settling basins, with a water surface of 220 acres, constructed along the line of the canal, designed to increase the deposition of the heavier particles of sediment by diminishing the velocity of the water. Only one of these basins was serviceable in 1868. The largest one was used for a short period only, because of a defect in the construction of the dam; the others were abandoned because of the neglect in or difficulty of withdrawing the sediment. A costly filter gallery was built at Longchamp, consisting of two apartments, with a series of arches in the center, forming the bed for the filtering material and the cover for the collecting reservoir for the filtered water. The plan was abandoned in 1866, because of the unusual amount of sediment carried down by the Durance River, which is estimated at one thousandth part of its volume. In 1868, there were from three to four inches of compact mud on the sand beds, and the gallery used for a reservoir only. Subsiding basins have since been constructed. The rate of filtration, when the gallery was in operation, was 90 cubic feet to the square foot, equal to 8,312,940 U. S. gallons per day for both filter-beds, or 36 gallons per inhabitant for a population of 230,000.

Paris.—Previous to the introduction of the Vanne supply, in 1865, the city was supplied from the following sources:

or 39,025,713 gallons per day for 1,600,000 persons, or 25 gallons per head.

The Passey artesian well increased the supply 5½ millions. The Vanne supply has, as its source, the rivers Dhuys and Vanne. The conduit is 83 miles long; its capacity 20 millions daily.

There are projected works (1876) to secure the waters of the Mame that will increase the daily supply 25 millions.

The waters are generally very impure, chiefly obtained from navigable streams. None of the water is filtered. There are two covered reservoirs—Ménilmontant and Montrouge—of vaulted arches, after the Roman style. The pumping works are located in the city. The daily average consumption, in 1868, was 55,861,472 gallons, or 33 gallons per head. Water is distributed throughout Paris, but not more than one-fifth of the houses have water connection. The others are supplied in carts and buckets, carried by men to the door. About 7,000 men, principally natives of Auvergne, are employed thusly. It is a custom to let the water run for three hours, from the public fountains, in the morning to cleanse the streets.

Bombay.—The water-works were commenced in 1856. The source is in the valley of the Goper, where the Vehar impounding reservoir, with a storage capacity of 12,900 million gallons is located. The maximum depth of the reservoir is 80 feet, with an area of 1,394 acres. There are three dams—one 835, one 555, and the other 936 feet long. The extreme height of first dam is 84 feet, inner slope 3 to 1, and the outer 2½ to 1. The embankments were made in layers of six inches. The top width of this dam, which carries a roadway, is 24 feet. The puddle walls are 10 feet wide at the top, and have a batter of 1 in 8 on each side. The trenches, for the foundations, were excavated into the solid basalt below the surface rock. The slopes and tops of all the embankments are covered with stone pitching 12 inches in depth, with another 12 inches of broken stone underneath. The waste weir is 358 feet long, with a top width of 20 feet.

CHAPTER VI. — No. 1. GEOLOGY. — THE DEPOSITS OF DRIFT. — CINCINNATI ANTICLINAL. — HAMILTON COUNTY. — No. 2. OUR SUBTERRANEAN WATER RESOURCES. — ARTESIAN WELLS. — No. 3. WATER-SHED. — RIPARIAN RIGHTS. — No. 4. KIRKWOOD’S SURVEY. — No. 5. OHIO RIVER. — SCOWDEN’S SURVEY OF MARKLEY FARM. — No. 7. MOORE’S SURVEY.

The succeeding articles, viz.:

1. The Geology of Hamilton County;
2. Our subterranean water resources and well-boring;
3. The adjacent water-sheds in Ohio;
4. Kirkwood’s survey for a water supply—1865;
5. The Ohio River;
6. Scowden’s survey for a water supply—1872;
7. Moore’s survey for a water supply—1882;

have been prepared expressly for the dissemination of that information bearing upon the proposed new water supply, that will be useful, as well as interesting, to the citizens of Cincinnati at this particular time. These subjects have their respective bearing on our water supply,—that of the geological structure being especially important, because we learn from it a more accurate knowledge of our subterranean resources; of the impossibility of infiltration of the Ohio River waters, and of the formation and availability of our water-sheds.

(Arranged from the Ohio State Geological Reports, 1873.)

The rocks of Ohio are:

The oldest rocks are designated by Eozoic system, consisting of Laurentian and Huronian groups, and are metamorphic rocks underlying a broad belt in Canada, from Labrador to the Lake of the Woods, and thence to the Arctic Sea. It is computed that this group of strata attains a thickness of 47,000 feet in Canada.

The Potsdam sandstone, the first member of the Silurian system, rests unconformably on the Eozoic rocks wherever the two are found in contact. This, as its name implies, is a sandstone, and is the first product of the invasion of the Eozoic continent by the ancient ocean, and the action of the shore waves upon the cliffs and surface.

It has been reached in the deep borings made at Columbus, Louisville, and St. Louis. Neither the Eozoic or Potsdam stones are exposed in any part of Ohio. Resting on the Potsdam stone, is a formation called calciferous sand-rock, so named in New York because there it consists of a mixture of lime and sand. This formation holds the lead of central and eastern Missouri.

Trenton limestone, with its underlying strata of chazy, Black River, and bird’s-eye limestones, rests on the calciferous sand-rock, and forms a calcareous mass of 300 to 600 feet in thickness. It is exposed in New York, Canada, Lake Superior, and Upper Mississippi, where one of its members, the Galena limestone, claims special notice as being the repository of all that rupture.

Upon the Trenton rests the Hudson group, consisting of the Hudson River and Utica slates, and composed of mixed calcareous and argillaceous sediments. This group is regarded as an equivalent to the blue limestones, or Cincinnati group, which are of special interest to the inhabitants of Ohio, inasmuch as they are the lowest rocks exposed within our territory.

These older rocks are brought to the surface by an axis of upheaval, reaching from Nashville to Lake Erie. They have been still further exposed by the cutting down of the valley of the Ohio, near Cincinnati, where 800 feet of the series are exposed to view. The wells on the upper Cumberland, in Kentucky, were sunk in rocks of the Hudson age. The earthy limestones of the Hudson period indicate a shallow and retreating sea, an approach to land conditions, and the completion of one circle of deposition.

The rocks next in order are:

The Devonian age contains many strange forms of ancient life. In the Mississippi Valley, the Devonian strata are mostly calcareous, and much thinner than in New York and Pennsylvania, showing plainly that here, as in eastern Canada, open sea prevailed during this age, and that the Cincinnati Arch formed a land surface probably throughout all the Devonian ages. The Devonian system comprise:

The carboniferous system is the highest group of rocks found in Ohio, and holds nearly all the beds of coal. As this period is not relative to Hamilton County, we shall only briefly refer to it.

At the period of the formation of the lowest bed of coal, the level of the carboniferous continent would seem to have been the highest; for when the stratum of bituminous matter had accumulated to the depth of a few feet, it was submerged by water, that brought shales and sandstone, and spread them in layers of many feet in thickness above it, before the requisite conditions were reached for the formation of another stratum. The intervals of repose, when the surface of the land was nearly at a level with the sea, were marked by the carbonaceous matter, and the thickness of each stratum measures the length of time during which this state of quiescence continued.

The changes of level were apparently all in one direction, that of submergence. During the epoch of the coal measure, the surface of the land and at the sea level, while the first stratum of coal was forming, was depressed until there had been deposited upon it a series of strata, which measured in Ohio, before being eroded, fully 2,000 feet in thickness, and included at least twelve workable seams of coal, with a great number of thinner ones.

click here for larger image.

Water Works Weather Chart for 1880
From Signal Service Records

At the time of the formation of the highest coal-beds, the Alleghany Mountain system was elevated, and an area including most of the States of our Union was raised above the ocean, never again, to the present time, submerged. The anthracite coal basins of Pennsylvania were once a part of the Alleghany coal-field, but were isolated by the upheaval and erosion of the mountain ridges; and by this disturbance, all the rocks were more or less metamorphosed, and most of the volatile ingredients of the coal driven off, leaving it in the condition of anthracite.

The period immediately following the Tertiary age [but separated from it by we know not how many years] presents a complete change in the physical condition, that during this time the pervading warmth of the Tertiary was changed to an Arctic cold. While, in the former age, the climate of our Southern States was carried to Greenland; in the latter, or drift period, the present Greenland was brought as far south as the Ohio. This was when we had our icebergs or glacial age. The gravel, the bowlders, and an unstratified clay thickly studded with small fragments of rock, are the glacial surface-covering. Mingled with these are found many pebbles and bowlders of crystalline rock, such as are found north of the great lakes.

The finding of large bowlders in fields are the deposit of icebergs that once floated over our country. The glaziers reached as far as Cincinnati, planing, grinding down, smoothing all rock surfaces, and excavating the basins of our great lakes. The retreat of the glaciers left clay and bowlders and a great inland sea of fresh water, filling basins, before occupied by ice, 500 feet above the present surface of Lake Erie. At a later period, by continental elevation or the removal of barriers to drainage, the water level was gradually depressed until the inland sea was reduced to the comparative insignificance of our great lakes.

The descent of the water by motion of the waves, cut the well-marked terraces and edges.

The term, Cincinnati Group, is now applied to the blue limestone series, and is an equivalent, in the geological nomenclature, to the Hudson Group of New York.

Its thickness is estimated at 1,000 feet. The line of upheaval passes from the south line of Tennessee, with a direction a little east of north, through Cincinnati to Lake Erie. Throughout its whole length the strata are raised in a distinct arch, from which they dip away, on the one side under the Alleghany coal-field, on the other beneath the coal basin of Indiana and Illinois.

The bearing of this axis of elevation is nearly parallel with that of the folds of the Alleghanies; that the date of its upheaval was subsequent to the carboniferous, and anterior to the Triassic period. The line, north of Cincinnati, extends from the Ohio River in a direction a little east of north to the lake shore, between Sandusky and Toledo. In consequence of the erosion, which all the region bordering the Cincinnati Arch has suffered, the line of the axis presents no conspicuous topographical features. About Cincinnati the summit of the arch has been much more deeply and extensively removed than farther north, yet this is still higher than its northern prolongation.

There is every reason to believe, therefore, that this was originally the highest part of that portion of the arch within Ohio, and, in common with the Blue Grass district of Kentucky, the blue limestone area about Cincinnati is the most elevated portion of the ridge; that which has been the longest above the sea level and suffered most from surface erosion. We find here a line or tract from which the strata dipped on both sides in opposite directions.

The strata, that are found in the tops of the Cincinnati hills, can be followed to the eastern side of Brown County, where they seem to disappear beneath the river with a marked easterly dip; while below Cincinnati, near Madison, Indiana, the same beds are carried beneath the river by a strong westerly dip. The Cincinnati anticlinal, unlike the folds of the Appalachian system, generally has its longer slope to the westward, and its steeper descent towards the east, estimated at 35 feet per mile. In the western half of the State, and especially along the summit of the Cincinnati Arch, the dip of the strata is strongly northward, amounting to about 1,000 feet between the Ohio and the lake. The surface of the Cincinnati Group is in Highland County, about 500 feet above Lake Erie, while on the lake shore it is nearly 400 feet below the lake. These figures do not represent the entire dip, inasmuch as the crown of the arch is extensively eroded where it crosses the Ohio in Clermont County. The Cincinnati section was originally crowned, there is little reason to doubt, with the Lebanon beds [the highest rocks of the Cincinnati group] in whole or in part, which suffered by erosion, forming our valleys of to-day.

The surface of the blue limestone, near Lebanon, is 441 feet above Lake Erie, while the same rocks were found in the Columbus well to be 721 feet below Lake Erie, a dip of 1,167 feet in a distance of about 70 miles by an air line, or 16.6 feet per mile.

Toward the northern extremity of the arch the dip is north-west and more rapid, the strata descending under the Michigan coal-field. Near the lake-shore the minimum dip is 20 feet to the mile, while on the Ohio it is 40 feet. The easterly dip is a succession of steps or waves beneath the trough of the Alleghany coal-field, the axis of which passes near or beyond our eastern border. This dip is so great that the lowest stratum exposed on the crown of the Cincinnati arch is on the eastern side of the State, buried about 2,000 feet beneath the surface. East of the Ohio all the rocks rise again, and not only the lowest exposed in our State, but even those which underlie them, crop out on the flanks and summits of the Alleghany Mountains. Along the Kentucky River from Frankfort to Nicholasville, and at Murfreesboro, Tennessee, the basal portion of the blue limestone series is exposed to view; and if it was originally as thick at these points as elsewhere, not less than 800 to 1,000 feet of the upper part have been removed.

Strictly speaking there are no hills in Hamilton County, the surface being all referable to the tablelands and to the valleys worn in them. The elevated lands, called hills, are merely isolated remnants of the old plateau, which have, thus far, escaped the long continued inundation. This isolation is effected by the Little Miami, the Ohio, the Millcreek Valleys, and the abandoned channel of the Great Miami.

The bedded rocks of the Cincinnati section are as follows:

The Mt. Pleasant beds are so named because, at the Ohio River bed at this point, they are the lowest of the exposed beds, and underlie the lowest beds at Cincinnati by 50 feet. The Cincinnati beds have their inferior limit at low water of the Ohio, and for an upper boundary the highest stratum found in the Cincinnati hills. Their greatest elevation, above low water-mark, is 450 feet. The Eden, or middle shale, is so named because of its prominence in Eden Park hills. It has no economical value, indeed its relation to economical interests are mainly in the way of disadvantages to be overcome, because of its instable character. Of the 250 feet not more than one foot in ten is limestone, the remainder being shales, clay, or soapstones. These shales have scarcely tenacity enough to hold their place in steep descents, still less, when they have been removed from their original beds, can they be made to cohere, and they form treacherous foundations for buildings erected, or for roadways constructed upon them.

The strata of river quarry-beds are comparatively but little exposed. A moderate amount of building-stone of superior quality is taken from the Covington quarries. But little can be burned into lime, but the concretions constitute a hydraulic lime of great energy.

The Lebanon beds, in contrast to the Mt. Pleasant beds, are the highest of the Cincinnati group, and the location determine their name.

The drift formations are divided into—

1. Drift deposits of the highlands and slopes.

2. Drift deposits of the lowlands and valley drift-beds.

The upland drift has no uniformity in the order of formations aside from the monotonous deposits of yellow clay, which, when filled with water, becomes quicksand. But little clean gravel occurs in the upland, and bowlders also are unfrequent. The drift clays come largely from the waste of blue limestone effected by glacial attrition, while the natural soil has the same origin, except the work of disintegration has been done by the slow action of the atmosphere.

The lowland drift consists of the following terraces, in a descending order:

The gravel of the Ohio differs from the Miami in being largely composed of sandstone pebbles instead of limestone.

A formation of local occurrences, known as the blue or Springfield clay, is found in a few places, but in limited, vertical and horizontal, extent. The greatest thickness, of more than 30 feet, is found on north Pearl Street, above Pike.

The broad valley, now occupied in part by Millcreek, extending from the present valley of the Great Miami at Hamilton to the Clifton hills, just north of Cincinnati, separates into two branches, one passing to the north and east of the city, and entering the valley of the Little Miami between Red Bank station and Plainville, while the other branch is the present valley of the Millcreek. There are no rocky barriers (nothing, in fact, but the same drift terraces that make the walls of its present course) to shut out the Great Miami from entering the Ohio valley at the same points where the Little Miami and Millcreek enter. There is every reason to believe that this was once its course.

Another of the earlier courses of the Great Miami, is now occupied by the Dry Fork of the White Water; still a third of the old channels is found near Cleves, Miami Township, where the Miami approaches within one-half mile of the Ohio, but is blocked from entering it by a ridge 150 to 175 feet, composed of glacial drift, and instead makes a circuitous route of 10 miles for an outlet.

The well of Timothy Kirby, in Cumminsville, developed the following borings:

A remarkable feature of the Millcreek is here presented, of the present bed being at a higher level by 120 feet, than that of the ancient channel,—an erosion that could not have been effected under existing circumstances, but more probable, to the glacial period.

The coal-field wastes are also unaccountable.

Underlying our drift formation is that impervious strata of blue limestone, 1,000 feet in thickness, through which no water can circulate. The lowest limit of this mass of stone is at low water of the Ohio River, at Cincinnati, from which point it anticlines in all directions. There are crevices or pockets, however, in which water has been accidentally found. The following are examples:

The waters of the above wells are necessarily hard, although that at Holder’s tannery is used for all purposes. The water at John Kaufman’s is very turbid. The Freiburg & Workum well was originally a dug one, forty feet deep, but the quantity was insufficient. When they struck the present source, they destroyed the adjoining surface wells of Hoffheimer Bros.

A number of failures to secure water in this limestone formation is on record, but we can notice only a few.

At Rasche Bros., tannery, on Plum Street, opposite Bank Street, they drove a 6 inch well through, respectively, 16 feet of clay, 4 feet quicksand, 15 feet blue clay, 70 feet yellow clay, and solid quarry rock. A pump was then inserted but was inoperative on account of the large amount of sand. They continued the boring to 185 feet, striking clay and soapstone, but found no water, and abandoned the undertaking.

Wm. Kirkup & Son, Pearl and Ludlow, bored 60 feet into rock, for water, without success. At Maddox, Hobart & Co.’s rectifying establishment, they have pierced the rock 150 feet, but found no water up to this date. At Weber’s brewery, on McMicken Avenue, an attempt was made to get water in the rock, and abandoned, after boring to a depth of 458 feet.

The Cincinnati group is about 1,000 feet in thickness of blue limestone, forming, almost exclusively, the rocks of Hamilton County, although an outcrop of the oil stratum has been struck in the wells of the Cincinnati Coffin Company and White Mills Distillery. At the former establishment, flowing gas was found at a depth of 82 feet. Another well was started, and at the same depth gas was discovered. The boring of the latter was then continued into the rock to the depth of 168 feet, when water was found. The water was analyzed by Prof. Wayne with the following result:

The gas burnt out in a few days.

White Mills Distillery has four wells, from 4 to 6 inches in diameter, and 220 to 235 feet in depth, bored through, respectively, 50 feet of clay, 40 feet clay and quicksand, and balance soapstone or shale and limestone, where water was found in a crevice, highly charged with gas and very brackish.

The following wells secure their water from drift terraces:

Upon the limestone lays the drift, consisting of water-worn pebbles, gravel, sand, and clay. The porous nature of this formation, with the assistance of a level surface plain, absorbs a very large percentage of the rain-fall, and produces a fertile subterranean water supply, whose depth varies from 30 to 200 feet.

There are in this vicinity about 250 wells that secure the water from this source. The water is strongly impregnated with iron and magnesia—a ferruginous decomposition from the fossil drift-wood found in this formation. The availability of these wells is in proportion to the capacity of the respective pumps attached to them, but their combined requirements have had no apparent effect, at present, on the source. Yet the fact can not be disputed, that this drift supply of water is a very limited one.

The practical experience in London and Liverpool substantiate the above fact, for there the underground sources have been materially lessened by the demands made upon them, notwithstanding they are the richest resources of this nature, and vastly superior to ours.

Prof. Orton, of the Ohio Agricultural College, in a valuable paper on the “Relations of Geology to the Water Supply of the Country,” refers to the purity of the drift water in the south-western part of the State. He says: “The broad and fertile terraces of the river valleys constitute, especially in the south-western corner of the State (Ohio), the most attractive and most valuable portion of its area. They consist of sand and gravel in large measures, and to this structure they owe their chief attraction. But this same structure renders them unfit to be used for the water supply of the towns built upon them; for, although an abundance of clear and sparkling water can easily be reached, it must not only be looked upon with suspicion, but must be positively condemned as unsafe.

“These gravel-beds are as porous as a sieve, and there is indisputable proof of the free communication of the water sheet and all the receptacles of impurity that the surface of the ground contains. The only relief is found in the fact that the water sheet is also in free communication with the rivers, rising and falling with them; but even this does not free the wells from the poisonous effects of the filth soakage from above. Geology turns over to sanitary science the conclusion, that the drift wells of central and south-western Ohio are, in all densely populated districts, small cities, towns, villages, and hamlets—even in those containing no more than a dozen houses—utterly unfit for human use.”

The above facts are applicable to all the drift formation, including that portion protected from immediate filth soakage of blue clay formation.

A recent examination of our sewerage system, by the U. S. Census Bureau, developed the fact that Cincinnati is polluting its subterraneous soil, to an alarming degree, by the vault system. That no city has so neglected the sanitary necessity of tapping the sewers for house drainage than Cincinnati; that this nature of carelessness was the cause of Memphis’ sad fate, which we have escaped because our soil is of sand and gravel, and susceptible of natural drainage. Yet through this same soil passes the water that is used by some 250 well-owners, still the use of this water is increasing.

London was originally supplied by shallow wells in gravel-beds of 10 to 20 feet in depth, and the direction of its growth was controlled by this water-bearing strata, until the establishment of the New River Water Company in 1600. The Public Health Act of 1872 gives the sanitary authorities power to close these wells.

Beneath the Cincinnati group are the calciferous sand-rock and Potsdam sandstone, which are porous and water bearing, but they rise to the surface nowhere in our State. They have been reached, however, at this point in several of the deep well-borings, and flowing water of sulpho-saline nature was found, at the following locations:

Through the kindness of Gen. A. Hickenlooper, President of the Cincinnati Gas Company, the following complete account of the borings at their works on Front Street is given, which will also serve for a description of the above artesian wells.

The depth and classification of strata are:

The synopsis of boring is condensed as follows:

The analysis of the Moerlein artesian well, by Prof. Wayne, gave the following results:

Prof. Newberry is of the opinion that soft water is improbable in these deep rocks.

The courses of our streams show at a glance that a water-shed crosses the State from north-east to south-west. This water-shed forms a range of highlands that slope by long and easy descent to the Ohio in the south, more rapidly to the lake in the north. This water-shed in its relief is almost insignificant, its average altitude being only 500 feet above the lake, its highest point rising perhaps 1,000 feet above the bottom valley of the Ohio. Our topographical features may therefore be described of a plain, slightly raised along a line traversing it from north-east to south-west.

The following altitudes will show the topography of the northern divide. The levels are all above Lake Erie:

The actual crest of the divide forms a singularly tortuous line with remarkable variations of altitude. The water-sheds, with which we are particularly interested, are found in the counties of Shelby, Mercer, and Auglaize, where we have the water-gap of the head-waters of the St. Marys and Auglaize, as feeders of the Maumee River with the Wabash and Big Beaver Rivers on one side, and the Great Miami on this side; with another gap, between the Miami and Mad Rivers, and the Scioto River, found in Logan and Hardin Counties, in which the highest points of the State are found viz., 1,000 feet above low water in the Ohio River. These streams descend very rapidly to the level plateau (500 feet above the Ohio River) passing over lime and magnesia rocks, through swampy lands and “cat-head prairies,” the latter composed largely of vegetable accumulations. The population, through which the Great Miami and Mad rivers flow, is approximately 360,000.

The available resources of the Big Beaver, Wabash, and St. Mary’s water-sheds are collected in St. Mary’s Reservoir, a lake of 47,000 acres, for feeding the Miami Canal north; while Lake Laramie in Shelby County, and Lewistown Reservoir in Logan County gather the waters of the Miami, and being at the summit level, feed the canal both north and south. This level is 519 feet above low water in Ohio River, St. Mary’s 424 feet, Eden Park Reservoir at Cincinnati 235 feet, and Third Street Reservoir 173 feet. The distance in air line from Cincinnati to St. Mary’s is about 95 miles, to Lewistown over 100 miles.

The waters of all the streams named present those features that experience considers most objectionable for a gravity supply, namely:

The compensation to millers by the Manchester and Liverpool Water-Works was fixed by Parliament at one third of the available rain-fall. Nearly one-half of the present capacity of the Glasgow supply is used by mill-owners.

On this subject John W. Erwin, resident engineer of the Ohio State Board of Public Works, says:

The abandonment of the canal in the city, will no doubt be accomplished within a short time, when provisions should be made to provide a better use for this surplus water than turning it into Millcreek.

Monthly and annual quantity of water from rain and snow reduced to water, in inches and hundredths, at Cincinnati, Ohio. Latitude 39° 6′ north, longitude 84° 29′ west.

1856 to 1871 the observations were taken by Prof. G. W. Harper; 1872 to 1874 by the City Water-Works, and the last years by the Signal Service.

click here for larger image.

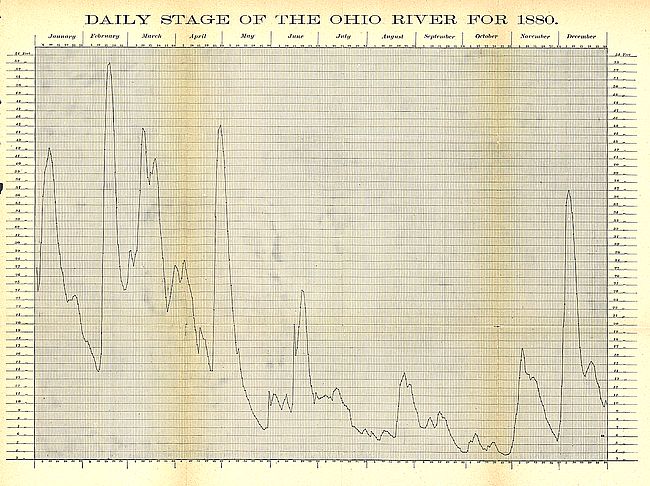

DAILY STAGE OF THE OHIO RIVER FOR 1880.

In 1865 the common council appointed a special commission to investigate and report upon the best method of obtaining an abundant supply of pure and wholesome water. The committee consisted of L. A. Harris, mayor; Thos. H. Weasner, president of council; D. T. Woodrow, Henry Pearce, and Henry Kessler, trustees of water-works, Geo. F. Davis, Wm. P. Wiltsee, and Chas. Brown, who succeeded R. B. Moore, members of council; and A. W. Gilbert, city engineer. They secured the services of the most eminent of engineers, John P. Kirkwood, of New York. His instructions were to ascertain the most economical and practical mode of supplying pure water, either from the gathering grounds by gravity, or by pumping from the Ohio River. No scheme was to be considered that would not provide at least thirty millions daily, with resources for future necessities. This limitation rejected Lick Run and Ross Run entering Millcreek; West Fork and East Branch of Millcreek, Duck Creek and Sycamore Creek entering Little Miami River. Those that presented fair prospects for the collection of water as regards quantity were:

The objections to these waters were: 1. The hardness; 2. The contamination of richly manured farms; 3. The uncertainty of the availability of the water-sheds. To produce the thirty millions it required the combined area of Clear and Gregory creeks, besides large storage reservoirs for dry seasons. The distance of latter creek is 38 miles from the city, and 15 feet below flow-line of Eden Reservoir.

He considered the waters of the Ohio most preferable providing the water was taken above the city limits. The plan embraced a pumping service with two lifts, to be located in Pendleton, with storage and settling reservoirs and filter-beds. The elevation of reservoir was 200 feet above low water, and would not supply elevations above 175 feet. The estimates were:

The majority of the committee in recommending the plan stated; “that they regarded the question, as to the source of supply, as definitely settled for all time, that the Ohio River is the only means from whence this city should derive her supply of water. The site is as high up the river as can well be obtained without crossing the Little Miami.” This latter consideration they thought would be demanded fifty or one hundred years hence. The minority report recommended the retaining of the present system, and the construction of a new reservoir in Eden Park,—the minority report was adopted. Had the Eden Reservoir been completed within a reasonable period it would have served the purpose intended, at least for a few years, but before it was ready for use the consumption of water increased from five, to seventeen millions daily.

The Ohio River above Cincinnati has a water-shed area, estimated by U. S. Census Bureau, of 100,000 square miles, one-tenth of which is of limestone formation. The hardness of the water varies in proportion to the contribution from this formation. The water, at the mouth of the Big Sandy, is .8 of a degree hardness; at Markley Farm, 4½ to 8; at Dayton sand-beach, 7 to 8; at pump-works, 6 to 8; Eden reservoir, 7 to 9; Eggleston Avenue sewer, 7 to 13; wells in the banks of the river at Dayton sand-beach, 32 to 39; and those at Sedamsville 50 to 60 degrees. The well water is upland surface water. In fact, all borings in the banks of the river secure, in more or less degree, this nature of water.

In the south-western part of this State, the river flows over the bedded rocks of the Cincinnati group, its waters alternately impinging on one side of its banks, and depositing its earthy matters, through the influence of sluggish currents and eddies, on the opposite side, and forming what might be termed accidental beds, as in the case of the Dayton sand-beach. The material deposited is an argillaceous substance; and, with the friction and influence of the water, is partly transformed into quicksand. The beds do not form a part of the river in low water, as depicted by the sketch in the last report of the Board of Health.

The sediment in the Mississippi water, at St. Louis, is nearly two per cent. of the bulk of the water; the largest portion (944 in 1,000) depositing itself within 24 hours. The Ohio River water, at this point, is, at times, almost as bad. The sediment forms a tenacious and impervious clay, so susceptible of solidification that conductors of river water are only kept open by a constant flow of water.

The volume of water passing down the Ohio River is an extremely variable one. No special gauging, however, has ever been made to ascertain the quality; but from the surface velocities, measured by the Chief Engineer of the Southern Railway, we can approximately arrive at the figures

The slope of water surface, from water-works to bridge, was .367 of a foot for low stage; for average stage, .403 of a foot; and .415 of a foot per mile for high stage. The approximate flow of water in cubic feet per second at the Southern Railway Bridge is 5,000 feet for minimum stage, 100,000 feet for mean stage, and 400,000 for maximum stage. The minimum flow of the Schuylkill is 378 cubic feet per second; the Delaware, 2,000 cubic feet; the Merrimack, 2,100 cubic feet; and the Thames River, 700 cubic feet.

Investigations of the influence on our climate, by the removal of the forests, develop the fact that streams, utilized for water-power, have become less constant in their flow than formerly. The Ohio River has of late years exhibited greater fluctuations of levels than ever known, and has lost its prestige as a reliable channel of navigation. Prof. Newburg, in Vol. I of the Geological Survey of Ohio, records an instant where a large rock, at Smith’s Ferry, has recently become so fully exposed that on its surface inscriptions were found, that are ascribed to a race which once populated this country anterior to the nomadic Indians.

There are about 78 villages and towns and 13 cities on the Ohio River between Cincinnati and Pittsburgh, a distance of 460 miles. The population on this portion of the river, and its contributing streams, is over 3½ millions. The average population, per square mile of drainage area, on the Ohio River is 47; above Cincinnati, 35; on the Great Miami, 109; on the Delaware, 176; on the Hudson, 172; on the Merrimack, 92½; on the Susquehanna, 62; on the Connecticut, 78; on the Potomac, 54; on the Schuylkill, 45; on the Thames, above water-works, 300.

Considerable space has been devoted to River Pollution, to which attention is directed. The following remarks, however, afford comparative results for the Ohio River.

The comparative merits of river waters, as expressed in analytic results of pounds of sewage in each million gallons, are, for the Ohio water at Dayton sand-beach, .82; at Markley Farm, 1.00; at the pumping works, 1.81; at Eden reservoir, 1.78; at Eggleston Avenue sewer, 4.41; the Croton water, New York, .98; Glasgow, Scotland, water, .65; Thames River, 4.91; London supply, 1.33; Fresh pond, Cambridge, Massachusetts, 1.50; Mystic River, Boston, 1.87; Schuylkill River, Philadelphia, 1.58; Merrimack, above Lowell, .93; above Lawrence, .90; below Lawrence, 1.03.

The Thames and Lea Rivers have been condemned by the Rivers Pollution Commission because, as they say, there is no hope of remedying their disgusting condition, notwithstanding the parliamentary laws for their protection against pollution.

The Schuylkill River is the principal source of supply for Philadelphia, but its water is very suspicious. Above Reading, it is unfit for manufacturing and culinary purposes, owing to the large amount of sulphuric acid. This acid is, however, neutralized and considerably reduced before the water reaches Philadelphia. The Fairmount pool is polluted by cess-pool and slaughter-house drainage. The following means to restore and maintain the purity of the Schuylkill water has been suggested by Dr. Cresson:

Boston obtained legislative power to protect Pegan Brook from sewage pollution. Test cases, to compel manufacturers to provide some other means of disposing of their drainage, were carried to the Supreme Court, and decided in favor of the city. Similar cases will be brought against other offenders. In the meantime the pollution continues. The same authorities procured a law to protect Mystic Lake, and provide other channels for sewage. The provisions of the act were held to be impracticable, and the law is now a dead letter.

The self-purification of river water is not recognized by some authorities, but equally good authorities value its merits. The following observations on this subject are particularly applicable to Cincinnati:

The practical sanitary experiment would then be solved, but at the expense of a number of lives.

Dr. Klob, of Vienna, has discovered, in the evacuations of cholera patients, millions and millions of microscopic fungi similar in form to a mushroom.

There are, above the Cincinnati pumping works, six sewers discharging their filth into the Ohio River, besides the fœcal drainage of no less than five thousand privies, all within a radius of less than three miles. Now, the quality of such water is readily established, for we are putting the sewage into the water knowing there are no means to get rid of it.

OHIO RIVER STATEMENT, SHOWING THE HIGHEST, LOWEST, AND AVERAGE STAGES FOR EACH YEAR AT CINCINNATI WATER-WORKS.
