Fossil Plants, Volume 1

“La recherche du plan de la création, voilà le but vers lequel nos efforts peuvent tendre aujourd’hui.”  Gaudry, 1883.

Since the greater refinements and thoroughness of scientific methods and the enormous and ever-increasing mass of literature have inevitably led to extreme specialisation, it is more than ever important to look beyond the immediate limits of one’s own subject, and to note its points of contact with other lines of research. A palaeobotanist is primarily concerned with the determination and description of fossil plants, but he must at the same time constantly keep in view the bearing of his work on wider questions of botanical or geological importance. From the nature of the case, we have in due measure to adapt the methods of work to the particular conditions before us. It is impossible to follow in the case of all fossil species precisely the same treatment as with the more complete and perfect recent plants; but it is of the utmost importance for a student of palaeobotany, by adhering to the methods of recent botany, to preserve as far as he is able the continuity of the past and present floras. Palaeontological work has often been undertaken by men who are pure geologists, and whose knowledge of zoology or botany is of the most superficial character, with the result that biologists have not been able to avail themselves, to any considerable extent, of the records of extinct forms of life. They find the literature is often characterised by a special palaeontological phraseology, and by particular methods of treatment, which are unknown to the student of living plants and animals. From this and other causes a purely artificial division has been made between the science of the organic world of to-day and that of the past.

Fossils are naturally regarded by a stratigraphical geologist as records which enable him to determine the relative age of fossil-bearing rocks. For such a purpose it is superfluous to inquire into the questions of biological interest which centre round the relics of ancient floras. Primarily concerned, therefore, with fixing the age of strata, it is easy to understand how geologists have been content with a special kind of palaeontology which is out of touch with the methods of systematic zoology or botany. On the other hand, the botanist whose observations and researches have not extended beyond the limits of existing plants, sees in the vast majority of fossil forms merely imperfect specimens, which it is impossible to determine with any degree of scientific accuracy. He prefers to wait for perfect material; or in other words, he decides that fossils must be regarded as outside the range of taxonomic botany. It would seem, then, that the unsatisfactory treatment or comparative neglect of fossil plants, has been in a large measure due to the narrowness of view which too often characterises palaeobotanical literature. This has at once repelled those who have made a slight effort to recognise the subject, and has resulted in a one-sided and, from a biological standpoint, unscientific treatment of this branch of science. It must be admitted that palaeobotanists have frequently brought the subject into disrepute by their over-anxiety to institute specific names for fragments which it is quite impossible to identify. This over-eagerness to determine imperfect specimens, and the practice of drawing conclusions as to botanical affinity without any trustworthy evidence, have naturally given rise to considerable scepticism as to the value of palaeobotanical records. Another point, which will be dealt with at greater length in a later chapter, is that geologists have usually shown a distinct prejudice against fossil plants as indices of geological age; this again, is no doubt to a large extent the result of imperfect and inaccurate methods of description, and of the neglect of and consequent imperfect acquaintance with fossil plants as compared with fossil animals.

The student of fossil plants should endeavour to keep before him the fact that the chief object of his work is to deal with the available material in the most natural and scientific manner; and by adopting the methods of modern botany, he should always aim to follow such lines as may best preserve the continuity of past and present types of plants. Descriptions of floras of past ages and lists of fossil species, should be so compiled that they may serve the same purpose to a stratigraphical geologist, who is practically a geographer of former periods of the Earth’s history, as the accounts of existing floras to students of present day physiography. The effect of carrying out researches on some such lines as these, should be to render available to both botanists and geologists the results of the specialist’s work.

In some cases, palaeobotanical investigations may be of the utmost service to botanical science, and of little or no value to geology. The discovery of a completely preserved gametophyte of Lepidodendron or Calamites, or of a petrified Moss plant in Palaeozoic rocks would appeal to most botanists as a matter of primary importance, but for the stratigraphical geologist such discoveries would possess but little value. On the other hand the discovery of some characteristic species of Coal-Measure plants from a deep boring through Mesozoic or Tertiary strata might be a matter of special geological importance, but to the botanist it would be of no scientific value. In very many instances, however, if the palaeobotanist follows such lines as have been briefly suggested, the results of his labours should be at once useful and readily accessible to botanists and geologists. As Humboldt has said in speaking of Palaeontology, “the analytical study of primitive animal and vegetable life has taken a double direction; the one is purely morphological, and embraces especially the natural history and physiology of organisms, filling up the chasms in the series of still living species by the fossil structures of the primitive world. The second is more specially geognostic, considering fossil remains in their relations to the superposition and relative age of the sedimentary formations[38].”

To turn for a moment to some of the most obvious connections between palaeobotany and the wider sciences of botany and geology. The records of fossil species must occupy a prominent position in the data by which we may hope to solve some at least of the problems of plant evolution. From the point of view of distribution, palaeobotany is of considerable value, not only to the student of geographical botany, but to the geologist, who endeavours to map out the positions of ancient continents with the help of palaeontological evidence. The present distribution of plants and animals represents but one chapter in the history of life on the Earth; and to understand or appreciate the facts which it records, we have to look back through such pages as have been deciphered in the earlier chapters of the volume. The distribution of fossil plants lies at the foundation of the principles of the present grouping of floras on the Earth’s surface. Those who have confined their study of distribution to the plant geography of the present age, must supplement their investigations by reference to the work of palaeobotanical writers. If the lists of plant species drawn up by specialists in fossil botany, have been prepared with a due sense of the important conclusions which botanists may draw from them from the standpoint of distribution, they will be readily accepted as sound links in the chain of evidence. Unfortunately, however, if many of the lists of ancient floras were made use of in such investigations, the conclusions arrived at would frequently be of little value on account of the untrustworthy determinations of many of the species. In the case of particular genera the study of the distribution of the former species both in time and space, that is geologically and geographically, points to rational explanations of, or gives added significance to, the facts of present day distribution. That isolated conifer, Ginkgo biloba L. now restricted to Japan and China, was in former times abundant in Europe and in other parts of the world. It is clearly an exceedingly ancient type, isolated not only in geographical distribution but in botanical affinities, which has reached the last stage in its natural life. The Mammoth trees of California (Sequoia sempervirens Endl., and S. gigantea Lindl. and Gord.) afford other examples of a parallel case. The Tulip tree of North America and China and other allied forms are fairly common in the Tertiary plant beds of Europe, but the living representatives are now exclusively North American. Such differences in distribution as are illustrated by these dicotyledonous forest trees in Tertiary times and at the present day, have been clearly explained with the help of the geological record. Forbes, Darwin, Asa Gray[39] and others have been able to explain many apparent anomalies in the distribution of existing plants, and to reconcile the differences between the past and present distribution of many genera by taking account of the effect on plant life of the glacial period. As the ice gradually crept down from the polar regions and spread over the northern parts of Europe, many plants were driven further south in search of the necessary warmth. In the American continent such migration was rendered possible by the southern land extension; in Europe on the other hand the southerly retreat was cut off by impassable barriers, and the extinction of several genera was the natural result.

The comparatively abundant information which we possess as to the past vegetation of polar regions and the value of such knowledge to geologists and botanists alike is in striking contrast to the absence of similar data as regards Antarctic fossils. Darwin in an exceedingly interesting letter to Hooker à propos of a forthcoming British Association address, referring to this subject writes as follows:—

“The extreme importance of the Arctic fossil plants is self-evident. Take the opportunity of groaning over our ignorance of the Lignite plants of Kerguelen Land, or any Antarctic land. It might do good[40].”

In working out any collection of fossil plants, it would be well, therefore, to bear in mind that our aim should be rather to reproduce an accurate fragment of botanical history, than to perform feats of determination with hopelessly inadequate specimens. Had this principle been generally followed, the number of fossil plant species would be enormously reduced, but the value of the records would be considerably raised.

Our knowledge of plant anatomy, and of those laws of growth which govern certain classes of plants to-day and in past time, has been very materially widened and extended by the facts revealed to us by the detailed study of Coal-Measure species. The modern science of Plant Biology, refounded by Charles Darwin, has thrown considerable light on the laws of plant life, and it enables us to correlate structural characteristics with physiological conditions of growth. Applying the knowledge gained from living plants to the study of such extinct types as permit of close microscopic examination, we may obtain a glimpse into the secrets of the botanical binomics of Palaeozoic times. The wider questions of climatic conditions depend very largely upon the evidence of fossil botany for a rational solution. As an instance of the best authenticated and most striking alternation in climatic conditions in comparatively recent times, we may cite the glacial period or Ice-Age. The existence of Arctic conditions has been proved by purely geological evidence, but it receives additional confirmation, and derives a wider importance from the testimony of fossil plants. In rocks deposited before the spread of ice from high northern latitudes, we find indubitable proofs of a widely distributed subtropical flora in Central and Northern Europe. Passing from these rocks to more recent beds there are found indications of a fall in temperature, and such northern plants as the dwarf Birch, the Arctic Willow and others reveal the southern extension of Arctic cold to our own latitudes.

The distribution of plants in time, that is the range of classes, families, genera and species of plants through the series of strata which make up the crust of the earth, is a matter of primary importance from a botanical as well as from a geological point of view.

Among the earlier writers, Brongniart recognised the marked differences between the earlier and later floras, and attempted to correlate the periods of maximum development of certain classes of plants with definite epochs of geological history. He gives the following classification in which are represented the general outlines of plant development from Palaeozoic to Tertiary times[41].

Since Brongniart’s time this method of classification has been extended to many of the smaller subdivisions of the geological epochs, and species of fossil plants are often of the greatest value in questions of correlation. In recent years the systematic treatment of Coal-Measure and other plants in the hands of various Continental and English writers has clearly demonstrated their capabilities for the purpose of subdividing a series of strata into stages and zones[42]. The more complete becomes our knowledge of any flora, the greater possibility there is of making use of the plants as indices of geological age[43].

Not only is it possible to derive valuable aid in the correlation of strata from the facts of plant distribution, but we may often follow the various stages in the history of a particular genus as we trace the records of its occurrence through the geologic series. In studying the march of plant life through past ages, the botanist may sometimes follow the progress of a genus from its first appearance, through the time of maximum development, to its decline or extinction. In the Palaeozoic forests there was perhaps no more conspicuous or common tree than the genus long known under the name of Calamites. This plant attained a height of fifty or a hundred feet, with a proportionate girth, and increased in thickness in a manner precisely similar to that in which our forest trees grow in diameter. The exceptionally favourable conditions under which specimens of calamitean plants have been preserved, have enabled us to become almost as familiar with the minute structure of their stems and roots, as well as with their spore-producing organs, as with those of a living species. In short, it is thoroughly established that Calamites agrees in most essential respects with our well known Equisetum, and must be included in the same order, or at least sub-class, as the recent genus of Equisetaceae. As we ascend the geologic series from the Coal-Measures, a marked numerical decline of Calamites is obvious in the Permian period, and in the red sandstones of the Vosges, which belong to the same series of rocks as the Triassic strata of the Cheshire plain, the true Calamites is replaced by a large Equisetum apparently identical in external appearance and habit of growth with the species living to-day. In the more recent strata the Horse-tails are still represented, but the size of the Tertiary species agrees more closely with the comparatively small forms which have such a wide geographical distribution at the present time. Thus we are able to trace out the history of a recent genus of Vascular Cryptogams, and to follow a particular type of organisation from the time of its maximum development, through its gradual transition to those structural characters which are represented in the living descendants of the arborescent Calamites of the coal-period forests. The pages of such a history are frequently imperfect and occasionally missing, but others, again, are written in characters as clear as those which we decipher by a microscopical examination of the tissues of a recent plant.

As one of the most striking instances in which the microscopic study of fossil plants has shown the way to a satisfactory solution of the problems of development, we may mention such extinct genera as Lyginodendron, Myeloxylon and others. Each of these genera will be dealt with at some length in the systematic part of the book, and we shall afterwards discuss the importance of such types, from the point of view of plant evolution.

The botanist who would trace out the phylogeny of any existing class or family, makes it his chief aim to discover points of contact between the particular type of structure which he is investigating, and that of other more or less closely related classes or families.

Confining himself to recent forms, he may discover, here and there, certain anatomical or embryological facts, which suggest promising lines of inquiry in the quest after such affinities as point to a common descent. Without recourse to the evidence afforded by the plants of past ages, we must always admit that our existing classification of the vegetable kingdom is an expression of real gaps which separate the several classes of plants from one another. On the other hand our recently acquired and more accurate knowledge of such genera as have been alluded to, has made us acquainted with types of plant structure which enable us to fill in some of the lacunae in our existing classification. In certain instances we find merged in a single species morphological characteristics which, in the case of recent plants, are regarded as distinctive features of different subdivisions. It has been clearly demonstrated that in Lyginodendron, we have anatomical peculiarities typical of recent cycads, combined with structural characteristics always associated with existing ferns. In rare cases, it happens that the remarkably perfect fossilisation of the tissues of fossil plants, enables us not only to give a complete description of the histology of extinct forms, but also to speak with confidence as to some of those physiological processes which governed their life.

So far, palaeobotany has been considered in its bearings on the study of recent plants. From a geological point of view the records of ancient floras have scarcely less importance. In recent years, facts have been brought to light, which show that plants have played a more conspicuous part than has usually been supposed as agents of rock-building. As tests of geologic age, there are good grounds for believing that the inferiority of plants to animals is more apparent than real. This question, however, must be discussed at greater length in a later chapter.

Enough has been said to show the many-sided nature of the science of Fossil Plants, and the wide range of the problems which the geologist or botanist may reasonably expect to solve, by means of trustworthy data afforded by scientific palaeobotanical methods.

“But how can we question dumb rocks whose speech is not clear[44]?”

In attempting to sketch in briefest outline the geological history of the Earth, the most important object to keep in view is that of reproducing as far as possible the broad features of the successive stages in the building of the Earth’s crust. It is obviously impossible to go into any details of description, or to closely follow the evolution of the present continents; at most, we can only refer to such facts as may serve as an introduction of the elements of stratigraphical geology to non-geological readers. For a fuller treatment of the subject reference must be made to special treatises on geology.

For the sake of convenience, it is customary in stratigraphical geology as also in biology, to make use of our imperfect knowledge as an aid to classification. If we possessed complete records of the Earth’s history, we should have an unbroken sequence, not merely of the various forms of life that ever existed, but of the different kinds of rocks formed in the successive ages of past time. As gaps exist in the chain of life, so also do we find considerable breaks in the sequence of strata which have been formed since the beginning of geologic time. The danger as well as the convenience of artificial classification must be kept in view. This has been well expressed by Freeman, in speaking of architectural styles,—“Our minds,” he says, “are more used to definite periods; they neglect or forget transitions which do indeed exist[45].” The idea of definite classification is liable to narrow our view of uniformity and the natural sequence of events.

Composing that part of the earth which is accessible to us,—or as it is generally called the earth’s crust,—there are rocks of various kinds, of which some have been formed by igneous agency, either as lavas or beds of ashes, or in the form of molten magmas which gradually cooled and became crystalline below a mass of superincumbent strata. With these rocks we need not concern ourselves.

A large portion of the earth’s crust consists of such materials as sandstones, limestones, shales, and similar strata which have been formed in precisely the same manner as deposits are being accumulated at the present day. The whole surface of the earth is continually exposed to the action of destructive agencies, and suffers perpetual decay; it is the products of this ceaseless wear and tear that form the building materials of new deposits.

The operation of water in its various forms, of wind, changes of temperature, and other agents of destruction cannot be fully dealt with in this short summary.

A river flowing to the sea or emptying itself into an inland lake, carries its burden of gravel, sand, and mud, and sooner or later, as the rate of flow slackens, it deposits the materials in the river-bed or on the floor of the sea or lake.

Fragments of rock, chipped off by wedges of ice, or detached in other ways from the parent mass, find their way to the mountain streams, and if not too heavy are conveyed to the main river, where the larger pieces come to rest as more or less rounded pebbles. Such water-worn rocks accumulate in the quieter reaches of a swiftly flowing river, or are thrown down at the head of the river’s delta. If such a deposit of loose water-worn material became cemented together either by the consolidating action of some solution percolating through the general mass, or by the pressure of overlying deposits, there would be formed a hard rock made up of rounded fragments of various kinds of strata derived from different sources. Such a rock is known as a Conglomerate. The same kind of rock may be formed equally well by the action of the sea; an old sea-beach with the pebbles embedded in a cementing matrix affords a typical example of a coarse conglomerate. Plant remains are occasionally met with in conglomerates, but usually in a fragmentary condition.

From a conglomerate composed of large water-worn pebbles, to a fine homogeneous sandstone there are numerous intermediate stages. A body of water, with a velocity too small to carry along pebbles of rock in suspension or to roll them along the bed of the channel, is still able to transport the finer fragments or grains of sand, but as a further decrease in the velocity occurs, these are eventually deposited as beds of coarse or fine sand. The stretches of sand on a gradually shelving sea shore, or the deposits of the same material in a river’s delta, have been formed by the gradual wearing away and disintegration of various rocks, the detritus of which has been spread out in more or less regular beds on the floor of a lake or sea. Such accumulations of fine detrital material, if compacted or cemented together, become typical Sandstones.

In tracing beds of sandstone across a tract of country, it is frequently found that the character of the strata gradually alters; mud or clay becomes associated with the sandy deposit, until finally the sandstone is replaced by beds of dark coloured shale. Similarly the sandy detritus on the ocean floor, or in an inland lake, when followed further and further from the source from which the materials were derived, passes by degrees into argillaceous sand, and finally into sheets of dark clay or mud. The hardened beds of clay or fine grained mud become transformed into Shales. As a general rule, then, shales are rocks which have been laid down in places further from the land, or at a greater distance from the source of origin of the detrital material, than sandstones or conglomerates. The conglomerates, or old shingle beaches, usually occur in somewhat irregular patches, marking old shore-lines or the head of a river delta. Coarse sandstones, or grits, may occur in the form of regularly bedded strata stretching over a wide area; and shales or clays may be followed through a considerable extent of country. The finer material composing the clays and shales has been held longer in suspension and deposited in deeper water in widespread and fairly horizontal layers.

In some districts sandstones occur in which the individual grains show a well marked rounding of the angles, and in which fossils are extremely rare or entirely absent. The close resemblance of such deposits to modern desert sands suggests a similar method of formation; and there can be no doubt that in some instances there have been preserved the wind-worn desert sands of former ages. Aeolian or wind-formed accumulations, although by no means common, are of sufficient importance to be mentioned as illustrating a certain type of rock.

The thick masses of limestone which form so prominent a feature in parts of England and Ireland, have been formed in a manner different from that to which sandstones and shales owe their origin. On the floor of a clear sea, too far from land to receive any water-borne sediment, there is usually in process of formation a mass of calcareous material, which in a later age may rise above the surface of the water as chalk or LIMESTONE. Those organisms living in the sea, which are enclosed either wholly or in part by calcareous shells, are agents of limestone-building; their shells constantly accumulating on the floor of the sea give rise in course of time to a thick mass of sediment, composed in great part of carbonate of lime. Some of the shells in such a deposit may retain their original form, the calcareous body may on the other hand be broken up into minute fragments which are still recognisable with the help of a microscope, or the shells and other hard parts may be dissolved or disintegrated beyond recognition, leaving nothing in the calcareous sediment to indicate its method of formation.

Not a few limestones consist in part of fossil corals, and owe their origin to colonies of coral polyps which built up reefs or banks of coral in the ancient seas.

In the white cliffs of Dover, Flamborough Head and other places, we have a somewhat different form of calcareous rock, which in part consists of millions of minute shells of Foraminifera, in part of broken fragments of larger shells of extinct molluscs, and to some extent of the remains of siliceous sponges. As a general rule, limestones and chalk rocks are ancient sediments, formed in clear and comparatively deep water, composed in the main of carbonate of lime, in some cases with a certain amount of carbonate of magnesium, and occasionally with a considerable admixture of silica.

In such rocks land-plants must necessarily be rare. There are, however, limestones which wholly or in part owe their formation to masses of calcareous algae, which grew in the form of submarine banks or on coral reefs. Occasionally the remains of these algae are clearly preserved, but frequently all signs of plant structure have been completely obliterated. Again, there occur limestone rocks formed by chemical means, and in a manner similar to that in which beds of travertine are now being accumulated.

Granites, basalts, volcanic lavas, tuffs, and other igneous rocks need not claim our attention, except in such cases as permit of plant remains being found in association with these materials. Showers of ashes blown from a volcano, may fall on the surface of a lake or sea and become mixed with sand and mud of subaerial origin. Streams of lava occasionally flow into water, or they may be poured from submarine vents, and so spread out on the ocean bed with strata of sand or clay.

Passing from the nature and mode of origin of the sedimentary strata to the manner of their arrangement in the Earth’s crust, we must endeavour to sketch in the merest outline the methods of stratigraphical geology. The surface of the Earth in some places stands out in the form of bare masses of rock, roughly hewn or finely carved by Nature’s tools of frost, rain or running water; in other places we have gently undulating ground with beds of rock exposed to view here and there, but for the most part covered with loose material such as gravel, sands, boulder clay and surface soil.

In the flat lands of the fen districts, the peat beds and low-lying salt marshes form the surface features, and are the connecting links between the rock-building now in progress and the deposits of an earlier age. If we could remove all these surface accumulations of sand, gravel, peat and surface soil, and take a bird’s eye view of the bare surface of the rocky skeleton of the earth’s crust, we should have spread before us the outlines of a geological map. In some places fairly horizontal beds of rock stretching over a wide extent of country, in another the upturned edges of almost vertical strata form the surface features; or, again, irregular bosses of crystalline igneous rock occur here and there as patches in the midst of bedded sedimentary or volcanic strata. A map showing the boundaries and distribution of the rocks as seen at the surface, tells us comparatively little as to the relative positions of the different rocks below ground, or of the relative ages of the several strata. If we supplement this superficial view by an inspection of the position of the strata as shown on the walls of a deep trench cut across the country, we at once gain very important information as to the relative position of the beds below the earth’s surface. The face of a quarry, the side of a river bed or a railway cutting, afford HORIZONTAL SECTIONS or PROFILES which show whether certain strata lie above or below others, whether a series of rocks consists of parallel and regularly stratified beds, or whether the succession of the strata is interfered with by a greater or less divergence from a parallel arrangement. If, for example, a section shows comparatively horizontal strata lying across the worn down edges of a series of vertical sedimentary rocks, we may fairly assume that some such changes as the following have taken place in that particular area.

The underlying beds were originally laid down as more or less horizontal deposits; these were gradually hardened and compacted, then elevated above sea-level by a folding of the earth’s crust; the crests of the folds were afterwards worn down by denudation, and the eroded surface finally subsided below sea-level and formed the floor on which newer deposits were built up. Such breaks in the continuity of stratified deposits are known as UNCONFORMITIES; in the interval of time which they represent great changes took place of which the records are either entirely lost, or have to be sought elsewhere.

In certain more exceptional cases, it is possible to obtain what is technically known as a VERTICAL SECTION; for example if a deep boring is sunk through a series of rocks, and the core of the boring examined, we have as it were a sample of the earth’s crust which may often teach us valuable lessons which cannot be learnt from maps or horizontal sections.

It is obvious, that in a given series of beds, which are either horizontal or more or less obliquely inclined, the underlying strata were the first formed, and the upper beds were laid down afterwards. If, however, we trusted solely to the order of superposition in estimating relative age, our conclusions would sometimes be very far from the truth. Recent geological investigations have brought to light facts well nigh incredible as to the magnitude and extent of rock-foldings. In regions of great earth-movements, the crust has been broken along certain lines, and great masses of strata have been thrust for miles along the tops of newer rocks. Thus it may be brought about that the natural sequence of a set of beds has been entirely altered, and older rocks have come to overlie sediments of a later geological age. Facts such as these clearly illustrate the difficulties of correct geological interpretation.

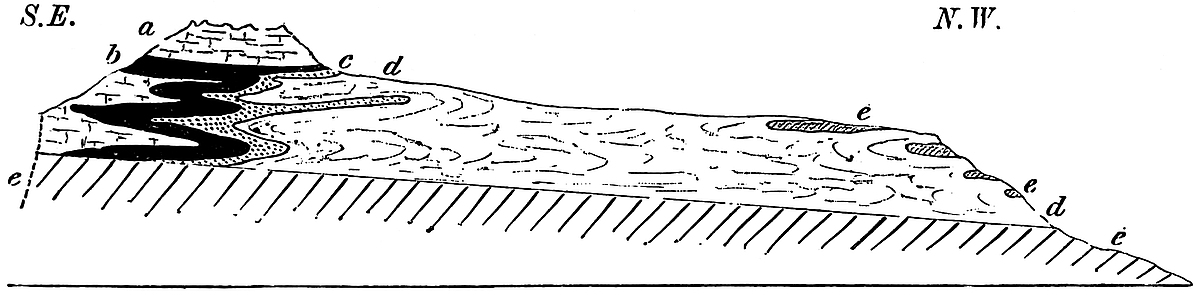

In the horizontal section (Fig. 2), from the summit of Büzistock on the left to Saasterg on the right, we have a striking case of intense rock-folding and dislocation[46]. Prof. Heim[47] of Geneva has given numerous illustrations of the almost incredible positions assumed in the Swiss Mountains by vast thicknesses of rocks, and in the accompanying section taken from a recent work by Rothpletz we have a compact example of the possibilities of earth-movements as an agent of rock-folding. The section illustrates very clearly an exception to the rule that the order of superposition of a set of beds indicates the relative age of the strata. The horizontal line at the base is drawn at a height of 1650 metres above sea-level, and the summit of Büzistock reaches a height of 2340 m. The youngest rocks seen in the diagram are the Eocene beds e, at the base and as small isolated patches on the right-hand end of the section; the main mass of material composing the higher ground has been bodily thrust over the Eocene rocks, and in this process some of the beds, b and c, have been folded repeatedly on themselves. Similar instances of the overthrusting of a considerable thickness of strata have been described in the North-west Highlands of Scotland[48] and elsewhere in the British Isles. It is important therefore to draw attention to cases of extreme folding, as such phenomena are by no means exceptional in many parts of the world.

Fig. 2. Section from Büzistock to Saasterg. [After Rothpletz, (94) Pl. II. fig. 2.]

1. Sernifit or Verrucano (Permian).
2. Röthidolomit etc. (Permian).
3. Dogger (Jurassic).
4. Malm (Jurassic).
5. Eocene.

The order of superposition of strata has afforded the key to our knowledge of the succession of life in geologic time, and the refinements of the stratigraphical correlation of sedimentary rocks are based on the comparison of their fossil contents. By a careful examination of the relics of fossil organisms obtained from rocks of all ages and countries, it has been found possible to restore in broken outline the past history of the Earth. By means, then, of stratigraphical and palaeontological evidence, a classification of the various rocks has been established, the lines of division being drawn in such places as represent gaps in the fossil records, or striking and widespread unconformities between different series of deposits.

It is only in a few regions that we find rocks which can reasonably be regarded as the foundation stones of the Earth. As the globe gradually cooled, and its molten mass became skinned over with a solid crust, crystalline rocks must have been produced before the dawn of life, and before water could remain in a liquid form on the rocky surface. As soon as the temperature became sufficiently low, running water and rain began the work of denudation and rock disintegration which has been ceaselessly carried on ever since. In this continual breaking down and building up of the Earth’s surface, it would be no wonder if but few remnants were left of the first formed sediments of the earliest age.

The action of heat, pressure and chemical change accompanying rock-foldings and crust-wrinklings, often so far alters sedimentary deposits, that their original form is entirely lost, and sandstone, shales and limestones become metamorphosed into crystalline quartzites, slates and marbles.

The operation of metamorphism is therefore another serious difficulty in the way of recognising the oldest rocks. The earliest animals and plants which have been discovered are not such as we should expect to find as examples of the first products of organic life. Below the oldest known fossiliferous rocks, there must have been thousands of feet of sedimentary material, which has either been altered beyond recognition, or from some cause or other does not form part of our present geological record.

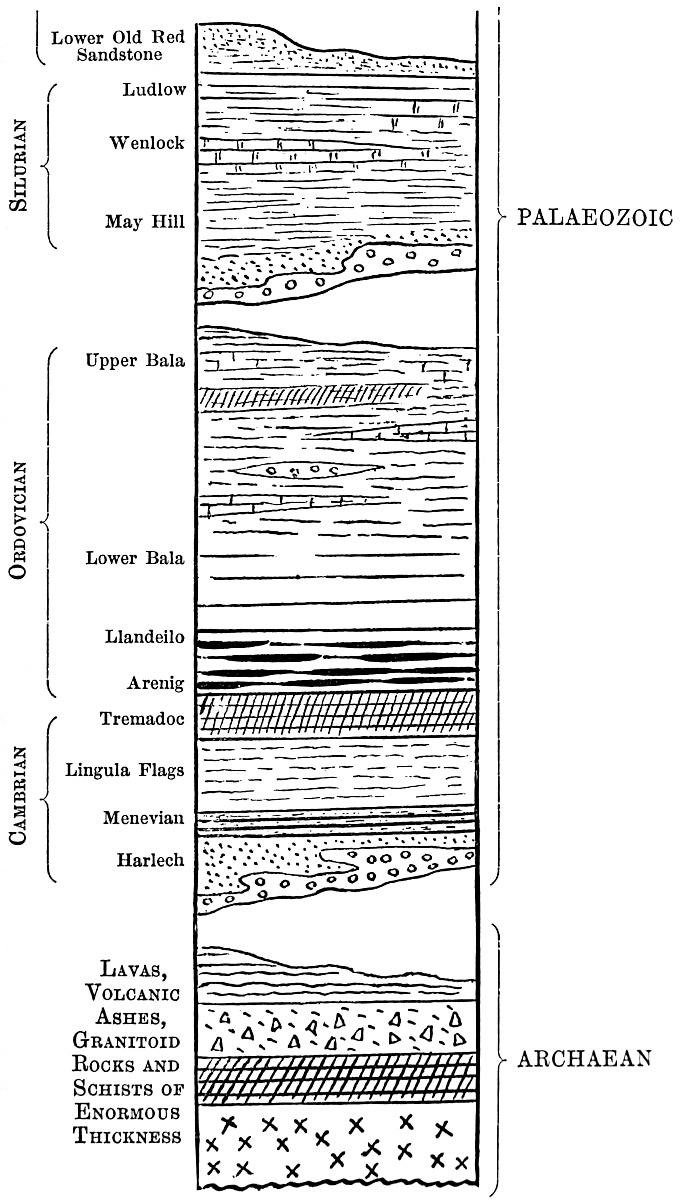

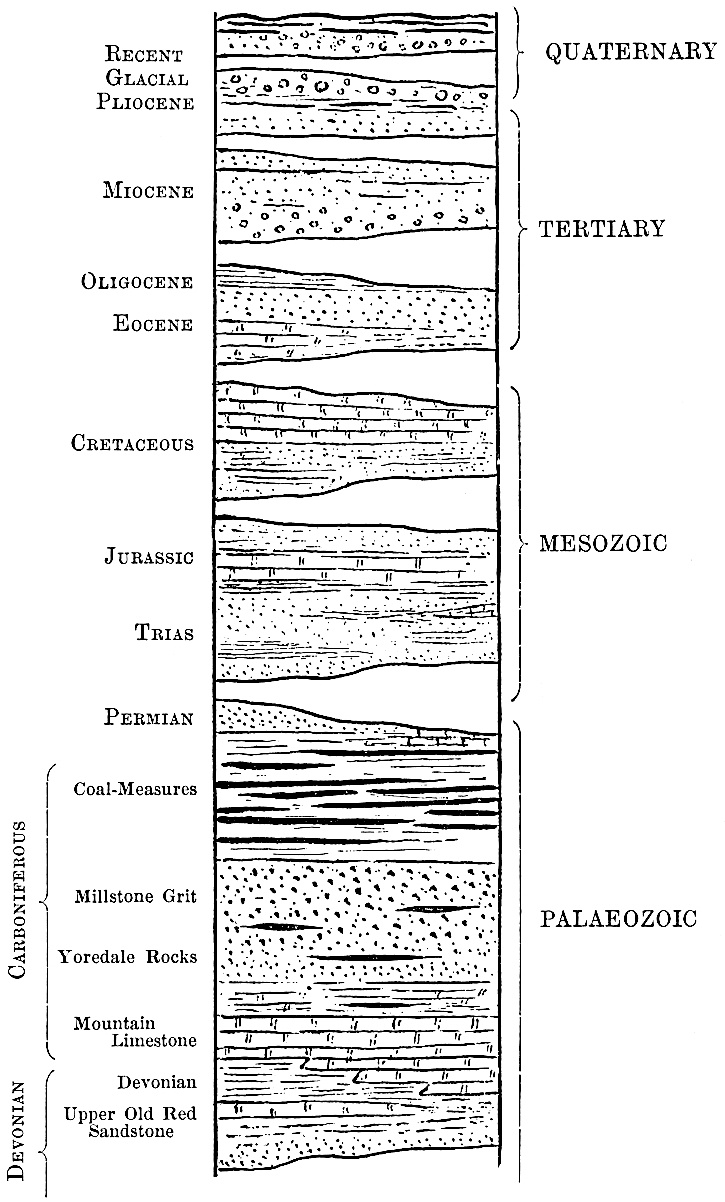

As a general introduction to geological chronology, a short summary may be given of the different formations or groups of strata, to which certain names have been assigned to serve as convenient designations for succeeding epochs in the world’s evolution. The following table (Fig. 3, pp. 32, 33) represents the geological series in a convenient form; the most characteristic rocks of each period are indicated by the usual conventional shading, and the most important breaks or lacunae in the records are shown by gaps and uneven lines. The relative thickness of the rocks of each period is approximately shown; but the vertical extent of the oldest or Archaean rocks as shown in Fig. 3 represents what is without doubt but a fraction of their proportional thickness. This table is taken, with certain alterations, from a paper by Prof. T. McKenny Hughes in the Cambridge Philosophical Proceedings for 1879. Speaking of the graphic method of showing the geological series, the author of the paper says, “It is convenient to have a table of the known strata, and although we cannot arrange all the rocks of the world in parallel columns, and say that ABC of one area are exactly synchronous with A′B′C′ of another, still if we take any one country and establish a grouping for it, we find so many horizons at which equivalent formations can be identified in distant places, that we generally make an approximation to HOMOTAXIS as Huxley called it. The most convenient grouping is obviously to bracket together locally continuous deposits, i.e. all the sediment which was formed from the time when the land went down and accumulation began, to the time when the sea bottom was raised and the work of destruction began. In the accompanying table I have given the rocks of Great Britain classified on this system, and bearing in mind that waste in one place must be represented by deposit elsewhere, I have represented the periods of degradation by intervals estimated where possible by the amount of denudation known to have taken place between the periods of deposition in the same district[49].”

TABLE OF STRATA.

Fig. 3.

“Men can do nothing without the make-believe of a beginning.”
George Eliot.

There is perhaps no problem at once so difficult and so full of interest to the student of the Earth’s history, as the interpretation of the fragmentary records of the opening stages in geological and organic evolution. In tracing the growth and development of the human race, it becomes increasingly difficult to discover and decipher written documents as we penetrate farther back towards the beginning of the historical period; the records are usually incomplete and fragmentary, or rendered illegible by the superposed writings of a later date. So in the records of the rocks, as we pass beyond the oldest strata in which clearly preserved fossils are met with, we come to older rocks which afford either no data as to the period in which they were formed, or like the palimpsest, with its original characters almost obliterated by a late MS., the older portions of the Earth’s crust have been used and re-used in the rock-building of later ages. In the first place, it is exceedingly difficult to determine with any certainty what rocks may be regarded as trustworthy fragments of a primaeval land. Throughout the geological eras the Earth’s surface has been subjected to foldings and wrinklings, volcanic activity has been almost unceasing, and there is abundant evidence to show how the original characters of both igneous and sedimentary rocks may be entirely effaced by the operation of chemical and physical forces. It was formerly held that coarsely crystalline rocks such as granite are the oldest portions of the crust, but modern geology has conclusively proved that many of the so-called fundamental masses of rock are merely piles of ancient sediments which have been subjected to the repeated operation of powerful physical and chemical forces, and have undergone a complete rearrangement of their substance. As the result of more detailed investigations, many regions formerly supposed to consist of the foundation stones of the Earth’s crust, are now known to have been centres of volcanic disturbance and widespread metamorphism, and to be made up of post-archaean rocks.

The first formed rocks no doubt became at once the prey of denudation and disintegration, and on their surface would be accumulated the products of their own destruction: newer strata would entirely cover up portions of the original land, to be in their turn succeeded by still later deposits. There is reason to believe that in the remotest ages of the Earth’s history, the forces of denudation and igneous activity were more potent than in later times, and thus the oldest rocks could hardly retain their original structure through the long ages of geologic time. The earliest representatives of organic life were doubtless of such a perishable nature that their remains could not be preserved in a fossil state even under the most favourable conditions. Such organisms, whether plants or animals, as possessed any resistant tissues or hard skeletons might be preserved in the oldest rocks, but as these strata became involved in earth-foldings or were penetrated by injections of igneous eruptions, the relics of life would be entirely destroyed. It is, in short, practically hopeless to look for any fragments of the primitive crust except such as have undergone very considerable metamorphism, and equally futile to search for any recognisable remains of primitive life.

In many parts of the world vast thicknesses of rock occur below the oldest known fossiliferous strata; these consist largely of laminated crystalline masses composed of quartz, felspar, and other minerals, having in fact the same composition as granite, but differing in the regular arrangement of the constituent parts. To such rocks the terms gneiss and schist have been applied. Rocks of this kind are by no means always of Archaean age, but many of the earliest known rocks consist of gneisses of various kinds, associated with altered lavas, metamorphosed ashes, breccias and other products of volcanic activity; with these there may be limestones, shales, sandstones, and other strata more or less closely resembling sedimentary deposits. Such a succession of gneissic rocks has been described as occupying a wide area in the basin of the St Lawrence river, and to these enormously thick and widespread masses a late Director of the Canadian Geological Survey applied the term Laurentian. These Laurentian rocks, with similar strata in Scandinavia, the north-west Highlands of Scotland, in certain parts of such mountain ranges as the Alps, Pyrenees, Carpathians, Himalayas, Andes, Atlas, &c., have been classed together as members of the oldest geological period, and are usually referred to under the name of Archaean, or less frequently Azoic rocks. In some of the uppermost Archaean rocks there have been recently discovered a few undoubted traces of fossil animals, but with this exception no fossils are known throughout the great mass of Archaean strata. It is true that some authorities regard the beds of graphite and other rocks as a proof of the abundance of plant life, but this supposition is not supported by any convincing evidence.

The term Azoic[50] applied by some writers to these oldest rocks suggests the absence of life during the period in which they were formed. Life there must have been, though we are unable to discover its records. The period of time represented by the Archaean or Pre-Cambrian rocks must be enormous, and it was in that earliest era that the first links in the chain of life were forged.

The term Cambrian was adopted by Sedgwick for a series of sedimentary rocks in North Wales (Cambria). In that district, in South Wales, the Longmynd Hills, the Malverns, in Scotland, and other regions there occur more or less highly folded and contorted beds of pebbly conglomerate, sandstones, shales and slates resting on the uneven surface of an Archaean foundation.

It is in these Cambrian rocks that trustworthy records of organic life are first met with. Among the most constant and characteristic fossils of this period are the extinct and aberrant members of the crustacea, the trilobites; these with some brachiopods, sponges, and other fossils comprise the oldest fauna, of which the ancestral types have yet to be discovered. During the last few decades the number of Cambrian fossils has been considerably increased, and in certain regions of North America and China there are found many thousand feet of strata above the typical Archaean rocks and below the newer fossiliferous beds of Cambrian age. It is reasonable to suppose that future research may extend the present limits of fossil-bearing rocks below the horizon, which is marked by the occurrence of the widely distributed and oldest known trilobite, the genus Olenellus.

The vast thickness of Cambrian strata was for the most part laid down on the floor of a comparatively deep sea; other members of the series represent the shingle beaches and coast deposits accumulated on the slopes of Archaean islands. There have been many conjectures as to the distribution of land and sea during the deposition of these rocks; but the data are too imperfect to enable us to restore with any degree of confidence the physical geography of this Palaeozoic epoch, of which the sediments stood out as islands of Cambrian land during many succeeding ages.

Since the days when Sedgwick and Murchison first worked out the succession of Palaeozoic strata in North Wales, there has always existed a considerable difference of opinion as to the best method of subdividing the Cambrian-Silurian strata. Later research has shown that the rocks included by Sedgwick in his Cambrian system, fall naturally into two groups; for the upper of these Prof. Lapworth has suggested the term Ordovician, from the name of the Ordovices, who inhabited a part of northern Wales. At the base of the system we have a series of volcanic and sedimentary rocks to which Sedgwick gave the name Arenig; above these there occur the Llandeilo Flags, succeeded by a considerable thickness of rocks known as the Bala series. The rocks making up these Ordovician sediments consist for the most part of slates, sandstones and limestones with volcanic ashes and lavas. Much of the typical Welsh scenery owes its character to the folded and weathered rocks laid down on the floor of the Ordovician sea, on which from many centres of volcanic activity lava streams and showers of ash were spread out between sheets of marine sediment. The Arenig Hills, Snowdonia, and many other parts of North and South Wales, parts of Shropshire, Scotland, Sweden, Russia, Bohemia, North America and other regions consist of great thicknesses of Ordovician strata.

Passing up a stage higher in the geologic series, we have a succession of conglomerates, sandstones, shales, and limestones; in other words, a series of beds which represent pebbly shore deposits, the sands and muds of deeper water, and the accumulated débris of calcareous skeletons of animals which lived in the clear water of the Silurian sea. The term Silurian (Siluria was the country of Caractacus and the old Britons known as Silures[51]) was first applied by Murchison in 1835 to a more comprehensive series of rocks than are now included in the Silurian system. The rocks of this period occur in Wales, Shropshire, parts of Scotland, Ireland, Scandinavia, Russia, the United States and other countries. After the accumulation of the thick Ordovician sediments, the sea-floor was upraised and in places converted into ridges or islands of land, of which the detritus formed part of the material of Silurian deposits. The limestones of the Wenlock ridge have yielded an abundant fauna, consisting of corals, crinoids, molluscs and other invertebrates. In this period we have the first representatives of the Vertebrata, discovered in the rocks of Ludlow. In fact, in the Silurian period, “all the great divisions of the Animal Kingdom were already represented[52].”

By the continued elevation of the Silurian sea-floor, large portions became dry land, and during the succeeding period most of the British area formed part of a continental mass. Over the southern part of England, there still lay an arm of the sea, and in this were laid down the marine sediments which now form part of Devon, and from which the name Devonian has been taken as a convenient designation for the strata of this period. In parts of the northern land, in the region now occupied by Scotland, there were large inland lakes, on the floor of which vast thicknesses of shingle beds and coarse sands (“Old Red Sandstone”) were slowly accumulated; and it has been shown by Sir Archibald Geikie and others that during this epoch there were considerable outpourings of volcanic material in the Scotch area.

Farther to the West and South-west there was another large lake in which the so-called Kiltorkan beds of Ireland were deposited. In these Irish sediments, and others of the same age in Belgium and elsewhere a few forms of land plants have been discovered; but it is from the Devonian rocks of North America that most of our knowledge of the flora of this period has been obtained.

From the point of view of palaeobotany, the shales, sandstones, and seams of coal included in the Carboniferous system are of special interest. It is from the relics of this Palaeozoic vegetation that the most important botanical lessons have been learnt.

The following classification of Carboniferous rocks shows the order of succession of the various beds, and the nature of the rocks which were formed at this stage in the Earth’s history.

In the classification of Carboniferous rocks adopted in Geikie’s text-book of Geology the following arrangement is followed for the Carboniferous limestone series[54]:—

The thick beds of mountain limestone, with their characteristic marine fossil shells and corals play an important part in English scenery. In Derbyshire, West Yorkshire, and other places, the limestone crags and hills are made up of the raised floor of a comparatively deep Carboniferous sea, which covered a considerable portion of the British Isles at the beginning of this epoch.

The accumulation of the calcareous skeletons of marine animals, with masses of coral, veritable shell-banks of extinct oyster-like lamellibranchs, built up during the lapse of a long period of time, formed widespread deposits of calcareous sediments. These were eventually succeeded by less pure calcareous deposits, the sea became shallower, and land detritus found its way over an area formerly occupied by the clear waters of an open sea. The shallowing process was gradually continued, and the sea was by some means converted into a more confined fresh-water or brackish area, in which were laid down many hundred feet of coarse sandy sediments derived from the waste of granitic highlands. Finally the conditions became less constant; the continuous deposition of sandy detritus being interrupted by the more or less complete filling up of the area of sedimentation, and the formation of a land surface which supported a luxuriant vegetation, of which the débris was subsequently converted into beds of coal. By further subsidence the land was again submerged, and the forest-covered area became overspread with sands and muds.

Such are the imperfect outlines of the general physical conditions which are represented by the series of sedimentary strata included in the Carboniferous system. At the close of this period, the Earth’s surface in Western Europe was subjected to crust-foldings on a large scale, along lines running approximately North and South and East and West, the two sets of movements resulting in the formation of ridges of Carboniferous rocks. The uppermost series of grits, sandstones and coal-seams were in great part removed by denudation from the crests of the elevated ridges, but remained in the intervening troughs or basins where they were less exposed to denudation. It is the direct consequence of this, that we have our Coal-Measures preserved in the form of detached basins of upper Carboniferous beds.

A closer examination of the comparative thickness and succession of Carboniferous rocks in different parts of Britain shows very clearly that in the northern area of Scotland and in the North of England the conditions were different from those which obtained further South. Seeing how much palaeobotanical interest attaches to these rocks, it is important to treat a little more fully of their geology.

In parts of Devon, Cornwall and West Somerset, the Devonian strata are succeeded by a series of folded and contorted rocks which have yielded a comparatively small number of Carboniferous fossils. To this succession of limestones, shales and grits the term Culm-Measures was applied by Sedgwick and Murchison in 1837. The rocks of this series occupy a trough between the Devonian rocks of North and South Devon. While some authorities have correlated the Culm-Measures with the Millstone Grit, others regard them as representing a portion of the true Coal-Measures, as well as the Carboniferous and Lower Limestone Shale[55]. It has recently been shown that among the lower Culm strata there occur bands of ancient deep-sea sediments, consisting of beds of chert containing siliceous casts of various species of Radiolaria. There can be no doubt that the discovery of deep-sea fossils in this particular development of the British Carboniferous system leads to the conclusion that “while the massive deposits of the Carboniferous limestone—formed of the skeletons of calcareous organisms—were in process of growth in the seas to the North, there existed to the South-west a deeper ocean in which siliceous organisms predominated and formed these siliceous radiolarian rocks[56].”

The Upper Culm-Measures consist of conglomerates, grits, sandstones and shales with some plant remains and other fossils, and constitute a typical set of shallow water sediments. In Westphalia, the Harz region, Thuringia, Silesia and Moravia there are rocks corresponding to the Culm-Measures of Devon, and some of these have also afforded evidence of deep water conditions.

S. W. England, S. Wales, Derbyshire and Yorkshire. In these districts the Carboniferous limestone reaches a considerable thickness; in the Mendips it has a thickness of 3000 feet, and in the Pennine chain of 4000 feet. At the base of this limestone series there occurs in the southern districts the so-called lower limestone shale, consisting of clays, shales and sandy beds. Above the limestone we have the Millstone grit and Coal-Measures; but in the Pennine district there is a series of rocks consisting of impure limestones and shales, intercalated between the Millstone grit and Carboniferous limestone; for this group of rocks the term Yoredale series has been proposed. In the Isle of Man and Derbyshire sheets of lava are interbedded with the calcareous sediments, affording clear proof of submarine volcanic eruptions.

N. England and Scotland. In the Carboniferous rocks of Northumberland we have distinct indications of a shallower sea. The regular succession of limestone strata in West Yorkshire and other districts, gives place to a series of thinner beds of limestones, interstratified with shales and impure calcareous rocks. We have come within the range of land detritus which was spread out on the floor of a shallow sea. The lowest portion of the Mountain limestone is here represented by about 200 feet of shales and other rocks grouped together in the Tuedian series. The Upper Carboniferous limestone and Yoredale rocks of Yorkshire are represented by sandstones, carbonaceous limestones and some seams of coal, included in the Bernician series. Further north, again, another classification has been proposed for the still more aberrant succession of rocks; the lowest being spoken of as the Calciferous sandstone, and the upper as the Carboniferous limestone. The calciferous sandstone may be compared with the lower limestone shale and part of the Carboniferous limestone of England. The Carboniferous limestone of Scotland probably represents the upper part of the limestone of England and the Yoredale rocks of the Pennine and other areas.

Turning to the upper members of the Carboniferous system—in the Coal-Measures, as they were called in 1817 by William Smith,—we have a series of coal seams, sandstones, shales, and ironstones occurring for the most part in basin-shaped areas. As a general rule, each seam of coal, which varies in thickness from one inch to thirty feet, rests on a characteristic unstratified argillaceous rock known as Underclay.

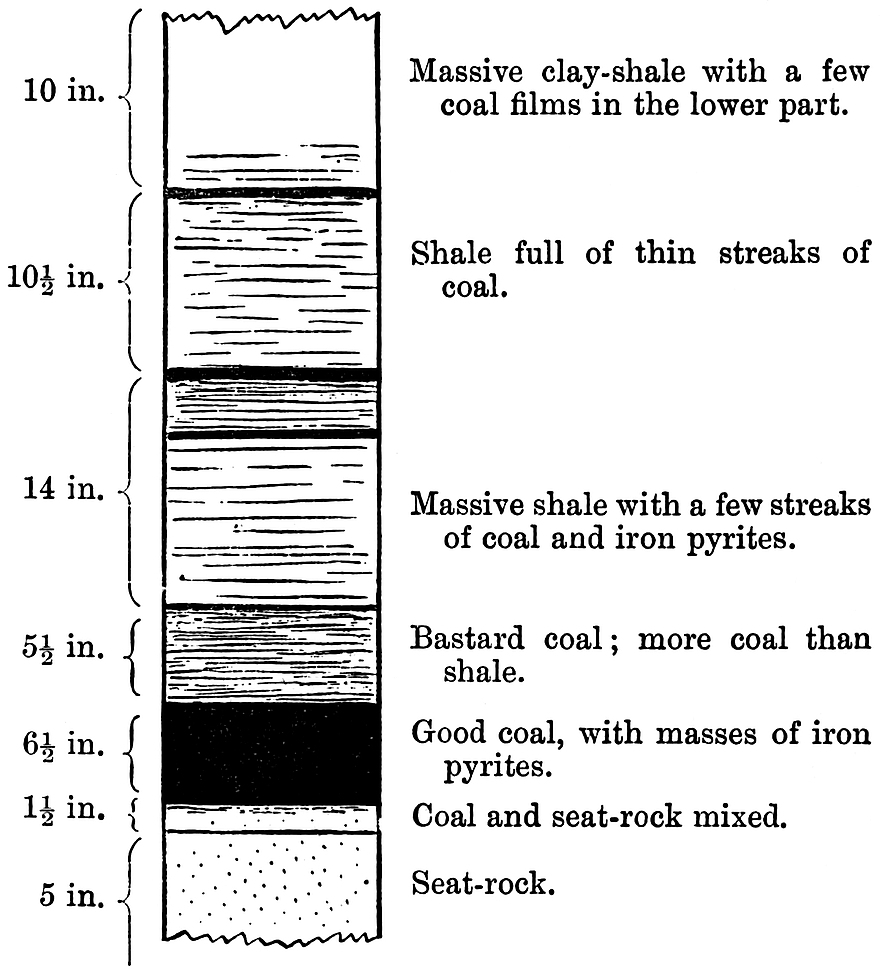

The accompanying diagram (Fig. 4) illustrates the frequent intercalation of small bands of argillaceous and sandy rocks associated with the seams of coal.

The usual classification adopted for the British Coal-Measures is that of Upper, Middle, and Lower Coal-Measures; between the Upper and Middle divisions there occur certain transition or passage beds which are known as the Transition series. Continental writers, and more recently Mr Kidston of Stirling, have attempted with considerable success to correlate the Coal-producing strata by means of fossil plants[57].

10 in.	Massive clay-shale with a few coal films in the lower part.
10½ in.	Shale full of thin streaks of coal.
14 in.	Massive shale with a few streaks of coal and iron pyrites.
5½ in.	Bastard coal; more coal than shale.
6½ in.	Good coal, with masses of iron pyrites.
1½ in.	Coal and seat-rock mixed.
5 in.	Seat-rock.

Fig. 4.

Vertical section of the Bassey or Salts Coal seam, Rushton Colliery, Blackburn (Lower Coal-Measures). From a specimen 4 feet 4 inches in height, presented by Mr P. W. Pickup to the Manchester Museum, Owens College.

Finally, some reference must be made to the occurrence of Carboniferous rocks underneath more recent strata. In a geological map, or bird’s-eye view of a country, we see such rocks as appear at the surface; by means of deep borings, however, we are occasionally enabled to follow the course of older beds a considerable distance below the usually accessible part of the Earth’s crust. In the neighbourhood of London, Dover, and other places we have Tertiary and Mesozoic strata forming the surface of the country, but below these comparatively recent formations, the sinking of deep wells and other borings have proved the existence of a ridge of Palaeozoic rocks stretching from the South Wales Coal-field through the South-east of England to northern France, Belgium and Westphalia. It is from rocks forming part of this old ridge that characteristic Coal-Measure plants have been obtained from the Dover boring. In Fig. 5 is shown an almost complete pinnule of Neuropteris Scheuchzeri Hoffm., a well-known fern, marking a definite horizon of Upper Carboniferous rocks[58]. The small hairs on the pinnules, shown in the figure as fine lines lying more or less parallel to the midrib and across the lateral veins, are a characteristic feature of this species.

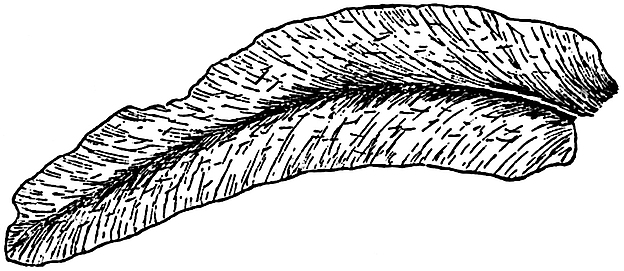

Fig. 5.

Imperfect pinnule of Neuropteris Scheuchzeri Hoffm., showing the characteristic hairs as fine lines traversing the lateral veins. From a specimen obtained from the Dover boring and now in the British Museum. Nat. size.

Reference has already been made to the earth-foldings which marked the close of Carboniferous times; “the open Mediterranean sea of the Carboniferous period in Europe was converted into a large inland sea, like the Caspian of the present day, surrounded by a rocky and hilly continent, on which grew trees and plants of various kinds[59].” In parts of

Lancashire, Westmoreland, the Eden Valley, and in the East of England from Sunderland to Nottingham, there occurs a succession of limestones, sandstones, clays and other rocks with occasional beds of rock-salt and gypsum, which represent the various forms of sediment and chemical precipitates formed on the floor of Permian lakes. The poverty of the fauna and flora of Permian strata points to conditions unfavourable to life; and there can be little doubt that the characteristic red rocks of St Bees Head, and the creamy limestones of the Durham coast are the upraised sediments of an inland salt-water lake. The term Dyas was proposed by Marcou for this series of strata as represented in Germany, where the rocks are conveniently grouped in two series, the Magnesian limestone or Zechstein and the red sandstones or Rothliegendes. The older and better known name of Permian was instituted by Murchison for the rocks of this age, from their extreme development in the old kingdom of Permia in Russia. Unfortunately considerable confusion has arisen from the employment of different names for rocks of the same geological period; and the grouping of the beds varies in different parts of the world. It is of interest to note, that in the Tyrol, Carinthia, and other places there are found patches of old marine beds which were originally laid down in an open sea, which extended over the site of the Mediterranean, into Russia and Asia. In Bohemia, the Harz district, Autun in Burgundy, and other regions, there are seams of Permian coal interstratified with the marls and sands. From these last named beds many fossil plants have been obtained, and important palaeobotanical facts brought to light by the investigations of continental workers. Volcanic eruptions, accompanied by lava streams and showers of ash, have been recognised in the Permian rocks of Scotland, and elsewhere.

In North America, Australia, and India the term Permo-Carboniferous is often made use of in reference to the continuous and regular sequence of beds which were formed towards the close of the Carboniferous and into the succeeding Permian epoch. The enormous series of freshwater Indian rocks, to which geologists have given the name of the Gondwana system, includes the sediments of more than one geological period, some of the older members being regarded as Permo-Carboniferous in age. These Indian beds, with others in Australia, South Africa, and South America, are of special interest on account of the characteristic southern hemisphere plants which they have afforded, and from the association with the fossiliferous strata of extensive boulder beds pointing to widespread glacial conditions.

As we ascend the geologic series, and pass up to the rocks overlying the Permian deposits, there are found many indications of a marked change in the records of animal and plant life. Many of the characteristic Palaeozoic fossils are no longer represented, and in their place we meet with fresh and in many cases more highly differentiated organisms. The threefold division of the rocks of this period which suggested the term Trias to those who first worked out the succession of the strata, is typically illustrated over a wide area in Germany, in which the lowest or Bunter series is followed by the calcareous Muschelkalk, and this again by the clays, rock-salt, and sandstones of the Keuper series. In the Cheshire plain and in the low ground of the Midlands, we have a succession of red sandstones, conglomerates, and layers of rock-salt which correspond to the Bunter and Keuper beds of German geologists. These Triassic rocks were obviously formed in salt-water lakes, in which from time to time long continued evaporation gave rise to extensive deposit of rock-salt and other minerals. From the fact that it is this type of Triassic sediments which was first made known, it is often forgotten that the British and German rocks are not the typical representatives of this geological period. The ‘Alpine’ Trias of the Mediterranean region, in Asia, North America, and other countries, has a totally different facies, and includes limestones and dolomites of deep-sea origin. “The widespread Alpine Trias is the pelagic facies of the formation; the more restricted German Trias, on the other hand, is a shallow shore, bay or inland sea formation[60].”

In the Keuper beds of southern Sweden there are found workable seams of coal, and the beds of this district have yielded numerous well-preserved examples of the Triassic flora. A more impure coal occurs in the lower Keuper of Thuringia and S.-W. Germany, and to this group of rocks the term Lettenkohle is occasionally applied.

In the Rhaetic Alps of Lombardy, in the Tyrol, and in England, from Yorkshire to Lyme Regis, Devonshire, Somersetshire, and other districts there are certain strata at the top of the Triassic system known as the Rhaetic or Penarth beds. The uppermost Rhaetic beds, often described as the White Lias, afford evidence of a change from the salt lakes of the Trias to the open sea of the succeeding Jurassic period. Passing beyond this period of salt lakes and wind-swept barren tracts of land, we enter on another phase of the earth’s history.

The Jura mountains of western Switzerland consist in great part of folded and contorted rocks which were originally deposited on the floor of a Jurassic sea. In England the Jurassic rocks are of special interest, both for geological and historical reasons, as it is in them that we find a rich fauna and flora of Mesozoic age, and it was the classification of these beds by means of their fossil contents that gained for William Smith the title of the Father of English Geology. A glance at a geological map of England shows a band of Jurassic rocks stretching across from the Yorkshire coast to Dorset. These are in a large measure calcareous, argillaceous, and arenaceous sediments of an open sea; but towards the upper limit of the series, both freshwater and terrestrial beds are met with. Numerous fragments of old coral reefs, sea-urchins, crinoids, and other marine fossils are especially abundant; in the freshwater beds and old surface-soils, as well as in the marine sandstones and shales, we have remnants of an exceedingly rich and apparently tropical vegetation. This was an age of Reptiles as well as an age of Cycads. An interesting feature of these widely distributed Jurassic strata is the evidence they afford of distinct climatal zones; there are clear indications, according to the late Dr Neumayr, of a Mediterranean, a middle European, and a Boreal or Russian province[61]. The subdivisions of the English Jurassic rocks are as follows[62]:—

In tracing the several groups across England, and into other parts of Europe, their characters are naturally found to vary considerably; in one area a series is made up of typical clear water or comparatively deep sea sediments, and in another we have shallow water and shore deposits of the same age. The Lias rocks have been further subdivided into zones by means of the species of Ammonites which form so characteristic a feature of the Jurassic fauna. In the lower Oolite strata there are shelly limestones, clays, sandstones, and beds of lignite and ironstone. Without discussing the other subdivisions of the Jurassic period, we may note that in the uppermost members there are preserved patches of old surface-soils exposed in the face of the cliffs of the Dorset coast and of the Isle of Portland.

In the south of England, and in some other districts, it is difficult to draw any definite line between the uppermost strata of the Jurassic and the lowest of the Cretaceous period. The rocks of the so-called Wealden series of Kent, Surrey, Sussex, and the Isle of Wight, are usually classed as Lower Cretaceous, but there is strong evidence in favour of regarding them as sediments of the Jurassic period. The Cretaceous rocks of England are generally speaking parallel to the Jurassic strata, and occupy a stretch of country from the east of Yorkshire and the Norfolk coast to Dorset in the south-west. The Chalk downs and cliffs represent the most familiar type of Cretaceous strata. In the white chalk with its numerous flints, we have part of the elevated floor of a comparatively deep sea, which extended in Cretaceous times over a large portion of the east and south-east of England and other portions of the European continent. On the bed of this sea, beyond the reach of any river-borne detritus, there accumulated through long ages the calcareous and siliceous remains of marine animals, to be afterwards converted into chalk and flints. At the beginning of the period, however, other conditions obtained, and there extended over the south-east of England, and parts of north and north-west Germany and Belgium, a lake or estuary in which were built up deposits of clay, sand and other material, forming the delta of one or more large rivers. For these sediments the name Wealden was suggested in 1828. Eventually the gradual subsidence of this area led to an incursion of the sea, and the delta became overflowed by the waters of a large Cretaceous sea. At first the sea was shallow, and in it were laid down coarse sands and other sediments known as the Lower Greensand rocks. By degrees, as the subsidence continued, the shallows became deep water, and calcareous material slowly accumulated, to be at last upraised as beds of white chalk. The distribution of fossils in the Cretaceous rocks of north and south Europe distinctly points to the existence of two fairly well-marked sets of organisms in the two regions; no doubt the expression of climatal zones similar to those recognised in Jurassic times. In North America, Cretaceous rocks are spread over a wide area, also in North Africa, India, South Africa, and other parts of the world. Within the Arctic Circle strata of this age have become famous, chiefly on account of the rich flora described from them by the Swiss palaeobotanist Heer. The fauna and flora of this epoch are alike in their advanced state of development and in the great variety of specific types; the highest class of plants is first met with at the base of the Cretaceous system.

“At the close of the Chalk age a change took place both in the distribution of land and water, and also in the development of organic life, so great and universal, that it has scarcely been equalled at any other period of the earth’s geological history[63].” The Tertiary period seems to bring us suddenly to the threshold of our own times. In England at least, the deposits of this age are of the nature of loose sands, clays and other materials containing shells, bones, and fossil plants bearing a close resemblance to organisms of the present era. The chalk rocks, upheaved from the Cretaceous sea, stood out as dry land over a large part of Britain; much of their material was in time removed by the action of denuding agents, and the rest gradually sank again beneath the waters of Tertiary lakes and estuaries. In the south of England, and in north Europe generally, the Tertiary rocks have suffered but little disturbance or folding, but in southern Europe and other parts of the world, the Tertiary sands have been compacted and hardened into sandstones, and involved in the gigantic crust-movements which gave birth to many of our highest mountain chains. The Alps, Carpathians, Apennines, Himalayas, and other ranges consist to a large extent of piled up and strangely folded layers of old Tertiary sediments. The volcanic activity of this age was responsible for the basaltic lavas of the Giants’ Causeway, the Isle of Staffa, and other parts of western Scotland.

During the succeeding phases of this period, the distribution of land and sea was continually changing, climatic conditions varied within wide limits; and in short wherever Tertiary fossiliferous beds occur, we find distinct evidence of an age characterised by striking activity both as regards the action of dynamical as well as of organic forces. Sir Charles Lyell proposed a subdivision of the strata of this period into Eocene, Miocene, and Pliocene, founding his classification on the percentage of recent species of molluscs contained in the various sets of rocks. His divisions have been generally adopted. In 1854 Prof. Beyrich proposed to include another subdivision in the Tertiary system, and to this he gave the name Oligocene.

Occupying a basin-shaped area around London and Paris there are beds of Eocene sands and clays which were originally deposited as continuous sheets of sediment in water at first salt, afterwards brackish and to a certain extent fresh. In the Hampshire cliffs and in some parts of the Isle of Wight, we have other patches of these oldest Tertiary sediments. Across the south of Europe, North Africa, Arabia, Persia, the Himalayas, to Java and the Philippine islands, there existed in early Tertiary times a wide sea connecting the Atlantic and Pacific oceans; and it may be that in the Mediterranean of to-day we have a remnant of this large Eocene ocean. Later in the Tertiary period a similar series of beds was deposited which we now refer to as the Oligocene strata; such occurs in the cliffs of Headon hill in the Isle of Wight, containing bones of crocodiles, and turtles, with the relics of a rich flora preserved in the delta deposits of an Oligocene river. At a still later stage the British area was probably dry land, and an open sea existed over the Mediterranean region. In the neighbourhood of Vienna we have beds of this age represented by a succession of sediments, at first marine and afterwards freshwater. Miocene beds occur over a considerable area in Switzerland and the Arctic regions, and they have yielded a rich harvest to palaeobotanical investigators.

On the coast of Essex, Suffolk, Norfolk, the south of Cornwall, and other districts there occur beds of shelly sand and gravel long known under the name of ‘Crag.’ The beds have a very modern aspect; the sands have not been converted into sandstones, and the shells have undergone but little change. These materials were for the most part accumulated on the bed of a shallow sea which swept over a portion of East Anglia in Pliocene times. In the sediments of this age northern forms of shells and other organisms make their appearance, and in the Cromer forest-bed there occur portions of drifted trees with sands, clays and gravels, representing in all probability the débris thrown down on the banks of an ancient river. At this time the greater part of the North Sea was probably a low-lying forest-covered region, through which flowed the waters of a large river, of which part still exists in the modern Rhine. The lowering of temperature which became distinctly pronounced in the Pliocene age, continued until the greater part of Britain and north Europe experienced a glacial period, and such conditions obtained as we find to-day in ice-covered Greenland. Finally the ice-sheet melted, the local glaciers of North Wales, the English Lake district and other hilly regions, retreated, and after repeated alterations in level, the land of Great Britain assumed its modern form. The submerged forests and peat beds familiar in many parts of the coast, the diatomaceous deposits of dried up lakes, “remain as the very finger touches of the last geological change.”

The agents of change and geological evolution, which we have passed in brief review, are still constantly at work carrying one step further the history of the earth. A superficial review of geological history gives us an impression of recurring and widespread convulsions, and rapidly effected revolutions in organic life and geographical conditions; on the other hand a closer comparison of the past and present, with due allowance for the enormous period of time represented by the records of the rocks, helps us to realise the continuity of geological evolution. “So that within the whole of the immense period indicated by the fossiliferous stratified rocks, there is assuredly not the slightest proof of any break in the uniformity of Nature’s operations, no indication that events have followed other than a clear and orderly sequence[64].”

The discovery of a fossil, whether as an impression on the surface of a slab of rock or as a piece of petrified wood, naturally leads us back to the living plant, and invites speculation as to the circumstances which led to the preservation of the plant fragment. There is a certain fascination in endeavouring, with more or less success, to picture the exact conditions which obtained when the leaf or stem was carried along by running water and finally sealed up in a sedimentary matrix. Attempts to answer the question—How came the plant remains to be preserved as fossils?—are not merely of abstract interest appealing to the imagination, but are of considerable importance in the correct interpretation of the facts which are to be gleaned from the records of plant-bearing strata.

Before describing any specific examples of the commoner methods of fossilisation; we shall do well to briefly consider how plants are now supplying material for the fossils of a future age. In the great majority of cases, an appreciation of the conditions of sedimentation, and of the varied circumstances attending the transport and accumulation of vegetable débris, supplies the solution of a problem akin to that of the fly in amber and the manner in which it came there.

Seeing that the greater part of the sedimentary strata have been formed in the sea, and as the sea rather than the land has been for the most part the scene of rock-building in the past, it is not surprising that fossil plants are far less numerous than fossil animals. With the exception of the algae and a few representatives of other classes of plants, which live in the shallow-water belt round the coast, or in inland lakes and seas, plants are confined to land-surfaces; and unless their remains are swept along by streams and embedded in sediments which are accumulating on the sea floor, the chance of their preservation is but small. The strata richest in fossil plants are often those which have been laid down on the floor of an inland lake or spread out as river-borne sediment under the waters of an estuary. Unlike the hard endo- and exo-skeletons of animals, the majority of plants are composed of comparatively soft material, and are less likely to be preserved or to retain their original form when exposed to the wear and tear which must often accompany the process of fossilisation.

The Coal-Measure rocks have furnished numberless relics of a Palaeozoic vegetation, and these occur in various forms of preservation in rocks laid down in shallow water on the edge of a forest-covered land. The underclays or unstratified argillaceous beds which nearly always underlie each seam of coal have often been described as old surface-soils, containing numerous remains of roots and creeping underground stems of forest trees. The overlying coal has been regarded as a mass of the carbonised and compressed débris of luxuriant forests which grew on the actual spot now occupied by the beds of coal. There are, however, many arguments in favour of regarding the coal seams as beds of altered vegetable material which was spread out on the floor of a lagoon or lake, while the underclay was an old soil covered by shallow water or possibly a swampy surface tenanted by marsh-loving plants[65].

The Jurassic beds of the Yorkshire Coast, long famous as some of the richest plant-bearing strata in Britain, and the Wealden rocks of the south coast afford examples of Mesozoic sediments which were laid down on the floor of an estuary or large lake. Circumstances have occasionally rendered possible the preservation of old land-surfaces with the stumps of trees still in their position of growth. One of the best examples of this in Britain are the so-called dirt-beds or black bands of Portland and the Dorset Coast. On the cliffs immediately east of Lulworth Cove, the surface of a ledge of Purbeck limestone which juts out near the top of the cliffs, is seen to have the form here and there of rounded projecting bosses or ‘Burrs’ several feet in diameter. In the centre of each boss there is either an empty depression, or the remnants of a silicified stem of a coniferous tree. Blocks of limestone 3 to 5 feet long and of about equal thickness may be found lying on the rocky ledge presenting the appearance of massive sarcophagi in which the central trough still contains the silicified remains of an entombed tree. The calcareous sediment no doubt oozed up to envelope the thick stem as it sank into the soft mud. An examination of the rock just below the bed bearing these curious circular elevations reveals the existence of a comparatively narrow band of softer material, which has been worn away by denuding agents more rapidly than the overlying limestone. This band consists of partially rounded or subangular stones associated with carbonaceous material, and probably marks the site of an old surface-soil. This old soil is well shown in the cliffs and quarries of Portland, and similar dirt-beds occur at various horizons in the Lower and Middle Purbeck Series[66]. In this case, then, we have intercalated in a series of limestone beds containing marine and freshwater shells two or three plant beds containing numerous and frequently large specimens of cycadean and coniferous stems, lying horizontally or standing in their original position of growth. These are vestiges of an ancient forest which spread over a considerable extent of country towards the close of the Jurassic period. The trunks of cycads, long familiar in the Isle of Portland as fossil crows’ nests, have usually the form of round depressed stems with the central portion somewhat hollowed out. It was supposed by the quarrymen that they were petrified birds’ nests which had been built in the forks of the trees which grew in the Portland forest. The beds separating the surface-soils of the Purbeck Series, as seen in the sections exposed on the cliffs or quarries, point to the subsidence of a forest-covered area over which beds of water-borne sediment were gradually deposited, until in time the area became dry land and was again taken possession of by a subtropical vegetation, to be once more depressed and sealed up under layers of sediment[67].

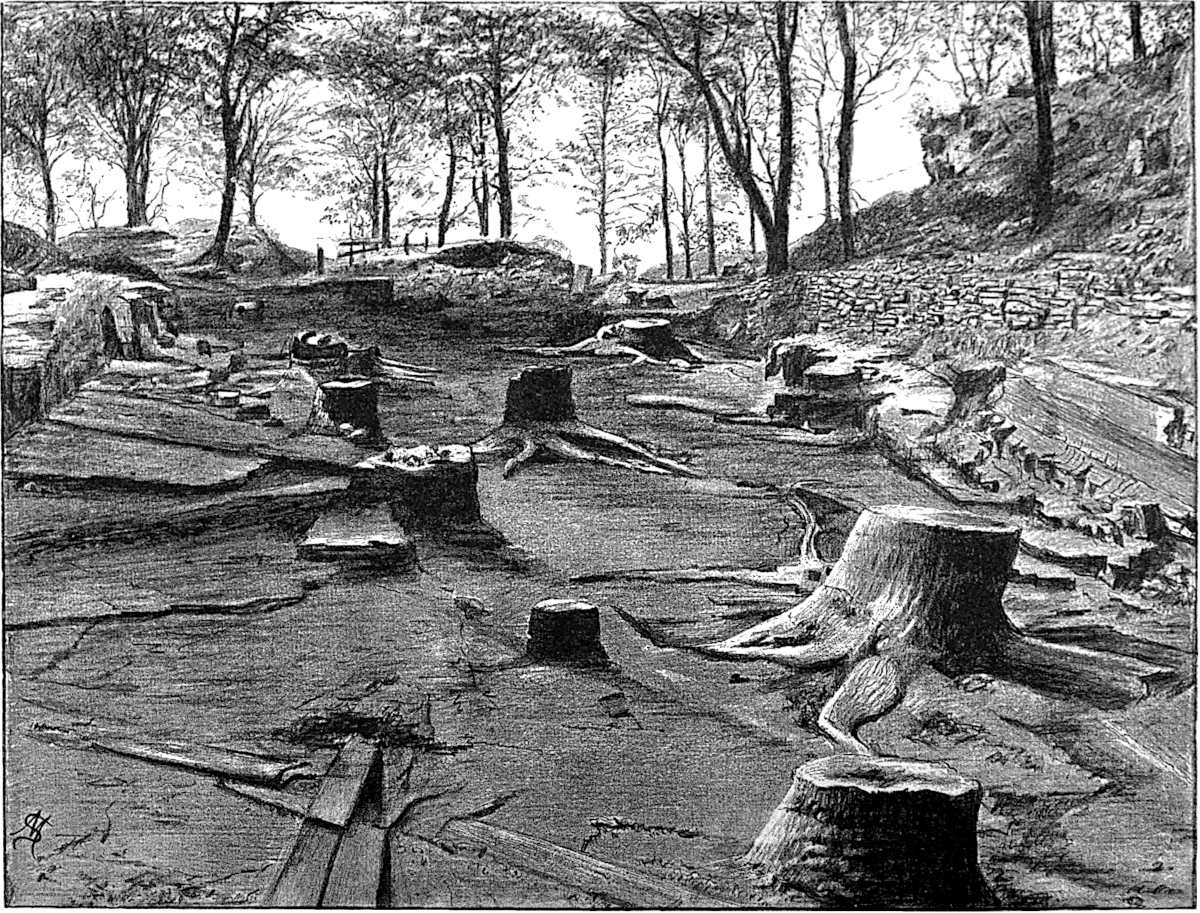

A still more striking example of the preservation of forest trees rooted in an old surface-soil is afforded by the so-called fossil-grove in Victoria Park, Glasgow, (Frontispiece). The stumps of several trees, varying in diameter from about one to three feet, are fixed by long forking ‘roots’ in a bed of shale. In some cases the spreading ‘roots,’ which bear the surface features of Stigmaria, extend for a distance of more than ten feet from the base of the trunk. The stem surface is marked by irregular wrinklings which suggest a fissured bark; but the superficial characters are very imperfectly preserved. In one place a flattened Lepidodendron stem, about 30 feet long, lies prone on the shale. Each of the rooted stumps is oval or elliptical in section, and the long axes of the several stems are approximately parallel, pointing to some cause operating in a definite direction which gave to the stems their present form. Near one of the trees, and at a somewhat higher level than its base, the surface of the rock is clearly ripple-marked, and takes us back to the time when the sinking forest trees were washed by waves which left an impress in the soft mud laid down over the submerged area. The stumps appear to be those of Lepidodendron trees, rooted in Lower Carboniferous rocks. From their manner of occurrence it would seem that we have in them a corner of a Palaeozoic forest in which Lepidodendra played a conspicuous part. The shales and sandstones containing the fossil trees were originally overlain by a bed of igneous rock which had been forced up as a sheet of lava into the hardened sands and clays[68].

Other examples of old surface-soils occur in different parts of the world and in rocks of various ages. As an instance of a land surface preserved in a different manner, reference may be made to the thin bands of reddish or brown material as well as clays and shale which occasionally occur between the sheets of Tertiary lava in the Western Isles of Scotland and the north-east of Ireland. In the intervals between successive outpourings of basaltic lava in the north-west of Europe during the early part of the Tertiary period, the heated rocks became gradually cooler, and under the influence of weathering agents a surface-soil was produced fit for the growth of plants. In some places, too, shallow lakes were formed, and leaves, fruits and twigs became embedded in lacustrine sediments, to be afterwards sealed up by later streams of lava. In the face of the cliff at Ardtun Head on the coast of Mull a leaf-bed is exposed between two masses of gravel underlying a basaltic lava flow; the impressions of the leaves of Gingko and other plants from the Tertiary sediments of this district are exceptionally beautiful and well preserved[69]. A large collection obtained by Mr Starkie Gardner may be seen in the British Museum.

In 1883 the Malayan island of Krakatoa, 20 miles from Sumatra and Java, was the scene of an exceptionally violent volcanic explosion. Two-thirds of the island were blown away, and the remnant was left absolutely bare of organic life. In 1886 it was found that several plants had already established themselves on the hardened and weathered crust of the Krakatoan rocks, the surface of the lavas having been to a large extent prepared for the growth of the higher plants by the action of certain blue-green algae which represent some of the lowest types of plant life[70]. We may perhaps assume a somewhat similar state of things to have existed in the volcanic area in north-west Europe, where the intervals between successive outpourings of lava are represented by the thin bands of leaf-beds and old surface-soils.

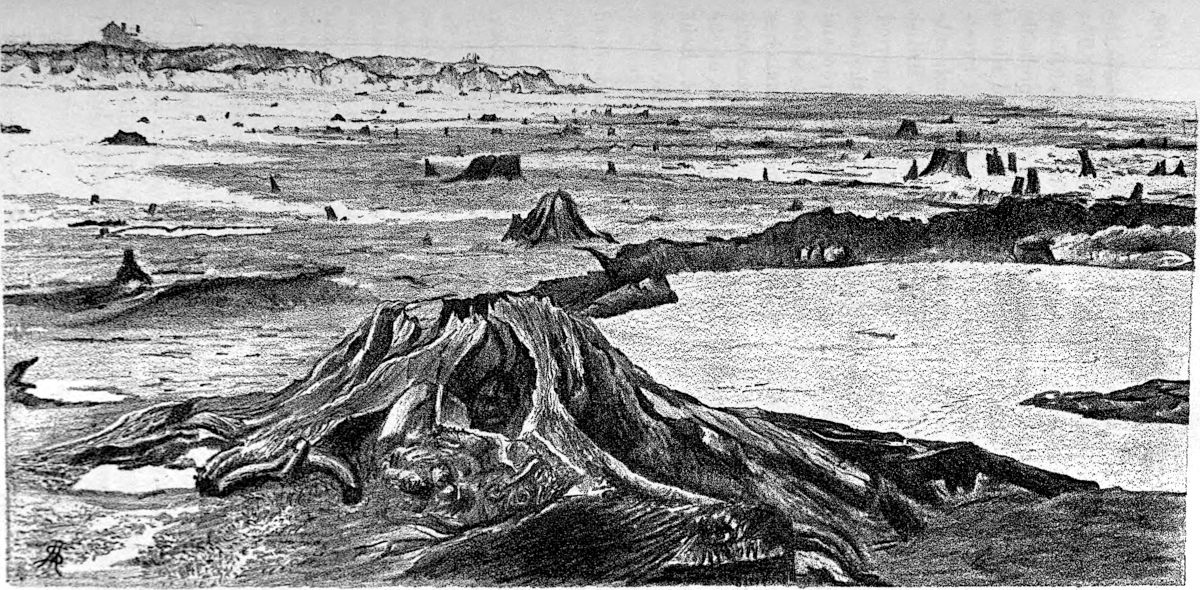

On the Cheshire Coast at Leasowe[71] and other localities, there is exposed at low water a tract of black peaty ground studded with old rooted stumps of conifers and other trees (fig. 6). There is little reason to doubt that at all events the majority of the trees are in their natural place of growth. The peaty soil on which they rest contains numerous flattened stems of reeds and other plants, and is penetrated by roots, probably of some aquatic or marshy plants which spread over the site of the forest as it became gradually submerged. A lower forest-bed rests directly on a foundation of boulder clay. Such submerged forests are by no means uncommon around the British coast; many of them belong to a comparatively recent period, posterior to the glacial age. In many cases, however, the tree stumps have been drifted from the places where they grew and eventually deposited in their natural position, the roots of the trees, in some cases aided by stones entangled in their branches, being heavier than the stem portion. There is a promising field for botanical investigation in the careful analysis of the floras of submerged forests; the work of Clement Reid, Nathorst, Andersson and others, serves to illustrate the value of such research in the hands of competent students.

Fig. 6. Part of a submerged Forest seen at low water on the Cheshire Coast at Leasowe. Drawn from a photograph.

The following description by Lyell, taken from his American travels, is of interest as affording an example of the preservation of a surface-soil:

“On our way home from Charleston, by the railway from Orangeburg, I observed a thin black line of charred vegetable matter exposed in the perpendicular section of the bank. The sand cast out in digging the railway had been thrown up on the original soil, on which the pine forest grew; and farther excavations had laid open the junction of the rubbish and the soil. As geologists, we may learn from this fact how a thin seam of vegetable matter, an inch or two thick, is often the only monument to be looked for of an ancient surface of dry land, on which a luxuriant forest may have grown for thousands of years. Even this seam of friable matter may be washed away when the region is submerged, and, if not, rain water percolating freely through the sand may, in the course of ages, gradually carry away the carbon[72].”

In addition to the remnants of ancient soils, and the preservation of plant fragments in rocks which have been formed on the floor of an inland lake or an estuary, it is by no means rare to find fossil plants in obviously marine sediments. In fig. 7 we have a piece of coniferous wood with the shell of an Ammonite (Aegoceras planicosta Sow.) lying on it; the specimen was found in the Lower Lias clay at Lyme Regis, and illustrates the accidental association of a drifted piece of a forest tree with a shell which marks at once the age and the marine character of the beds. Again in fig. 8 we have a block of flint partially enclosing a piece of coniferous wood in which the internal structure has been clearly preserved in silica. This specimen was found in the chalk, a deposit laid down in the clear and deep water of the Cretaceous sea. The wood must have floated for some time before it became water-logged and sank to the sea-floor. In the light coloured wood there occur here and there dark spots which mark the position of siliceous plugs b, b filling up clean cut holes bored by Teredos in the woody tissue. The wood became at last enclosed by siliceous sediment and its tissues penetrated by silica in solution, which gradually replaced and preserved in wonderful perfection the form of the original tissue. A similar instance of wood enclosed in flint was figured by Mantell in 1844 in his Medals of Creation[73].

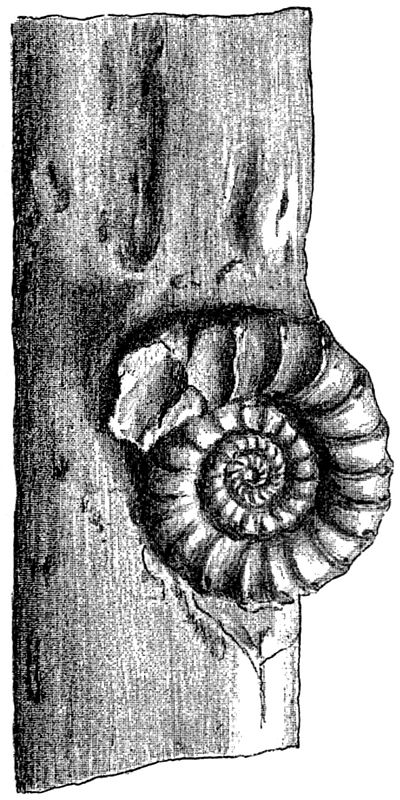

Fig. 7. Aegoceras planicosta Sow. on a piece of coniferous wood, Lower Lias, Lyme Regis. From a specimen in the British Museum. Slightly reduced.

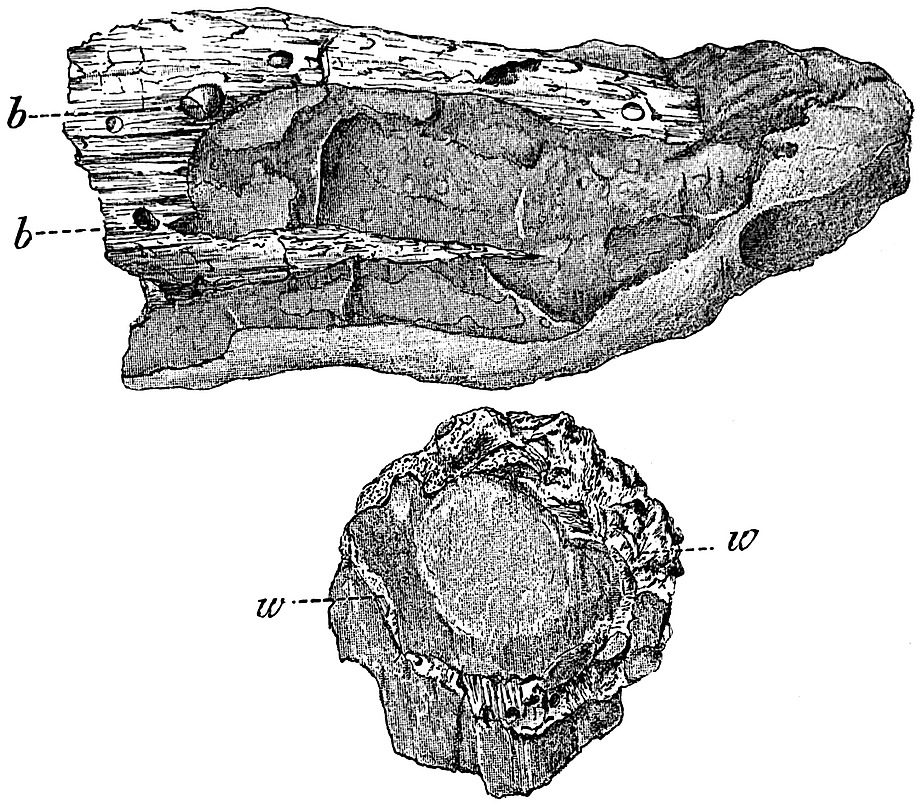

Fig. 8. Piece of coniferous wood in flint, from the Chalk, Croydon. Drawn from a specimen presented to the British Museum by Mr Murton Holmes. In the side view, shown above in the figure, the position of the wood is shown by the lighter portion, with holes, b, b, bored by Teredos or some other wood-eating animal. In the end view, below, the wood is seen as an irregular cylinder w, w, embedded in a matrix of flint. ⅓ Nat. size.

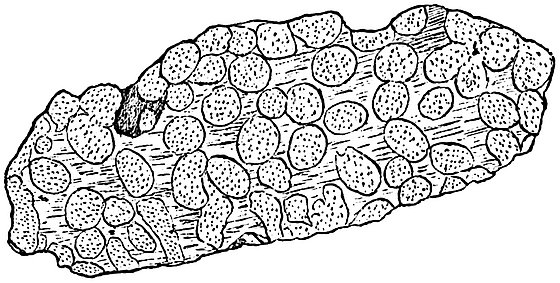

The specimen represented in fig. 9 illustrates the almost complete destruction of a piece of wood by some boring animal. The circular and oval dotted patches represent the filled up cavities made by a Teredo or some similar wood-boring animal.

Fig. 9. Piece of wood from the Red Crag of Suffolk, riddled with holes filled in with mud. From a specimen in the York Museum. ⅓ Nat. size.

Before discussing a few more examples of fossils illustrating different methods of fossilisation, it may not be out of place to quote a few extracts from travellers’ narratives which enable us to realise more readily the circumstances and conditions under which plant remains have been preserved in the Earth’s crust.

In an account of a journey down the Rawas river in Sumatra, Forbes thus describes the flooded country:—

“The whole surface of the water was covered, absolutely in a close sheet, with petals, fruits and leaves, of innumerable species. In placid corners sometimes I noted a collected mass nearly half a foot deep, among which, on examination, I could scarcely find a leaf that was perfect, or that remained attached to its rightful neighbour, so that were they to become imbedded in some soft muddy spot, and in after ages to reappear in a fossil form they would afford a few difficult puzzles to the palaeontologist, both to separate and to put together[74].”

An interesting example of the mixture of plants and animals in sedimentary deposits is described by Hooker in his Himalayan Journals:—

“To the geologist the Jheels and Sunderbunds are a most instructive region, as whatever may be the mean elevation of their waters, a permanent depression of ten to fifteen feet would submerge an immense tract, which the Ganges, Burrampooter, and Soormah would soon cover with beds of silt and sand.

“There would be extremely few shells in the beds thus formed, the southern and northern divisions of which would present two very different floras and faunas, and would in all probability be referred by future geologists to widely different epochs. To the north, beds of peat would be formed by grasses, and in other parts temperate and tropical forms of plants and animals would be preserved in such equally balanced proportions as to confound the palaeontologist; with the bones of the long-snouted alligator, Gangetic porpoise, Indian cow, buffalo, rhinoceros, elephant, tiger, deer, bear, and a host of other animals, he would meet with acorns of several species of oak, pine-cones and magnolia fruits, rose seeds, and Cycas nuts, with palm nuts, screw-pines, and other tropical productions[75].”

In another place the same author writes:

“On the 12th of January, 1848, the Moozuffer was steaming amongst the low, swampy islands of the Sunderbunds.... Every now and then the paddles of the steamer tossed up the large fruits of Nypa fruticans, Thunb., a low stemless palm that grows in the tidal waters of the Indian Ocean, and bears a large head of nuts. It is a plant of no interest to the common observer, but of much to the geologist, from the nuts of a similar plant abounding in the Tertiary formations at the mouth of the Thames, having floated about there in as great profusion as here, till buried deep in the silt and mud that now forms the island of Sheppey[76].”

Of the drifting of timber, fruits, &c., we find numerous accounts in the writings of travellers. Rodway thus describes the formation of vegetable rafts in the rivers of Northern British Guiana:—

“Sometimes a great tree, whose timber is light enough to float, gets entangled in the grass, and becomes the nucleus of an immense raft, which is continually increasing in size as it gathers up everything that comes floating down the river[77].”

The undermining of river banks in times of flood, and the transport of the drifted trees to be eventually deposited in the delta is a familiar occurrence in many parts of the world. The more striking instances of such wholesale carrying along of trees are supplied by Bates, Lyell and other writers. In his description of the Amazon the former writes:

“The currents ran with great force close to the bank, especially when these receded to form long bays or enseadas, as they are called, and then we made very little headway. In such places the banks consist of loose earth, a rich crumbling vegetable mould, supporting a growth of most luxuriant forest, of which the currents almost daily carry away large portions, so that the stream for several yards out is encumbered with fallen trees, whose branches quiver in the current[78].”

In another place, Bates writes:

“The rainy season had now set in over the region through which the great river flows; the sand-banks and all the lower lands were already under water, and the tearing current, two or three miles in breadth, bore along a continuous line of uprooted trees and islets of floating plants[79].”

The rafts of the Mississippi and other rivers described by Lyell afford instructive examples of the distant transport of vegetable material. The following passage is taken from the Principles of Geology;

“Within the tropics there are no ice-floes; but, as if to compensate for that mode of transportation, there are floating islets of matted trees, which are often borne along through considerable spaces. These are sometimes seen sailing at the distance of fifty or one hundred miles from the mouth of the Ganges, with living trees standing erect upon them. The Amazons, the Orinoco, and the Congo also produce these verdant rafts[80].”

After describing the enormous natural rafts of the Atchafalaya, an arm of the Mississippi, and of the Red river, Lyell goes on to say:

“The prodigious quantity of wood annually drifted down by the Mississippi and its tributaries is a subject of geological interest, not merely as illustrating the manner in which abundance of vegetable matter becomes, in the ordinary course of nature, imbedded in submarine and estuary deposits, but as attesting the constant destruction of soil and transportation of matter to lower levels by the tendency of rivers to shift their courses.... It is also found in excavating at New Orleans, even at the depth of several yards below the level of the sea, that the soil of the delta contains innumerable trunks of trees, layer above layer, some prostrate as if drifted, others broken off near the bottom, but remaining still erect, and with their roots spreading on all sides, as if in their natural position[81].”

The drifting of trees in the ocean is recorded by Darwin in his description of Keeling Island, and their action as vehicles for the transport of boulders is illustrated by the same account.

“In the channels of Tierra del Fuego large quantities of drift timber are cast upon the beach, yet it is extremely rare to meet a tree swimming in the water. These facts may possibly throw light on single stones, whether angular or rounded, occasionally found embedded in fine sedimentary masses[82].”

Fruits may often be carried long distances from land, and preserved in beds far from their original source. Whilst cruising amongst the Solomon Islands, the Challenger met with fruits of Barringtonia speciosa &c., 130–150 miles from the coast. Off the coast of New Guinea long lines of drift wood were seen at right angles to the direction of the river; uprooted trees, logs, branches, and bark, often floating separately.

“The midribs of the leaves of a pinnate-leaved palm were abundant, and also the stems of a large cane grass (Saccharum), like that so abundant on the shores of the great river in Fiji. Various fruits of trees and other fragments were abundant, usually floating confined in the midst of the small aggregations into which the floating timber was everywhere gathered.... Leaves were absent except those of the Palm, on the midrib of which some of the pinnæ were still present. The leaves evidently drop first to the bottom, whilst vegetable drift is floating from a shore; thus, as the débris sinks in the sea water, a deposit abounding in leaves, but with few fruits and little or no wood, will be formed near shore, whilst the wood and fruits will sink to the bottom farther off the land. Much of the wood was floating suspended vertically in the water, and most curiously, logs and short branch pieces thus floating often occurred in separate groups apart from the horizontally floating timber. The sunken ends of the wood were not weighted by any attached masses of soil or other load of any kind; possibly the water penetrates certain kinds of wood more easily in one direction with regard to its growth than the other, hence one end becomes water-logged before the other.... The wood which had been longest in the water was bored by a Pholas[83].”

The bearing of this account on the manner of preservation of fossils, and the differential sorting so frequently seen in plant beds, is sufficiently obvious.

As another instance of the great distance to which land plants may be carried out to sea and finally buried in marine strata, an observation by Bates may be cited. When 400 miles from the mouth of the main Amazons, he writes:

“We passed numerous patches of floating grass mingled with tree trunks and withered foliage. Amongst these masses I espied many fruits of that peculiar Amazonian tree the Ubussú Palm; this was the last I saw of the great river[84].”

The following additional extract from the narrative of the Cruise of H.M.S. Challenger illustrates in a striking degree the conflicting evidence which the contents of fossiliferous beds may occasionally afford; it describes what was observed in an excursion from Sydney to Berowra Creek, a branch of the main estuary or inlet into which flows the Hawkesbury river. It was impossible to say where the river came to an end and the sea began. The Creek is described as a long tortuous arm of the sea, 10 to 15 miles long, with the side walls covered with orchids and Platycerium. The ferns and palms were abundant in the lateral shady glens; marine and inland animals lived in close proximity.

“Here is a narrow strip of the sea water, twenty miles distant from the open sea; on a sandy shallow flat close to its head are to be seen basking in the sun numbers of sting-rays.... All over these flats, and throughout the whole stretch of the creek, shoals of Grey Mullet are to be met with; numerous other marine fish inhabit the creek. Porpoises chase the mullet right up to the commencement of the sand-flat. At the shores of the creek the rocks are covered with masses of excellent oysters and mussel, and other shell-bearing molluscs are abundant, whilst a small crab is to be found in numbers in every crevice. On the other hand the water is overhung by numerous species of forest trees, by orchids and ferns, and other vegetation of all kinds; mangroves grow only in the shallow bays. The gum trees lean over the water in which swim the Trygon and mullet, just as willows hang over a pool of carp. The sandy bottom is full of branches and stems of trees, and is covered in patches here and there by their leaves. Insects constantly fall in the water, and are devoured by the mullet. Land birds of all kinds fly to and fro across the creek, and when wounded may easily be drowned in it. Wallabies swim across occasionally, and may add their bones to the débris at the bottom. Hence here is being formed a sandy deposit, in which may be found cetacean, marsupial, bird, fish, and insect remains, together with land and sea shells, and fragments of a vast land flora; yet how restricted is the area occupied by this deposit, and how easily might surviving fragments of such a record be missed by future geological explorers![85]”

The term ‘fossil’ suggests to the lay mind a petrifaction or a replacement by mineral matter of the plant tissues. In the scientific sense, a fossil plant, that is a plant or part of a plant whether in the form of a true petrifaction or a structureless mould or cast, which has been buried in the earth by natural causes, may be indistinguishable from a piece of recent wood lately fallen from the parent tree. In the geologically recent peat beds such little altered fossils (or sub-fossils) are common enough, and even in older rocks the more resistant parts of plant fragments are often found in a practically unaltered state. In the leaf impressions on an impervious clay, the brown-walled epidermis shows scarcely any indication of alteration since it was deposited in the soft mud of a river’s delta. Such fossil leaves are common in the English Tertiary beds, and even in Palaeozoic rocks it is not uncommon to find an impression of a plant on a bed of shale from which the thin brown epidermis may be peeled off the rock, and if microscopically examined it will be found to have retained intact the contours of the cuticularised epidermal cells. A striking example of a similar method of preservation is afforded by the so-called paper-coal of Culm age from the Province of Toula in Russia[86]. In the Russian area the Carboniferous or Permian rocks have been subjected to little lateral pressure, and unlike the beds of the same age in Western Europe, they have not been folded and compressed by widespread and extensive crust-foldings. Instead of the hard seams of coal there occur beds of a dark brown laminated material, made up very largely of the cuticles of Lepidodendroid plants.

From such examples we may naturally pass to fossils in which the plant structure has been converted into carbonaceous matter or even pure coal. This form of preservation is especially common in plant-bearing beds at various geological horizons. In other cases, again, some mineral solution, oxide of iron, talc, and other substances, has replaced the plant tissues. From the Coal-Measures of Switzerland Heer has figured numerous specimens of fern fronds and other plants in which the leaf form has been left on the dark coloured rock surface as a thin layer of white talcose material[87]. In the Buntersandstone of the Vosges and other districts the red imperfectly preserved impressions of plant stems and leaves are familiar fossils[88]; the carbonaceous substance of the tissues has been replaced by a brown or red oxide of iron.

Plants frequently occur in the form of incrustations; and in fact incrustations, which may assume a variety of forms, are the commonest kind of fossil. The action of incrusting springs, or as they are often termed petrifying springs, is illustrated at Knaresborough, in Yorkshire, and many other places where water highly charged with carbonate of lime readily deposits calcium carbonate on objects placed in the path of the stream.

The travertine deposited in this manner forms an incrustation on plant fragments, and if the vegetable substance is subsequently removed by the action of water or decay, a mould of the embedded fragment is left in the calcareous matrix. An instructive example of this form of preservation was described in 1868[89] by Sharpe from an old gravel pit near Northampton. He found in a section eight feet high (fig. 10), a mass of incrusted plants of Chara (a) resting on and overlain by a calcareous paste (c) and (d) made up of the decomposed material of the overlying rock, and this again resting on sand. The place where the section occurred was originally the site of a pool in which Stoneworts grew in abundance. Large blocks of these incrusted Charas may be seen in the fossil-plant gallery of the British Museum.

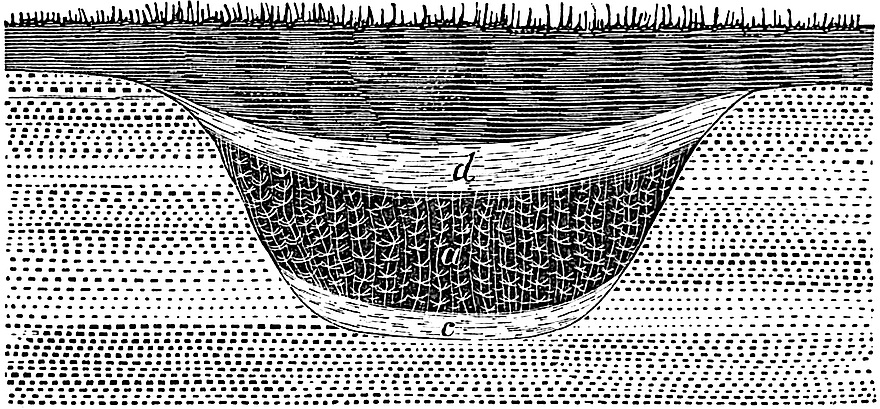

Fig. 10. Section of an old pool filled up with a mass of Chara. (From the Geol. Mag. vol. v. 1868, p. 563.)

In the Natural History Museum in the Jardin des Plantes, Paris, one of the table-cases contains what appear to be small models of flowers in green wax. These are in reality casts in wax of the moulds or cavities left in a mass of calcareous travertine, on the decay and disappearance of the encrusted flowers and other plant fragments[90]. This porous calcareous rock occurs near Sézanne in Southern France, and is of Eocene age[91]. The plants were probably blown on to the freshly deposited carbonate of lime, or they may have simply fallen from the tree on to the incrusting matrix; more material was afterwards deposited and the flowers were completely enclosed. Eventually the plant substance decayed, and as the matrix hardened moulds were left of the vegetable fragments. Wax was artificially forced into these cavities and the surrounding substance removed by the action of an acid, and thus perfect casts were obtained of Tertiary flowers.

Darwin has described the preservation of trees in Van Diemen’s land by means of calcareous substances. In speaking of beds of blown sand containing branches and roots of trees he says:

“The whole became consolidated by the percolation of calcareous matter; and the cylindrical cavities left by the decaying of the wood were thus also filled up with a hard pseudo-stalactitical stone. The weather is now wearing away the softer parts, and in consequence the hard casts of the roots and branches of the trees project above the surface, and, in a singularly deceptive manner, resemble the stumps of a dead thicket[92].”

As a somewhat analogous method of preservation to that in travertine, the occurrence of plants in amber should be mentioned. In Eocene times there existed over a region, part of which is now the North-east German coast, an extensive forest of conifers and other trees. Some of the conifers were rich in resinous secretions which were poured out from wounded surfaces or from scars left by falling branches. As these flowed as a sticky mass over the stem or collected on the ground, flowers, leaves, and twigs blown by the wind or falling from the trees, became embedded in the exuded resin. Evaporation gradually hardened the resinous substance until the plant fragments became sealed up in a mass of amber, in precisely the same manner in which objects are artificially preserved in Canada balsam. In many cases the amber acts as a petrifying agent, and by penetrating the tissues of a piece of wood it preserves the minute structural details in wonderful perfection[93]. Dr Thomas in an account of the amber beds of East Prussia in 1848, refers to the occurrence of large fossil trees; he writes:

“The continuous changes to which the coast is exposed, often bring to light enormous trunks of trees, which the common people had long regarded as the trunks of the amber tree, before the learned declared that they were the stems of palm trees, and in consequence determined the position of Paradise to be on the coast of East Prussia[94].”

In 1887 an enormous fossil plant was discovered in a sandstone quarry at Clayton near Bradford[95]. The fossil was in the form of a sandstone cast of a large and repeatedly branched Stigmaria, and it is now in the Owens College Museum, where it was placed through the instrumentality of Prof. Williamson. The plant was found spread out in its natural position on the surface of an arenaceous shale, and overlain by a bed of hard sandstone identical with the material of which the cast is composed. Williamson has thus described the manner of formation of the fossil:

“It is obvious that the entire base of the tree became encased in a plastic material, which was firmly moulded upon these roots whilst the latter retained their organisation sufficiently unaltered to enable them to resist all superincumbent pressure. This external mould then hardened firmly, and as the organic materials decayed they were floated out by water which entered the branching cavity; at a still later period the same water was instrumental in replacing the carbonaceous elements by the sand of which the entire structure now consists[96].”

Although the branches have not been preserved for their whole length, they extend a distance of 29 feet 6 inches from right to left, and 28 feet in the opposite direction.

The fossil represented in fig. 1 (p. 10), from the collection of Dr John Woodward, affords a good example of a well-defined impression. The surface of the specimen, of which a cast is represented in fig. 1, shows very clearly the characteristic leaf-cushions and leaf-scars of a Lepidodendron. The stem was embedded in soft sand, and as the latter became hard and set, an impression was obtained of the external markings of the Lepidodendron. Decay subsequently removed the substance of the plant.

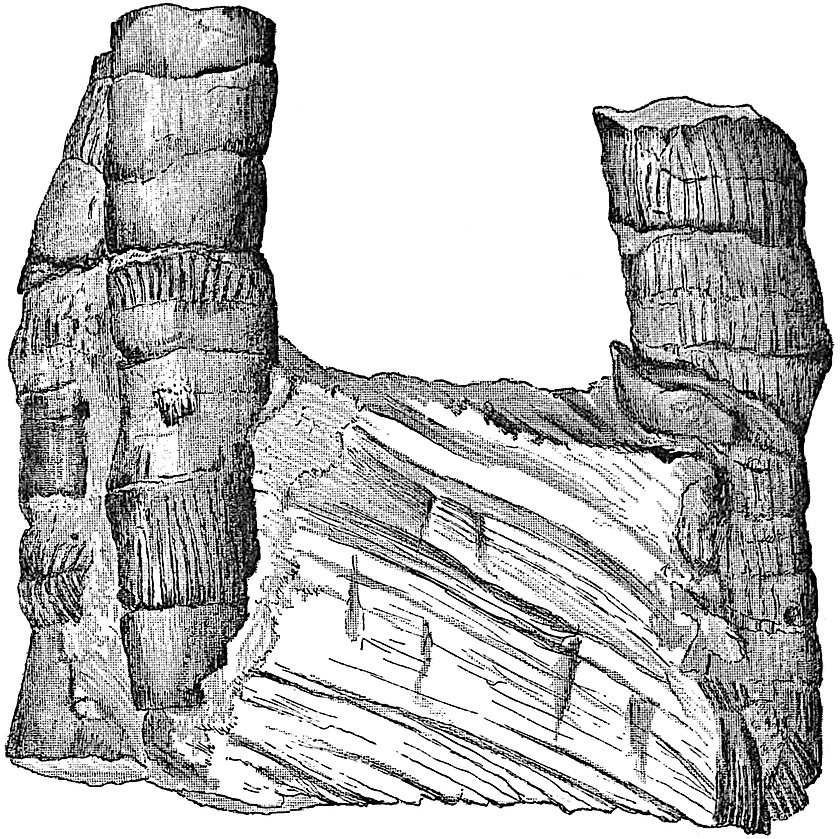

Fig. 11. Equisetites columnaris Brongn. From a specimen in the Woodwardian Museum, Cambridge. ⅓ nat. size.

In fig. 11 some upright stems of a fossil Horse-tail (Equisetites columnaris) from the Lower Oolite rocks near Scarborough, are seen in a vertical position in sandstone. On the surface of the fossils there is a thin film of carbonaceous matter, which is all that remains of the original plant substance; the stems were probably floated into their present position and embedded vertically in an arenaceous matrix. The hollow pith-cavity was filled with sand, and as the tissues decayed they became in part converted into a thin coaly layer. The vertical position of such stems as those in fig. 11 naturally suggests their preservation in situ, but in this as in many other cases the erect manner of occurrence is due to the settling down of the drifted plants in this particular position.

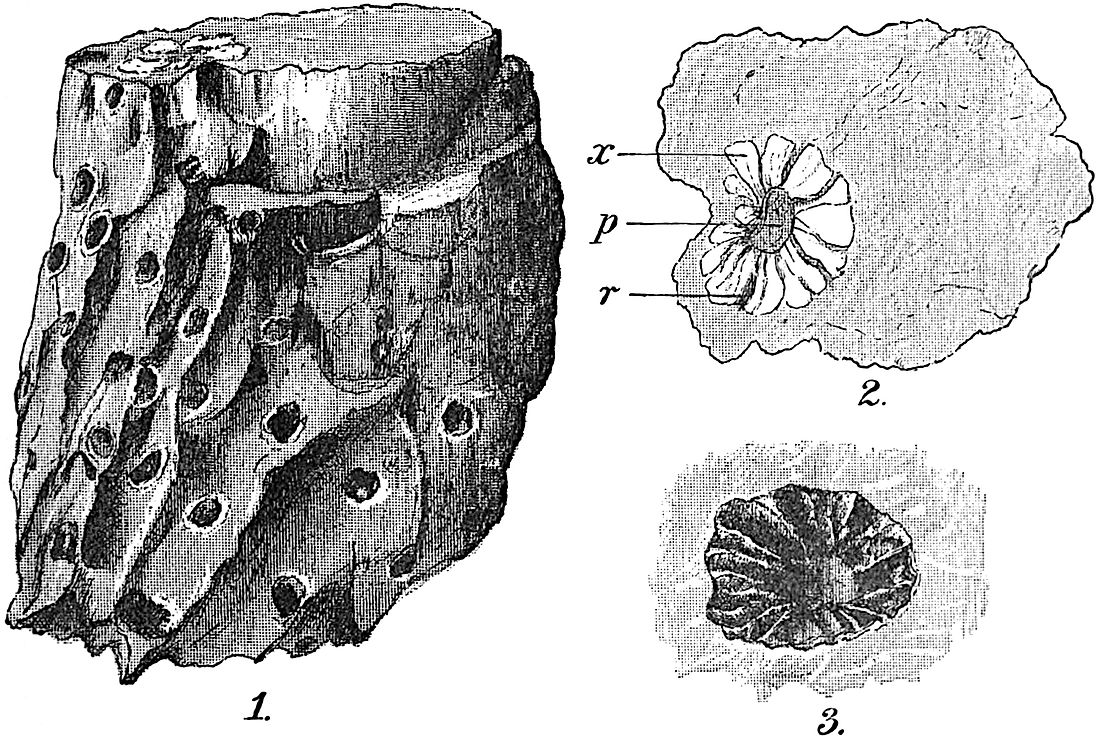

An example of Stigmaria drawn in fig. 12 further illustrates the formation of casts[97]. The outer surface with the characteristic spirally arranged circular depressions, represents the wrinkled bark of the dried plant; the smaller cylinder, on the left side of the upper end (fig. 12, 2, p) marks the position of the pith surrounded by the secondary wood, which has been displaced from its axial position. The pith decayed first, and the space was filled in with mud; somewhat later the wood and cortex were partially destroyed, and the rod of material which had been introduced into the pith-cavity dropped towards one side of the decaying shell of bark.

Fig. 12. Stigmaria ficoides Brongn. 1. Side view, showing wrinkled surface and the scars of appendages. 2. End view (upper) showing the displaced central cylinder; p, pith, x, xylem, r, medullary rays. 3. End view (lower). From a specimen in the Woodwardian Museum. ½ nat. size.

As the parenchymatous medullary rays readily decayed, the mud in the pith extended outwards between the segments of wood which still remained intact, and so spokes of argillaceous material were formed which filled the medullary ray cavities. The cortical tissues were decomposed, and their place taken by more argillaceous material. At one end of the specimen (fig. 12, 3) we find the wood has decayed without its place being afterwards filled up with foreign material. At the opposite end of the specimen, the woody tissue has been partially preserved by the infiltration of a solution containing carbonate of lime (fig. 12, 2).

Numerous instances have been recorded from rocks of various geological ages of casts of stems standing erect and at right angles to the bedding of the surrounding rock. These vertical trees occasionally attain a considerable length, and have been formed by the filling in by sand or mud of a pipe left by the decay of the stem. It is frequently a matter of some difficulty to decide how far such fossils are in the position of growth of the tree, or whether they are merely casts of drifted stems, which happen to have been deposited in an erect position. The weighting of floating trees by stones held in the roots, added to the greater density of the root wood, has no doubt often been the cause of this vertical position. In attempting to determine if an erect cast is in the original place of growth of the tree, it is important to bear in mind the great length of time that wood is able to resist decay, especially under water. The wonderful state of preservation of old piles found in the bed of a river, and the preservation of wooden portions of anchors of which the iron has been completely removed by disintegration, illustrate this power of resistance. In this connection, the following passage from Lyell’s travels in America is of interest. In describing the site of an old forest, he writes[98]:

“Some of the stumps, especially those of the fir tribe, take fifty years to rot away, though exposed in the air to alternations of rain and sunshine, a fact on which every geologist will do well to reflect, for it is clear that the trees of a forest submerged beneath the water, or still more, if entirely excluded from the air, by becoming imbedded in sediment, may endure for centuries without decay, so that there may have been ample time for the slow petrifaction of erect fossil trees in the Carboniferous and other formations, or for the slow accumulation around them of a great succession of strata.”

In another place, in speaking of the trees in the Great Dismal Swamp, Lyell writes:—“When thrown down, they are soon covered by water, and keeping wet they never decompose, except the sap wood, which is less than an inch thick[99].” We see, then, that trees may have resisted decay for a sufficiently long time to allow of a considerable deposition of sediment. It is very difficult to make any computation of the rate of deposition of a particular set of sedimentary strata, and, therefore, to estimate the length of time during which the fossil stems must have resisted decay.

The protective qualities of humus acids, apart from the almost complete absence of Bacteria[100] from the waters of Moor- or Peat-land, is a factor of great importance in the preservation of plants against decay for many thousands of years.

From examples of fossil stems or leaves in which the organic material has been either wholly or in part replaced by coal, we may pass by a gradual transition to a mass of opaque coal in which no plant structure can be detected. It is by no means uncommon to notice on the face of a piece of coal a distinct impression of a plant stem, and in some cases the coal is obviously made up of a number of flattened and compressed branches or leaves of which the original tissues have been thoroughly carbonised. A block of French coal, represented in fig. 13, consists very largely of laminated bands composed of the long parallel veined leaves of the genus Cordaites and of the bark of Lepidodendron, Sigillaria, and other Coal-Measure genera. The long rhizomes and roots below the coal are preserved as casts in the underclay.

In examining thin sections of coal, pieces of pitted tracheids or crushed spores are frequently met with as fragments of plant structures which have withstood decay more effectually than the bulk of the vegetable débris from which the coal was formed.

The coaly layer on a fossil leaf is often found to be without any trace of the plant tissues, but not infrequently such carbonised leaves, if treated with certain reagents and examined microscopically, are seen to retain the outlines of the epidermal cells of the leaf surface. If a piece of the Carbonaceous film detached from a fossil leaf is left for some days in a small quantity of nitric acid containing a crystal of chlorate of potash, and, after washing with water, is transferred to ammonia, transparent film often shows very clearly the outlines of the epidermal cell and the form of the stomata. Such treatment has been found useful in many cases as an aid to determination[101]. Prof. Zeiller informs me that he has found it particularly satisfactory in the case of cycadean leaves.

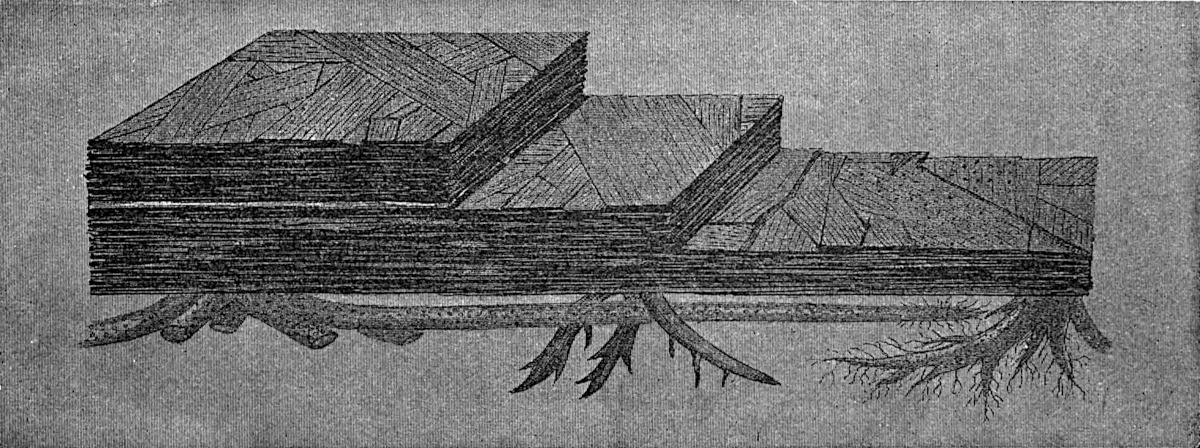

Fig. 13. Part of a coal seam largely made up of Cordaites leaves. Stigmaria and Stigmariopsis shown in the rock (underclay) underlying the coal. (After Grand’Eury [82] Pl. I. fig. 3.)

It is sometimes possible to detach the thin lamina representing the carbonised leaf or other plant fragment from the rock on which it lies and to mount it whole on a slide. Good examples of plants treated in this way may be seen in the Edinburgh and British Museums, especially Sphenopteris fronds from the Carboniferous oil shales of Scotland. In the excellent collection of fossil plants in Stockholm there are still finer examples of such specimens, obtained by Dr Nathorst from some of the Triassic plants of Southern Sweden. In a few instances the tissues of a plant have been converted into coal in such a manner as to retain the form of the individual cells, which appear in section as a black framework in a lighter coloured matrix. Examples of such carbonised tissues were figured by some of the older writers, and Solms-Laubach has recently[102] described sections of Palaeozoic plants preserved in this manner. The section represented in fig. 70 is that of a Calamite stem (8 × 9·5 cm.) in which the wood has been converted into carbonaceous material, but the more delicate tissues have been almost completely destroyed. The thin and irregular black line a little distance outside the ring of wood, and forming the limit of the drawing, probably represents the cuticle. The whole section is embedded in a homogeneous matrix of calcareous rock, in which the more resistant tissues of the plant have been left as black patches and faint lines.

Mention should be made of a special form of preservation which has been described as fossilisation in half-relief. If a stem is imbedded in sand or mud, the matrix receives an impression of the plant surface, and if the hollow pith-cavity is filled with the surrounding sediment, the surface of the medullary cast will exhibit markings different from those seen on the surface in contact with the outside of the stem. The space separating the pith-cast from the mould bearing the impression of the stem surface may remain empty, or it may be filled with sedimentary material. In half-relief fossils, on the other hand, we have projecting from the under surface of a bed a more or less rounded and prominent ridge with certain surface markings, and fitting into a corresponding groove in the underlying rock on which the same markings have been impressed. It is conceivable that such a cast might be obtained if soft plant fragments were lying on a bed of sand, and were pressed into it by the weight of superincumbent material. The plant fragment would be squeezed into a depression, and its substance might eventually be removed and leave no other trace than the half-relief cast and hollow mould. A twig lying on sand would by its own weight gradually sink a little below the surface; if it were then blown away or in some manner removed, the depression would show the surface features of the twig. When more sand came to be spread out over the depression, it would find its way into the pattern of the mould, and so produce a cast. If at a later period when the sand had hardened, the upper portion were separated from the lower, from the former there would project a rounded cast of the hollow mould. The preservation of soft algae as half-relief casts has been doubted by Nathorst[103] and others as an unlikely occurrence in nature. They prefer to regard such ridges on a rock face as the casts of the trails or burrows of animals. This question of the preservation of the two sides of a mould showing the same impression of a plant has long been a difficult problem; it is discussed by Parkinson in his Organic Remains. In one of the letters (No. XLVI.), he quotes the objection of a sceptical friend, who refuses to believe such a manner of preservation possible, “until,” says Parkinson, “I can inform him if, by involving a guinea in plaster of Paris, I could obtain two impressions of the king’s head, without any impression of the reverse[104].”

It would occupy too much space to attempt even a brief reference to the various materials in which impressions of plants have been preserved. Carbonaceous matter is the most usual substance, and in some cases it occurs in the form of graphite which on dark grey or black rocks has the appearance of a plant drawn in lead pencil. The impressions of plants on the Jurassic (Kimeridgian) slates of Solenhofen[105] in Bavaria, like those on the Triassic sandstones of the Vosges, are usually marked out in red iron oxide.

So far we have chiefly considered examples of plants preserved in various ways by incrustation, that is, by having been enclosed in some medium which has received an impression of the surface of the plant in contact with it. By far the most valuable fossil specimens from a botanical point of view are however those in which the internal structure has been preserved; that is in which the preserving medium has not served merely as an encasing envelope or internal cast, but has penetrated into the body of the plant fragment and rendered permanent the organization of the tissues. In almost every Natural History or Geological Museum one meets with specimens of petrified trees or polished sections of fossil palm stems and other plants, in which the internal structure has been preserved in siliceous material, and admits of detailed investigation in thin sections under the microscope. Silica, calcium carbonate, with usually a certain amount of carbonate of iron and magnesium carbonate, iron pyrites, amber, and more rarely calcium fluoride or other substances have taken the place of the original cell-walls. Of silicified stems, those from Antigua, Egypt, Central France, Saxony, Brazil, Tasmania[106], and numerous other places afford good examples. Darwin records numerous silicified stems in Northern Chili, and the Uspallata Pass. In the central part of the Andes range, 7000 feet high, he describes the occurrence of “Snow-white projecting silicified columns.... They must have grown,” he adds, “in volcanic soil, and were subsequently submerged below sea-level, and covered with sedimentary beds and lava-flows[107].” A striking example of the occurrence of numerous petrified plant stems has been described by Holmes from the Tertiary forests of the Yellowstone Park. From the face of a cliff on the north side of Amethyst mountain “rows of upright trunks stand out on the ledges like the columns of a ruined temple. On the more gentle slopes farther down, but where it is still too steep to support vegetation, save a few pines, the petrified trunks fairly cover the surface, and were at first supposed by us to be the shattered remains of a recent forest[108].” Marsh[109] and Conwentz[110] have described silicified trees more than fifty feet in length from a locality in California where several large forest trees of Tertiary age have been preserved in volcanic strata. In South Africa on the Drakenberg hills there occur numerous silicified trunks, occasionally erect and often lying on the ground, probably of Triassic age[111]. In some instances the specimens measure several feet in length and diameter. Some of the coniferous stems seen in Portland, and occasionally met with reared up against a house side, illustrate the silicification of plant structure on a large scale. These are of Upper Jurassic (Purbeck) age. From Grand’Croix in France a silicified stem of Cordaites of Palaeozoic age has been recorded with a length of twenty meters. The preservation of plants by siliceous infiltrations has long been known. One of the earliest descriptions of this form of petrifaction in the British Isles is that of stems found in Lough Neagh, Ireland. In his lectures on Natural Philosophy, published at Dublin in 1751, Barton gives several figures of Irish silicified wood, and records the following occurrence in illustration of the peculiar properties erroneously attributed to the waters of Lough Neagh. Describing a certain specimen (No. XXVI), he writes:—

“This is a whetstone, which as Mr Anthony Shane, apothecary, who was born very near the lake, and is now alive, relates, he made by putting a piece of holly in the water of the lake near his father’s house, and fixing it so as to withstand the motion of the water, and marking the place so as to distinguish it, he went to Scotland to pursue his studies, and seven years after took up a stone instead of holly, the metamorphosis having been made in that time. This account he gave under his handwriting. The shore thereabouts is altogether loose sand, and two rivers discharge themselves into the lake very near that place[112].”

The well-known petrified trees from the neighbourhood of Lough Neagh are probably of Pliocene age, but their exact source has been a matter of dispute[113].

In 1836 Stokes described certain stems in which the tissues had been partially mineralised. In describing a specimen of beech from a Roman aqueduct at Eibsen in Lippe Bückeburg], he says:—

“The wood is, for the most part, in the state of very old dry wood, but there are several insulated portions, in which the place of the wood has been taken by carbonate of lime. These portions, as seen on the surface of the horizontal section, are irregularly circular, varying in size, but generally a little less or more than ⅛ inch in diameter, and they run through the whole thickness of the specimen in separate, perpendicular columns. The vessels of the wood are distinctly visible in the carbonate of lime, and are more perfect in their form and size in those portions of the specimen than in that which remains unchanged[114].”

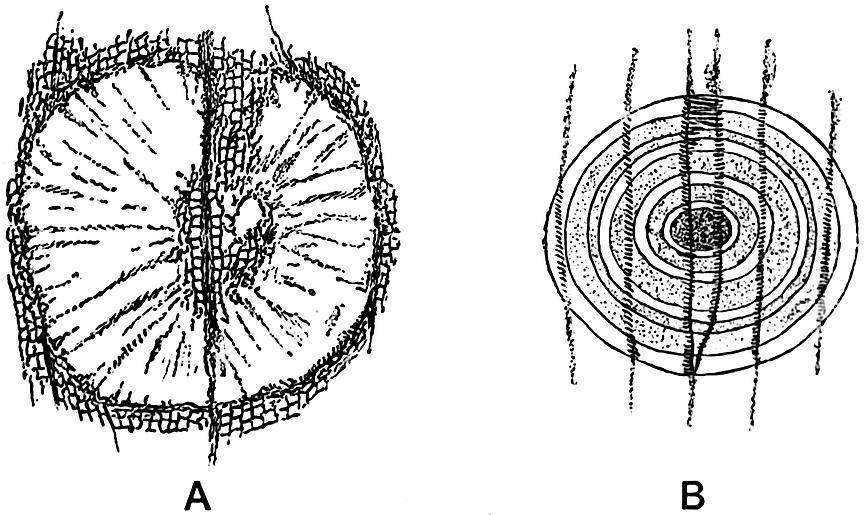

Fig. 14.

1. Araucarioxylon Withami (L. and H.). Radiating lines of crystallisation in secondary wood, as seen in transverse section.
2. Lepidodendron sp. Concentric lines of crystallisation, and scalariform tracheids, as seen in longitudinal section.

This partial petrifaction of the structure in patches is often met with in fossil stems, and may be seriously misleading to those unfamiliar with the appearance presented by the crystallisation of silica from scattered centres in a mass of vegetable tissue. A good example of this is afforded by the gigantic stems discovered in 1829 in the Craigleith Quarry near Edinburgh[115]. Of those two large stems found in the Sandstone rock, the longest, originally 11 meters long and 3·3–3·9 meters in girth, is now set up in the grounds of the British Museum, and a large polished section (1 m. × 87 cm.) is exhibited in the Fossil-plant Gallery. The other stem is in the Botanic Garden, Edinburgh. Transverse sections of the wood of the London specimen show scattered circular patches (fig. 14 A) in the mineralised wood in which the tracheids are very clearly preserved; while in the other portion the preservation is much less perfect. The patch of tissue in fig. 14 A shows a portion of the wood of the Craigleith tree [Araucarioxylon Withami (L. and H.)] in which the mineral matter, consisting of dolomite with a little silica here and there, has crystallised in such a manner as to produce what is practically a cone-in-cone structure on a small scale, which has partially obliterated the structural features. This minute cone-in-cone structure is not uncommon in petrified tissues; it is precisely similar in appearance to that described by Cole[116] in certain minerals. The crystallisation has been set up along lines radiating from different centres, and the particles of the tissue have been pushed as it were along these lines.

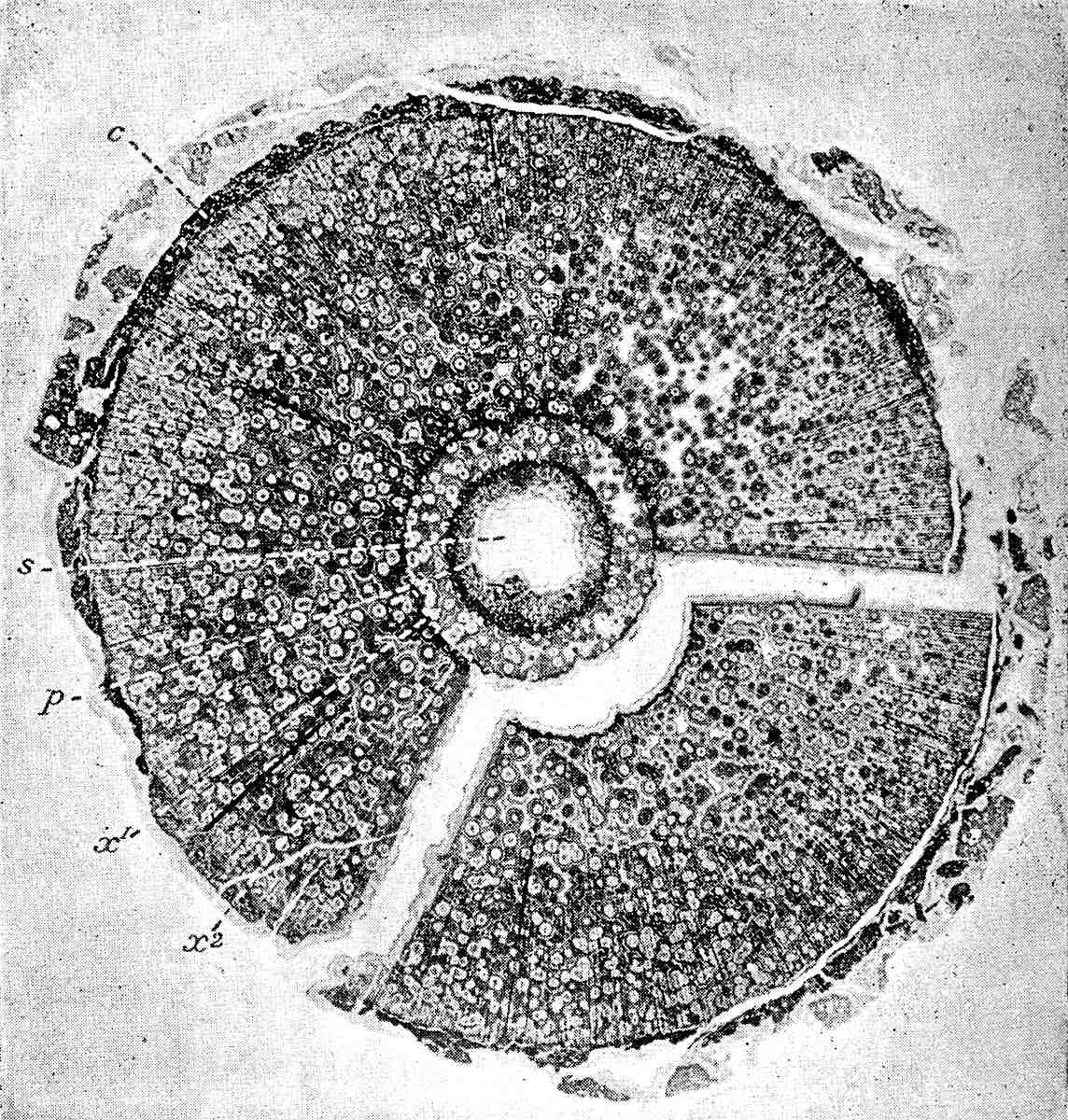

Fig. 15. Transverse section of the central cylinder of a Carboniferous Lepidodendroid stem in the collection of Mr Kidston. From Dalmeny, Scotland. s. Silica filling up the central portion of the pith. p. Remains of the pith tissue. x¹. Primary xylem. x². Secondary xylem. c. Innermost cortex.

A somewhat different crystallisation phenomenon is illustrated by the extremely fine section of a Lepidodendroid plant shown in fig. 15. The tissues of the primary and secondary wood (x¹ and x²) are well preserved throughout in silica, but scattered through the siliceous matrix there occur numerous circular patches, as seen in the figure. One of these is more clearly shown in fig. 14 B drawn from a longitudinal section through the secondary wood, x²; it will be noticed that where the concentric lines of the circular patch occur, the scalariform thickenings of the tracheids are sharply defined, but immediately a tracheid is free of the patch these details are lost. It would appear that in this case silicification was first completed round definite isolated centres, and the secondary crystallisation in the matrix partially obliterated some of the more delicate structural features. The same phenomenon has been observed in oolitic rocks[117], in which the oolitic grains have resisted secondary crystallisation and so retained their original structure.

Among the most important examples of silicified plants are those from a few localities in Central France. In the neighbourhood of Autun there used to be found in abundance loose nodules of siliceous rock containing numerous fragments of seeds, twigs, and leaves of different plants. The rock of which the broken portions are found on the surface of the ground was formed about the close of the Carboniferous period.

At the hands of French investigators the microscopic examination of these fragments of a Palaeozoic vegetation have thrown a flood of light on the anatomical structure of many extinct types. Sometimes the silica has penetrated the cavities of the cells and vessels, and the walls have decayed without their substance being replaced by mineral material. Sections of tissues preserved in this manner, if soaked in a coloured solution assume an appearance almost identical with that of stained sections of recent plants. The spaces left by the decayed walls act as fine capillaries and suck up the coloured solution[118].

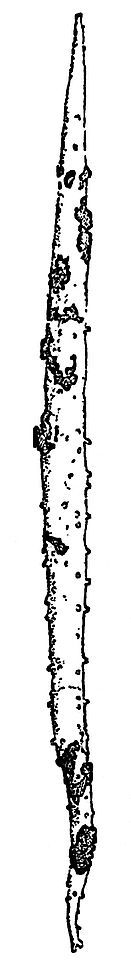

Fig. 16. Internal cast of a sclerenchymatous cell from the root of a Cretaceous fern (Rhizodendron oppoliense Göpp.). After Stenzel (86) Pl. III. fig. 29. × 240 and reduced to one-half.

In the Coal-Measure sandstones of England large pieces of woody stems are occasionally met with in which the mineralisation has been incomplete. A brown piece of fossil stem lying in a bed of sandstone shows on the surface a distinct woody texture, and the lines of wood elements are clearly visible. The whole is, however, very friable and falls to pieces if an attempt is made to cut thin sections of it; the tracheids of the wood easily fall apart owing to the walls being imperfectly preserved, and the absence of a connecting framework such as would have been formed had the membranes been thoroughly silicified. It is occasionally possible to obtain from petrified plant stems perfect casts in silica or other substances of the cavity of a sclerenchymatous fibre, in which the mineral has been deposited not only in the cavity but in the fine pit-canals traversing the lignified walls. Such a cast is represented in fig. 16, the fine lateral projections are the delicate casts of the pit canals. Numerous instances of minute and delicate tissues preserved in silica are recorded in later chapters. A somewhat unusual type of silicification is met with in some of the Gondwana rocks of India, in which cycadean fronds occur as white porcellaneous specimens showing a certain amount of internal structure in a siliceous matrix. Specimens of such leaves may be seen in the British Museum.

In the Coal-Measures of England, especially in the neighbourhood of Halifax in Yorkshire, and in South Lancashire, the seams of coal occasionally contain calcareous nodules varying in size from a nut to a man’s head, and consisting of about 70% of carbonate of calcium and magnesium, and 30% of oxide of iron, sulphide of iron, &c.[119] The nodules, often spoken of by English writers as ‘coal-balls,’ contain numerous fragments of plants in which the minute cellular structure is preserved with remarkable perfection. It should be noted that the term coal-ball is also applied to rounded or subangular pieces of coal which are occasionally met with in coal seams, and especially in certain French coal fields. To avoid confusion it is better to speak of the plant-containing nodules as calcareous nodules, restricting the term coal-ball to true coal pebbles. A section of a calcareous nodule, when seen under the microscope, presents the appearance of a matrix of a crystalline calcareous substance containing a heterogeneous mixture of all kinds of plant tissues, usually in the form of broken pieces and in a confused mass.

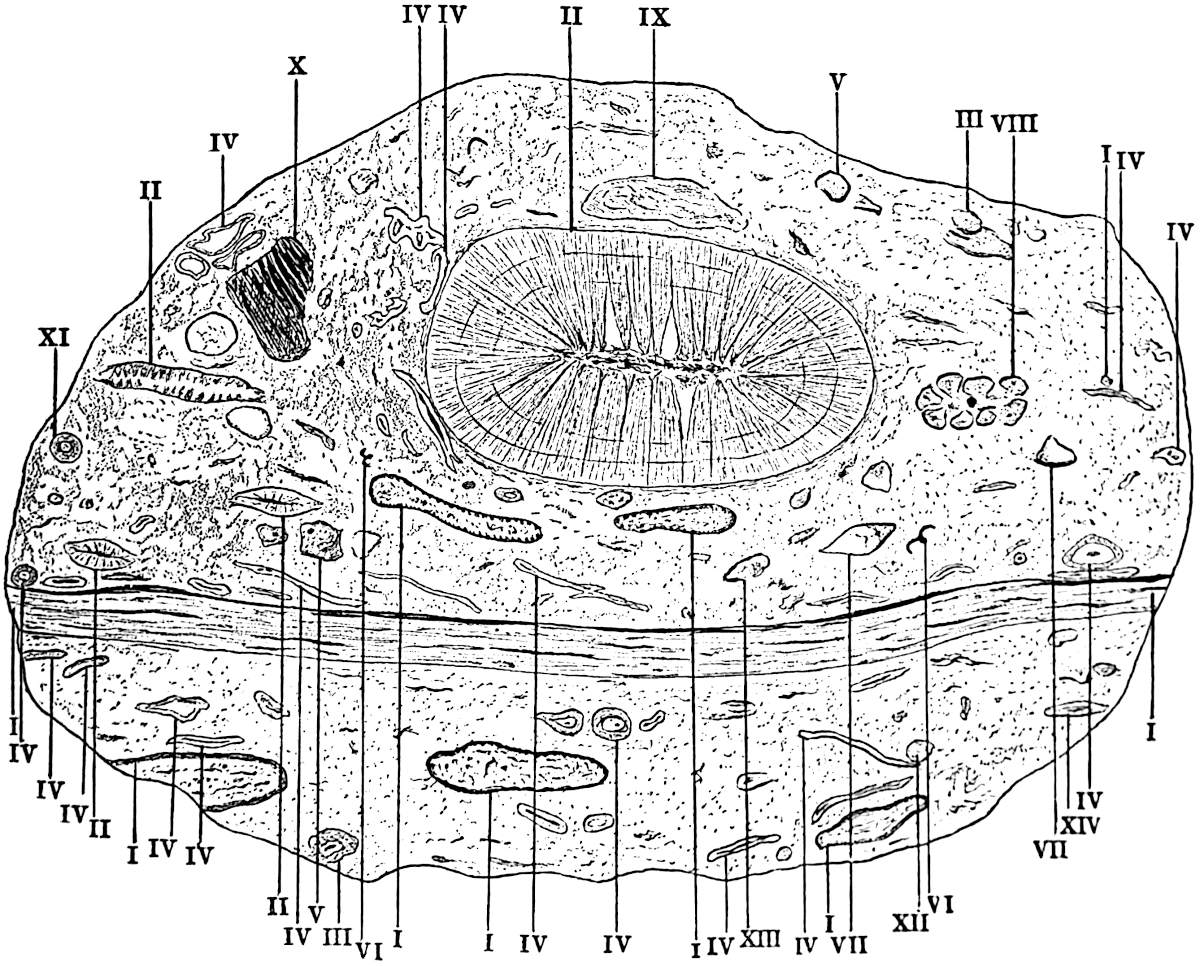

Fig. 17. A thin section of a calcareous nodule from the Coal-Measures. Binney collection, Woodwardian Museum, Cambridge. Very slightly reduced.

A large section of one of these nodules (12·5 cm. × 8·5 cm.) is shown in fig. 17. It illustrates the manner of occurrence of various fragments of different plants in which the structure has been more or less perfectly preserved. In this particular example we see sections of Myeloxylon (I), Calamites (II), Fern petioles (Rachiopteris) (III), Stigmarian appendages (IV), Lepidodendroid leaves (V), Myeloxylon pinnules (VI), Gymnospermous seeds (VII), Twig of a Lepidodendron, showing the central xylem cylinder and large leaf-bases on the outer cortex, (VIII), Sporangia and spores of a strobilus (IX), Tangential section of a Myeloxylon petiole (X), Rachiopteris sp. (XI), Rachiopteris sp. (XII), Band of sclerenchymatous tissue (XIII), Rachiopteris sp. (XIV).

The general appearance of a calcareous plant-nodule suggests a soft pulpy mass of decaying vegetable débris, through which roots were able to bore their way, as in a piece of peat or leafy mould. Overlying this accumulation of soft material there was spread out a bed of muddy sediment containing numerous calcareous shells, which supplied the percolating water with the material which was afterwards deposited in portions of the vegetable débris. According to this view the calcareous nodules of the coal seams represent local patches of a widespread mass of débris which were penetrated by a carbonated solution, and so preserved as samples of a decaying mass of vegetation, of which by far the greater portion became eventually converted into coal[120].

In such nodules, we find that not only has the framework of the tissues been preserved, but frequently the remains of cell contents are clearly seen. In some cases the cells of a tissue may contain in each cavity a darker coloured spot, which is probably the mineralised cell nucleus. (Fig. 42, A, 1, p. 214.) The contents of secretory sacs, such as those containing gum or resin, are frequently found as black rods filling up the cavity of the cell or canal. The contents of cells in some cases closely simulate starch grains, and such may have been actually present in the tissues of a piece of a fossil dicotyledonous stem described by Thiselton-Dyer from the Lower Eocene Thanet beds[121], and in the rhizome of a fossil Osmunda recorded by Carruthers[122]. (Fig. 42, B, p. 214.)

Schultze in 1855[123] recorded the discovery of cellulose by microchemical tests applied to macerated tissue from Tertiary lignite and coal. With reference to the possibility of recognising cell contents in fossil tissue it is interesting to find that Dr Murray of Scarborough had attempted, and apparently with success, to apply chemical tests to the tissues of Jurassic leaves. In a letter written to Hutton in 1833 Murray speaks of his experiments as follows:—

“Reverting to the Oolitic plants, I have again and with better success been experimenting upon the thin transparent films of leaves, chiefly of Taeniopteris vittata and Cyclopteris, which from their tenuity offer fine objects for the microscope.... By many delicate trials I have ascertained the existence still in these leaves of resin and of tannin.... I am seeking among the filmy leaves of the Fucoides of A. Brongniart for iodine, but hitherto without success, and indeed can hardly expect it, as probably did iodine exist in them, it must have long ago entered into new combinations[124].”

Apart from this difficulty, it is not surprising that Dr Murray’s search for iodine was unsuccessful, considering how little algal nature most of the so-called Fucoids possess.

Some of the most perfectly preserved tissues as regards the details of cell contents are those of gymnospermous seeds from Autun. In sections of one of these seeds which I recently had the opportunity of examining in Prof. Bertrand’s collection, the parenchymatous cells contained very distinct nuclei and protoplasmic contents. In one portion of the tissue in the nucellus of Sphaerospermum the cell walls had disappeared, but the nuclei remained in a remarkable state of preservation. The cells shown in fig. 42 are from the ground tissue of a petiole of Cycadeoidea gigantea Sew.[125], a magnificent Cycadean stem from Portland recently added to the British Museum collection; in the cell A, 1, the nucleus is fairly distinct and in 2 and 4 the contracted cell-contents is clearly seen. Other interesting examples of fossil nuclei are seen in a Lyginodendron leaf figured by Williamson and Scott in a recent Memoir on that genus[126]. Each mesophyll cell contains a single dark nucleus. The mineralisation of the most delicate tissues and the preservation of the various forms of cell-contents are now generally admitted by those at all conversant with the possibilities of plant petrifaction. If we consider what these facts mean—the microscopic investigation of not only the finest framework but even the very life-substance of Palaeozoic plants—we feel that the aeons since the days when these plants lived have been well-nigh obliterated.

Occasionally the plant tissues have assumed a black and somewhat ragged appearance, giving the impression of charred wood. A section of a recent burnt piece of wood resembles very closely some of the fossil twigs from the coal seam nodules. It is possible that in such cases we have portions of mineralised tissues which were first burnt in a forest fire or by lightning and then infiltrated with a petrifying solution. An example of one of these black petrified plants is shown in fig. 74 B. Chap. X. In many of the fossil plants there are distinct traces of fungus or bacterial ravages, and occasionally the section of a piece of mineralised wood shows circular spaces or canals which have the appearance of being the work of some wood-eating animal, and small oval bodies sometimes occur in such spaces which may be the coprolites of the xylophagous intruder. (Fig. 24, p. 107.)

It is well known to geologists that during the Permian and Carboniferous periods the southern portion of Scotland was the scene of widespread volcanic activity. Forests were overwhelmed by lava-streams or showers of ash, and in some districts tree stems and broken plant fragments became sealed up in a volcanic matrix. Laggan Bay in the north-east corner of the Isle of Arran, and Pettycur a short distance from Burntisland on the north shore of the Firth of Forth, are two localities where petrified plants of Carboniferous age occur in such preservation as allows of a minute investigation of their internal structure. The occurrence of plants in the former locality was first discovered by Mr Wünsch of Glasgow; the fossils occur in association with hardened shales and beds of ash, and are often exceedingly well preserved[127]. In fig. 18 is reproduced a sketch of a hollow tree trunk from Arran, probably a Lepidodendron stem, in which only the outer portion of the bark has been preserved, while the inner cortical tissues have been removed and the space occupied by volcanic detritus.

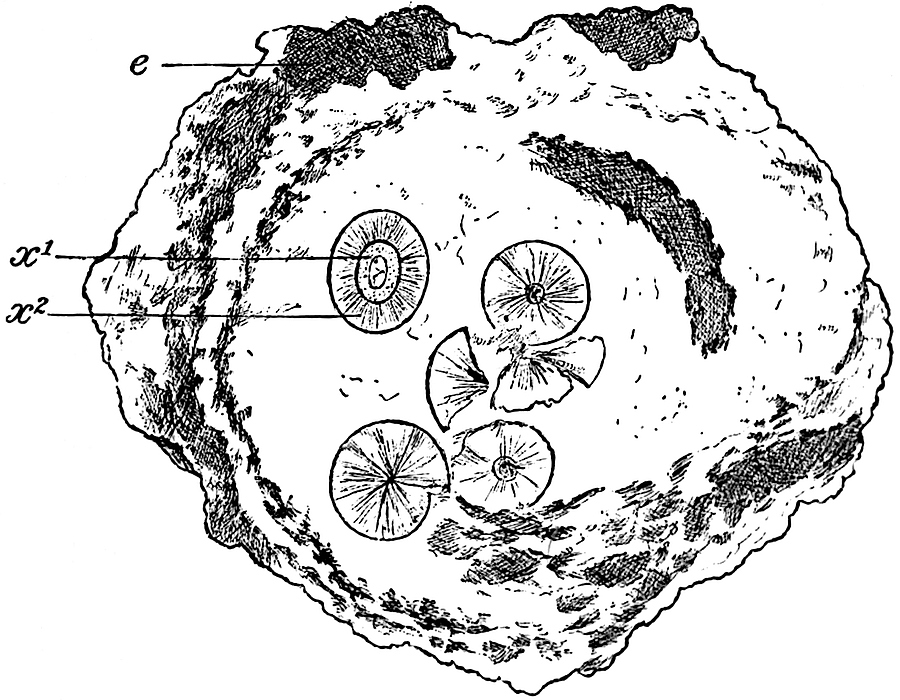

Fig. 18. Diagrammatic sketch of a slab cut from a fossil stem (Lepidodendron?) from Laggan Bay. e, Imperfectly preserved bark of a large stem, extending in patches round the periphery of the specimen; the oval and circular bodies in the interior are the xylem portions of the central cylinders of Lepidodendron stems, x¹, primary wood, x², secondary wood. From a specimen in the Binney collection, Woodwardian Museum, Cambridge. ⅕ nat. size.

The smaller cylindrical structures in the interior of the hollow trunk are the central woody cylinders of Lepidodendroid trees; each consists of an axial pith surrounded by a band of primary wood and a broader zone of secondary wood. One of the axes probably belonged to the stem of which only the shell has been preserved, the others must have come from other trees and may have been floated in by water[128]. The microscopic details of the wood and outer cortex have in this instance been preserved in a calcareous material, which was no doubt derived by water percolating through the volcanic ash. It is frequently found that in fossil trees or twigs a separation of the tissues has taken place along such natural lines of weakness as the cambium or the phellogen, before the petrifying medium had time to permeate the entire structure. Tree stems recently killed by lava streams during volcanic eruptions at the present day supply a parallel with the Palaeozoic forest trees of Carboniferous times.

Guillemard in describing a volcanic crater in Celebes, speaks of burnt trees still standing in the lava stream, “so charred at the base of the trunk that we could easily push them down[129].” An interesting case is quoted by Hooker in his Himalayan Journals, illustrating the occurrence of a hollow shell of a tree, in which the outer portions of a stem had been left while the inner portions had disappeared, the wood being hollow and so favourable to the production of a current of air which accelerated the destruction of the internal tissues.

On the coast near Burntisland on the Firth of Forth blocks of rock are met with in which numerous plant fragments of Carboniferous age are scattered in a confused mass through a calcareous volcanic matrix. The twigs, leaves, spores, and other portions are in small fragments, and their delicate cells are often preserved in wonderful perfection.

The manner of occurrence of plants in sandstones, shales or other rocks is often of considerable importance to the botanist and geologist, as an aid to the correct interpretation of the actual conditions which obtained at the time when the plant remains were accumulating in beds of sediment. To attempt to restore the conditions under which any set of plants became preserved, we have to carefully consider each special case. A nest of seeds preserved as internal casts in a mass of sandstone, such as is represented by the block of Carboniferous sandstone in fig. 19, suggests a quiet spot in an eddy where seeds were deposited in the sandy sediment. Delicate leaf structures with sporangia still intact, point to quietly flowing water and a transport of no great distance. Occasionally the large number of delicate and light plant fragments, associated it may be with insect wings, may favour the idea of a wind storm which swept along the lighter pieces from a forest-clad slope and deposited them in the water of a lake. In some Tertiary plant-beds the manner of occurrence of leaves and flowers is such as to suggest a seasonal alternation, and the different layers of plant débris may be correlated with definite seasons of growth[130].

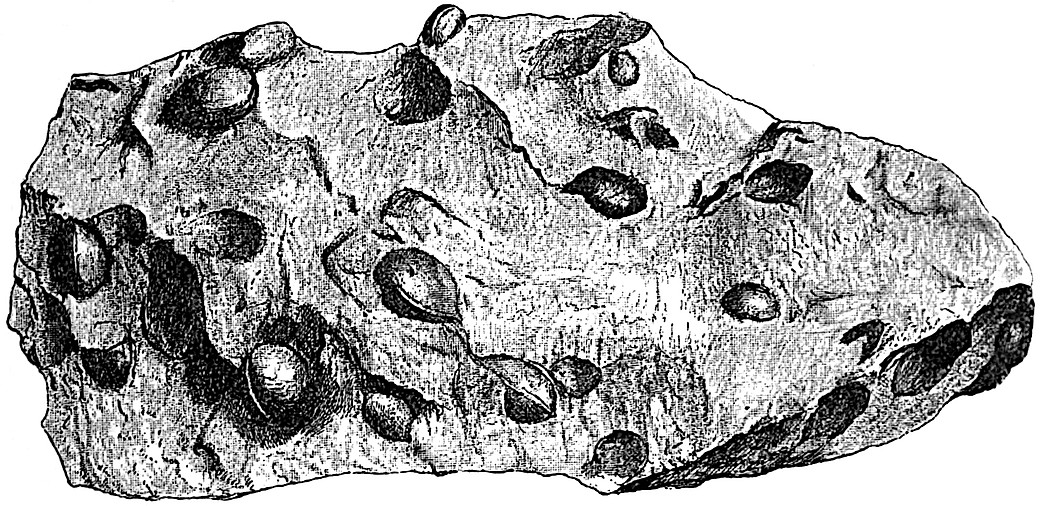

Fig. 19. Piece of Coal-Measures Sandstone with casts of Trigonocarpon seeds, from Peel Quarry near Wigan. From a specimen in the Manchester Museum, Owens College. ½ nat. size.

The predominance of certain classes of plants in a particular bed may be due to purely mechanical causes and to differential sorting by water, or it may be that the district traversed by the stream which carried down the fragments was occupied almost exclusively by one set of plants. The trees from higher ground may be deposited in a different part of a river’s course to those growing in the plains or lowland marshes. It is obviously impossible to lay down any definite rules as to the reading of plant records, as aids to the elucidation of past physical and botanical conditions. Each case must be separately considered, and the various probabilities taken into account, judging by reference to the analogy of present day conditions.

Various attempts, more or less successful, have been made to imitate the natural processes of plant mineralisation[131]. By soaking sections of wood for some time in different solutions, and then exposing them to heat, the organic substance of the cell walls has been replaced by a deposit of oxide of iron and other substances. Fern leaves heated to redness between pieces of shale have been reduced to a condition very similar to that of fossil fronds. Pieces of wood left for centuries in disused mines have been found in a state closely resembling lignite[132]. Attempts have also been made to reproduce the conditions under which vegetable tissues were converted into coal, but as yet these have not yielded results of much scientific value. The Geysers of Yellowstone Park have thrown some light on the manner in which wood may be petrified by the percolation of siliceous solutions; and it has been suggested that the silicification of plants may have been effected by the waters of hot springs holding silica in solution. Examples of wood in process of petrifaction in the Geyser district of North America have been recorded by Kuntze[133], and discussed by Schweinfurth[134], Solms-Laubach[135] and others[136]. The latter expresses the opinion that by a long continuance of such action as may now be observed in the neighbourhood of hot springs, the organic substance of wood might be replaced by siliceous material. The exact manner of replacement needs more thorough investigation. Kuntze describes the appearance of forest trees which have been reached by the waters of neighbouring Geysers. The siliceous solution rises in the wood by capillarity; the leaves, branches and bark are gradually lost, and the outer tissues of the wood become hardened and petrified as the result of evaporation from the exposed surface of the stem. The products of decay going on in the plant tissues must be taken into account, and the double decomposition which might result. There is no apparent reason why experiments undertaken with pieces of recent wood exposed to permeation by various calcareous and siliceous solutions under different conditions should not furnish useful results.

“Robinson Crusoe did not feel bound to conclude, from the single human footprint which he saw in the sand, that the maker of the impression had only one leg.”
Huxley’s Hume, p. 105, 1879.

The student of palaeobotany has perhaps to face more than his due share of difficulties and fruitful sources of error; but on the other hand there is the compensating advantage that trustworthy conclusions arrived at possess a special value. While always on the alert for rational explanations of obscure phenomena by means of the analogy supplied by existing causes, and ready to draw from a wide knowledge of recent botany, in the interpretation of problems furnished by fossil plants, the palaeobotanist must be constantly alive to the necessity for cautious statement. That there is the greatest need of moderation and safe reasoning in dealing with the botanical problems of past ages, will be apparent to anyone possessing but a superficial acquaintance with fossil plant literature. The necessity for a botanical and geological training has already been referred to in a previous chapter.

It would serve no useful purpose, and would occupy no inconsiderable space, to refer at length to the numerous mistakes which have been committed by experienced writers on the subject of fossil plants. Laymen might find in such a list of blunders a mere comedy of errors, but the palaeobotanist must see in them serious warnings against dogmatic conclusions or expressions of opinion on imperfect data and insufficient evidence. The description of a fragment of a handle of a Wedgwood teapot as a curious form of Calamite[137] and similar instances of unusual determinations need not detain us as examples of instructive errors. The late Prof. Williamson has on more than one occasion expressed himself in no undecided manner as to the futility of attempting to determine specific forms among fossil plants, without the aid of internal structure[138]; and even in the case of well-preserved petrifactions he always refused to commit himself to definite specific diagnoses. In his remarks in this connection, Williamson no doubt allowed himself to express a much needed warning in too sweeping language. It is one of the most serious drawbacks in palaeobotanical researches that in the majority of cases the specimens of plants are both fragmentary and without any trace of internal structure. Specimens in which the anatomical characters have been preserved necessarily possess far greater value from the botanist’s point of view than those in which no such petrifaction has occurred. On the other hand, however, it is perfectly possible with due care to obtain trustworthy and valuable results from the examination of structureless casts and impressions. In dealing with the less promising forms of plant fossils, there is in the first place the danger of trusting to superficial resemblance. Hundreds of fossil plants have been described under the names of existing genera on the strength of a supposed agreement in external form; but such determinations are very frequently not only valueless but dangerously misleading. Unless the evidence is of the best, it is a serious mistake to make use of recent generic designations. If we consider the difficulties which would attend an attempt to determine the leaves, fragments of stems and other detached portions of various recent genera, we can better appreciate the greater probability of error in the case of imperfectly preserved fossil fragments.

The portions of stems represented in figures 20 and 21, exhibit a fairly close resemblance to one another; in the absence of microscopical sections or of the reproductive organs it would be practically impossible to discriminate with any certainty between fossil specimens of the plants shown in the drawings. Examples such as these, and many others which might be cited, serve to illustrate the possibility of confusion not merely between different genera of the same family, but even between members of different classes or groups. The long slender branches of the Polygonum represented in (fig. 21) would naturally be referred to Equisetum in the absence of the flowers (fig. 20 B), or without a careful examination of the insignificant scaly leaves borne at the nodes. The resemblance between Casuarina and Ephedra and the British species of Equisetum, or such a tropical form as E. debile, speaks for itself.

Fig. 20.

1. Restio tetraphylla Labill. (Monocotyledon).
2. Equisetum variegatum Schleich. (Vascular Cryptogam).
3. Equisetum debile Roxb. (Vascular Cryptogam)
4. Casuarina stricta Dryand. (Dicotyledon).
5. Ephedra distachya Linn. (Gymnosperm). (A–E ½ nat. size).

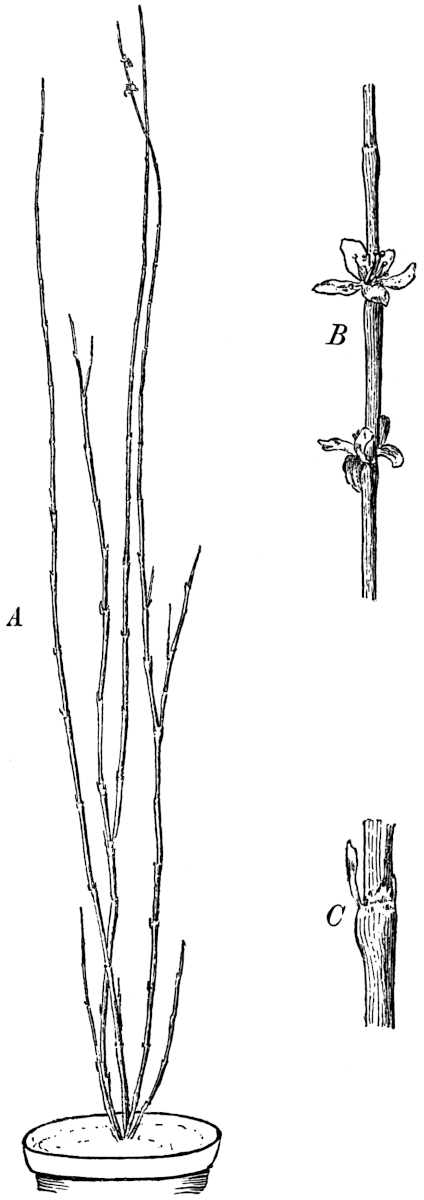

Fig. 21. Polygonum Equisetiforme Sibth. and Sm. A. Showing habit of plant. ½ nat. size. The two flowers towards the apex of one branch, drawn to a larger scale in B. C. Node with small leaf and ochrea characteristic of Polygonaceæ. From a plant in the Cambridge Botanic Garden.

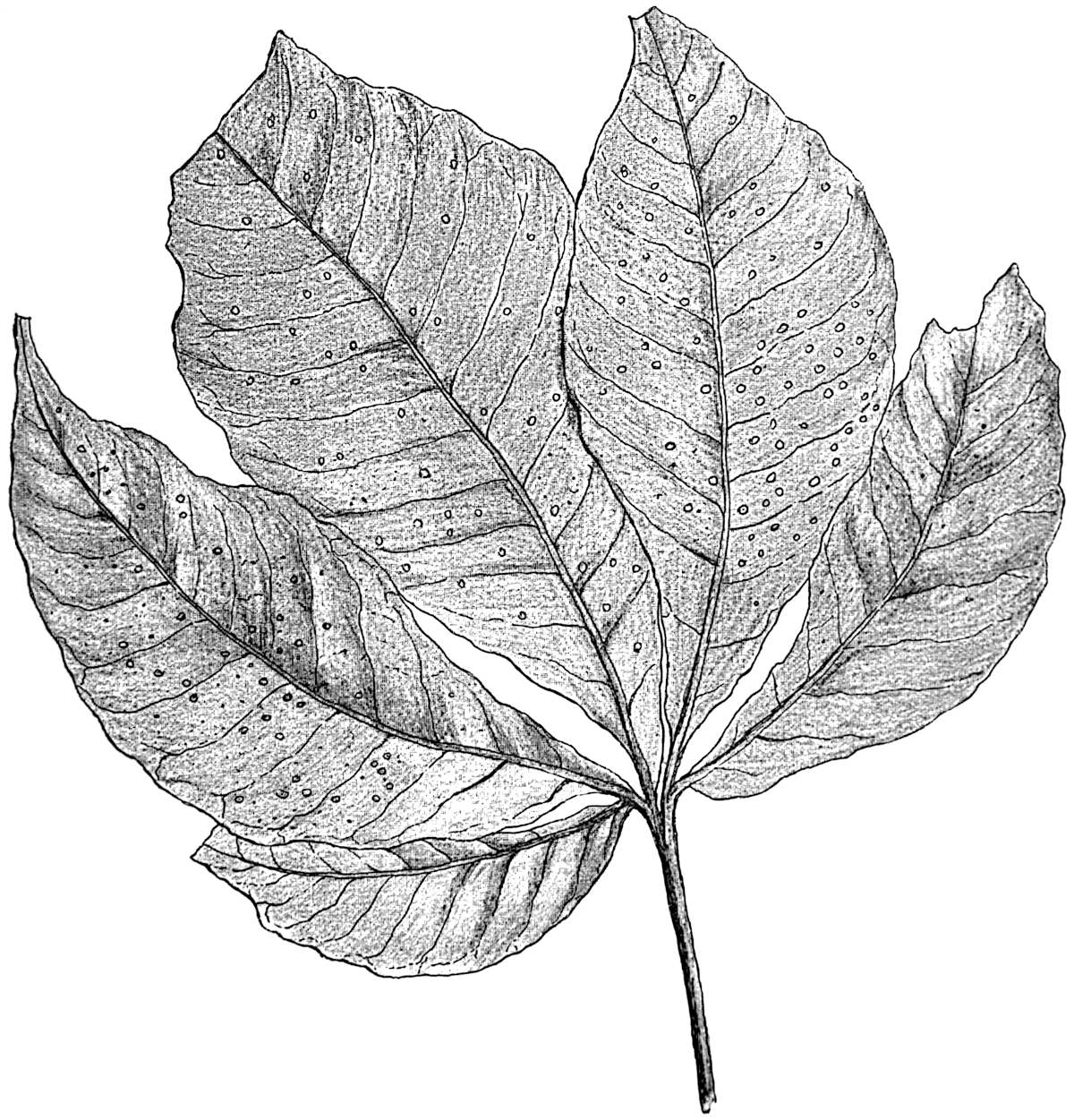

Fig. 22. Kaulfussia æsculifolia Blume. From a specimen from Java in the British Museum herbarium. ⅓ nat. size.

Endless examples might be quoted illustrating the absolute futility, in many cases, of relying on external features even for the purpose of class distinction. An acquaintance with the general habit and appearance of only the better known members of a family, frequently leads to serious mistakes. The specimen shown in fig. 22 is a leaf of a tropical fern Kaulfussia, a genus now living in South-eastern Asia, and a member of one of the most important and interesting families of the Filicinæ, the Marrattiaceæ; its form is widely different from that which one is accustomed to associate with fern fronds. It is unlikely that the impression of a sterile leaf of Kaulfussia would be recognised as a portion of a fern plant.

Similarly in another exceedingly important group of plants, the Cycadaceæ[139], the examples usually met with in botanical gardens are quite insufficient as standards of comparison when we are dealing with fossil forms. Familiarity with a few commoner types leads us to regard them as typical for the whole family. In Mesozoic times cycadean plants were far more numerous and widely distributed than at the present time, and to adequately study the numerous fossil examples we need as thorough an acquaintance as possible with the comparatively small number of surviving genera and species. The less common and more isolated species of an existing family may often be of far greater importance to the palaeobotanist than the common and more typical forms. This importance of rare and little known types will be more fully illustrated in the chapters dealing with the Cycadaceæ and other plant groups. Among Dicotyledons, the Natural Order Proteaceæ, at present characteristic of South Africa and Australia, and also represented in South America and the Pacific Islands, is of considerable interest to the student of fossil Angiosperms. In a valuable address delivered before the Linnean Society[140] in 1870 Bentham drew attention to the marked ‘protean’ character of the members of this family. He laid special stress on this particular division of the Dicotyledons in view of certain far-reaching conclusions, which had been based on the occurrence in different parts of Europe of fossil leaves supposed to be those of Proteaceous genera[141]. Speaking of detached leaves, Bentham says:—“I do not know of a single one which, in outline or venation, is exclusively characteristic of the order, or of any one of its genera.” Species of Grevillea, Hakea and a few other genera are more or less familiar in plant houses, but the leaf-forms illustrated by the commoner members of the family convey no idea of the enormous variation which is met with not only in the family as a whole, but in the different species of the same genus. The striking diversity of leaf within the limits of a single genus will be dealt with more fully in volume II. under the head of Fossil Dicotyledons.

There is a common source of danger in attempting to carry too far the venation characters as tests of affinity. The parallel venation of Monocotyledons is by no means a safe guide to follow in all cases as a distinguishing feature of this class of plants. In addition to such leaves as those of the Gymnosperm Cordaites and detached pinnæ of Cycads, there are certain species of Dicotyledons which correspond in the character of their venation to Monocotyledonous leaves. Eryngium montanum Coult., E. Lassauxi Dcne., and other species of this genus of Umbelliferæ agree closely with such a plant as Pandanus or other Monocotyledons; similarly the long linear leaves of Richea dracophylla, R. Br., one of the Ericaceæ, are identical in form with many monocotyledonous leaves. Instances might also be quoted of monocotyledonous leaves, such as species of Smilax and others which Lindley included in his family of Dictyogens which correspond closely with some types of Dicotyledons[142]. Venation characters must be used with care even in determining classes or groups, and with still greater reserve if relied on as family or generic tests.

It is too frequently the case that while we are conversant with the most detailed histological structure of a fossil plant stem, its external form is a matter of conjecture. The conditions which have favoured the petrifaction of plant tissues have as a rule not been favourable for the preservation of good casts or impressions of the external features; and, on the other hand, in the best impressions of fern fronds or other plants, in which the finest veins are clearly marked, there is no trace of internal structure. It is, however, frequently the case that a knowledge of the internal structure of a particular plant enables us to interpret certain features in a structureless cast which could not be understood without the help of histological facts. A particularly interesting example of anatomical knowledge affording a key to apparently abnormal peculiarities in a specimen preserved by incrustation, is afforded by the fructification of the genus Sphenophyllum. Some few years ago Williamson described in detail the structure of a fossil strobilus (i.e. cone) from the Coal-Measures, but owing to the isolated occurrence of the specimens he was unable to determine the plant to which the strobilus belonged. On re-examining some strobili of Sphenophyllum, preserved by incrustation, in the light of Williamson’s descriptions, Zeiller was able to explain certain features in his specimens which had hitherto been a puzzle, and he demonstrated that Williamson’s cone was that of a Sphenophyllum. Similar examples might be quoted, but enough has been said to emphasize the importance of dealing as far as possible with both petrifactions and incrustations. The facts derived from a study of a plant in one form of preservation may enable us to interpret or to amplify the data afforded by specimens preserved in another form.

The fact that plants usually occur in detached fragments, and that they have often been sorted by water, and that portions of the same plant have been embedded in sediment considerable distances apart, is a constant source of difficulty. Deciduous leaves, cones, or angiospermous flowers, and other portions of a plant which become naturally separated from the parent tree, are met with as detached specimens, and it is comparatively seldom that we have the necessary data for reuniting the isolated members. As the result of the partial decay and separation of portions of the same stem or branch, the wood and bark may be separately preserved. Darwin[143] describes how the bark often falls from Eucalyptus trees, and hangs in long shreds, which swing about in the wind, and give to the woods a desolate and untidy appearance. In the passage already quoted from the narrative of the voyage of the Challenger, illustrations are afforded of the manner in which detached portions of plants are likely to be preserved in a fossil state. The epidermal layer of a leaf or the surface tissues of a twig may be detached from the underlying tissues and separately preserved[144]. It is exceedingly common for a stem to be partially decorticated before preservation, and the appearance presented by a cast or impression of the surface of a woody cylinder, and by the same stem with a part or the whole of its cortex intact is strikingly different. The late Prof. Balfour[145] draws attention to this source of error in his text-book of palaeobotany, and gives figures illustrating the different appearance presented by a branch of Araucaria imbricata Pav. when seen with its bark intact and more or less decorticated. Specimens that are now recognised as casts of stems from which the cortex had been more or less completely removed before preservation, were originally described under distinct generic names, such as Bergeria, Knorria and others. These are now known to be imperfect examples of Sigillarian or Lepidodendroid plants. Grand’Eury[146] quotes the bark of Lepidodendron Veltheimianum Presl. as a fossil which has been described under twenty-eight specific names, and placed in several genera.

Since the microscopical examination of fossil plant-anatomy was rendered possible, a more correct interpretation of decorticated and incomplete specimens has been considerably facilitated. The examination of tangential sections taken at different levels in the cortex of such a plant as Lepidodendron brings out the distribution of thin and thick-walled tissue. Regularly placed prominences on such a stem as the Knorria shown in fig. 23 are due to the existence in the original stem of spirally disposed areas of thin-walled and less resistant tissue; as decay proceeded, the thinner cells would be the first to disappear, and depressions would thus be formed in the surrounding thicker walled and stronger tissue. If the stem became embedded in mud or sand before the more resistant tissue had time to decay, but after the removal of the thin-walled cells, the surrounding sediment would fill up the depressions and finally, after the complete decay of the stem, the impression on the mould or on the cast, formed by the filling up of the space left by the stem, would have the form of regularly disposed projections marking the position of the more delicate tissues. The specimen represented in the figure is an exceedingly interesting and well preserved example of a Coal-Measure stem combining in itself representatives of what were formerly spoken of as distinct genera.

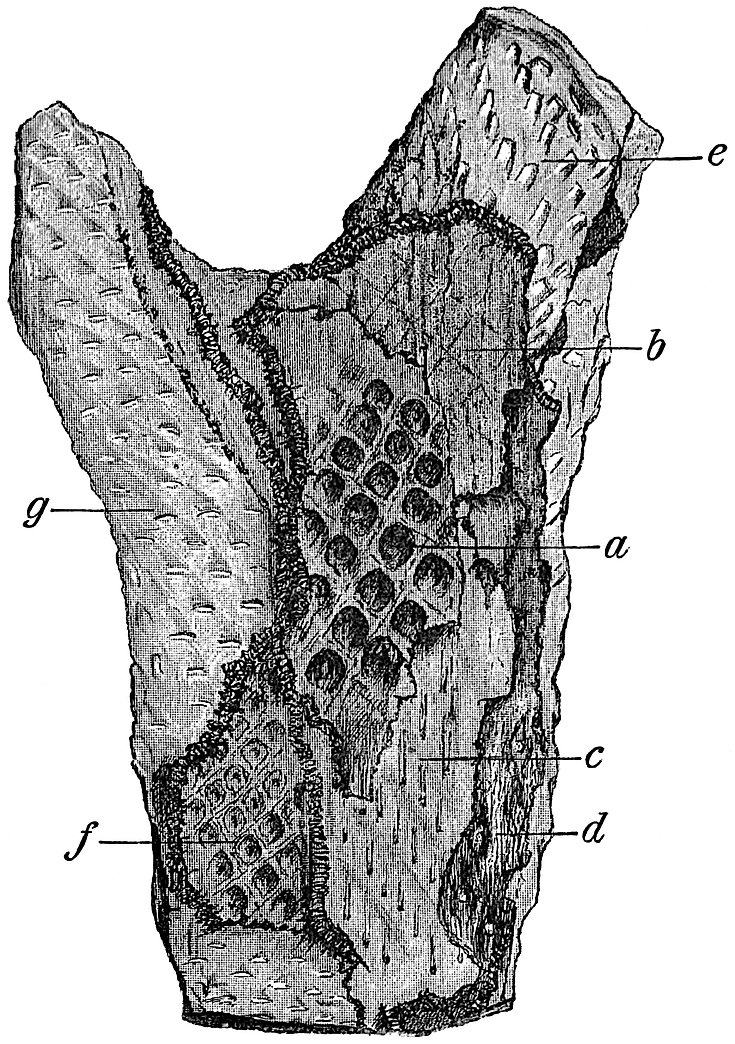

Fig. 23. A dichotomously branched Lepidodendroid stem (Knorria mirabilis Ren. and Zeill.). After Renault and Zeiller[147]. (¼ nat. size.) The original specimen is in the Natural History Museum, Paris.

The surface of the fossil as seen at e affords a typical example of the Knorria type of stem; the spirally disposed peg-like projections are the casts of cavities formed by the decay of the delicate cells surrounding each leaf-trace bundle on its way through the cortex of the stem. The surface g exhibits a somewhat different appearance, owing to the fact that we have the cast of the stem taken at a slightly different level. The surface of the thick layer of coal at a shows very clearly the outlines of the leaf-cushions; on the somewhat deeper surfaces b, c and d the leaf-cushions are but faintly indicated, and the long narrow lines on the coal at c represent the leaf-traces in the immediate neighbourhood of the leaf-cushions.

It is not uncommon among the older plant-bearing rocks to find a piece of sandstone or shale of which the surface exhibits a somewhat irregular reticulate pattern, the long and oval meshes having the form of slightly raised bosses. The size of such a reticulum may vary from one in which the pattern is barely visible to the unaided eye to one with meshes more than an inch in length. The generic name Lyginodendron[148] was proposed several years ago (1843) for a specimen having such a pattern on its surface, but without any clue having been found as to the meaning of the elongated raised areas separated from one another by a narrow groove. At a later date Williamson investigated the anatomy of some petrified fragments of a Carboniferous plant which suggested a possible explanation of the surface features in the structureless specimens. The name Lyginodendron was applied to this newly discovered plant, of which one characteristic was found to be the occurrence of a hypodermal band of strong thick-walled tissue arranged in the form of a network with the meshes occupied by thin-walled parenchyma. If such a stem were undergoing gradual decay, the more delicate tissue of the meshes would be destroyed first and the harder framework left. A cast of such a partially decayed stem would take the form, therefore, of projecting areas, corresponding to the hollowed out areas of decayed tissue, and intervening depressions corresponding to the projecting framework of the more resistant fibrous tissue. A precisely similar arrangement of hypodermal strengthening tissue occurs in various Palaeozoic and other plants, and casts presenting a corresponding appearance cannot be referred with certainty to one special genus; such casts are of no real scientific value[149].

The old generic terms Artisia and Sternbergia illustrate another source of error which can be avoided only by means of a knowledge of internal structure. The former name was proposed by Sternberg and the latter by Artis for precisely similar Carboniferous fossils, having the form of cylindrical bodies marked by numerous transverse annular ridges and grooves. These fossils are now known to be casts of the large discoid pith of the genus Cordaites, an extinct type of Palaeozoic Gymnosperms. Calamites and Tylodendron afford other instances of plants in which the supposed surface characters have been shown to be those of the pith-cast. The former genus is described at length in a later chapter, but the latter may be briefly referred to. A cast, apparently of a stem, from the Permian rocks of Russia was figured in 1870 under the name Tylodendron; the surface being characterised by spirally arranged lozenge-shaped projections, described as leaf-scars. Specimens were eventually discovered in which the supposed stem was shown to be a cast of the large pith of a plant possessing secondary wood very like that of the recent genus Araucaria. The projecting portions, instead of being leaf-cushions, were found to be the casts of depressions in the inner face of the wood where strands of vascular tissue bent outwards on their way to the leaves. If a cast is made of the comparatively large pith of Araucaria imbricata the features of Tylodendron are fairly closely reproduced[150].

A dried Bracken frond lying on the ground in the Autumn presents a very different appearance as regards the form of the ultimate segments of the frond to that of a freshly cut leaf. In the former the edges of the pinnules are strongly recurved, and their shape is considerably altered. Immersed in water for some time fern fronds or other leaves undergo maceration, and the more delicate lamina of the leaf rots away much more rapidly than the scaffolding of veins. Among fossil fern fronds differences in the form of the pinnules and in the shape and extent of the lamina, to which a specific value is assigned, are no doubt in many cases merely the expression either of differences in the state of the leaves at the time of fossilisation or of the different conditions under which they became embedded. Differential decay and disorganisation of plant tissues are factors of considerable importance with regard to the fossilisation of plants. As Lindley[151] and later writers have suggested, the absence or comparative scarcity of certain forms of plants from a particular fossil flora may in some cases be due to their rapid decay and non-preservation as fossils; it does not necessarily mean that such plants were unrepresented in the vegetation of that period. The decayed rhizomes of the Bracken fern often seen hanging from the roadside banks on a heath or moorland, and consisting of flat dark coloured bands of resistant sclerenchyma in a loose sheath of the hard shrivelled tissue, are in striking contrast to the perfect stem. A rotting Palm stem is gradually reduced to a loose stringy mass consisting of vascular strands of which the connecting parenchymatous tissue has been entirely removed. It must frequently have happened that detached vascular bundles or strands and plates of hard strengthening tissue have been preserved as fossils and mistaken for complete portions of plants.

Apart from the necessity of keeping in view the possible differences in form due to the state of the plant fragments at the time of preservation, and the marked contrast between the same species preserved in different kinds of rock, there are numerous sources of error which belong to an entirely different category. The so-called moss-agates and the well-known dendritic markings of black oxide of manganese, are among the better known instances of purely inorganic structures simulating plant forms.

An interesting example of this striking similarity between a purely mineral deposit and the external form of a plant is afforded by some specimens originally described as impressions of the oldest known fern. The frontispiece to a well-known work on fossil plants, Le monde des plantes avant l’apparition de l’homme[152], represents a fern-like fossil on the surface of a piece of Silurian slate. The supposed plant was named Eopteris Morierei Sap., and it is occasionally referred to as the oldest land plant in books of comparatively recent date. In the Museum of the School of Mines, Berlin, there are some specimens of Angers slate on some of which the cleavage face shows a shallow longitudinal groove bearing on either side somewhat irregularly oblong and oval appendages of which the surface is traversed by fine vein-like markings. A careful examination of the slate reveals the fact that these apparent fern pinnules are merely films of iron pyrites deposited from a solution which was introduced along the rachis-like channel. Many of the extraordinary structures described as plants by Reinsch[153] in his Memoir on the minute structure of coal have been shown to be of purely mineral origin.

The innumerable casts of animal-burrows and trails as well as the casts of egg-cases and various other bodies, which have been described as fossil algae, must be included among the most fruitful sources of error.

It requires but a short experience of microscopical investigation of fossil plant structures to discover numerous pitfalls in the appearance presented by sections of calcareous and siliceous nodules. The juxtaposition of tissues apparently parts of the same plant, and the penetration by growing roots of partially decayed plant débris, serve to mislead an unpractised observer. In sections of the English ‘calcareous nodules’ one very frequently finds the tissue of Stigmarian appendages occupying every conceivable position, and preserved in places admirably calculated to lead to false interpretations. The more minute investigation of tissues is often rendered difficult by deceptive appearances simulating original structures, but which are in reality the result of mineralisation. It is no easy matter in some cases to discover whether a particular cell in a fossil tissue was originally thick-walled, or whether its sclerous appearance is due to the deposition of mineral matter on the inside of the thin cell-membrane. Examples of such sources of error as have been briefly referred to, and others, will be found in various parts of the descriptive portions of this book.

Fig. 24. A. Section of partially disorganised tissue attacked by some boring animal. c, c, coprolites; d, a tunnel made by the borer through the plant tissue.

B. Transverse section of a Lepidodendroid leaf, of which the inner tissues have been destroyed and the cavity filled with coprolites; simulating a sporangium containing spores. (A and B from specimens in the Botanical Laboratory collection, Cambridge.)

There is one other form of pitfall which should be briefly noticed. In sections of petrified plants one occasionally finds clean cut canals penetrating a mass of tissue, and differing in their manner of occurrence and in their somewhat larger size from ordinary secretory ducts. Such tunnels or canals are probably the work of a wood-boring animal. An example is illustrated in fig. 24 A. Similarly it is not unusual to meet with groups or nests of spherical or elliptical bodies lying among plant tissues, and having the appearance of spores. Such spore-like bodies appear on close examination to be made up of finely comminuted particles of tissue, and in all probability they are the coprolites of some xylophagous animal. Examples of such coprolites are shown in fig. 24 A[154], and in fig. 24 B an interesting manner of occurrence of these misleading bodies is represented. The framework of cells enclosing the nest of coprolites in fig. 24 B, represents the outer tissues of a Lepidodendroid or a Sigillarian leaf; the inner tissues have been destroyed and the cavity is now occupied by what may possibly be the excreta of the wood-eating animal.

Some of the oval spore-like structures met with in plant tissues may, as Renault has suggested, be the eggs of an Arthropod[155]. In a section of a calcareous Coal-Measure nodule in the Williamson collection (British Museum)[156] there occur several fungal spores or possibly oogonia lying among imperfectly preserved Stigmarian appendages. Associated with these are numerous dark coloured and larger bodies consisting of a cavity bounded by a simple membrane; the larger bodies may well be the eggs of some Arthropod or other animal.

In looking through the collections of Coal-Measure plants in the Museums of Berlin, Vienna and other continental towns, one cannot fail to be struck with the larger size of many of the specimens as compared with those usually seen in English Museums. The facilities afforded in the State Collieries of Germany to the scientific investigator may account in part at least for the better specimens which he is able to obtain. It would no doubt be a great gain to our collections of Coal-Measure plants if arrangements could be made in some collieries for the preservation of the finer specimens met with in the working of the seams, instead of breaking up the slabs of shale and consigning everything to the waste heaps. There is one more point which should be alluded to in connection with possible sources of error, and that is the essential importance of accuracy in the illustration of specimens, especially as regard type-specimens. It is often impossible to inspect the original fossils which have served as types, and it is of the utmost importance that the published figures should be as faithful as possible. M. Crépin[157] of Brussels, in an article on the use of photography in illustrating, has given some examples of the confusion and mistakes caused by imperfect drawings. It does not require a long experience of palaeobotanical work to demonstrate the need of care in the execution of drawings for reproduction.

“I do not think more credit is due to a man for defining a species, than to a carpenter for making a box.”
Charles Darwin, Life and Letters, Vol. I., p. 371.

Any attempt to discuss at length the difficult and thorny question of nomenclature would be entirely out of place in an elementary book on fossil plants, but there are certain important points to which it may be well to draw attention. When a student enters the field of independent research, he is usually but imperfectly acquainted with the principles of nomenclature which should be followed in palaeontological work. After losing himself in a maze of endless synonyms and confused terminology, he recognises the desirability of adopting some definite and consistent plan in his method of naming genera and species. It is extremely probable that whatever system is made use of, it will be called in question by some critics as not being in strict conformity with accepted rules. The opportunities for criticism in matters relating to nomenclature are particularly numerous, and the critic who may be but imperfectly familiar with the subject-matter of a scientific work is not slow to avail himself of some supposed eccentricity on the part of the author in the manner of terminology. The true value of work may be obscured by laying too much emphasis on the imperfections of a somewhat heterodox nomenclature. On the other hand good systematic work is often seriously spoilt by a want of attention to generally accepted rules in naming and defining species. It is essential that those who take up systematic research should pay attention to the necessary though secondary question of technical description.

In inventing a new generic or specific name, it is well to adhere to some definite plan as regards the form or termination of the words used. To deal with this subject in detail, or to recapitulate a series of rules as to the best method of constructing names whether descriptive or personal, would take us beyond the limits of a single chapter. The student should refer for guidance to such recognised rules as those drawn up by the late Mr Strickland and others at the instance of the British Association[158].

It is not infrequently the case that the same generic name has been applied to a fossil and to a recent species. Such a double use of the same term should always be avoided as likely to lead to confusion, and as tending to admit a divorce between botany and palaeobotany.

In the course of describing a collection of fossil species, various problems are bound to present themselves as regards the best method of dealing with certain generic or specific names. A few general suggestions may prove of use to those who are likely to be confronted with the intricacies of scientific and pseudoscientific terminology.

In writing the name of a species, it is important to append the name, often in an abbreviated form, of the author who first proposed the accepted specific designation. Stigmaria ficoides Brongn. written in this form records the fact that Brongniart was the author of the specific name ficoides. It means, moreover, that Brongniart not only suggested the name, but that he was the first to give either a figure or a diagnosis of this particular fossil. It is frequently the case that a specific name is proposed for a new species, without either figures or description; such a name is usually regarded as a nomen nudum, and must yield priority to the name which was first accompanied by some description or illustration sufficiently accurate to afford a means of recognition. A practice which may be recommended on the score of convenience is to write the name of the author of a species in brackets if he was not the first to use the generic as well as the specific name. Onychiopsis Mantelli (Brongn.) tells us that Brongniart founded the species, but made use of some other generic name than that which is now accepted. This leads us to another point of some importance. Brongniart described this characteristic Wealden fern under the name Sphenopteris Mantelli; Sphenopteris being one of those extremely useful provisional generic terms which are used in cases where we have no satisfactory proof of precise botanical affinity. Sphenopteris stands for fern fronds having a certain habit, form of segment and venation, and in this wide sense it necessarily includes representatives of various divisions and genera of Filices. If an example of a sphenopteroid frond is discovered with sori or spores sufficiently well preserved to enable us to determine its botanical position within narrower limits, we may with advantage employ another genus in place of the purely artificial form-genus which was originally chosen as a consequence of imperfect knowledge. Fronds of this Wealden fern have recently been found with well defined fertile segments having a form apparently identical with that which characterises the polypodiaceous genus Onychium. For this reason the name Onychiopsis has been adopted. It is safer and more convenient to use a name which differs in its termination from that of the recent plant with which we believe the fossil to be closely related. A common custom is to slightly alter the recent name by adding the termination -opsis or -ites. There are several other provisional generic terms that are often used in Fossil Botany, and which might be advantageously chosen in many cases where the misleading resemblance of external form has often given rise to the use of a name implying affinities which cannot be satisfactorily demonstrated.

It was the custom of some of the earliest writers, in spite of their habit of using the names of recent Flowering plants for extinct Palaeozoic species of Vascular Cryptogams, to adopt also general and comprehensive terms. We find such a name as Lithoxylon employed by Lhwyd[159] in 1699 as a convenient designation for fossil wood.

One of the most important and frequently disputed questions associated with the naming of species is that of priority. No name given to a plant in pre-Linnaean days need be considered, as our present system of nomenclature dates from the institution of the binominal system by Linnaeus. As a general rule, which it is advisable to follow, the specific name which was first given to a plant, if accompanied by a figure or diagnosis, should take priority over a name of later date. If A in 1850 describes a species under a certain name, and in 1860 B proposes a new name for the same species, either in ignorance of the older name or from disapproval of A’s choice of a specific term, the later name should not be allowed to supersede A’s original designation. Such a rule is not only just to the original author, but is one which, if generally observed, would lead to less confusion and would diminish unnecessary multiplication of specific names. Some writers would have us conform in all cases to this rule of priority, which they consistently adhere to apart from all considerations of convenience or long-established custom. There are, however, cogent reasons for maintaining a certain amount of freedom. While accepting priority as a good rule in most cases, it is unwise to allow ourselves to be too servile in our conformity to a principle which was framed in the interests of convenience, if the strict application of the rule clearly makes for confusion and inconvenience. A name may have been in use for say eighty years, and has become perfectly familiar as the recognised designation of a particular fossil; it is discovered, however, that an older name was proposed for the same species ninety years ago, and therefore according to the priority rule, we must accustom ourselves to a new name in place of one which is thoroughly established by long usage. From a scientific point of view, the ideal of nomenclature is to be plain and intelligible. To prefer priority to established usage entails obscurity and confusion. If priority is to be the rule which we must invariably obey in the shadowy hope that by such means finality in nomenclature[160] may be reached, it becomes necessary for the student to devote no inconsiderable portion of his time to antiquarian research, with a view to discover whether a particular name may be stamped with the hallmark of ‘the very first.’ While admitting the advisability of retaining as a general principle the original generic or specific name, the extreme subservience to ‘the priority craze’ without regard to convenience, would seem to lead irresistibly to the view that “botanists who waste their time over priority are like boys who, when sent on an errand, spend their time in playing by the roadside[161].”

There is another point which cannot be satisfactorily settled in all cases by a rigid adherence to an arbitrary rule. How far should we regard a generic name in the sense of a mere mark or sign to denote a particular plant, or to what extent may we accept the literal meaning of the generic term as an index of the affinity or character of the plant? If we consider the etymology of many generic names, we soon find that they are entirely inappropriate as aids in recognizing the true taxonomic position of the plants to which they are applied. The generic name Calamites was first suggested by the supposed resemblance of this Palaeozoic plant to recent reeds. If considered etymologically, it is merely a record of a past mistake, but it would be absurd to discard such a well-known name on the grounds that the genus is a Vascular Cryptogam and far removed from reeds. On the other hand, there often arise cases which present a real difficulty. The following example conveniently illustrates two distinct points of view as regards generic nomenclature. In 1875 Saporta described and figured a fragment of a fossil plant from the Jurassic beds of France as Cycadorachis armata[162]; the name being chosen in the belief that the specimen was part of a cycadean petiole, and there were good grounds for such a view. A few years ago Mr Rufford discovered more perfect specimens, in the Wealden rocks of Sussex, clearly belonging to Saporta’s genus, and these afforded definite evidence that Saporta had been deceived by the imperfection of the specimens as to their true botanical position. Owing to the obviously misleading name first given to this plant, I ventured to substitute Withamia[163] for Cycadorachis, and chose such a term in preference to one denoting affinity, on account of the difficulty of placing the plant in a definite class or family. On the other hand, it has been objected that the original name, despite its meaningless meaning—if the expression may be used—should be retained. A friendly critic[164], in writing of the proposed change of Cycadorachis, urges the importance of adhering to the name which was first applied to a genus. The same author pertinently remarks that we can no more dispense with a nomenclature than we can dispense with language. We may extend the comparison and point out that in language, as in scientific nomenclature, conciseness, clearness and convenience should be kept in view as guiding principles.

The student must judge for himself what course to follow in each case. While adhering as far as possible to a consistent plan, he must take care that he does not allow his own judgment to be completely over-ridden by a blind obedience to fixed rules, which if pressed too far may defeat their own ends.

The Bryophyta are small plants, varying in size from 1 mm. to about 30 cm., creeping or erect, having a thalloid, or more usually a foliose body, consisting of a cell-mass exhibiting in most cases a distinct internal differentiation. They possess no true roots and no true vascular tissue. The life-history of the members of the group is characterised by a well-marked and definite alternation of generations. The Moss or Liverwort plant is the sexual generation (gametophyte), and as a result of the fertilisation of an egg-cell the asexual or spore-bearing generation (sporophyte) is produced. The sporophyte never exhibits a differentiation into stem and leaves. Asexual and vegetative reproduction are effected by means of spores, bulbils, or detached portions of the plant-body. Sexual reproduction is by means of biciliate antherozoids produced in antheridia and egg-cells formed singly in archegonia.

In the Bryophytes the distinguishing characteristics are more constant and well-defined than in the Thallophytes. In the former the plant never consists of a single cell or coenocyte, but is always multicellular, and exhibits in most cases a definite physiological division of labour as expressed in the histological differentiation of distinct tissue-systems. In the Thallophytes there is no true alternation of generation in the same sense as in the Mosses and Liverworts and in the higher plants. In the Bryophytes the sexual reproduction has reached a higher stage of development and a much greater constancy as regards the nature of the reproductive organs. On the germination of the spore there is usually formed a fairly distinct structure known as the protonema, from which the Moss or Liverwort developes as a bud[449].

The vegetative plant-body possesses a different organisation on the ventral and dorsal side; it has the form of a thalloid creeping plant (Thalloid Liverworts), or of a delicate stem with thin appendages or leaves without a midrib (Foliose Liverworts). In most cases the body of the plant is made up of parenchymatous tissue, showing but little internal differentiation; in one or two genera a few strengthening or mechanical fibres occur among the thinner walled ground-tissue. On the germination of the spore, a feebly developed protonema is produced, which gives rise to the Liverwort plant. Reproduction as in the group Bryophyta.

The Liverworts have a very wide geographical distribution, and are specially abundant in moist shady situations; they grow on stones or damp soil, and occur as epiphytes on other plants. Marchantia, Pellia, and Jungermannia are among the better known British representatives of the class.

Considering the soft nature of the body of recent Liverworts, it is not surprising that they are poorly represented in a fossil state. In the absence of the sexual reproductive organs, or of the sporophytes, which have scarcely ever been preserved, exact identification is almost hopeless. The difficulties already referred to in dealing with the algae, as regards the misleading similarity between the form of the thallus and the bodies of other plants, have to be faced in the case of the Liverworts. Many of the thalloid Liverworts, if preserved in the form of a cast or impression without internal structure or reproductive organs, could hardly be distinguished from various genera of algae in which the thallus has the form of a forked plate-like body. Such genera as Pellia, Marchantia, Lunularia, Reboulia, and others bear a striking resemblance to Fucus, Chondrus and many other algae.

Imperfect specimens of certain Lichens, not to mention some of the Polyzoa, might easily be mistaken for Liverworts. Among the higher plants, there are some forms of the Podostemaceae which simulate in habit both thalloid and foliose Liverworts as well as Mosses[450]. The members of this Dicotyledonous family are described as water-plants with a Moss- or Liverwort-like form; they occur on rocks in quickly-flowing water in the tropics. In one instance a recent Podostemaceous genus has been described as a member of the Anthocerotales; the genus Blandowia[451], referred to by Willdenow as a Liverwort, has since been recognised as one of the Podostemaceae. The resemblance between some of the foliose Hepaticae and genera of Mosses is often very close. In certain Mosses, such as Hookeria pennata[452], the large two-ranked leaves suggest the branches of a Selaginella.

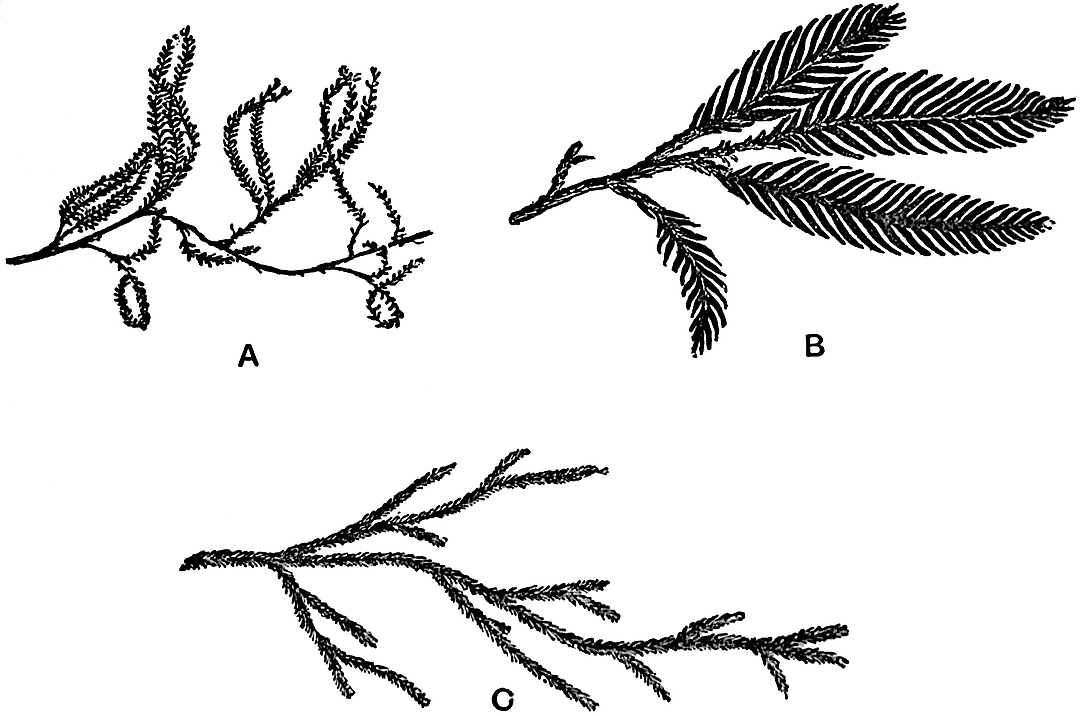

Fig. 48. A. Tristichia hypnoides Spreng. From a specimen in the British Museum. B. Podocarpus cupressina Br. and Ben. (After Brown and Bennett[453].) C. Selaginella Oregana Eat. From a plant in the Cambridge Botanic Garden. A, B and C very slightly reduced.

The plant reproduced in fig. 48 A (Tristichia), one of the Podostemaceae, might easily be mistaken for a foliose Liverwort if found as a fragmentary fossil. Such species of Selaginella as S. Oregana Eat. and S. rupestris Spring (fig. 48 C) have a distinctly moss-like habit and do not present a very obvious resemblance to the more typical and better known Selaginellas. The twig of a Podocarpus (P. cupressina)[454] in fig. 48 B affords an instance of a conifer which simulates to some extent certain of the larger-leaved Liverworts; it bears a resemblance also to some fossil fragments referred to Selaginellites or Lycopodites. A small fossil specimen figured by Nathorst[455] from Japan as possibly a Lycopodites may be compared with a coniferous twig, and with some of the larger Liverworts, e.g. species of Plagiochila[456]. Podocarpus cupressina is, however, chiefly instructive as an example of the striking differences which are met with among species of the same genus; it differs considerably from the ordinary species of Podocarpus, and might well be identified as a member of some other group than that of the Coniferae.

We have no records of Palaeozoic Hepaticae. The fossils which Zeiller has figured in his Flore de Brive as Schizopteris dichotoma Gümb.[457] and S. trichomanoides Göpp. bear a resemblance to some forms of hepatics, but there is no satisfactory evidence for removing them from the position assigned to them by the French writer. In Mesozoic rocks a few specimens are known which bear a close resemblance as regards the form of the thalloid body to recent Liverworts, but the identification of such fossils cannot be absolutely trusted. Two French authors, MM. Fliche and Bleicher[458], have described a plant from Lower Oolite rocks near Nancy as a species of Marchantia, M. oolithus, but they point out the close agreement of such forked laminar structures to algae and lichens. From Tertiary and Post-Tertiary beds a certain number of fossil species have been recorded, but they possess no special botanical interest.

The plant-body is always thalloid, bearing rhizoids on the lower surface, and having an epidermis with pores limiting the upper or dorsal surface.

Marchantites.

This convenient generic name was proposed by Brongniart in 1849[459]; it may be briefly defined as follows:

Vegetative body of laminar form, with apparently dichotomous branches, and agreeing in habit with the recent thalloid Hepaticae, as represented by such a genus as Marchantia.

The name Marchantites is preferable to Marchantia, as the latter implies identity with the recent genus, whereas the former is used in a wide sense and refers rather to a definite form of vegetative body than to a particular generic type.

1. Marchantites erectus (Leckenby). Fig. 49. This species may be described as follows: The thalloid body is divided into spreading dichotomously branched segments, obtusely pointed apically. The slightly wrinkled surface shows a distinct and comparatively broad darker and shorter median band, with lighter coloured and thinner margins.

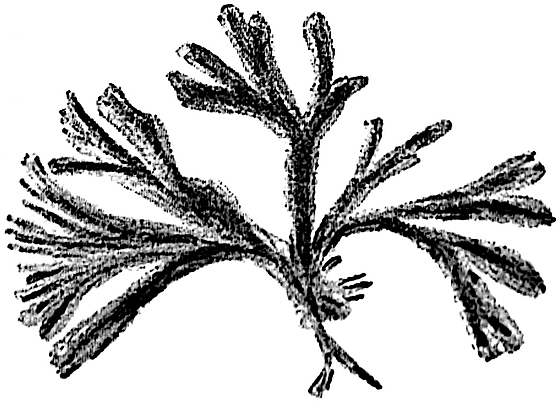

Fig. 49. Marchantites erectus (Leck.). From the type-specimen in the Woodwardian Museum. Nat. size.

In 1864 Leckenby described this plant from the Lower Oolite beds of the Yorkshire coast near Scarborough, as Fucoides erectus, regarding it as a fossil alga. I recently pointed out that the general appearance and mode of occurrence of the specimens suggest a liverwort rather than an alga, and proposed the substitution of the genus Marchantites[460]. It would, however, be unwise to speak with any great confidence as to the real affinities of the fossil.

The example shown in the figure is the type-specimen of Leckenby[461]: the breadth of the branches is about 3 mm. Under a low magnifying power the surface shows distinct and somewhat oblique wrinklings, the general appearance being very similar to that of some recent forms of the genus Marchantia.

A closely allied species has recently been described from the Wealden beds of Ecclesbourne, near Hastings, on the Sussex coast, as Marchantites Zeilleri Sew.[462].

In a recent monograph on Jurassic plants from Poland, apparently containing much that is of the greatest value, but which is unfortunately written in the Polish language, Raciborski[463] describes a new species of thalloid Liverwort under the name of Paleohepatica Rostafinski. The specimens are barren plants larger than any Jurassic species hitherto described; they agree closely in habit with Saporta’s Tertiary species Marchantites Sezannensis.

2. Marchantites Sezannensis Saporta. Fig. 50. The body is broadly linear and dichotomously branched, with a somewhat undulating margin. Midrib on the dorsal surface depressed, but more prominent on the ventral surface. The upper surface is divided into hexagonal areas, in each of which occurs a central pore. There are two rows of scales along the median line on the lower surface. Stalked male receptacles.

Brongniart[464] first mentioned this fossil hepatic, which was found in the calcareous travertine of Sézanne of Oligocene age in the Province of Marne. The specimens figured by Saporta[465] show very clearly the characters of one of the Marchantiaceae, and in this case we have the additional evidence of the characteristic male receptacles which are given off from a point towards the apex of the lobes, and arise from a slight median depression. In one of Saporta’s figures (reproduced in fig. 50 A) there are represented some median scars which may mark the position of cups similar to those which occur on recent species of Marchantia, and in which gemmæ or bulbils are produced.

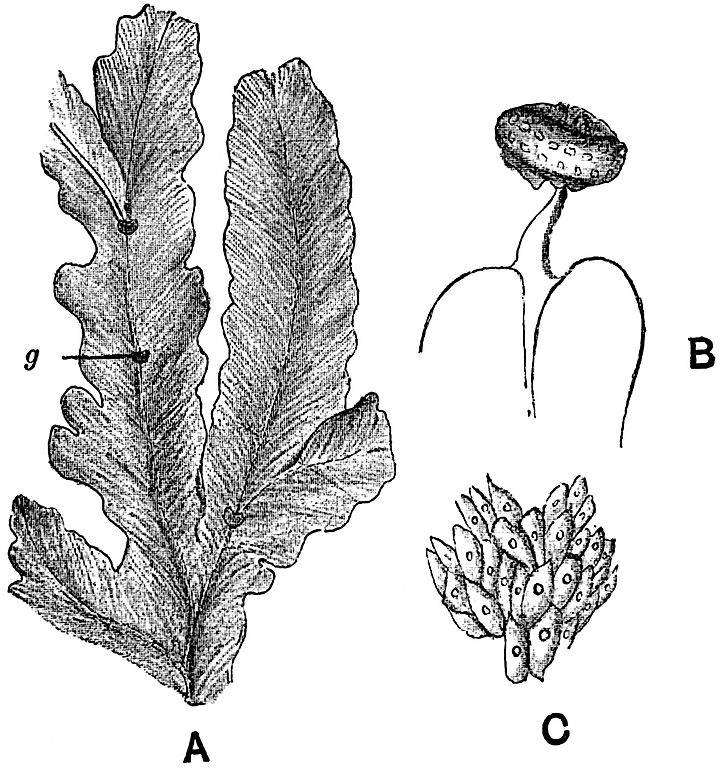

Fig. 50. Marchantites Sezannensis Sap. A. Surface view of the thallus; g, ? cups with gemmæ. B. A male branch. C. A portion of A magnified to show the surface features. (After Saporta.)

The collection of Sézanne fossils in the Sorbonne includes some very beautiful casts of Marchantites in which the structural details are preserved much more perfectly than in the examples described by Saporta. In a few specimens which Prof. Munier-Chalmas recently showed me the reproductive branches were exceedingly well shown. The fossils occur as moulds in the travertine, and the museum specimens are in the form of plaster-casts taken from the natural moulds.

Several species of Liverworts belonging to the Marchantiales and Jungermanniales have been recorded from the amber of North Germany, of Oligocene age. These appear to be represented by small fragments, such as are figured by Göppert and Berendt[466] in their monograph on the amber plants, published in 1845. The determinations have since been revised by Gottsche[467], who recognises species of Frullania, Jungermannia, and other genera.

The plant-body (gametophyte) in the Musci consists of a stem bearing thin leaves, usually spirally disposed, rarely in two rows. The internal differentiation of the stem is generally well marked, and in some cases is comparable in complexity with the structure of the higher plants. A protonema arises from the spore, having the form of a branched filamentous, or more rarely a thalloid structure. Reproduction as in the group Bryophyta.

Mosses like Liverworts have an extremely wide distribution, and occur in various habitats. In many districts vast tracts of country are practically monopolised by peat-forming genera, such as Sphagnum and other Mosses. Some genera are found on rocks at high altitudes in dry regions, a few grow as saprophytes, and many occur either as epiphytes on the leaves and stems of other plants, or carpeting the ground under the shade of forest trees.

In the simpler Mosses, the stem consists of a parenchymatous ground-tissue with a few outer layers of thicker-walled and smaller cells. In others there is a distinct central cylinder which occupies the axis of the stem, and consists of long and narrow cells; in the more complex forms the structure of the axial tissues suggests the central cylinder or stele of higher plants. The genus Polytrichum, so abundant on English moors, illustrates this higher type of stem differentiation. In a transverse section of the stem the peripheral tissue is seen to be composed of thick-walled cells, passing internally into large parenchymatous tissue. The axial part is occupied by a definite central cylinder consisting in the centre of elongated elements with dark-coloured and thick walls having thin transverse septa; surrounding this central tissue there are thinner walled elements, of which some closely agree in form with the sieve-tubes of the higher plants. The central tissue may be regarded as a rudimentary type of xylem, and the surrounding tissue as a rudimentary phloem. Each leaf is traversed by a median conducting strand which passes into the stem and eventually becomes connected with the axial cylinder.

The fertilisation of the egg-cell gives rise to the development of a long slender stalk terminating distally in a large spore-capsule. In section the stalk or seta closely resembles the leafy axis of the moss plant. Considering the fairly close approach of some of the mosses to the higher plants as regards histological characters, it is conceivable that imperfectly petrified stems of fossil mosses might be mistaken for twigs of Vascular Cryptogams.

Like Liverworts, Mosses have left very few traces of their existence in plant-bearing rocks. Without the aid of the characteristic moss-‘fruit’ or sporogonium it is almost impossible to recognise fossil moss-plant fragments. In species of the tropical genera Spiridens and Dawsonia, e.g. S. longifolius[468] Lind. or D. superba[469] Grev. and D. polytrichoides[470] R. Br., the plant reaches a considerable length, and resembles twigs of plants higher in the scale than the Bryophytes. The finer branches of species of the extinct genus Lepidodendron are extremely moss-like in appearance. Again, Cyathophyllum bulbosum Muell[471], with its two kinds of leaves arranged in rows, is not at all unlike species of Selaginella or the hepatic genus Gottschea. It is by no means improbable that some of the Palaeozoic specimens described as twigs of Lycopodites, Selaginites, or Lepidodendron, may be portions of mosses. The fertile branches of Lycopodium phlegmaria in a fossil condition might be easily mistaken for fragments of a moss. In some conifers with small and crowded scale-leaves there is a certain resemblance to the stouter forms of moss stems. Such possible sources of error should be prominently kept in view when we are considering the value of negative evidence as regards the geological history of the Musci.

A recent writer[472] on mosses has expressed the opinion that no doubt the Musci played an exceedingly important rôle in past time. Although we have no proof that this was so, yet it is far from improbable, and the absence of fossil mosses must no doubt be attributed in part to their failure to be preserved in a fossil state.

In the numerous samples of Coal-Measure vegetation preserved in extraordinary perfection in the calcareous nodules of England, no certain trace of a moss has so far been discovered. The most delicate tissue in the larger Palaeozoic plants has often been preserved, and in view of such possibilities of petrifaction it might appear strange that if moss-like plants existed no fragments had been preserved. Their absence is, however, no proof of the non-existence of Palaeozoic mosses, but it is a fact which certainly tends towards the assumption that mosses were probably not very abundant in the Coal Period forests. Epiphytic mosses frequently occur on the stems and leaves of ferns and other plants in tropical forests. Such small and comparatively delicate plants would, however, be easily rubbed off or destroyed in the process of fossilisation, and it is extremely rare to find among petrified Palaeozoic plants the external features well preserved. It is probable that the forests extended over low lying and swampy regions, and that, in part, the trees were rooted in a submerged surface. Under such conditions of growth there would not be the same abundance of Bryophytes as in most of our modern forests.

To whatever cause the absence of mosses may be best attributed, it is a fact that should not be too strongly emphasised in discussions on plant-evolution.

Muscites.

This comprehensive genus may be defined as follows:—

Stem filiform, simple or branched, bearing small sessile leaves, with a delicate lamina, without veins or with a single median vein, arranged in a spiral manner on the stem.

Muscites[473] is one of those convenient generic designations which limited knowledge and incomplete data render necessary in palaeontology. Fossil plants which in their general habit bear a sufficiently striking resemblance to recent mosses, may be included under this generic name.

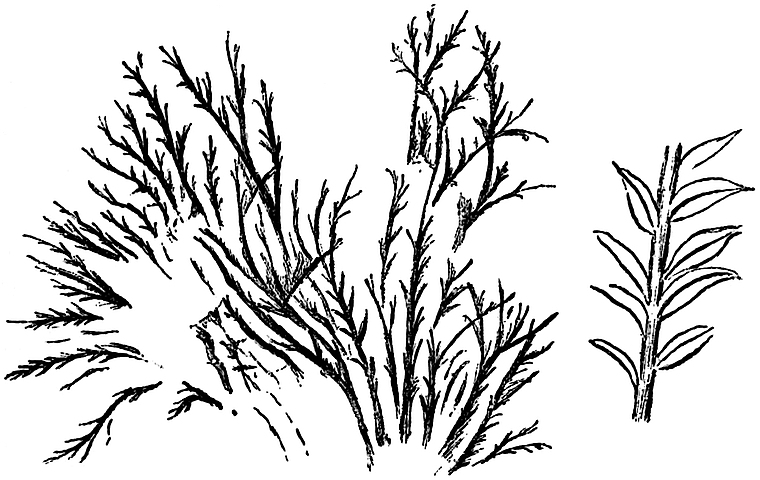

Fig. 51. Muscites polytrichaceus Ren. and Zeill. (after Renault and Zeiller).

1. Muscites polytrichaceus Renault and Zeiller. In this species the stems are about 3–4 cm. long and 1·3 m. broad, usually simple, but sometimes giving off a few branches, and marked externally by very delicate longitudinal grooves. The leaves are alternate, closely arranged, lanceolate, with an acute apex, gradually narrowed towards the base, 1–2 mm. long, traversed by a single median vein.

One of the French specimens, on which the species was founded[474], is shown in fig. 51, and the form of the leaves is more clearly seen in the small enlarged piece of stem. The authors of the species point out that the tufted habit of the specimens, their small size, and the membranous character of the leaves, all point to the Musci as the Class to which the plant should be referred in spite of the absence of reproductive organs.

Among recent mosses, the genus Rhizogonium,—one of the Mniaceae,—and Polytrichum are spoken of as offering a close resemblance to the fossil form. The type-specimen was found in the Coal-Measures of Commentry, and is now in the Museum of the École des Mines in Paris; the figure given by MM. Renault and Zeiller faithfully represents the appearance of the plant.

It has been suggested[475] that some small twigs figured by Lesquereux[476] from the Coal-Measures of North America as Lycopodites Meeki Lesq., may possibly be mosses. The specimens do not appear to be at all convincing, and cannot well be included as probable representatives of Palaeozoic Musci. Lycopodites Meeki Lesq. bears a close resemblance to the recent Selaginella Oregana shown in fig. 48, C.

From Mesozoic rocks we have no absolutely trustworthy fossil mosses. The late Prof. Heer[477] has quoted the occurrence of certain fossil Caterpillars in Liassic beds as indicative of the existence of mosses, but evidence of this kind cannot be accepted as scientifically sound. In 1850 Buckman[478] described and figured a few fragments of plants from a freshwater limestone at the base of the Lias series near Bristol. Among others he described certain specimens as examples of a fossil Monocotyledon, under the generic name Najadita. Mr Starkie Gardner[479] subsequently examined the specimens, and suggested that the Lias fragments referred to Najadita should be compared with the recent freshwater moss Fontinalis. In this opinion he was supported by Mr Carruthers and Mr Murray of the British Museum. In a footnote to the memoir in which this suggestion is made, Gardner refers to a moss-capsule from the same beds, which he had received from Mr Brodie. Through the kindness of the latter gentleman, I have had an opportunity of examining the supposed capsule, and have no hesitation in describing it as absolutely indeterminable. It is in the form of an irregularly oval brown stain on the surface of the rock, with the suggestion of a stalk at one end, but there are no grounds for describing the specimen as a moss-capsule, or indeed anything else. The type-specimens figured by Brodie and subsequently referred to a moss are now in the British Museum; they are small and imperfect fragments of slender stems bearing rather long oval leaves which might well have belonged to a moss. The material is however too fragmentary to allow of accurate diagnosis or determination.

2. Muscites ferrugineus (Ludg.). This species possesses a slender stem bearing crowded ovate-acuminate leaves. The capsules are cup-shaped, borne on a short stalk, with a circular opening without marginal teeth. This fossil was first figured and described by Ludwig[480] from a brown ironstone of Miocene age at Dernbach in Nassau. The author of the species placed it in the recent genus Gymnostomum, and Schimper[481] afterwards changed the generic name to Sphagnum, at the same time altering the specific name to Ludwigi. The evidence is hardly strong enough to justify a generic designation which implies identity with a particular recent genus, and it is a much safer plan to adopt the non-committal term Muscites, at the same time retaining Ludwig’s original specific name. Without having examined the type-specimen it is impossible to express a definite opinion as to the accuracy of the description given by Ludwig; if the capsule is correctly identified it is the oldest example hitherto recorded of a fossil moss-sporogonium.

The Pteridophytes include plants which vary in size from a few millimetres[482] to several metres in height. The spore on germination gives rise to a small thalloid structure, the prothallium, on which the sexual organs are developed; this is the gametophyte or sexual generation. The sexual organs have the form of typical archegonia and antheridia. From the fertilised egg-cell there is developed the Pteridophyte plant or sporophyte, which bears the spores. This asexual generation shows a well-marked external differentiation into stem and leaves, and bears true roots. Internally the tissues exhibit a high degree of differentiation into distinct tissue-systems. True vascular bundles occur, which may or may not be capable of secondary thickening by means of a cambium, i.e. a definitely localised zone of meristematic tissue. The sporangia are borne either on the ordinary foliage leaves or on special spore-bearing leaves called sporophylls, which differ in a greater or less degree from the sterile leaves.

The majority of the best known and most important Palaeozoic genera are either true Vascular Cryptogams, or possess certain of the pteridophytic characteristics combined with those of higher plants. It is not merely the commoner and more familiar recent genera with which the student of extinct types must be acquainted, but it is extremely important that he should make himself familiar with the rarer, less known and more isolated recent forms, which often throw most light on the affinities of the older representatives of the group. It is often the case, the more isolated living plants are, the more likely are they to afford valuable assistance in the interpretation of genera representing a class, which reached its maximum development in the earlier periods of the earth’s history. The importance of paying special attention to such recent plants as may be looked upon as survivals of a class now tending towards extinction, will be more thoroughly realised after the extinct vascular cryptogams have been dealt with.

A comparison of the Pteridophyta and Bryophyta brings out certain points of divergence. In the first place, the sporophyte assumes in the former class a much more prominent rôle, and the gametophyte has suffered very considerable reduction. The gametophyte, i.e. the structure which is formed on the germination of the asexually-produced spore, is usually short-lived, small, and more or less dependent on the sporophyte for its nutrition. In a few cases only is it capable of providing itself with the essential elements of food. On the other hand, the sporophyte, at a very early stage of its development becomes free from the gametophyte and is entirely self-supporting. Reproduction is effected as in the Bryophyta by sexual reproductive organs and by asexual methods. Not only have we in the Pteridophytes a much more complete external division of the plant-body into definite members, which subserve distinct functions, and behave as well-defined physiological organs adapted for taking a certain share in the life-functions of the individual, but the internal differentiation has reached a much higher stage. True vascular tissue, consisting of xylem and phloem, occurs for the first time in this class. The whole plant is traversed by one or more vascular strands composed of xylem and phloem elements, which are respectively concerned with the distribution of inorganic and organic food substances.

The Pteridophyta include the most important fossil plants. It is from a study of the internal structure of various extinct representatives of this class, that palaeobotanists have been able to contribute facts of the greatest interest and importance towards the advancement of botanical science.

The botanist’s chief aim in the anatomical investigation of Palaeozoic genera is to discover data which point the way to a solution of the problems of plant-evolution. In the abundant material afforded by the petrified remnants of ancient floras we have the means of tracing the past history of existing groups or individual forms, and it is from the Palaeozoic Pteridophytes that our most valuable results have been so far obtained.

In this and the following chapters of Volume I. two divisions of the Pteridophyta are dealt with in such detail as the nature of the book allows. In the earlier chapters of Volume II. the remaining representatives of this class will be described. As in the preceding chapters such recent plants will be described as are most essential for the correct interpretation of the fossil forms.

It is impossible to do more than confine our attention to a few only of the genera of living plants which directly concern us; some acquaintance with the general facts of plant morphology must be assumed. Among the most useful text-books or books of reference on the Pteridophyta the student may consult those mentioned in the footnote[483].

Leaves usually small in proportion to the size of the whole plant, arranged in whorls at the nodes. Sporangia borne on specially modified sporophylls or sporangiophores, which are aggregated to form a definite strobilus or spore-bearing cone.

The leaves are in whorls, coherent in the form of a sheath, and traversed by longitudinal veins which do not fork or anastomose. The stem is divided into comparatively long internodes separated by the leaf-bearing nodes, and the branches arise in the leaf-axils at the nodes. The fertile leaves or sporophylls differ from the sterile leaves, and usually occur in definite aggregations or strobili containing spores of one kind (isosporous). In the single living genus Equisetum, the outer coat of the mature spore forms two hygroscopically sensitive filamentous structures or elaters. On the germination of the spore the gametophyte is developed in the form of a small lobed prothallium 1–2 cm. in length. In most cases there are distinct male and female prothallia.

The genus Equisetum L., the common Horse-tail, is the sole living representative of this Family. It occurs as a common native plant in Britain, and has a wide geographical distribution. Species of Equisetum are abundant in the temperate zones of both hemispheres, and occur in arctic as well as tropical latitudes. Wallace[484] speaks of Horse-tails, “very like our own species,” growing at a height of 5000 feet on the Pangerango mountain in Java. In favourable situations the large British Horse-tail, Equisetum maximum Lam. (= E. Telmateia Erhb.), occasionally reaches a height of about six feet, and growing in thick clusters forms miniature forests of trees with slender erect stems and regular circles of long and thin branches. A tropical species, Equisetum giganteum Linn.[2] living in the marshes of Mexico and Cuba[485], and extending southward to Buenos Ayres and Chili, reaches a height of twenty to forty feet, but the stem always remains slender, and does not exceed an inch in diameter. Groves of such tall slender plants on the eastern slopes of the Andes[486] suggest to the palaeobotanist an enfeebled forest-growth recalling the arborescent Calamites of a Palaeozoic vegetation. The twenty-five existing species of Equisetum are remnants of various generic types of former epochs, and possess a special interest from the point of view of the geological history of plants. A brief description of the main characters of the recent genus will enable the student to appreciate the points of difference and agreement between the extinct and present representatives of the Equisetales.

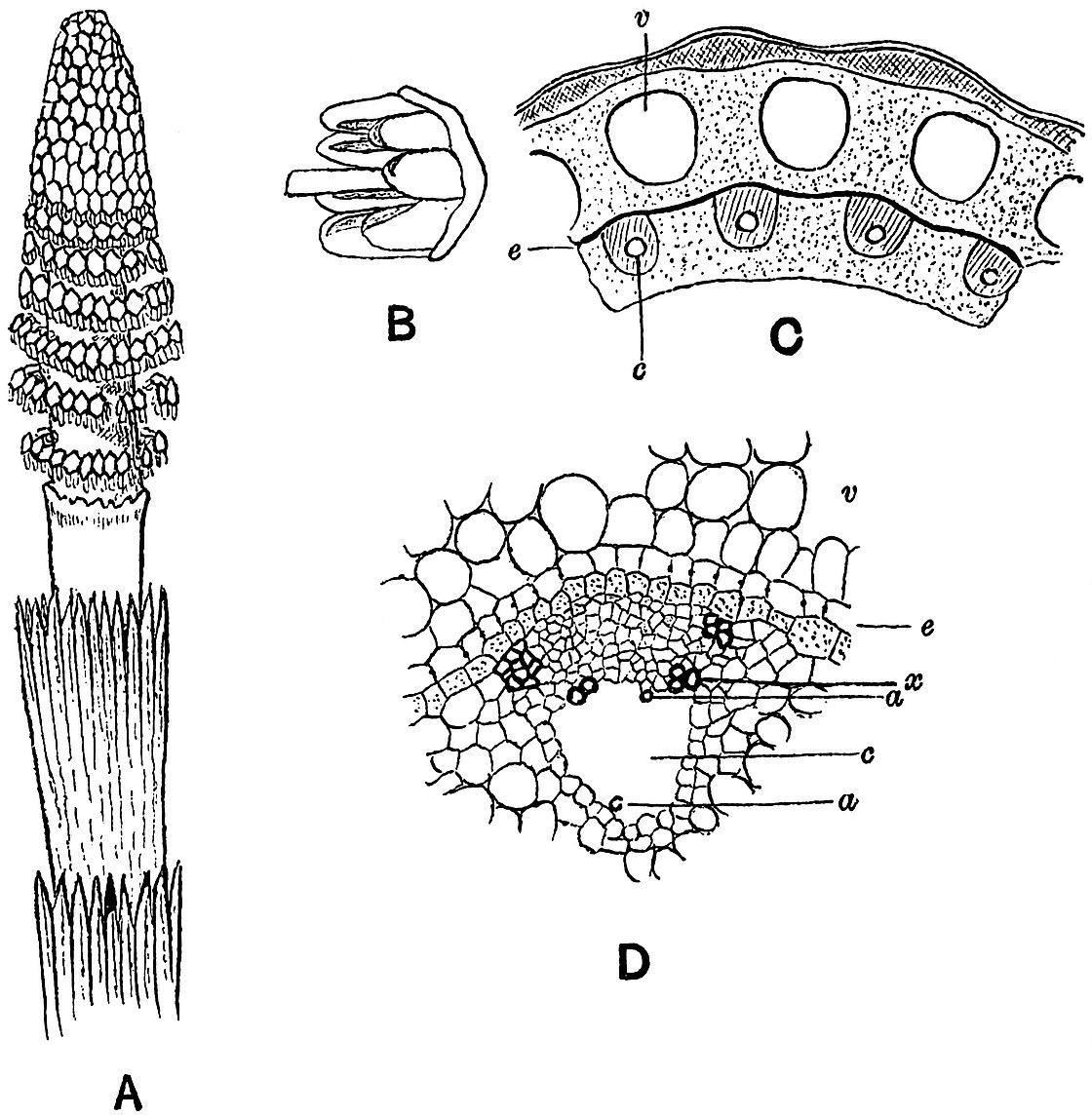

Fig. 52. Equisetum maximum Lam. A. Fertile shoot with strobilus and sterile leaf-sheaths [after Luerssen (89); slightly less than nat. size]. B. Sporophyll bearing open sporangia (after Luerssen; slightly enlarged). C. Part of a transverse section (diagrammatic); v, vallecular canals, e, endodermis, c, carinal canals (after Luerssen; × 20). D. Equisetum arvense L. Part of a transverse section of an internode of a sterile shoot. v, cortex, e, endodermis, x, xylem tracheids, a remains of annular tracheids of the protoxylem, c, carinal canal (after Strasburger; × 90).

The plant consists of a perennial underground creeping rhizome, branching into secondary rhizomes, divided into well-marked nodes and internodes. From the nodes are given off two sets of buds, which may develope into ascending aerial shoots or descending roots. At each node is a leaf-sheath more or less deeply divided along the upper margin into teeth representing the tips of coherent leaves (fig. 52, A).

In some species one or more internodes of underground branches become considerably swollen and assume the form of ovate or elliptical starch-storing tubers, which are capable of giving rise to new plants by vegetative reproduction. Tubers, either singly or in chains, occur in E. arvense Linn., E. sylvaticum Linn., E. maximum Lam., among British species.

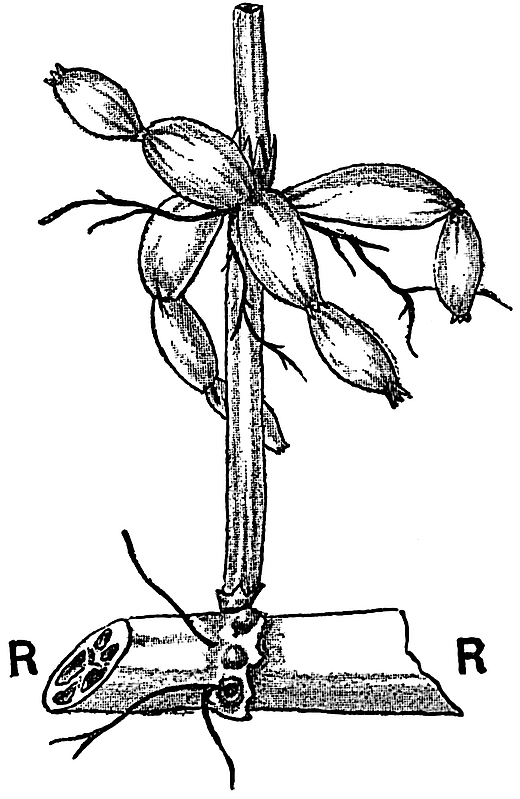

Fig. 53. Rhizome (R) of Equisetum palustre L. with a thin shoot giving off roots and tuberous branches from a node [after Duval-Jouve (64)].

In the example shown in fig. 53 (Equisetum palustre L.[487]) the stout rhizome R gives off from its node, marked by a small and irregular leaf-sheath, two thin roots and a single shoot. The latter has a leaf-sheath at its base, and from the second node, with a larger leaf-sheath, there have been developed branches with tuberous internodes; the constrictions between the tubers and the tips of the terminal tubers bear small leaf-sheaths. Branched roots are also given off from the upper node of the erect shoot.

Near the surface of the ground the buds on the rhizome nodes develope into green erect shoots. The shoot axis is marked out into long internodes separated by nodes bearing the leaf-sheaths. The surface of each internode is traversed by regular and more or less prominent longitudinal ridges and grooves; each ridge marking the position of an internal longitudinal vascular strand. In the axil of each leaf, that is in the axil of each portion of a leaf-sheath corresponding to a marginal uni-nerved tooth, there is produced a lateral bud which may either remain dormant or break through the leaf-sheath and emerge as a lateral branch. At the base of each branch an adventitious root may be formed from a cell immediately below the first leaf-sheath, but in aerial shoots the roots usually remain undeveloped. The lateral branches repeat on a smaller scale the general features of the main axis. In some species, the shoots are unbranched, and in others the slender branches arise in crowded whorls from each node. Leaves, roots and branches are given off in whorls, and the whorls from each node alternate with those from the node next above and next below.

In some species of Equisetum the aerial stem terminates in a conical group of sporophylls, while in others the strobilus is formed at the apex of a pale-coloured fertile shoot, which never attains any considerable length and dies down early in the season of growth (fig. 52, A). Below the terminal cone or strobilus there occur one or two modified leaf-sheaths. Such a ring of incompletely developed leaves intervening between the cone of sporangiophores and the normal leaves, is known as the annulus. The annulus is seen in fig. 52, A, immediately below the lowest whorl of sporophylls; it has the form of a low sheath with a ragged margin. In the region of the cone the internodes remain shorter, and the whorls of appendages, known as sporophylls or sporangiophores, have the form of stalked structures terminating distally in a hexagonal peltate disc, which bears on its inner face a ring of five to ten oval sporangia (fig. 52, B). Each sporangium contains numerous spores which eventually escape by the longitudinal dehiscence of the sporangial wall. The opening of the sporangia is probably assisted by the movements of the characteristic elaters formed from the outer wall of each spore.

The spores, which are capable of living only a short time, grow into aerial green prothallia, 1–2 cm. in length; these have the form of irregularly and more or less deeply lobed structures. On the larger and more deeply lobed prothallia the archegonia or female reproductive organs are borne, and the smaller or male prothallia bear the antheridia. On the fertilisation of an egg-cell, the Equisetum plant is gradually developed. For a short time parasitic on the female prothallium or gametophyte, the young plant soon takes root in the ground and becomes completely independent.

As seen in transverse section through a young stem near the apex, the axis consists of a mass of parenchyma, in which may be distinguished a central larger-celled tissue, surrounded by a ring of smaller-celled groups marking the position of a circle of embryonic vascular strands. In each young vascular strand, a few of the cells next the pith may be seen to have thicker walls and to be provided with a ring-like internal thickening; these have passed over into the condition of annular tracheids and represent the protoxylem elements. At a later stage, a transverse section through the stem shows a central hollow pith, formed by the tearing apart and subsequent disappearance of the medullary parenchymatous cells, which were unable to keep pace with the growth in thickness of the stem. The pith cavity is bridged across at each node by a multi-layered plate of parenchyma, which forms the so-called nodal diaphragm. The inner edge of each vascular strand is now found to be occupied by a small irregularly circular canal (fig. 52, C, c, and D, c) in which may be seen some of the rings of protoxylem tracheids (D, a) which have been torn apart and almost completely destroyed. These canals, known as carinal canals, have arisen by the tearing and disruption of the thin-walled cells in the immediate neighbourhood of the protoxylem. Each carinal canal is bounded by a layer of elongated parenchymatous cells which form part of the xylem of the vascular bundle, and is succeeded internally by the general ground-tissue of the stem. The xylem parenchyma next a carinal canal is succeeded externally by phloem tissue, consisting of short protoplasmic cells and longer elements, without nuclei and poor in contents; the latter may be regarded as sieve-tubes. On either side of the phloem, the xylem occurs in two separate bands or groups of annular and reticulately thickened tracheids. In some species, e.g. Equisetum xylochaetum Metten.[488] and E. giganteum[489] L. a native of South America, the xylem has the form of two bands composed of fairly numerous tracheids, but in most species the xylem tracheids occur in small groups, as shown in the figure of E. maximum (fig. 52, D). In the shape of the vascular bundle, and in the formation of the carinal canal, there is a distinct resemblance between the vascular bundles of Equisetum and those of a monocotyledonous stem. These collateral stem-bundles of xylem and phloem traverse each internode as distinct strands, and at the nodes each strand forks into two branches (fig. 54, A), which anastomose with the alternating bundles passing into the stem from the leaf-sheath. Thus the vascular strands of each internode alternate in position with those of the next internode.

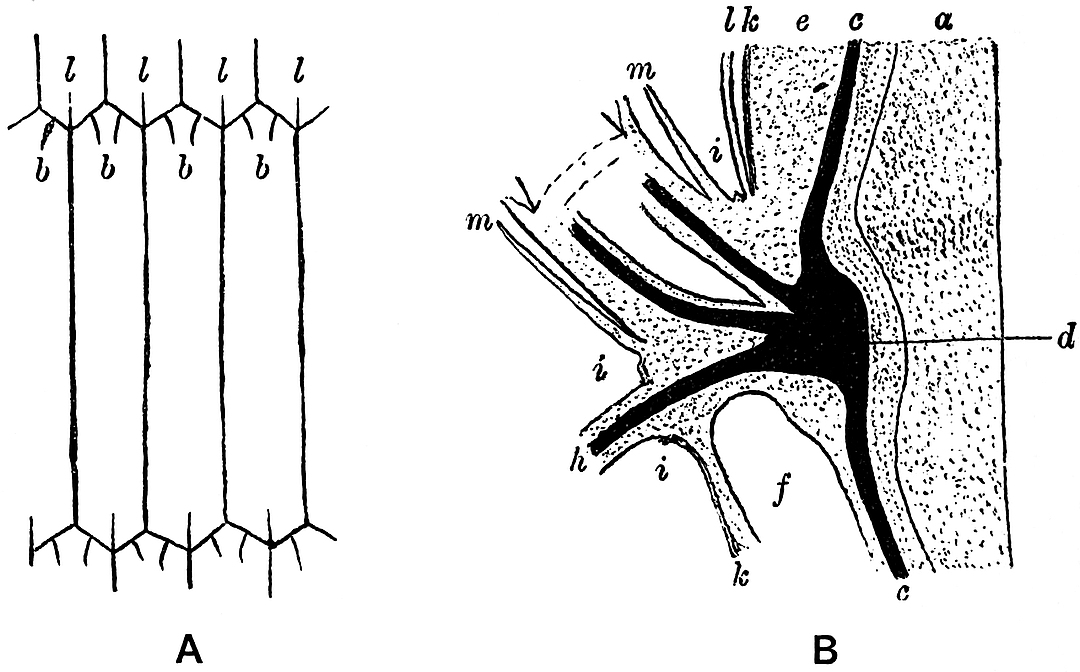

Fig. 54. A. Plan of the vascular bundles in the stem of an Equisetum; b, branches passing out to buds (after Strasburger); l, vascular strands passing to the leaf-segments. B. Longitudinal section through a node of E. arvense L. (after Duval-Jouve; × 20). Explanation in the text.

There are certain points connected with the vascular bundles in the nodal region of a shoot, which have an important bearing on the structure of fossil equisetaceous stems. Fig. 54 B represents a diagrammatic longitudinal section through the node of a rhizome of Equisetum arvense from which a root h is passing off in a downward direction, and a branch in an upward direction. The black band c in the parent stem shows the position of the vascular strands; in the region of the node the vascular tissue attains a considerable thickness, as seen at d in the figure. The bands passing out to the left from d go to supply the branch and root respectively. The increased breadth of the xylem strands at the node is due to the intercalation of a number of short tracheids. Fig. 55, 4 shows a transverse section through a mature node of Equisetum maximum; px marks the position of the protoxylem and e that of the endodermis. On comparing this section with that of the internodal vascular bundle in fig. 52, D, the much greater development of wood in the former is obvious; the carinal canal of the internodal bundle is absent in the section through a node. The disposition of the xylem tracheids in fig. 55, 4 shows a certain regularity which, though not very well marked, suggests the development of wood elements as the result of cambial activity. Longitudinal sections through the nodal region demonstrate the existence of “cells similar to those of an ordinary cambium, and a cell-formation resulting from their division which is similar to that in an ordinary secondary thickening.”[490] The short tracheids which make up this nodal mass of xylem differ from those in the internodal bundle in their smaller size, and in being reticulately thickened. There is, therefore, evidence that in the nodes of some Equisetum stems additional xylem elements are produced by a method of growth comparable with the cambial activity which brings about the growth in thickness of a forest-tree[491]. The significance of these statements will be realised when the structure of the extinct genus Calamites is described and compared with that of Equisetum.

The small drawing in fig. 55, 3 shows part of the ring of thick nodal wood; the section cuts through two bundles about their point of bifurcation, the strand x is passing out in a radial direction to a lateral branch, the strand to the right of x and the separate fragment of a strand to the left of x are portions of leaf-trace bundles on their way to the leaf-sheath. Reverting to fig. 54, B, the other structures seen in the section are the leaf-sheaths (l and m), the vallecular canal (f), the epidermis, cortex and pith (k, e and a) of the stem. The epidermis which has been ruptured by the root and branch is indicated at i, i; the dotted lines traversing the upper part of the pith of the lateral branch mark the position of a nodal diaphragm.

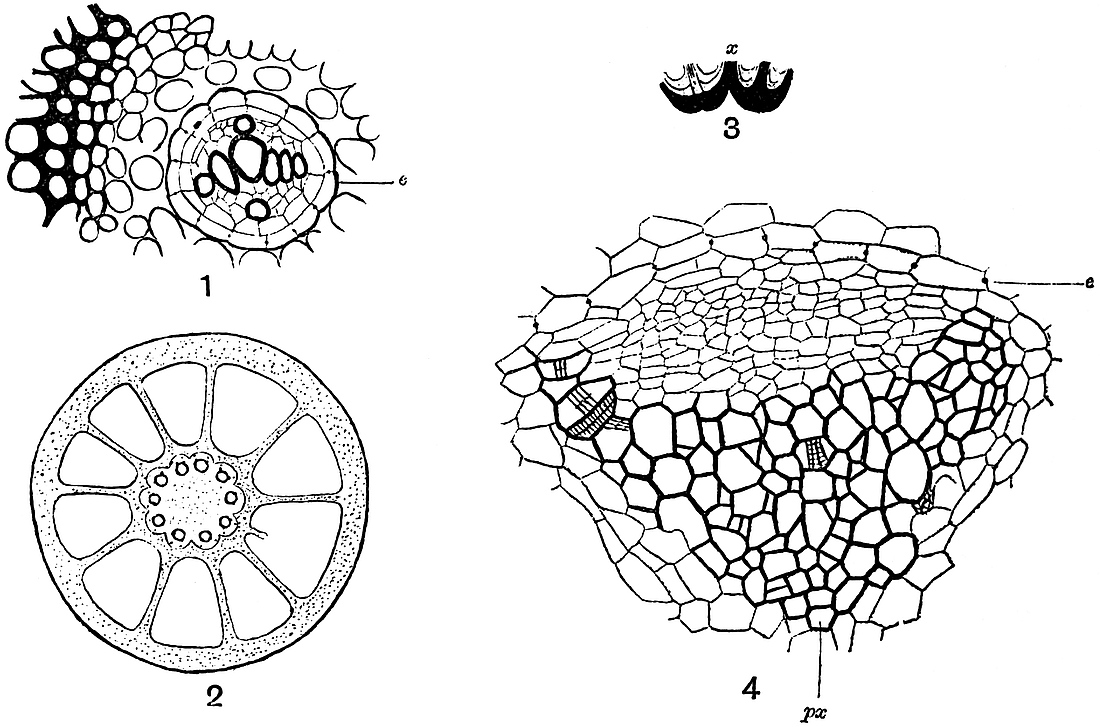

Fig. 55. 1. Transverse section of a root of Equisetum variegatum Schl., e endodermis, or outer layer of the phloeoterma (after Pfitzer; × 160). 2. Transverse section of rhizome of E. maximum, slightly enlarged. 3. Transverse section through a node of E. maximum, x, branch of vascular strand (slightly enlarged). 4. Transverse section through a node of E. maximum showing the mass of xylem, px protoxylem (× 175). (Figs. 3 and 4 after Cormack.)

Immediately external to each vascular strand, as seen in transverse section, there is a layer of cells containing starch, and this is followed by a distinct endodermis, of which the cells show the characteristic black dot in the cuticularised radial walls (fig. 52, D). Beyond the endodermis there is the large-celled parenchyma of the rest of the cortex. Tannin cells occur here and there scattered among the ground tissue. On the same radius on which each vascular strand occurs, the cortical parenchyma passes into a mass of sub-epidermal thick-walled mechanical tissue or stereome. Alternating with the ridges of stereome, the grooves are occupied by thin-walled chlorophyll-containing tissue which carries on most of the assimilating functions, and communicates with the external atmosphere by means of stomata arranged in vertical rows down each internode. The continuity of the cortical tissue is interrupted by the occurrence of large longitudinal vallecular canals alternating in position with the stem ridges and vascular strands (fig. 52, C, v). The epidermis consists of a single layer of cells, containing stomata, and with the outer cell-walls impregnated with silica.

In certain species of Equisetum, e.g. E. palustre L., the whole circle of vascular strands is enclosed by an endodermis, and has the structure typical of a monostelic stem. In others e.g. E. litorale Kühl. each vascular strand is surrounded by a separate endodermis, and in some forms e.g. E. sylvaticum L. there is an inner as well as an outer endodermal layer[492]. Without discussing the explanation given to this variation in the occurrence of the endodermis, it may be stated that in all species of Equisetum the stem may be regarded as monostelic[493].

In the rhizome the structure agrees in the main with that of the green shoots, but the vallecular canals attain a larger size, and the pith is solid. A slightly enlarged transverse section of a rhizome of Equisetum maximum is shown in fig. 55, 2, the small circles surrounding the pith mark the position of the vascular bundles and carinal canals; the much larger spaces between the central cylinder and the surface of the stem are the vallecular canals.

The central cylinder or stele of the root is of the diarch, triarch or tetrarch type; i.e. there may be 2, 3 or 4 groups of protoxylem in the xylem of the root stele. The axial portion is occupied by large tracheids, and the smaller tracheids of the xylem occur as radially disposed groups, alternating with groups of phloem. External to the xylem and phloem strands there occur two layers of cells, usually spoken of as a double endodermis, but it has been suggested that it is preferable to describe the double layer as the phloeoterma[494], of which the inner layer has the functions of a pericycle, and the outer that of an endodermis. A transverse section of a root is seen in fig. 55, 1, the dark cells on the left are part of a thick band of sclerenchyma in the cortex of the root, the layer e is the outer layer of the phloeoterma.

Without describing in detail the development[495] of the sporangia, it should be noted that the sporangial wall is at first 3 to 4 cells thick, but it eventually consists of a single layer. The cells have spiral thickening bands on the ventral surface, and rings on the cells where the longitudinal splitting takes place. Each sporangium is supplied by a vascular bundle which is given off from that of the sporangiophore axis. The strobili are isosporous.

In dealing with the fossil Equisetales, we will first consider the genera Equisetites, Phyllotheca and Schizoneura, and afterwards describe the older and better known genera Calamites and Archaeocalamites. A thoroughly satisfactory classification of the members of the Equisetales is practically impossible without more data than we at present possess. It has been the custom to include Equisetites, Phyllotheca and Schizoneura in the family Equisetaceae, and to refer Calamites and Archaeocalamites to the Calamarieae; such a division rests in part on assumption, and cannot be considered final. When we attempt to define the Equisetales and the two families Equisetaceae and Calamarieae, we find ourselves seriously hampered by lack of knowledge of certain important characters, which should be taken into account in framing diagnoses. There is little harm in retaining provisionally the two families already referred to, if we do not allow a purely arbitrary classification to prejudice our opinions as to the affinities of the several members of the Equisetales.

The Equisetaceae might be defined as a family including plants which were usually herbaceous but in some cases arborescent, bearing verticils of leaves in the form of sheaths more or less deeply divided into segments or teeth. The strobili were isosporous and consisted of a central axis bearing verticils of distally expanded sporophylls with sporangia, as in Equisetum. The genus Equisetites might be included in this family, but it must be admitted that we know next to nothing as to its anatomy, and we cannot be sure that the strobili were always isosporous.

The genus Schizoneura is too imperfectly known to be defined with any approach to completeness, or to be assigned to a family defined within certain prescribed limits. Phyllotheca is another genus about which we possess but little satisfactory knowledge; we are still without evidence as to its structure, and the descriptions of the few strobili that are known are not consistent. Recent work points to a probability of Phyllotheca being closely allied to Annularia, a genus included in the Calamarieae, and standing for a certain type of Calamitean foliage-shoots.

In comparing the Calamarieae with the Equisetaceae, the alternation of sterile and fertile whorls in the strobilus, and the free linear leaves at the nodes instead of leaf-sheaths are two characters made use of as distinguishing features of the genus Calamites as the type of the Calamarieae. On the other hand, the strobili of Phyllotheca appear to agree with those of Calamites rather than with those of Equisetum, and strobili of Archaeocalamites have been found exhibiting the typical Equisetum characters. The sheath-like form of the leaves is not necessarily peculiar to the Equisetaceae, and we have evidence that leaf-sheaths occurred on the nodes of Calamitean plants. In Archaeocalamites the leaves possess characteristic features, and can hardly be said to agree more closely with those of Calamites than with the leaves of Phyllotheca or Sphenophyllum, a genus belonging to another class of Pteridophytes.

On the whole, then, without discussing further the possibilities of a subdivision of the Equisetales, we may regard the genera Calamites, Archaeocalamites, Equisetites, Equisetum, Phyllotheca and Schizoneura as so many members of the Equisetales, without insisting on a classification which cannot be supported by satisfactory evidence.

Our knowledge of Calamites is fairly complete. Abundant and well-preserved material from the Coal-Measures of England, and from Permo-Carboniferous rocks of France, Germany and elsewhere, has enabled palaeobotanists to investigate the anatomical characters of both the vegetative and reproductive structures of this genus. We are in a position to give a detailed diagnosis of Calamitean stems, roots and strobili, and to determine the place of this type of plant in a system of classification. Calamites not only illustrates the possibilities of palaeobotanical research, but it demonstrates the importance of fossil forms as foundations on which to construct the most rational classification of existing plants. The close alliance between Calamites and the recent Equisetaceae has been clearly established, and certain characteristics of the former genus render necessary an extension and modification of the definition of the class to which both Calamites and Equisetites belong. The Calamites broaden our conception of the Equisetaceous alliance, and by their resemblance to other extinct Palaeozoic types they furnish us with important links towards a phylogenetic series, which the other members of the Equisetales do not supply.

From the Upper Devonian to the Permian epoch Calamites and other closely related types played a prominent part in the vegetation of the world. We have no good evidence for the existence of Calamites in Triassic times; in its place there were gigantic Equisetums which resembled modern Horse-tails in a remarkable degree. In the succeeding Jurassic period tree-like Equisetums were still in existence, and species of Equisetites are met with in rocks of this age in nearly all parts of the world. A few widely distributed species are known from Wealden rocks, but as we ascend the geologic series from the Jurassic strata, the Equisetums become less numerous and the individual plants gradually assume proportions practically identical with those of existing forms.

The generic name Equisetites was proposed by Sternberg in 1838[496] as a convenient designation for fossil stems bearing a close resemblance to recent species of Equisetum. Some authors have preferred to apply the name Equisetum to fossil and recent species alike, but in spite of the apparent identity in the external characters of the fossil stems with those of existing Horse-tails, and a close similarity as regards the cones, there are certain reasons for retaining Sternberg’s generic name. It is important to avoid such nomenclature as might appear to express more than the facts admit. If the custom of adding the termination -ites to the root of a recent generic term is generally followed, it at once serves to show that the plants so named are fossil and not recent species. Moreover, in the case of fossil Equisetums we know nothing of their internal structure, and our comparisons are limited to external characters. Stems, cones, tubers, and leaves are often very well preserved as sandstone casts with distinct surface-markings, but we are still in want of petrified specimens. There is indeed evidence that some of the Triassic and Jurassic species of Equisetites, like the older Calamites, possessed the power of secondary growth in thickness, but our deductions are based solely on external characters.

In the following pages a few of the better known species of Equisetites are briefly described, the examples being chosen partly with a view to illustrate the geological history of the genus, and partly to contribute something towards a fuller knowledge of particular species. One of the most striking facts to be gleaned from a general survey of the past history of the Equisetaceae is the persistence since the latter part of the Palaeozoic period of that type of plant which is represented by existing Equisetums. There is perhaps no genus in existence which illustrates more vividly than Equisetum the survival of an extremely ancient group, which is represented to-day by numerous and widely spread species. The Equisetaceous characteristics mark an isolated division of existing Vascular Cryptogams, and without reference to extinct types it is practically impossible to do more than vaguely guess at the genealogical connections of the family. When we go back to Palaeozoic plants there are indications of guiding lines which point the way to connecting branches between the older Equisetales and other classes of Pteridophytes. The recently discovered genus Cheirostrobus[497] is especially important from this point of view.

The accurate description of species, and the determination of the value of such differences as are exhibited in the surface characters of structureless casts, are practically impossible in many of the fossil forms. In certain living Horse-tails we find striking differences between fertile and sterile shoots, and between branches of different orders. The isolated occurrence of fragments of fossil stems often leads to an artificial separation of ‘species’ largely founded on differences in diameter, or on slight variations in the form of the leaf-sheaths. It is wiser to admit that in many cases we are without the means of accurate diagnosis, and that the specific names applied to fossil Equisetums do not always possess much value as criteria of taxonomic differences.

The specimens of fossil Equisetums are usually readily recognised by the coherent leaf-segments in the form of nodal sheaths resembling those of recent species. The tissues of the cortex and central cylinder are occasionally represented by a thin layer of coal pressed on to the surface of a sandstone cast, or covering a flattened stem-impression on a piece of shale. It is sometimes possible under the microscope to recognise on the carbonised epidermal tissues the remains of a surface-ornamentation similar to that in recent species, which is due to the occurrence of siliceous patches on the superficial cells. Longitudinal rows of stomata may also be detected under favourable conditions of preservation. The nodal diaphragms of stems have occasionally been preserved apart, but such circular and radially-striated bodies may be misleading if found as isolated objects. Casts of the wide hollow pith of Equisetites, with longitudinal ridges and grooves, and fairly deep nodal constrictions, have often been mistaken for the medullary casts of Calamites.

Several species of Equisetites have been recorded from the Upper Coal-Measures and overlying Permian rocks, but these present special difficulties. In one instance described below, (Equisetites Hemingwayi Kidst.), the species was founded on a cast of what appeared to be a strobilus made up of sporophylls similar to those in an Equisetum cone. In other Permo-Carboniferous species the choice of the generic name Equisetites has been determined by the occurrence of leaf-sheaths either isolated or attached to the node of a stem. The question to consider is, how far may the Equisetum-like leaf-sheath be regarded as a characteristic feature of Equisetites as distinct from Calamites? In the genus Calamites the leaves are generally described as simple linear leaves arranged in a whorl at the nodes, but not coherent in the form of a sheath (fig. 85). The fusion of the segments into a continuous sheath or collar is regarded as a distinguishing characteristic of Equisetites and Equisetum. The typical leaf-sheath of a recent Horse-tail has already been described. In some species we have fairly large and persistent free teeth on the upper margin of the leaf-sheath, but in other Equisetums the rim of the sheath is practically straight and has a truncated appearance, the distal ends of the segments being separated from one another by very slight depressions, as in a portion of the sheath of Equisetum ramosissimum Desf. of fig. 58, C. In other leaf-sheaths of this species there are delicate and pointed teeth adherent to the margin of the coherent segments; the teeth are deciduous, and after they have fallen the sheath presents a truncated appearance. This difference between the sheaths to which the teeth are still attached and those from which they have fallen is illustrated by fig. 58, B and C; it is one which should be borne in mind in the description of fossil species, and has probably been responsible for erroneous specific diagnoses. In some recent Horse-tails the sheath is occasionally divided in one or two places by a slit reaching to the base of the coherent segments[498]; this shows a tendency of the segments towards the free manner of occurrence which is usually considered a Calamitean character. In certain fossils referred to the genus Annularia, the nodes bear whorls of long and narrow leaves which are fused basally into a collar (fig. 58, D). There are good grounds for believing that at least some Annularias were the foliage shoots of true Calamites. Again, in some species of Calamitina, a sub-genus of Calamites, the leaves appear to have been united basally into a narrow sheath. We see, then, that it is a mistake to attach great importance to the separate or coherent character of leaf-segments in attempting to draw a line between the true Calamites and Equisetites. Potonié[499] while pointing out that this distinction does not possess much value as a generic character, retains the genus Equisetites for certain Palaeozoic Equisetum-like leaf-sheaths.

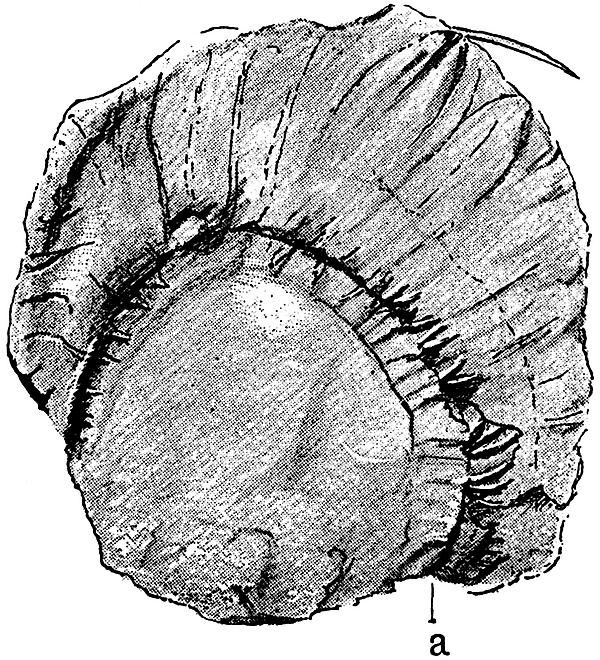

Fig. 56. Calamitean leaf-sheath. From a specimen in the Woodwardian Museum. a, base of leaf-sheath; (very slightly reduced).

Fig. 56 represents a rather faint impression of a leaf-sheath and nodal diaphragm. The specimen is from the Coal-Measures of Ardwick, Manchester. The letter a probably points to the attachment of the sheath to the node of the stem. The flattened sheath is indistinctly divided into segments, and at the middle of the free margin there appears to be a single free tooth. The lower part of the specimen, as seen in the figure, shows the position of the nodal diaphragm. Between the diaphragm and the sheath there are several slight ridges converging towards the nodal line; these agree with the characteristic ridges and grooves of Calamite casts which are described in detail in Chapter X. There is another specimen in the British Museum which illustrates, rather more clearly than that shown in fig. 56, the association of a fused leaf-sheath with a type of cast usually regarded as belonging to a Calamitean stem. Some leaf-sheaths of Permian age described by Zeiller[500] as Equisetites Vaujolyi bear a close resemblance to the sheath in fig. 58 E. The nature of the true Calamite leaves is considered more fully on a later page.

The examples of supposed Equisetites sheaths referred to below may serve to illustrate the kind of evidence on which this genus has been recorded from Upper Palaeozoic rocks. I have retained the name Equisetites in the description of the species, but it would probably be better to speak of such specimens as ‘Calamitean leaf-sheaths’ rather than to describe them as definite species of Equisetites. We have not as yet any thoroughly satisfactory evidence that the Equisetites of Triassic and post-Triassic times existed in the vegetation of earlier periods.

In Grand’Eury’s Flore du Gard[501] a fossil strobilus is figured under the name Calamostachys tenuissima Grand’Eury, which consists of a slender axis bearing series of sporophylls and sporangia apparently resembling those of an Equisetum. There are no sterile appendages or bracts alternating with the sporophylls; and the absence of the former suggests a comparison with Equisetites rather than Calamites. Grand’Eury refers to the fossil as “parfois à peine perceptible,” and a recent examination of the specimen leads me to thoroughly endorse this description. It was impossible to recognise the features represented in Grand’Eury’s drawing. Setting aside this fossil, there are other strobili recorded by Renault[502] and referred by him to the genus Bornia (Archaeocalamites), which also exhibit the Equisetum-like character; the axis bears sporophylls only and no sterile bracts. It would appear then that in the Palaeozoic period the Equisetaceous strobilus, as we know it in Equisetum, was represented in some of the members of the Equisetales.

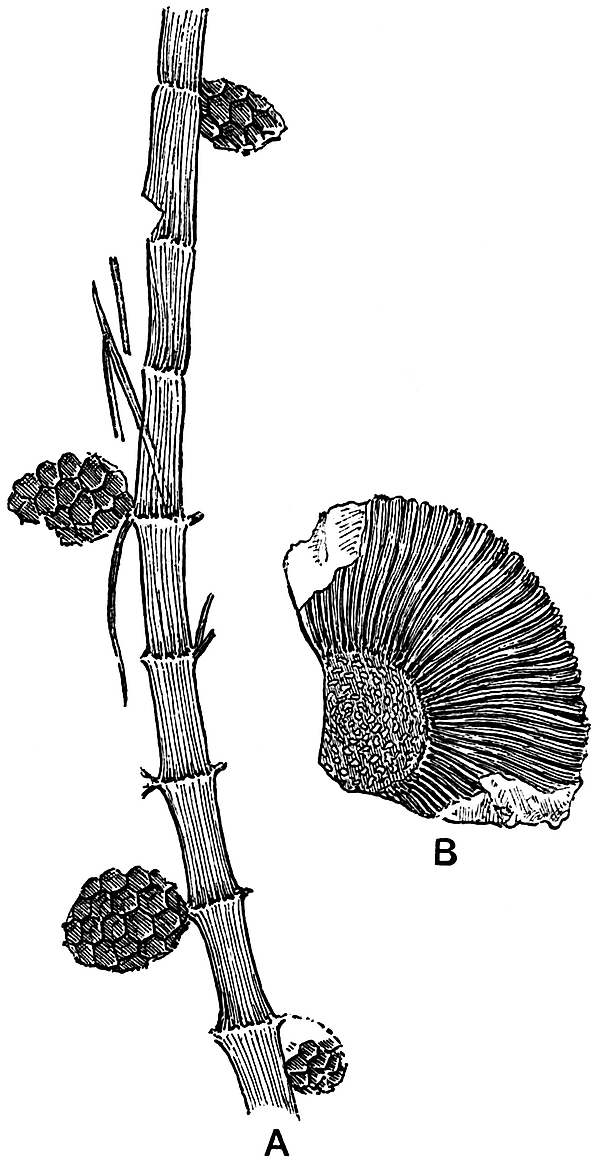

Fig. 57. A. Equisetites Hemingwayi Kidst. From a specimen in the British Museum. ⅔ nat. size. B. Diaphragm and sheath of an Equisetaceous plant, from the Coal-Measures. ⅔ nat. size. From a specimen in the British Museum.

Mr Kidston[503] founded this species on a few specimens of cones found in the Middle Coal-Measures of Barnsley in Yorkshire. The best example of the cone described by Kidston has a length of 2·5 cm., and a breadth of 1·5 cm.; the surface is divided up into several hexagonal areas 4 mm. high and 5 mm. wide. Each of these plates shows a fairly prominent projecting point in its centre; this is regarded as the point of attachment of the sporangiophore axis which expanded distally into a hexagonal plate bearing sporangia. An examination of Mr Kidston’s specimens enabled me to recognise the close resemblance which he insists on between the fossils and such a recent Equisetaceous strobilus as that of Equisetum limosum Sm. Nothing is known of the structure of the fossils beyond the character of the superficial pattern of the impressions, and it is impossible to speak with absolute confidence as to their nature. The author of the species makes use of the generic name Equisetum; but in view of our ignorance of structural features it is better to adopt the more usual term Equisetites.

Since Kidston’s description was published I noticed a specimen in the British Museum collection which throws some further light on this doubtful fossil. Part of this specimen is shown in fig. 57, A. The stem is 21 cm. in length and about 5 mm. broad; it is divided into distinct nodes and internodes; the former being a little exaggerated in the drawing. The surface is marked by fine and irregular striations, and in one or two places there occur broken pieces of narrow linear leaves in the neighbourhood of a node. Portions of four cones occurring in contact with the stem, appear to be sessile on the nodes, but the preservation is not sufficiently good to enable one to speak with certainty as to the manner of attachment. Each cone consists of regular hexagonal depressions, which agree exactly with the surface characters of Kidston’s type-specimen. The manner of occurrence of the cones points to a lateral and not a terminal attachment. The stem does not show any traces of Equisetaceous leaf-sheaths at the nodes, and such fragments of leaves as occur appear to have the form of separate linear segments; they are not such as are met with on Equisetites. It agrees with some of the slender foliage-shoots of Calamitean plants often described under the generic name Asterophyllites. As regards the cones; they differ from the known Calamitean strobili in the absence of sterile bracts, and appear to consist entirely of distally expanded sporophylls as in Equisetum. The general impression afforded by the fossil is that we have not sufficient evidence for definitely associating this stem and cones with a true Equisetites. We may, however, adhere to this generic title until more satisfactory data are available.

This species is chosen as an example of a French Equisetites of Permian age. It was recently founded by Zeiller[504] on some specimens of imperfect leaf-sheaths, and defined as follows:—

Sheaths spreading, erect, formed of numerous uninerved coherent leaves, convex on the dorsal surface, spatulate in form, 5–6 cm. in length and 2–3 mm. broad at the base, and 5–10 mm. broad at the apex, rounded at the distal end.

The specimen shown in fig. 58, A, represents part of a flattened sheath, the narrower crenulated end being the base of the sheath. The limits of the coherent segments and the position of the veins are clearly marked. Zeiller’s description accurately represents the character of the sheaths. They agree closely with an Equisetaceous leaf-sheath, but as I have already pointed out, we cannot feel certain that sheaths of this kind were not originally attached to a Calamite stem.

The portion of a leaf-sheath and a diaphragm represented in fig. 57, B, agrees closely with Zeiller’s examples. This specimen is from the English Coal-Measures, but it is not advisable to attempt any specific diagnosis on such fragmentary material. It is questionable, indeed, if these detached fossil leaf-sheaths should be designated by specific names. Another similar form of sheath, hardly distinguishable from Zeiller’s species, has recently been described by Potonié from the Permian (Rothliegende) of Thuringia.

Fig. 58.

1. Equisetites spatulatus, Zeill. Leaf-sheath. ⅘ nat. size.  (After Zeiller.)
2. E. columnaris, Brongn. From a specimen in the British Museum. ¾ nat. size.
3. Equisetum ramosissimum, Desf. × 2.
4. Annularia stellata (Schloth.). Leaf-sheath. Slightly enlarged. (After Potonié.)
5. Equisetites zeaeformis (Schloth.). Leaf-sheath. ⅘ nat. size. (After Potonié.)
6. E. lateralis, Phill. From a specimen in the Scarborough Museum. Nat. size.

The sheaths consist of linear segments fused laterally as in Equisetum. In some specimens the component parts of the sheath are more or less separate from one another, and in this form they are apparently identical with the leaves of Calamites (Calamitina) varians, Sternb. The example shown in fig. 58, E is probably a young leaf-sheath; the segments are fused, and each is traversed by a single vein represented by a dark line in the figure. The regular crenulated lower margin is the base of the sheath, and corresponds to the upper portion of fig. 58, A. This species affords, therefore, an interesting illustration of the difficulty of separating Equisetites leaves from those of true Calamites. Potonié has suggested that the leaf-sheath of a young Calamite might well be split up into distinct linear segments as the result of the increase in girth of the stem.

Other Palaeozoic species of Equisetites have been recorded, but with one exception these need not be dealt with, as they do not add anything to our knowledge of botanical importance. The specimen described in the Flore de Commentry as Equisetites Monyi, by Renault and Zeiller[506], differs from most of the other Palaeozoic species of Equisetites, in the fact that we have a stem with short internodes bearing a leaf-sheath at each node divided into comparatively long and distinct teeth. This species presents a close agreement with specimens of Calamitina, but Renault and Zeiller consider that it is generically distinct. They suggest that the English species, originally described and figured by Lindley and Hutton[507] as Hippurites gigantea, and now usually spoken of as Calamitina, should be named Equisetites. It would probably be better to adopt the name Calamitina for the French species. The type-specimen of this species is in the Natural History Museum, Paris.

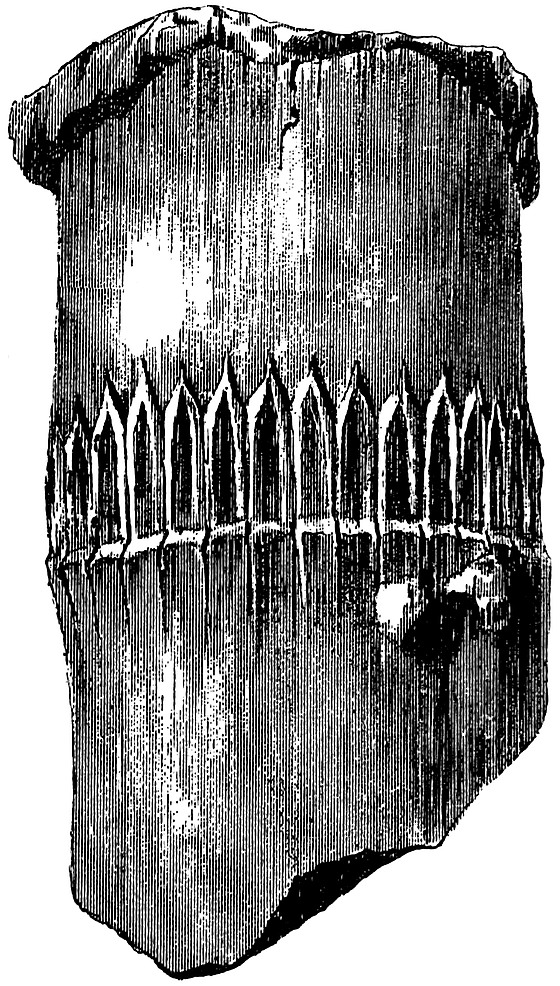

Fig. 59. Equisetites platyodon Brongn. (After Schoenlein, slightly reduced.)

When we pass from the Permian to the Triassic period, we find large casts of very modern-looking Equisetaceous stems which must clearly be referred to the genus Equisetites. The portion of a stem represented in fig. 59 known as Equisetites platyodon Brongn.[508] affords an example of a Triassic Equisetaceous stem with a clearly preserved leaf-sheath. The stem measures about 6 cm. in diameter. One of the oldest known Triassic species is Equisetites Mougeoti[509] (Brongn.) from the Bunter series of the Vosges.

The Keuper species E. arenaceus is, however, more completely known. The specimens referred to this species are very striking fossils; they agree in all external characters with recent Horse-tails but greatly exceed them in dimensions.

This plant has been found in the Triassic rocks of various parts of Germany and France; it occurs in the Lettenkohl group (Lower Keuper), as well as in the Middle Keuper of Stuttgart and elsewhere. The species may be defined as follows:—

Rhizome from 8–14 cm. in diameter, with short internodes, bearing lateral ovate tubers. Aerial shoots from 4–12 cm. in diameter, bearing whorls of branches, and leaf-sheaths made up of 110–120 coherent uni-nerved linear segments terminating in an apical lanceolate tooth. Strobili oval, consisting of crowded sporangiophores with pentagonal and hexagonal peltate terminations.

The casts of branches, rhizomes, tubers, buds and cones enable us to form a fairly exact estimate of the size and general appearance of this largest fossil Horse-tail. The Strassburg Museum contains many good examples of this species, and a few specimens may be seen in the British Museum. In the École des Mines, Paris, there are some exceptionally clear impressions of cones of this species from a lignite mine in the Vosges.

It is estimated that the plant reached a height of 8 to 10 meters, about equal to that of the tallest recent species of Equisetum, but in the diameter of the stems the Triassic plant far exceeded any existing species.

It is interesting to determine as far as possible, in the absence of petrified specimens, if this Keuper species increased in girth by means of a cambium. There are occasionally found sandstone casts of the pith-cavity which present an appearance very similar to that of Calamitean medullary casts[510]. The nodes are marked by comparatively deep constrictions, which probably represent the projecting nodal wood. The surface of the casts is traversed by regular ridges and grooves as in an ordinary Calamite, and it is probable that in Equisetites arenaceus, as in Calamites, these surface-features are the impression of the inner face of a cylinder of secondary wood (cf. p. 310). Excellent figures of this species of Equisetites are given by Schimper in his Atlas of fossil plants[511], also by Schimper and Koechlin-Schlumberger[512], and by Schoenlein and Schenk[513].

This species, which is by far the best known British Equisetites, was founded by Brongniart[514] on some specimens from the Lower Oolite beds of the Yorkshire coast. Casts of stems are familiar to those who have collected fossils on the coast between Whitby and Scarborough; they are often found in an erect position in the sandstone, and are usually described as occurring in the actual place of growth. As previously pointed out (p. 72), such stems have generally been deposited by water, and have assumed a vertical position (fig. 11). Young and Bird[515] figured a specimen of this species in 1822, and in view of its striking resemblance to the sugar-cane, they regarded the fossil as being of the same family as Saccharum officinarum, if not specifically identical.

A specimen was described by König[516] in 1829, from the Lower Oolite rocks of Brora in the north of Scotland under the name of Oncylogonatum carbonarium, but Brongniart[517] pointed out its identity with the English species Equisetites columnaris.

Our acquaintance with this species is practically limited to the casts of stems. A typical stem of E. columnaris measures 3 to 6 cm. in diameter and has fairly long internodes. The largest stem in the British Museum collection has internodes about 14 cm. long and a diameter of about 5 cm. In some cases the stem casts show irregular lateral projections in the neighbourhood of a node, but there is no evidence that the aerial shoots of this species gave off verticils of branches. In habit E. columnaris probably closely resembled such recent species as Equisetum hiemale L., E. trachyodon A. Br. and others.

The stems often show a distinct swelling at the nodes; this may be due, at least in part, to the existence of transverse nodal diaphragms which enabled the dead shoots to resist contraction in the region of the nodes. The leaf-sheaths consist of numerous long and narrow segments often truncated distally, as in fig. 58, B, and as in the sheath of such a recent Horse-tail as E. ramosissimum shown in fig. 58, C. In some specimens one occasionally finds indications of delicate acuminate teeth extending above the limits of a truncated sheath. Brongniart speaks of the existence of caducous acuminate teeth in his diagnosis of the species, and the example represented in fig. 58, B, demonstrates the existence of such deciduous appendages. There is a very close resemblance between the fossil sheath of fig. 58, B, with and without the teeth, and the leaf-sheath of the recent Equisetum in fig. 58, C. In some specimens of E. columnaris in which the cast is covered with a carbonaceous film, each segment in a leaf-sheath is seen to be slightly depressed in the median portion, which is often distinctly marked by numerous small dots, the edges of the segment being flat and smooth. The median region is that in which the stomata are found and on which deposits of silica occur.

Bunbury[518] proposed the name Calamites Beani for some fossil stems from the Lower Oolite beds of the Yorkshire coast, which Bean had previously referred to in unpublished notes as C. giganteus. The latter name was not adopted by Bunbury on account of the possible confusion between this species and the Palaeozoic species Calamites gigas Brongn. The generic name Calamites must be replaced by Equisetites now that we are familiar with more perfect specimens which demonstrate the Equisetean characters of the plant.

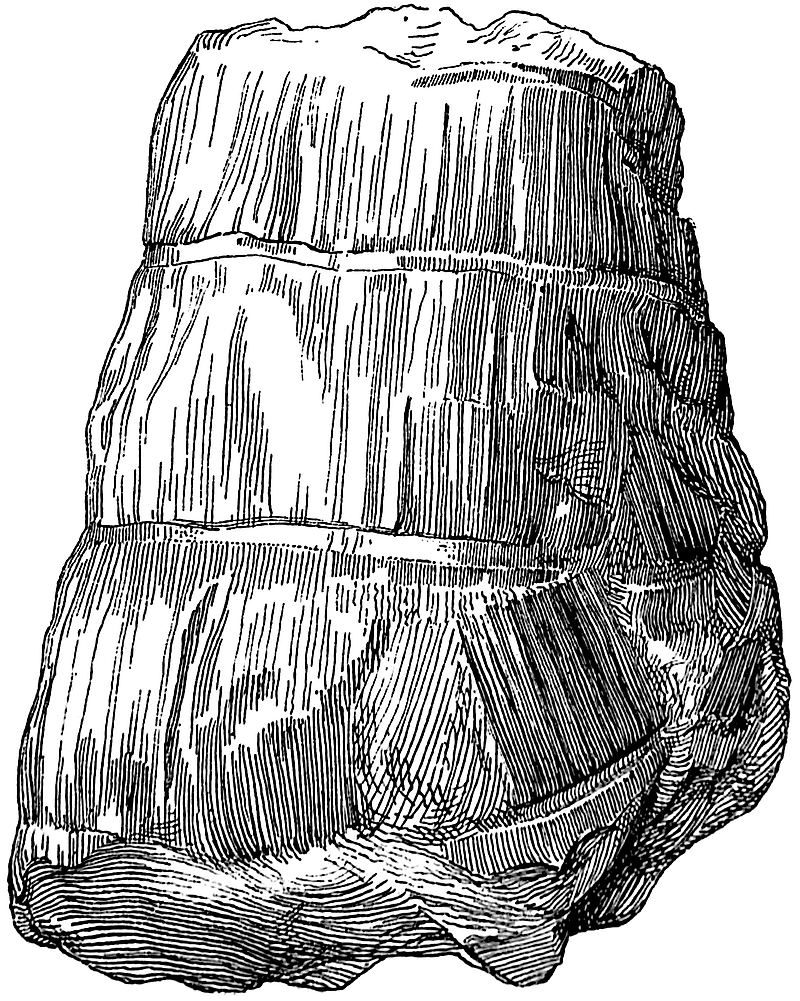

Fig. 60. Equisetites Beani (Bunb.). ⅔ nat. size. [After Starkie Gardner (86) Pl. IX. fig. 2.]

Schimper[519] speaks of this species as possibly the pith-cast of Equisetites columnaris, but his opinion cannot be maintained; the species first described by Bunbury has considerably larger stems than those of E. columnaris. It is not impossible, however, that E. columnaris and E. Beani may be portions of the same species. The chief difference between these forms is that of size; but we have not sufficient data to justify the inclusion of both forms under one name. Zigno[520], in his work on the Oolitic Flora, figures an imperfect stem cast of E. Beani under the name of Calamites Beani, but the species has received little attention at the hands of recent writers. In 1886 Starkie Gardner[521] figured a specimen which was identified by Williamson as an example of Bunbury’s species; but the latter pointed out the greater resemblance, as regards the external appearance of the Jurassic stem, to some of the recent arborescent Gramineae[522] than to the Equisetaceae. Williamson, with his usual caution, adds that such appearances have very little taxonomic value. Fig. 60 is reproduced from the block used by Gardner in his memoir on Mesozoic Angiosperms; he quotes the specimen as possibly a Monocotyledonous stem. The fossil is an imperfect cast of a stem showing two clearly marked nodal regions, but no trace of leaf-sheaths. A recent examination of specimens in the museums of Whitby, Scarborough, York and London has convinced me that the plant named by Bunbury Calamites Beani is a large Equisetites. As a rule the specimens do not show any indications of the leaf-sheaths, but in a few cases the sheaths have left fairly distinct impressions.

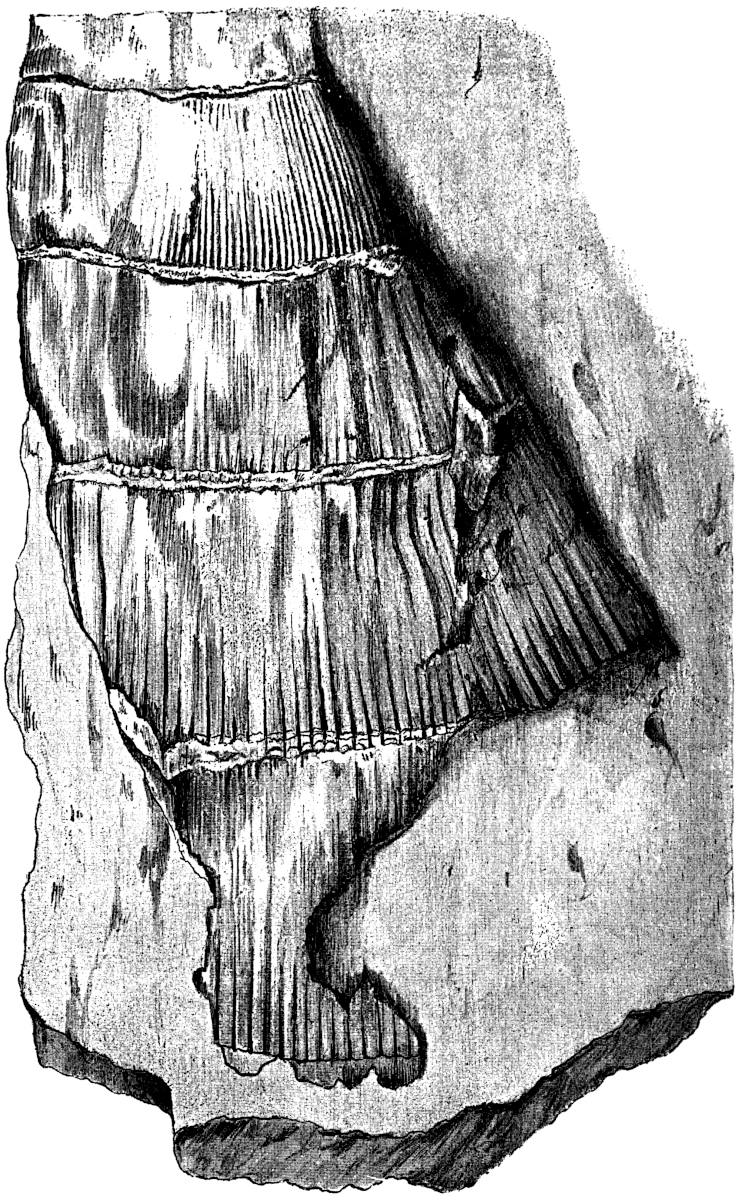

Fig. 61. Equisetites Beani (Bunb.). From a specimen in the British Museum, ⅔ nat. size. (No. V. 2725.)

In the portion of stem shown in fig. 61 the impressions of the leaf segments are clearly marked. This specimen affords much better evidence of the Equisetaceous character of the plant than those which are simply internal casts. The narrow projecting lines extending upwards from the nodes in the figured specimen probably represent the divisions between the several segments of each leaf-sheath.

In the museums of Whitby and Scarborough there are some long specimens, in one case 44 cm. in length, and 33 cm. in circumference, which are probably casts of the broad pith-cavity. These casts are often transversely broken across at the nodes, so that they consist of three or four separate pieces which fit together by clean-cut faces. This manner of occurrence is most probably due to the existence of large and resistant nodal diaphragms which separated the sand-casts of adjacent internodes. In the York museum there are some large diaphragms, 10 cm. in diameter, preserved separately in a piece of rock containing a cast of Equisetites Beani. The nodal diaphragms of some of the Carboniferous Calamites were the seat of cork development[523], and it may be that the frequent preservation of Equisetaceous diaphragms in Triassic and Jurassic rocks is due to the protection afforded by a corky investment.

The stem shown in fig. 62 appears to be a portion of a shoot of E. Beani not far from its apical region. From the lower nodes there extend clearly marked and regular lines or slight grooves tapering gradually towards the next higher node; these are no doubt the impressions of segments of leaf-sheaths. The sheaths themselves have been detached and only their impressions remain. The flattened bands at the node of the stem in fig. 60, and shown also in fig. 61, mark the place of attachment of the leaf-sheaths. On some of these nodal bands one is able to recognise small scars which are most likely the casts of outgoing leaf-trace bundles.

Some of the internal casts of this species are marked by numerous closely arranged longitudinal lines, which are probably the impressions of the inner face of a central woody cylinder. In the smaller specimen shown in fig. 62 we have the apical portion of a shoot in which the uppermost internodes are in an unexpanded condition.

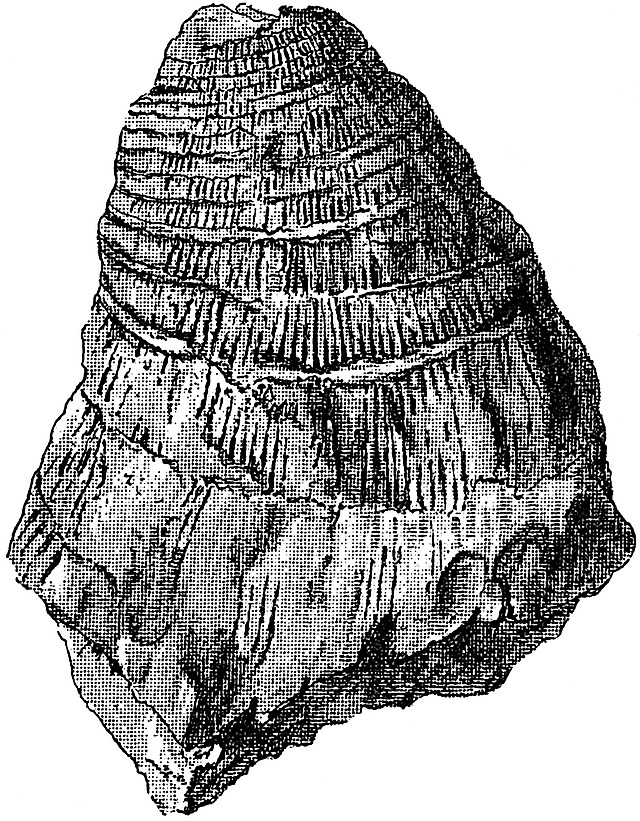

Fig. 62. Equisetites Beani (Bunb.). From a specimen in the Scarborough Museum. Very slightly reduced.

It is impossible to give a satisfactory diagnosis of this species without better material. The plant is characterised chiefly by the great breadth of the stem, and by the possession of leaf-sheaths consisting of numerous long and narrow segments. Equisetites Beani must have almost equalled in size the Triassic species, E. arenaceus, described above.

This species is described at some length as affording a useful illustration of the misleading character of certain features which are entirely due to methods of preservation. The specific name was proposed by Phillips in his first edition of the Geology of the Yorkshire Coast for some very imperfect stems from the Lower Oolite rocks near Whitby[524]. The choice of the term lateralis illustrates a misconception; it was given to the plant in the belief that certain characteristic wheel-like marks on the stems were the scars of branches. Lindley and Hutton[525] figured a specimen of this species in their Fossil Flora, and quoted a remark by “Mr Williamson junior” (afterwards Prof. Williamson) that the so-called scars often occur as isolated discs in the neighbourhood of the stems. Bunbury[526] described an example of the same species with narrow spreading leaves like those of a Palaeozoic Asterophyllites, and proposed this generic name as more appropriate than Equisetites. In all probability the example shown in fig. 63 is that which Bunbury described. It is certainly the same as one figured by Zigno[527] as Calamites lateralis in his Flora fossilis formationis Oolithicae.

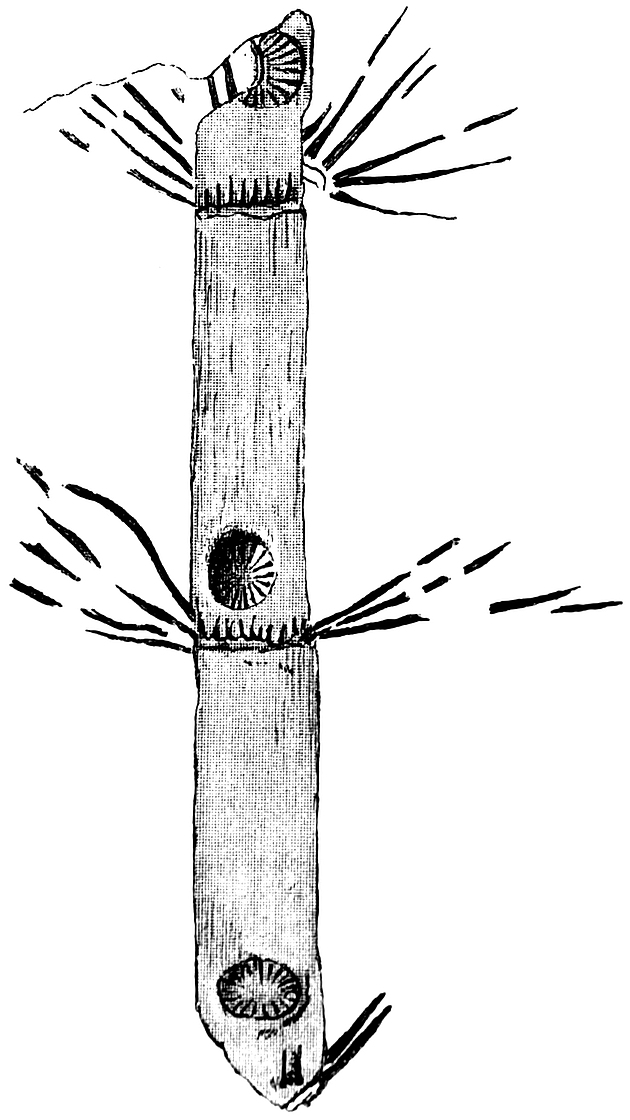

Fig. 63. Equisetites lateralis Phill. From a specimen in the British Museum. Slightly reduced.

This specimen illustrates a further misconception in the diagnosis of the species. The long linear appendages spreading from the nodes are, I believe, slender branches and not leaves; they have not the form of delicate filmy markings on the rock face, but are comparatively thick and almost woody in appearance. The true leaves are distinctly indicated at the nodes, and exhibit the ordinary features of toothed sheaths.

Heer[528] proposed to transfer Phillips’ species to the genus Phyllotheca, and Schimper[529] preferred the generic term Schizoneura. The suggestion for the use of these two names would probably not have been made had the presence of the Equisetum sheaths been recognised.

The circular depressions a short distance above each node are the ‘branch scars’ of various writers. Schimper suggested that these radially marked circles might be displaced nodal diaphragms. Andrae[530] figured the same objects in 1853 but regarded them as branch scars, although in the specimen he describes, there are several of them lying apart from the stems, and to one of them is attached a portion of a leaf-sheath. Solms-Laubach[531] points out that the internodal position of these supposed scars is an obvious difficulty; we should not expect to find branches arising from an internode. After referring to some specimens in the Oxford museum, he adds—“In presence of these facts the usual explanation of these structures appears to me, as to Heer, very doubtful.... We are driven to the very arbitrary assumption that they represent the lowest nodes of the lateral branches which were inserted above the line of the nodes of the stem.” Circular discs similar to those of E. lateralis have been found in the Jurassic rocks of Siberia[532] and elsewhere. There are one or two examples of such discs from Siberia in the British Museum. If the nodal diaphragms were fairly hard and stout, it is easy to conceive that they might have been pressed out of their original position when the stems were flattened in the process of fossilisation. It is not quite clear what the radial spoke-like lines of the discs are due to; possibly they mark the position of bands of more resistant tissue or of outgoing strands of vascular bundles. A detached diaphragm is seen in fig. 64 C; in the centre it consists of a flat plate of tissue, and the peripheral region is traversed by the radiating lines. In the stem of fig. 64, A the deeply divided leaf-sheaths are clearly seen, and an imperfect impression of a diaphragm is preserved on the face of the middle internode. In fig. 64 B a flattened leaf-sheath is shown with the free acuminate teeth fused basally into a continuous collar[533]. The short piece of stem of Equisetites lateralis shown in fig. 58, F, shows how the free teeth may be outspread in a manner which bears some resemblance to the leaves of Phyllotheca, but a comparison with the specimens already described, and a careful examination of this specimen itself, demonstrate the generic identity of the species with Equisetites. The carbonaceous film on the surface of such stems as those of fig. 58, F, and 64, A, shows a characteristic shagreen texture which may possibly be due to the presence of silica in the epidermis as in recent Horse-tails.

There is another species of Equisetites, E. Münsteri, Schk., from a lower geological horizon which has been compared with E. lateralis, and lends support to the view that the so-called branch-scars are nodal diaphragms[534]. This species also affords additional evidence in favour of retaining the generic name Equisetites for Phillips’ species. Equisetites Münsteri is a typical Rhaetic plant; it has been found at Beyreuth and Kuhnbach, as well as in Switzerland, Hungary and elsewhere. A specimen of Equisetites originally described by Buckman as E. Brodii[535], from the Lower Lias of Worcestershire, may possibly be identical with E. Münsteri. The leaf-sheaths of this Rhaetic species consist of broad segments prolonged into acuminate teeth; some of the examples figured by Schenk[536] show clearly marked impressions of displaced nodal diaphragms exactly as in E. lateralis. Another form, Equisetum rotiferum described by Tenison-Woods[537] from Australia, is closely allied to, or possibly identical with E. lateralis.

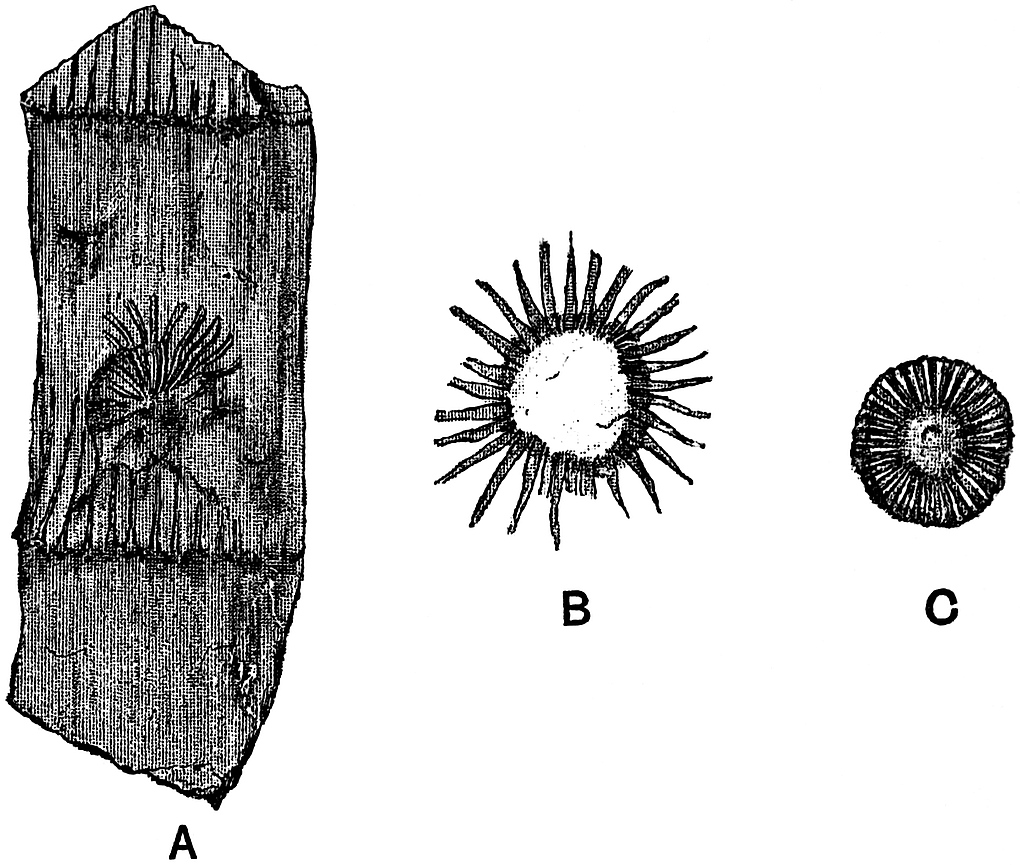

Fig. 64. Equisetites lateralis Phill. A. Part of a stem showing leaf-sheaths and an imperfect diaphragm. B. A single flattened leaf-sheath. C. A detached nodal diaphragm. From a specimen in the York Museum. Slightly reduced.

This species of Equisetites is fairly common in the Wealden beds of the Sussex coast near Hastings, and also in Westphalia.

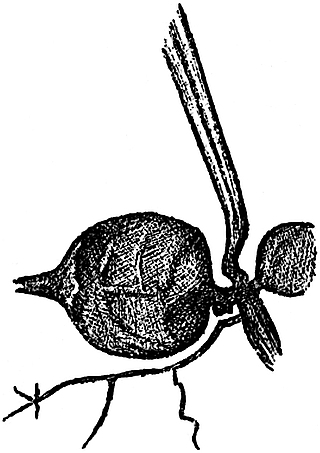

Fig. 65. Equisetites Burchardti Dunk. Showing a node with two tubers and a root. From a specimen in the British Museum. Nat. size.

It is characterised by having long and slender internodes, bearing at the nodes leaf-sheaths with five or six pointed segments, and by the frequent formation of branch-tubers. These tuberous branches closely resemble those which are formed on the underground shoots of Equisetum arvense L., E. sylvaticum L. and others; they occur either singly or in chains[539]. In the specimen shown in the figure the left-hand tuber is remarkably well preserved, its surface is somewhat sunk and shrivelled, and the apex is surrounded by a nodal leaf-sheath. A thin branched root is given off just below the point of insertion of the oval tuber.

No other species of Equisetites affords such numerous examples of tubers as this Wealden plant. By some of the earlier writers the detached tubers of E. Burchardti were described as fossil seeds under the name Carpolithus.

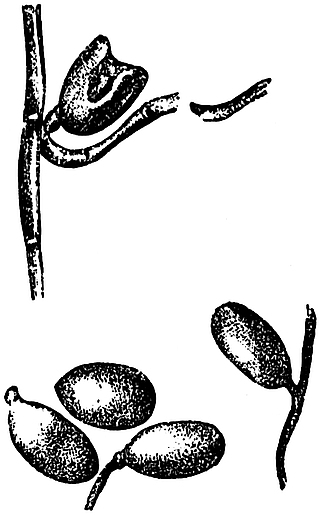

Fig. 66. Equisetites Yokoyamae Sew. From specimens in the British Museum. Nat. size.

The specimens shown in fig. 66 have been referred to another species, E. Yokoyamae Sew.[540]; they were obtained from the Wealden beds of Sussex, but according to Mr Rufford, who discovered them, the smaller tubers of this species are not found in association with those of E. Burchardti. The stems are very narrow and the tubers have a characteristic elliptical form; the species is of little value botanically, but it affords another instance of the common occurrence of these tuberous branches in the Wealden Equisetums.

Similar fossil tubers, on a much larger scale, have been found in association with the Triassic Equisetites arenaceus; with E. Parlatori Heer[541], a Tertiary species from Switzerland, and with other Mesozoic and Tertiary stems. E. Burejensis[542], described by Heer from the Jurassic rocks of Siberia, bears a close resemblance to the Wealden species.

The description of the above species by no means exhausts the material which is available towards a history of fossil Equisetums. The examples which have been selected may serve to illustrate the kind of specimens that are usually met with, as well as some of the possible sources of error which have to be borne in mind in the description of species.

Such Tertiary species as have been recorded need not be considered; they furnish us with no facts of particular interest from a morphological point of view. The wide distribution of Equisetites, especially during the Jurassic period, is one of the most interesting lessons to be learnt from a review of the fossil forms. No doubt a detailed comparison of the several species from different parts of the world would lead us to reduce the number of specific names; and at the same time it would emphasize the apparent identity of fossils which have been described from widely separated latitudes under different names.

Specimens of Equisetites are occasionally found in plant-bearing beds apart from the other members of a Flora; this isolated manner of occurrence suggests that the plant grew in a different station from that occupied by Cycads and other elements of the vegetation[543].

A selection of Triassic and Jurassic species arranged in a tabular form demonstrates the world-wide distribution of this persistent type of plant[544].

The generic name Phyllotheca was proposed by Brongniart[545] in 1828 for some small fossil stems from the Hawkesbury river, near Port Jackson, Australia. The stems of this genus are divided into nodes and internodes and possess leaf-sheaths as in Equisetum, but Phyllotheca differs from other Equisetaceous plants in the form of the leaves and in the character of its sporophylls. We may define the genus as follows:—

Plants resembling in habit the recent Equisetums. Stems simple or branched, divided into distinct nodes and internodes, the latter marked by longitudinal ridges and grooves; from the nodes are given off leaf-sheaths consisting of linear-lanceolate uninerved segments coherent basally, but having the form of free narrow teeth for the greater part of their length. The long free teeth are usually spread out in the form of a cup and not adpressed to the stem, the tips of the teeth are often incurved.

The sporangia are borne on peltate sporangiophores attached to the stem between whorls of sterile leaves.

Our knowledge of Phyllotheca is unfortunately far from complete. The chief characteristic of the vegetative shoots consists in the cup-like leaf-sheaths; these are divided up into several linear segments, which differ from the teeth of an Equisetum leaf-sheath in their greater length and in their more open and spreading habit of growth. The large loose sheaths of the fertile shoots of some recent Horse-tails bear a certain resemblance to the sheaths of Phyllotheca. The diagnosis of the fertile shoots is founded principally on some Permian specimens of the genus described by Schmalhausen from Russia[546] and redescribed more recently by Solms-Laubach[547]. Prof. Zeiller[548] has, however, lately received some examples of Phyllotheca from the Coal-Measures of Asia Minor which bear strobili like those of the genus Annularia, a type which is dealt with in the succeeding chapter. A description of a few species will serve to illustrate the features usually associated with this generic type, as well as to emphasize the unsatisfactory state of our knowledge as to the real significance of such supposed generic characteristics.

There are a few fossil stems from Permian rocks of Siberia, from Jurassic strata in Italy, and from Lower Mesozoic and Permo-Carboniferous beds in South America, South Africa, India and Australia which do not conform in all points to the usually accepted definition of Equisetites, and so justify their inclusion in an allied genus. On the other hand there are numerous instances of stems or branches which have been referred to Phyllotheca on insufficient grounds. Our knowledge of this Equisetaceous plant has recently been extended by Zeiller[549], who has recorded its occurrence in the Coal-Measures of Asia Minor associated with typical Upper Carboniferous plants. The same author[550] has also brought forward good evidence for the Permian age of the beds in Siberia and Altai, where Phyllotheca has long been known. It is true that Zigno’s species of the genus occurs in Italian Jurassic rocks, but on the whole it would seem that this genus is rather a Permian than a Jurassic type. The species which Zeiller describes under the name Phyllotheca Rallii from the Coal-Measures of Herakleion (Asia Minor) shows some points of contact with Annularia. It is much to be desired, however, that we might learn more as to the reproductive organs of this member of the Equisetales; until we possess a closer acquaintance with the fructification we cannot hope to arrive at any satisfactory conclusion as to the exact position of the genus among the Calamarian and Equisetaceous forms. M. Zeiller[551] informs me that his specimens of P. Rallii, which are to be fully described in a forthcoming work, include fossil strobili resembling those of Annularia radiata. The verticils of linear leaves fused basally into a sheath agree in appearance with the star-like leaves of Annularia, but in Phyllotheca Rallii the segments appear to spread in all directions and are not extended in one plane as in the typical Annularia[552].

In an account of some fossil plants collected by Tchikatcheff in Altai, Göppert[553] describes and figures two imperfect stems of an Equisetum-like plant. Owing to the apparent absence of nodal lines on the surface of the stem the generic name Anarthrocanna is proposed for the fossils; and the manner in which the main axis appears to break up into slender branches suggested the specific name deliquescens. Schmalhausen[554] afterwards recognised the generic identity of Göppert’s fragments with the Indian and Australian stems referred to the genus Phyllotheca by McCoy[555] and Bunbury[556].

We may define the species as follows:—

Stem reaching a diameter of 2–3 cm. with internodes as much as 4 cm. long, the surface of which is traversed by longitudinal ridges and grooves which are continuous and not alternate at the nodes. Branches arise in verticils from the nodes. The leaves have the form of funnel-shaped sheaths split up into narrow and spreading linear segments, each of which is traversed by a median vein. The fertile shoot terminates in a loose strobilus bearing alternating whorls of sterile bracts and sporangiophores.

The specimens on which this diagnosis is founded are for the most part fragments of sterile branches. Some of these present the appearance of Calamitean stems in which the ridges and grooves continue in straight lines from one internode to the next. Similar stem-casts have been referred by some writers to the allied genus Schizoneura, and it would appear to be a hopeless task to decide with certainty under which generic designation such specimens should be described. The portion of stem shown in fig. 67 affords an example of an Equisetaceous plant, probably in the form of a cast of a hollow pith, which might be referred to either Phyllotheca or Schizoneura. The specimen was found in certain South African rocks which are probably of Permo-Carboniferous age[557]. It agrees closely with some stems from India described by Feistmantel[558] as Schizoneura gondwanensis, and it also resembles equally closely the Australian specimens referred by Feistmantel[559] to Phyllotheca australis and some stems of Phyllotheca indica figured by Bunbury[560].

The longitudinal ridges and grooves shown in fig. 67 probably represent the broad medullary rays and the projecting wedges of secondary wood surrounding a large hollow pith, as in Calamites. In the Calamitean casts the ridges and grooves of each internode usually alternate in position with those of the next, as in Equisetum (fig. 54, A), but in Phyllotheca, Schizoneura and Archaeocalamites there is no such regular alternation at the nodes of the internodal vascular strands.

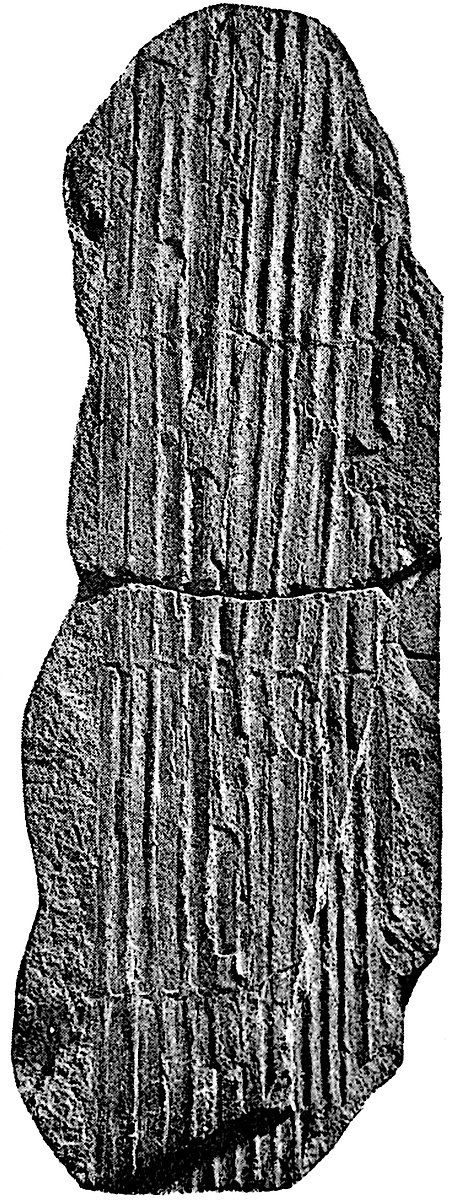

Fig. 67. Phyllotheca? ¾ nat. size. From a South African specimen of Permo-Carboniferous age in the British Museum.

In Phyllotheca and Schizoneura there are no casts of ‘infranodal canals’ below each nodal line, but these are by no means always found in true Calamites. It is therefore practically impossible to determine the generic position of such fossils as that shown in fig. 67 without further evidence than is afforded by leafless casts.

A few examples of Phyllotheca deliquescens have been described by Schmalhausen in which a branch bears clusters of sporangiophores, alternating with verticils of sterile bracts. The sporangiophores appear to have the form of stalked peltate appendages bearing sporangia, very similar to the sporangiophores of Equisetum. Solms-Laubach[561] has examined the best of Schmalhausen’s specimens, and a carefully drawn figure of one of the fertile branches is given in his Fossil Botany.

The significance of this manner of occurrence of sporangiophores and whorls of sterile bracts on the fertile branch will be better understood after a description of the strobilus of Calamites. In Phyllotheca the sporangiophores appear to have been given off in whorls, which were separated from one another by whorls of sterile bracts, whereas in Equisetum there are no sterile appendages associated with the sporangiophores of the strobilus, with the exception of the annulus at the base of the cone. Heer[562] first drew attention to the fact that in Phyllotheca we have a form of strobilus or fertile shoot to a certain extent intermediate in character between Equisetum and Calamites.

In abnormal fertile shoots of Equisetum, sporophylls occasionally occur above and below a sterile leaf-sheath. Potonié[563] has figured such an example in which an apical strobilus is succeeded at a lower level by a sterile leaf-sheath, and this again by a second cluster of sporophylls. As Potonié points out, this alternation of fertile and sterile members affords an interesting resemblance between Phyllotheca and Equisetum. It suggests a partial reversion towards the Calamitean type of strobilus.

This species of Phyllotheca from the Lower Oolite rocks of Italy is known only in the form of sterile branches. The leaves are fused basally into an open cup-like sheath which is dissected into several spreading and incurved linear segments. The internodes are striated longitudinally; they are about 2 mm. in diameter and 10 mm. in length.

The specimen represented in fig. 68, A, was originally described by the Italian palaeobotanist Zigno[564]; it serves to illustrate the points of difference between this genus and the ordinary Equisetum. The open and spreading sheaths clasping the nodes and the erect solitary branches give the plant a distinctive appearance.

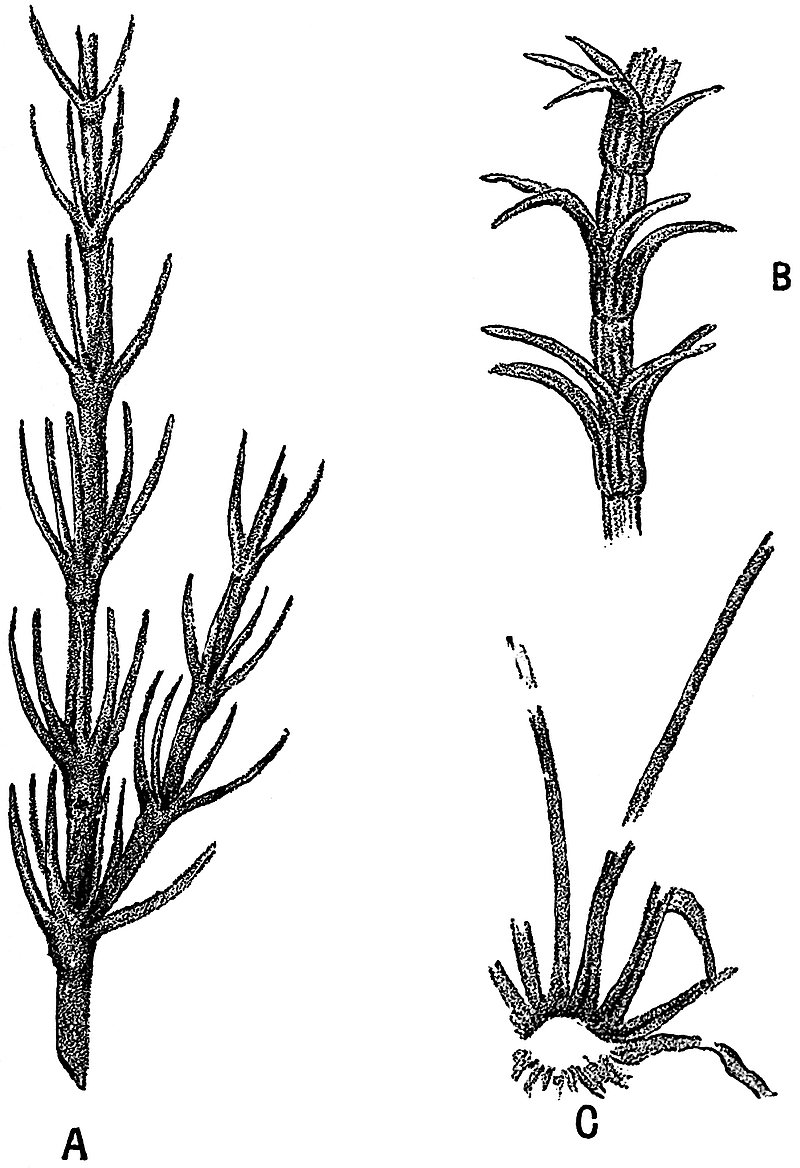

Fig. 68.

1. Phyllotheca Brongniarti, Zigno. Nat. size. (After Zigno.)
2. Calamocladus frondosus, Grand’Eury.  (After Grand’Eury.) Slightly enlarged.
3. Phyllotheca indica, Bunb. Part of a leaf-sheath. From a specimen in the Museum of the Geological Society. Slightly enlarged.

Sir Charles Bunbury[565] described several imperfect specimens from the Nagpur district of India under this name, but he expressed the opinion that it was not clear to him if the plant was specifically distinct from the Phyllotheca australis Brongn. previously recorded from New South Wales. Feistmantel[566] subsequently described a few other Indian specimens, but did not materially add to our knowledge of the genus. Bunbury’s specimens were obtained from Bharatwádá in Nagpur, in beds belonging to the Damuda series of the Lower Gondwana rocks, usually regarded as of about the same age as the Permian rocks of Europe.

Phyllotheca indica is represented by broken and imperfect fragments of leaf-bearing stems. The species is thus diagnosed by Bunbury:—“Stem branched, furrowed; sheaths lax, somewhat bell-shaped, distinctly striated; leaves narrow linear, with a strong and distinct midrib, widely spreading and often recurved, nearly twice as long as the sheaths.” An examination of the specimens in the Museum of the Geological Society of London, on which this account was based, has led me to the opinion that it is practically impossible to distinguish the Indian examples from P. australis described by Brongniart[567] from New South Wales. The few specimens of the latter species which I have had an opportunity of examining bear out this view. In the smaller branches the axis of P. indica is divided into rather short internodes on which the ridges and grooves are faintly marked. In the larger stems the ridges and grooves are much more prominent, and continuous in direction from one internode to the next; a few branches are given off from the nodes of some of the specimens. The leaves are not very well preserved; they consist of a narrow collar-like basal sheath divided up into numerous, long and narrow segments, which are several times as long as the breadth of the sheath, and not merely twice as long as Bunbury described them. Each leaf-sheath has the form of a very shallow cup-like rim clasping the stem at a node, with long free spreading segments which are often bent back in their distal region. The general habit of the leafy branches appears to be identical with that of P. australis as figured by McCoy.

Prof. Zeiller informs me that in the type-specimen on which Brongniart founded the species, P. australis, the sheath appears to be closely applied to the stem with a verticil of narrow spreading segments radiating from its margin. It may be, therefore, that in the Australian form there was not such an open and cup-like sheath as in P. indica; but it would be difficult, without better material before us, to feel confidence in any well marked specific distinctions between the Indian and Australian Phyllothecas.

On the broader stems, such as that of fig. 67, we have clearly marked narrow grooves and broader and slightly convex ridges, which present an appearance identical with that of some Calamitean stems. In the specimen figured by Bunbury[568] in his Pl. X, fig. 6, there is a circular depression on the line of the node which represents the impression of the basal end of a branch; on the edges of the node there are indications of two other lateral branches. The nature of this stem-cast points umnistakeably to a woody stem like that of Calamites. The precise meaning of the ridges and grooves on the cast is described in the Chapter dealing with Calamitean plants.

Grand’Eury[569] in his monograph on the coal-basin of Gard, has recently described under the name of Calamocladus frondosus what he believes to be the leaf-bearing axes of a Calamitean plant. The thicker branches are almost exactly identical in appearance with the broader specimens of Phyllotheca. The finer branches of Calamocladus bear cup-like leaf-sheaths which are divided into long and narrow recurved segments (fig. 67, B), precisely as in Phyllotheca. These comparisons lead one to the opinion that the Phyllotheca of Australia and India may be a close ally of the Permo-Carboniferous Calamitean plants. The form of the leaf-whorls of Annularia (Calamarian leaf-bearing branches) and of Calamocladus is of the same type as in Phyllotheca; the character of the medullary casts is also the same. The nature of the fertile shoot of Phyllotheca described by Schmalhausen from Siberia, with its alternating whorls of sterile and fertile leaves, is another point of agreement between this genus and Calamitean plants. An Equisetaceous species has been described from the Newcastle Coal-Measures of Australia by Etheridge[570] in which there are two forms of leaves, some of which closely resemble those of Phyllotheca indica, while others are compared with the sterile bracts of Cingularia, a Calamitean genus instituted by Weiss[571].

When we turn to other recorded forms of Phyllotheca many of them appear on examination to have been placed in this genus on unsatisfactory grounds. Heer figures several stem fragments from the Jurassic rocks of Siberia as P. Sibirica Heer[572], and it was the resemblance between this form and the English Equisetites lateralis which led to the substitution of Phyllotheca for Equisetites in the latter species. Without examining Heer’s material it is impossible to criticise his conclusions with any completeness, but several of his specimens, appear to possess leaf-sheaths more like those of Equisetum than of Phyllotheca.

The frequent occurrence of isolated diaphragms and the comparatively long acuminate teeth of the leaf-sheath afford obvious points of resemblance to Equisetites lateralis. Some of the examples figured by Heer appear to be stem fragments, with numerous long and narrow filiform leaves different in appearance from those of other specimens which he figures. It may be that some of the less distinct pieces of stems are badly torn specimens in which the internodes have been divided into filiform threads. Heer also figures a fertile axis associated with the sterile stems, and this does not, as Heer admits, show the alternating sterile bracts such as Schmalhausen has described. So far as it is possible to judge from an examination of Heer’s figures and a few specimens from Siberia in the British Museum—and this is by no means a safe basis on which to found definite opinions—there appears to be little evidence in favour of separating the fossils described as Phyllotheca Sibirica from Equisetites. This Siberian form may indeed be specifically identical with Equisetites lateralis Phill.

Various species of Phyllotheca have been described from Jurassic and Upper Palaeozoic rocks in Australia. Some of these possess cup-like leaf-sheaths, and in the case of the thicker specimens they show continuous ridges and grooves on the internodes, as well as a habit of branching similar to that in some of the Italian Phyllothecas. In some of the stems it is however difficult to recognise any characters which justify the use of the term Phyllotheca. A fragment figured by Tenison-Woods[573] as a new species of Phyllotheca, P. carnosa, from Ipswich, Queensland, affords an example of the worthless material on which species have not infrequently been founded. The author of the species describes his single specimen as a “faint impression”; the figure accompanying his description suggests a fragment of some coniferous branch, as Feistmantel has pointed out in his monograph on Australian plants.

It is important that a thorough comparative examination should be made of the various fossil Phyllothecas with a view to determine their scientific value, and to discover how far the separation of Phyllotheca and Equisetites is legitimate in each case. There is too often a tendency to allow geographical distribution to decide the adoption of a particular generic name, and this seems to have been especially the case as regards several Mesozoic and Palaeozoic Southern Hemisphere plants.

The geological and geographical range of Phyllotheca is a question of considerable interest, but as already pointed out it is desirable to carefully examine the various records of the genus before attempting to generalise as to the range of the species. Phyllotheca is often spoken of as a characteristic member of the Glossopteris Flora of the Southern Hemisphere, and its geological age is usually considered to be Mesozoic rather than Palaeozoic.

The plants included under this genus were originally designated by Brongniart[574] Convallarites and classed as Monocotyledons. Some years later Schimper and Mougeot[575] had the opportunity of examining more perfect material from the Bunter beds of the Vosges, and proposed the new name Schizoneura in place of Brongniart’s term, on the grounds that the specimens were in all probability portions of Equisetaceous stems, and not Monocotyledons. Our knowledge of this genus is very limited, but the characteristics are on the whole better defined than in the case of Phyllotheca. The following diagnosis illustrates the chief features of Schizoneura.

Hollow stems with nodes and internodes as in Equisetum; the surface of the internodes is traversed by regular ridges and grooves, which are continuous and not alternate in their course from one internode to the next. The leaf-sheaths are large and consist of several coherent segments; the sheaths are usually split into two or more elongate ovate lobes, and each lobe contains more than one vein. Fertile shoots are unknown.

Two of the best known and most satisfactory species are Schizoneura gondwanensis Feist. and S. paradoxa Schimp. and Moug.

This species is represented by numerous specimens from the Lower Gondwana rocks of India[576]; it is characterised by narrow articulated stems which bear large leaf-sheaths at the nodes. The sheaths may have the form of two large and spreading elongate-oval lobes, each of which is traversed by several veins (fig. 69, B), or the lobes may be further dissected into long linear single-veined segments, as in fig. 69, A. It is supposed that in the young condition each node bears a leaf-sheath consisting of laterally coherent segments which, as development proceeds, split into two or more lobes. Feistmantel records this species from the Talchir, Damuda and Panchet divisions of the Lower Gondwana series of India; these divisions are regarded as equivalent to the Permo-Carboniferous and Triassic rocks of Europe. The two specimens shown in fig. 69 are from the Lower Gondwana rocks of the Raniganj Coal-field, India.

As already pointed out[577], some of the specimens of flat and broader stems referred by Feistmantel to Schizoneura are identical in appearance with stems which have been described from India and elsewhere as species of Phyllotheca.

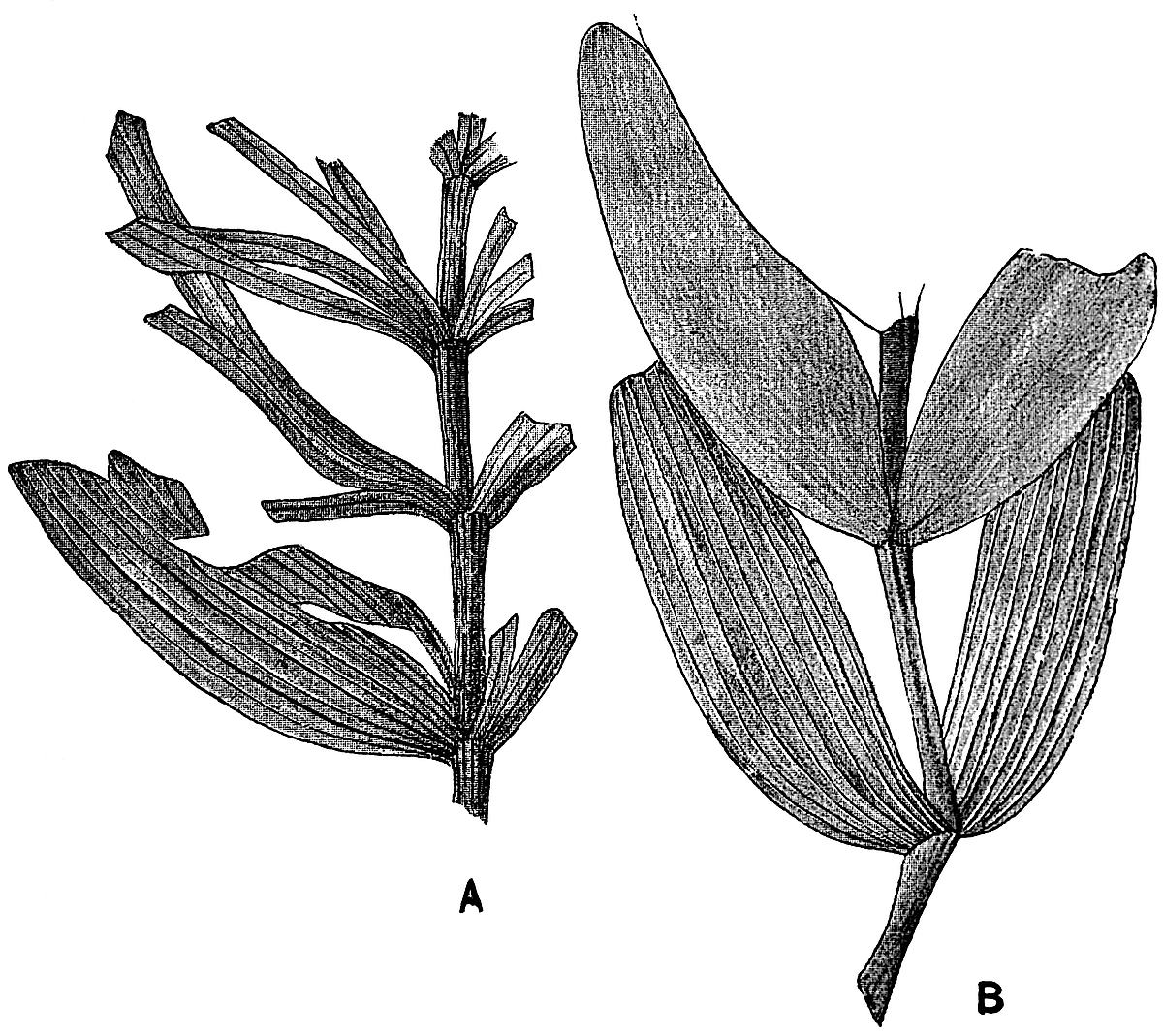

Fig. 69. Schizoneura gondwanensis Feist. (After Feistmantel; slightly reduced.)

There are a few specimens of S. gondwanensis in the British Museum, but the genus is poorly represented in European collections.

A similar plant was described in 1844 by Schimper and Mougeot[578] from the Bunter rocks of the Vosges as Schizoneura paradoxa. This species bears a very close resemblance to the Indian forms, and indeed it is difficult to point to any distinction of taxonomic importance. Feistmantel considers that the European plant has rather fewer segments in the leaf-sheaths, and that the Indian plant had somewhat stronger stems. Both of these differences are such as might easily be found on branches of the same species. It is, however, interesting to notice the very close resemblance between the Lower Trias European plant and the somewhat older member of the Glossopteris flora recorded from India and other regions, which probably once formed part of that Southern Hemisphere Continent which is known as Gondwana Land[579].

In order to minimise repetition and digression the following account of the Calamarieae is divided into sections, under each of which a certain part of the subject is more particularly dealt with. After a brief sketch of the history of our knowledge of Calamites, and a short description of the characteristics of the genus, the morphological features are more fully considered. A description of the most striking features of the better known Calamitean types is followed by a short discussion on the question of nomenclature and classification, and reference is made to the manner of occurrence of Calamites and to some of the possible sources of error in identification.

I. Historical Sketch.

In the following account of the Calamarieae the generic name Calamites is used in a somewhat comprehensive sense. As previous writers have pointed out, it is probable that under this generic name there may be included more than one type of plant worthy of generic designation. Owing to the various opinions which have been held by different authors, as to the relationship and botanical position of plants now generally included in the Calamarieae, there has been no little confusion in nomenclature. Facts as to the nature of the genus Calamites have occasionally to be selected from writings containing many speculative and erroneous views, but the data at our disposal enable us to give a fairly complete account of the morphology of this Palaeozoic plant.

In the earliest works on fossil plants we find several figures of Calamites, which are in most cases described as those of fossil reeds or grasses. The Herbarium diluvianum of Scheuchzer[580] contains a figure of a Calamitean cast which is described as probably a reed. Another specimen is figured by Volkmann[581] in his Silesia subterranea and compared with a piece of sugar-cane. A similar flattened cast in the old Woodwardian collection at Cambridge is described by Woodward[582] as “part of a broad long flat leaf, appearing to be of some Iris, or rather an Aloe, but ’tis striated without.” Schulze[583], one of the earlier German writers, figured a Calamitean branch bearing verticils of leaves, and described the fossil as probably the impression of an Equisetaceous plant. It has been pointed out by another German writer that the Equisetaceous character of Calamites was recognised by laymen many years before specialists shared this view.

One of the most interesting and important of all the older records of Calamites is that published by Suckow[584] in 1784. Suckow is usually quoted as the author of the generic name Calamites; he does not attempt any diagnosis of the plant, but merely speaks of the specimens he is describing as “Calamiten.” The examples figured in this classic paper are characteristic casts from the Coal-Measures of Western Germany. Suckow describes them as ribbed stems, which were found in an oblique position in the strata and termed by the workmen Jupiter’s nails (“Nägel”). Previous writers had regarded the fossils as casts of reeds, but Suckow correctly points out that the ribbed character is hardly consistent with the view that the casts are those of reeds or grasses. He goes on to say that the material filling up the hollow pith of a reed would not have impressed upon it a number of ribs and grooves such as occur on the Calamites. He considers it more probable that the casts are those of some well-developed tree, probably a foreign plant. Equisetum giganteum L. is mentioned as a species with which Calamites may be compared, although the stem of the Palaeozoic genus was much larger than that of the recent Horse-tail. The tree of which the Calamites are the casts must, he adds, have possessed a ribbed stem, and the bark must also have been marked by vertical ribs and grooves on its inner face. It is clear, therefore, that Suckow inclined to the view that Calamites should be regarded as an internal cast of a woody plant. Such an interpretation of the fossils was generally accepted by palaeobotanists only a comparatively few years ago, and the first suggestion of this view is usually attributed to Germar, Dawes, and other authors who wrote more than fifty years later than Suckow.

One of the earliest notices of Calamites in the present century is by Steinhauer[585], who published a memoir in the Transactions of the American Philosophical Society in 1818 on Fossil reliquia of unknown vegetables in the Carboniferous rocks. He gives some good figures of Calamitean casts under the generic name of Phytolithus, one of those general terms often used by the older writers on fossils. Among English authors, Martin[586] may be mentioned as figuring casts of Calamites, which he describes as probably grass stems. By far the best of the earlier figures are those by Artis[587] in his Antediluvian Phytology. This writer does not discuss the botanical nature of the specimens beyond a brief reference to the views of earlier authors. Adolphe Brongniart[588], writing in 1822, expresses the opinion that the Calamites are related to the genus Equisetum, and refers to M. de Candolle as having first suggested this view. In a later work Brongniart[589] includes species of Calamites as figured by Suckow, Schlotheim, Sternberg and Artis in the family Equisetaceae. Lindley and Hutton[590] give several figures of Calamites in their Fossil flora, but do not commit themselves to an Equisetaceous affinity.

An important advance was made in 1835 by Cotta[591], a German writer, who gave a short account of the internal structure of some Calamite stems, which he referred to a new genus Calamitea. The British Museum collection includes some silicified fragments of the stems figured and described by Cotta in his Dendrolithen. Some of the specimens described by this author as examples of Calamitea have since been recognised as members of another family.

In 1840 Unger[592] published a note on the structure and affinities of Calamites, and expressed his belief in the close relationship of the Palaeozoic plant and recent Horse-tails.

An important contribution to our knowledge of Calamites was supplied by Petzholdt[593] in 1841. His main contention was the Equisetaceous character of this Palaeozoic genus. The external resemblance between Calamite casts and Equisetum stems had long been recognised, but after Cotta’s account of the internal structure it was believed that the apparent relation between Equisetum and Calamites was not confirmed by the facts of anatomy. Petzholdt based his conclusions on certain partially preserved Permian stems from Plauenscher Grund, near Dresden. Although his account of the fossils is not accurate his general conclusions are correct. The specimens described by Petzholdt differ from the common Calamite casts in having some carbonised remnants of cortical and woody tissue. A transverse section of one of the Plauenscher Grund fossils is shown in fig. 70. The irregular black patches were described by Petzholdt as portions of cortical tissue, while he regarded the spaces as marking the position of canals like the vallecular canals in an Equisetum. Our more complete knowledge of the structure of a Calamite stem enables us to correlate the patches in which no tissue has been preserved with the broad medullary rays, which separated the wedge-shaped groups of xylem elements; the latter being more resistant were converted into a black coaly substance, while the cells of the medullary rays left little or no trace in the sandstone matrix. The thin black line, which forms the limit of the drawing in fig. 70, external to the carbonised wood, no doubt marks the limit of the cortex, and the appendage indicated in the lower part of the figure may possibly be an adventitious root. It is interesting to note that Unger[594] in 1844 expressed the opinion, which we now know to be correct, that the coaly mass in the specimens described by Petzholdt represented the wood, and that there was no proof of the existence of canals in the cortex as Petzholdt believed.

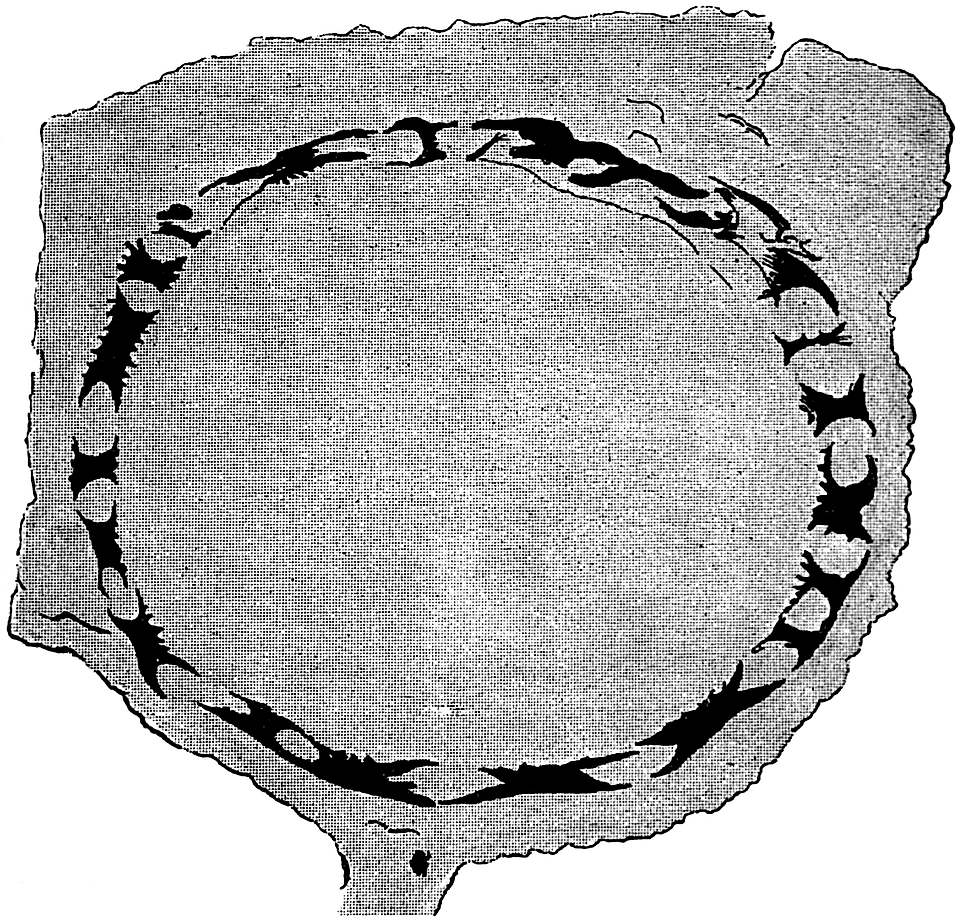

Fig. 70. Transverse section of a Calamite stem, showing carbonised remnants of secondary wood. From a specimen (no. 40934), presented to the British Museum by Dr Petzholdt from Plauenscher Grund, Dresden. ½ nat. size.

Turning to Brongniart’s later work[595] we find an important proposal which led to no little controversy. While retaining the genus Calamites for such specimens as possess a thin bark and a ribbed external surface, showing occasional branch-scars at the nodes, and having such characters as warrant their inclusion in the Equisetaceae, he proposes a second generic name for other specimens which had hitherto been included in Calamites. The fossils assigned to his new genus Calamodendron are described as having a thick woody stem, and as differing from Equisetum in their arborescent nature. Brongniart’s genus Calamodendron is made to include the plants for which Cotta instituted the name Calamitea, and it is placed among the Gymnosperms. This distinction between the Vascular Cryptogam Calamites and the supposed Gymnosperm Calamodendron is based on the presence of secondary wood in the latter type of stem. The prominence formerly assigned to the power of secondary thickening possessed by a plant as a taxonomic feature, is now known to have been the result of imperfect knowledge. The occurrence of a cambium layer and the ability of a plant to increase in girth by the activity of a definite meristem, is a feature which some recent Vascular Cryptogams[596] share with the higher plants; and in former ages many of the Pteridophytes possessed this method of growth in a striking degree.

Although Brongniart’s distinction between Calamites and Calamodendron has not been borne out by subsequent researches, the latter term is still used as a convenient designation for a special type of Calamitean structure. One of the earliest accounts of the anatomy of Calamodendron stems is by Mougeot[597], who published figures and descriptions of two species, Calamodendron striatum and C. bistriatum.

Some years later Göppert[598], who was one of the greatest of the older palaeobotanists, instituted another genus, Arthropitys[599], for certain specimens of silicified stems from the Permian rocks of Chemnitz in Saxony, which Cotta had previously placed in his genus Calamitea under the name of Calamitea bistriata[600]. Göppert rightly decided that the plants so named by Cotta differed in important histological characters from other species of Calamitea. The generic name Arthropitys has been widely adopted for a type of Calamitean stem characterised by definite structural features. The great majority of the petrified Calamite stems found in the English Coal-Measures belong to Göppert’s Arthropitys.

The next proposal to be noticed is one by Williamson[601] in 1868; he instituted the generic name Calamopitys for a few examples of English stems, which differed in the structure of the wood and primary medullary rays from previously recorded types. We have thus four names which all stand for generic types of Calamitean stems. Of these Calamodendron and Arthropitys are still used as convenient designations for stems with well-defined anatomical characters. The genus Calamitea is no longer in use, and Williamson’s name Calamopitys had previously been made use of by Unger[602] for plants which do not belong to the Calamarieae. As it is convenient to have some term to apply to such stems as those which Williamson made the type of Calamopitys, the name Arthrodendron is suggested by my friend Dr Scott[603] as a substitute for Williamson’s genus.

The twofold division of the Calamites instituted by Brongniart has already been alluded to, and for many years it was generally agreed that both Pteridophytes and Gymnosperms were represented among the Palaeozoic fossils known as Calamites. The work of Prof. Williamson was largely instrumental in proving the unsound basis for this artificial separation; he insisted on the inclusion of all Calamites in the Vascular Cryptogams, irrespective of the presence or absence of secondary wood. By degrees the adherents of Brongniart’s views acknowledged the force of the English botanist’s contention. It is one of the many signs of the value of Williamson’s work that there is now almost complete accord among palaeobotanical writers as to the affinities of Calamitean plants.

In the following account of the Calamites, the generic name Calamites is used in a wide sense as including stems possessing different types of internal structure; when it is possible to recognise any of these structural types the terms Calamodendron, Arthropitys or Arthrodendron are used as subgenera. The reasons for this nomenclature are discussed in a later part of the Chapter.

II. Description of the anatomy of Calamites.

No fossils are better known to collectors of Coal-Measure plants than the casts and impressions of the numerous species of Calamites. In sandstone quarries of Upper Carboniferous rocks there are frequently found cylindrical or somewhat flattened fossils, varying from one to several inches in diameter, marked on the surface by longitudinal ridges and grooves, and at more or less regular intervals by regular transverse constrictions. Similar specimens are still more abundant as flattened casts in the blocks of shale found on the rubbish heaps of collieries. The sandstone casts are often separated from the surrounding rock by a loose brown or black crumbling material, and the specimens in the shale are frequently covered by a thin layer of coal.

Most of the earlier writers regarded such specimens as the impressions of the ribbed stems of plants similar to or identical with reeds or grasses. Suckow, and afterwards Dawes and others, expressed the opinion that the ordinary Calamite cast represented a hardened mass of sand or marl, which had filled up the pith of a stem either originally fistular or rendered hollow by decay. The investigation of the internal structure confirmed this view, and proved that the surface-features of a Calamite stem do not represent the external markings of the original plant, but the form of the inner face of the cylinder of wood. The ribs represent the medullary rays of the original stem or branch, and the intervening grooves mark the position of the strands of xylem which are arranged in a ring round a large hollow pith[604].

With this brief preliminary account we may pass to a detailed description of the anatomical characters of Calamites.

The genus Calamites may be briefly defined as follows:—

Arborescent plants reaching a height of several meters, and having a diameter of proportional size. In habit of growth the Calamites bore a close resemblance to Equisetum; an underground rhizome giving off lateral branches and erect aerial shoots bearing branches, either in whorls from regularly recurring branch-bearing nodes, or two or three from each node; and in some cases the stems bore occasional branches from widely separated nodes. The leaves were disposed in whorls either as star-shaped verticils on slender foliage shoots, or in the form of a circle of long narrow leaves on the node of a thicker branch. Adventitious roots were developed from the nodal regions of underground and aerial stems. The cones had the form of long and narrow strobili consisting of a central axis bearing whorls of sterile and fertile appendages; the latter in the form of sporangiophores bearing groups of sporangia. The strobili were heterosporous in some cases, isosporous in others. The stems had a large hollow pith bridged across by a transverse diaphragm at the nodes in the centre of the single stele; the latter consisted of a ring of collateral bundles separated from one another by primary medullary rays. Each group of xylem was composed of spiral, annular, scalariform and occasionally reticulate tracheids, the position of the protoxylem being marked by a longitudinal carinal canal. The shoots and roots grew in thickness by means of a regular cambium layer. The cortex consisted of parenchymatous and sclerenchymatous cells, with scattered secretory sacs. The increase in girth of the central cylinder was often accompanied by a considerable development of cortical periderm. The roots differed from the shoots in having no carinal canals, and in the possession of a solid pith and centripetally developed primary xylem groups alternating with strands of phloem.

The above incomplete diagnosis includes only some of the more important structural features of the genus. Thanks to the researches begun by the late Mr Binney of Manchester and considerably extended by Carruthers, Williamson and later investigators, we are now in a position to give a fairly complete account of Calamites. The type of stem most frequently met with in a petrified condition in the English rocks is that to which Göppert applied the name Arthropitys, and it is this subgenus that forms the subject of the following description. Our knowledge of Calamitean anatomy is based on the examination of numerous fragments of petrified twigs and other portions of different specific types of the genus. It is seldom possible to differentiate specifically between the isolated fragments of stems and branches which are met with in calcareous or siliceous nodules. As so frequently happens in fossil-plant material, large specimens showing good surface features and broken fragments with well-preserved internal structure have to be dealt with separately.

a. Stems.

A transverse section of a young twig, such as is represented in fig. 71, illustrates the chief characteristics of the primary structure of a young branch of Calamites. The figure has been drawn from a section originally described by Hick[605] in 1894. A very young Calamite twig bears an exceedingly close resemblance to the stem of a recent Equisetum. The axial region of the stem may be occupied by parenchymatous cells, or the absence of cells in the centre may indicate the beginning of the gradual formation of the hollow pith, which is one of the characteristics of Calamites. The student of petrified Palaeozoic plants must constantly be on his guard against the possible misinterpretation of Stigmarian ‘rootlets,’ which are frequently found in intimate association with fossil tissues. The intrusion of these rootlets is admirably illustrated by a section of a Calamite stem in the Williamson Collection (No. 1558) in which the hollow pith, 2 cm. broad, contains more than a dozen Stigmarian appendages.

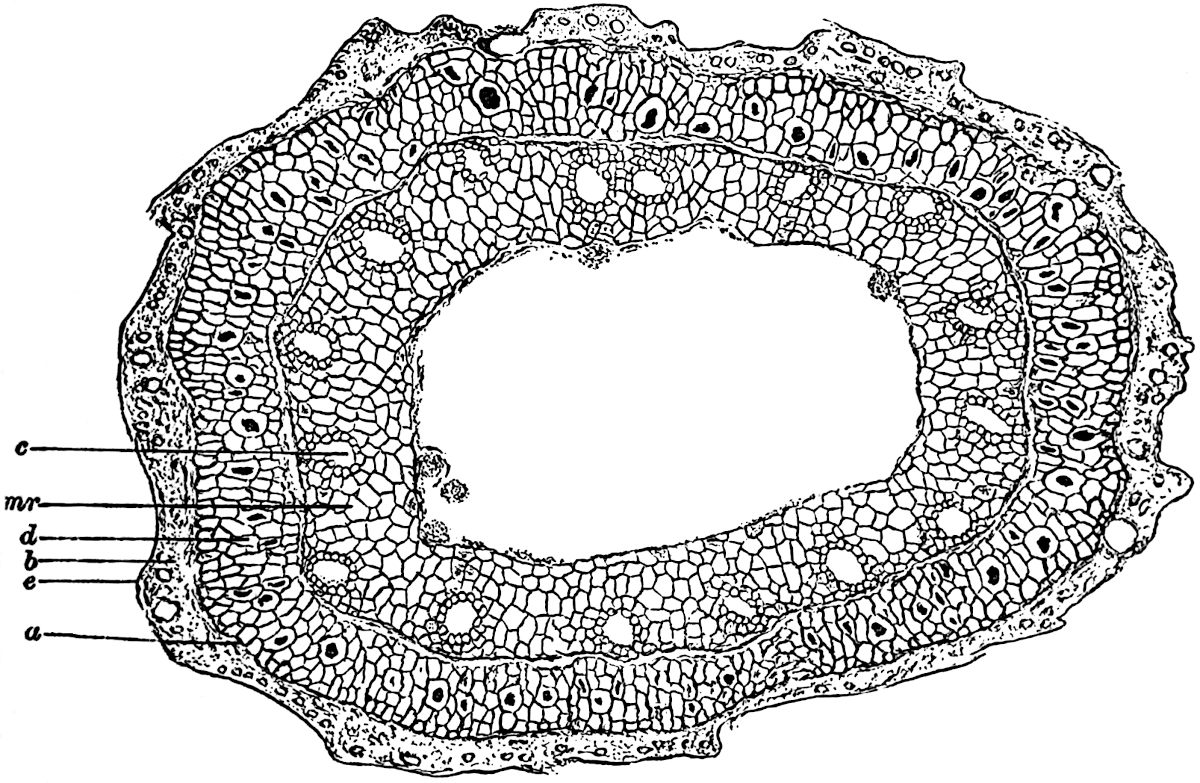

Fig. 71. Transverse section of a young Calamite stem. c, carinal canals; mr, primary medullary rays; a, b, and d, cortex; e, epidermis. From a section in the Manchester Museum, Owens College, × 60.

In the figured specimen of a Calamite twig (fig. 71) there is a clearly marked differentiation into a cortical region and a large stele or central cylinder. The pith-cells are already partially disorganised, but there still remain a few fairly large parenchymatous cells internal to the ring of vascular bundles. The few irregular projections into the cavity of the large pith consist of small fragments of cells, which may be the result of fungal action. Mycelia of fungi are occasionally met with in the tissues of older Calamite stems.

The position of the primary xylem groups is shown by the conspicuous and regularly placed canals, c; these have been formed in precisely the same manner as the corresponding spaces in an Equisetum stem, and they are spoken of in both genera as the carinal canals. Each canal owes its origin to the disorganization and tearing apart of the protoxylem elements and the surrounding cells. This may be occasionally seen in examples of very young Calamites; the canals of a young twig often contain apparently isolated rings which are coils of elongated spiral threads. Fig. 72, B represents the canal of a twig, cut in an oblique direction, in which the remains of spiral tracheids are distinctly seen. In the stem of fig. 71 the development has not advanced far enough to enable us to clearly define the exact limits of each xylem strand. The smaller elements bordering the canals constitute the primary xylem, they are fairly distinct on the outer margin of some of the canals seen in the section. Between the small patches of primary xylem the outward extensions of the parenchyma of the pith constitute the primary medullary rays, mr. The distinct line encircling the canals and primary xylem has been described by Hick as marking the position of the endodermis, but it may possibly owe its existence to the tearing of the tissues along the line where cambial activity is just beginning. This layer of delicate dividing cells would constitute a natural line of weakness. External to this line we have a zone of tissue a, d, containing here and there larger cells with black contents, which are no doubt secretory sacs. It is impossible to distinguish with certainty any definite phloem groups, but in other specimens these have been recognised immediately external to each primary xylem group; the bundles were typically collateral in structure. Towards the periphery of the twig the preservation is much less perfect; the outer portion of the inner cortex, d, consists of rather smaller and thicker-walled cells, but this is succeeded by an ill-defined zone containing a few scattered cells, b, which have been more perfectly preserved. The twig is too young to show any secondary tissue in the cortex; but the tangential walls in some of the cortical cells afford evidence of meristematic activity, which probably represents the beginning of cork-formation. The limiting line, e, possibly represents the cuticularised outer walls of an epidermal layer. The irregularly wavy character of the surface of the specimen is probably the result of shrinking, and does not indicate original surface features.

In examining sections of calcareous nodules from the coal seams one meets with numerous fragments of small Calamitean twigs with little or no secondary wood; in some of these there is a small number of carinal canals, in others the canals are much more abundant. The former probably represent the smaller ramifications of a plant, and the latter may be regarded as the young stages of branches capable of developing into stout woody shoots[606]. Longitudinal sections of small branches teach us that the xylem elements next the carinal canals are either spiral or reticulate in character, the older tracheids being for the most part of the scalariform type, with bordered pits on the radial walls. This and other histological characters are admirably shown in the illustrations accompanying Williamson and Scott’s memoir on Calamites. The student should treat the account of the anatomy of Calamites given in these pages as introductory to the much more complete description by these authors. They thus describe the course of the vascular bundles in a Calamitean branch:—

“The bundle-system of Calamites bears a general resemblance to that of Equisetum. A single leaf-trace enters the stem from each leaf, and passes vertically downwards to the next node. In the simplest cases the bundle here forks, its two branches attaching themselves to the alternating bundles which enter the stem at this node. In other cases both the forks attach themselves to the same bundle, so that, in this case, there is no regular alternation. In other cases, again, the bundle runs past one node without forking, and ultimately forms a junction with the traces of the second node below its starting-point. These variations may all occur in the same specimen. The xylem at the node usually forms a continuous ring, for where the regular dichotomous forks of the bundles are absent their place is usually taken by anastomoses[607].”

As in Equisetum, the xylem at the nodes possesses certain characteristic features which distinguish it from the internodal strands. It has already been pointed out that the xylem of Equisetum increases in breadth at the nodes (p. 251, fig. 55, 4); the same is true of Calamites. In fig. 72, C, we have part of a radial section of a Calamite twig in which the broad mass of short nodal tracheids is clearly shown; this nodal wood forms a prominent projection towards the pith. In the lower part of the section the remains of some spiral protoxylem tracheids are seen in a carinal canal.

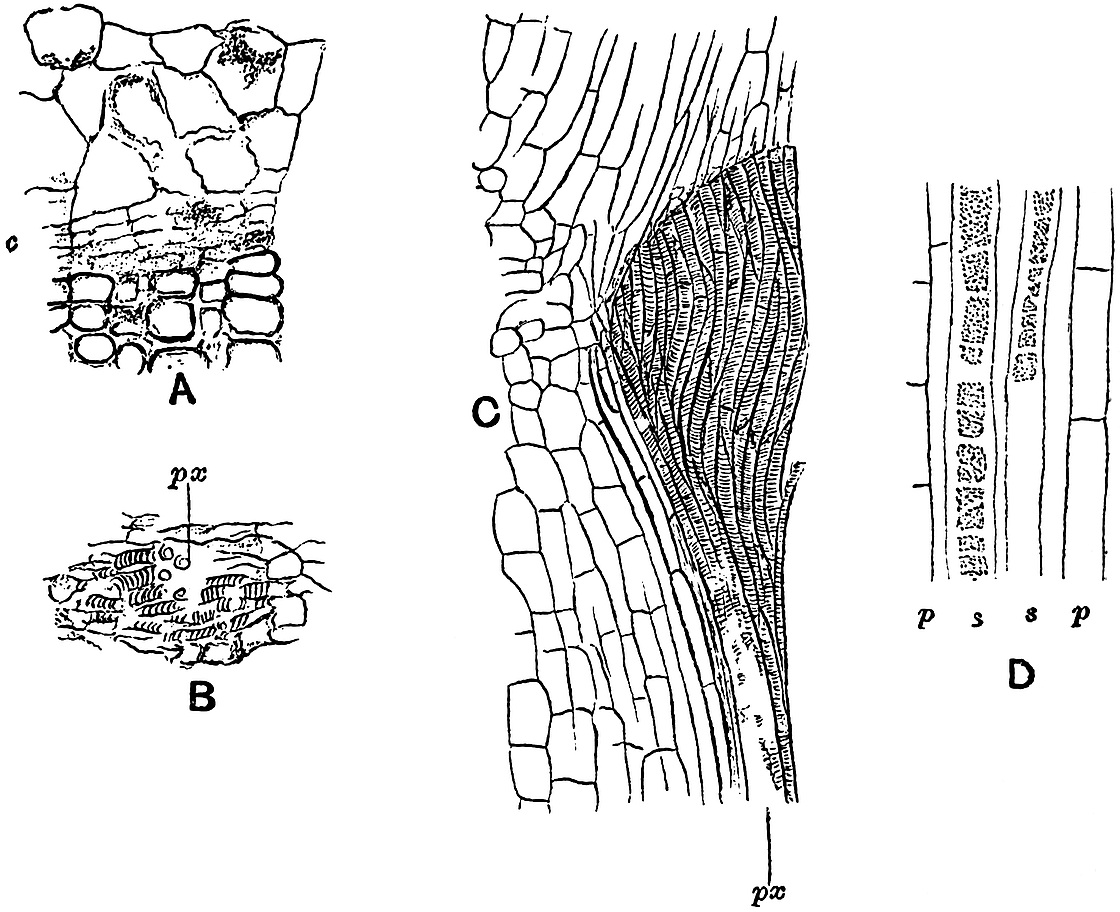

Fig. 72.

• A.  External xylem elements and cambium, c, with imperfect phloem, × 100.
• B.  Carinal canal containing protoxylem, px. × 65.
• C.  Radial longitudinal section through nodal xylem, px. × 35.
• D.  Phloem elements; s, sieve-tubes; p, p, parenchymatous cells.
• (A–C.  After Williamson and Scott. D. After Renault.)

The tracheids of the nodal wood are often reticularly pitted, and so differ in appearance from the ordinary scalariform elements.

It is rare to find the phloem clearly preserved, but in specimens where it has been possible to examine this portion of the vascular bundles, it is found to consist of elongated cambiform cells and sieve-tubes. An unusually perfect specimen has been described by Renault[608] in which the phloem elements are preserved in silica. Fig. 72, D, is copied from one of Renault’s drawings, the sieve-tubes, s, s, show several distinct sieve-plates on the lateral walls of the tubes, reminding one to some extent of the sieve-tubes in a Bracken Fern. The cells, p, p, associated with the sieve-tubes are square-ended elongated parenchymatous elements. Another characteristic feature illustrated by longitudinal sections is the nodal diaphragm; except in the smallest branches the interior of each internode is hollow, and the ring of vascular bundles is separated from the pith-cavity by a band of parenchymatous tissue. At each node this parenchyma extends across the central cavity in the form of a nodal diaphragm, as in the stem of Equisetum.

By far the greater number of the petrified fragments of Calamites afford proof of cambial activity, and possess obvious secondary tissues. In exceptionally perfect specimens the xylem tracheids are found to be succeeded externally by a few flattened thin-walled cells which are in a meristematic condition (fig. 72, A, c); these constitute the cambium zone, and it is the secondary structure that results from the activity of the meristematic cells that we have now to consider.

In petrified examples of branches in which the secondary thickening has reached a fairly advanced stage, the wood is usually the outermost tissue preserved, the more external tissues having been detached along the line of cambium cells. It is only in a few cases that we are able to examine all the tissues of older examples.

The specimen represented in fig. 73 illustrates very clearly the extension of the hollow pith up to the inner surface of the vascular ring; the disorganisation of the pith-cells which had already begun in the twig of fig. 71 has here advanced much further. The bluntly rounded projections represent the prominent primary xylem strands, each of which is traversed by the characteristic carinal canal. Alternating with the wedge-shaped groups of secondary xylem, x, we have the broad principal medullary rays, mr, which become slightly narrower towards the outside. The inner face of each of these wide rays has a concave form, due to the less resistent nature of the medullary-ray cells as compared with the stronger xylem. The regularly sinuous form of the inner face of the vascular cylinder enables one to realise how the Calamite-casts (figs. 82, 99, and 101) have come to have the regular ridges and grooves on their surface. The broad ridges on the cast mark the position of the wide medullary rays, while the grooves correspond to the more prominent ends of the vascular strands. The tissues external to the wood have not been preserved in the example shown in fig. 73. Some silicified specimens described by Stur[609] from Bohemia and now in the Museum of the Austrian Geological Survey, Vienna, admirably illustrate the connection between the surface features of a Calamite cast and the anatomy of the stem.

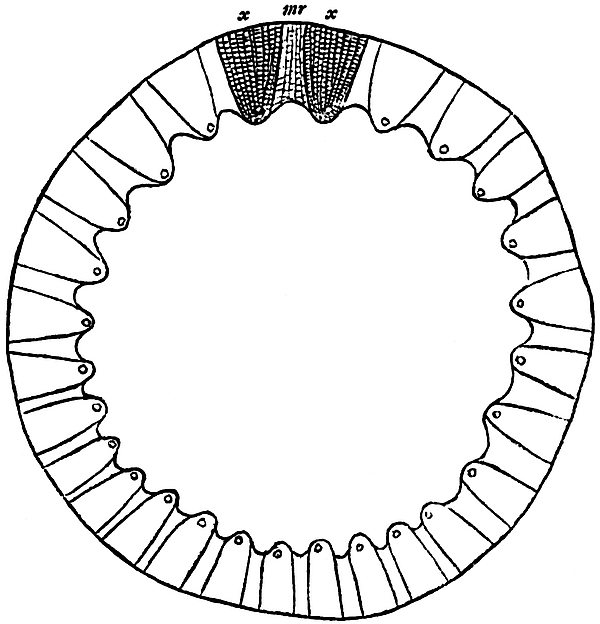

Fig. 73.  Transverse section of a Calamite stem.
mr, medullary ray. After Williamson.
x, x, xylem. (No. 1933 A.A. in the Williamson Collection.)

In the large section of a calcareous nodule diagrammatically shown in fig. 17 II. (p. 85) the secondary wood of a slightly flattened Calamite is the most prominent plant fragment. The pith-cavity has been almost obliterated by the lateral compression of the woody cylinder, but the presence of the carinal canals along the inner edge of the wood may still be readily recognised. The appearance presented by a transverse section of the secondary wood of a Calamite is that of regular radial series of rather small rectangular tracheids, with occasional secondary medullary rays consisting of narrow and radially elongated parenchymatous cells. The principal rays[610] in the Arthropitys type of a Calamite stem are often found to gradually decrease in breadth as they pass into the secondary wood, until in the outer portion of the wood the primary medullary rays are practically obliterated by the formation of interfascicular xylem.

In fig. 74, A, we have a portion of a single xylem group of a thick woody stem. The stem from which the figure has been drawn was originally described by Binney[611] as Calamodendron commune; we now recognise it as a typical example of the subgenus Arthropitys. The specific term communis was used by Ettingshausen[612] in 1855 in a comprehensive sense to include more than twenty species of the genus Calamites, but since Binney’s use of the term it has come to be associated with a definite type of Arthropitys stem, in which the primary medullary rays decrease rapidly in breadth towards the periphery of the wood. The wood of Binney’s stem[613] measures 2·5 cm. across, but the pith-cavity has been crushed to the limits of a narrow band represented in the figure by the shaded portion. The strand of cells, s, in the pith is a portion of a Stigmarian appendage (“rootlet”), which penetrated into the hollow stem of the Calamite and became petrified by the same agency to which the preservation of the stem is due. These intruded Stigmarian appendages are of constant occurrence in the calcareous nodules; their intimate association with the tissues of other plants is often a serious source of error in the identification of petrified tissues. The inner portion of one of the xylem groups is shown in fig. 74, A. External to the carinal canal, the xylem tracheids are disposed in regular series and associated with numerous narrow secondary medullary rays. The width of the xylem wedge increases gradually as we pass outwards, this is due to the formation of interfascicular xylem, which in the more peripheral portion of the stem extends across the primary medullary rays. The few primary medullary-ray cells shown in the drawing illustrate the characteristic tangentially elongated form and large size of the parenchymatous elements. Williamson and Scott have pointed out that the tangentially elongated form of the medullary-ray cells is the result of active growth, and not merely the expression of the tangential stretching of the stem consequent on secondary thickening.

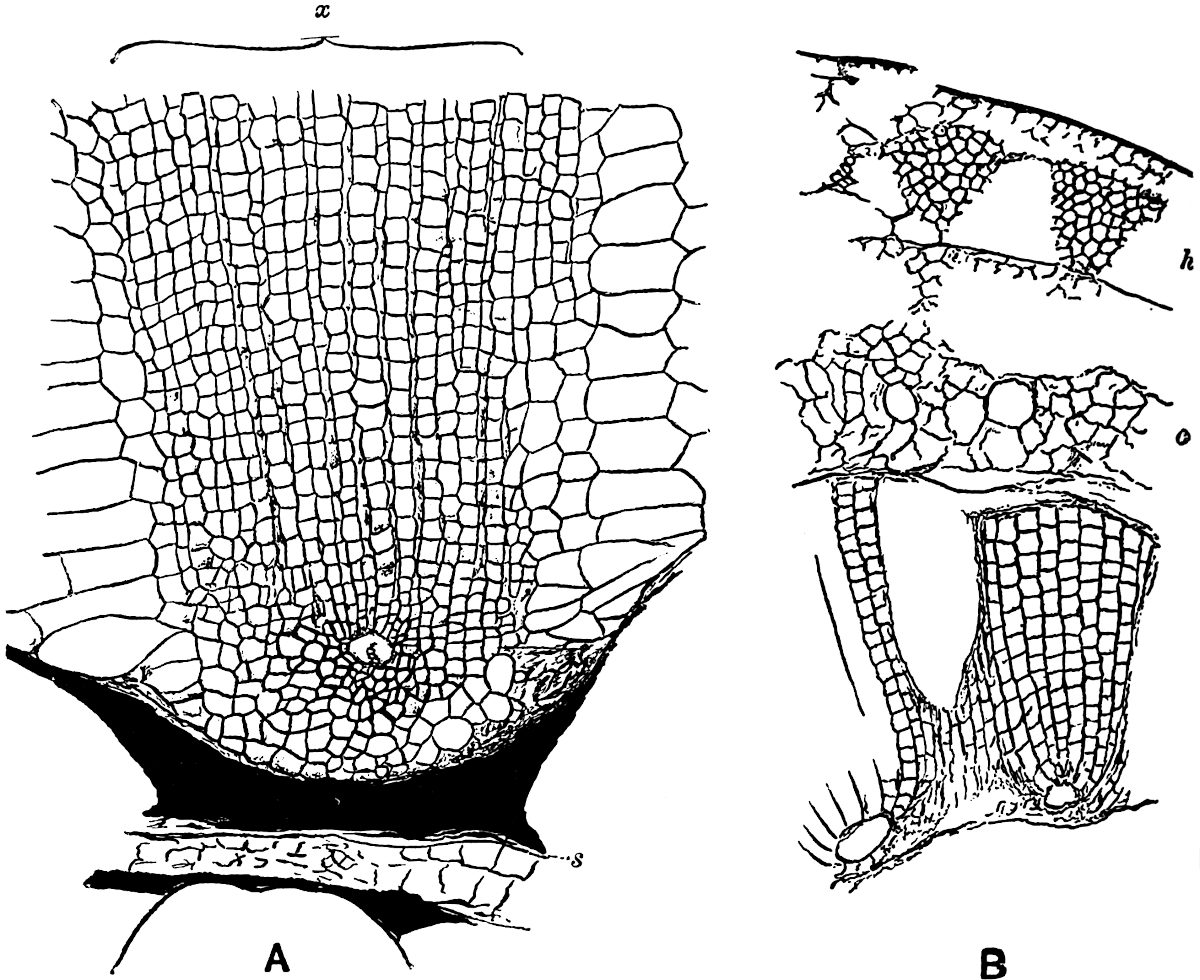

Fig. 74.

1. Transverse section of part of a Calamite stem.  [Calamites (Arthropitys) communis (Binney).]
   s, Stigmarian appendage. x, xylem. From a specimen in the Binney Collection, Cambridge, × 50.
2. Transverse section of a stem.
   h, hypodermal tissue; c, inner cortex.  From a specimen in the Williamson Collection (no. 62). × 35.

A glance at the complete transverse section of the stem,—of which a small portion is shown in fig. 74 A,—suggests the existence of annual rings in the wood, but this appearance of rings is merely the result of compression. The secondary wood of a Calamite does not exhibit any regular zones of growth comparable with the annual rings of our forest trees.

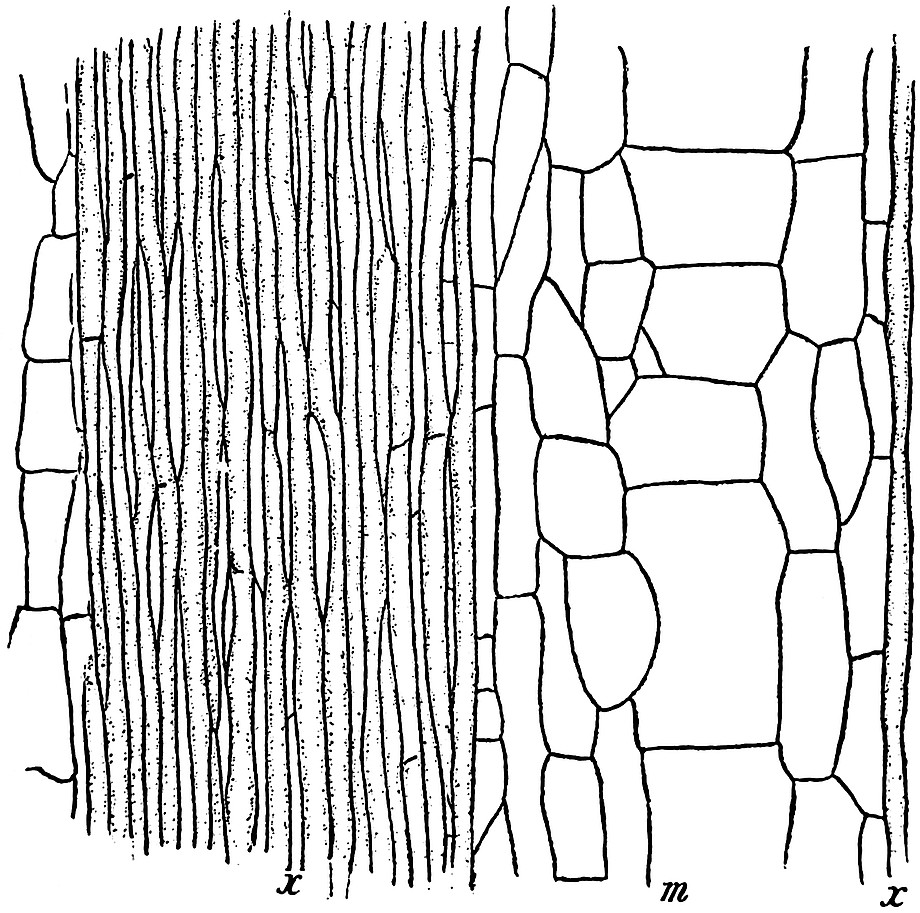

Fig. 75. Longitudinal tangential section near the inner edge of the wood of the Calamite of fig. 74.
x, x, secondary xylem and medullary rays; m, principal medullary ray. From a section in the Binney Collection, × 50.

Before passing to other examples of Calamitean stems, reference may be made to the sections shown in figs. 75 and 76, which illustrate some further points in the structure of Binney’s stems. In fig. 75 the xylem tracheids are shown at x, and between them the secondary medullary rays present the appearance of long and narrow parenchymatous cells; as the section is tangential the characteristic scalariform character of the tracheids is not shown, the ladder-like bordered pits being confined to the radial walls of the tracheal elements. The much greater length than breadth of the cells which form the rays associated with the xylem tracheids, is a characteristic feature in Calamitean stems. The breadth of the principal ray, m, shows that the section has passed through the wood a short distance from the pith; in a tangential section cut further into the wood the breadth of the principal rays would be considerably reduced. The large medullary-ray tissue consists of square-walled parenchymatous cells. The more highly magnified section, in fig. 76, shows a central group of parenchyma containing a few transversely cut tracheids, but the two kinds of elements are not clearly differentiated in the figure; this group of cells is an outgoing leaf-trace which is enclosed by the strongly curved tracheids of the stem. The section is taken from the node of a stem where several leaf-trace bundles are passing out to a whorl of leaves; the few cells intercalated between the tracheids belong to the parenchyma of the secondary medullary rays.

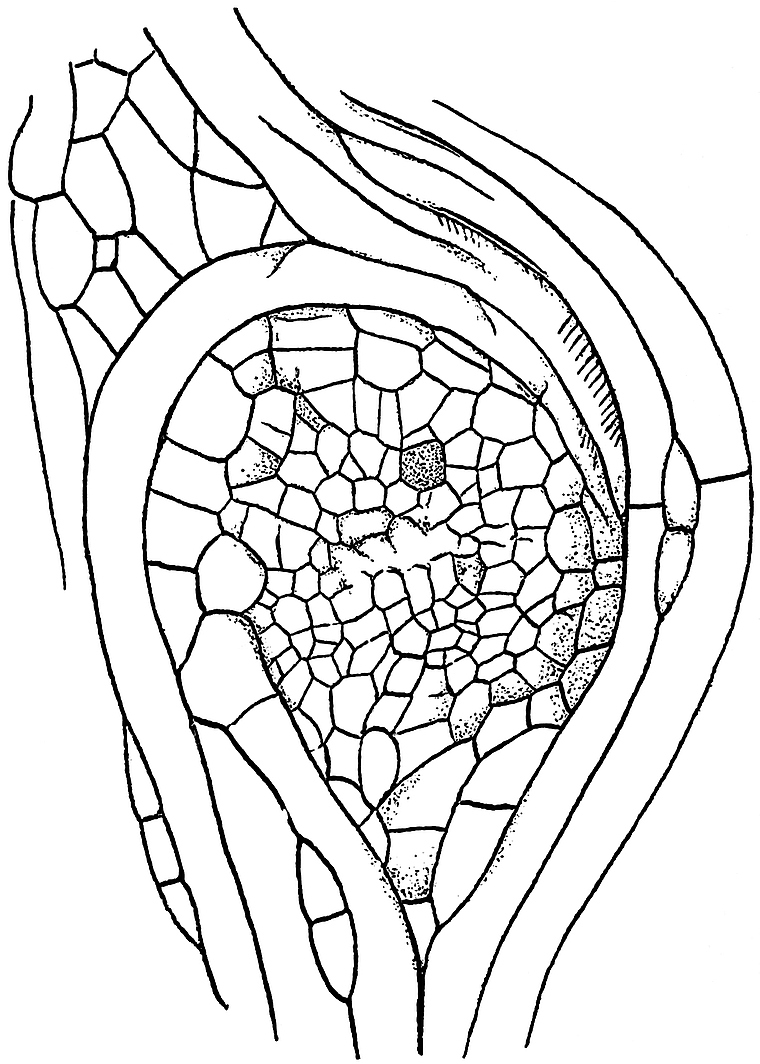

Fig. 76. Longitudinal tangential section of the same Calamite as that of figs. 74 and 75, showing a leaf-trace and curved tracheids at a node. From a section in the Binney Collection, × 100.

In the small portion of a stem represented in fig. 74 B, the cortical tissues have been partially preserved; at the inner edge, next the hollow pith, there are two xylem groups, each with a carinal canal, and between them is part of a broad “principal” medullary ray[614]. The cambium has not been preserved, but beyond this region we have some of the large cells, c, of the inner cortex; these are followed by a few remnants of a smaller-celled tissue, and external to this part of the cortex there is a series of triangular groups, h, consisting of small thick-walled cells alternating with spaces which were originally occupied by more delicate parenchyma. The darker groups constitute hypodermal strands of mechanical tissue or stereome which lent support to the stem. The surface of a stem possessing such supporting strands would probably assume a longitudinally wrinkled or grooved appearance on drying; the intervening parenchyma, contracting and yielding more readily, would tend to produce shallow grooves alternating with the ridges above the stereome strands.

The complete section of the stem of which a small portion is shown in fig. 74 B, is figured by Williamson[615] in his 12th memoir on Coal-Measure plants. The section was obtained from Ashton-under-Lyne in Lancashire; it illustrates very clearly a method of preservation which is occasionally met with among petrified plants. The walls of the various tissue elements are black in colour and somewhat ragged, and the general appearance of the section is similar to that of a section of a charred piece of stem. It is possible that the Calamite twig was reduced to charcoal before petrifaction by a lightning flash or some other cause.

It is often said that the surface of a Calamite stem was probably marked by regular ridges and grooves similar to those of the pith-cast, and that such external features are connected with the arrangement of the tissues in the vascular cylinder. The indication of grooves and ridges on the bark of fossil Calamites is no doubt the result of the existence in the hypoderm of firm strands alternating with strands of less resistant cells. It is very common to find Calamite pith-casts covered with a layer of coal presenting a ribbed surface, but this is simply due to the moulding of the coaly film on an internal pith-cast. The broad grooves on such a specimen as that of fig. 77 are, on the other hand, probably an indication of the existence of hypoderm bands similar to those in fig. 74 B, h. The specimen from which fig. 77 is drawn shows many interesting features. The figure given by Grand’Eury, of which fig. 77 is a copy, is somewhat idealised, but the various surfaces can be made out in the fossil. The surface of the coaly envelope surrounding the pith-cast, a, is distinctly grooved, but the depressions have nothing to do with the surface features of the wood or the pith-cast; they are no doubt due to the occurrence of alternating bands of thick- and thin-walled tissue in the hypodermal region of the cortex; the peripheral strands of bast cells would stand out as prominent ribs as the stem tissue contracted during fossilisation. At b (fig. 77) we have a view of the wood in which the position of the principal rays is indicated by fine longitudinal lines at regular intervals; the oval projections just below the nodal line are probably the casts of infranodal canals (cf. p. 324). At a the characteristic pith-cast is seen with a small branch-scar on the node. The scar on the middle node, N 2, is probably that of a root, and a root R is still attached to the node, N 3.

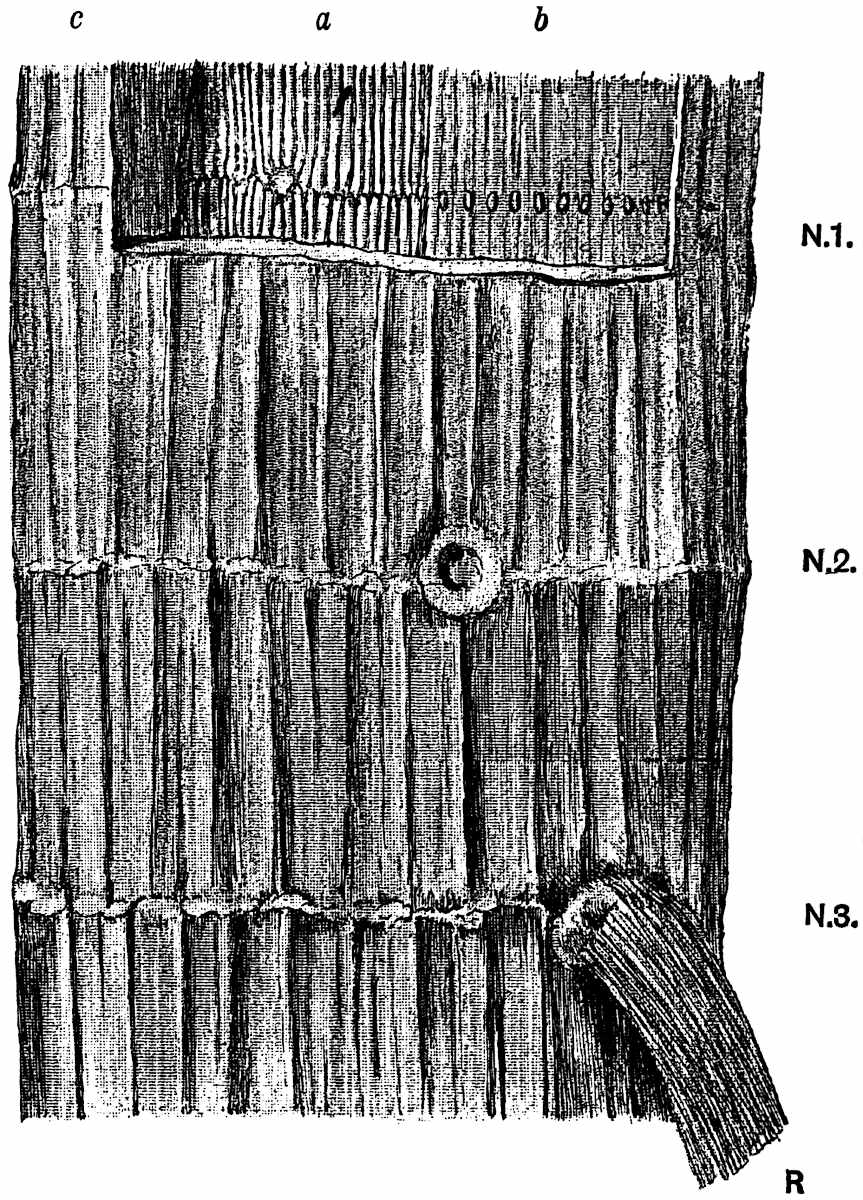

Fig. 77. Portion of a Calamite stem, showing the surface of the bark, c; the wood, b; the surface of the pith-cast, a. N.1-N.3. Nodes. R. Root. (After Grand’Eury. Partially restored from a specimen in the École des Mines, Paris.) ¾ nat. size.

An interesting feature observed in some specimens of older Calamite branches is the development of periderm or cork. This is illustrated on a large scale by a unique specimen originally described by Williamson in 1878[616]. Figs. 78 and 79 represent transverse and longitudinal sections of this stem. This unusually large petrified stem was found in the Coal-Measures of Oldham, in Lancashire. In the slightly reduced drawing, fig. 78, the large and somewhat flattened pith, p, 4·2 cm. in diameter, is shown towards the bottom of the figure. Surrounding this we have 58 or 59 wedge-shaped projecting xylem groups and broad medullary rays; the latter soon become indistinguishable as they are traced radially through the thick mass of secondary wood, 5 cm. wide, composed of scalariform tracheids and secondary medullary rays (fig. 78, 3). The secondary wood presents the features characteristic of Calamites (Arthropitys) communis (Binney). External to the wood there is a broken-up mass, about 5·5 cm. wide composed of regularly arranged (fig. 78, 2) and rather thick-walled cells; this consists of periderm, a secondary tissue, which has been developed by a cork-cambium during the increase in girth of the plant. The more delicate cortical tissues have not been preserved, and the more resistant portion of the bark has been broken up into small pieces of corky tissue, among which are seen numerous Stigmarian appendages, pieces of sporangia and other plant fragments. These associated structures cannot of course be shown in the small-scale drawing of the figure.

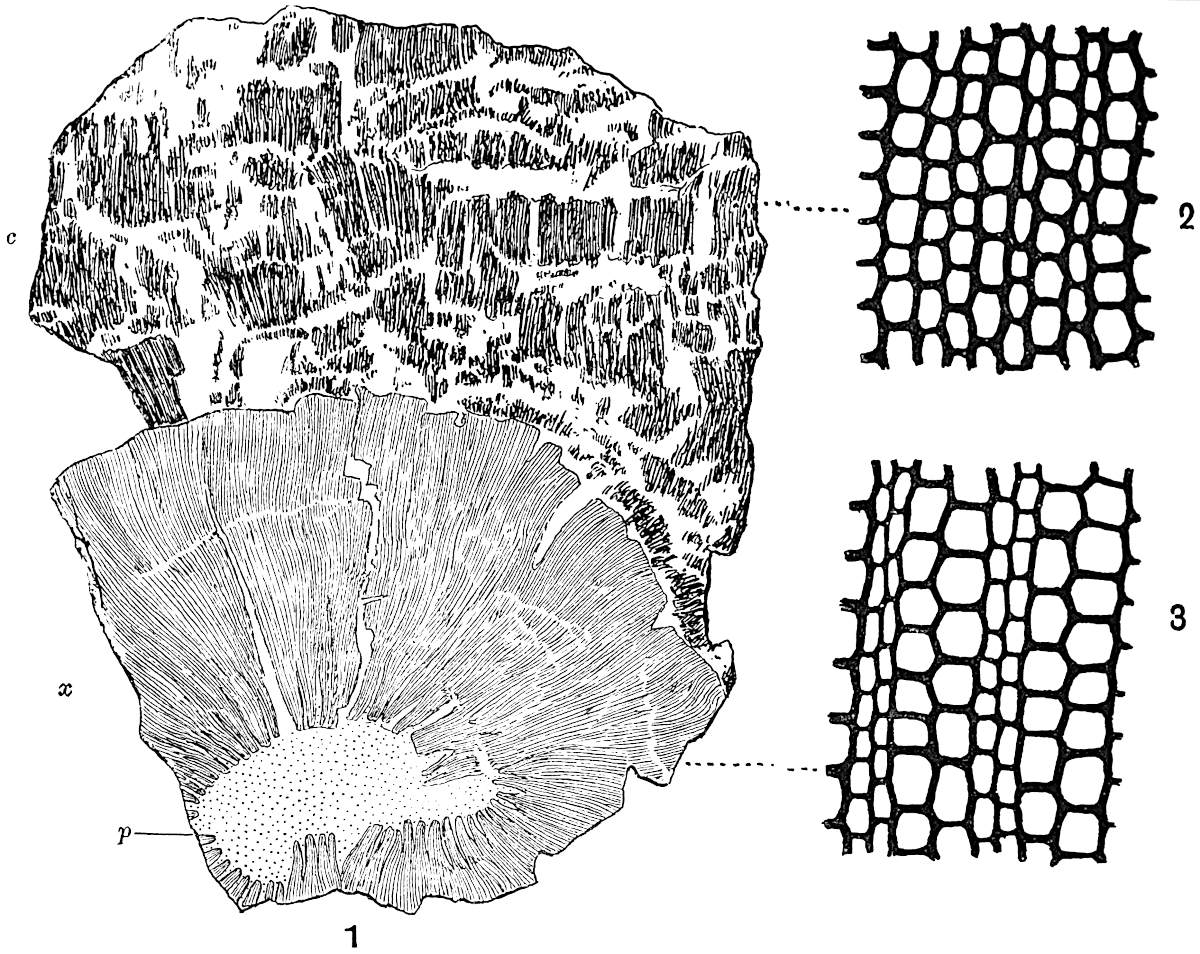

Fig. 78.

1. Transverse section of a thick Calamite stem.
   p, pith; x, secondary wood; c, bark. (⅔ nat. size.)
2. Periderm cells of bark.
3. Xylem and medullary rays. (2 and 3, × 80.)

From a specimen in the Williamson Collection (no. 79).

In the radial longitudinal section (fig. 79) we see the pith with the projecting wood and the remains of a diaphragm at the node. The mottled or watered appearance of the wood is due to numerous medullary rays which sweep across the tracheids. The periderm elements, as seen in longitudinal section, are fibrous in form.

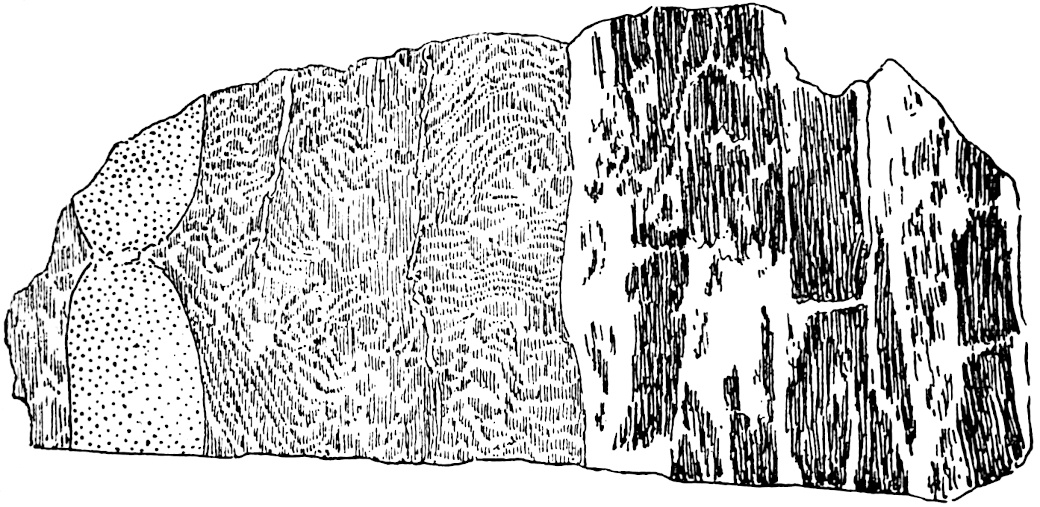

Fig. 79. Longitudinal section of the specimen stem in fig. 78.
From a specimen in the Williamson Collection, British Museum (no. 80). ⅔ nat. size.

The development of cork in a younger Calamite stem is clearly shown in a specimen described by Williamson and Scott in their Memoir of 1894. In a transverse section of the stem several large cells of the inner cortex are seen to be in process of division by tangential walls, and giving rise to radially arranged periderm tissue[617].

The section diagrammatically sketched in fig. 80 is that of a Calamite twig in which the wood appears to have been injured, and the wound has been almost covered over by the formation of callus wood. The young trees in a Palaeozoic forest might easily be injured by some of the large amphibians, which were the highest representatives of animal life during the Carboniferous period, just as our forest trees are often barked by deer, rabbits, and other animals. Fissures might also be formed by the expansion of the bark under the heating influence of the sun’s rays[618]. Such a specimen as that of fig. 80 gives an air of living reality to the petrified fragments of the Coal period trees. It is well known how a wound on the branch of a forest tree becomes gradually overgrown by the activity of the cambium giving rise to a thick callus, which gradually closes over the wounded surface in the form of two lips of wood which finally meet over the middle of the scar. The two lips of callus are clearly shown in the fossil branch arching over the tear in the wood just beyond the ring of carinal canals. The tissue external to the wood represents the imperfectly preserved cortex. A section which was cut parallel to that of fig. 80 shows a continuous band of wood beyond the wound, and the latter has the form of a small triangular gap; this section appears to have passed across the wound where it was narrower and has already been closed over by the callus. The formation of a rather different kind of callus wood has been described by Renault[619] and by Williamson and Scott[620], in stems where aborted or deciduous branches have been overgrown and sealed up by cambial activity.

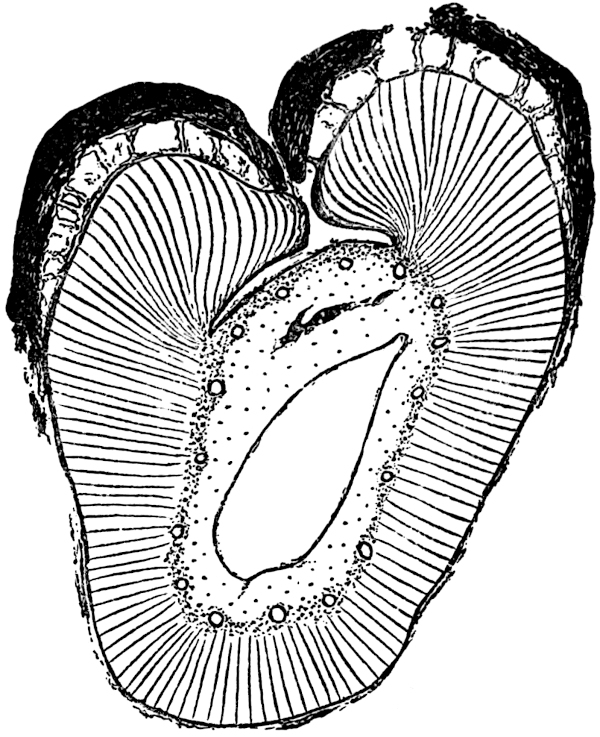

Fig. 80. Diagrammatic sketch of a transverse section of a Calamite twig, showing callus wood. From a specimen in the Cambridge Botanical Laboratory Collection. × ca. 10.

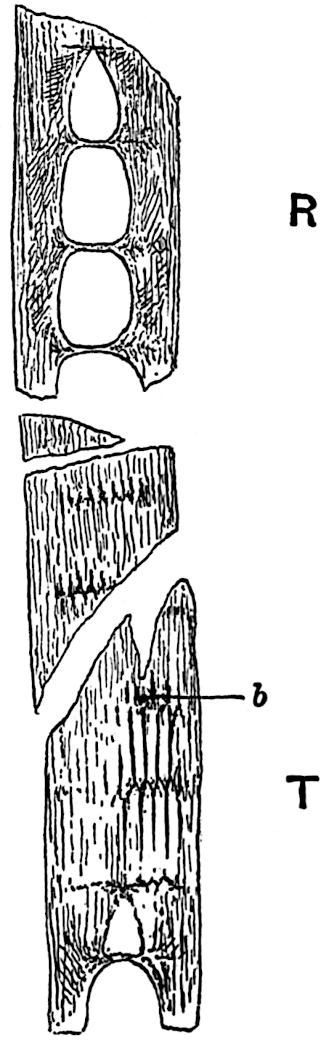

Fig. 81. Calamites. Longitudinal section (R, radial; T, tangential) of a small branch. b, position of a lateral branch. From a specimen (no. 1937) in the Williamson Collection. Slightly enlarged.

Some of the features to be noticed in longitudinal sections of Calamite stems have already been described, at least as regards younger branches. The specimen shown in fig. 81 illustrates the general appearance of a stem as seen in tangential and radial section. In the lower portion, T, the course of the vascular bundles is shown by the black lines which represent the xylem tracheids, bifurcating and usually alternating at each node. Between the xylem strands are the broad principal medullary rays. At b a branch has been cut through on its passage out from the parent stem, just above the nodal line. In tangential sections of Calamite stems one frequently sees both branches and leaf-trace bundles (fig. 83, A), passing horizontally through the wood and enclosed by strongly curved and twisted tracheids. In the upper part of the figure (81, R), the section has passed through the centre of the stem, and the wood is seen in radial view; each node is bridged across by a diaphragm of parenchymatous cells capable of giving rise to a surface layer of periderm[621].

An outgoing branch, as seen in a tangential section of a stem, consists of a parenchymatous pith surrounded by a ring of vascular bundles, in which the characteristic carinal canals have not yet been formed, but if the section has cut the branch further from its base, there may be seen a circle of irregular gaps marking the position of the carinal canals. Such gaps are often occupied by thin parenchyma, and contain protoxylem elements. The outgoing branches, as seen in a tangential section of a Calamite stem, are seen to be connected with the wood of the parent stem by curved and sinuous tracheids, which give to the stem-wood a curiously characteristic appearance[622], as if the xylem elements had been pushed aside and contorted by the pressure of the outgoing member. A tangential section through a Pine stem[623] in the region of a lateral branch presents precisely the same features as in Calamites. The branches are given off from the stem immediately above a node and usually between two outgoing leaf-trace bundles.

Specimens of pith-casts occasionally present the appearance of a curved and rapidly tapered ram’s horn, and the narrow end of such a cast is sometimes found in contact with the node of another cast. This juxtaposition of casts is shown unusually well in fig. 82. In some of the published restorations of Calamites the plant is represented as having thick branches attached to the main stem by little more than a point. Williamson[624] clearly explained this apparently unusual and indeed physically impossible method of branching, by means of sections of petrified stems. The branches seen in fig. 82 are of course pith-casts, and in the living plant the pith of each branch was surrounded by a mass of secondary wood developed from as many primary groups of xylem as there are grooves on the surface of the cast, each of the grooves on an internode corresponding to the projecting edge of a xylem group. At the junction of one branch with another the pith was much narrower and the enclosing wood thicker, so that the tapered ends of the cast merely show the continuity by a narrow union between the pith-cavities of different branches. Most probably the casts of fig. 82 are those of a branched rhizome which grew underground, giving off aerial shoots and adventitious roots. There is a fairly close resemblance between the Calamite casts of fig. 82 and a stout branching rhizome of a Bamboo, e.g. Bambusa arundinacea Willd.; it is not surprising that the earlier writers looked upon the Calamite as a reed-like plant.

Before leaving the consideration of stem structures there is another feature to which attention must be drawn. On the casts shown in fig. 82 there is a circle of small oval scars situated just below the nodes, these are clearly shown at c, c, c. Each of the scars is in reality a slight projection from the upper end of an internodal ridge. As the ridges correspond to the broad inner faces of medullary rays, the small projection at the upper end of each ridge is a cast of a depression or canal which existed in the medullary tissue of the living plant. There have been various suggestions as to the meaning of these oval projections; several writers have referred to them as the points of attachments of roots or other appendages, but Williamson proved them to be the casts of canal-like gaps which traversed the upper ends of principal medullary rays in a horizontal direction. In a tangential section of a Calamite stem the summit of each primary medullary ray often contains a group of smaller elements which are in process of disorganisation, and in some cases these cells give place to an oval and somewhat irregular canal. In the diagrammatic tangential section represented in fig. 83, A the upper end of each ray is perforated by a large oval space, which has been formed as the result of the breaking down of a horizontal band of cells. Williamson designated these spaces infranodal canals. While proving that they had nothing to do with the attachment of lateral members, he suggested that they might be concerned with secretion; but their physiological significance is still a matter of speculation. The casts of infranodal canals are especially large and conspicuous in the subgenus Arthrodendron, a form of Calamite characterised by certain histological features to be referred to later. Williamson[625] originally regarded the presence of infranodal canals as one of the distinguishing features of Arthrodendron, but they occur also in the casts of the commoner type Arthropitys. As a rule we have only the cast of the inner ends of the infranodal canals preserved as slight projections like those in fig. 83, A; but in one exceptionally interesting pith-cast described by Williamson, these casts of the infranodal canals have been preserved as slender spoke-like columns radiating from the upper ends of the ridges of the infranodal region of a pith-cast.

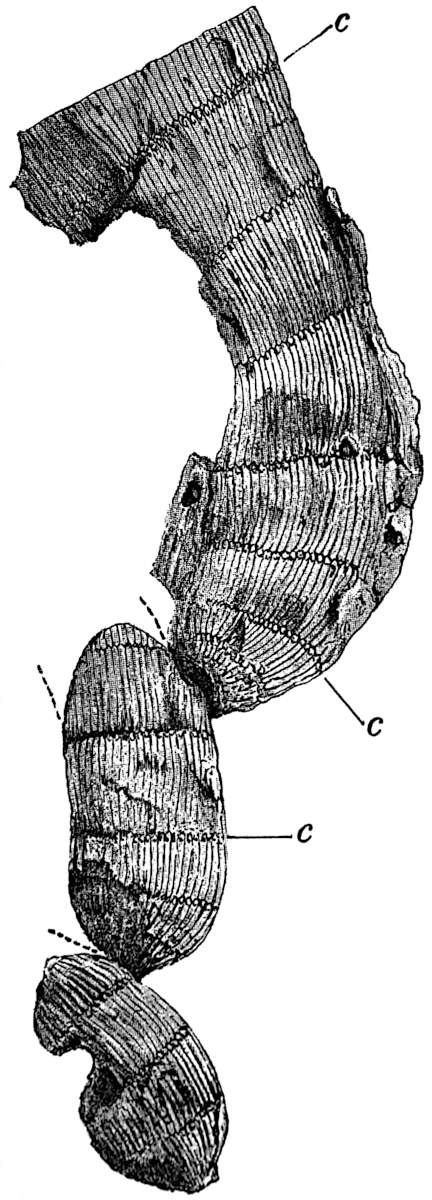

Fig. 82. Branched rhizome of Calamites. ½ nat. size. C, C, nodes showing casts of infranodal canals. From a specimen in the Manchester Museum, Owens College.

This specimen, which was figured by Williamson[626] in two of his papers, and by Lyell[627] in the fifth edition of his Elementary Geology, is historically interesting as being one of the first important plants obtained by Williamson early in the fifties, when he began his researches into the structure of Carboniferous plants. A joiner, who was employed by Williamson to make a piece of machinery for grinding fossils, brought a number of sandstone fragments as an offering to his employer, whom he found to be interested in stones. The specimens “were in the main the merest rubbish, but amongst them,” writes Williamson, “I detected a fragment which was equally elegant and remarkable.... In later days, when the specimen so oddly and accidentally obtained, came to be intelligently studied, its history became clear enough, and the priceless fragment is now one of the most precious gems in my cabinet[628].”

The anatomical features which have so far been described as characteristic of Calamites represent the common type met with in the English Coal-Measures. The same type occurs also in France, Germany and elsewhere. It is that form of stem known as Arthropitys, a sub-genus of Calamites.

Arthropitys may be briefly diagnosed as follows,—confining our attention to the structure of the stem: A ring of collateral bundles surrounds a large hollow pith, each primary xylem strand terminates internally in a more or less bluntly rounded apex traversed by a longitudinally carinal canal. The principal medullary rays consist of large-celled parenchyma, of which the individual elements are usually tangentially elongated as seen in transverse section, and four or five times longer than broad as seen in a tangential longitudinal section. The secondary xylem consists of scalariform and reticulately pitted tracheids; the interfascicular xylem may be formed completely across each primary ray at an early stage in the growth of the stem[629], or it may be developed more gradually so as to leave a tapering principal ray of parenchyma between each primary xylem bundle. In the latter case the principal rays present the characteristic appearance shown in figs. 71, 74, A, 75 and 78, a type of stem which we may refer to as Calamites (Arthropitys) communis. In the former case the stem presents the appearance shown in fig. 83, D[630]. A third variety of Arthropitys stem is one which was originally named by Göppert Arthropitys bistriata; in this form the principal rays retain their individuality as bands of parenchyma throughout the whole thickness of the wood[631]. Such stems as those of figs. 73 and 74, B, may be young examples of Arthropitys communis or possibly of A. bistriata. The narrow secondary medullary rays of Arthropitys usually consist of a single row of cells which are three to five times higher than broad, as seen in tangential longitudinal section. Infranodal canals occur in some examples of Arthropitys.

In the subgenus Arthrodendron, a type of stem first recognised by Williamson and named by him Calamopitys[632], the principal medullary rays consist of prosenchymatous cells (i.e. elongated pointed elements) and not parenchyma. These elongated elements are not pitted like tracheids, and they are shorter and broader than the xylem elements. In some examples of this subgenus the primary rays are bridged across at an early stage by the formation of secondary interfascicular xylem, and in others they persist as bands of ray tissue, as in Arthropitys. Other characteristics of Arthrodendron are the abundance of reticulated instead of scalariform tracheids in the secondary wood, and the large size of the infranodal canals.

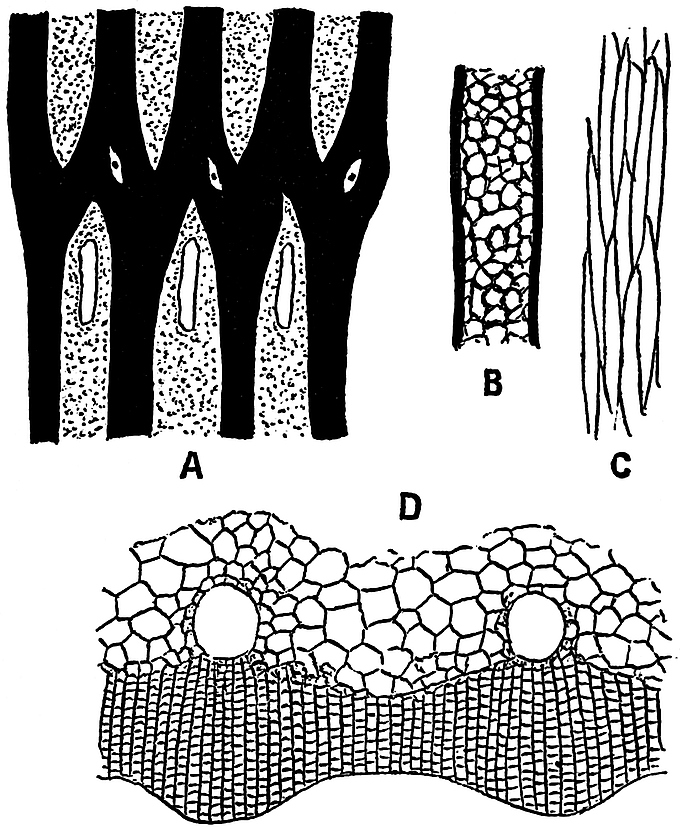

Fig. 83, D represents part of a transverse section of Arthrodendron; in this stem the rays have been occupied by interfascicular xylem at a very early stage of the secondary growth. The section from which fig. 83, D is drawn was described by Williamson in 1871; the complete section shows about 80 carinal canals and primary xylem groups. The prosenchymatous form of the principal medullary rays is seen in fig 83, C, and the reticulate pitting on the radial wall of a tracheid is shown in fig. 83, B. Fig. 83, A illustrates the large infranodal canals as seen in a tangential section of a stem. The same section shows also the course of the vascular bundles characteristic of Calamites as of Equisetum, and the position of outgoing leaf-traces is represented by unshaded areas in the black vascular strands.

Fig. 83. Calamites (Arthrodendron).

1. Tangential section (diagrammatic) showing the course of the vascular strands, also leaf-traces and infranodal canals.
2. Radial face of a tracheid.
3. Prosenchymatous elements of a principal medullary ray.
4. Transverse section of the wood. (After Williamson.) No. 36 in the Williamson Collection.

The subgenus Arthrodendron is very rarely met with, and our information as to this type is far from complete[633].

The third subgenus Calamodendron has not been discovered in English rocks, and our knowledge of this type is derived from French and German silicified specimens[634]. There is the same large hollow pith surrounded by a ring of collateral bundles with carinal canals, as in the two preceding subgenera. The tracheids are scalariform and reticulate, and the secondary medullary rays consist of rows of parenchymatous cells which are longer than broad, as in Arthropitys and Arthrodendron.

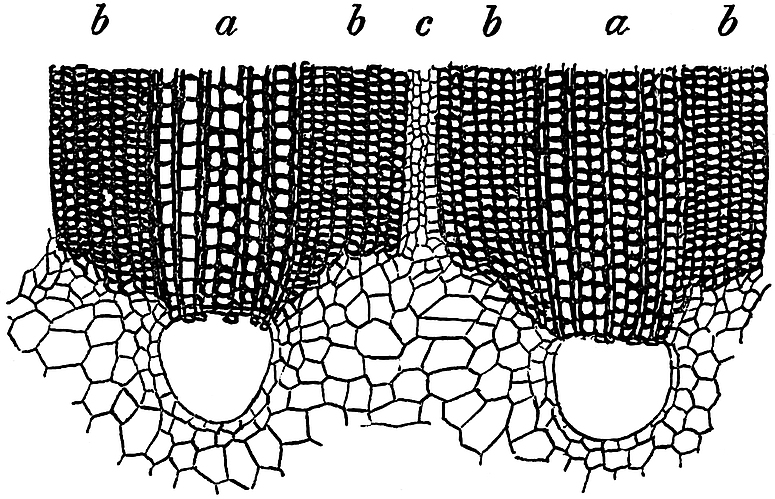

Fig. 84. Calamites (Calamodendron) intermedium, Ren.
Transverse section through two vascular bundles.
a, a, xylem tracheids, b, b, bands of prosenchyma, c, medullary ray. (After Renault.)

The most characteristic feature of Calamodendron is the occurrence of several rows of radially disposed thick-walled prosenchymatous elements (fig. 84, b) on either flank of each wedge-shaped group of xylem. Each principal ray is thus nearly filled up by bands of fibrous cells on the sides of adjacent xylem groups, but the centre of each principal ray is occupied by a narrow band of parenchyma (fig. 84, c). The relative breadth of the xylem and prosenchymatous bands has been made use of by Renault as a specific character in Calamodendron stems. Fig. 84 is copied from a drawing recently published by this French author of a new species of Calamodendron, C. intermedium[635]. In this case the bands of fibrous cells, b, are slightly broader, as seen in a transverse section of the stem, than the bands of xylem tracheids, a. The narrow band, c, consists of four rows of the parenchymatous tissue of a medullary ray. At the inner end of each group of tracheids there is a large carinal canal.

The question of the recognition of the pith-casts of stems possessing the structure of any of the three subgenera of Calamites is referred to in a later section of this chapter.

b. Leaves

Leaves of Calamites and Calamitean foliage-shoots, including an account of (α) Calamocladus (Asterophyllites) and (β) Annularia.

Our knowledge of the structure and manner of occurrence of Calamite leaves is very incomplete. There are numerous foliage-shoots among the fossils of the Coal-Measures which are no doubt Calamitean, but as they are nearly always found apart from the main branches and stems, it is generally impossible to do more than speak of them as probably the leaf-bearing branches of a Calamite. The familiar fossils known as Asterophyllites, and in recent years often referred to the genus Calamocladus, are no doubt Calamitean shoots; but they are usually found as isolated fragments, and it is seldom that we are able to refer them to definite forms of Calamites. Another common Coal-Measure genus, Annularia, is also Calamitean, and at least some of the species are no doubt leafy shoots of Calamites. Although it is generally accepted that the fossils referred to as Asterophyllites or Calamocladus are portions of Calamites, and not distinct plants, it is convenient, and indeed necessary, to retain such a term as Calamocladus as a means of recording foliage-shoots, which may possess both a botanical and a geological value.

Some of the Calamite casts, especially those referred to the subgenus Calamitina, are occasionally found with leaves attached to the nodes. In some stems the leaves are arranged in a close verticil, and each leaf has a narrow linear form and is traversed by a single median vein. Figures of Calamite stems with verticils of long and narrow leaves may be found in Lindley and Hutton[636], and in the writings of many other authors[637]. In the specimen shown in fig. 85 the leaves are preserved apart from the stem, but from their close association with a Calamite cast, and from the proofs afforded by other specimens, it is quite certain they formed part of a whorl of leaves attached to the node of a true Calamite, and a stem having that particular type known as Calamitina[638] (figs. 99, 100). It is probable that in some Calamites, and especially in younger shoots, the leaves had the form of narrow sheaths split up into linear segments. This question has already been referred to in dealing with certain Palaeozoic fossils referred to Equisetites[639].

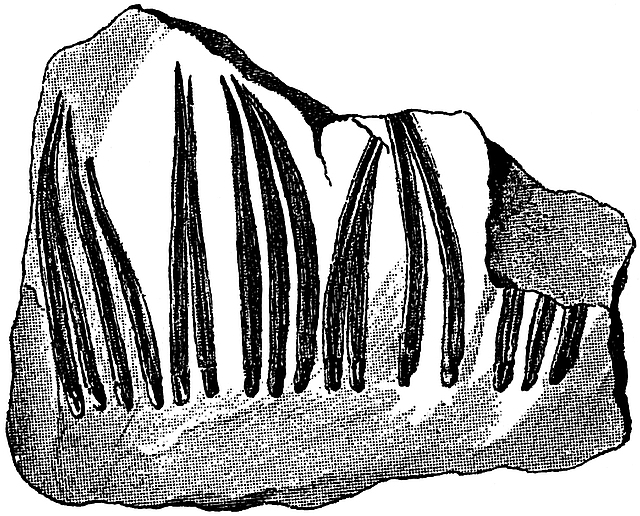

Fig. 85. Linear leaves of a Calamite (Calamitina). After Weiss, slightly reduced.

A few years ago the late Thomas Hick[640], of Manchester, described the structure of some leaves which he believed to be those of a Calamite. He found them attached to a slender axis which possessed the characteristics of a young Calamite branch. There can be little doubt that his specimens are true Calamite leaves. The sketches of fig. 86 have been made from the sections originally described by Hick. Fig. 86, 1 shows a leaf in transverse section; on the outside there is a well-defined epidermal layer with a limiting cuticle. Internal to this we have radially elongated parenchymatous cells forming a loose or spongy tissue, the cells being often separated by fairly large spaces (fig. 86, 5), especially in the region of the blunt lateral wings of the leaf. Some of these cells contain a single dark dot, which in all probability is the mineralised nucleus. These pallisade-like cells probably contained chlorophyll and constituted the assimilating tissue of the leaf. In the centre there is a circular strand of cells limited by a layer of larger cells with black contents, enclosing an inner group of small-celled parenchyma and traversed by a few spiral or scalariform tracheids constituting the single median vein. It is hardly possible to recognise any phloem elements in the small vascular bundle; there appear to be a few narrow tracheids surrounded by larger parenchymatous elements (fig. 86, 2). At one point in the epidermis of fig. 86, 1, there appears to be a stoma, but the details are not very clearly shown (fig. 86, 4); the two cells, s, s, bordering the small aperture are probably guard-cells.

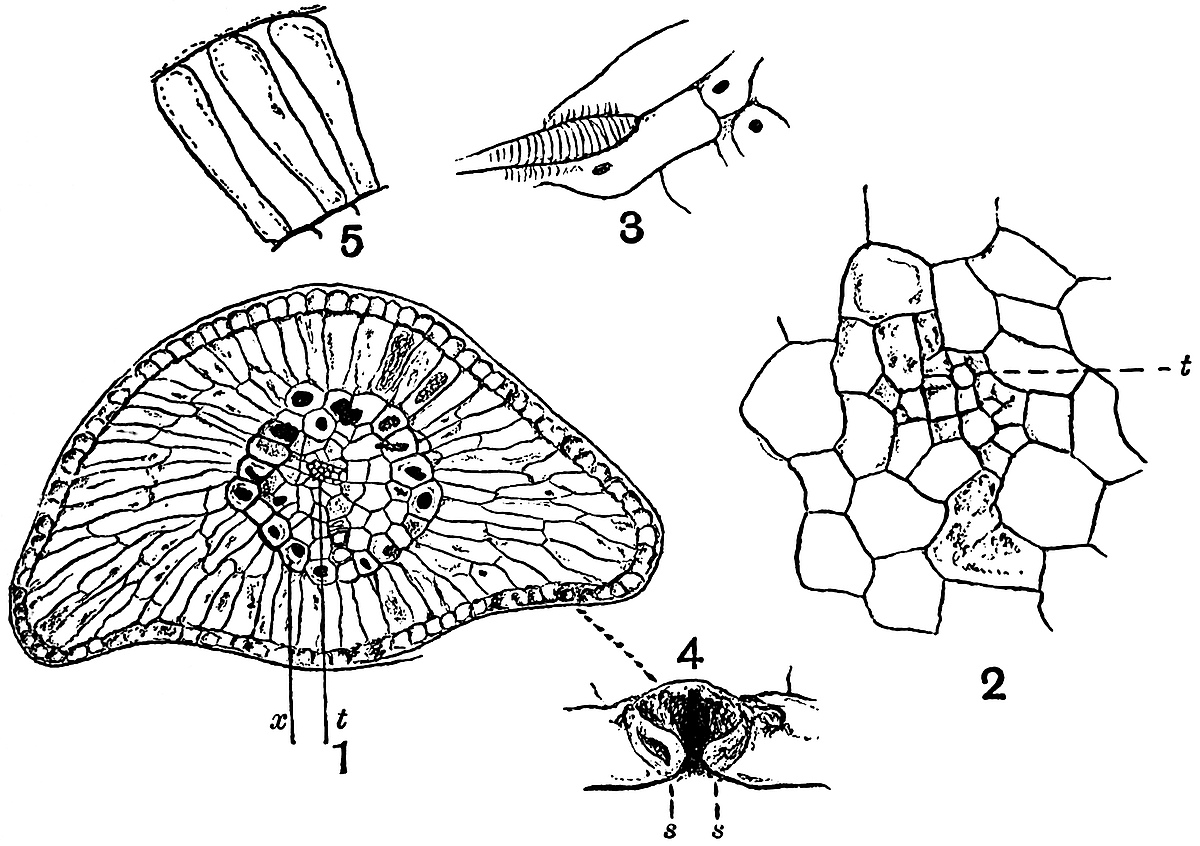

Fig. 86. A leaf of Calamites.

1. Transverse section; t, vascular bundle; x, sheath of cells. × 35.
2. Vascular bundle consisting of a few small tracheids, t.
3. A tracheid and a few parenchymatous cells, the latter with nuclei.
4. A stoma; s, s, guard-cells.
5. Pallisade cells and intercellular spaces.

From a section in the Manchester Museum, Owens College.

The nature of the assimilating tissue, the comparatively thick band of thin-walled cells with intercellular spaces, and the exposed position of the stomata suggest that the plant lived in a fairly damp climate; at least there is nothing to indicate any adaptation to a dry climate.

In the Binney collection of plants in the Woodwardian Museum, Cambridge, there is a species of a very small shoot bearing three or four verticils of leaves which possess the same structure as those of fig. 86. We may probably regard such twigs as the slender terminal branches of Calamitean shoots.

The generic name Asterophyllites was proposed by Brongniart[641] in 1822 for a fossil previously named by Schlotheim[642] Casuarinites, and afterwards transferred to Sternberg’s genus Annularia. In 1828 Brongniart[643] gave the following diagnosis of the fossils which he included under the genus Asterophyllites:—“Stems rarely simple, usually branched, with opposite branches, which are always disposed in the same plane; leaves flat, more or less linear, pointed, traversed by a simple median vein, free to the base.” Lindley and Hutton described examples of Brongniart’s genus as species of Hippurites[644], and other authors adopted different names for specimens afterwards referred to Asterophyllites.

At a later date Ettingshausen[645] and other writers expressed the view that the fossils which Brongniart regarded as a distinct genus were the foliage-shoots of Calamites, and Ettingshausen went so far as to include them in that genus. In view of the generally expressed opinion as to the Calamitean nature of Asterophyllites, Schimper[646] proposed the convenient generic name Calamocladus for “rami et ramuli foliosi” of Calamites. Some recent authors have adopted this genus, but others prefer to retain Asterophyllites. In a recent important monograph by Grand’Eury[647] Calamitean foliage-shoots are included under the two names, Asterophyllites and Calamocladus; the latter type of foliage-shoots he associates with the stems of the subgenus Calamodendron, and the former he connects with those Calamitean stems which belong to the subgenus Arthropitys.

It is an almost hopeless task to attempt to connect the various forms of foliage-shoots with their respective stems, and to determine what particular anatomical features characterised the plants bearing these various forms of shoots. We may adopt Schimper’s generic name Calamocladus in the same sense as Asterophyllites, but as including such other foliage-shoots as we have reason to believe belonged to Calamites. Those leaf-bearing branches which conform to the type known as Annularia are however not included in Calamocladus, as we cannot definitely assert that these foliage-shoots belong in all cases to Calamitean stems. Grand’Eury’s use of Calamocladus in a more restricted sense is inadvisable as leading to confusion, seeing that this name was originally defined in a more comprehensive manner as including Calamitean leaf-bearing branches generally. We may define Calamocladus as follows:—

Branched or simple articulated branches bearing whorls of uni-nerved linear leaves at the nodes; the leaves may be either free to the base or fused basally into a cup-like sheath (e.g. Grand’Eury’s Calamocladus). The several acicular linear leaves or segments which are given off from the nodes spread out radially in an open manner in all directions; they may be either almost at right angles to the axis or inclined at different angles. Each segment is traversed by a single vein and terminates in an acuminate apex.

As a typical example of a Calamitean foliage-shoot the species Calamocladus equisetiformis (Schloth.) may be briefly described. The synonymy of the commoner species of fossil plants is a constant source of confusion and difficulty; in order to illustrate the necessity of careful comparison of specimens and published illustrations, it may be helpful to quote a few synonyms of the species more particularly dealt with. The exhaustive lists drawn up by Kidston in his Catalogue of Palaeozoic plants in the British Museum will be found extremely useful by those concerned with a systematic study of the older plants.

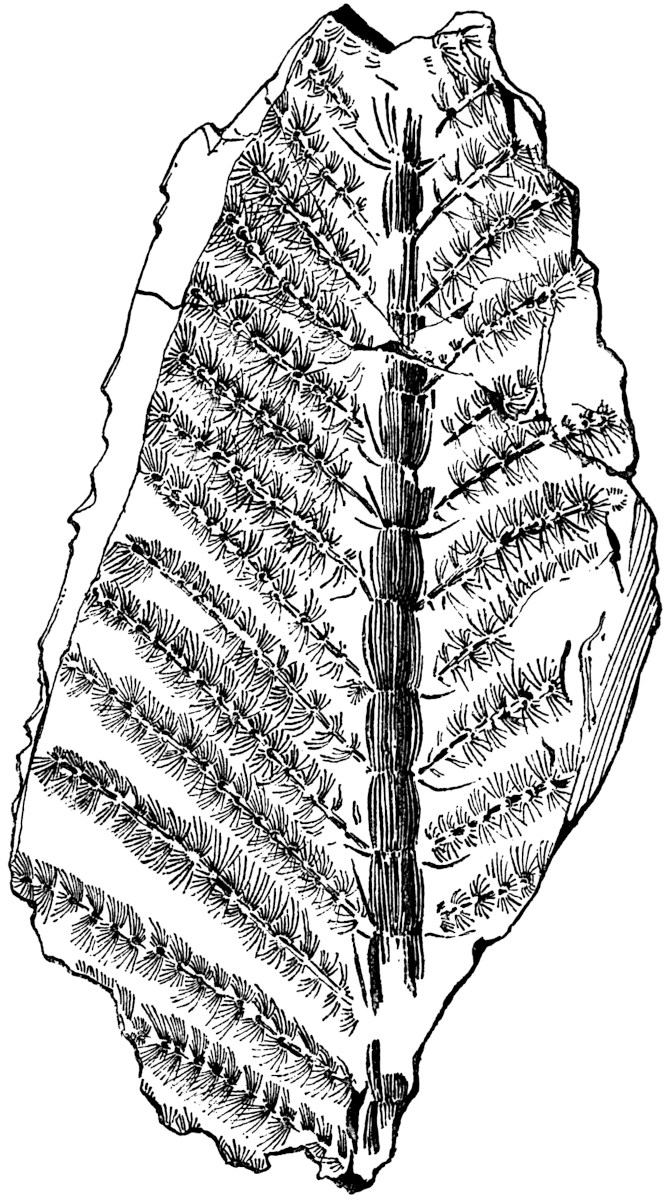

Fig. 87. Calamocladus equisetiformis (Schloth.).
From a specimen in the British Museum (McMurtrie Collection, no. V. 2963). ca. ⅓ nat. size.

The above synonyms do not exhaust the list[655], but they suffice to illustrate the necessity of a careful comparison in drawing up tables of species, in connection with geographical distribution or for other purposes.

Calamocladus equisetiformis may be briefly defined as follows:—A central axis possessing a hollow pith of Calamitean character, divided externally into well-marked slightly constricted nodes and internodes; from the nodes long narrow and free leaves are borne in whorls; from the axils of some of the leaves lateral branches are given off inclined at a fairly wide angle to the main axis, and bearing crowded verticils of spreading acicular leaves.

The unusually good specimen, 38·5 cm. long, shown on a much reduced scale in fig. 87, illustrates the characteristic habit of this form of Calamocladus. It is from the Radstock coal-field of Somersetshire, one of the best English localities for Coal-Measure plants. An exceedingly good collection of Radstock plants has recently been presented to the British Museum by Mr J. McMurtrie; it includes many fine specimens of Calamites. A small example—probably of this species—from Coalbrook Dale, near Dudley, in Shropshire, and now in the British Museum, illustrates very well the appearance of a young and partially expanded Calamitean foliage-shoot. The central axis, 6·5 cm. in length, includes about 15 internodes, and terminates in a bud covered by several small leaves. Lateral branches are given off at a wide angle, and small unexpanded buds occur in the axils of several of the leaves.

As an example of the leaf-bearing branches which Grand’Eury has recently described as Calamocladus, using the genus in a more restricted sense than is adopted in the present chapter, reference may be made to the fragment shown in fig. 68, A. The foliage-shoots of this type bore verticils of linear leaves, coherent basally in the form of a cup, at the ends of branches and not in a succession of whorls on each branch. The association of reproductive organs, in the form of long and narrow strobili, with Calamocladus is referred to in the sequel.

The specimens described by Grand’Eury are in the École des Mines Museum, Paris; some of the shoots which are well preserved bear a resemblance in habit of growth to the genus Archaeocalamites.

In 1820 this generic name was applied by Sternberg[656] to some specimens of branches bearing verticils of linear leaves. In 1828 Brongniart[657] thus defined the genus Annularia:—“Slender stem, articulated, with opposite branches arising above the leaves. Leaves verticillate, flat, frequently obtuse, traversed by a single vein, fused basally and of unequal length.”

In the works of earlier writers we find frequent illustrations of specimens of Annularia, which are compared with Asters and other recent flowering plants. Lehmann[658] contributed a paper to the Royal Academy of Berlin in 1756, in which he referred to certain fossil plants as probable examples of flowers, among them being a specimen of Annularia. He refers to the occurrence of fossil ferns and other plants, and asks why we do not find flowers of the rose or tulip; his object being “not to acquire vain glory, but to give occasion for others to look into the matter more clearly.”

The general habit of the fossils which are now included under Annularia agrees closely with that of Calamocladus. There is the same spreading form and a similar foliage in the two genera, but in Annularia the members of a whorl are always fused into a basal sheath, and the segments are not of equal length. We may thus summarise the characteristic features of the genus:—

Opposite branches are given off in one plane from the nodes of a main axis; the leaves are in the form of narrow sheaths divided into numerous and unequal linear or narrow lanceolate segments, each with a median vein. The segments in each whorl appear to be spread out in one plane very oblique to the axis of a branch, instead of spreading radially in all directions; the lateral segments are usually longer than the upper and lower members of a whorl. The vegetative branches possess the same type of structure as Calamites.

A comparison of Annularia and Phyllotheca has already been made in Chapter IX. (p. 282). Potonié[659] has recently given a detailed account of Annularian leaves; he compares them with those of Equisetum, and describes the occurrence on the lamina of each leaf-segment of a broad central band or midrib, with a groove, probably containing stomata, on either side. He shows that in well-preserved specimens of Annularia, it is possible to recognise certain minute surface-features, such as the presence of hairs and stomata, which enable one to detect a close resemblance between the leaves of Calamite stems and those of Annularian shoots.

It is not always easy to distinguish between Annularia and Calamocladus; the collar-like basal sheath in the leaves of the former is a characteristic feature, but that cannot always be recognised. On the other hand, the leaves of Calamocladus may sometimes be flattened out on the surface of the rock and simulate the deeply cut sheaths of Annularia. It is difficult to decide how far the manner of occurrence of Annularian leaves in one plane, which is commonly insisted on as a generic character, is an original feature, or how far it is the result of compression in fossilisation. Probably the leaves of a living Annularia were spread out at right angles to the axis, as in the ‘verticils’ of such a plant as Galium.

Dawson[660] has described some fossils from the Devonian rocks of Canada as species of Asterophyllites; the figures bear a closer resemblance to the genus Annularia. The same author figures some irregularly whorled impressions as Protannularia, which appear to be identical with a fossil described by Nicholson[661] from the Skiddaw slates (Ordovician) of Cumberland as Buthotrephis radiata, but the specimens are too imperfect to admit of accurate determination.

This species was figured by Scheuchzer[668] in his Herbarium Diluvianum, and compared by him with a species of Galium (Bedstraw). Brongniart first made use of the generic name Annularia for this common Coal-Measure species, which may be defined as follows:—

Stem reaching a diameter of about 6–8 cm., with internodes 6–12 cm. in length, the surface either smooth or faintly ribbed. Primary branches given off in opposite pairs from the nodes, the lateral branches giving off smaller branches disposed in the same manner. The smaller branches bear verticils of leaves at each node; both leaves and ultimate branches being in one plane. The leaves are narrow, lanceolate-spathulate in form, broadest about the middle, 1–5 cm. in length and 1–3 mm. broad, hairy on the upper surface[669]; each leaf is traversed by a single vein.

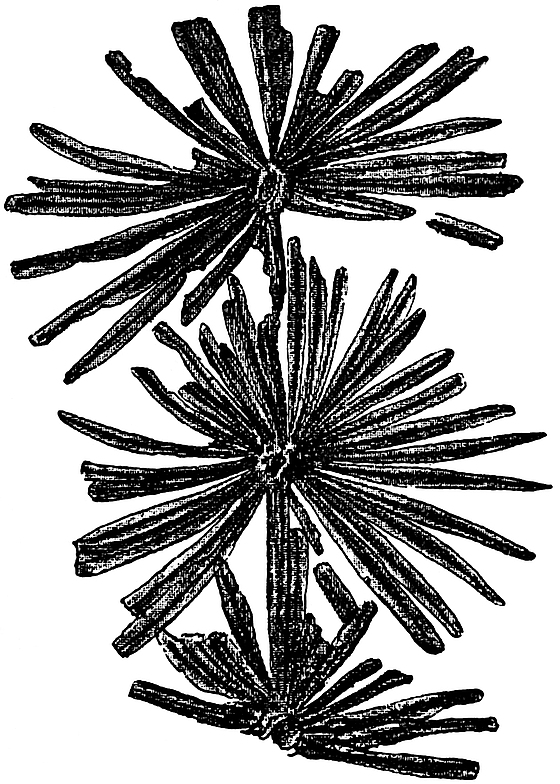

Fig. 88. Branch of Annularia stellata (Schloth.). ⅘ nat. size.
From a specimen in the Collection of Mr R. Kidston. Upper Coal-Measures, Radstock.

Each whorl contains 16–32 segments, which are connected basally into a collar or narrow sheath; the lateral segments are usually longer than the upper and lower. The branches are about 6–20 mm. broad, with finely ribbed internodes 3–7 cm. long, bearing verticils of leaves; the ultimate branches arise in pairs in the axils of the lateral segments of the verticils.

The strobili are of the Calamostachys[670] type and are borne on the main branches or possibly on the stem; they have a long and narrow form and are attached in verticils at the nodes. Each strobilus consists of a central axis bearing alternate whorls of linear lanceolate sterile bracts and sporangiophores, about half as numerous as the sterile bracts; each sporangiophore bears four ovoid sporangia.

The anatomical structure of a specimen referred to Annularia stellata has been described by Renault[671]. The cortex consists of parenchyma traversed by lacunae and limited peripherally by a denser hypodermal tissue. In the stele Renault describes 14 xylem strands, each with a large carinal canal. The pith was apparently large and hollow. The same author describes an Annularia strobilus in which the lower sporangiophores bear macrosporangia, and the upper microsporangia.

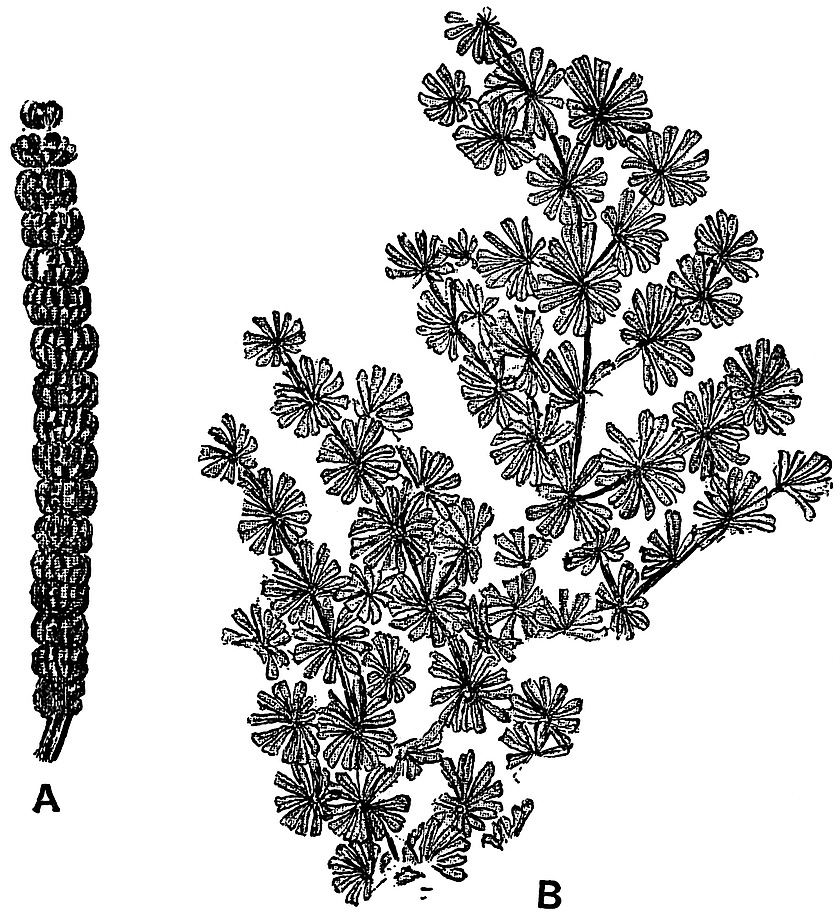

Fig. 89. Annularia sphenophylloides (Zenk.).
A. Strobilus (Stachannularia calathifera, Weiss). ⅔ nat. size. B. Vegetative shoot. ⅘ nat. size.
From specimens in the Collection of Mr R. Kidston. Upper Coal-Measures, Radstock.

The references in the footnote should be consulted for figures of this species of Annularia; it is from the examination of such specimens as are referred to in the note that the above diagnosis has been compiled[672].

Principal branches 8–12 mm. wide, with internodes 8–10 cm. in length, giving off two opposite branches at the nodes; from the secondary branches arise smaller branches in opposite pairs. The leaf-verticils and branches are all in one plane. Each verticil consists of 12–18 spathulate segments, 3–10 mm. long, cuneiform at the base and broader above, with an acuminate tip; the lateral segments are slightly longer than the upper and lower members of a whorl.

The small and crowded leaf-whorls give to this species a characteristic appearance, which readily distinguishes it from the larger-leaved forms such as Annularia stellata. A fossil figured by Lhwyd[676] in 1699 as Rubeola mineralis is no doubt an example of Annularia sphenophylloides.

Annularian branches are occasionally found with cones given off from the axils of some of the leaf-whorls. An interesting specimen, which is now in the Leipzig Museum, was described by Sterzel in 1882[677], showing cones attached to a vegetative shoot of Annularia sphenophylloides. The long and narrow strobili—2·5 cm. long and about 6 mm. broad—appear very large in proportion to the size of the vegetative branches. A fertile shoot consists of a central axis bearing whorls of bracts alternating with sporangiophores, to each of which are attached four sporangia. The specimen in fig. 89, A, does not show the details clearly; each transverse constriction represents the attachment of a whorl of linear bracts; the whole cone appears to consist of a series of short broad segments. The divisions in the lower half of each segment mark the position of the sterile bracts, while those of the upper half represent the outlines of the upper sporangia of each whorl of sporangiophores, the lower sporangia being hidden by the ring of linear bracts[678]. On some portions of the specimen of fig. 89, A, it is possible to recognise the outlines of cells on the coaly surface-film; these probably belong to the sporangium wall. This type of cone is included under the genus Calamostachys, a name applied to Calamitean strobili with certain morphological characters, as described on p. 351.

c. Roots.

In 1871 Williamson[679] described some sections of what he considered to be a distinct variety of a Calamite stem. The chief peculiarity which he noticed lay in the absence of carinal canals, and in the solid pith. Some years later the same observer[680] came to the conclusion that the specimens were probably those of a plant generically distinct from Calamites; he accordingly proposed a new name Astromyelon. Subsequently Cash and Hick[681] gave an account of some examples of apparently another form of plant, to which they gave the name Myriophylloides Williamsonis; and Williamson[682] suggested the term Helophyton as a more suitable generic designation. It was, however, demonstrated by Spencer[683] that the plant described by Cash and Hick was identical with Williamson’s Astromyelon. Williamson[684] then gave an account of several specimens of this type illustrating various stages in the growth and development of the Astromyelon ‘stems,’ which he compared with the rhizome of the recent genus Marsilia.

In 1885 Renault[685] published an account of Astromyelon in which he brought forward good evidence in favour of regarding it as a Calamitean root. The same author has recently given some excellent figures and a detailed description of certain specific types of these Calamite roots, and Williamson and Scott’s memoir on the roots of Calamites has rendered our knowledge of Astromyelon almost complete. Some of the finest specimens, in which the organic connection between typical Calamite stems and Astromyelon roots is clearly demonstrated, are in the Natural History Museum, Paris. There are several sections also from English material which show the connection between root and stem very clearly.

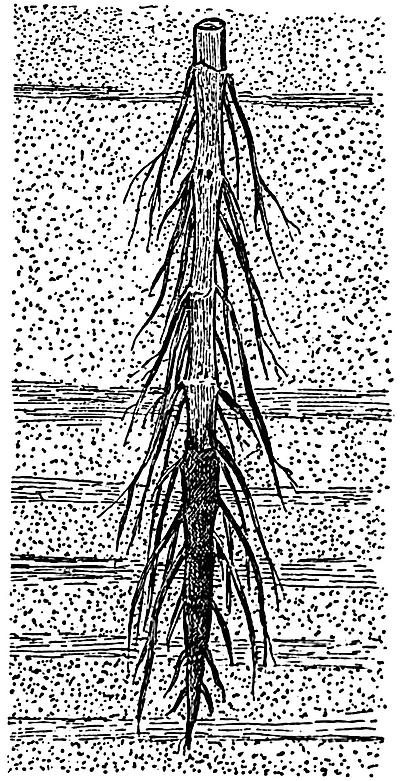

Fig. 90. Pith-cast of a Calamite stem, with roots; embedded in sandstone and shale. (After Grand’Eury.) Much reduced.

Casts of the hollow pith of Calamite rhizomes or aerial branches are occasionally found in which slender appendages are given off either singly or in tufts from the nodal regions. Many examples of such casts have been figured by Lindley and Hutton[686], Binney[687], Grand’Eury[688], Weiss[689], Stur, and other writers[690]. The large stem-cast of fig. 90 illustrates the manner of occurrence of long branched roots on the nodes of a Calamite growing in sandy or clay soil. The lower and more darkly shaded portion of the specimen is covered by a layer of coal representing the carbonised wood and cortex, which has been moulded on to the sandstone pith-cast. In fig. 77 (p. 316) a fairly thick root is seen, in organic connection with one of the nodes, N 3, and on N 2 there is a scar of another root.

There are certain external characters by which one may often recognise a Calamitean root. There is no division into nodes and internodes as in stems, and as the pith of the root was usually solid the parallel ribs and grooves of stem-casts are not present. In smaller flattened roots there may sometimes be seen a central or excentric black line representing the stele, and the surface of the root presents a curious wrinkled or shagreen texture, probably due to the shrinkage of the loose lacunar cortex. The occasional excentric position of the stele is no doubt due to the displacement of the vascular cylinder as a result of the rapid decay of the cortical tissues. In the Bergakademie of Berlin there are some unusually good examples of Calamite casts bearing well-preserved root-impressions; these include the original specimens figured by Weiss[691].

No doubt some of the roots figured by various writers under the names Pinnularia[692] and Hydatica[693] belong to Calamites, but it is often impossible to identify detached specimens with any certainty.

The section figured diagrammatically in fig. 91 A shows the characteristic single series of large lacunae, l, in the middle cortical region. In the centre there is a wide solid pith surrounded by a ring of vascular tissue, x. The appearance of the middle cortex is very like that of the stem of a water-plant such as Myriophyllum, the Water Milfoil; it shows that the Calamite roots grew either in water or swampy ground. In fig. 91 B, the root characters are clearly seen; the centre of the stele is occupied by large parenchymatous cells which are rather longer than broad in longitudinal view; at the periphery there are four protoxylem groups px, alternating with four groups of phloem, ph, the latter being situated a little further from the centre of the stele. The structure is therefore that of a typical tetrarch root. In the example represented in the figure secondary thickening has begun, and the cambial cells internal to each phloem group have given rise to a few radially disposed tracheids, x². Beyond the phloem there are two layers of parenchyma representing, as regards position, a pericycle and an endodermis. In the ordinary pericycle and endodermis of the roots of most plants the cells of the two layers are on alternate radii, but in the Calamite root, as in Equisetum roots, the cells of these layers are placed on the same radii, as seen in the neighbourhood of x² in the figure. This correspondence of the radial walls of the endodermal and pericyclic cells points to the development of both layers from one mother-layer, and suggests the ‘double endodermis’ or phloeoterma of Equisetum (p. 254). The cells in the outer of these two layers have slight thickenings on the radial walls recalling the usual character of endodermal cells. The phloeoterma is succeeded by a few layers of parenchyma, constituting the inner cortex, and beyond this we have the large lacunae separated from one another by slender trabeculae of cells. The outer cortex is limited by a well-defined layer of thick-walled cells, which may be spoken of as the epidermoidal[694] layer. Roots possessing this superficial layer of thicker cells have no doubt lost the original surface-layer which produced the absorptive root-hairs.

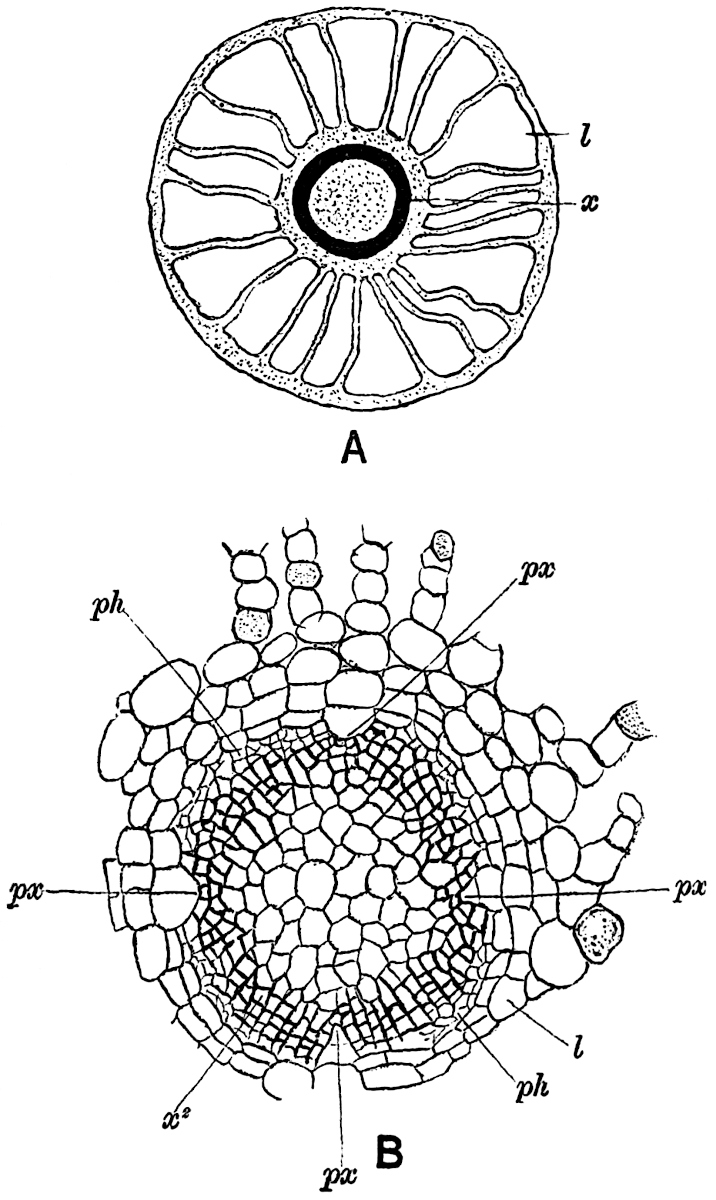

Fig. 91.

1. Diagrammatic sketch of a transverse section of a young root of Calamites. x, xylem; l, lacuna. After Hick.
2. Central cylinder (stele) of root, px, protoxylem; ph, phloem; x², secondary xylem; l, phloeoterma. × 75. After Williamson and Scott.

The xylem elements have the form of spiral, reticulate and scalariform tracheids.

In roots or rootlets smaller than that shown in fig. 91 B, the primary xylem may extend to the centre of the stele, and form a continuous axial strand; in such examples the structure may be diarch, triarch or tetrarch. The origin of the cambium agrees with that in recent roots, the cells immediately external to the protoxylem tracheids become meristematic, as also those internal to the phloem. Another root-character is seen in the endogenous origin of lateral members. Good examples of branching roots are figured by Williamson[695] and by Williamson and Scott[696].

Older roots[697] are usually found in a decorticated condition. A transverse section of root in which secondary thickening has been active for some time presents on a superficial view a close resemblance to a stem of Calamites, but a careful comparison at once reveals important points of difference. The specimen diagrammatically sketched in fig. 92 illustrates very clearly the origin of a root from the node of a Calamite stem. The section has passed through a stem in a tangential direction, showing the characteristic arrangement of the vascular bundles x, and principal medullary rays m. The small leaf-traces, t, t, afford another feature characteristic of a Calamite stem. The portion of stem to the right of the figure has been slightly displaced, and between this piece and the root R, one of the ubiquitous Stigmarian appendages, s, has inserted itself. At R a fairly thick and decorticated root is seen in oblique transverse section; at the upper end the root tracheids are seen in direct continuity with the xylem of the stem. In the centre of the root is the large solid pith surrounded by twelve bluntly pointed xylem groups, composed in the main of radially disposed scalariform elements with narrow secondary medullary rays like those in a stem. Between each xylem group there is a broad medullary ray, which tapers rapidly towards the outside, and is soon obliterated by the formation of interfascicular secondary xylem. At R′ a portion of another root is seen in transverse section, and R″ the inner part of a single xylem group is shown more clearly. The solid pith and the absence of carinal canals are the two most obvious distinguishing features of the roots.

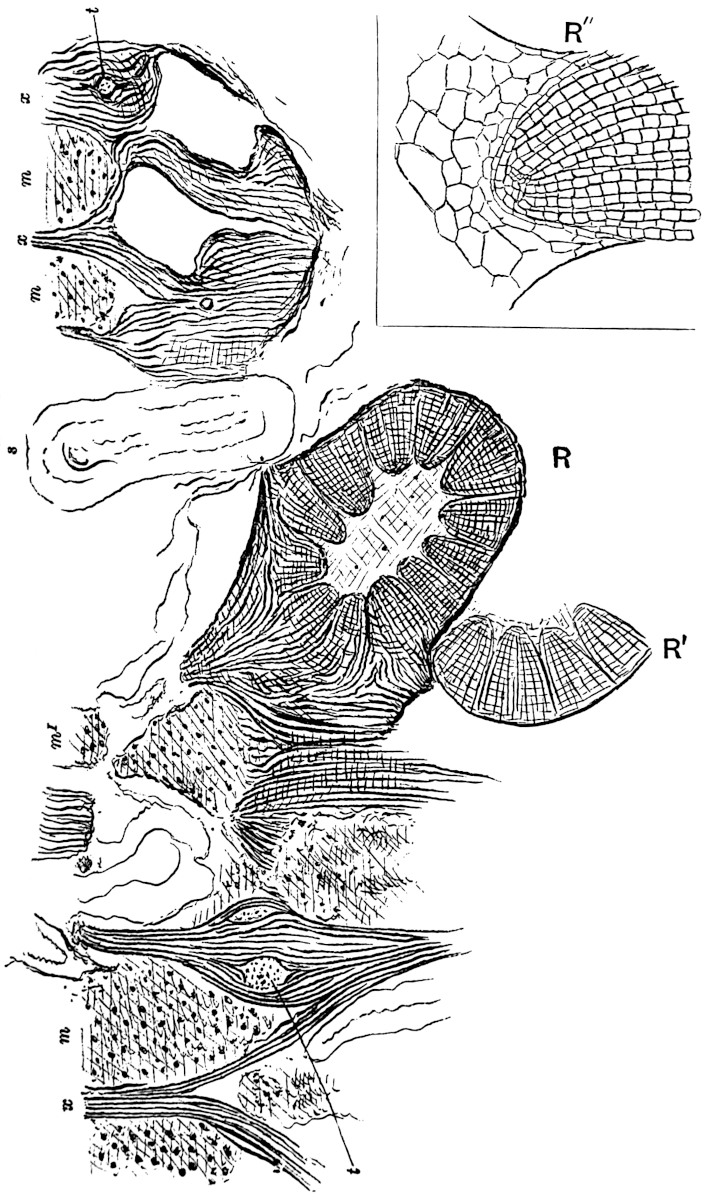

Fig. 92. Tangential section through a node of Calamites, showing a root in organic connection with the stem.
R, R′. Root (Astromyelon) in transverse and oblique section, x, xylem; m, primary medullary ray; t, leaf-trace; s, Stigmarian appendage.
R″, the inner portion of one of the xylem wedges of R′ more highly magnified. Sketched from a section in the Cambridge Botanical Laboratory Collection.

As Renault points out, roots of Calamites have been figured by some writers[698] as examples of stems, but it is usually comparatively easy to distinguish between roots and stems. On examining the xylem groups more closely, one notices that the apex of each is occupied by a triangular group of centripetally-developed primary tracheids, the narrow spiral protoxylem elements occupying the outwardly directed apex. The protoxylem apex is usually followed externally by a ray of one or two radially disposed series of parenchymatous cells. This ray is not distinguished in fig. 92 R″ from the rows of xylem tracheids. Each xylem group is thus formed partly of centripetal xylem and in part of secondary centrifugal xylem; the latter is associated with secondary medullary rays, as in stems, and contains a broader ray (fascicular ray of Williamson and Scott[699]) immediately opposite each protoxylem strand. In the roots of recent plants (e.g. Cucurbita, Phaseolus, &c.) a broad medullary ray is often found opposite the protoxylem, and such an arrangement is a perfectly normal structure in roots[700].

Renault has recently described several species of Calamite roots which he designates by specific names, some of them belonging to stems with the Arthropitys structure, and others to Calamodendron. Some of the roots figured by the French author have an axial strand of xylem with 7–15 projecting angles of protoxylem[701]. These he considers true roots, but the larger specimens with a wide pith he prefers to regard as stolons. In the latter he mentions the union of the primary centripetal with the secondary centrifugal wood as a distinguishing feature. It has been shown, however, that each group of secondary xylem includes a median ray of parenchyma, and that the whole structure is essentially that of a root, and not that of a modified stem or stolon. The organs described by Renault as true roots are probably rootlets, and as Williamson and Scott have demonstrated, there is every gradation between the smaller specimens with a solid xylem axis and those with a large central pith.

It is interesting to note that Renault’s figures of Calamodendron roots show the closest resemblance to those of the subgenus Arthropitys.

d. Cones.

The occurrence of fossil plants in the form of isolated fragments is a constant source of difficulty, and is well illustrated by the numerous examples of strobili which cannot be connected with their parent stems. We are, however, usually able to recognise Calamitean cones if the impressions or petrified specimens are fairly well preserved, but it is seldom possible to correlate particular types of cones with the corresponding species of foliage-shoots or stems. Palaeobotanical literature contains numerous illustrations and descriptions of long and narrow strobili designated by different generic terms such as Volkmannia, Brukmannia, Calamostachys, Macrostachya and others; many of these have since been recognised as the cones of Calamites, while some species of Volkmannia have been identified with Sphenophyllum stems. Before further considering the general question of Calamite cones, a few examples may be described in detail as types of fructification which are known to have been borne by Calamites. The examples selected are species of the two provisional genera Calamostachys and Palaeostachya.

The usual form of a Calamite cone is illustrated in fig. 93, which represents a fertile shoot bearing a few narrow linear leaves of the Calamocladus type; in the axils of some of these are borne the long strobili.

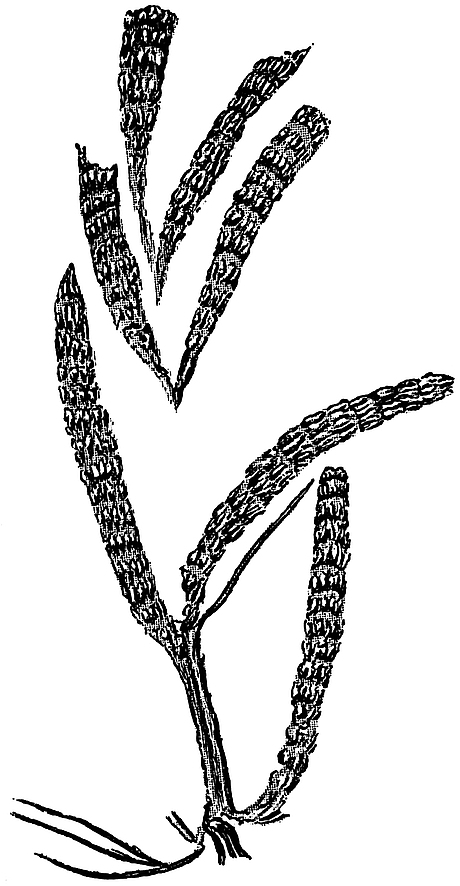

Fig. 93. Calamostachys sp. A fertile Calamitean shoot. From a specimen in the Geological Survey Museum, Jermyn Street, London. From the Upper Coal-Measures of Monmouthshire (No. 5539).

In 1867 Carruthers[702] gave an account of the structural features of the species of cones named by him Volkmannia Ludwigi and V. Binneyi, the generic term having been originally used by Sternberg[703] for some impressions of Carboniferous strobili. Brongniart[704] in 1849 referred to the various forms of Volkmannia as cones of Asterophyllitean branches, and the latter he regarded as the foliage-shoots of a Calamite stem. In 1868 Binney[705] published a description, with several illustrations, of the cones named by Carruthers Volkmannia Binneyi, and referred to them as the fructification of that type of Calamite stem spoken of in a previous section of this chapter (p. 311) as Calamites (Arthropitys) communis (Binney). This cone is now usually spoken of as Calamostachys Binneyana; the specific name Binneyana being suggested by Schimper[706] in 1869 as more euphonious than that proposed by Carruthers. In recent years our knowledge of both C. Binneyana and C. Ludwigi has been considerably extended. We shall confine our attention in the following account to the former species[707]. Some excellent figures of the latter species may be found in Weiss’ Memoir[708] on Calamarieae.

One of the largest examples of Calamostachys Binneyana so far recorded has a length of 3–4 cm. and a maximum diameter of about 7·5 mm. The axis of the cone bears whorls of sterile leaves or bracts at equal distances; the linear bracts of each whorl are coherent basally as a disc or plate of tissue attached at right angles to the central axis of the cone. The periphery of each of these discs divides up into twelve linear segments, which curve upwards in a direction more or less parallel to the strobilus axis, and at right angles to the coherent portion of each whorl. The manner of occurrence of the whorls is shown in fig. 94, which has been sketched from a large section in the Williamson collection. The segments of the successive sterile verticils alternate with one another, so that in the surface-view of a cone the long and narrow free bracts appear spirally disposed. Midway between these alternating sterile verticils there is a series of fertile appendages, also given off in regular whorls. Each fertile whorl consists of about half as many members as the segments of a sterile whorl, and the members of the several fertile whorls are superposed and not alternate. Each member has the form of a stalk or sporangiophore given off at right angles from the cone axis; this is expanded distally into a peltate disc bearing four sporangia attached to its inner face. In fig. 94 we can only see the basal portions of the sporangiophores, which are shown in the upper part of the sketch as pointed projections, Sp, from the cone axis. Each sporangiophore is traversed by a vascular strand which sends off a branch to the base of a sporangium (fig. 95, A, t).

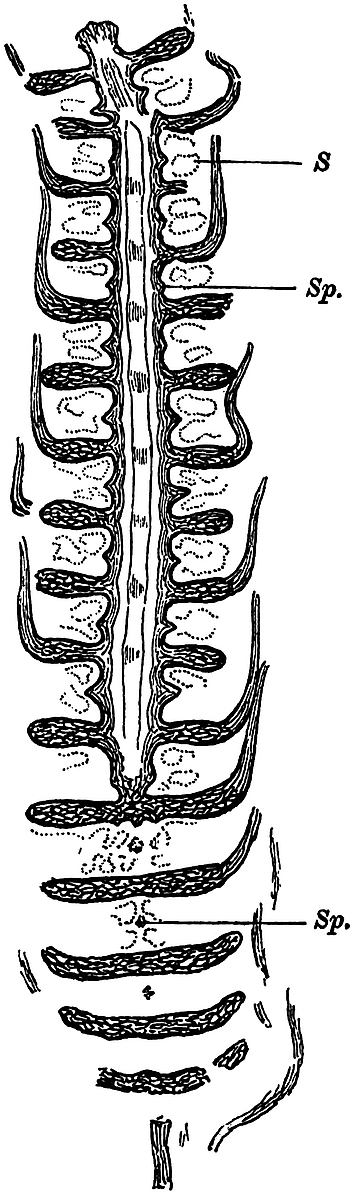

Fig. 94. Calamostachys Binneyana (Carr.) in longitudinal (radial and tangential) section.
Sp, sporangiophores; S, sporangia.
(From specimen no. 1022 in the Williamson Collection, British Museum.)

The axis of the cone is occupied by a single stele, usually triangular in section; the stele consists of a solid pith of elongated cells surrounded by six vascular bundles, two at each corner. A somewhat irregular gap marks the position of the protoxylem of each strand, and portions of spiral or annular tracheids may occasionally be seen in the cavity. These cavities, which may be spoken of as the carinal canals, disappear at the nodes, where there is a mass of short reticulately pitted tracheids, as in a Calamite stem. Vascular bundles pass upwards in an oblique direction from the central stele to supply the bracts, each of which is traversed by a single strand of tracheids. The coherent portion, or disc, of each sterile whorl consists of sclerenchymatous elements towards the upper surface, and of parenchyma below. The pedicel of the sporangiophores consists of fairly thick-walled cells traversed by a single vascular strand, and the peltate distal portions are made up of parenchymatous cells arranged in a palisade-like form at right angles to the free surface of the sporangiophores. The vascular strand of the pedicel forks into two halves just below the peltate head, and these branches again bifurcate to send a branch to each sporangium. The four sporangia of each sporangiophore are attached by a narrow band of tissue to the shield-shaped distal expansion (fig. 95, A).

In a tangential section of a cone, such as the lower portion of fig. 94 and in fig. 95, B, the sporangiophores present the appearance of narrow stalks (fig. 95, B, a) in the middle of a cluster of sporangia, and the latter appear more or less square in outline. The wall of a sporangium is made of a single layer of cells (fig. 95, B) which present a characteristic appearance in surface-view (fig. 95, C), the thin walls being crossed at right angles by small vertical plates. In the tangential section of the coherent sterile whorls (fig. 95, B, b and b) the vascular strands are occasionally seen in transverse section (fig. 95, B, t), as they pass outwards to the several free bracts.

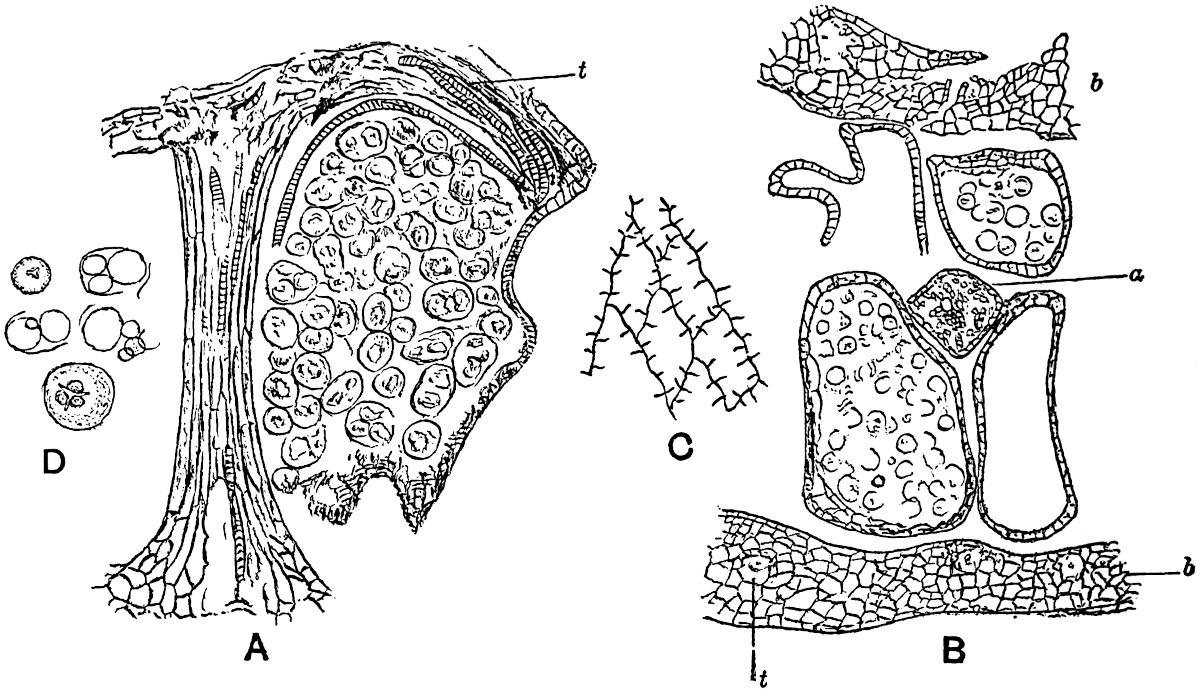

Fig. 95. Calamostachys Binneyana (Carr.).

1. A sporangiophore and one sporangium. t, vascular bundle. × 45.
2. Tangential section showing portions of two sterile discs, b, b; a sporangiophore, a, with its four sporangia, in two of which are seen the spores; t, vascular bundle. × 35.
3. Surface-view of cells of a sporangium wall. × 130.
4. Spores and remains of mother-cells. × 130.

(After Williamson and Scott.)

The spores in Calamostachys Binneyana are all of the same size, and no macrospores have ever been seen. In well preserved specimens tetrads of spores may be seen, still enclosed by the wall of the spore-mother-cell (fig. 95, A and D); and the torn remnants of the mother-cell sometimes simulate in appearance the elaters of an Equisetum spore. In surface-view a spore often shows clearly the three-rayed marking, which is a characteristic feature of daughter-cells formed in a tetrad from a mother-cell. The spores of a tetrad are in some cases of unequal size, some having developed more vigorously than others. This unequal growth and nourishment of spores is clearly shown in fig. 96, which represents a sporangium of a heterosporous Calamitean strobilus, C. Casheana. Williamson and Scott[709] have described striking examples of spores in different stages of abortion, and these authors draw attention to the importance of the phenomenon from the point of view of the origin of a heterosporous form of cone. The abortion of some of the members of a spore-tetrad and the consequent increased nutrition of the more favoured daughter-cells, might well be the starting-point of a process, which would ultimately lead to the production of well defined macrospores and microspores. The young microsporangia and macrosporangia of recent Vascular Cryptogams such as Selaginella, Salvinia and other heterosporous genera are identical in appearance[710]; it is not until the spore-producing tissue begins to differentiate into groups of spores, that the sporangia assume the form of macrosporangia and microsporangia. During the evolution of the various known types of pteridophytic plants heterospory gradually succeeded isospory, and this no doubt occurred several times and in different phyla of the plant kingdom. In the mature sporangia of some of the Calamitean strobili we have in the inequality of the spores in one sporangium an indication of the steps by which heterospory arose; and in the immature sporangia of some recent genera we are carried back to a stage still nearer the starting-point of the substitution of the heterosporous for the isosporous condition.

To Williamson[711] again is largely due the information we possess as to the structure of this type of Calamitean strobilus. Its special interest lies in the occurrence of macrospores and microspores in the same cone.

The strobilus axis agrees in structure with that of C. Binneyana, but in C. Casheana a band of secondary xylem forms the peripheral portion of the triangular stele. Were any further proof needed of the now well-established fact that secondary growth in thickness is by no means unknown as an attribute of Vascular Cryptogams, the co-existence in the same cone of a cambium layer producing secondary wood and bark, and cryptogamic macrospores and microspores, affords conclusive evidence[712]. The dogma accepted by many writers for a considerable number of years that the power of secondary thickening is evidence against a cryptogamic affinity, has been responsible for no little confusion in palaeobotanical nomenclature.

On the axis of Calamostachys Casheana there are borne alternate whorls of fertile and sterile appendages similar to those in the homosporous C. Binneyana, but they are inclined more obliquely to the axis of the cone. Macrospores and microspores have been found in sporangia borne on the same sporangiophore.

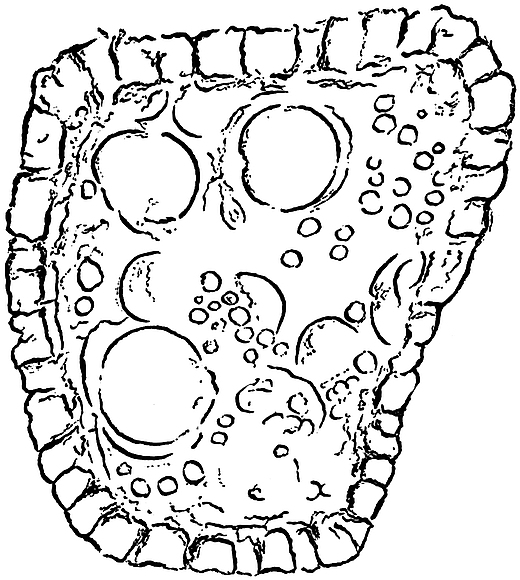

Fig. 96. Calamostachys Casheana Will.
A sporangium with macrospores and abortive spores. × 65.
(After Williamson and Scott.)

The spore-tetrads in the macrosporangia occasionally include aborted sister-cells like those noticed in C. Binneyana; this phenomenon is well illustrated by the unequally nourished spores in the sporangium of fig. 96, but no such starved spores have been found in the microsporangia. In this cone, then, heterospory has become firmly established, but the occurrence of undersized spores in a macrospore-tetrad leads us back to the probable lines of development of heterospory, which are seen in C. Binneyana at their starting-point.

In the two species of strobili which have been described, Calamostachys Binneyana and C. Casheana, the sporangiophores or sporophylls are given off at right angles to the axis, and midway between the sterile whorls. These are two of the most important distinguishing features of the Calamitean cones included under the generic term Calamostachys. In another form of cone, which also belongs to Calamitean stems, the sporangiophores arise in the axil of the sterile leaves, and are inclined obliquely to the axis of the cone. To this type the generic name Palaeostachya has been applied by the late Prof. Weiss[713] of Berlin. The portion of a cone shown in fig. 97 shows the arrangement of the sterile and fertile appendages characteristic of Palaeostachya.

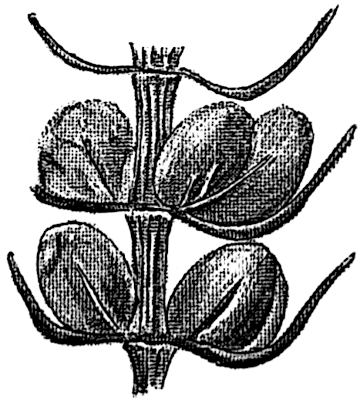

Fig. 97. Palaeostachya pedunculata Will. Part of a cone, × 3. (After Weiss.)

It is practically impossible to distinguish between cones of the Calamostachys and Palaeostachya type in the case of imperfectly preserved impressions; indeed we cannot assume that all long and narrow cones with spirally disposed verticillate bracts are Calamitean. We must have the additional evidence of internal structure or of the direct association of the cones with Calamitean foliage.

In 1869 Williamson[714] described a fragment of a strobilus which showed certain anatomical features indicative of a close relationship or even identity with Calamites. Some years later[715] a much more perfect example was obtained from the Coal-Measures of Lancashire, and the additional evidence which it afforded definitely confirmed the earlier views of Williamson. The cone was more fully described by Williamson in 1888, as “the true fruit of Calamites.” It is clearly a form of Weiss’ genus Palaeostachya; Williamson and Scott[716] refer to it in their Memoir as Calamites pedunculatus. It is preferable, however, to retain the generic designation Palaeostachya for cones of this type. As the name P. pedunculata has previously been adopted by Weiss[717] for a cone figured by Williamson[718] in 1874, and afterwards referred to by that author in writing as P. pedunculata, it is proposed to substitute the specific name vera; this specific name being chosen with a view to put on record the fact that it was this type of cone that Williamson first proved to be the true fructification of the Calamite.

The axis of P. vera is practically identical in structure with a Calamitean twig. There is a hollow pith in the centre of the stele surrounded by a ring of 16–20 collateral bundles, each of which is accompanied by a carinal canal as in a vegetative shoot. As the pedicel of the strobilus passes into the cone proper it undergoes some modification in structure, but retains the characteristic features of a Calamite. The diagrammatic longitudinal section of fig. 98, which is copied from a drawing by Williamson[719], shows the broadening of the vascular strands at the nodes, and here and there a carinal canal is seen internal to the wood.

The axis of the cone bears whorls of bracts at right angles to the central column. Each whorl consists of about 30–40 segments coherent basally into a disc of prosenchymatous and parenchymatous tissue. The free linear bracts curve sharply upwards from the periphery of the disc, approximately parallel to the axis of the cone. From each of these sterile whorls there are given off 16–20 long and slender obliquely-inclined sporangiophores, sp, which arise from the upper surface of the disc close to the axis. Each sporangiophore no doubt bore four sporangia, S, containing spores of one size,—about ·075 mm. in diameter. The specimens of Palaeostachya vera so far obtained do not show the actual manner of attachment of the sporangia, but more complete examples of other species of Palaeostachya[720] enable us to assume with certainty that the sporangiophores terminated in a distal peltate expansion bearing four sporangia on its inner face.

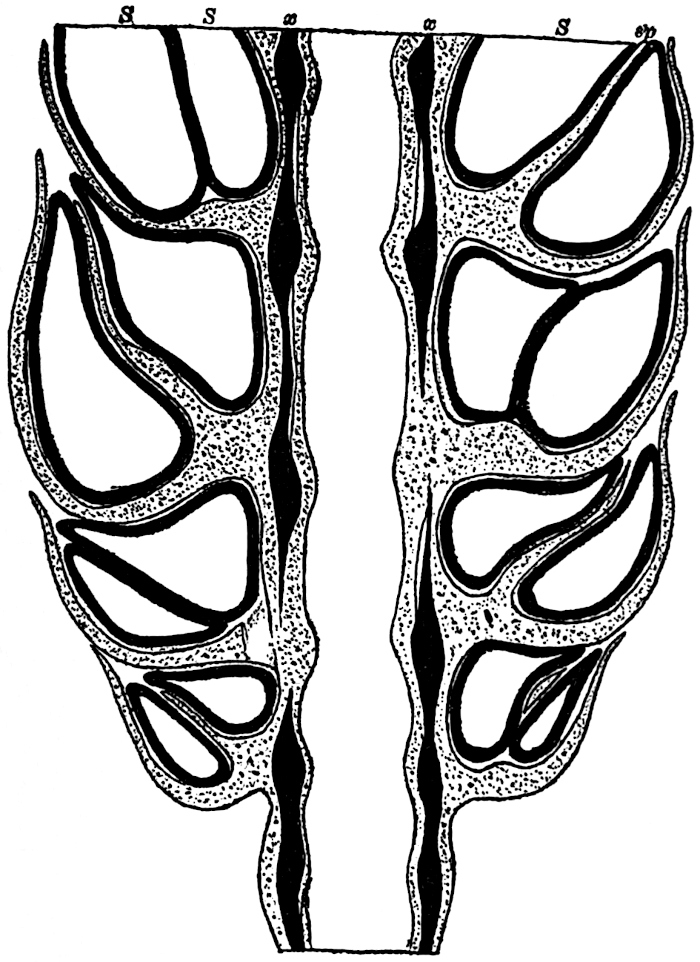

Fig. 98. Diagrammatic longitudinal section of Palaeostachya vera, sp. nov. S, S, S, sporangia; x, xylem; sp, sporangiophore. (After Williamson.)

A transverse section of the axis of the cone in the region of the sterile and fertile appendages shows the vascular bundles arranged in pairs. In a section through the peduncle of the cone, below the lowest whorl of bracts, the bundles of the stele are situated at equal distances apart. The cortical tissue of the peduncle is traversed by a ring of large canals[721] similar to the vallecular canals of an Equisetum stem.

Isospory is not a constant characteristic of Palaeostachya; some forms have been found with macrospores and microspores[722].

It would be out of place in an introduction to Palaeobotany to attempt an exhaustive account of the various cones which were probably borne by Calamitean plants, but there are a few general points to which the attention of the student should be directed. The examples dealt with in the foregoing description illustrate the fact, that plants included under the comprehensive genus Calamites bore cones possessing distinct morphological features. There are, however, other types of strobili which have been found in organic connection with Calamites; and some of these must be taken into account in dealing with Calamarian plants. The genera Volkmannia, Brukmannia, Huttonia, Macrostachya, in addition to Calamostachys and Palaeostachya and others, have been applied by different writers to Calamitean cones. As Solms-Laubach[723] has suggested, it is wiser to discard Volkmannia and Brukmannia, as they have been made to do duty for cones of widely different forms. It is better to adhere to the provisional generic names used by Weiss, as they enable us to conveniently systematise the various Calamarian strobili.

The following classification may be given of the better known cones, some of which we are able to describe in considerable detail, while others are still very imperfectly known. We have good evidence that all these strobili were borne by vegetative shoots of the type of Calamites, Calamocladus or Annularia.

Cones long and narrow, consisting of a central axis bearing alternate whorls of sterile and fertile appendages, the latter having the form of sporangiophores attached at right angles to the axis midway between the sterile verticils, and bearing four sporangia on the inner face of a peltate distal expansion.

Calamostachys Binneyana Schimp., C. Ludwigi Carr., C. Casheana Will., may be referred to as examples of this type of cone; also some of the strobili described by different authors as species of Volkmannia[725], Brukmannia[726], &c.

Although one cannot make out the detailed structure of a Calamite cone in the absence of internal structure, it is often possible to recognise the essential features in specimens preserved in ironstone nodules, such as those from Coalbrook Dale in Shropshire, or by carefully examining the carbonised impressions on shale under a simple microscope.

Weiss applies the term Paracalamostachys[727] to cones of the Calamostachys form, but in which the manner of attachment cannot be made out. Such a cone as that of fig. 93 should probably be referred to this sub-type of Calamostachys in the absence of definite evidence as to the position of the sporangia.

Another term Stachannularia, originally used by Weiss as a genus[728], was afterwards[729] applied to cones of the same general type as Calamostachys, in which the sporangiophores have the form of thorn-like structures bearing on their upper side a lamellar expansion. There is however some doubt as to the correct interpretation of the features associated with cones included in Stachannularia; for an account of such forms reference must be made to the writings of Weiss, Renault[730], Solms-Laubach[731] and others[732].

Calamostachys cones have been found in organic union with branches bearing leaves of the Annularia type, also with Calamocladus foliage, and the branches bearing such cones have been found in actual connection with Calamitean stems. The association of cones and vegetative stems and branches is shown in tabular form on p. 363.

In this genus the general habit agrees with that of Calamostachys, and in imperfectly preserved specimens it may be impossible to discriminate between Calamostachys and Palaeostachya. The latter form is characterised by the attachment of the sporangiophores in the axil of the sterile bracts, or immediately above them, as shown in figs. 97 and 98.

Examples. Palaeostachya vera sp. nov., P. pedunculata Will. afford examples of this form of strobilus. The genus Palaeostachya includes several species previously described under the genus Volkmannia[734].

Strobili of this generic type are known in organic association with Annularian branches, as well as with Calamocladus and Calamites.

This generic name was originally applied by Schimper[735] to certain forms of Calamitean stems, of the type afterwards referred to the sub-genus Calamitina by Weiss, bearing long and thick cones. The name is, however, more appropriately restricted to strobili, which differ from the two preceding genera in their greater length (14–16 cm.) and in the more crowded and imbricating whorls of bracts. The internodes of the cones are very short, and each whorl of bracts consists of about 20 coherent members separated at the periphery of the disc into short pointed teeth. The internal structure of Macrostachya has not been satisfactorily determined. An account by Renault[736] of a petrified specimen does not present a very clear idea as to the structural features of this form of Calamitean strobilus.

The generic name Huttonia, suggested by Sternberg[747] in 1837, is applied to cones which closely resemble Macrostachya in habit, but differ—so far as our scanty knowledge enables us to judge—in the arrangement of the members. The student must refer to Weiss[748], Solms-Laubach[749] and other writers[750] for a further account of these types, and of another rare and little-known form of cone, called by Weiss Cingularia[751].

Macrostachyan cones have been found attached to stems of Calamites which are included in the sub-genus Calamitina (p. 367). The larger size of Macrostachya as a distinguishing feature is not always a safe test; some cones which belong to Palaeostachya [e.g. P. arborescens Sternb.] and Calamostachys (e.g. C. Solmsi) are much thicker and larger than the majority of species of these two genera.

It would appear from the examples selected to illustrate the connection between strobili and vegetative shoots, that the Annularia type of branch usually bears cones which conform to the genus Calamostachys (Stachannularia); while the Asterophyllitean branches—Calamocladus—are associated with Palaeostachya and Macrostachya. But this rule is not constant, and we are not in a position to speak of cones of a particular type as necessarily characteristic of definite types of Calamitean shoots.

Although it is admitted by the great majority of Palaeobotanists that the Calamites were all true Vascular Cryptogams, the older view that some members of the Calamarieae are gymnospermous has not been given up by Renault[752]. This observer has recently described some seeds which he believes were borne by Calamitean stems; he admits, however, that no undoubted female cones of Calamodendron have so far been found. In view of the unsatisfactory evidence on which Renault’s opinion is based, we need not further discuss the questions which he raises.

[The following specimens in the Williamson Cabinet in the British Museum, may be found useful in illustration of the structure of Calamites.

Stems. (i. Arthropitys.) Young twigs and small branches 1, 2, 6, 10, 14, 19, 116*, 1002, 1007, 1020.

Older stems (transverse sections) 15–17, 62, 77–87, 115 a, 117*, 118*, 120, 122*–124*, 1933 A, 1934, 1941.

(Tangential sections) 20, 24, 26, 37, 38, 49, 90, 91, 130, 138, 1937, 1943.

(Radial sections) 20, 20 A, 21, 22, 48, 65–68, 83–91, 137*, 138*, 1937.

(ii. Arthrodendron) 36, 37, 38, 52, 54.

Roots. 1335, 1347, 1350, 1356.

Strobili. i. Calamostachys Binneyana. 991, 996, 997, 1000, 1003, 1005, 1007, 1008, 1011, 1013, 1016, 1017, 1022, 1023, 1037 A, 1043.

ii. C. Casheana. 1024, 1025, 1587, 1588.

iii. Palaeostachya vera. 110, 1564, 1567, 1569, 1579, 1583.]

III. Pith-casts of Calamites.

Palaeobotanical literature contains a large number of species of Calamites founded on pith-casts alone. Many of these so-called species are of little or no value botanically, but while we may admit the futility of attempting to recognise specific types in the same sense as in the determination of recent plants, it is necessary to pay attention to such characters as are likely to prove of value for descriptive and comparative purposes. From the nature of the specimens it is clear that many of the differences may be such as are likely to be met with in different branches of the same species, while in others the pith-casts of distinct species or genera may be almost identical.

The most striking differences observable in Calamite casts are in the character of the internodes, the infranodal canals, the number and disposition of branch-scars, and other surface features. Occasionally it is possible to recognise certain anatomical characters in the coaly layer which often surrounds a shale- or sandstone-cast, and the surface of a well preserved cast may give a clue to the nature of the wood in the faint outlines of cells which can sometimes be detected on the cast itself[753]. The breadth of the carbonaceous envelope on a cast has been frequently relied on by some writers as an important character. It has been suggested[754] that we may arrive at the original thickness of the wood of a stem by measuring the coaly layer and multiplying the breadth by 27; the explanation being that a zone of wood 27 mm. in thickness is reduced in the process of carbonisation to a layer 1 mm. thick.

The breadth of the coal on the same form of cast may vary considerably; on this account, and for various other reasons, such a character can have but little value. Our knowledge of anatomy may often help us to interpret certain features of internal casts and to appreciate apparently unimportant details. One occasionally notices that a Calamite pith-cast has large infranodal canals, and in some specimens each internodal ridge may be traversed by a narrow median line or small groove; large infranodal canal casts suggest the type of stem referred to the subgenus Arthrodendron, and the median line on the ridges may be due to bands of hard tissue in each principal medullary ray.

In attempting to identify pith-casts the student must keep in view the probable differences presented by the branching rhizome, the main aerial branches and the finer shoots of the same individual. The long internodal ridges of some casts may be mistaken for the parallel veins of such a leaf as Cordaites, a Palaeozoic Gymnosperm, if there are no nodes visible on the specimen. The fossil figured by Lindley and Hutton[755] as Poacites, and regarded by them as a Monocotyledon, is no doubt a portion of a Calamite with very long internodes. An interesting example of incorrect determination has recently been pointed out by Nathorst[756] in the case of certain casts from Bear Island, originally described by Heer as examples of Calamites; the vertical rows of leaf-trace casts on a Knorria were mistaken for the ribs of a Calamite stem. The specimens in the Stockholm Museum fully bear out Nathorst’s interpretation. The undulating course of internodal ridges and grooves is not in itself a character of specific value. If a Calamite stem were bent slightly, the wood and medullary-ray tissues on the concave side might adapt themselves to the shortening of the stem by becoming more or less folded, and a cast of such a stem would show undulating ridges and grooves on one side and straight ones on the other[757].

A convenient classification of Calamite casts was proposed by Weiss in 1884, founded chiefly on the number and manner of occurrence of branch-scars—or rather branch-depressions—on the surface of pith-casts. Weiss[758] recognised the imperfection of his proposed grouping, and Zeiller[759] has also expressed reasonable doubts as to the scientific value of such group-characters. Weiss instituted three subgenera—Calamitina, Eucalamites and Stylocalamites, which are made use of as convenient terms in descriptive treatment of Calamite casts. The following account of a few of the more typical casts may serve to illustrate the methods employed in the description of such specimens; the synonomy given for the different species is not intended to be complete, but it is added with a view to drawing attention to the necessity for careful comparison in systematic work.

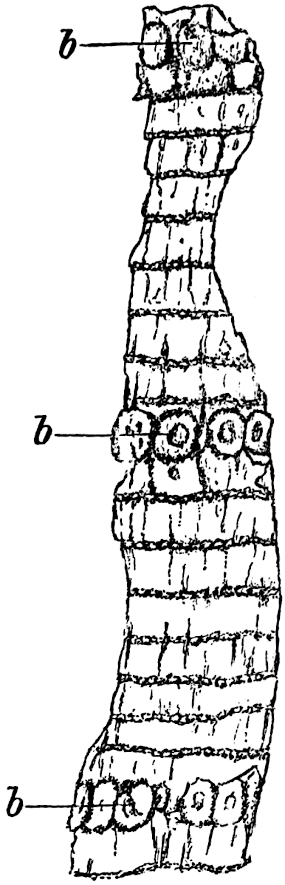

Fig. 99. Calamites (Calamitina) Göpperti (Ett.). b, branch scars.
From a specimen in the Manchester Museum, Owens College. ¼ nat. size.

This sub-genus of Calamites, as instituted by Weiss[760], includes Calamitean stems or branches, which are characterised by the periodic occurrence of branch-whorls usually represented by fairly large oval or circular scars just above a nodal line (figs. 99, 100 and 101). The branch-scars may form a row of contiguous discs, or a whorl may consist of a smaller number of branches which are not in contact basally. A form described by Weiss as C. pauciramis, Weiss[761], has only one branch in each whorl, as represented by a single large oval scar on some of the nodes of the cast. A stem of this form is by no means a typical Calamitina, but it serves to show the existence of forms connecting Weiss’ sub-genera Calamitina and Eucalamites. The number of internodes and nodes between the branch whorls varies in different specimens, and is indeed not constant in the same plant. Each nodal line bears numerous elliptical scars which mark the points of attachment of leaves; each branch-whorl is situated immediately above a node, and in some forms this nodal line pursues a somewhat irregular course across the stem, following the outlines of the several branch-scars[762]. The surface of the internodes is either perfectly smooth or it is more frequently traversed by short longitudinal ridges or grooves probably representing fissures in the bark of the living stem; these are indicated by lines in fig. 99 and by elongated elliptical ridges in fig. 101. On young stems the leaves are occasionally found in place, as for example in an example figured by Weiss[763] (C. Göpperti), or we may have leaf-verticils still in place in much older and thicker branches[764] (cf. fig. 85, p. 330).

It occasionally happens that the bark of Calamitina stems has been preserved as a detached shell[765] reminding one of the sheets of Birch bark often met with in forests, the separation being no doubt due in the fossil as in the recent trees to the manner of occurrence of the cork-cambium.

In a few cases branches have been preserved still attached to a stem or branch of higher order; examples of such specimens are figured by Lindley and Hutton[766], Stur[767], and others. Grand’Eury[768] has given an idealised drawing of a typical Calamitina bearing a whorl of branches with the foliage and habit of Asterophyllites equisetiformis. The specimen on which this drawing is based is in the Natural History Museum, Paris; it shows Asterophyllitean branches in organic connection with a Calamitean stem, but it is not quite clear if the stem is a true Calamitina. A large drawing of this interesting specimen is given by Stur[769] in his monograph on Calamites, also a smaller sketch by Renault[770] in his Cours de botanique fossile. Similar branches of the Asterophyllites type attached to an undoubted Calamitina are figured also by Lindley and Hutton. There is, in short, good evidence that stems of this sub-genus bore branches with Asterophyllitean shoots.

The wood of stems of the Calamitina group of Calamites, in some instances at least, was of the Arthropitys type; this has been shown to be the case in some French specimens from the Commentry coal-field[771] and in others described by Stur[772]. The pith-casts of Calamitina are characterised by comparatively short internodes separated by deep nodal constrictions, as shown in fig. 100. From Permian specimens from Neu Paka in Bohemia, described by Stur[773], we learn that there were the usual Calamite diaphragms bridging across the wide pith-cavity at each node. Such a cast as that shown in fig. 100 is often referred to as Calamites approximatus Brongn.; the length of the internodes and the periodic occurrence of branch-scars in the form of circular or oval depressions along a nodal line enable us to recognise the Calamitina casts. Weiss[774] points out that in pith-casts of this form the branch-scars occur on the nodal constriction, and not immediately above the node as is the case on the surface of a typical Calamitina. This distinction is however of little or no value; the point of attachment of a branch may be above the nodal line, while on the pith-cast of the same stem the point of origin of the vascular bundles of the branch is on the nodal constriction[775].

The specimen shown in fig. 100 illustrates the appearance of a Calamitina cast. There is a verticil of branch-scars on the lowest nodal constriction; on the right of the pith-cast the broad band of wood is faintly indicated by the smooth surface of the rock (x). Other examples demonstrating the existence of a broad woody cylinder in Calamitina stems have been figured by Weiss[776] and other writers, and some good examples may be seen in the British Museum.

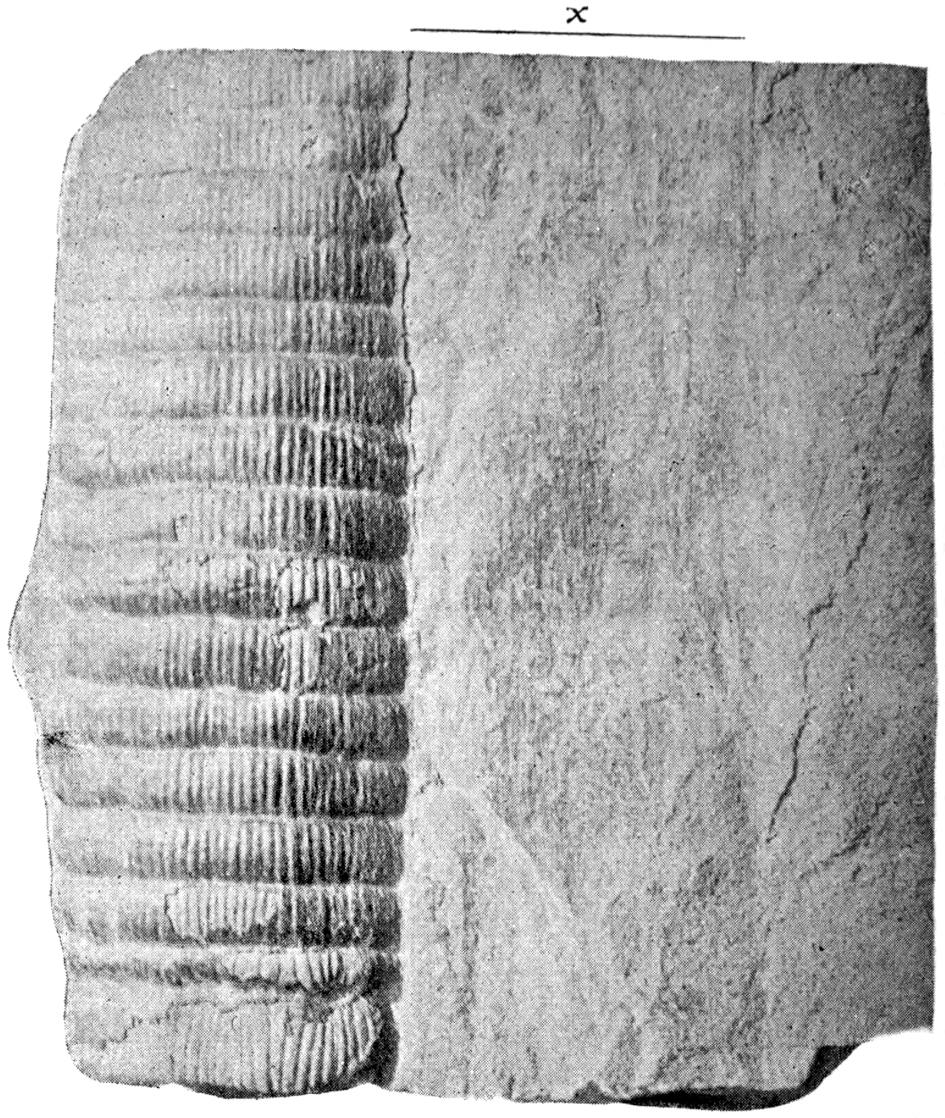

Fig. 100. Calamites (Calamitina) approximatus Brongn. Lower Coal-Measures of Ayrshire.
x, impression of the wood.

(From a specimen in the collection of Mr R. Kidston.)

We have so far noticed the connection of certain forms of pith-casts (e.g. Calamites approximatus), and Asterophyllitean shoots with stems of the sub-genus Calamitina.

As regards the strobili our knowledge is far from satisfactory. Stur[777] figures some fertile branches bearing long and narrow strobili, either Palaeostachya or Calamostachys, in close association with Calamitina stems, and Renault and Zeiller[778] give illustrations of the association of Calamitina stems with large strobili of the Macrostachya form.

Before Weiss proposed the term Calamitina, various authors had figured this form of Calamite under a distinct generic name (e.g. Hippurites of Lindley and Hutton[779], Cyclocladia[780], Macrostachya[781], &c.). Stems of this type have also been described by more recent writers under different names, and considerable confusion has been caused by the use of numerous generic designations for forms of Calamitina. Some small fragments of Calamitina stems were described by Salter[782] in 1863 as portions of a new species of the Crustacean Eurypterus (E. mammatus). In 1869 Grand’Eury proposed the generic name Calamophyllites[783] for stems bearing verticils of Asterophyllites shoots; his description of such stems agrees with Weiss’ Calamitina, but as Grand’Eury’s name is used in a narrower sense as implying a connection with Asterophyllites, it is more convenient to adopt Weiss’ term in spite of the priority of Calamophyllites. In the Fossil flora of Commentry we find some flattened stems of the Calamitina type described under different generic names, as Arthropitys approximatus[784] and as Macrostachya[785].

The determination of distinct species of the sub-genus Calamitina is rendered almost hopeless by the variation in the different branches of the same individual, and by the difficulty of connecting surface-impressions with casts of the pith-cavity.

A typical example of the Calamitina type of Calamites was figured by Sternberg[786] in 1821 as Calamites varians. This has been adopted by Weiss[787] as a comprehensive species including several different ‘forms’ of stems, which differ from Sternberg’s fossil in such points as the number of nodes between the branch-whorls and the number of branches in each whorl. The result of this system of nomenclature is the separation of portions of one specific type under different form-names. It must be clearly recognised that accurate specific diagnoses are practically impossible when we have to deal with fragments of plants, some of which are mere pith-casts, while others show the surface features. The specimen represented in fig. 99 agrees with a stem described by Ettingshausen[788] in 1855 as Calamites Göpperti, and as a matter of convenience a member of the Calamitina group showing such characters may be referred to as Calamites (Calamitina) Göpperti (Ett.). The following list, which includes a few synonyms of this form, may suffice to illustrate the difficulties connected with accurate systematic determinations.

This species is characterised by the smooth bark, which may be traversed by a few irregular longitudinal fissures; most of the nodes bear a series of small leaf-scars, and at fairly regular intervals a node is immediately succeeded by a circle of contiguous branch-scars, 8–12 in a whorl. The pith-cast of this type of stem has short ribbed internodes separated by rather deep nodal constrictions; the branch-whorls being represented by a series of pits on the nodal constrictions recurring at corresponding intervals to the whorls of branch-scars on the surface of the stem. Leaves narrow and linear in form, like those on Asterophyllitean branches, are occasionally associated with this type of stem.

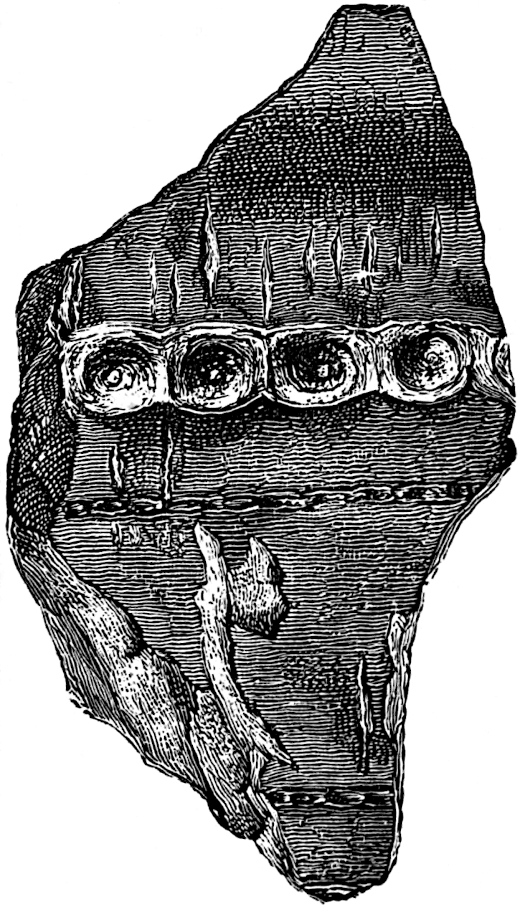

Fig. 101. Calamites (Calamitina) sp. From a specimen in the British Museum. (After Carruthers.) Slightly reduced.

The fragment of a Calamitina stem shown in fig. 101 is the counterpart of a specimen originally figured by Steinhauer[798] in 1818 as a species of Phytolithus. This may be specifically identical with C. Göpperti; but it is better to speak of so small a specimen as merely one of the Calamitina stems, to be compared with Calamites (Calamitina) Göpperti. The specimen measures 14·5 cm. in length and 7 cm. in breadth.

The form of pith-cast represented in fig. 100 is no doubt that of one of the Calamitina species, but as it is seldom possible to determine the connection between such casts and the particular species of stems to which they belong, they are often referred to as Calamites (Calamitina) approximatus (Brongn.). The specimen of which fig. 100 is a photograph was originally described and figured by Mr Kidston[799] from the lower Coal-Measures of Ayrshire. Both Calamites (Calamitina) Göpperti (Ett.) and C. (Calamitina) approximatus (Brongn.) are recorded from the Transition, Middle and Lower Coal-Measures[800].

In the members of this sub-genus the branch-scars are either irregular in their occurrence or absent. In some Calamites the branch-scars are very few and far between, and other species appear to have been almost without branches; pith-casts of such stems may be referred to the sub-genus Stylocalamites[801].

An exceedingly common Calamitean cast, C. Suckowi Brongn. (fig. 82) affords a good illustration of this type of stem. In the specimen shown in fig. 82 we have a cast of a rhizome, which is rather exceptional in showing three branches in connection with one another. The appearance of the fossil suggests a rhizome, rather than an aerial shoot, bearing lateral branches; the narrowing of the branches and the rapid decrease in the length of the internodes towards the point of attachment being features associated with rhizomes rather than with aerial branches.

For more complete lists of synonyms of this species reference should be made to Kidston[806], Zeiller[807], and other authors.

Casts of Calamites Suckowi are characterised by flat or slightly convex internodal ridges separated by shallow depressions, the ridges are rounded at the upper end of each internode, and usually bear circular casts of infranodal canals. There are some unusually large examples of casts of this species in the British Museum from the Radstock Coal-Measures; one of these has a length of 81 cm., and a diameter of 27 cm. Specimens are not infrequently found with verticils of slender roots in close proximity to the nodes of the cast; figures of such root-bearing casts have been given by Lindley and Hutton[808], Weiss[809], and other authors.

Renault[810] has drawn attention to the thinness of the layer of wood which is often associated with large casts of C. Suckowi; he concludes that the stems must have possessed little or no secondary wood. In a more recent work by Grand’Eury[811] Calamites Suckowi is spoken of as having had wood of the Calamodendron type, but as wood of this kind has not been found in England, it is suggested that the plant may not have assumed an arborescent habit until late in the Coal-Measure period. During the Lower and Middle Coal-Measures, at which horizon it commonly occurs in England, it may have been herbaceous. This suggestion has little to commend it; the close agreement between C. Suckowi from English and French localities points to a plant of the same form, and we have no satisfactory evidence as to any difference in stem-structure in the two cases.

Stur has figured a specimen of a Calamite cast, which he compares with C. Suckowi, surrounded by a band of silicified wood apparently of the Arthropitys type. From this and other facts it would appear probable that some of the English stems with the Arthropitys structure possessed casts referable to Calamites (Stylocalamites) Suckowi.

We are not in a position to speak with confidence as to the strobili of C. Suckowi, but Stur adduces evidence in support of a connection between this species of Calamite and certain Asterophyllitean branches (Calamocladus equisetiformis) bearing Calamostachyan cones. He does not appear to have found the foliage-shoots and stems in organic contact, but draws this conclusion from the association of the fertile branches and stems in the same rocks[812]. This species is abundant in the Lower, Middle and Upper Coal-Measures; it has also been recorded from the Millstone Grit[813].

In this sub-genus branch-scars occur on every node; the scars never form a contiguous whorl as in Calamitina, but there may be from 3 to 10 on each node. The scars of successive nodes often alternate in position, and thus form more or less regular vertical series as shown in fig. 102. The most obvious feature as regards the arrangement of the branch-scars is their spiral disposition on the surface of the pith-cast. The internodes are fairly uniform in length, and there is no periodic recurrence of narrower internodes as in Calamitina. From an examination of specimens of Eucalamites in which the pith-cast is covered with a coaly layer representing the carbonised remains of the wood and cortex, it would appear that the surface of the stems was practically smooth. The coaly investment on Eucalamites casts varies considerably in thickness[814]; it is very unsafe to make use of the thickness of this layer as a test of the breadth of the wood in Calamitean stems. The branch-scars as seen in a surface-view of a stem are situated a little above the nodal lines, while depressions on the pith-casts occur in the slight nodal constriction or immediately above it. Small leaf-scars have been described as occurring on the nodes between the branch-scars in specimens showing the surface features[815].

The species long known as Calamites cruciatus Sternb. is usually taken as the type of the sub-genus Eucalamites. Weiss[816] has subdivided this species into several ‘forms,’ which he bases on the number of branch-scars on each node and on other characters; a more extended subdivision of C. cruciatus has recently been made by Sterzel[817], who admits the impossibility of separating the specific forms by means of the data at our disposal, but for purposes of geological correlation he prefers to express slight differences by means of definite ‘forms’ or varieties. The more comprehensive use of the specific name cruciatus as adopted by Zeiller in his Flore de Valenciennes[818] is, I believe, the better method to adopt. The specimen shown in fig. 102 affords a good example of a typical Calamites cruciatus, it was found in the Middle Coal-Measures near Barnsley, Yorkshire.

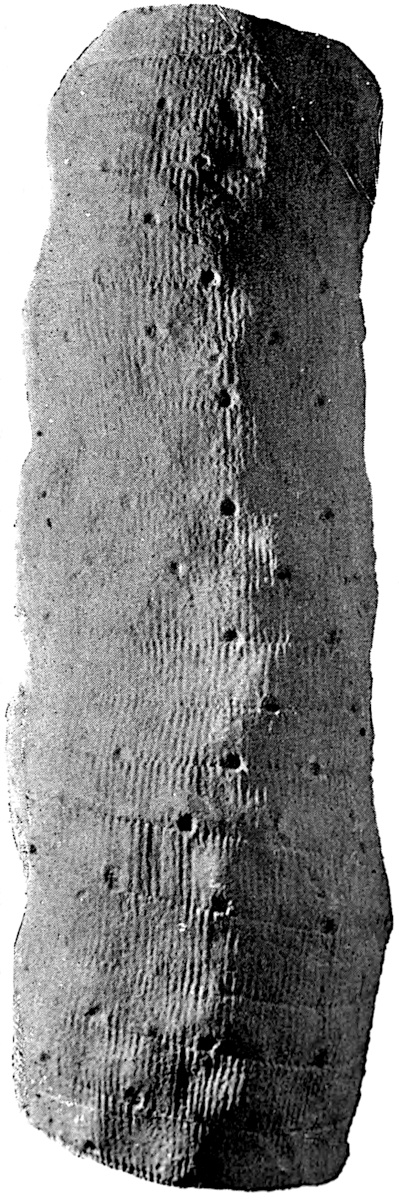

Fig. 102. Calamites (Eucalamites) cruciatus, Sternb.
From a specimen in the Barnsley Museum, Yorkshire. ½ nat. size.

This species occurs in the Upper, Middle and Lower Coal-Measures[827]. The casts of the cruciatus type have been found associated with wood possessing the structural features of the sub-genus Calamodendron[828], but our knowledge of the structure of the stem, and of the fertile branches of C. cruciatus is very imperfect. A restoration of Calamites (Eucalamites) cruciatus is given by Stur[829] in his classic work on the Calamites, but he does not make quite clear the supposed connection with the stems and the fertile shoots of the Asterophyllites type[830] which he describes. Another member of the Eucalamites group, which is better known as regards its foliage-shoots, is Calamites ramosus, a species first described by Artis[831] in 1825. Stems of this species have been found in connection with the branches and leaves of the Annularia[6] type, bearing Calamostachys[832] cones. In all probability pith-casts included in the sub-genus Eucalamites belonged to stems with foliage-shoots and probably also with cones of more than one form.

In the above account of a few common pith-casts it has been pointed out that there is occasionally satisfactory evidence for connecting certain casts with wood of a particular structure, and with sterile and fertile foliage-shoots of a definite type. It is, however, impossible in many cases to recognise with any certainty the leaf-bearing branches and strobili of the different casts of Calamites; it is equally impossible to determine what type of pith-cast or what type of foliage-shoots belongs to petrified stem-fragments in which it is possible to investigate the microscopical features. The scattered and piece-meal nature of the material on which our general knowledge of Calamitean plants is based, necessitates a system of nomenclature which is artificial and clumsy; but the apparent absurdity of attaching different names to fragments, which we believe to be portions of the same genus, is of convenience from the point of view of the geologist and the systematist. As our material increases it will be possible to further simplify the nomenclature for Calamarian plants, but it is unwise to allow our desire for a simpler terminology to lead us into proposals which are based rather on suppositions than on established fact. If it were possible to discriminate between pith-casts of stems having the different anatomical characters designated by the three sub-genera, Arthropitys, Arthrodendron and Calamodendron, the genus Calamites might be used in a much narrower and probably more natural sense than that which we have adopted. The tests made use of by some authors for separating pith-casts of Calamodendron and Arthropitys stems do not appear to be satisfactory; we want some term to apply to all Calamitean casts irrespective of the anatomical features of the stems, or of the precise nature of the foliage-branches. As used in the present chapter, Calamites stands for plants differing in certain features but possessing common structural characters, which must be defined in a broad sense so as to include types which may be worthy of generic rank, but which for convenience sake are included in a comprehensive generic name. The attempts to associate certain forms of foliage with Arthropitys on the one hand and with Calamodendron on the other, cannot be said to be entirely satisfactory; we still lack data for a trustworthy diagnosis of distinct Calamarian genera which shall include external characters as well as histological features. If we restricted the genus Calamites to stems with an Arthropitys structure and an Asterophyllitean foliage, we should be driven into unavoidable error. Within certain limits it is possible to distinguish generically or even specifically between petrified branches, and we already possess material enough for fairly complete diagnoses founded on internal structure; but it is not possible to make a parallel classification for pith-casts and foliage-shoots. For this reason, and especially bearing in mind the importance of naming isolated foliage-shoots and stem-casts for geological purposes, I believe it is better to admit the artificially wide application of the name Calamites, and to express more accurate knowledge, where possible, by the addition of a subgeneric term. In dealing with distinctions exhibited by Calamitean stems it may be advisable to make use of specific names, but we must keep before us the probability of the pith-cast and petrified stem-fragment of the same plant receiving different specific names. If the structural type is designated by a special sub-genus, this will tend to minimise the anomaly of using more than one binominal designation for what may be the same individual.

The following summary may serve to bring together the different generic and subgeneric terms which have been used in the foregoing account of Calamites.

IV. Conclusion.

A brief sketch of the main features of Calamites suffices to bring out the many points of agreement between the arborescent Calamite plants and the recent Equisetums. The slight variation in morphological character among the present-day Horse-tails, contrasts with the greater range as regards structural features among the types included in Calamites. The Horse-tails probably represent one of several lines of development which tend to converge in the Palaeozoic period; the Calamite itself would appear to mark the culminating point of a certain phylum of which we have one degenerate but closely allied descendant in the genus Equisetum. We shall, however, be in a better position to consider the general question of plant-evolution after we have made ourselves familiar with other types of Palaeozoic plants. Grand’Eury’s[833] striking descriptions of forests of Calamites in the Coal-Measures of central France, enable us to form some idea of the habit of growth of these plants with their stout branching rhizomes and erect aerial shoots.

By piecing together the evidence derived from different sources we may form some idea of the appearance of a living Calamite. A stout branching rhizome ascended obliquely or spread horizontally through sand or clay, with numerous whorls or tufts of roots penetrating into swampy soil. From the underground rhizome strong erect branches grew up as columnar stems to a height of fifty feet or more; in the lower and thicker portions the bark was fissured and somewhat rugged, but smoother nearer the summit. Looking up the stem we should see old and partially obliterated scars marking the position of a ring of lateral branches, and at a higher level tiers of branches given off at regular or gradually decreasing intervals, bearing on their upper portions graceful green branchlets with whorls of narrow linear leaves. On the younger parts of the main shoot rings of long and narrow leaves were borne at short intervals, several leaf-circles succeeding one another in the intervals between each radiating series of branches. On some of the leaf-bearing branchlets long and slender cones would be found here and there taking the place of the ordinary leafy twigs. Passing to the apical region of the stem the lateral branches given off at a less and less angle would appear more crowded, and at the actual tips there would be a crowded succession of leaf-segments forming a series of overlapping circles of narrow sheaths with thin slender teeth bending over the apex of the tree.

Thus we may feebly attempt to picture to ourselves one of the many types of Calamite trees in a Palaeozoic forest, growing in a swampy marsh or on gently sloping ground on the shores of an inland sea, into which running water carried its burden of sand and mud, and broken twigs of Calamites and other trees which contributed to the Coal Period sediments. The large proportions of a Calamite tree are strikingly illustrated by some of the broad and long pith-casts occasionally seen in Museums; in the Breslau Collection there is a cast of a stem belonging to the sub-genus Calamitina, which measures about 2 m. in length and 23 cm. in breadth, with 36 nodes. In the Natural History Museum, Paris, there is a cast nearly 2 metres long and more than 20 cm. wide, which is referred to the sub-genus Calamodendron.

In the Upper Devonian and Culm rocks casts of a well-defined Calamitean plant are characteristic fossils; stems, leaf-bearing branches, roots and cones have been described by several authors, and the genus Archaeocalamites has been instituted for their reception. Although this genus agrees in certain respects with Calamites, and as recent work has shown this agreement extends to internal structure, it has been the custom to regard the Lower Carboniferous and Devonian plants as genetically distinct. The surface features of the stem-casts, the form of the leaves, and apparently the cones, possess certain distinctive characters which would seem to justify the retention of a separate generic designation.

We may briefly summarise the characteristics of the genus as follows:—

Pith-casts articulated, with very slightly constricted nodes; the internodes traversed by longitudinal ribs slightly elevated or almost flat, separated by shallow grooves. The ribs and grooves are continuous from one internode to another, and do not usually show the characteristic alternation of Calamites[834]. Along the nodal line there are occasionally found short longitudinal depressions, probably marking the points of origin of outgoing bundles. Branches were given off from the nodes without any regular order; a pith-cast may have branch-scars on many of the nodes, or there may be no trace of branches on casts consisting of several nodes. The leaves[835] are in whorls; in some cases they occur as free, linear, lanceolate leaves, or on younger branches they are long, filiform and repeatedly forked. The structure of the wood agrees with that of some forms of Arthropitys. The strobili consist of an articulated axis bearing whorls of sporangiophores, and each sporangiophore has four sporangia. Our knowledge of the fertile shoots is, however, very imperfect.

Renault[836] has recently described the structure of the wood in some small silicified stems of Archaeocalamites from Autun. A large hollow pith is surrounded by a cylinder of wood consisting of wedge-shaped groups of xylem tracheids associated with secondary medullary rays; at the apex of each primary xylem group there is a carinal canal. The primary medullary rays appear to have been bridged across by bands of xylem at an early stage of secondary thickening, as in the Calamite of fig. 83, D.

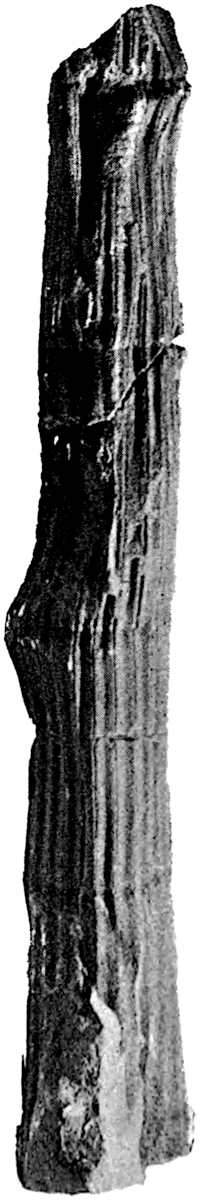

Fig. 103. Archaeocalamites scrobiculatus (Schloth.).
From a specimen in the Woodwardian Museum, Cambridge. From the Carboniferous limestone of Northumberland. ½ nat. size.

Our knowledge of the cones of Archaeocalamites is far from satisfactory. Renault[837] has recently described a small fertile branch bearing a succession of verticils of sporangiophores; each sporangiophore stands at right angles to the axis of the cone and bears four sporangia, as in Calamostachys. It is not clear how far there is better evidence than that afforded by the association of the specimen with pith-casts of stems, for referring this cone to Archaeocalamites, but the association of vegetative and fertile shoots certainly suggests an organic connection. The cone described by the French author agrees with Equisetum in the absence of sterile bracts between the whorls of sporangiophores. It is an interesting fact that such a distinctly Equisetaceous strobilus is known to have existed in Lower Carboniferous rocks.

Stur[838] has also described Archaeocalamites at considerable length; he gives several good figures of stem-casts and foliage-shoots bearing long and often forked narrow leaves. The same writer describes specimens of imperfectly preserved cones in which portions of whorls of forked filiform leaves are given off from the base of the strobilus[839]. Kidston[840] published an important memoir on the cones of Archaeocalamites in 1883, in which he advanced good evidence in support of the view that certain strobili, which were originally described as Monocotyledonous inflorescences, under the generic name Pothocites[841], are the fertile shoots of this Calamarian genus. Kidston’s conclusions are based on the occurrence on the Pothocites cones, of leaves like those of Archaeocalamites, on the non-alternation of the sporangiophores of successive whorls, and on the close resemblance between his specimens and those described by Stur. Good specimens of the cones, formerly known as Pothocites, may be seen in the Botanical Museum in the Royal Gardens, Edinburgh; as they are in the form of casts without internal structure it is difficult to form a clear conception as to their morphological features.

The fossils included under Archaeocalamites have been referred by different authors to various genera, and considerable confusion has arisen in both generic and specific nomenclature. The following synonomy of the best known species, A. scrobiculatus (Schloth.) illustrates the unfortunate use of several terms for the same plant.

For other lists of synonyms reference may be made to Binney[851], Stur[852], Kidston[853] and other authors.

Some of the best specimens of this species are to be seen in the Museums of Breslau and Vienna, which contain the original examples described by Göppert and Stur. An examination of the original specimens, figured by Göppert under various names, enables one to refer them with confidence to the single species, Archaeocalamites scrobiculatus. The generic name Archaeocalamites, which has been employed by some authors, was suggested by Schimper[854] in 1862, as a subgenus of Calamites, on account of the occurrence of a deeply divided leaf-sheath, attached to the node of a pith-cast, which seemed to differ from the usual type of Calamitean leaf. The specimens described by Schimper are in the Strassburg Museum; the leaf-sheath which he figures is not very accurately represented.

The example given in fig. 103 shews very clearly the continuous course of the ribs and grooves of the pith-cast. Each rib is traversed by a narrow median groove which would seem to represent the projecting edge of some hard tissue in the middle of each principal medullary ray of the stem. The specimen was found in a Carboniferous limestone quarry, Northumberland; there is a similar cast from the same locality in the Museum of the Geological Survey.

This genus agrees very closely with Calamites both in the anatomical structure of the stem and in the verticillate disposition of the leaves. The strobili appear to be Equisetaceous in character, and there is no satisfactory evidence of the existence of whorls of sterile bracts in the cone, such as occur in Calamostachys and in other Calamitean strobili. The continuous course of the vascular bundles of the stem from one internode to the next is the most striking feature in the ordinary specimens of the genus; but it sometimes happens that the grooves on a pith-cast shew the same alternation at the node as in Calamites. This is the case in a specimen in the Göppert collection in the Breslau Museum, and Feistmantel[855] has called attention to such an alternation in specimens from Rothwaltersdorf. In the true Calamites, on the other hand, the usual nodal alternation of the vascular strands is by no means a constant character[856]. Stur[857], Rothpletz[858], and other authors have pointed out the resemblance of Archaeocalamites to Sphenophyllum. The deeply divided leaves of some Sphenophyllums and those of Archaeocalamites are very similar in form; and the course of the vascular strands in Sphenophyllum may be compared with that in Archaeocalamites. But the striking difference in the structure of the stele forms a wide gap between the two genera. We have evidence that the Calamites and Sphenophyllums were probably descended from a common ancestral stock, and it may be that in Archaeocalamites, some of the Sphenophyllum characters have been retained; but there is no close affinity between the two plants.

On the whole, considering the age of Archaeocalamites and the few characters with which we are acquainted, it is probable that this genus is very closely related to the typical Calamites, and may be regarded as a type which is in the direct line of development of the more modern Calamite and the living Equisetum. Weiss[859] includes Archaeocalamites as one of his subgenera with Calamitina and others, and it is quite possible that the genus has not more claim to stand alone than other forms at present included in the comprehensive genus Calamites.

The student will find detailed descriptions of this genus in the works which have been referred to in the preceding pages.

The genus Sphenophyllum is placed in a special class, as representing a type which cannot be legitimately included in any of the existing groups of Vascular Cryptogams. Although this Palaeozoic genus possesses points of contact with various living plants, it is generally admitted by palaeobotanists that it constitutes a somewhat isolated type among the Pteridophytes of the Coal-Measures. Our knowledge of the anatomy of both vegetative shoots and strobili is now fairly complete, and the facts that we possess are in favour of excluding the genus from any of the three main divisions of the Pteridophyta.

In Scheuchzer’s Herbarium Diluvianum there is a careful drawing of some fragments of slender twigs, from an English locality, bearing verticils of cuneiform leaves, which the author compares with the common Galium[860]. As regards superficial external resemblance, the Galium of our hedgerows agrees very closely with what must have been the appearance of fresh green shoots of Sphenophyllum.

A twig of the same species of Sphenophyllum is figured by Schlotheim[861] in the first part of his work on fossil plants; he regards it as probably a fragment of some species of Palm. Sternberg[862] was the first to institute a generic name for this genus of plants, and specimens were described by him in 1825 as a species of the genus Rotularia. The name Sphenophyllites was proposed by Brongniart[863] in 1822 as a substitute for Schlotheim’s genus, and in a later work[864] the French author instituted the genus Sphenophyllum. Dawson[865] was the first to make any reference to the anatomy of this genus; but it is from the examination of the much more perfect material from St. Étienne, Autun, and other continental localities, the North of England and Pettycur in Scotland, by Renault, Williamson, Zeiller and Scott, that our more complete knowledge has been acquired.

The affinity of Sphenophyllum has always been a matter of speculation; it has been compared with Dicotyledons, Palms, Conifers (Ginkgo and Phyllocladus), and various Pteridophytes, such as Ophioglossum, Tmesipteris, Marsilia, Salvinia, Equisetum and the Lycopodiaceae[866].

We may define the genus Sphenophyllum as follows:—

Stem comparatively slender (1·5–15 mm.?), articulated, usually somewhat tumid at the nodes; the surface of the internodes is marked by more or less distinct ribs and grooves which do not alternate at the nodes, but follow a straight course from one internode to the next. A single branch is occasionally given off from a node. Adventitious roots are very rarely seen, their surface does not show the ridges and grooves of the foliage-shoots.

The leaves are borne in verticils at the nodes, those in the same whorl being usually of the same size, but in some forms two of the leaves are distinctly smaller than the others. Each verticil contains normally 6, 9, 12, 18 or more leaves, which are separate to the base and not fused into a sheath; the number of leaves in a verticil is not always a multiple of six. They vary in form from cuneiform with a narrow tapered base, and a lamina traversed by several forked veins, to narrow uninerved leaves and leaves with a lamina dissected into dichotomously branched linear segments. The leaves of successive whorls are superposed.

The strobili are long and narrow in form, having a length in some cases of 12 cm., and a diameter of 12 mm.; they occur as shortly stalked lateral branches, or terminate long leaf-bearing shoots. The axis of the cone bears whorls of numerous linear lanceolate bracts fused basally into a coherent funnel-shaped disc, bearing on its upper surface sporangiophores and sporangia.

The strobili are usually isosporous, but possibly heterosporous in some forms.

The stem is monostelic, with a triarch or hexarch triangular strand of centripetally developed primary xylem, consisting of reticulate, scalariform and spiral tracheae; the protoxylem elements being situated at the blunt corners of the xylem-strand. Foliar bundles are given off, either singly or in pairs, from each angle of the central primary strand. The secondary xylem consists of radially disposed reticulate or scalariform tracheae, developed from a cambium-layer. The phloem is made up of thin-walled elements, including sieve-tubes and parenchyma. Both xylem and phloem include secondary medullary rays of parenchymatous cells. The cortex consists in part of fairly thick-walled elements; in older stems the greater part of the cortical region is cut off by the development of deep-seated layers of periderm.

The roots are apparently diarch in structure, with a lacunar and smooth cortex.

The branch of Sphenophyllum emarginatum Brongn. given in fig. 109 shows the characteristic appearance of the genus as represented by this well-known species which Brongniart figured in 1822. The Indian species shown in fig. 111 illustrates the occurrence of unequal leaves in the same whorl, and in fig. 110, B, we have a form of verticil in which the leaves are deeply divided into filiform segments. A larger-leaved form is represented by S. Thoni, Mahr. (fig. 110, A), a species occasionally met with in Permian rocks.

No specimens of Sphenophyllum have so far been found attached to a thick stem; they always occur as slender shoots, which sometimes reach a considerable length. One of the longest examples known is in the collection of the Austrian Geological Survey; the axis is 4 mm. in breadth and 85 cm. long, bearing a slender branch 61 cm. in length. The manner of occurrence of the specimen as a curved slender stem on the surface of the rock suggests a weak plant, which must have depended for support on some external aid, either water or another plant. The anatomical structure and other features do not favour the suggestion of some writers that Sphenophyllum was a water-plant[867], but there would seem to be no serious obstacle in the way of regarding it as possibly a slender plant which flung itself on the branches and stems of stronger forest trees for support.

The following account of the structural features of the stem and root is based on the work of Renault[868], Williamson[869] and Williamson and Scott[870]. We may first consider such characters as have been recognised in different examples of the genus, and then notice briefly the distinguishing peculiarities of two well-marked specific types.

a. Stems.

i. Primary structure.

In a transverse section of a young Sphenophyllum stem such as that diagrammatically sketched in fig. 105, A, we find in the centre the xylem portion of a single stele with a characteristic triangular form. The primary xylem consists mainly of fairly large tracheae with numerous pits on their walls; towards the end of each arm the tracheids become scalariform, and at the apex there is a group of narrower spiral protoxylem elements. In the British species there is a single protoxylem group at the apex of each arm, but Renault has described some French stems in which the stele appears to be hexarch, having two protoxylem groups at the end of each of the three rays of the stele. The primary xylem strand of Sphenophyllum has therefore a root-like structure, the tracheids having been developed centripetally from the three initial protoxylem groups. This type of structure is typical of roots, but it also occurs in the stems of some recent Vascular Cryptogams.

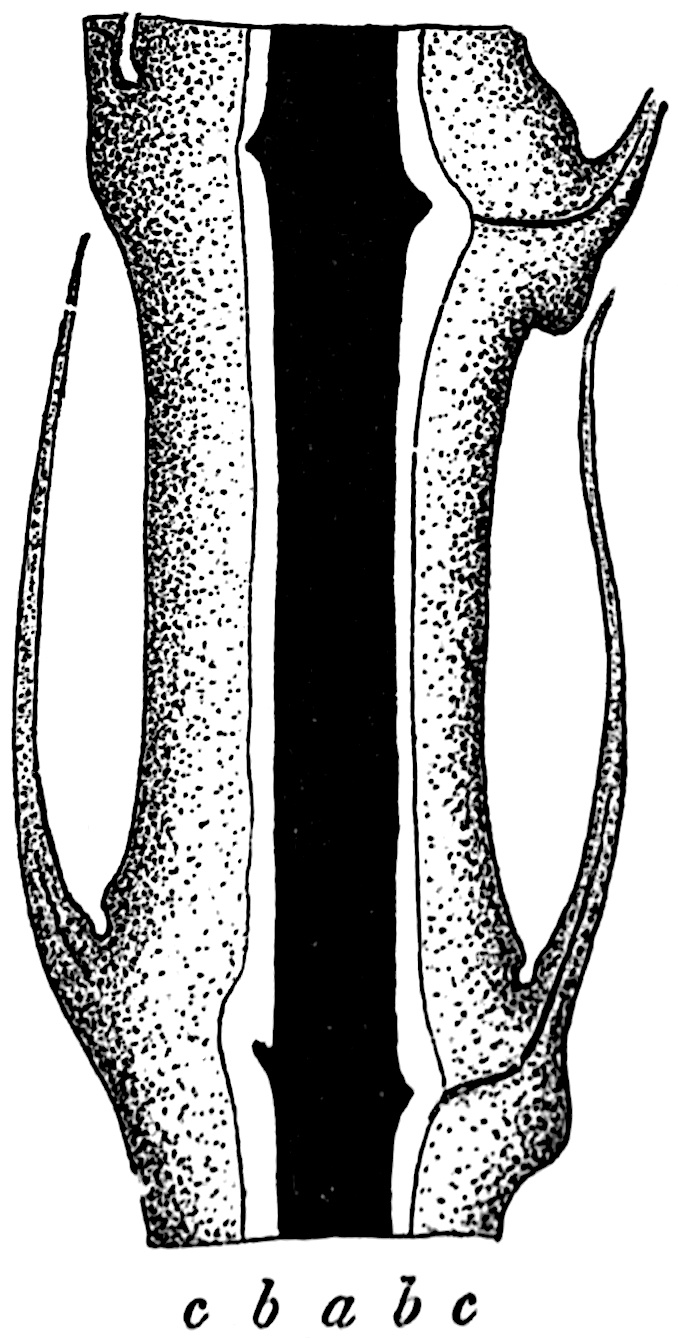

Fig. 104. Diagrammatic longitudinal section of Sphenophyllum.
c, outer cortex; b, space next the stele, originally occupied by phloem etc.; a, xylem strand. (After Renault[871].) × 7.

As a rule the tissue next the xylem has not been petrified, but in exceptionally well-preserved examples it is seen to consist of a band of thin-walled elements, of which those in contact with the xylem may be spoken of as phloem, and those beyond as the pericycle. Succeeding this band of delicate tissue there is a broader band of thicker-walled and somewhat elongated elements, constituting the cortex. The specimen drawn in fig. 105, A, shows very prominent grooves in the cortex opposite the middle of each bay of the primary wood. It is these grooves that give to the ordinary casts of Sphenophyllum branches the appearance of longitudinal lines traversing each internode. In a longitudinal section of a stem, the cortical tissue (fig. 104, c) is found to be broader in the nodal regions, thus giving rise to the tumid nodes referred to in the diagnosis. The increased breadth at the nodes does not mean that the xylem is broader in these regions, as it is in Calamite stems. Small strands of vascular tissue are given off from the three edges of the triangular stele (fig. 105 A) at each node; these branch in passing through the cortex on their way to the verticils of leaves. The space b in the diagrammatic section of fig. 104 was originally occupied by the phloem and inner cortex. In some species of Sphenophyllum the apex of each arm of the xylem strand, as seen in transverse section, is occupied by a longitudinal canal surrounded by spiral tracheids, as in the primary xylem of the old stem shown in fig. 105, C.

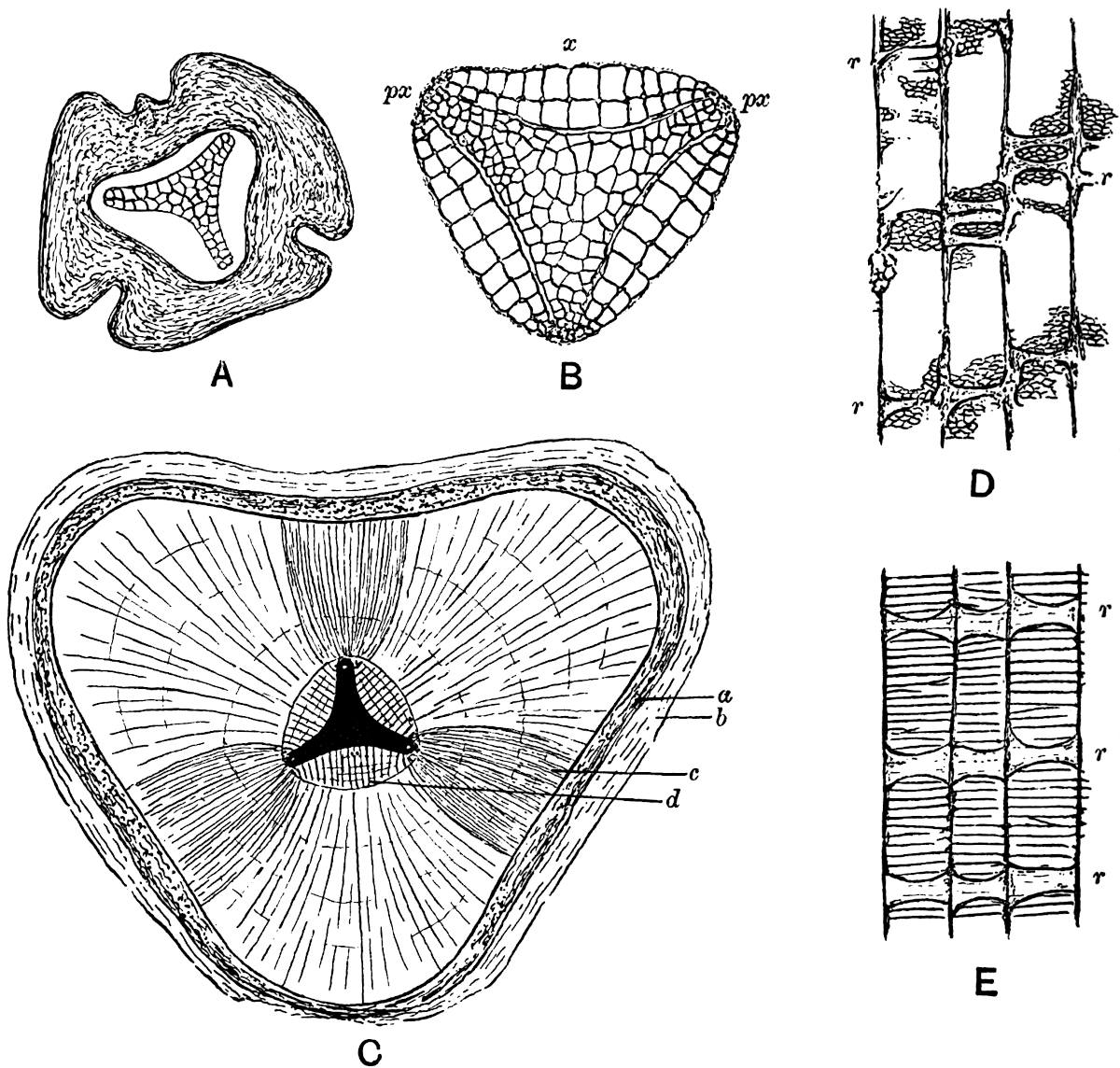

Fig. 105. Sphenophyllum.

1. Transverse section of young stem.
2. Transverse section of the wood of a young stem; px, protoxylem; x, secondary xylem. (A and B. Sphenophyllum plurifoliatum.) × 20.
3. Transverse section of an old stem; (S. insigne); a, phloem; b, periderm; c, fascicular secondary xylem; d, interfascicular secondary xylem. × 9. (No. 914 in the Williamson Collection.)
4. Longitudinal section of the reticulate tracheae and medullary rays; r, r, r, of S. plurifoliatum. × 36.
5. Similar section of S. insigne. × 75. (D and E after Williamson and Scott.)

ii. Secondary structure.

With the exception of very young twigs the petrified Sphenophyllum stems usually show a greater or less development of secondary wood. In the xylem-strand of fig. 105, B, the broad concave bays of the primary wood have been filled in by the development of two rows of large secondary tracheids, x, but opposite the protoxylem groups, px, there are no signs of cambial activity. In the unusually large stem represented by a rough sketch in fig. 105, C, the triangular primary xylem lies in the centre of a thick mass of secondary vascular tissue. The secondary and primary wood together have a diameter of about 5 mm.

After the bays between each protoxylem corner have been filled in, the formation of secondary wood proceeds uniformly along the stem radii, but the rows of tracheids and medullary rays which are developed opposite the corners of the primary strand, c, differ in certain characters from the broader masses of wood opposite the bays. For convenience, the secondary wood, c, opposite the protoxylem groups has been spoken of as fascicular wood, and the rest, d, as interfascicular wood.

The secondary xylem consists either of tracheae with numerous bordered pits on their radial walls (fig. 105, D), or of tracheae with broad and bordered scalariform pits (fig. 105, E). The suggestion of concentric rings of growth in the wood in fig. 105, C, is rather deceptive; there are no well-marked regular rings in Sphenophyllum stems, but irregular bands of smaller elements occasionally interrupt the uniformity of the secondary xylem. In some stems the medullary rays have the form of rows of parenchymatous cells, which in tangential longitudinal section are found to consist frequently of a single row of radially disposed elements; this type of medullary rays occurs in the species Sphenophyllum insigne, in which the tracheae are scalariform. Three medullary rays, r, are seen on the radial face of the scalariform tracheids in fig. 105, E, which represents a radial section of this species. In other species, e.g. S. plurifoliatum, the medullary rays have a peculiar and characteristic structure; in a transverse section of the stem they appear as groups of a few parenchymatous cells in the spaces between the truncated angles of the large tracheae (fig. 106). In longitudinal section these medullary-ray elements resemble thick bars stretching radially across the face of the tracheae (fig. 105, D, r); the apparent septa or bars are however thin-walled cells connecting the different groups of medullary-ray cells, as seen in a transverse section. These radial connecting cells are occasionally seen as short rays in transverse sections of stems.

The cambium and phloem elements are occasionally preserved in good specimens of older stems; the former consist of tabular flatted thin-walled cells, and the latter in some cases include large sieve-tubes and narrower parenchymatous elements.

The sections shown in fig. 107, E and F, illustrate the preservation of cambial and phloem tissue. In the transverse section of fig. 107, F, the secondary xylem with the medullary rays, r, is succeeded by a few tabular cambium cells, and external to these there are thin-walled elements of unequal size representing the phloem. In fig. 107, E, the scalariform tracheids are succeeded by narrow thin-walled cells, and the larger elements with transverse and oblique septa are no doubt sieve-tubes.

In the large stem of fig. 105, C, the xylem is succeeded by a band of tissue, a, which is no doubt phloem, and external to this there is a considerable development of periderm (b). The periderm in Sphenophyllum stems had a deep-seated origin, the phellogen or cork-cambium occasionally being formed in the secondary phloem-parenchyma, and in other cases in the pericycle, as in the stems of some living dicotyledons. Williamson and Scott[872] describe stems in which a succession of phellogens were formed at different levels, thus producing a scaly type of bark, such as we find in the Pine or the Plane tree.

Before describing the structure of the strobili of Sphenophyllum, we may briefly point out the distinguishing features of two specific types of the genus recently described by Williamson and Scott. One of these species, S. insigne, was originally described by Williamson as an Asterophyllites; the numerous narrow linear leaves in each verticil led to the inclusion of the specimens in the latter genus. The material on which this species is founded is from the volcanic beds of Pettycur, Burntisland, on the coast of the Firth of Forth.

An intercellular space occurs at each angle of the three-rayed primary xylem strand, and spiral tracheae are abundant. The tracheae of the secondary wood have scalariform markings on the radial walls. Regular medullary rays extend through the secondary wood. The phloem contains large sieve-tubes.

This species occurs in the Calciferous sandstone rocks of Burntisland, and has lately been recorded from Germany. It characterises a lower horizon than S. plurifoliatum (Will. and Scott).

The specific name plurifoliatum was proposed by Williamson and Scott for a type of stem originally described by Williamson[876] as an Asterophyllites, from the Coal-Measures of Oldham, Lancashire. This form of stem has not so far been connected with any of the older species founded on external characters, but it evidently bore foliage in which the leaves were deeply divided, as in Sphenophyllum trichomatosum (fig. 110, B).

Fig. 106. Sphenophyllum plurifoliatum, Will. and Scott.
From a photograph by Mr Highly from a section in the Williamson Collection (no. 899). × 27.

In this species there are no canals at the angles of the primary xylem, and there are fewer spiral tracheae than in S. insigne. The tracheae of the secondary wood have numerous small pits on the radial walls, and the medullary rays are chiefly composed of parenchymatous cells, which appear in transverse section as groups of cells between the truncated angles of the tracheae. The characters are fairly well seen in the xylem portion of a stele shown in fig. 106. The fascicular wood includes some rows of parenchymatous medullary-ray cells in addition to the characteristic groups, as seen in the figure. A slightly oblique transverse section of a stem is often convenient in the interpretation of histological features; one of the sections of S. plurifoliatum in the Williamson collection (no. 893), which has been cut somewhat obliquely, shows very clearly the differences in pitting exhibited by the different xylem elements.

b. Roots.

Our knowledge of the anatomy of Sphenophyllum roots is very limited. Renault has described a somewhat imperfect example of a silicified root from St. Étienne and Autun. The drawing in fig. 107, B, which is copied from one of Renault’s figures, shows a cylindrical mass of xylem with a small band of narrower elements occupying the centre, and surrounded by rows of larger secondary tracheae. The central bipolar band is described as the diarch primary xylem, around which the secondary pitted elements have been developed.

It is probable that the specimen described by Renault is a root of Sphenophyllum, but my impression gained from an examination of the section was that the diarch primary strand is not quite so clear as in the published figures. Until we possess better material we cannot attempt any very satisfactory description of the anatomical features of the roots of this genus.

A section of a Sphenophyllum stem has been figured by Felix[877], in which a lateral member is being given off; this may possibly represent the origin of an adventitious root, but the preservation is not sufficiently distinct to render this certain.

c. Leaves.

Renault[878] has described some silicified leaves of Sphenophyllum from Autun in which the laminae consist of thin-walled loose parenchyma, traversed by small groups of tracheids constituting the simple or forked veins. The epidermis is made up of a single layer of cells, with here and there indistinct indications of stomata. A more perfect stoma has, however, been described by Solms-Laubach from the epidermis of a bract in a strobilus (fig. 107, A).

Fig. 107. A. Stoma in a bract of Sphenophyllostachys. B. Root of Sphenophyllum. C. Sphenophyllostachys Römeri, Solms. s, sporangiophore, b, bract. D. Sporangium. E and F. Sections through the cambium, phloem and secondary xylem of Sphenophyllum insigne (Will.). s, sieve-tube. G. Sporangium and pedicel. A, C, D. After Solms-Laubach. B. After Renault. E–G. After Williamson and Scott. E. F. × 100. G. × 115.

d. Cones.

The history of the recognition of the cones of Sphenophyllum has already been briefly alluded to in chapter V., p. 100. The main points in the structure of the cones of this genus were known for several years, before the fact was established that they belonged to Sphenophyllum stems. In 1871 Williamson[879] published an account of an imperfect fossil strobilus from the Lower Coal-Measures of Oldham, Lancashire, under the name of Volkmannia Dawsoni. The generic term Volkmannia has been used by different writers for cones varying considerably in structural features; in the case of Williamson’s fossil, Weiss[880] substituted the name Bowmanites, a genus instituted by Binney[881] for a strobilus apparently of the same type as Volkmannia Dawsoni. In 1891 Williamson[882] described some additional specimens of Bowmanites Dawsoni, and, as in his earlier paper, he compared the strobilus with Asterophyllites and Sphenophyllum, but it was still a matter of speculation as to what was the form of the vegetative branches. Soon after the more complete account of the English cones was published, Zeiller[883] recognised a close agreement between some French and Belgian specimens of Sphenophyllum strobili and the strobilus described by Williamson. A closer comparison thoroughly established the connection between Bowmanites Dawsoni and Sphenophyllum; and there is little doubt that this strobilus belongs to the stem known as Sphenophyllum cuneifolium (Sternb.)—a well-known species of the genus.

The most important morphological features of the strobilus of Sphenophyllum may best be illustrated by a detailed account of one specific type, and by a brief reference to other forms which are characterised by certain differences in the number and attachment of the sporangia. When we know that a given strobilus must have grown on a Sphenophyllum stem, the obvious name to assign to it would seem to be that of the plant which bore it; but there are advantages in making use of special generic terms for detached cones, which cannot be referred with certainty to a particular species of stem. The genus Calamostachys affords an example of a name which is intended to denote that a cone so called belongs to a Calamarian plant; similarly such a name as Sphenophyllostachys may be used for Sphenophylloid cones which cannot be connected with certainty to particular species of Sphenophyllum. It has been suggested that the genus Bowmanites, first used for a cone which was afterwards recognised as belonging to a Sphenophyllum, should be employed instead of the sesquipedalian term Sphenophyllostachys. The latter is used here as being in accordance with a generally accepted and convenient system of nomenclature, and as a name which at once denotes the fact that the fossil is not only a cone but that it belongs to a Sphenophyllum.

Fig. 108. Diagrammatic longitudinal section of a Sphenophyllum strobilus.
The upper figure represents a portion of a whorl of bracts. (The smaller figure, after Zeiller.)

The cone consists of a central axis bearing a number of verticils of bracts coherent in their lower portions in the form of a widely open funnel-shaped disc, which splits up peripherally into 14–20 linear-lanceolate segments. The free segments of each verticil have an obliquely ascending or almost vertical position, and extend upwards for a distance of about six internodes. The smaller drawing in fig. 108 shows the appearance in side view of the narrow bracts of a single whorl. A transverse section of a strobilus would include, therefore, sections of several concentric series of ascending bracts. The verticils of Sphenophyllostachys Dawsoni are probably superposed, but this point has not been definitely settled. From the upper surface of the coherent basal portion of each verticil, there are given off twice as many sporangiophores as there are free segments, and these are attached close to the line of junction of the axis of the cone and the funnel-shaped disc. Each sporangiophore has the form of a slender stalk which bends inwards at its distal end and bears a single sporangium (cf. fig. 107, D). The sporangiophores given off from the same verticil of bracts vary in length. All the sporangiophores are attached to the coherent bracts at the same distance from the axis of the cone; but as the sporangia between each verticil of bracts are arranged in two or three concentric series, it follows that the length of the sporangiophores varies considerably. The diagrammatic longitudinal section of a strobilus in fig. 108 shows three concentric series of sporangia between successive bract-verticils. A similar diagram was published by Williamson in 1892[884], and afterwards copied by Potonié[885], but in Williamson’s restoration the sporangiophores of the three series of sporangia are erroneously represented as arising from different points on the surface of the bracts. There is little doubt, as regards the strobilus of S. cuneifolium, that the sporangiophores were given off in a single series close to the axils of the bracts, as is partially shown in fig. 108.

The central part of the axis of the cone is occupied by a single triangular stele like that of the stem, except that each ray of the xylem strand has a comparatively broad blunt termination, and is not tapered to a narrow arm as in fig. 105, A and B. The wood consists of pitted tracheae, with two groups of protoxylem elements at each of the truncated angles of the solid strand of xylem. From the angles of the stele branches of vascular tissue pass out through the cortex to supply the sterile and fertile segments of each verticil. One of the transverse sections of the Sphenophyllum cone in the British Museum Collection (no. 1898 E) affords a good example of the misleading appearance occasionally presented by an intruded ‘rootlet’ of Stigmaria; the vascular tissue of the cone has disappeared, and a Stigmarian appendage with its vascular bundle occupies the position of the stelar tissues.

The bracts consist of parenchymatous tissue limited externally by an epidermis containing stomata. A single stoma with subsidiary cells is represented in fig. 107, A. The sporangiophores are composed internally of thin-walled cells with stronger cells towards the surface. The longer sporangiophores in a series may be more or less coherent for part of their length to the upper surface of the verticil of bracts. In fig. 108 the slender sporangiophores do not appear to come off always from the same portion of the bracts, but this is due to some of them lying on the surface of the latter during part of their course to support the external circle of sporangia. The hook-like distal end of a sporangiophore, towards the point of attachment of the sporangium, is characterised by the larger size and greater prominence of the surface cells; these larger cells, which pass over the upper surface of a sporangium base, probably constitute a kind of annulus which determines the dehiscence of the sporangial wall[886].

Fig. 107, G, represents a sporangiophore and its sporangium cut through transversely just below the point of attachment of the latter to the end of the hook-like termination of the former. The spores are characterised by an irregularly reticulate thickening of the outer coat or exospore, as seen in the figure.

One of the chief points of interest suggested by a Sphenophyllum cone is the exact morphological nature of the sporangiophores. Are they branches borne in the axils of bracts, or may we regard each sporangiophore as a modified leaf, which has become coherent with the whorls of sterile leaves? Or is a sporangiophore merely a stalk of a sporangium; or a ventral lobe of a leaf, of which the sterile bracts represent the dorsal lobes? Although it is impossible without the evidence of development to decide with certainty between these alternatives, it would seem most probable that a sporangiophore may be looked upon as a ventral lobe of a leaf, the sterile lobes forming the bracts or members of the sterile whorls of the cone. This question is discussed by Zeiller[887] and Williamson and Scott[888], also more recently by Scott[889] in his memoir on Cheirostrobus.

In another type of Sphenophyllum strobilus, recently described by Solms-Laubach, the incurved end of each sporangiophore bore two sporangia. In most respects this species, which has not been found in connection with a vegetative shoot, agrees with Sphenophyllostachys Dawsoni.

In fig. 107, C, which is copied from one of Solms-Laubach’s drawings[891], we have an oblique transverse section of part of a strobilus, including portions of two series of sporangia borne on one verticil of bracts, and at the right-hand edge the section has passed through the sporangia belonging to another whorl of bracts. There were probably three concentric series of sporangia attached to each verticil of bracts, as in the case of fig. 108. The unshaded area, b (fig. 107, C), represents the bracts of two successive sterile whorls in transverse section. The shaded areas are the sporangia, with their sporangiophores, s. The relative position of the sporangia and sporangiophores suggests that each pedicel bore two sporangia at its tip, instead of one, as in the strobilus of Sphenophyllum cuneifolium (Sternb.).

A further variation in the structure of the strobili is illustrated by some specimens of S. trichomatosum Stur, described by Kidston[892], from the Coal-Measures of Barnsley. Each whorl of bracts bears a single series of oval sporangia which appear to be sessile on the basal portion of the whorl. It is possible that delicate sporangiophores may have been present, but in the imperfect examples in Kidston’s collection[893] the sporangia present the appearance of being seated directly on the surface of the bracts. As the specimens do not show any internal structure, it would be unwise to lay too much stress on the apparent absence of the characteristic sporangiophores. In any case, Kidston’s cones afford an illustration of the occurrence of a single series of sporangia in each whorl, instead of the pluriseriate manner of occurrence in some other species.

The statement is occasionally met with that some Sphenophyllum cones possessed two kinds of spores, but we are still in want of satisfactory evidence that this was really the case. Renault has described an imperfect specimen, which he considers points to the heterosporous nature of a Sphenophyllum cone, but Zeiller and Williamson and Scott have expressed doubts as to the correctness of Renault’s conclusions. While admitting the possibility of undoubted heterosporous strobili being discovered, we are not in a position to refer to Sphenophyllum as having borne strobili containing two kinds of spores[894].

[The following are some of the specimens in the Williamson Cabinet which illustrate the structure of Sphenophyllum:—

Fig. 109. Sphenophyllum emarginatum (Brongniart).
From a specimen in the Collection of Mr R. Kidston, Upper Coal-Measures, Radstock. ⅚ nat. size.

This species of Sphenophyllum bears verticils of six or eight wedge-shaped leaves varying in breadth and in the extent of dissection of the laminae; they are truncated distally, and terminate in a margin characterised by blunt or obtusely-rounded teeth, each of which receives a single vein. The larger leaves are usually more or less deeply divided by a median slit. The narrow base of each leaf receives a single vein which branches repeatedly in a dichotomous manner in the substance of the lamina. Several drawings have been given by Sterzel[899] in a memoir on Permian plants, showing the variation in leaf-form in Sphenophyllum emarginatum, but as Kidston[900] and Zeiller[901] have pointed out Sterzel’s specimens probably belong to S. cuneifolium (Sternb.).

Branches are given off singly from the nodes, and the cones are borne at the tips of branches or branchlets. The cone of S. emarginatum agrees very closely with that of S. cuneifolium, and is of the same type as that shown in fig. 108. The small branch of S. emarginatum represented in fig. 109 does not show clearly the detailed characters of the species, as the leaf-margins are not well preserved.

In one of the largest specimens of this species which I have seen, in the Leipzig Museum, the main stem has internodes of about 3·9 cm. in length, from which a lateral branch with much shorter internodes is given off from a node.

It is important to notice the close resemblance, as pointed out by Zeiller, between some of the narrower-leaved forms of S. emarginatum and S. cuneifolium (Sternb.)[902]; but in the latter species the margins of the leaves have sharp, and not blunt teeth.

The cone described and figured by Weiss[903] as Bowmanites germanicus, since investigated by Solms-Laubach[904], must be referred to this species. Geinitz[905] figured a cone in 1855 as that of S. emarginatum, but his determination of the species is a little doubtful. Good figures of the true cone of S. emarginatum have been given by Zeiller[906] in his Flore de Valenciennes, as well as in his important memoir on the fructification of Sphenophyllum.

The finely-divided leaves of the single whorl shown in fig. 110, B (from the Middle Coal-Measures of Barnsley, Yorkshire), afford an example of a form of Sphenophyllum which is represented by such species as S. tenerrimum Ett.[907], S. trichomatosum Stur[908], and S. myriophyllum[909] Crép. Probably the specimen should be referred to S. trichomatosum, but it is almost impossible to speak with certainty as to the specific value of an isolated leaf-whorl of this form. It has long been known that the leaves of Sphenophyllum may vary considerably, as regards the size of the segments, on the same plant; and the occurrence of such finely-divided leaves has lent support to an opinion which was formerly held by some writers, that Asterophyllites and Sphenophyllum could not be regarded as well-defined separate genera. This heterophylly of Sphenophyllum has thus been responsible for certain mistaken opinions both as to the relation of the genus to Calamocladus[910] (Asterophyllites), and as regards the view that the finely-divided laminae belonged to submerged leaf-whorls, while the broader segments were those of floating or subaerial whorls.

There is a very close resemblance between some of the deeply-cut and linear segments of a Sphenophyllum and the leaves of Calamocladus, but in the former genus the linear segments are found to be connected basally into a narrow common sheath. The assertion[911] that the deeply-cut leaves occur on the lower portions of stems is not supported by the facts. Kidston[912] has pointed out that the cones are often borne on branches with such leaves, and the same author refers to a figure by Germar, in which entire and much-divided leaves occur mixed together in the same individual specimen. M. Zeiller recently pointed out to me a similar irregular association of broader and narrower leaf-segments on the same shoots in some large specimens in the École des Mines, Paris. Cones of Sphenophyllum tenerrimum have been figured by Stur[913] and others; they are characterised by their small size and by the dissection of the slender free portions of the narrow bracts[914].
