The same general principle is involved in nearly all flytraps in use,
though superficially they may appear quite different. The flies are
attracted into a cage, as it were, by going through a passage the
entrance of which is large and the exit small, so that there is little
chance of the flies, once in, finding their way out again. This principle

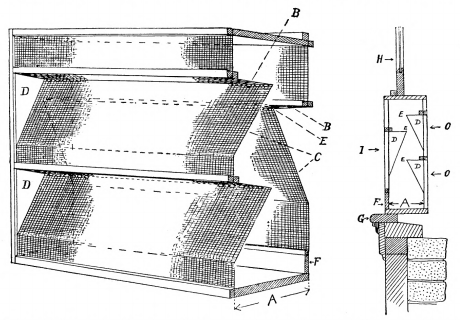

is modified to fit different conditions. For instance, the window
trap, devised by Prof. C. F. Hodge, catches the flies as they
endeavor to enter or leave a building; the garbage-can trap, for
which Prof. Hodge is also to be credited, catches the flies that have

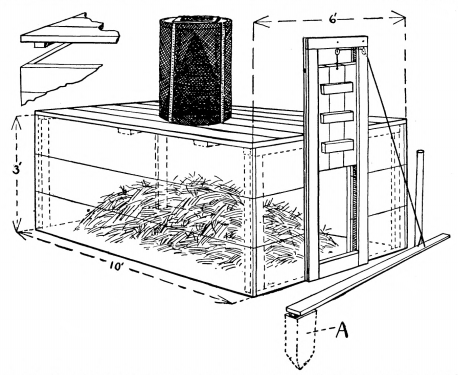

entered garbage cans; and the manure-box trap retains the flies bred
from infested manure put into the box.
The attractant used to induce flies to enter traps may consist of
(1) food, as in baited traps; (2) odors, as in window traps placed in
windows from which odors are emitted; and (3) light, as in traps
on manure boxes. Of course, light is an important factor in the success
of all traps, for, as is well known, flies have a marked tendency
to go toward the light, and they usually enter the trap by flying
toward the light after having been attracted beneath it by bait or
after entering a room in search of food.
A number of traps of this general type are on the market, but most
of these are of small size. Nearly all are constructed with a dome
instead of a cone, and on this account the catching power is reduced
about one-third. Moreover, the farmer, dairyman, or anyone with a
few tools can construct traps at a small fraction of the sale price of
ready-made ones.
A trap which appears from extensive tests made by Mr. E. W.
Laake and the author to be best for effective trapping, durability,
ease of construction and repair, and cheapness may be made as follows:

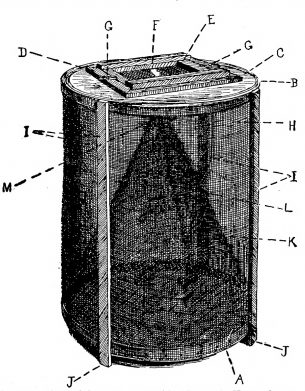

Fig. 1.—Conical hoop flytrap, side view. A, Hoops
forming frame at bottom. B, Hoops forming frame at top.
C, Top of trap made of barrel head. D, Strips around
door. E, Door frame. F, Screen on door. G, Buttons
holding door. H, Screen on outside of trap. I, Strips on
side of trap between hoops. J, Tips of these strips projecting
to form legs, K. Cone. L, United edges of screen
forming cone. M, Aperture at apex of cone.
The trap consists essentially of a screen cylinder with a frame
made of barrel hoops, in the bottom of which is inserted a screen
cone. The height of the cylinder is 24 inches, the diameter 18
inches, and the cone is
22 inches high, and 18
inches in diameter at
the base. Material
necessary for this trap
consists of four new or
secondhand wooden
barrel hoops, one barrel head, four laths,
10 feet of strips 1 to
1½ inches wide by one-half inch thick (portions of old boxes will
suffice), 61 linear
inches of 12 or 14 mesh
galvanized screening
24 inches wide for the
sides of the trap and
41 inches of screening
26 inches wide for the
cone and door, an
ounce of carpet tacks,
and two turn-buttons,
which may be made of
wood. The total cost
of the material for this
trap, if all is bought
new at retail prices, is
about $1. In practically
all cases, however, the barrel hoops, barrel head, lath, and strips
can be obtained without expense. This would reduce the cost to that
of the wire and tacks, which would be 80 cents. If a larger number
of traps are constructed at one time, the cost is considerably reduced.
One of these traps is illustrated in figures 1 and 2. In constructing
the trap two of the hoops are bent in a circle (18 inches in diameter
on the inside), and nailed together, the ends being trimmed to give
a close fit. These form the bottom of the frame (A), and the other
two, prepared in a similar way, the top (B). The top (C) of the
trap is made of an ordinary barrel head with the bevel edge sawed
off sufficiently to cause the head to fit closely in the hoops and allow
secure nailing. A square, 10 inches on the side, is cut out of the center
of the top to form a door. The portions of the top (barrel head)
are held together by inch strips (D) placed around the opening one-half
inch from the edge to form a jamb for the door. The door consists
of a narrow frame (E) covered with screen (F) well fitted to
the trap and held in place (not hinged) by buttons (G). The top
is then nailed in the upper hoops and the sides (H) formed by closely
tacking screen wire on the outside of the hoops. Four laths (I) (or
light strips) are nailed to the hoops on the outside of the trap to
act as supports between the hoops, and the ends are allowed to project
1 inch at the bottom to form legs (J). The cone (K) is cut from
the screen and either sewed with fine wire or soldered where the
edges meet at (L), or a narrow lath may be nailed along these edges.
The apex of the cone is then cut off to give an aperture (M) 1 inch
in diameter. It is then inserted in the trap and closely tacked to the
hoop around the base.

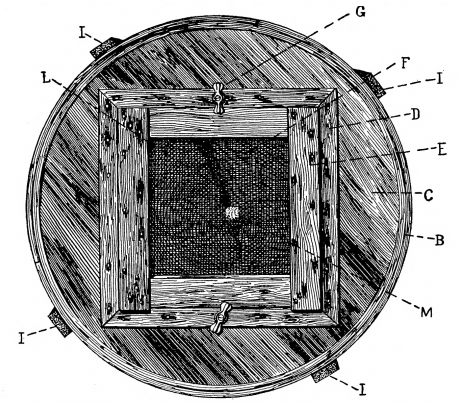

Fig. 2.—Conical hoop flytrap, top view. Letters designate parts as in figure 1.]
The construction of a cone of any given height or diameter is
quite simple if the following method be observed. It is best to cut
a pattern from a large piece of heavy paper, cardboard, or tin,
Figure 3 illustrates the method of laying out a cone of the proper
dimensions for the above trap. An ordinary square is placed on
the material from which the pattern is to be cut; a distance (22
inches) equal to the height of the cone is laid off on one leg of the
square at A, and a distance (9 inches) equal to one-half of the
diameter of the base of the cone is laid off on the other leg at B,
and a line is drawn between the points A and B. With the distance
between these points as a radius and with the point A as a center,
the portion of a circle, C D, is drawn. With a pair of dividers, the
legs of which are set 1 inch apart, or with the square, lay off as many
inches on the arc C D, starting at C, as there are inches around the
base of the cone, which in this case is about 56½ inches, reaching
nearly to the point E. Then add one-half inch for the lapping of
the edges of the cone, and one-half inch which is taken up when the
cone is tacked in, thus making a total distance from C to E of 57½
inches. Draw a line from A to C and another from A to E, and cut
out the pattern on these lines and on the arc from C to as shown
in figure 3. The edges AC and AE are then brought together, lapped
one-half inch, and sewed with wire or soldered. After the aperture
of the cone is formed by cutting off the apex, as previously described,
it is ready for insertion in the trap.

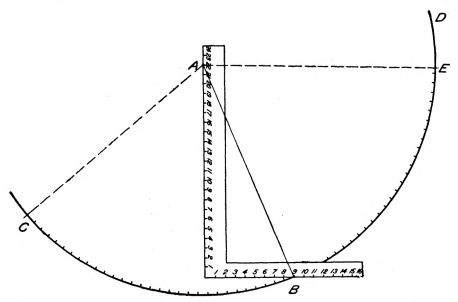

Fig. 3.—Method of laying out a pattern for the construction of a cone. Cut out on
curved line C to E and on dotted lines from A to C and A to E.
In order to figure the distance around the base of a cone of any
given diameter multiply the diameter by 3.1416 or 31⁄7.
The height of the legs of the trap, the height of the cone, and the
size of the aperture in the top of the cone, each are of importance
in securing the greatest efficiency.
A modification of the previously described trap has been made by
Mr. D. C. Parman of the Bureau of Entomology. The principal
point of advantage in this type is that it can be made more quickly
and with fewer tools. The principles and dimensions are the same,
the most striking difference being the absence of a wooden top. A
single hoop with the
thick edge down
forms the upper
frame of the cylinder
and the entire top is
made of screen. A
circular piece of
screen with a diameter
about 3 inches greater
than the diameter of
the cylinder is cut; a
hoop with a diameter
equal to the inside of
the top of the trap is
then made of heavy
wire and laid upon
the disk of screen and
the edges of the screen
bent in over it. By
folding in and crimping
the edges of the
wire over the wire
hoop it will remain in position without difficulty and the edges of the
screen disk are used to lift the top of the trap out for emptying flies. It
is important to have the screen top fit the inside of the cylinder very
snugly at all points. If there is any space left where flies can escape
it is a good plan to bind the edge of the top with a strip of burlap.
This not only helps to close the openings but keeps the hoop in place
and aids in removing the top. Another difference is that the screen
forming the sides of the cylinder is placed on the inside of the hoops
and legs, the frame being built first and then the cylinder formed by
tacking the wire on the inside of the hoops and nailing in along the
upright strips and against the wire short pieces of laths with their
upper ends against the lower edge of the hoop forming the top of
the trap and extending downward along the legs about two-thirds
of their length. These strips hold the wire in place and give
rigidity to the trap, and they are thick enough to project beyond the
inner surface of the hoop and form a support upon which the edges
of the screen top rest.
Conical traps with steel frames are satisfactory, but they are less
easily rescreened. These, of course, can be constructed only by shops
with considerable equipment. Traps constructed with a wooden disk
about the base of the cone, and a similar disk around the top to
serve as a frame, or those with a square wooden frame at the bottom
and top, with strips up the corners, are fairly satisfactory. It should
be borne in mind that the factor which determines the number of flies
caught is the diameter of the base of the cone, if other things are
equal. Therefore the space taken up by the wooden framework is
largely wasted, and if it is too wide it will have a deterrent effect on
the flies which come toward the bait. For this reason it is advisable
that the wood around the base of the cone should be as narrow as consistent
with strength—usually about 3 inches.
Under no condition should the sides or top of the trap be of solid
material, as the elimination of light from the top or sides has been
found to decrease the catch from 50 to 75 per cent.

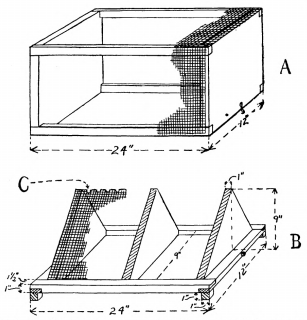

Fig. 4.—Tent flytrap. When the trap is set up the screen
box. A, fits on the base, B, and two pans of bait are
placed beneath the tent. C, Hole in screen at apex of tent.
The tent form of trap has been widely advocated in this country,
but recent experiments indicate that it is much less efficient than the
cone trap, and usually as difficult to construct and almost as expensive.
The size of these traps may vary considerably, but one constructed
according to the dimensions given in figure 4 will be found
most convenient. The height of the tent should be about equal to
the width of the base, and the holes (C) along the apex of the tent
should be one-half to three-fourths of an inch in diameter and 1
inch apart. The box (A) should be provided with hooks to pass
through the eyes on the base (B). Small blocks 1 inch thick are
nailed beneath the corners of the tent frame to serve as legs.
As previously mentioned. Prof. Hodge has adapted the cone trap
to use on the lids of garbage cans. It is not advisable to use this
trap except where garbage cans are sufficiently open to admit flies.
In such cases a hole may be cut in the lid of the can and one of the
small balloon traps which are obtainable on the market attached
over the hole. To make the trap effective the edges of this lid should
extend well down over the top of the can. The lid should be held
up slightly so as to allow the flies to pass under, but not high enough
to admit direct light. Practically speaking, the garbage forms the
bait for this trap, and when inside the can the flies are attracted to
the light admitted through the trap. It is really advisable to have the
garbage cans fly proof, so as to prevent danger of fly breeding within
them rather than to depend on traps on the lids, which necessarily
allow odors to escape. A garbage can with a trap attached is illustrated
in figure 5.
Fig. 5.—Top of garbage can with small balloon
flytrap attached.
Manure pits or boxes are desirable for the temporary storage of
manure, especially in towns and cities. These have been widely
advocated, but the difficulty has been that manure often becomes
infested before it is put into them, and flies frequently breed out
before the boxes are emptied and often escape through the cracks.
To obviate these difficulties a manure box or pit, with a modified tent
trap or cone trap attached, is desirable. Mr. Arthur Swaim, of Florida,
has devised a form of manure trap consisting of a series of screen
tents with exit holes along
the ridges of these, over
which is a screen box. The
latter retains the flies as
they pass through the holes
in the tents. The entire
trap is removable.
In order to retain the
fertilizing value of manure
to the greatest extent it is
advisable to exclude the air
from it as much as possible
and to protect it from the
leaching action of rains.
This being the case, there
is really no necessity to
cover a large portion of the
top of the box with a trap,
but merely to have holes
large enough to attract flies
to the light, and cover these holes with ordinary conical traps, with
the legs cut off, so the bottom of the trap will fit closely to the box.
The same arrangement can be made where manure is kept in a pit.
In large bins two or more holes covered with traps should be provided
for the escape of the flies.
Manure boxes should be used by all stock owners in towns and
cities, and they are also adaptable to farms. The size of the manure
bin should be governed by the individual needs, but for use on the
farm it is desirable to make it large enough to hold all of the manure
produced during the busiest season of the year. A box 14 feet long,
10 feet wide, and 4 feet deep will hold the manure produced by two
horses during about five months. About 2 cubic feet of box space
should be allowed for each horse per day. The bin should be made
of concrete or heavy plank. When the latter is used the cracks should
be battened to prevent the escape of flies. The bin may have a floor
or it may be set in the ground several inches and the dirt closely
banked around the outside. For the admission of the manure a good-sized
door should be provided in either end of a large bin. A portion
of the top should be made easily removable for convenience in emptying
the box, or one entire end of the box may be hinged. On account
of the danger of the door being left open through carelessness, it is
advisable to arrange a lift door which can be opened by placing the
foot on a treadle as the manure is shoveled in. The door should be
heavy enough to close automatically when the treadle is released. A
manure bin with flytrap attached is shown in figure 6.
Fig. 6.—Use of flytrap in connection with manure bin. A, Block of wood set in ground
to which lever raising door is hinged.
Attention is directed to a maggot trap devised by Mr. R. H.
Hutchison, as described in Farmers' Bulletin 851 of the Department
of Agriculture. Where large quantities of manure are produced on a
farm this method of storing the manure on a platform and trapping
the maggots which breed out may be more convenient than the
manure bin.
Prof. C. F. Hodge has designed a trap which is really a modified
tent trap adapted to use in a window. This trap is constructed so
as to catch the flies as they enter or leave through the window. It
is adaptable to barns which are fairly free from cracks or other places
where flies may enter. It may also be used on windows of buildings
where foodstuffs are prepared and where flies endeavor to enter
through the windows or escape after having gained entrance through
other passageways. All openings not provided with traps should be
closely screened, and on large buildings traps may be installed in
every third window.
Fig. 7.—Hodge type window trap. At left, trap with end removed to show construction;
at right, cross section of trap placed in a window. A, End of trap. B, Upper side of
folds in screen. C, Lower side of folds in screen. D, Portion of end of trap sawed out
and returned after attaching screen. E, Holes along apex of folds. F, Door for removing
dead flies. G, Window sill. H, Upper window sash. I, Inside entrance for flies.
O, Outside entrances.
This trap is essentially a screen box closely fitted to the frame of
a window (see fig. 7). The thickness of the box at A should be about
12 inches. Instead of the screen running straight down over the box
on either side it is folded inward nearly to the center of the frame
in V-shaped folds running longitudinally across the window. One,
two, or even more folds may be made in the screen on either side.
The upper side of the fold B should extend toward the center almost
at right angles with the side of the trap—that is, parallel with the
top and bottom; and the lower side C should slant downward as
shown in the drawing. The sides of the frame may be cut out at
the proper angle and the pieces D returned after the screen has been
tacked along the edges. Along the apex (inner edge) of each fold is
punched a series of holes E about one-half inch in diameter and 1 inch
apart. The apices of the folds on either side of the window should
not be directly opposite. A narrow door F opening downward on
hinges should be made on one side of the trap at the bottom for
removal of the dead flies. The entire trap is fastened to the window
by hooks so that it may be readily taken off. An additional
trapping feature may be added by providing a tent trap fitted in the
bottom of the box. A narrow slit is left along the base to allow the
flies to enter beneath the tent. Bait may be placed under the tent to
attract the flies.
It has been found that the use of these window traps will aid in
protecting animals in barns from stable flies and mosquitoes, and in
some cases horseflies and other noxious species are caught. They tend
to exclude the light, however, and are somewhat cumbersome, especially
in thin-walled buildings.
